  1. Wireless Networks: Challenges, Threats and Solutions Shehla Rana FurquanShaikh

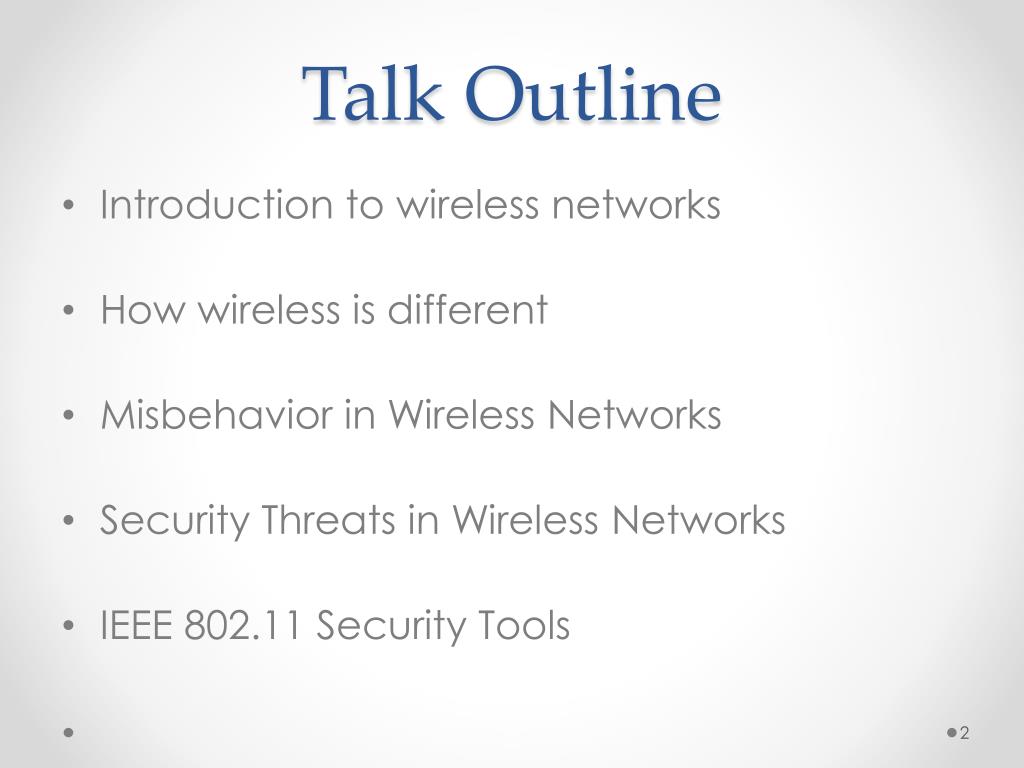

  2. Talk Outline • Introduction to wireless networks • How wireless is different • Misbehavior in Wireless Networks • Security Threats in Wireless Networks • IEEE 802.11 Security Tools

  3. Wireless Networks • Computing and communication services, over the air, on the move • Infrastructure-based Networks • Ad hoc Networks

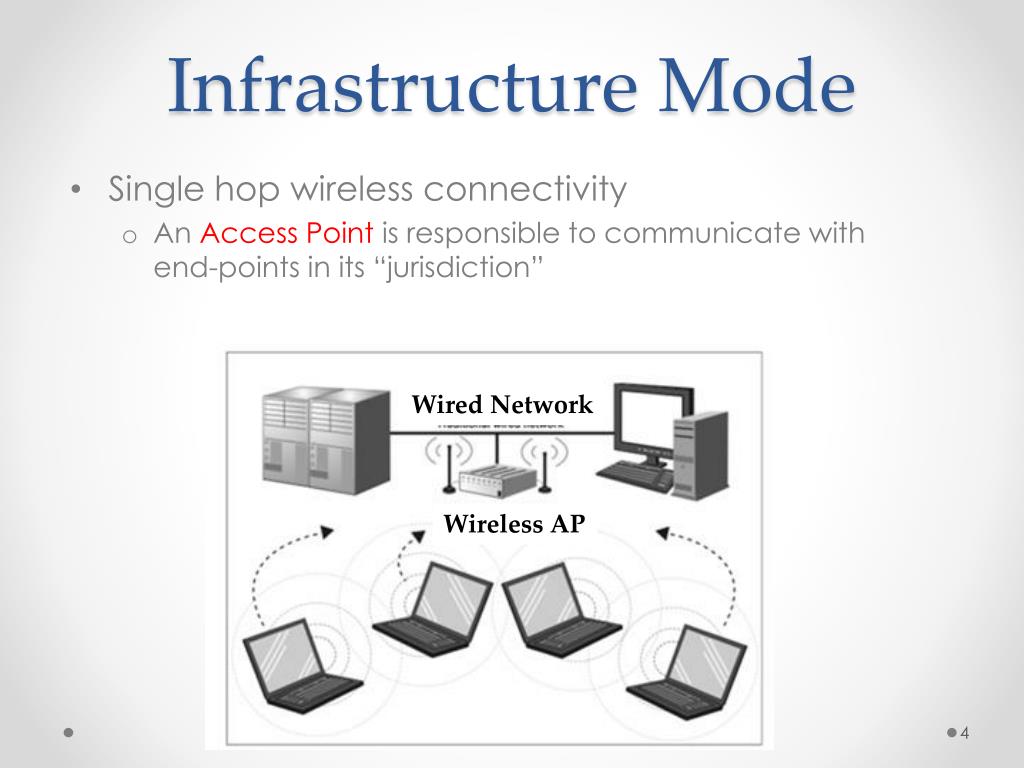

  4. Infrastructure Mode • Single hop wireless connectivity • An Access Point is responsible to communicate with end-pointsin its “jurisdiction” Wired Network Wireless AP

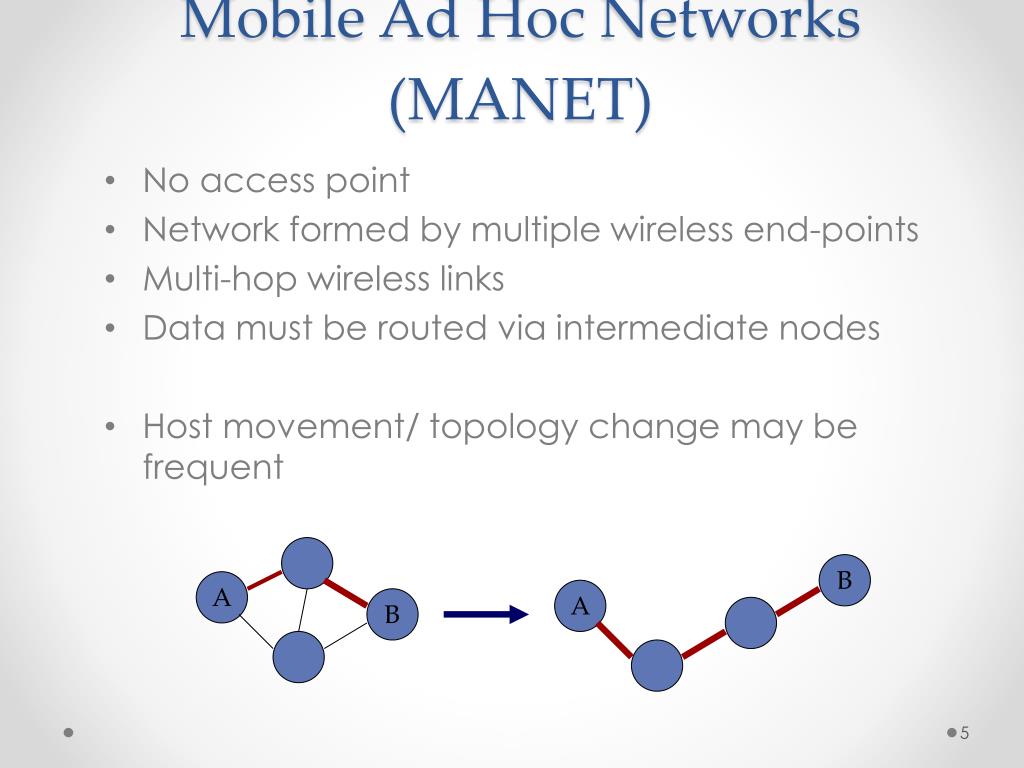

  5. Mobile Ad Hoc Networks (MANET) B A A B • No access point • Network formed by multiple wireless end-points • Multi-hop wireless links • Data must be routed via intermediate nodes • Host movement/ topology change may be frequent

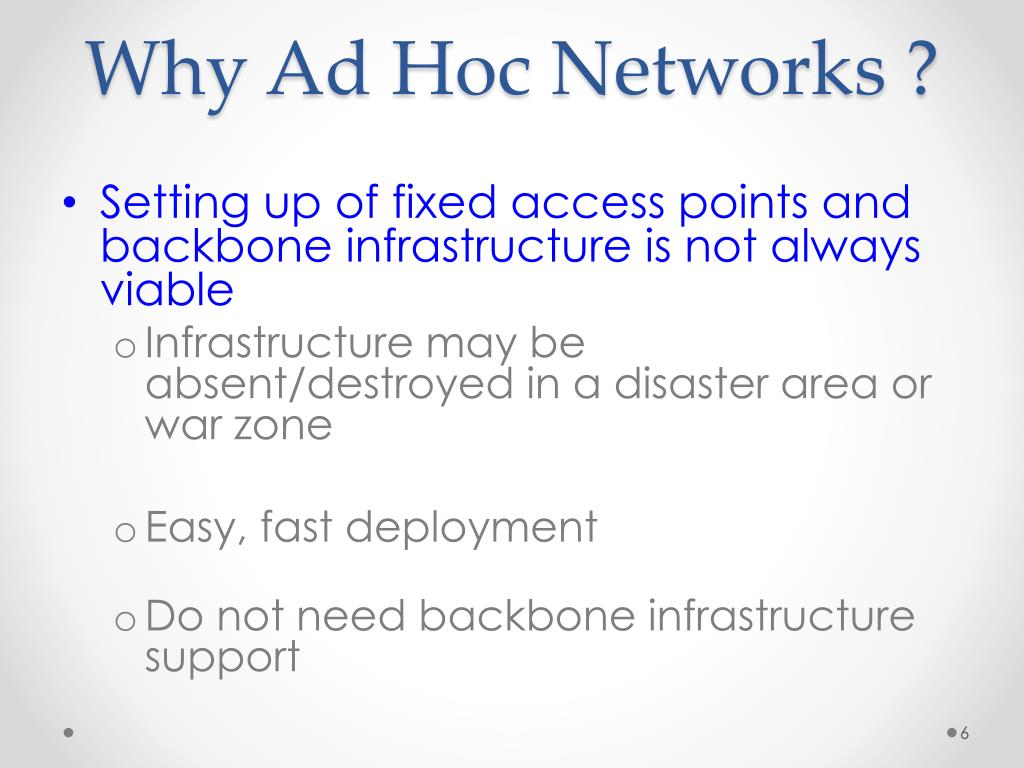

  6. Why Ad Hoc Networks ? • Setting up of fixed access points and backbone infrastructure is not always viable • Infrastructure may be absent/destroyedin a disaster area or war zone • Easy, fast deployment • Do not need backbone infrastructure support

  7. Wireless Mesh Networks (WMN) • No Access Point • Multiple, autonomous wireless end-points relaying data for each other • Little or no mobility • Long-term applications • Weaker energy constraints

  8. Wireless Sensor Networks (WSN) • A class of Ad-hoc/mesh networks • Composed of small, inexpensive, resource constrained devices • Sensing data usually directed towards a single “Sink” • Multi-hop wireless links

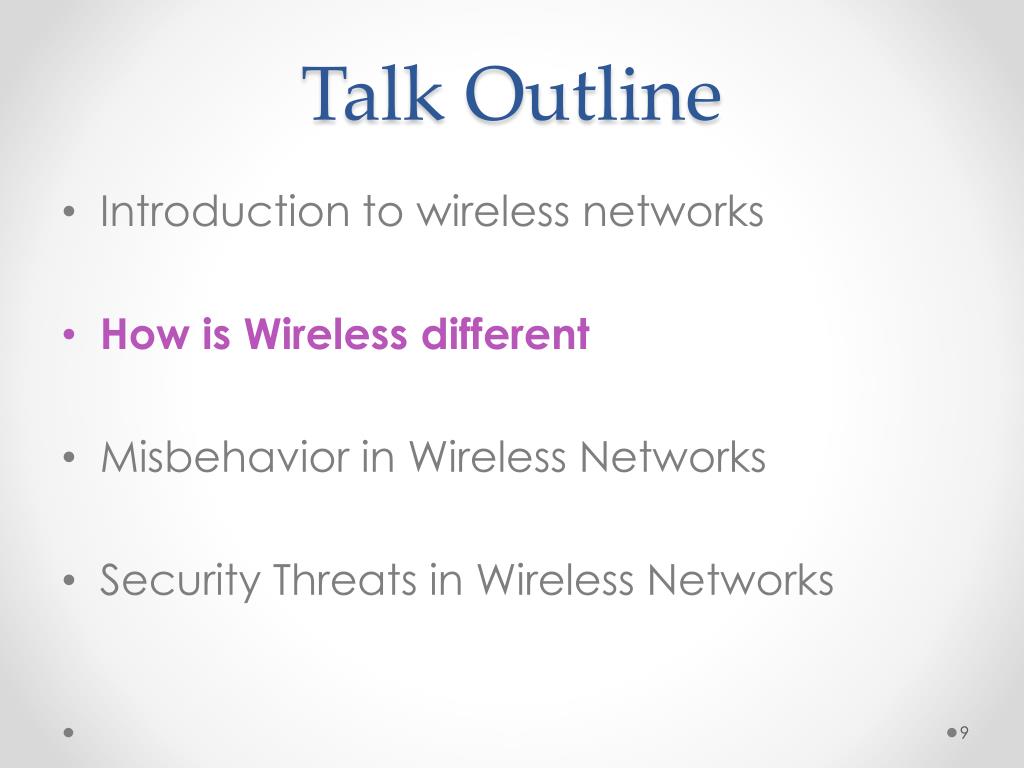

  9. Talk Outline • Introduction to wireless networks • How is Wireless different • Misbehavior in Wireless Networks • Security Threats in Wireless Networks

  10. How is wireless different? • Can we apply media access methods from fixed networks? • CSMA/CD? • Send when medium is free, listen into the medium for collision • Medium access problems in wireless networks • sender may apply CS and CD, but collisions happen at receiver • sender may not ‘hear’the collision, i.e., CD doesn’t work • CS might not work, e.g.‘hidden’ terminals

  11. MAC: Collision Avoidance • Collision avoidance: Once channel becomes idle, wait for a randomly chosen duration before attempting to transmit • IEEE 802.11 • When transmitting, choose a backoffin range [0,cw]; • Count down backoff when medium is idle • Count-down suspended if medium becomes busy • When backoff interval reaches 0, transmit

  12. Talk Outline • Introduction to wireless networks • How wireless is different • Misbehavior in Wireless Networks • Security Threats in Wireless Networks

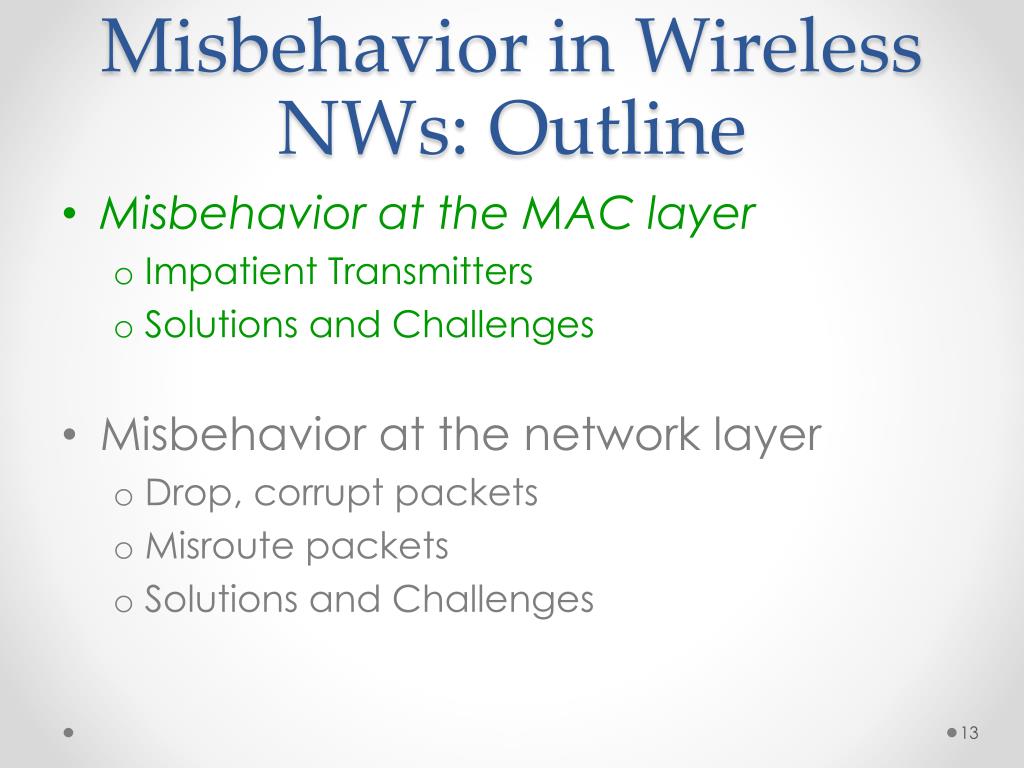

  13. Misbehavior in Wireless NWs: Outline • Misbehavior at the MAC layer • Impatient Transmitters • Solutions and Challenges • Misbehavior at the network layer • Drop, corrupt packets • Misroute packets • Solutions and Challenges

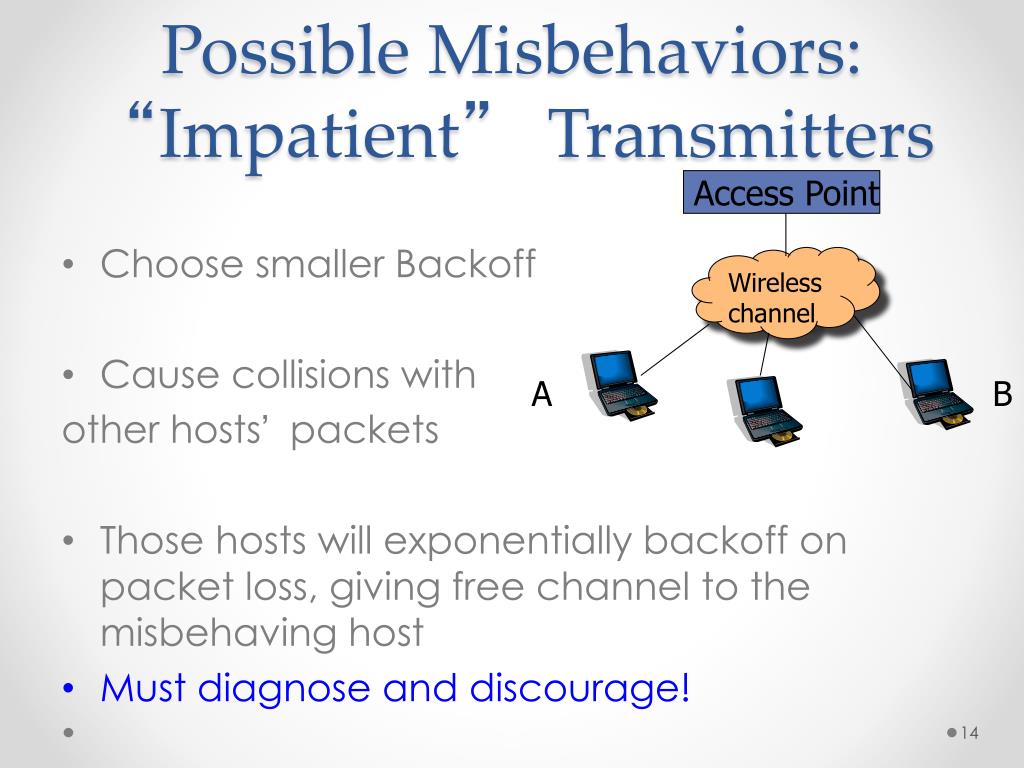

  14. Possible Misbehaviors:“Impatient” Transmitters Access Point Wireless channel A B • Choose smaller Backoff • Cause collisions with other hosts’ packets • Those hosts will exponentially backoff on packet loss, giving free channel to the misbehaving host • Must diagnose and discourage!

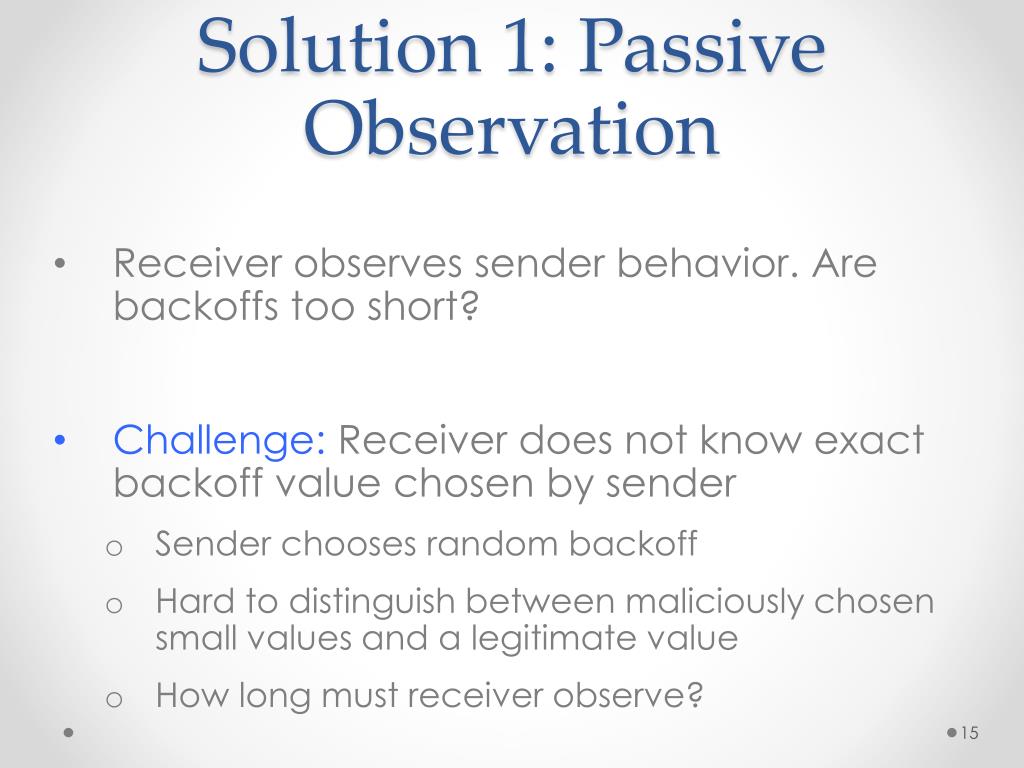

  15. Solution 1: Passive Observation • Receiver observes sender behavior. Are backoffs too short? • Challenge: Receiver does not know exact backoff value chosen by sender • Sender chooses random backoff • Hard to distinguish between maliciously chosen small values and a legitimate value • How long must receiver observe?

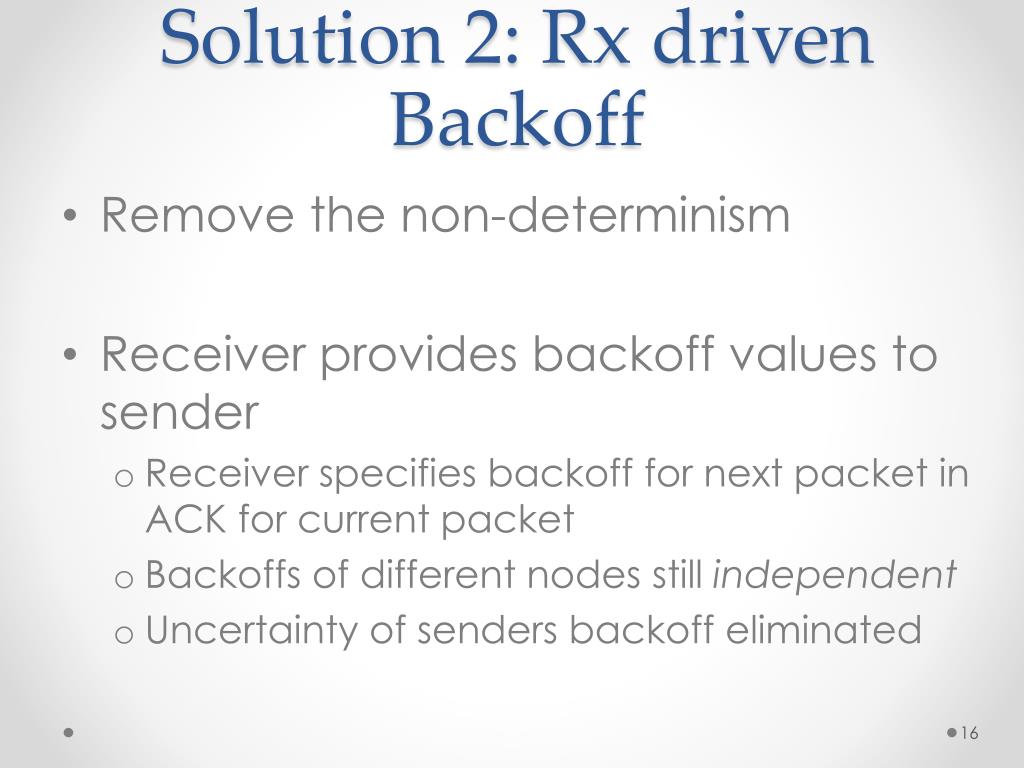

  16. Solution 2: Rx driven Backoff • Remove the non-determinism • Receiver provides backoff values to sender • Receiver specifies backoff for next packet in ACK for current packet • Backoffsof different nodes stillindependent • Uncertainty of senders backoffeliminated

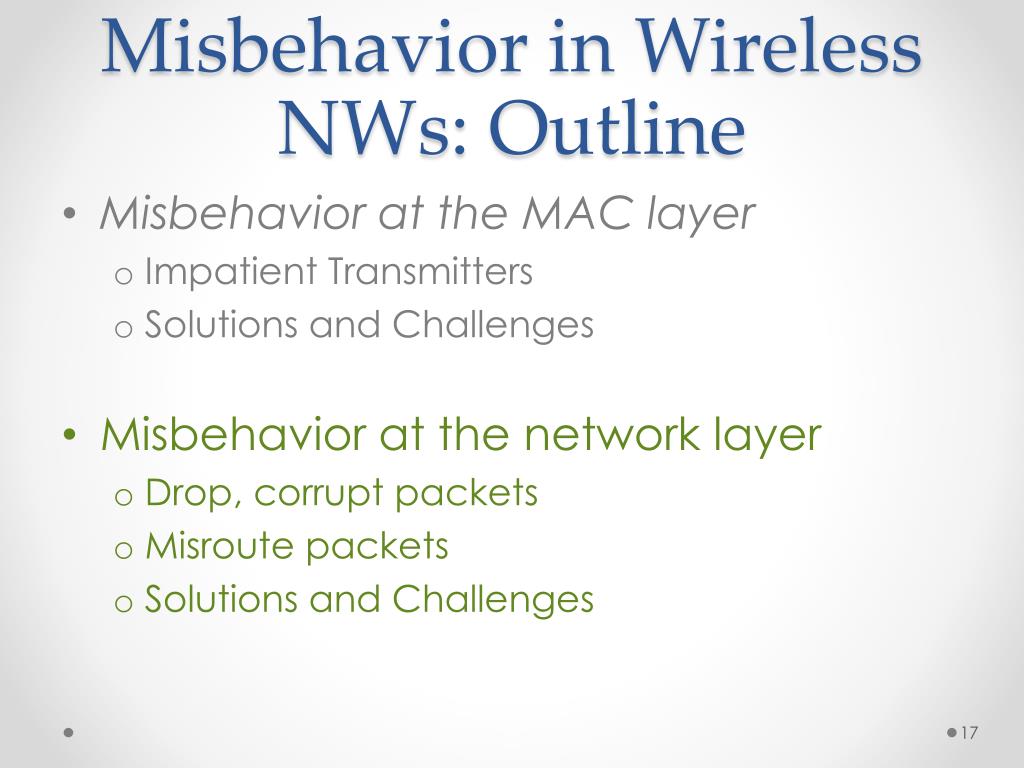

  17. Misbehavior in Wireless NWs: Outline • Misbehavior at the MAC layer • Impatient Transmitters • Solutions and Challenges • Misbehavior at the network layer • Drop, corrupt packets • Misroute packets • Solutions and Challenges

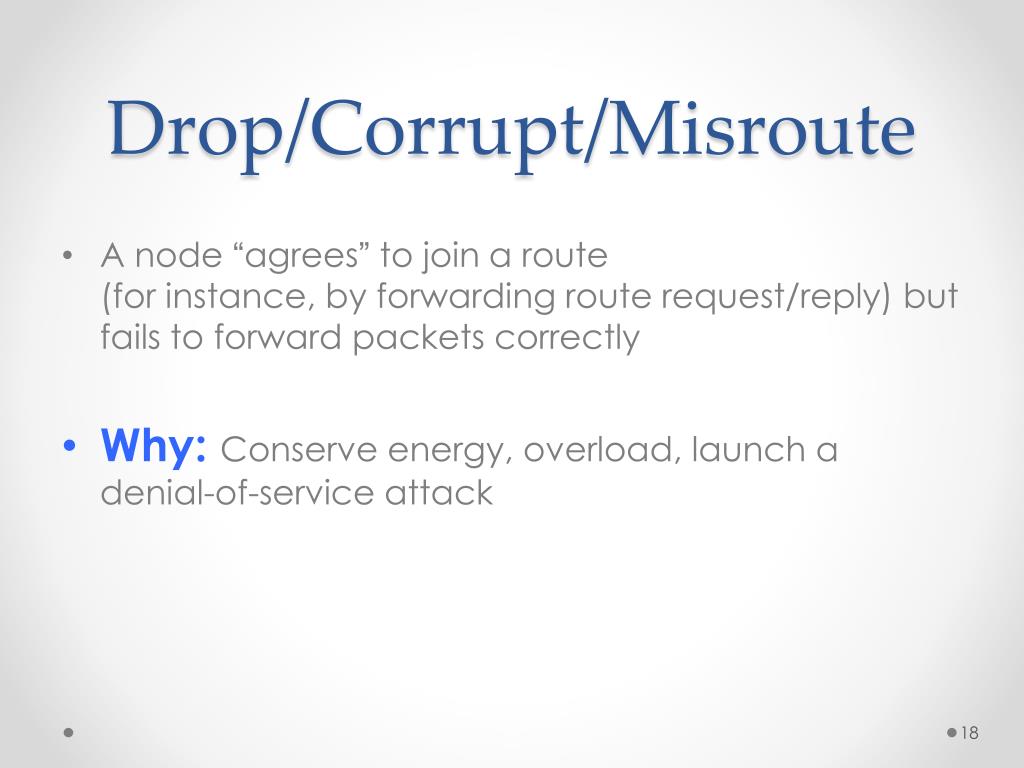

  18. Drop/Corrupt/Misroute • A node “agrees” to join a route(for instance, by forwarding route request/reply) but fails to forward packets correctly • Why: Conserve energy, overload, launch a denial-of-service attack

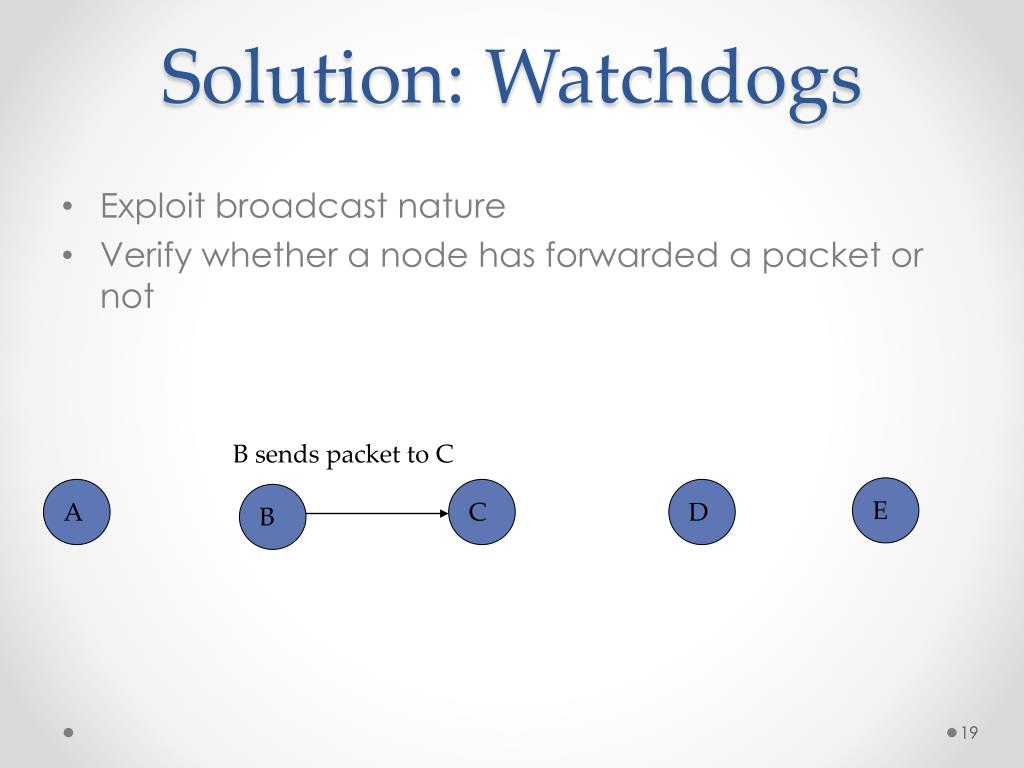

  19. Solution: Watchdogs • Exploit broadcast nature • Verify whether a node has forwarded a packet or not B sends packet to C E A C D B

  20. Watchdogs at Work • B can ‘hear’ whether C has forwarded packet or not • B can also know whether packet is tampered with if no per-link encryption B overhears C Forwarding the packet C forwards packet to D E A C D B

  21. Watchdog At Work • Forwarding by C may not be immediate: B must buffer packets, and compare them with overheard packets • If packet stays in buffer at B too long, a “failure tally”for node C is incremented • If the failure rate is above a threshold, C is determined as misbehaving, and source node informed

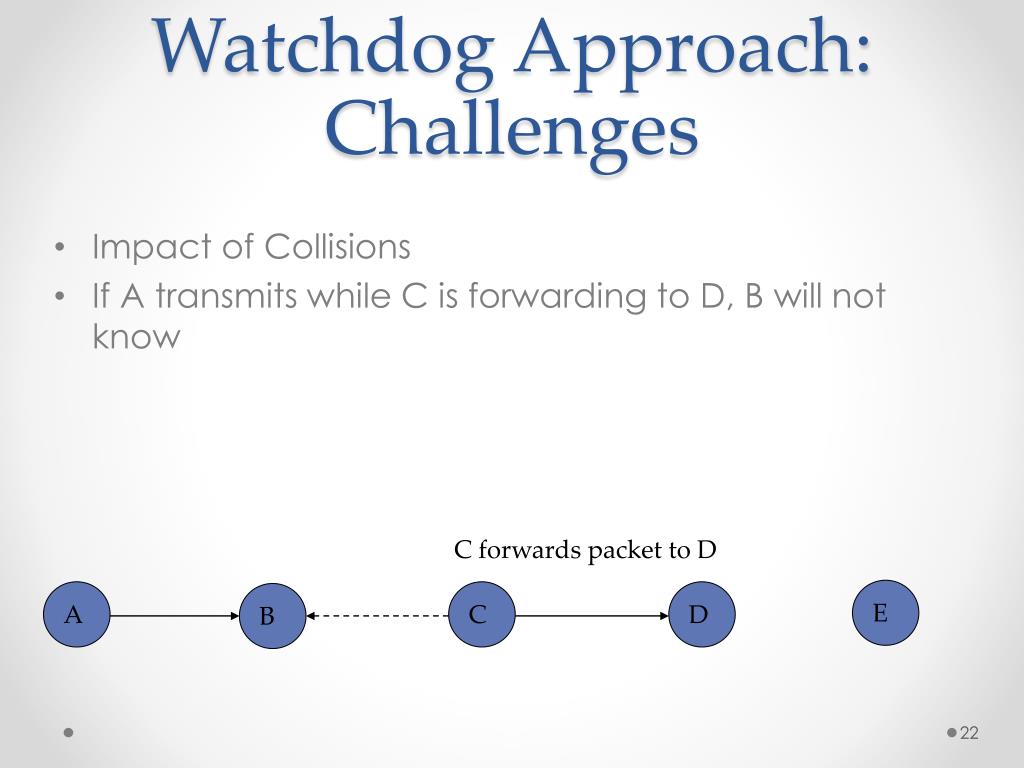

  22. Watchdog Approach:Challenges • Impact of Collisions • If A transmits while C is forwarding to D, B will not know C forwards packet to D E A C D B

  23. Watchdog Approach:Challenges • Reliability of Reception Not Known • Even if B sees the transmission from C, it cannot always tell whether D received the packet reliably  Misbehaving C may reduce power such that B can receive from C, but D does not C forwards packet to D E A C D B

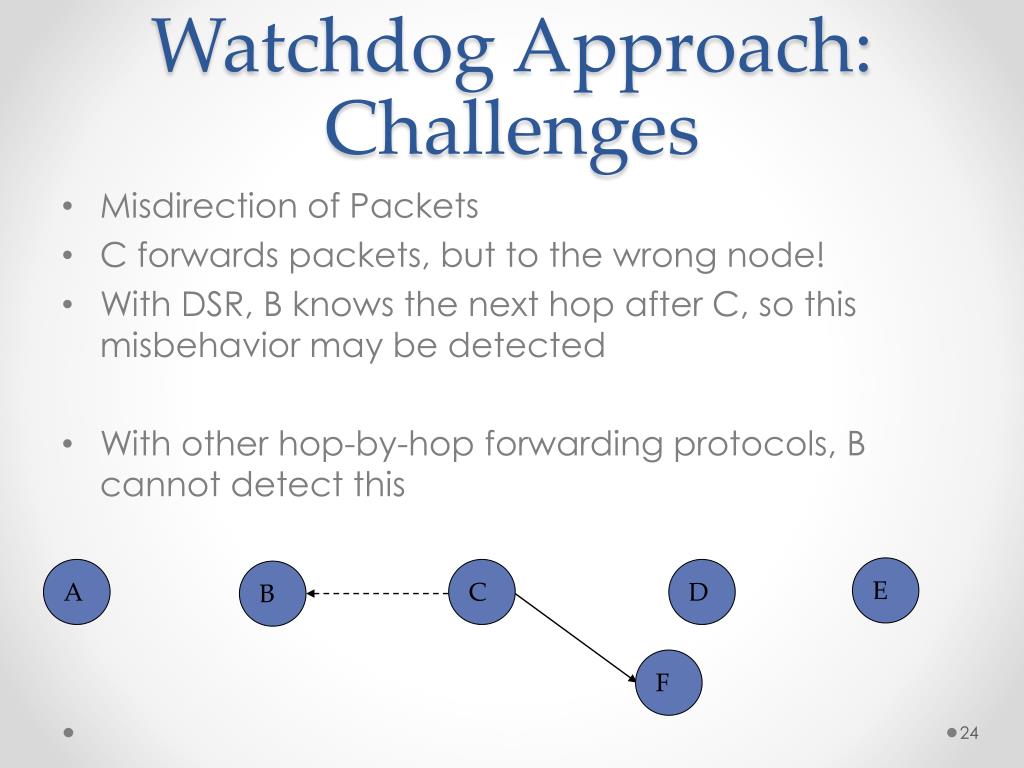

  24. Watchdog Approach:Challenges • Misdirection of Packets • C forwards packets, but to the wrong node! • With DSR, B knows the next hop after C, so this misbehavior may be detected • With other hop-by-hop forwarding protocols, B cannot detect this E A C D B F

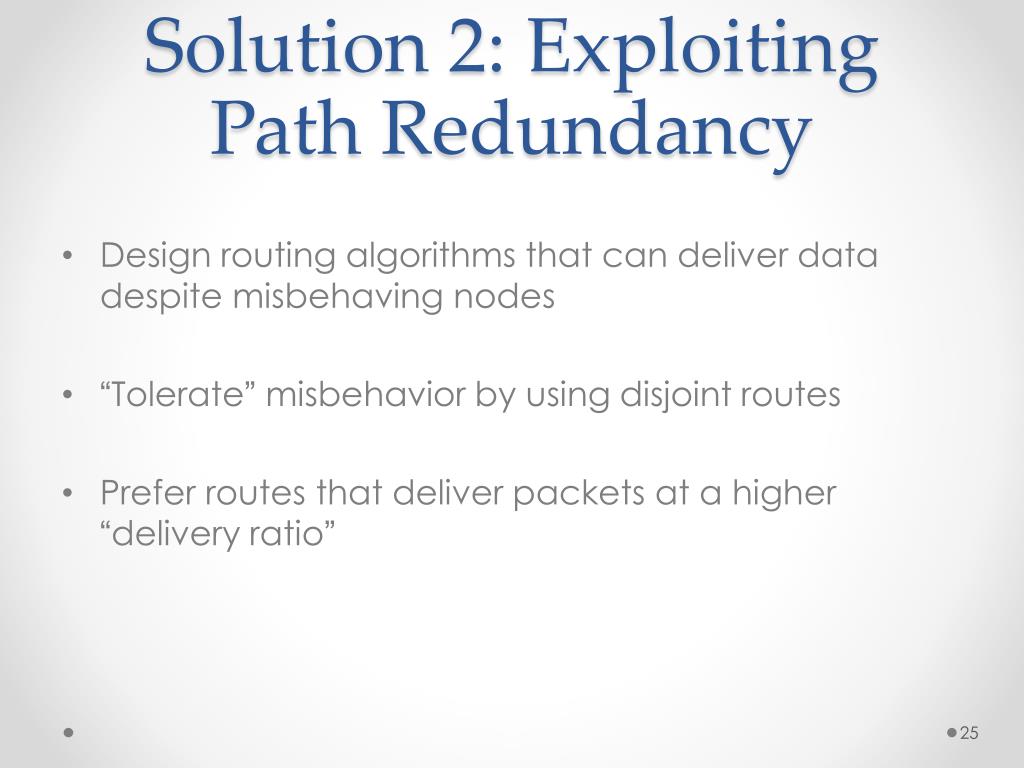

  25. Solution 2: Exploiting Path Redundancy • Design routing algorithms that can deliver data despite misbehaving nodes • “Tolerate” misbehavior by using disjoint routes • Prefer routes that deliver packets at a higher “delivery ratio”

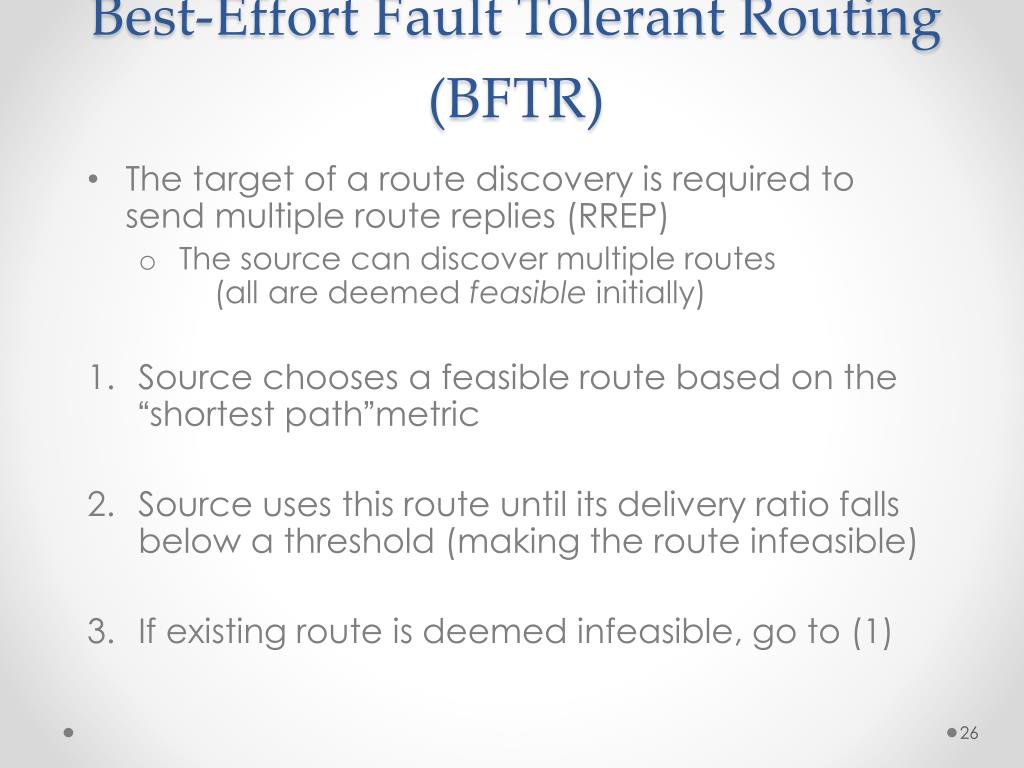

  26. Best-Effort Fault Tolerant Routing (BFTR) • The target of a route discovery is required to send multiple route replies (RREP) • The source can discover multiple routes (all are deemed feasible initially) • Source chooses a feasible route based on the “shortest path”metric • Source uses this route until its delivery ratio falls below a threshold (making the route infeasible) • If existing route is deemed infeasible, go to (1)

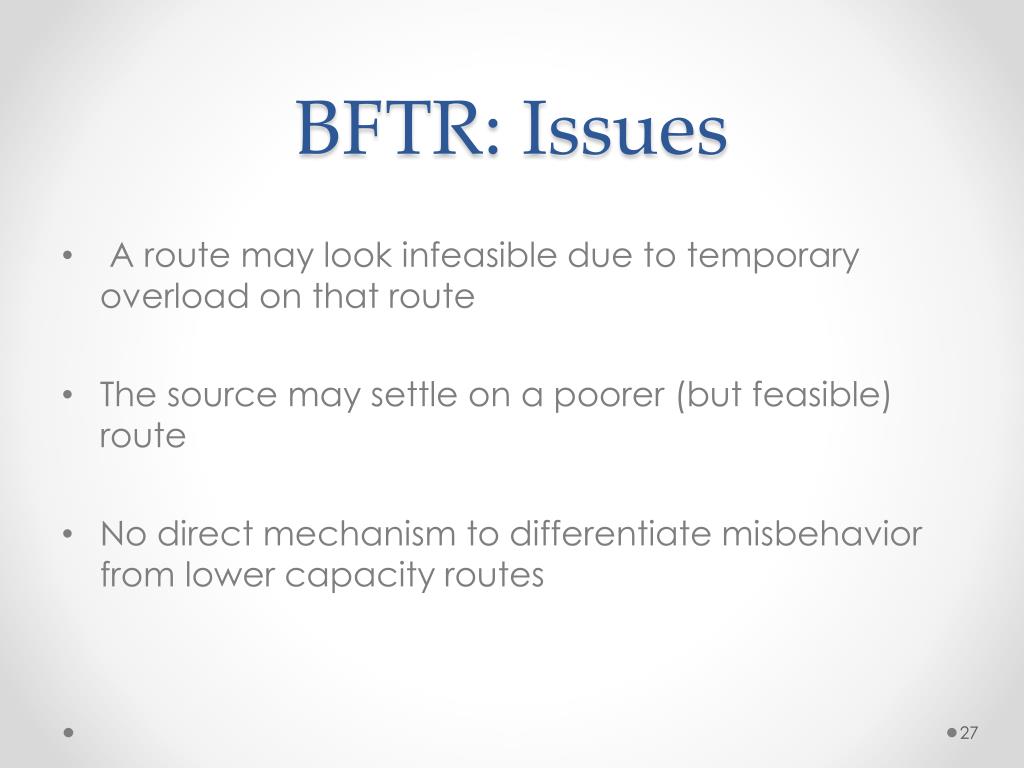

  27. BFTR: Issues • A route may look infeasible due to temporary overload on that route • The source may settle on a poorer (but feasible) route • No direct mechanism to differentiate misbehavior from lower capacity routes

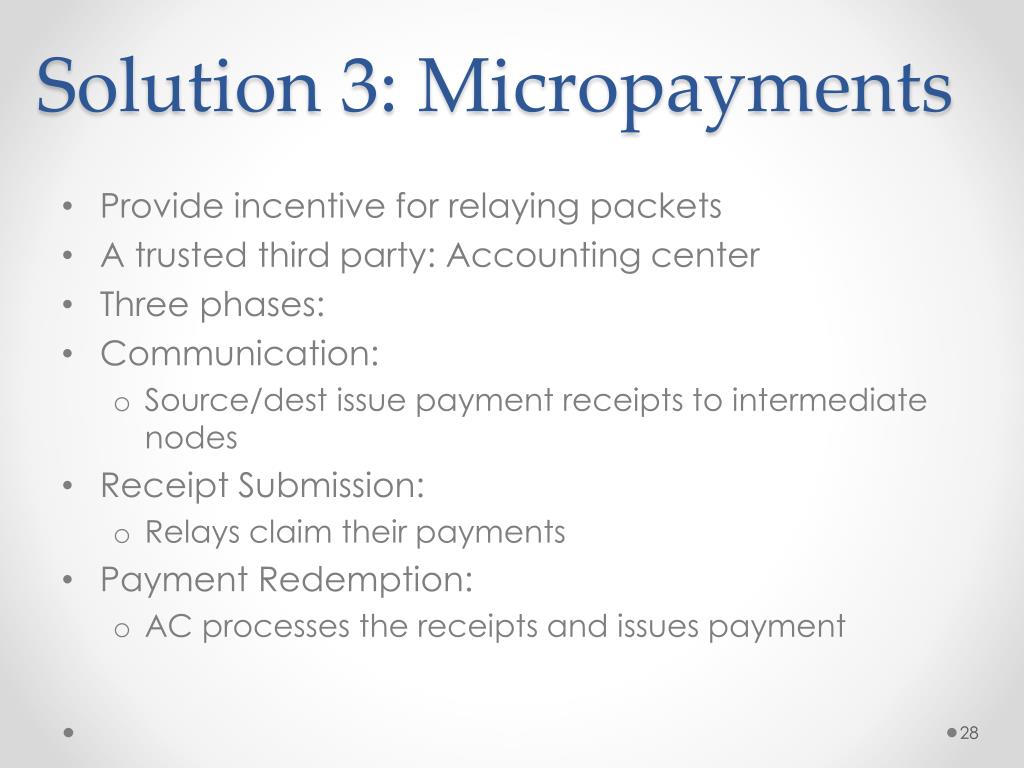

  28. Solution 3: Micropayments • Provide incentive for relaying packets • A trusted third party: Accounting center • Three phases: • Communication: • Source/dest issue payment receipts to intermediate nodes • Receipt Submission: • Relays claim their payments • Payment Redemption: • AC processes the receipts and issues payment

  29. Route Tampering Attack • A node may make a route appear too long or too short by tampering with RREQ • By making a route appear too long, the node may avoid the route from being used • This would happen if the destination replies to multiple RREQ • By making a route appear too short, the node may make the source use that route, and then drop data packets (denial of service)

  30. Wormhole Attack • Attacker makes a wireless ‘link’appear in the network when there isn’t one • Not necessarily detrimental, since the additional link can improve performance • Attacker assumes control on the fate of the traffic • May analyze traffic • Collect traffic for breaking encryption

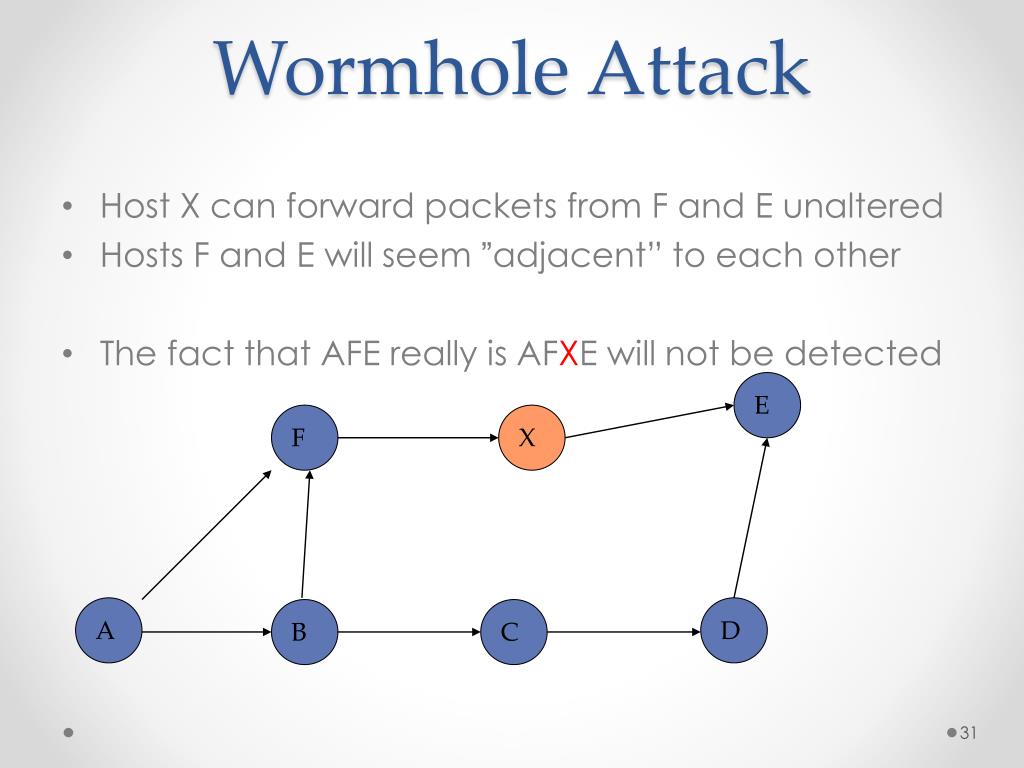

  31. Wormhole Attack • Host X can forward packets from F and E unaltered • Hosts F and E will seem ”adjacent”to each other • The fact that AFE really is AFXE will not be detected E F X A D B C

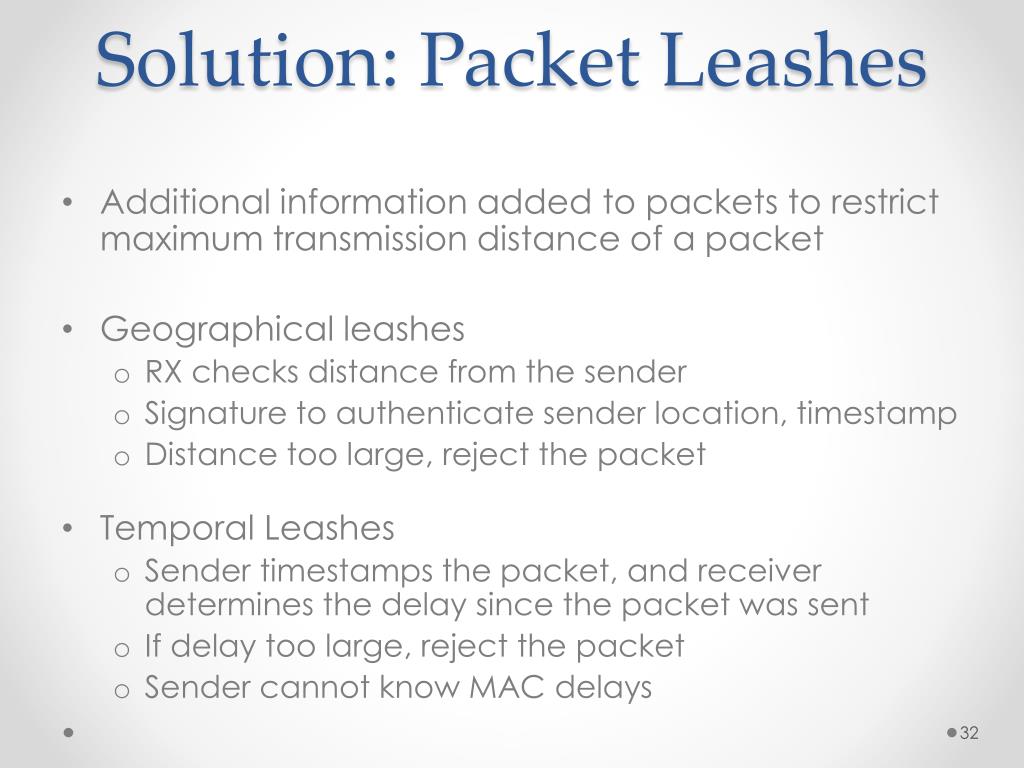

  32. Solution: Packet Leashes • Additional information added to packets to restrict maximum transmission distance of a packet • Geographical leashes • RX checks distance from the sender • Signature to authenticate sender location, timestamp • Distance too large, reject the packet • Temporal Leashes • Sender timestamps the packet, and receiver determines the delay since the packet was sent • If delay too large, reject the packet • Sender cannot know MAC delays

  33. Wireless Misbehavior: Summary • Hosts may be misbehave or try to compromise security at all layers of the protocol stack • MAC Layer • Disobey protocol specifications for selfish gains • Denial-of-service attacks • Network Layer • Disrupt route discovery/maintenance • Force use of poor routes (e.g., long routes) • Delay, drop, corrupt, misroute packets

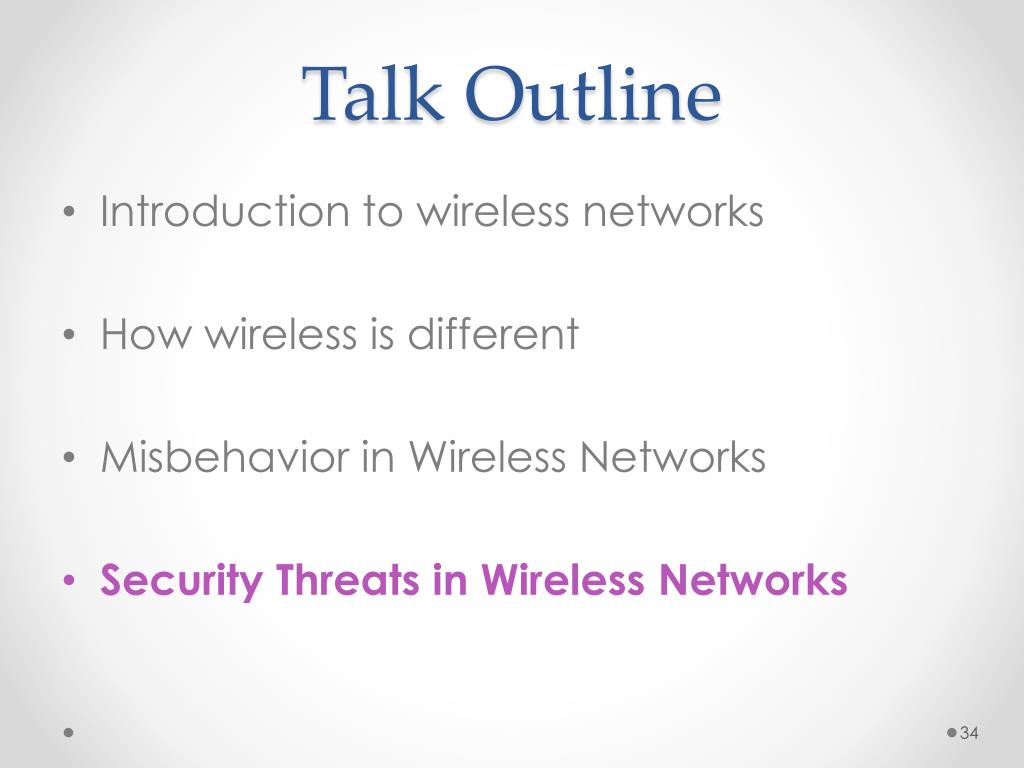

  34. Talk Outline • Introduction to wireless networks • How wireless is different • Misbehavior in Wireless Networks • Security Threats in Wireless Networks

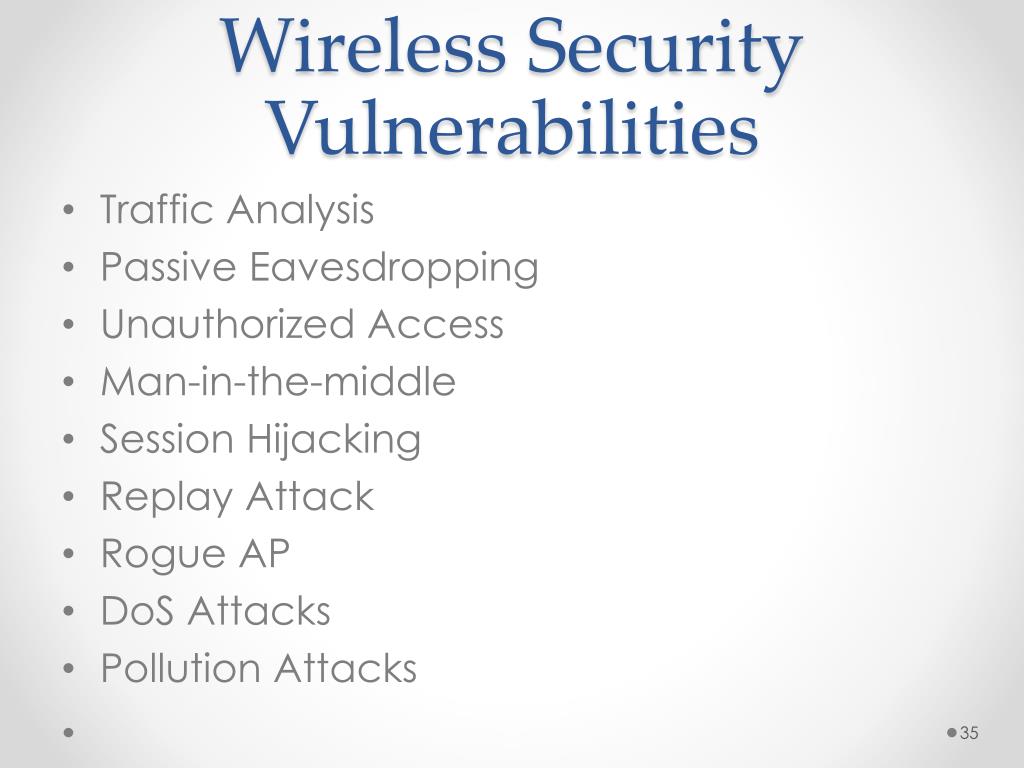

  35. Wireless Security Vulnerabilities • Traffic Analysis • Passive Eavesdropping • Unauthorized Access • Man-in-the-middle • Session Hijacking • Replay Attack • Rogue AP • DoS Attacks • Pollution Attacks

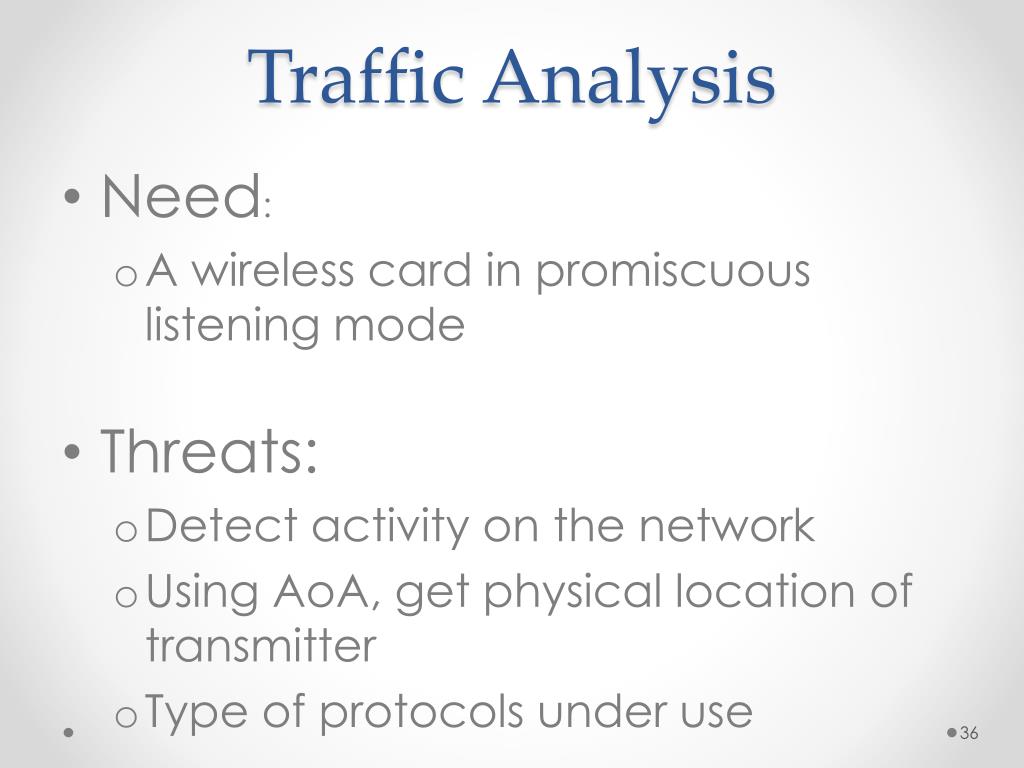

  36. Traffic Analysis • Need: • A wireless card in promiscuous listening mode • Threats: • Detect activity on the network • Using AoA, get physical location of transmitter • Type of protocols under use

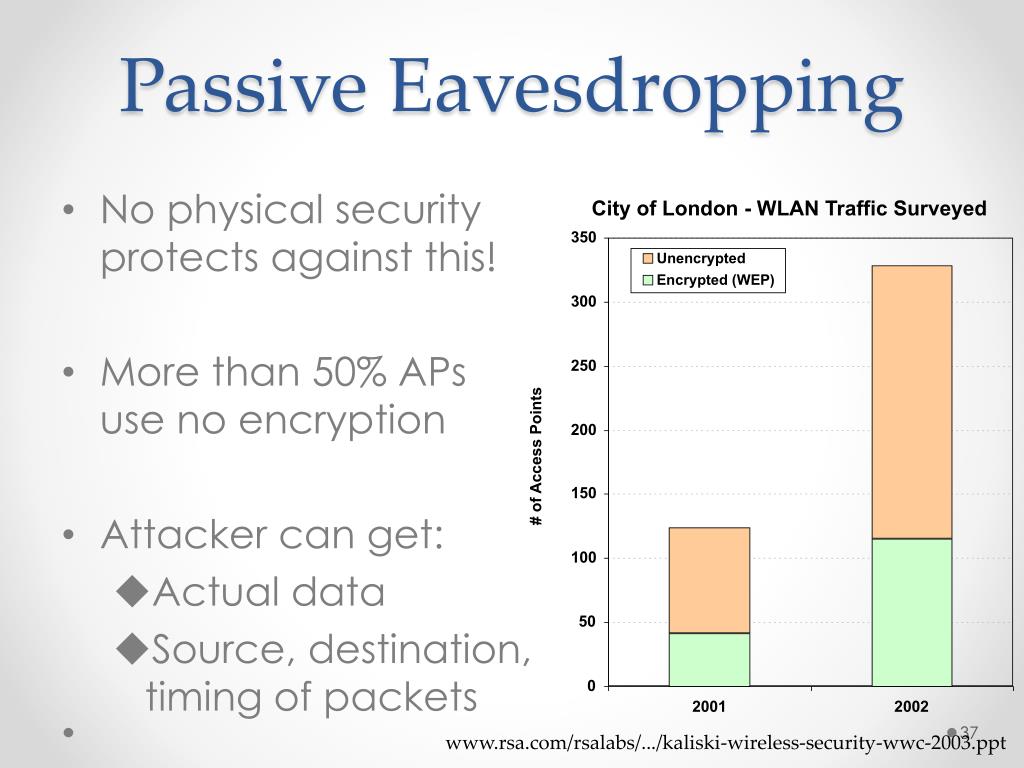

  37. Passive Eavesdropping • No physical security protects against this! • More than 50% APs use no encryption • Attacker can get: • Actual data • Source, destination, timing of packets www.rsa.com/rsalabs/.../kaliski-wireless-security-wwc-2003.ppt

  38. Man-in-the-middle Attack • Real-time attack • Read/modify data in transit • Violate integrity

  39. Session Hijacking • Attacker takes an authenticated session • Target assumes its session is broken/lost • Attacker can use the session for anything, for any amount of time • Real time attack • Integrity of session

  40. Session Hijacking Wired Network Wired Network Target Attacker Target Attacker

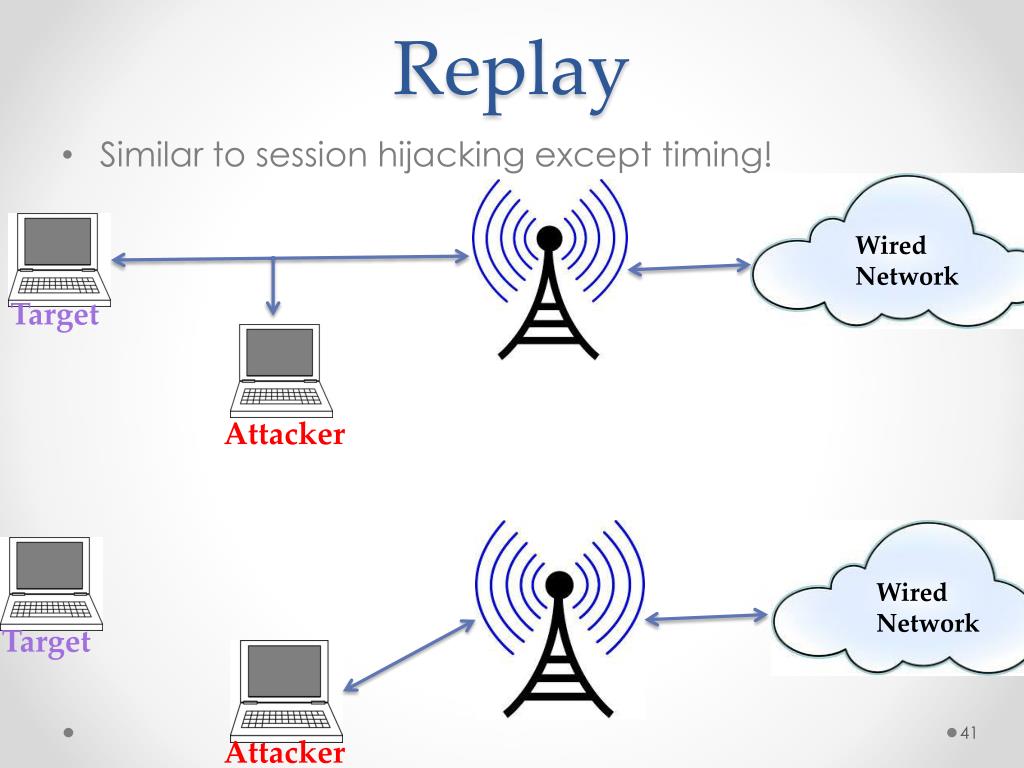

  41. Replay • Similar to session hijacking except timing! Wired Network Wired Network Target Attacker Target Attacker

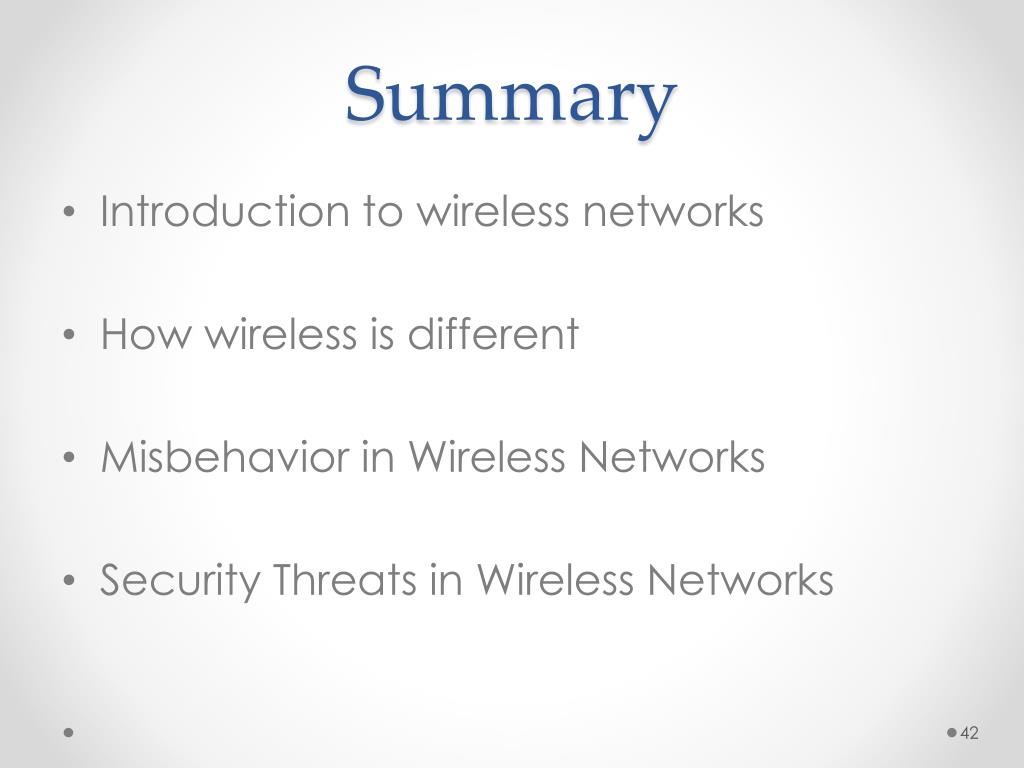

  42. Summary • Introduction to wireless networks • How wireless is different • Misbehavior in Wireless Networks • Security Threats in Wireless Networks

  43. WEP

  44. Introduction to WEP • Original security protocol for IEEE 802.11 standard • Wired Equivalent Privacy – Create the “privacy achieved by a wired network” • Considered as secure as a wired network • Primary Goal: Protect the confidentiality of user data from eavesdropping • Based on RC4 algorithm, which is a symmetric key stream cipher

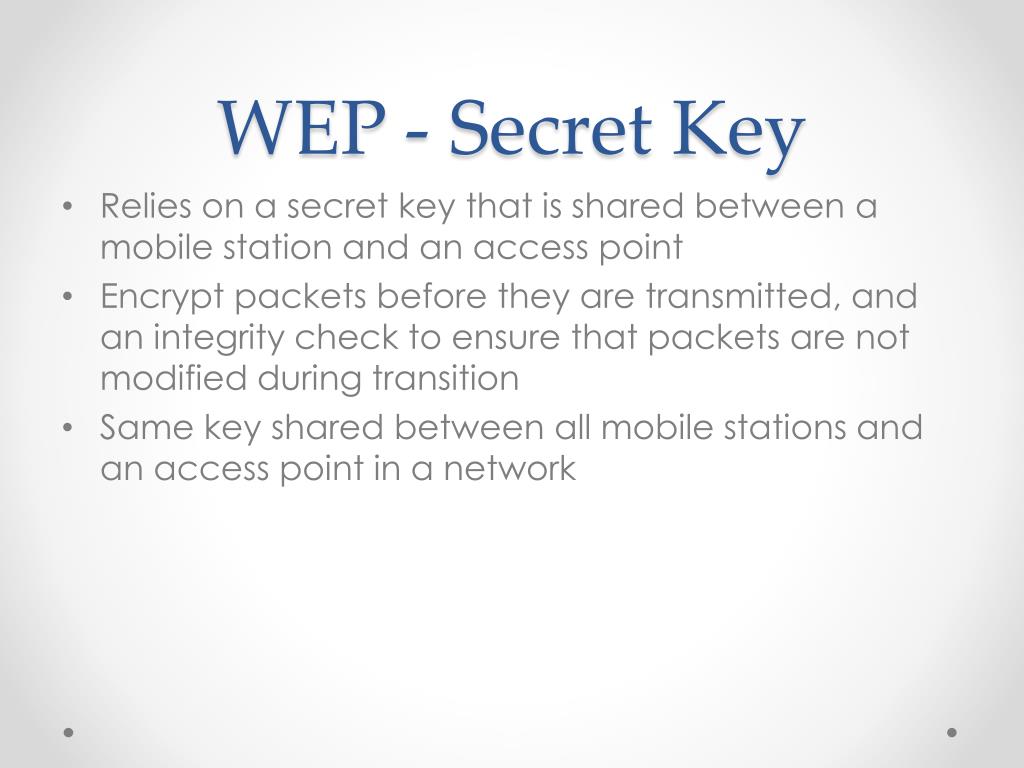

  45. WEP - Secret Key • Relies on a secret key that is shared between a mobile station and an access point • Encrypt packets before they are transmitted, and an integrity check to ensure that packets are not modified during transition • Same key shared between all mobile stations and an access point in a network

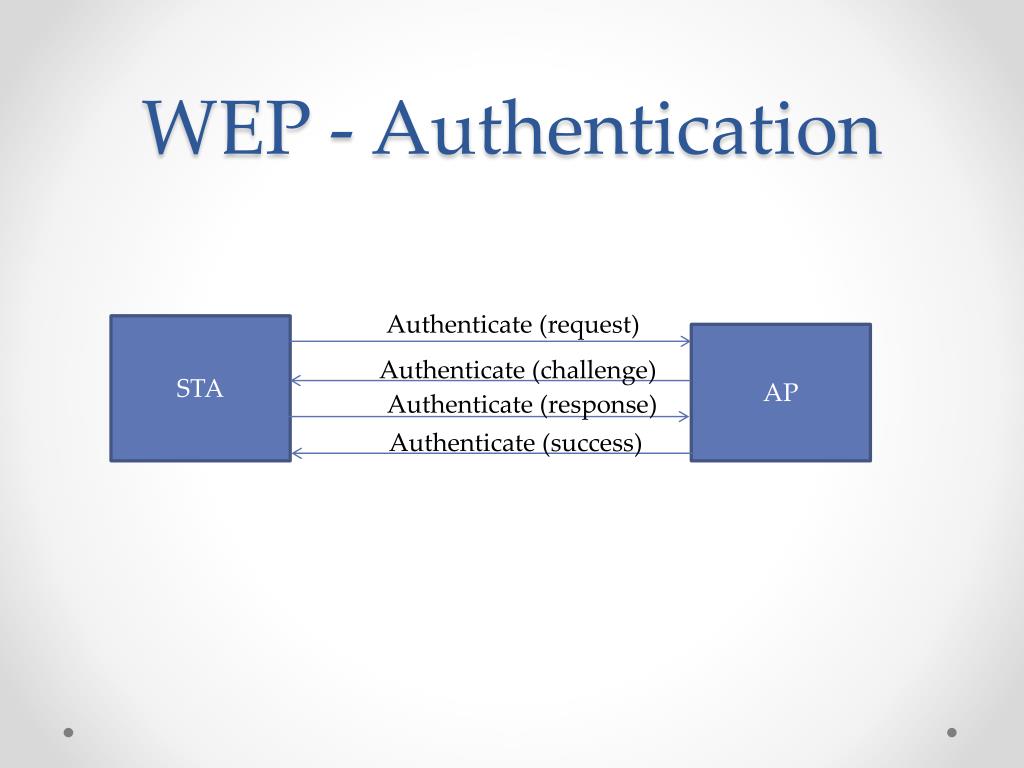

  46. WEP - Authentication Authenticate (request) STA AP Authenticate (challenge) Authenticate (response) Authenticate (success)

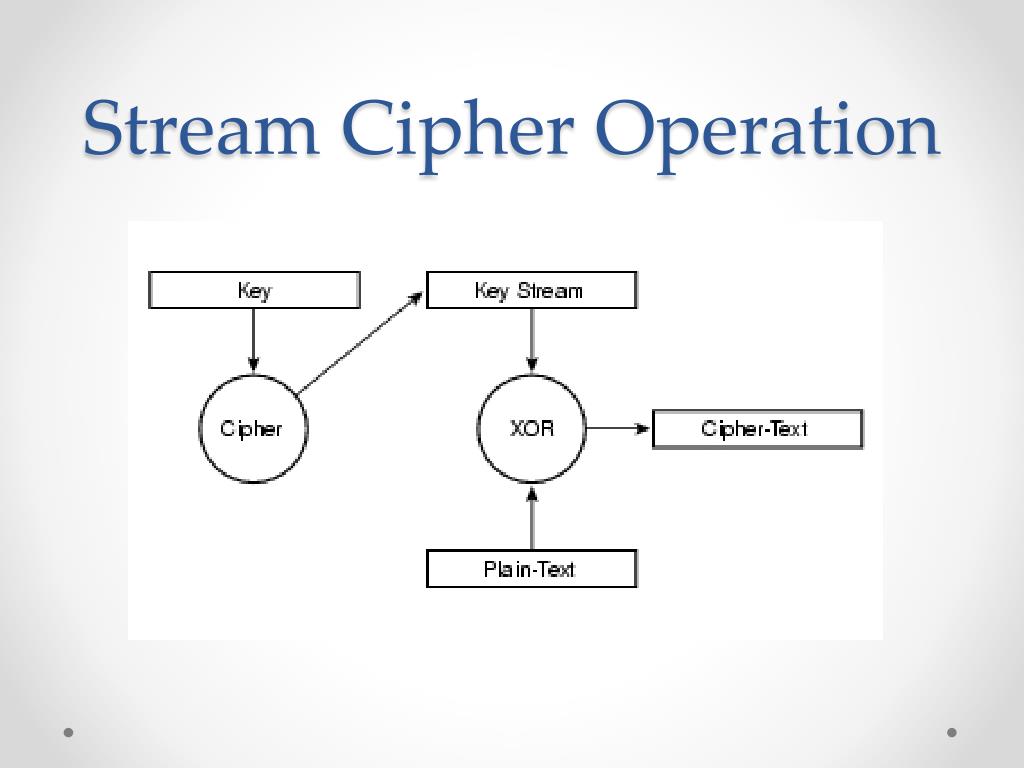

  47. Stream Cipher Operation

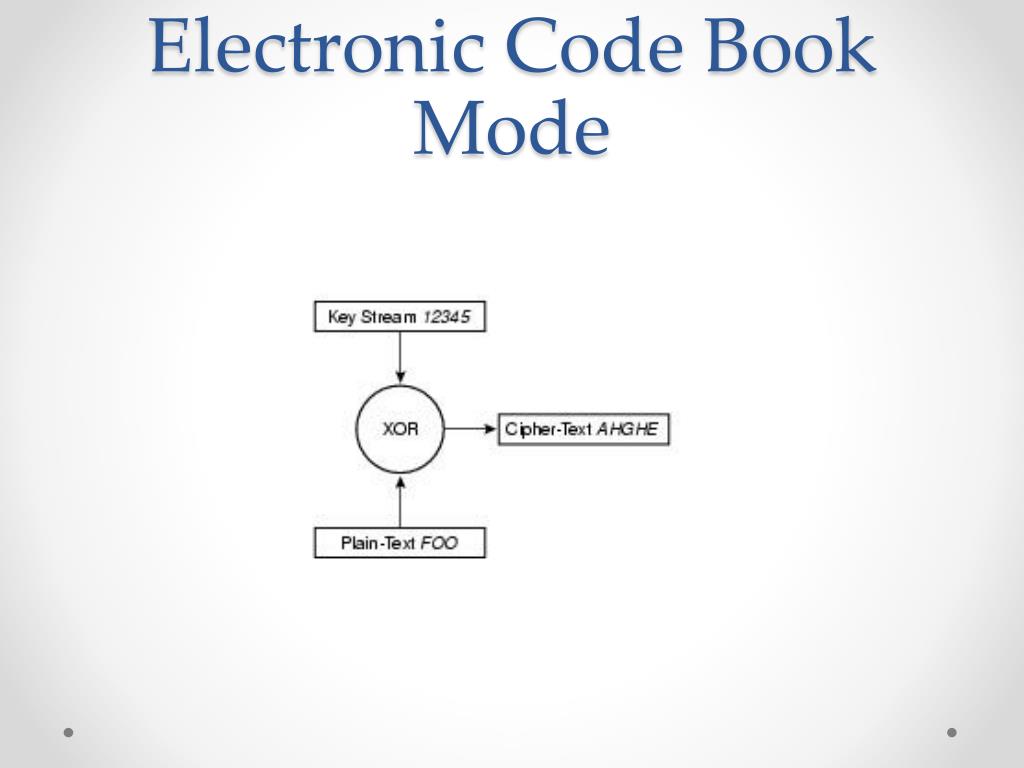

  48. Electronic Code Book Mode

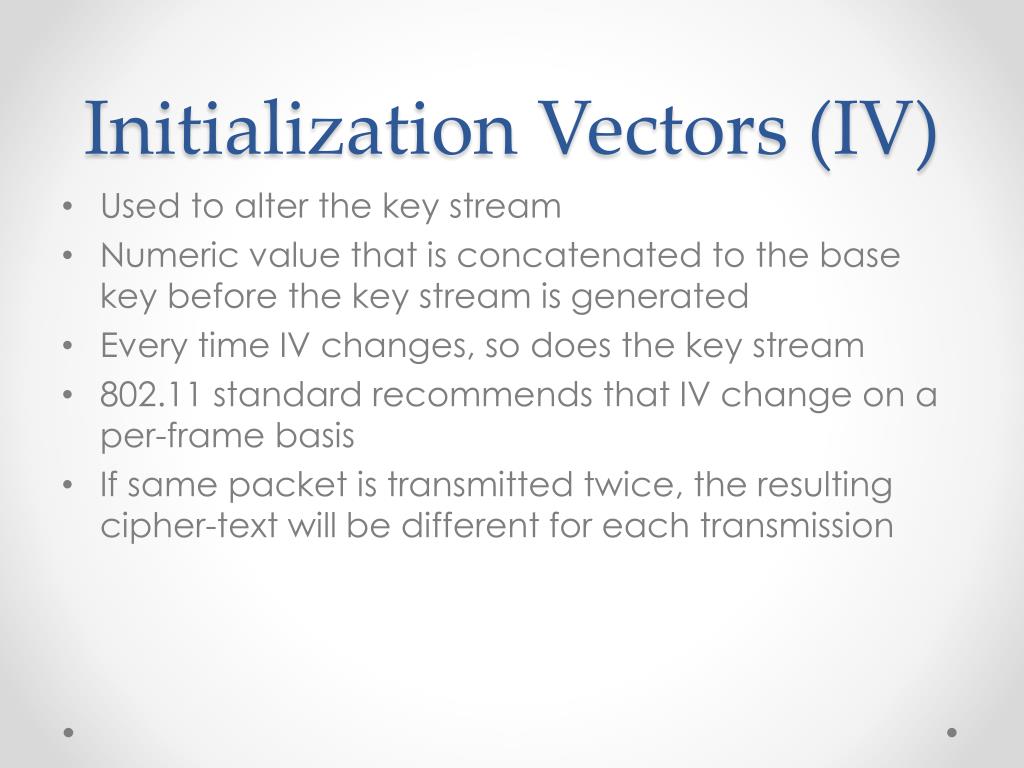

  49. Initialization Vectors (IV) • Used to alter the key stream • Numeric value that is concatenated to the base key before the key stream is generated • Every time IV changes, so does the key stream • 802.11 standard recommends that IV change on a per-frame basis • If same packet is transmitted twice, the resulting cipher-text will be different for each transmission

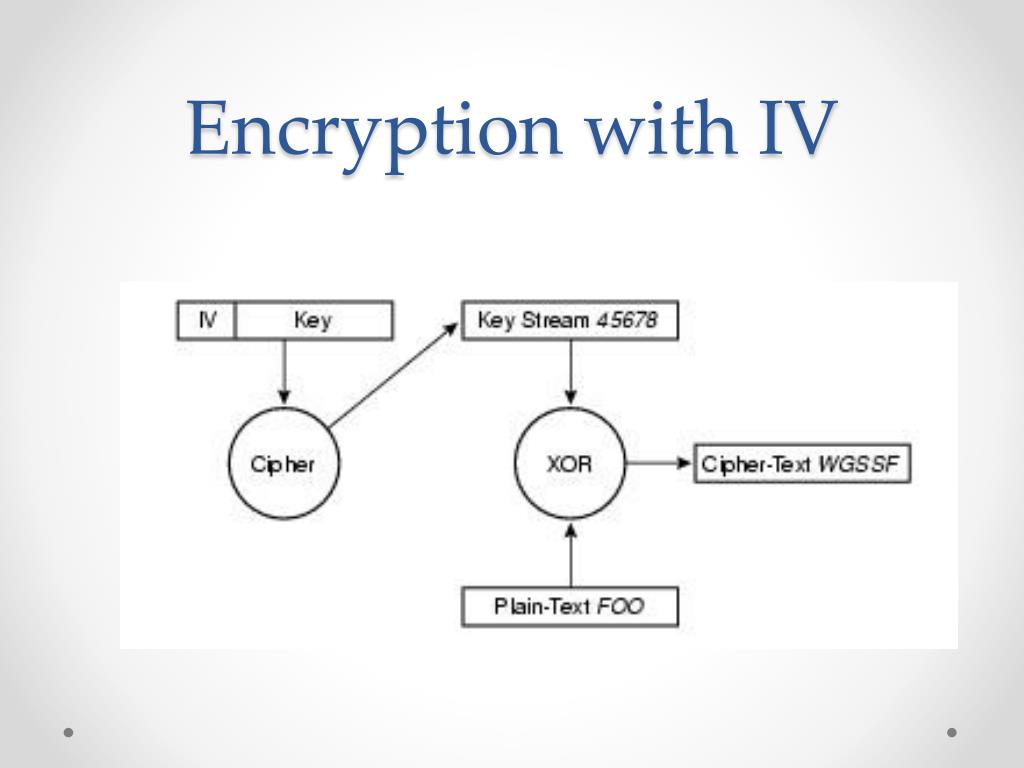

  50. Encryption with IV
