Ritz Solution Techniques

Ritz Solution Techniques. ME6442, Dr. A.A. Ferri. Consider a general elastic rod with attached springs, dampers, and masses and with applied axial forces. u(x,t). Axial displacement:. Kinetic energy of the elastic rod. could be r (x)A(x). Total kinetic energy.

fifi
Download Presentation

Ritz Solution Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Ritz Solution Techniques ME6442, Dr. A.A. Ferri Consider a general elastic rod with attached springs, dampers, and masses and with applied axial forces u(x,t) Axial displacement:

  2. Kinetic energy of the elastic rod could be r(x)A(x) Total kinetic energy Potential energy of the elastic rod could be E(x)A(x) Total potential energy

  3. Virtual Work of a single axial point force: Virtual work associated with a distributed force per unit length f(x,t) Total virtual work of applied forces

  4. Rayleigh Dissipative Function External viscous damping Internal viscous damping isolated viscous dampers At this point, we have expressions for kinetic energy, potential energy, Rayleigh dissipation function, and virtual work. We are very close to being able to use the standard, discrete form of Lagrange’s equations, except for the integral terms. To handle this, we need some sort of discretization technique--- Ritz expansions

  5. Expand displacement field as a finite summation of Ritz vectors (also called basis vectors) multiplied by time-varying generalized coordinates. This has the effect of turning an infinite-dimensional problem (governed by partial differential equations PDE’s) into a set of N ordinary differential equations (ODE’s). Substitute Ritz expansion into kinetic energy expression:

  6. Collecting terms, we get where Similarly, inserting the Ritz expansion into the potential energy expression:

  7. Collecting terms, we get where Similarly, inserting the Ritz expansion into the Rayleigh dissipation function: where

  8. Substituting the Ritz expansion into the virtual work yields where Substitute T, V, D, and Qj into Lagrange’s equations Yields N coupled, second-order, ordinary differential equations

  9. Problem 6.5 Non-uniform axial rod Ritz vectors expansion Need to choose y functions that satisfy the geometric boundary conditionsof the problem

  10. choose Note that y(0) = y(L) = 0 Kinetic energy:

  11. Mass terms Introduce variable

  12. Potential energy:

  13. After applying Lagrange’s equations, get a system of linear equations Define

  14. N = 4 mhat = 0.7500 -0.0901 -0.0000 -0.0072 -0.0901 0.7500 -0.0973 -0.0000 -0.0000 -0.0973 0.7500 -0.0993 -0.0072 -0.0000 -0.0993 0.7500 khat = 7.4022 -2.2222 -0.0000 -0.6044 -2.2222 29.6088 -6.2400 -0.0000 -0.0000 -6.2400 66.6198 -12.2449 -0.6044 -0.0000 -12.2449 118.4353 natfreqs = 3.1233 6.2746 9.4198 12.5790 times

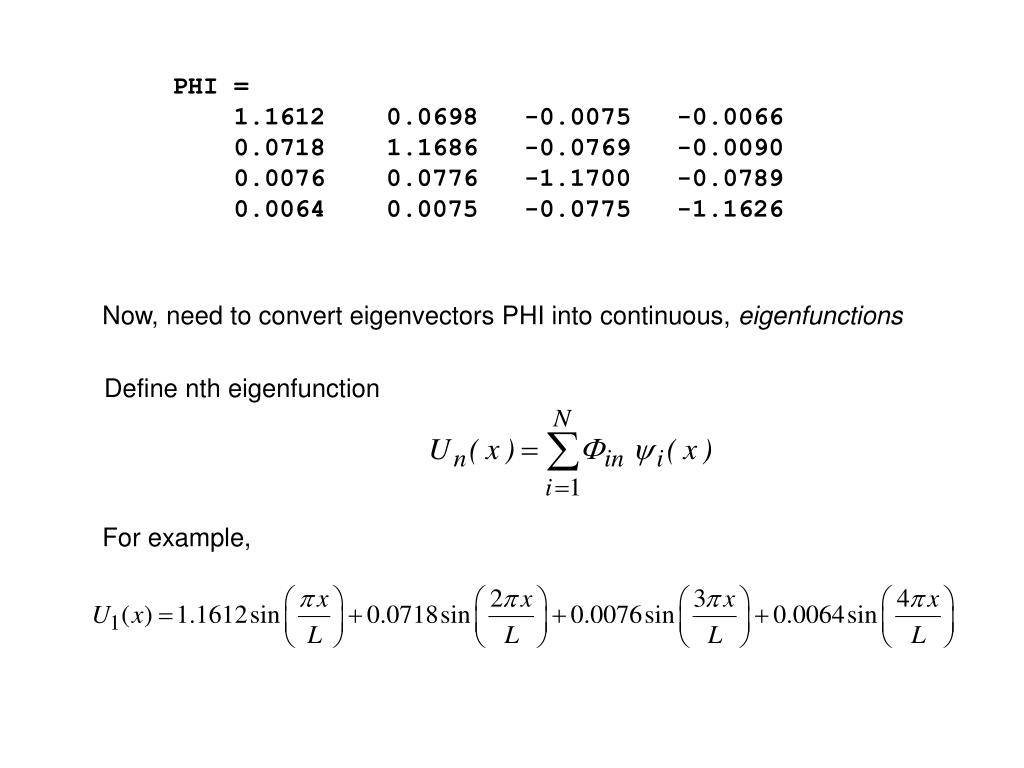

  15. PHI = 1.1612 0.0698 -0.0075 -0.0066 0.0718 1.1686 -0.0769 -0.0090 0.0076 0.0776 -1.1700 -0.0789 0.0064 0.0075 -0.0775 -1.1626 Now, need to convert eigenvectors PHI into continuous, eigenfunctions Define nth eigenfunction For example,

  16. First three modes

  17. What if the rod was not tapered? mhat = 0.5000 -0.0000 0.0000 -0.0000 -0.0000 0.5000 0.0000 0.0000 0.0000 0.0000 0.5000 -0.0000 -0.0000 0.0000 -0.0000 0.5000 khat = 4.9348 -0.0000 -0.0000 -0.0000 -0.0000 19.7392 0.0000 0.0000 -0.0000 0.0000 44.4132 0.0000 -0.0000 0.0000 0.0000 78.9568 Note that the mass and stiffness matrices are now diagonal. This implies that the equations of motion are uncoupled. This happens because the Ritz vectors are the exact eigenfunctions for this problem.
