Signal Conditioning. Sensor Outputs. 4-20 mA Analog electrical transmission standard. Signal is a current loop where 4 mA represents zero percent signal and 20 mA represents the one hundred percent signal.

gili
Download Presentation

Signal Conditioning

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Signal Conditioning

  2. Sensor Outputs

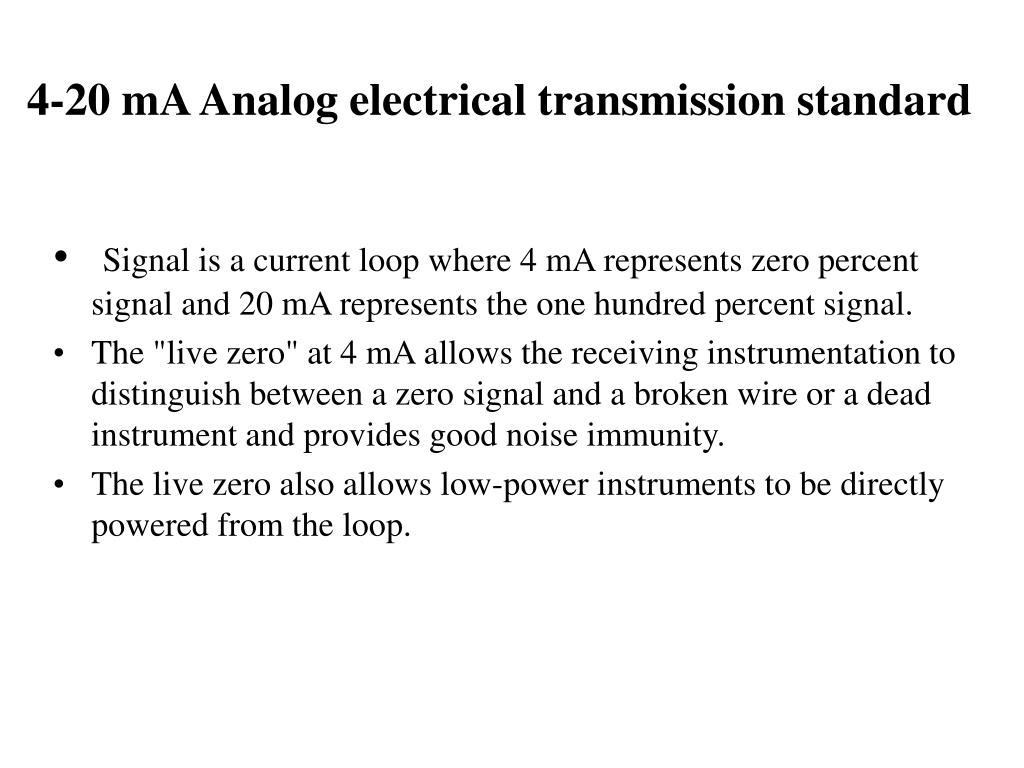

  3. 4-20 mA Analog electrical transmission standard • Signal is a current loop where 4 mA represents zero percent signal and 20 mA represents the one hundred percent signal. • The "live zero" at 4 mA allows the receiving instrumentation to distinguish between a zero signal and a broken wire or a dead instrument and provides good noise immunity. • The live zero also allows low-power instruments to be directly powered from the loop.

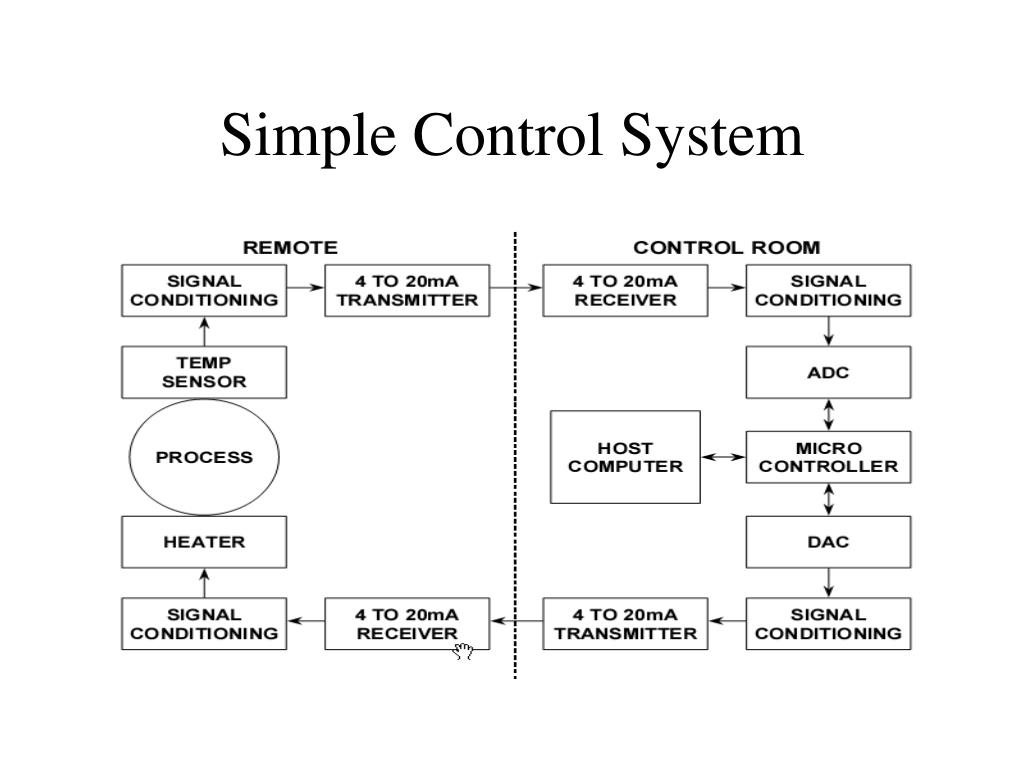

  4. Simple Control System

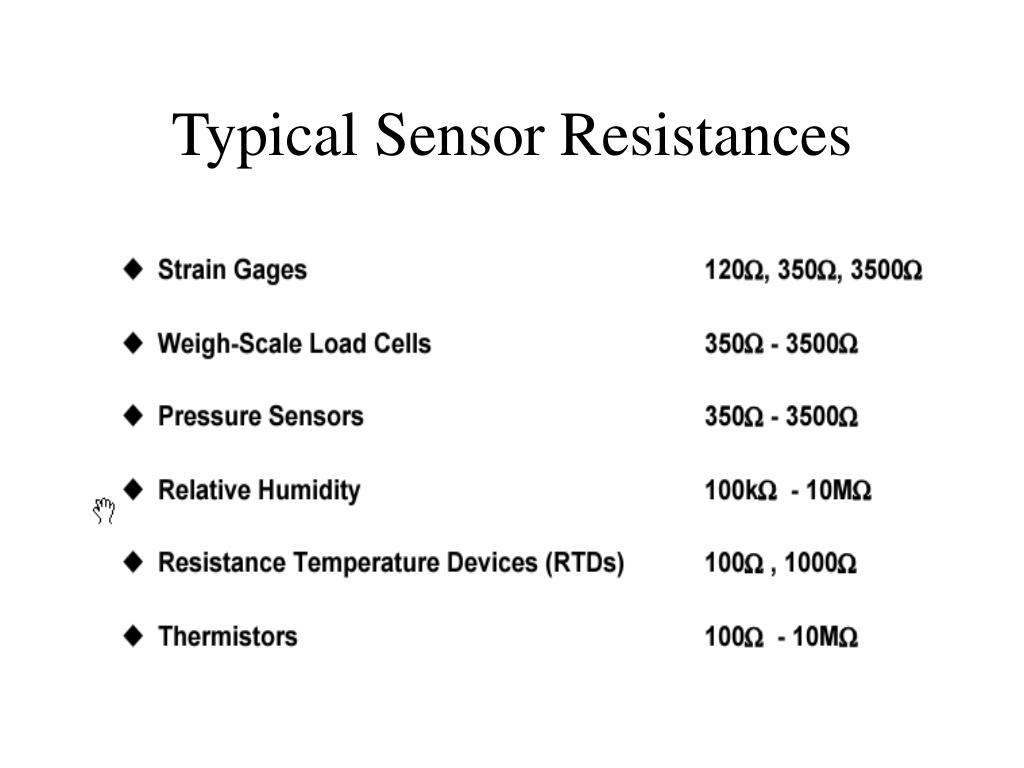

  5. Typical Sensor Resistances

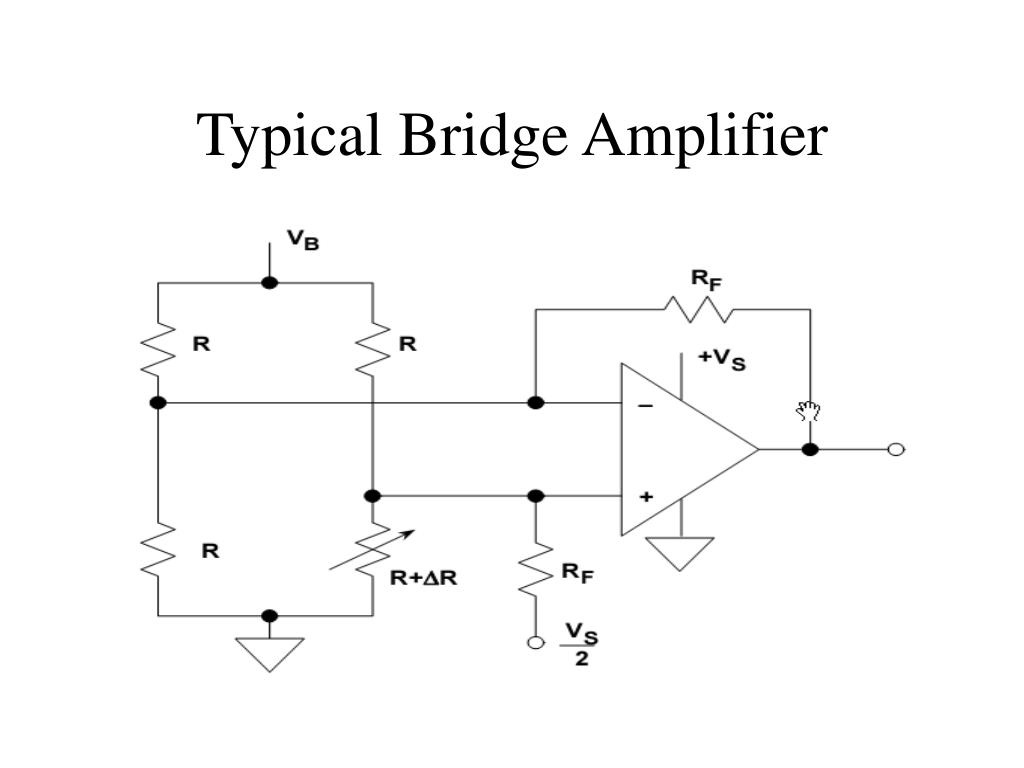

  6. Typical Bridge Amplifier

  7. Typical Force-type Transducers

  8. High-Impedance Sensors

  9. Photodiode Operating Modes

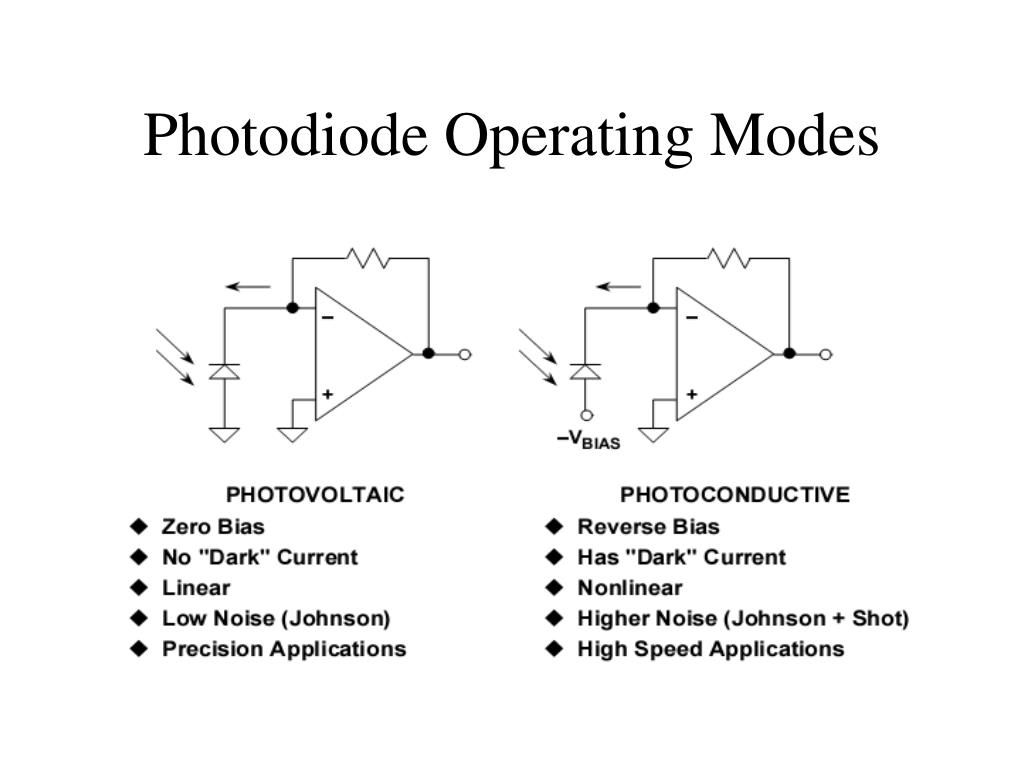

  10. Dynamic Range of Illumination

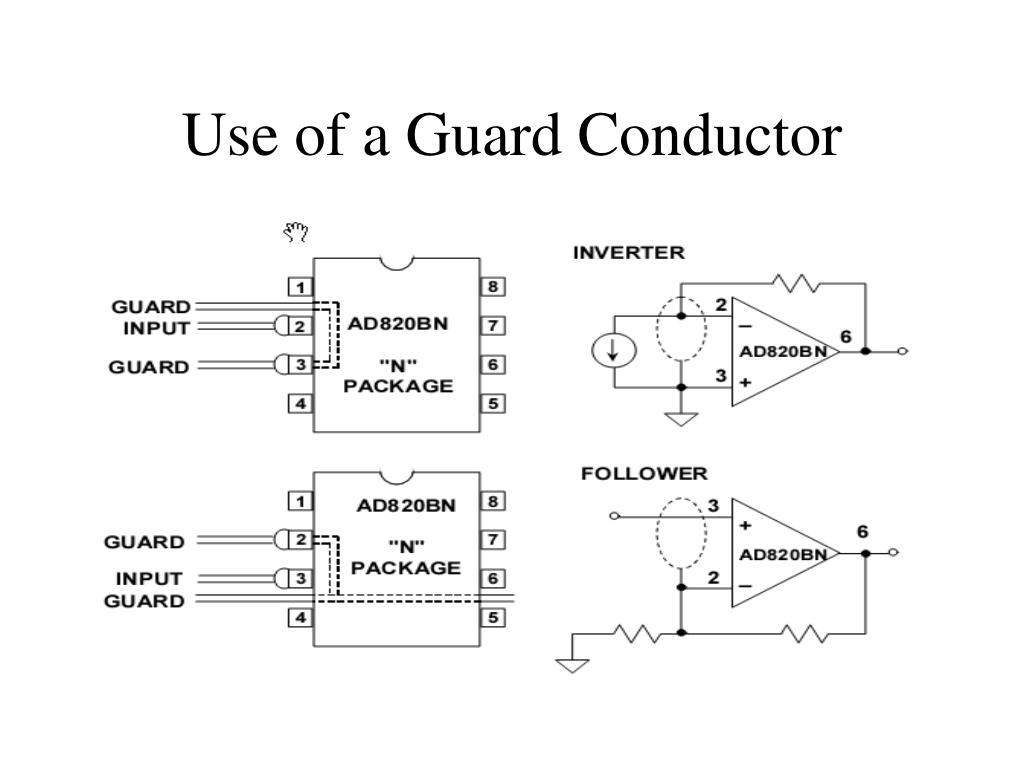

  11. Use of a Guard Conductor

  12. 40 dB Gain Piezoelectric Amp

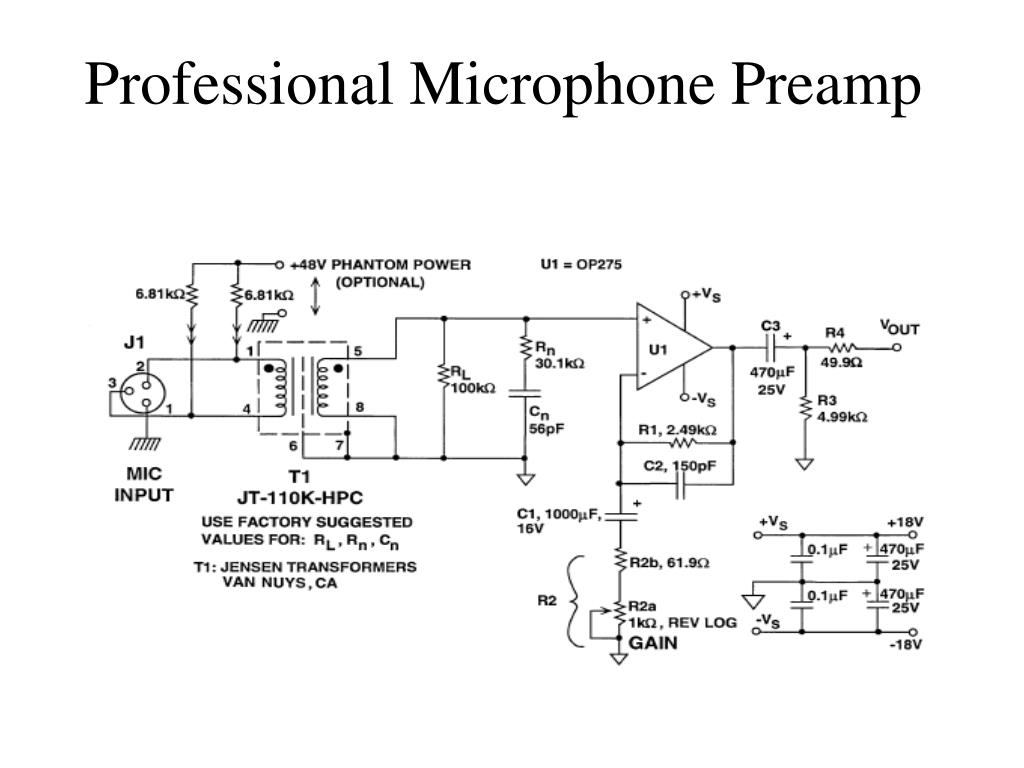

  13. Professional Microphone Preamp

  14. Balanced Transmission Circuit

  15. Differential Line Driver

  16. NTSC Video Signal

  17. NTSC Signal Generation

  18. NTSC and PAL Comparison

  19. Wide-Bandwidth Video Amplifier
