Multi-Dimensional Range Query over Encrypted Data

Multi-Dimensional Range Query over Encrypted Data Authors: Elaine Shi, Joint work with John Bethencourt, Hubert Chan, Dawn Song, Adrian Perrig Slides originated from Elaine Shi, modified by Michael Chen CSC 774 Advanced Network Security Instructor: Dr. Peng Ning Presenter: Michael Chen April 19, 2007

Motivation - Network Audit Logs Network gateway Data center

An Ideal Solution Network gateway Data center

Auditor Query: (100 · port · 200) Æ ( ip 2 128.1.*.*) Trusted authority auditor

Auditor Query: (100 · port · 200) Æ ( ip 2 128.1.*.*) Capability: (100 · port · 200) Æ ( ip 2 128.1.*.*) Trusted authority auditor

Security Query: (100·port ·200) Æ (ip 2128.1.*.*) • Can decrypt all matching entries • Cannot learn additional information for non-matching entries • Except for the fact that they do not match

The Challenges • Current practices: • No encryption • All-or-nothing decryption • Challenge: • How to design such an encryption scheme • Efficiency • Security

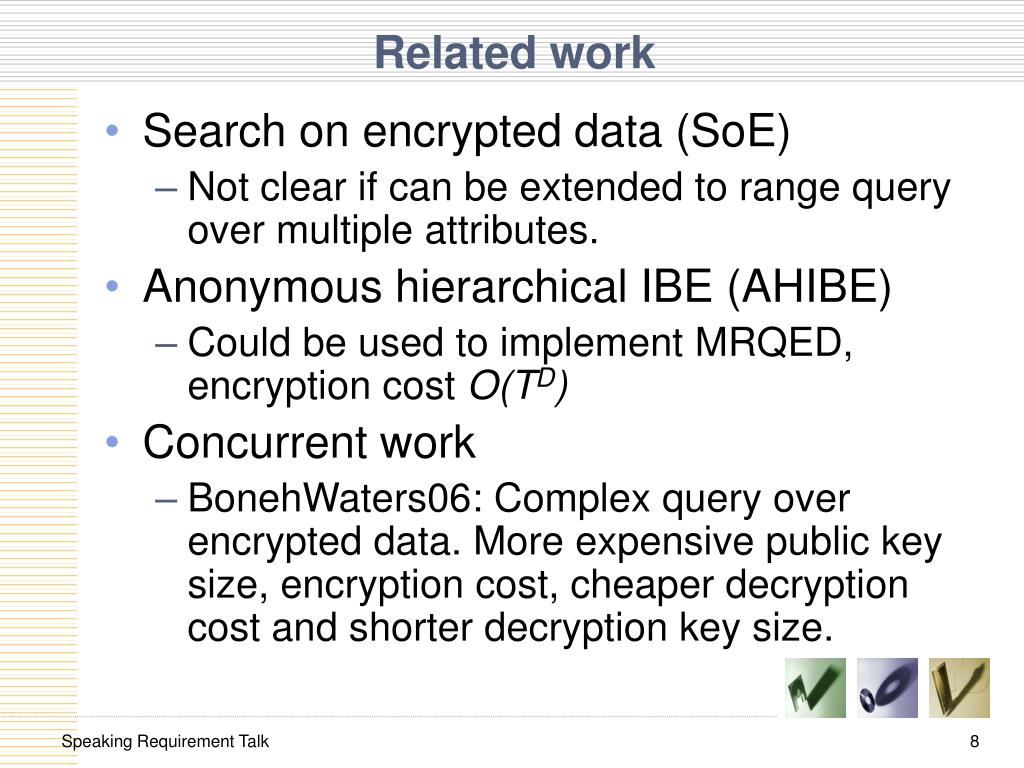

Related work • Search on encrypted data (SoE) • Not clear if can be extended to range query over multiple attributes. • Anonymous hierarchical IBE (AHIBE) • Could be used to implement MRQED, encryption cost O(TD) • Concurrent work • BonehWaters06: Complex query over encrypted data. More expensive public key size, encryption cost, cheaper decryption cost and shorter decryption key size.

Generalized Problem Definition • Time-stamp t, source address a, destination port p • A tuple (t, a, p) can be viewed as a point x in 3 dimensional space. • Query for flows with • Hyper-rectangle B in space • x is in B ?

Generalized Problem Definition • KeyGen • Key generation • Encrypt • Encryption • DeriveKey • Compute a decryption key • QueryDecrypt • Attempt to decrypt using a capability

KeyGen (, n) • Input • k: security parameter • n: bit-length of x • Output • public key PK & master private key SK KeyGen(, n) Trusted authority

Encrypt(PK, x, msg) x – a point Cipher_Text Ã Encrypt(PK, x, msg)

DeriveKey(PK, SK, B ) DKB t1 B – “hyper-rectangle” t2 r1 r2

QueryDecrypt(PK, DK, C) • Output • msg if • if

Roadmap • Trivial construction • AIBE – MRQED1 • Efficient representation for ranges • 1 dimensional scheme • Extension to multiple dimensions

Trivial Construction • 1 dimensionOne public key pair for each possible range - O(T2) public key pairs - O(T2) cipher texts and decryption keys for each range Performance of D dimensions T: # different values along each dimension D: # dimensions

Roadmap • Trivial construction • AIBE – MRQED1 • Efficient representation for ranges • 1 dimensional scheme • Extension to multiple dimensions

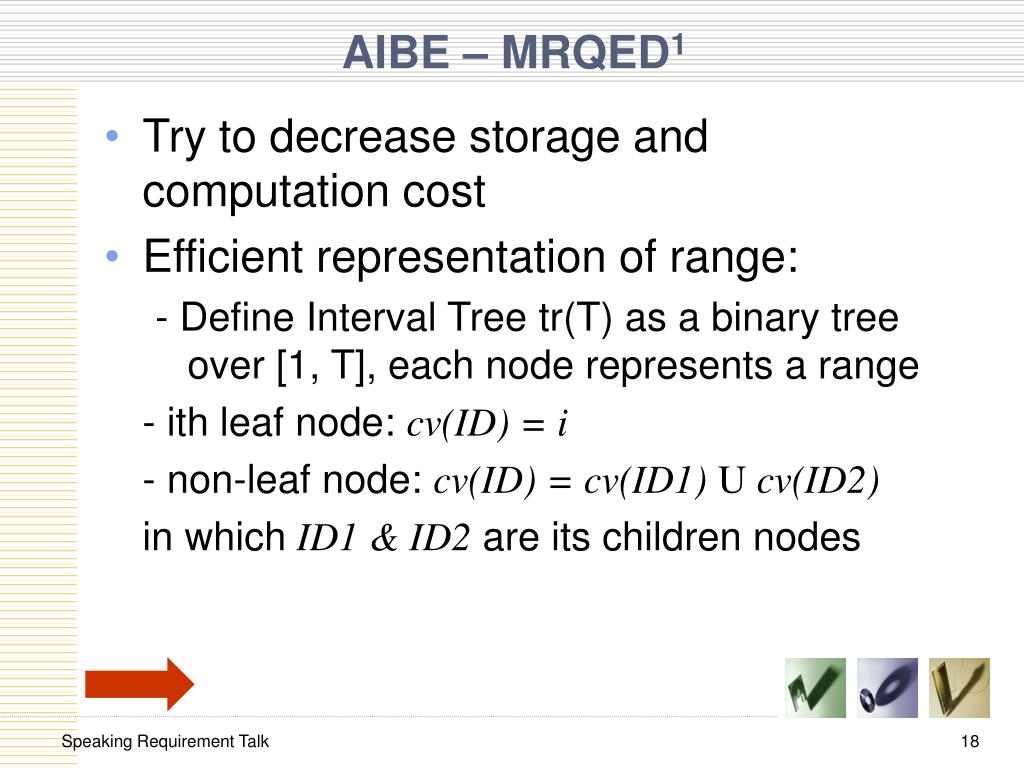

AIBE – MRQED1 • Try to decrease storage and computation cost • Efficient representation of range: - Define Interval Tree tr(T) as a binary tree over [1, T], each node represents a range - ith leaf node: cv(ID) = i - non-leaf node: cv(ID) = cv(ID1) U cv(ID2) in which ID1 & ID2 are its children nodes

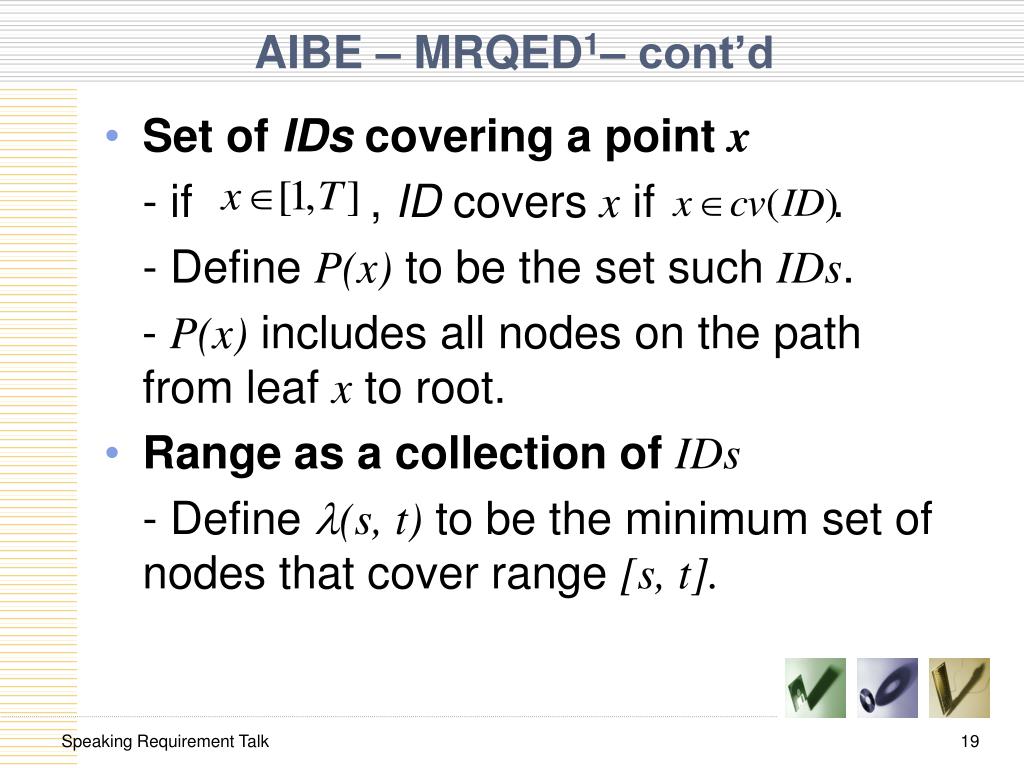

AIBE – MRQED1– cont’d • Set of IDs covering a point x - if , ID covers x if . - Define P(x) to be the set such IDs. - P(x) includes all nodes on the path from leaf x to root. • Range as a collection of IDs - Define (s, t) to be the minimum set of nodes that cover range [s, t].

AIBE – MRQED1– cont’d [0, 7] [0, 3] [4, 7] [0, 1] [2, 3] [4, 5] [6, 7] 0 1 2 3 4 5 6 7 [1, 7]

AIBE – MRQED1: Encrypt C0=Encrypt(PK, IDA, msg) A C1=Encrypt(PK, IDB, msg) B C2 C3 0 1 2 3 4 5 6 7

AIBE – MRQED1: Encrypt C0 O(logT) ciphertext size C1 C2 C3 0 1 2 3 4 5 6 7

AIBE – MRQED1: DeriveKey 0 1 2 3 4 5 6 7 [2, 6]

AIBE – MRQED1: DeriveKey [2, 3] [4, 5] [6, 6] 0 1 2 3 4 5 6 7 [2, 6]

AIBE – MRQED1: DeriveKey SK SK SK 0 1 2 3 4 5 6 7 [2, 6]

AIBE – MRQED1: DeriveKey O(logT) decryption key size SK SK SK 0 1 2 3 4 5 6 7 [2, 6]

Observations: • If x 2 [s, t], then | P(x)Å(s, t) | = 1 • If x2[s, t], P(x) Å(s, t)=; AIBE – MRQED1: QueryDecrypt

AIBE – MRQED1: Decrypt C0 C1 C2 C3 0 1 2 3 4 5 6 7

AIBE – MRQED1: Decrypt C0 C1 SK SK C2 SK C3 0 1 2 3 4 5 6 7 [2, 6]

AIBE – MRQED1: Decrypt C0 C1 C2 C3 0 1 2 3 4 5 6 7

AIBE – MRQED1: Decrypt C0 C1 SKB C2 C3 0 1 2 3 4 5 6 7 [0, 3]

AIBE – MRQED1: Decrypt C0 C1 SKB C2 C3 0 1 2 3 4 5 6 7 [4, 7]

AIBE – MRQED1: Performance T: # different values along each dimension D: # dimensions

AIBE – MRQEDD – Encryption D = 2 dimensional example To encrypt point x = (3,5)

AIBE – MRQEDD – DeriveKey Query range: [2,6] x [7,3] 1st dimension: (2, 6) 2nd dimension: (3,7)

AIBE – MRQEDD Performance • O(1) PK size • O(D¢logT) • Encryption cost • Cipher Text. size • Decryption key size • O((logT)D) decrypt. cost • Good performance, but has a serious vulnerability – prone to collusion attack

Collusion Attack SKy2 R3 R4 {SKx1, SKy2} {SKx2, SKy2} SKy1 R1 R2 {SKx1, SKy1} {SKx2, SKy1} Kx1 Kx2 How fix the problem but preserve the AIBE – MRQEDD efficiency?

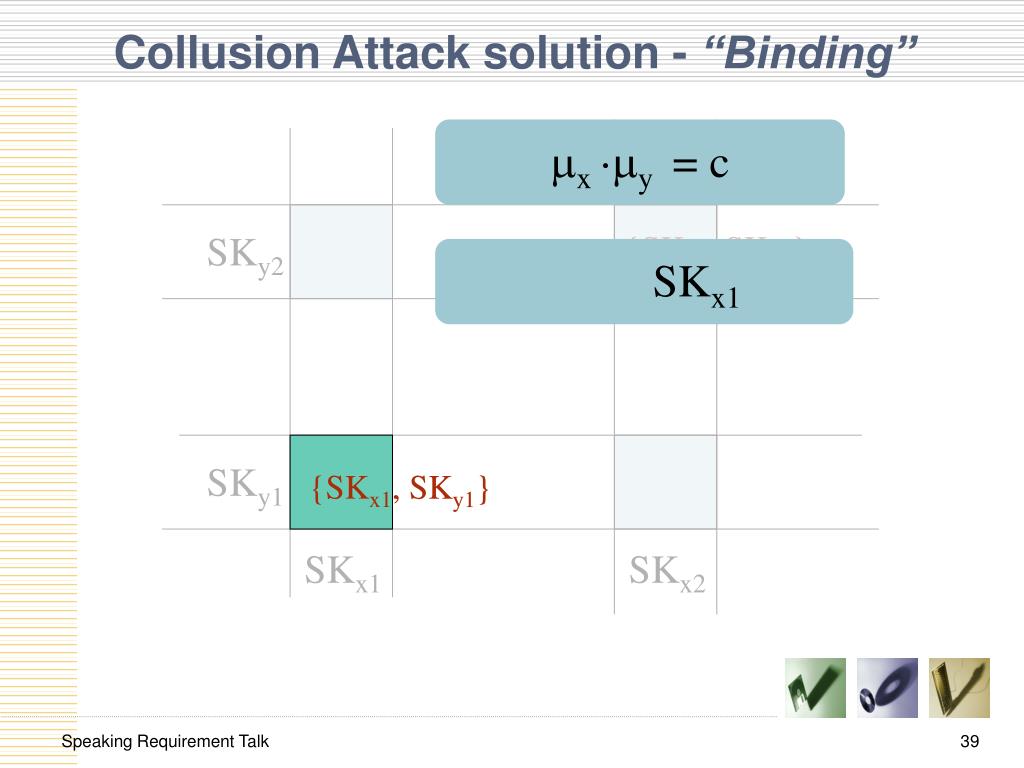

Collusion Attack solution - “Binding” x ¢y = c SKy2 {SKx2, SKy2} SKy1 {SKx1, SKy1} {SKx1, SKy1} SKx1 SKx2

Collusion Attack solution - “Binding” x ¢y = c SKy2 {SKx2, SKy2} x 4SKx1 SKy1 {SKx1, SKy1} {SKx1, SKy1} SKx1 SKx2

Collusion Attack solution - “Binding” x ¢y = c SKy2 {SKx2, SKy2} xSKx1 SKy1 {SKx1, SKy1} {SKx1, SKy1} SKx1 SKx2

Collusion Attack solution - “Binding” x ¢y = c SKy2 {SKx2, SKy2} xSKx1 ySKy1 SKy1 {SKx1, SKy1} {SKx1, SKy1} SKx1 SKx2

Collusion Attack solution - “Binding” x ¢y= c SKy2 {SKx2, SKy2} {SKx2, SKy2} xSKx2 ySKy2 SKy1 {SKx1, SKy1} SKx1 SKx2

The “Binding” Construction • Use Bilinear Groups • Rely on well-known difficult problem: • Decision BDH Assumption • Decision linear Assumption • Algebraically intensive

Conclusion T: # different values along each dimension D: # dimensions

Future work • Further exploration of ways to decrease the decryption co • Possible other privacy-preserving applications in addition to network audit logs, financial audit logs, etc.

Observations: • If x 2 [s, t], then | P(x)Å(s, t) | = 1 • If x2[s, t], P(x) Å(s, t)=; Question Why is this always true?
