  1. TAPELESS Internet, Intranet TV On Air Automation Solution From Virtual Set to the Streaming Server!

  2. DARIM 2006 BROADCAST Technical Seminar I .Video Capture & Streaming II. Studio Automation Video Server III. Virtual Set and VR Presenter

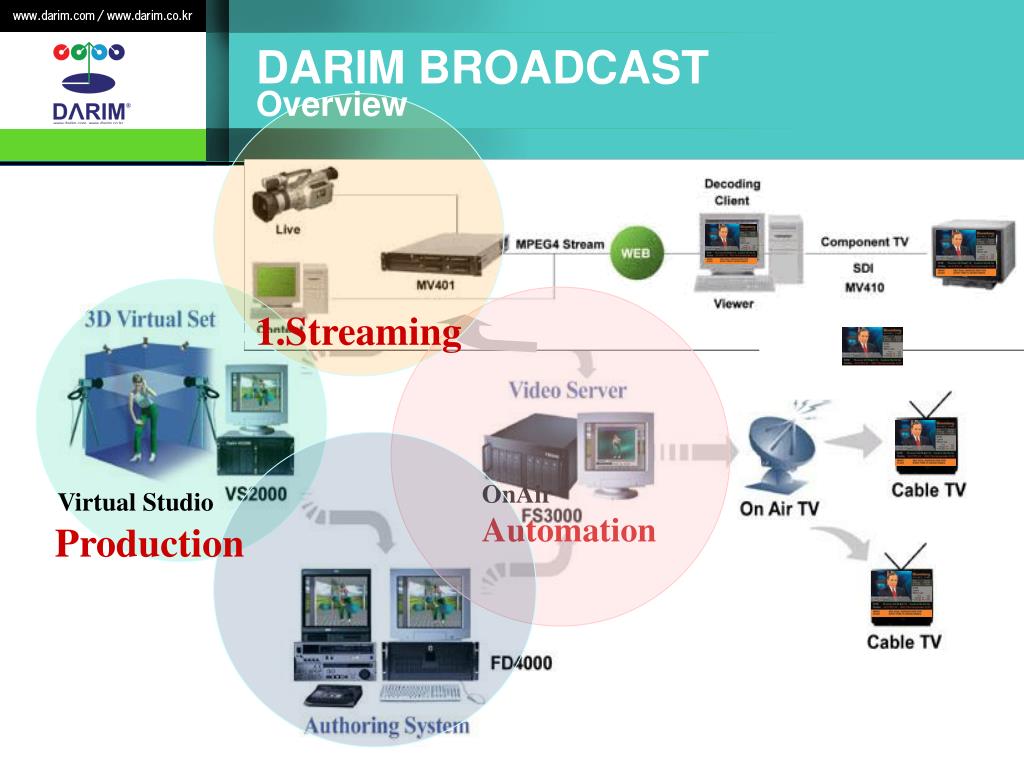

  3. DARIM BROADCAST Overview 1.Streaming OnAir Automation Virtual Studio Production

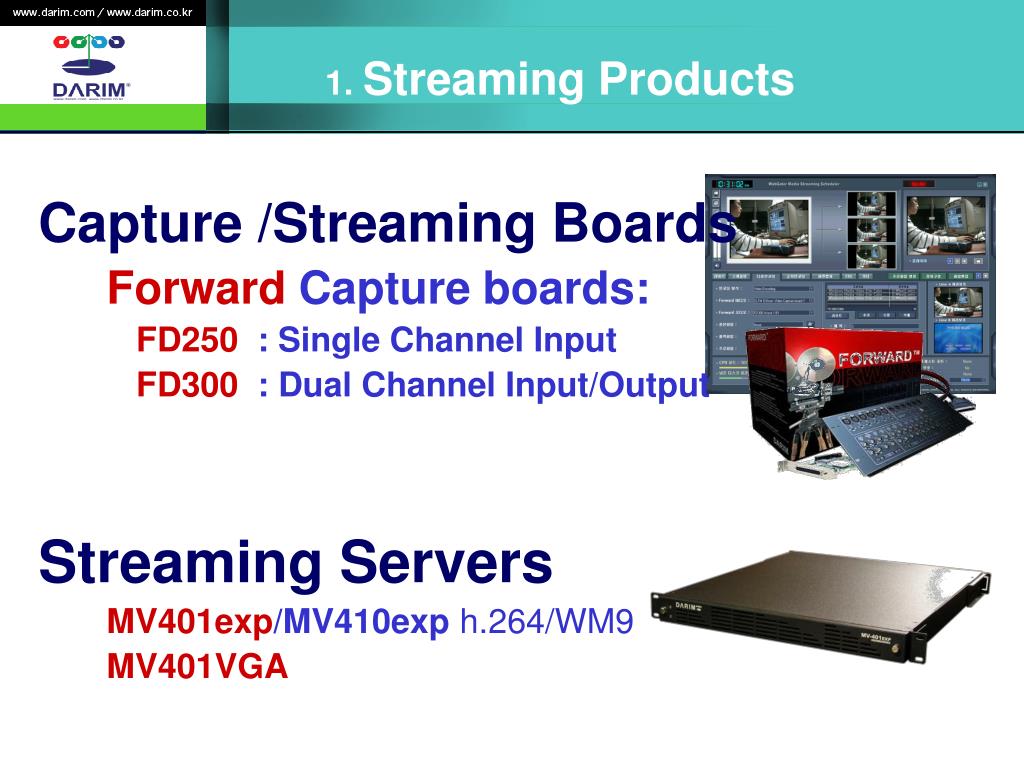

  4. 1. Streaming Products Capture /Streaming Boards Forward Capture boards: FD250 : Single Channel Input FD300 : Dual Channel Input/Output Streaming Servers MV401exp/MV410exp h.264/WM9 MV401VGA

  5. FD300 Dual Channel capture and output Streaming Solution

  6. FORWARD Streaming Server Scheduling, Titling, Encoding & Streaming

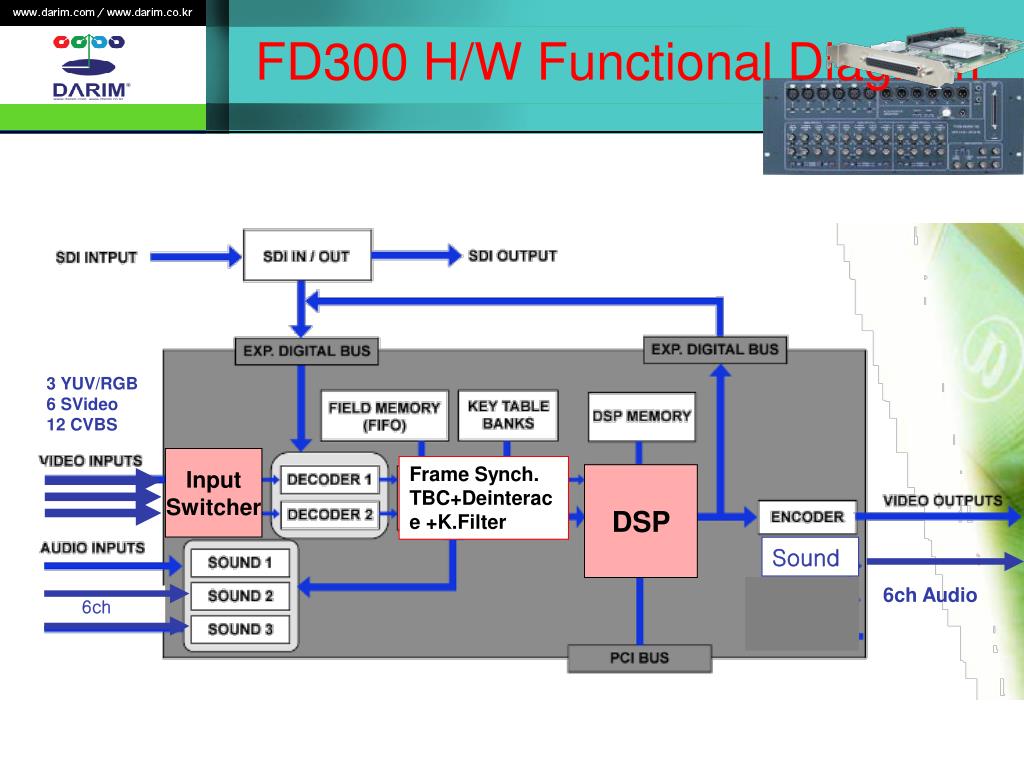

  7. FD300 H/W Functional Diagram 3 YUV/RGB 6 SVideo 12 CVBS Input Switcher Frame Synch. TBC+Deinterace +K.Filter DSP Sound 6ch Audio 6ch

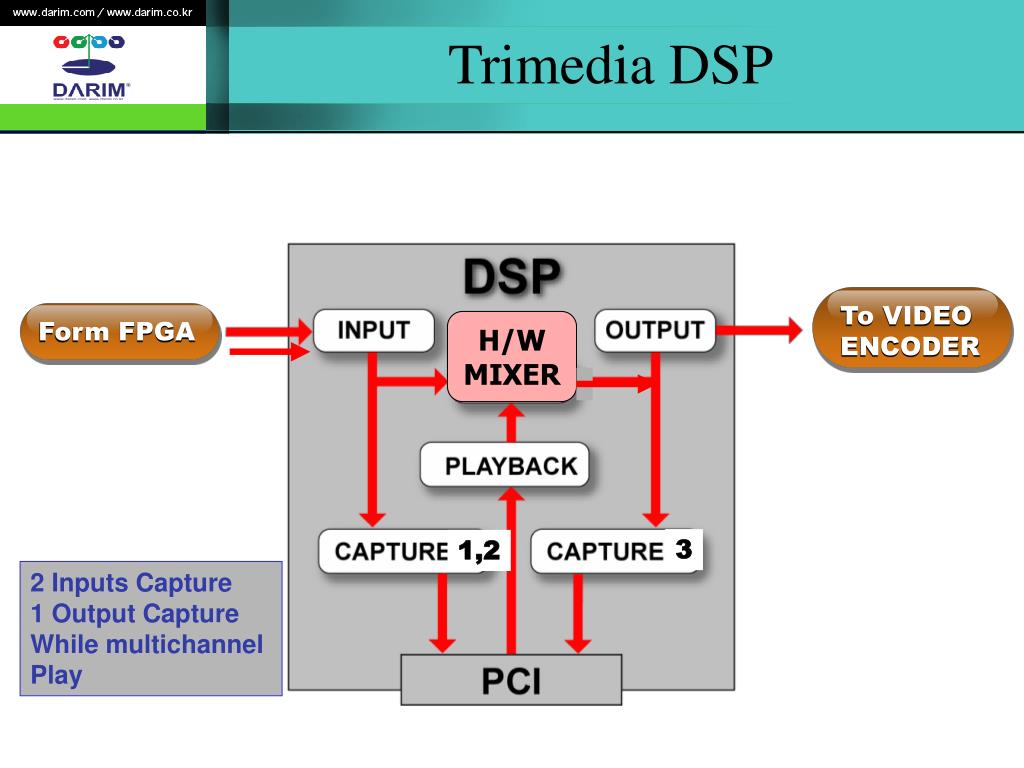

  8. Form FPGA To VIDEO ENCODER Trimedia DSP H/W MIXER 3 1,2 2 Inputs Capture 1 Output Capture While multichannel Play

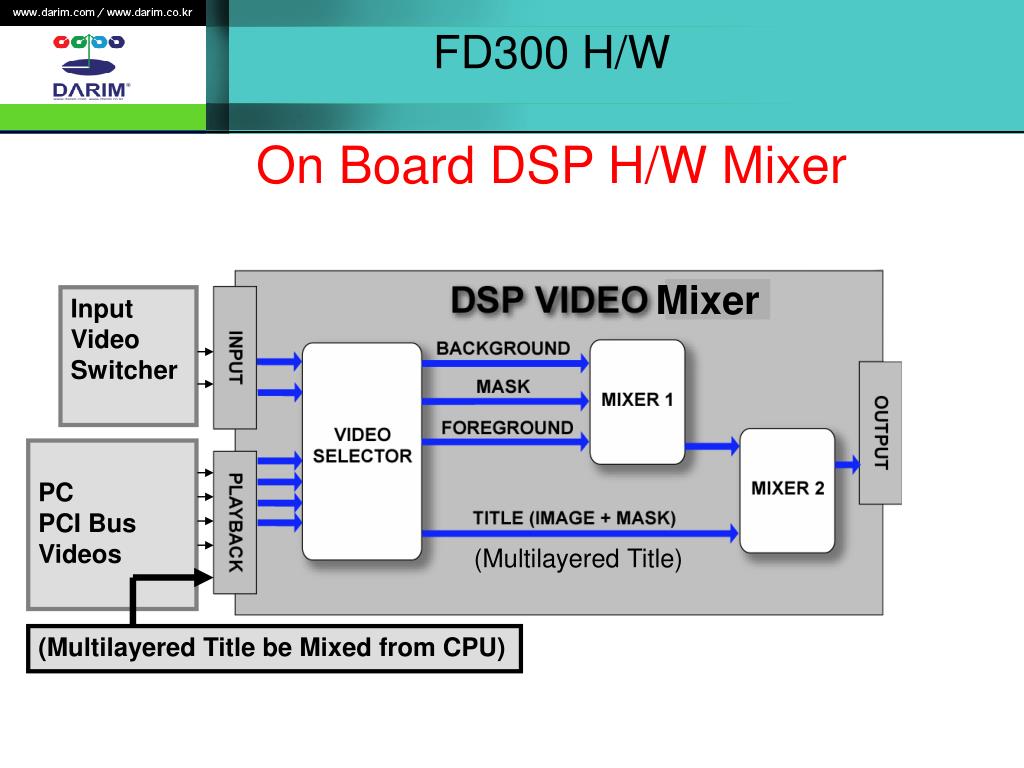

  9. FD300 H/WOn Board DSP H/W Mixer Mixer Input Video Switcher PC PCI Bus Videos (Multilayered Title) (Multilayered Title be Mixed from CPU)

  10. OnAir™ Streaming Automation Software APC+ Ingestion + Playout +Titling +Logo/Clock Interactive Input Switcher Interactive Input Switcher Schedule Video,Title Logo,Picture DataBase Video,Title,.. Drag & Drop, Program ICON

  11. WMSS Streaming S/W Multi Encoding

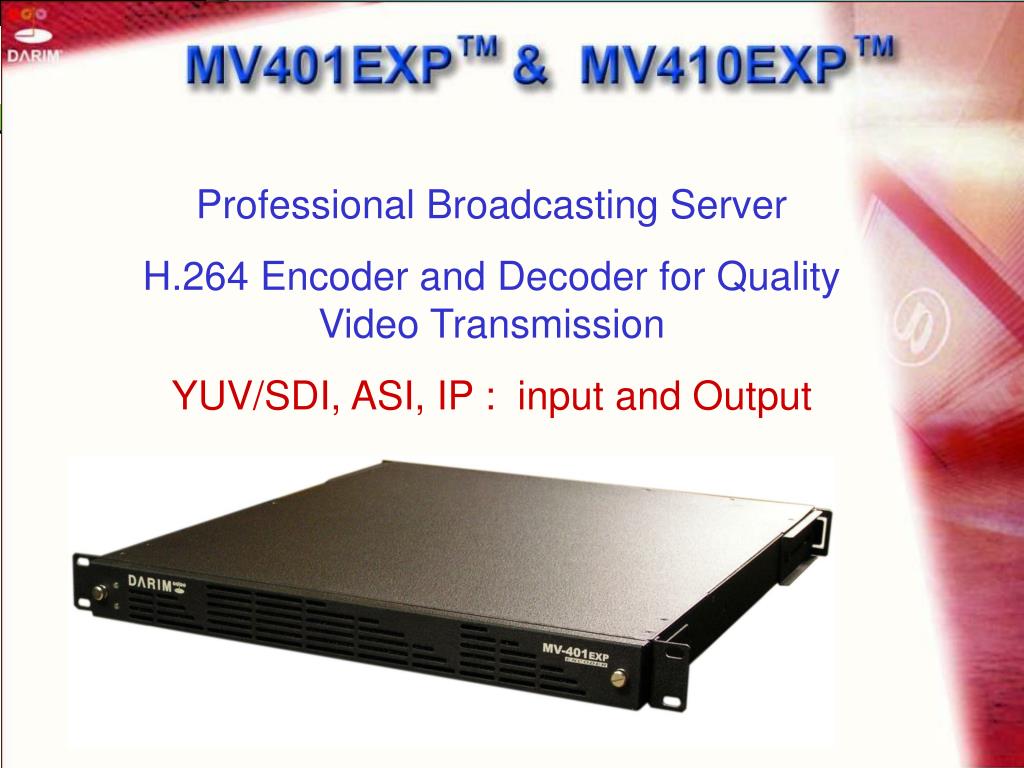

  12. Professional Broadcasting Server H.264 Encoder and Decoder for Quality Video Transmission YUV/SDI, ASI, IP : input and Output

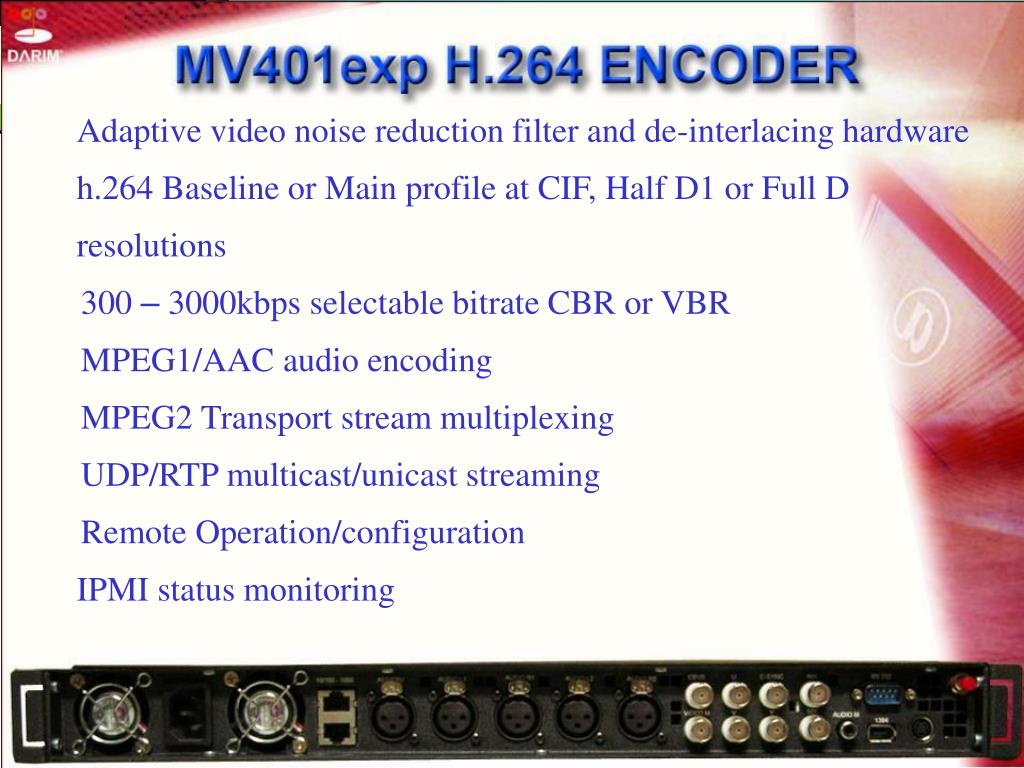

  13. Adaptive video noise reduction filter and de-interlacing hardware h.264 Baseline or Main profile at CIF, Half D1 or Full D resolutions 300 – 3000kbps selectable bitrate CBR or VBR MPEG1/AAC audio encoding MPEG2 Transport stream multiplexing UDP/RTP multicast/unicast streaming Remote Operation/configuration IPMI status monitoring

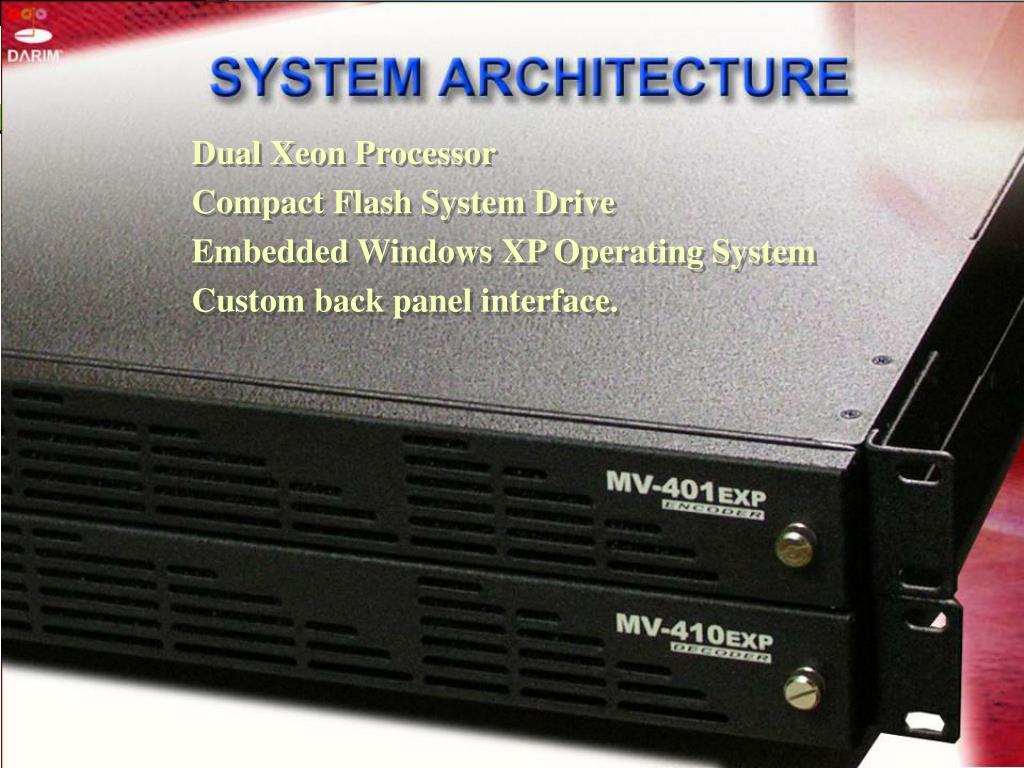

  14. Dual Xeon Processor Compact Flash System Drive Embedded Windows XP Operating System Custom back panel interface.

  15. Chello Media UK Chello Media sell a service called PCTV. They rebroadcast 10 channels of television over the internet using 10 Darim MV401exp with Windows Media 9. Subscribers login to the Chello Media Website and are able to watch the channels on their PC monitor. Chello Media is using the MV401exp to capture and encode the video content. They are re-broadcasting the video live, in full D1 resolution, at 1 Mbps over the internet. They currently have an installation in the Netherlands and putting more installations in Poland and Germany first quarter 2006. http://www.chellomistral.com/case_studies_24_7.htm

  16. Italia Television Is using Video streaming using MV401exp from Torino TORINO Italy

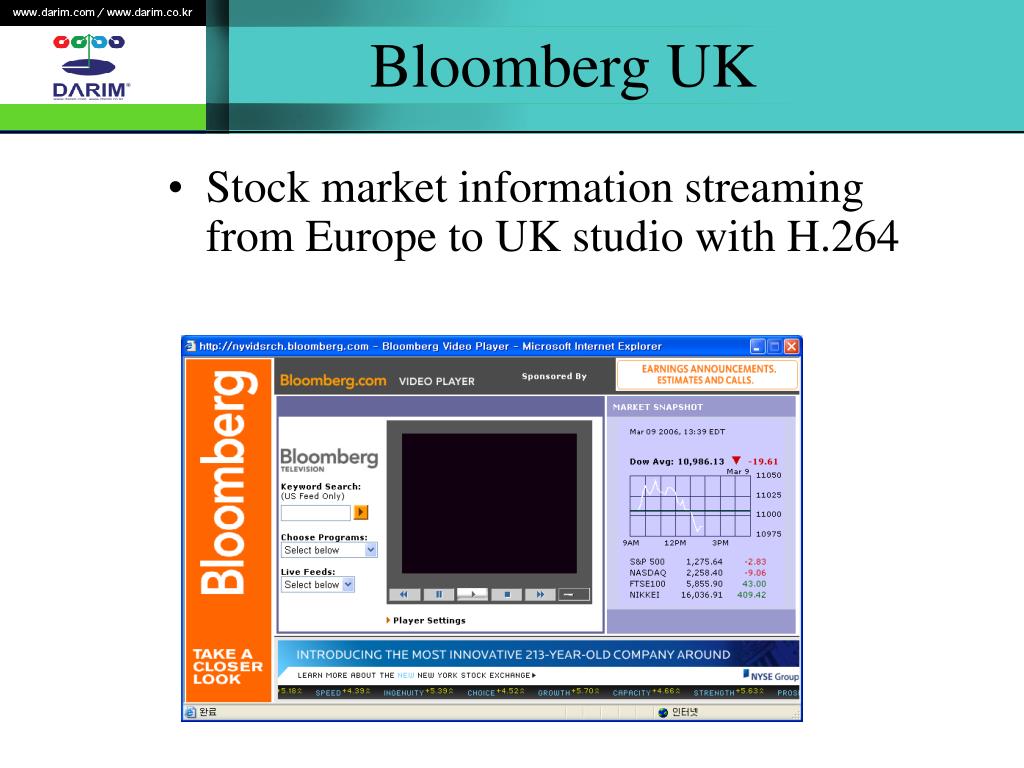

  17. Stock market information streaming from Europe to UK studio with H.264 Bloomberg UK

  18. FORWARDAutomation & TitlingFor TV and IP-TVFS800/1000/2000 KM300Installed 450 B.Stations World widely

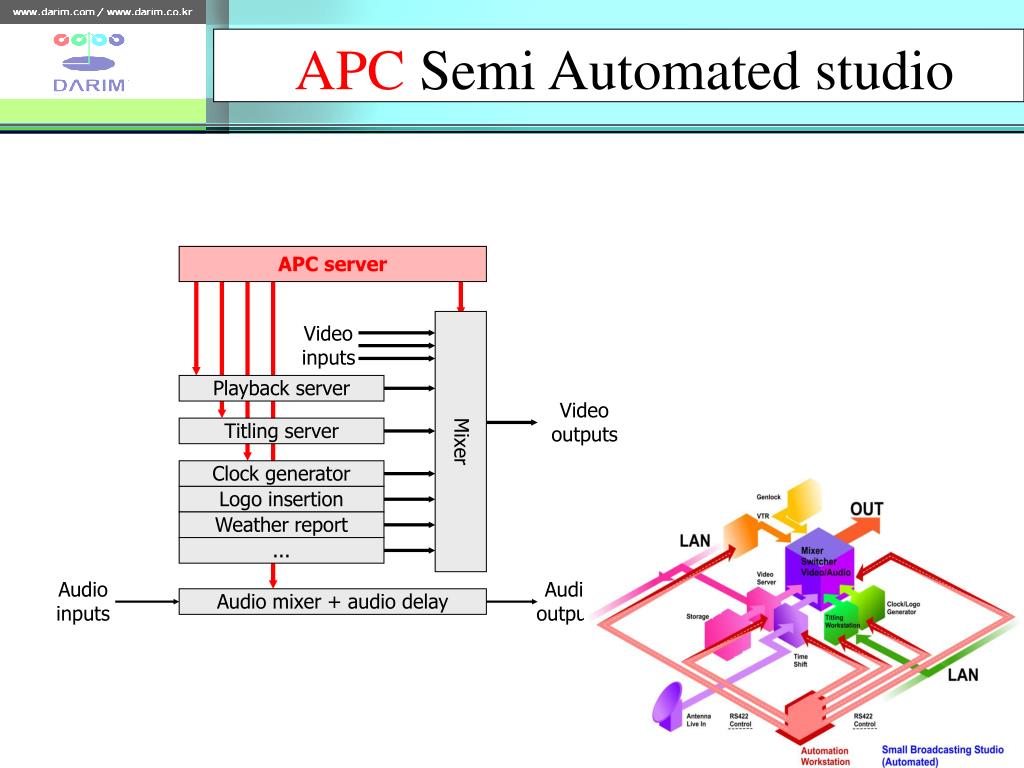

  19. APC Semi Automated studio APC server Mixer Video inputs Playback server Video outputs Titling server Clock generator Logo insertion Weather report ... Audio inputs Audio outputs Audio mixer + audio delay

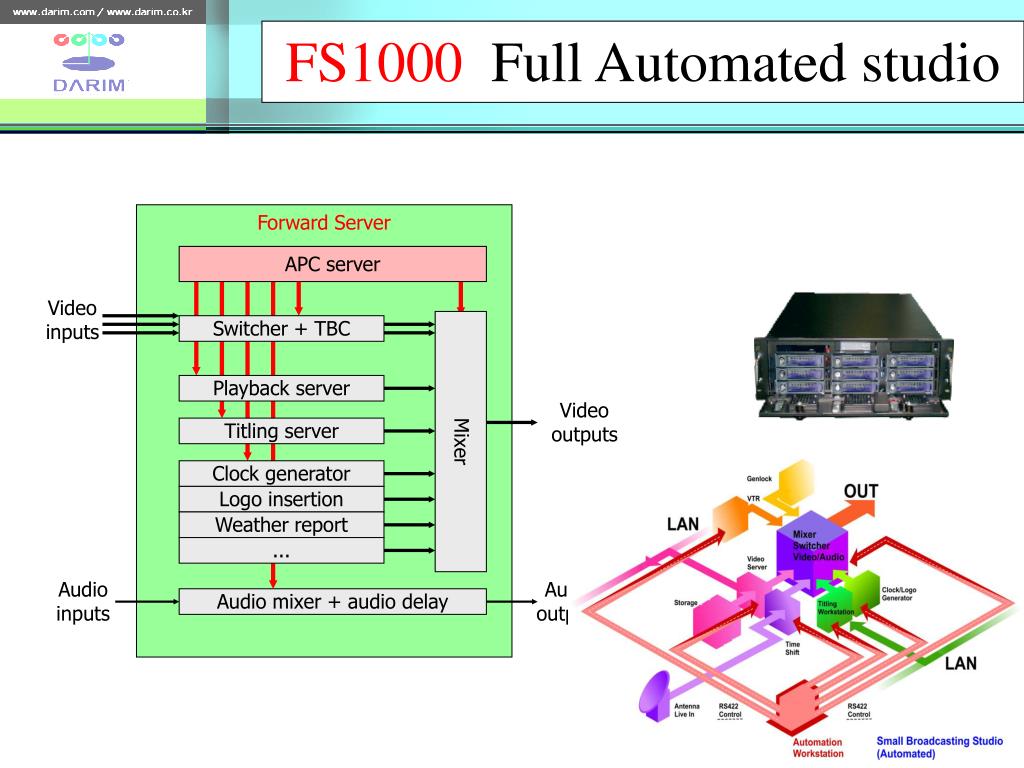

  20. FS1000 Full Automated studio Forward Server APC server Video inputs Mixer Switcher + TBC Playback server Video outputs Titling server Clock generator Logo insertion Weather report ... Audio inputs Audio outputs Audio mixer + audio delay

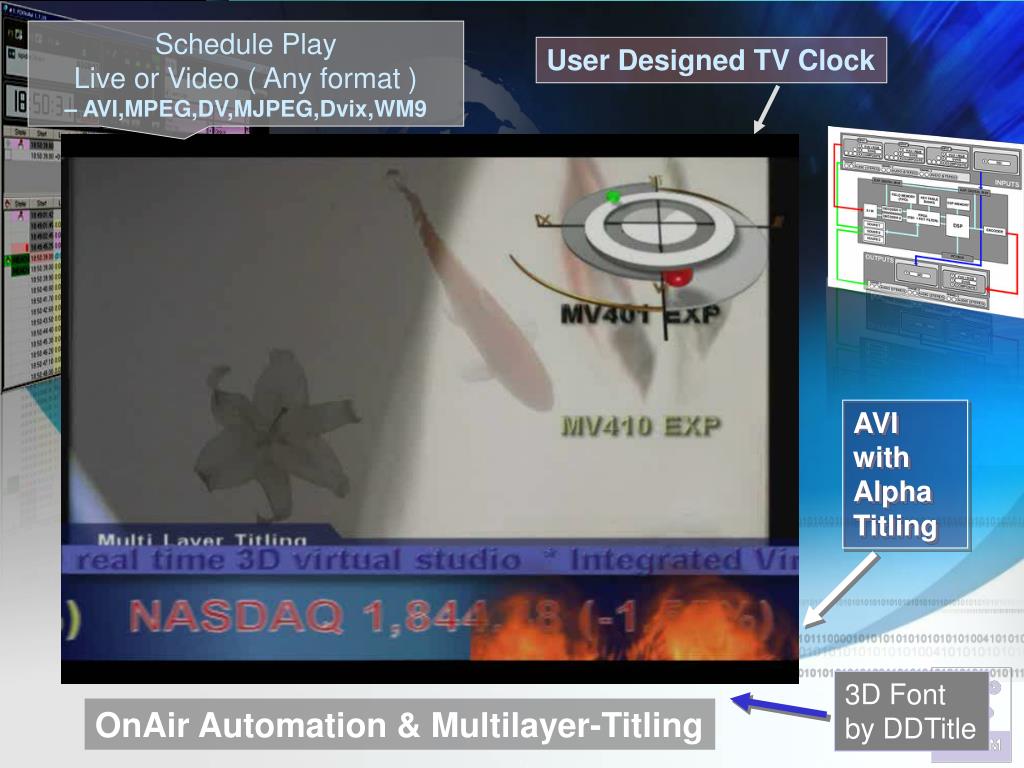

  21. Schedule Play Live or Video ( Any format ) – AVI,MPEG,DV,MJPEG,Dvix,WM9 User Designed TV Clock AVI with Alpha Titling 3D Font by DDTitle OnAir Automation & Multilayer-Titling

  22. FS1000 FS800/810/820 : Titling/SMS/WebScan Server FS1000,1100 : Titling & Automation Server FS2000 : Sport Replay Server KM300 : Chromakey & Mixer

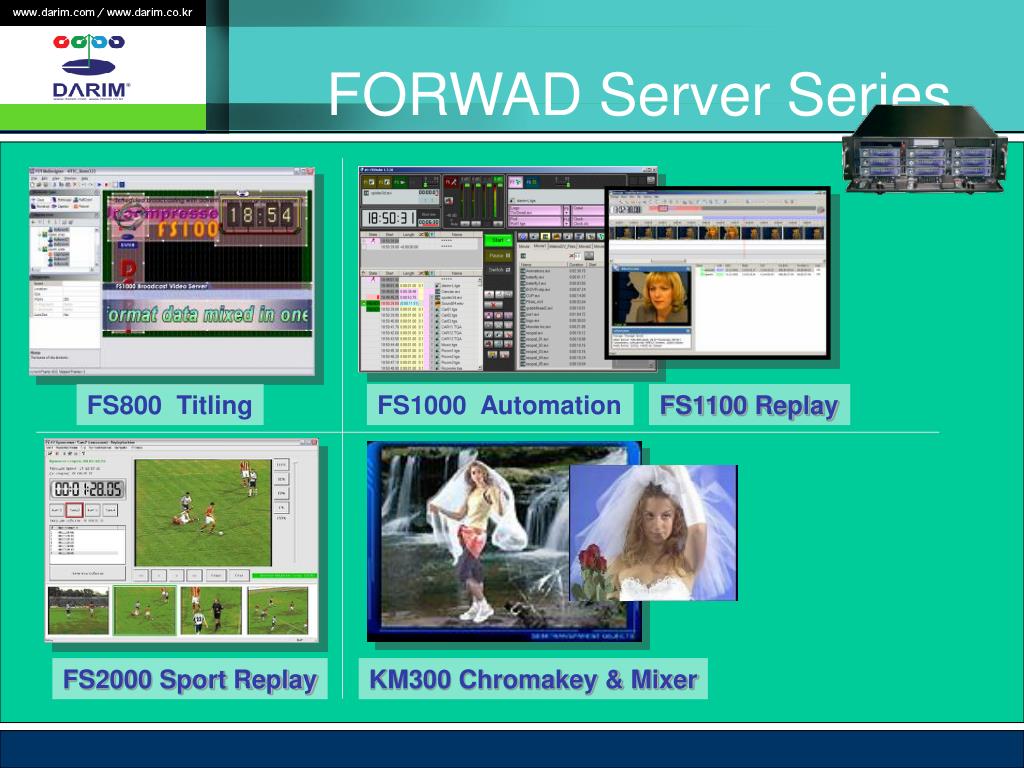

  23. FORWAD Server Series FS800 Titling FS1000 Automation FS1100 Replay FS2000 Sport Replay KM300 Chromakey & Mixer

  24. FS 1000InfoTitle Server application Most of the Features of Titling is supported from FS500 VGA,HD version is going out..soon

  25. Forward 1000Onsite News Video Delivery System • DV CAM + DDClip + Online Transmission • DV Capture • Edit (Cut & Paste + Audio Dubbing) -DDClip • DiVX MPEG File Send– DDClip/DiVX Edit Forward 1000 Server Online IEEE1394 News Edit (Remote Transmission)

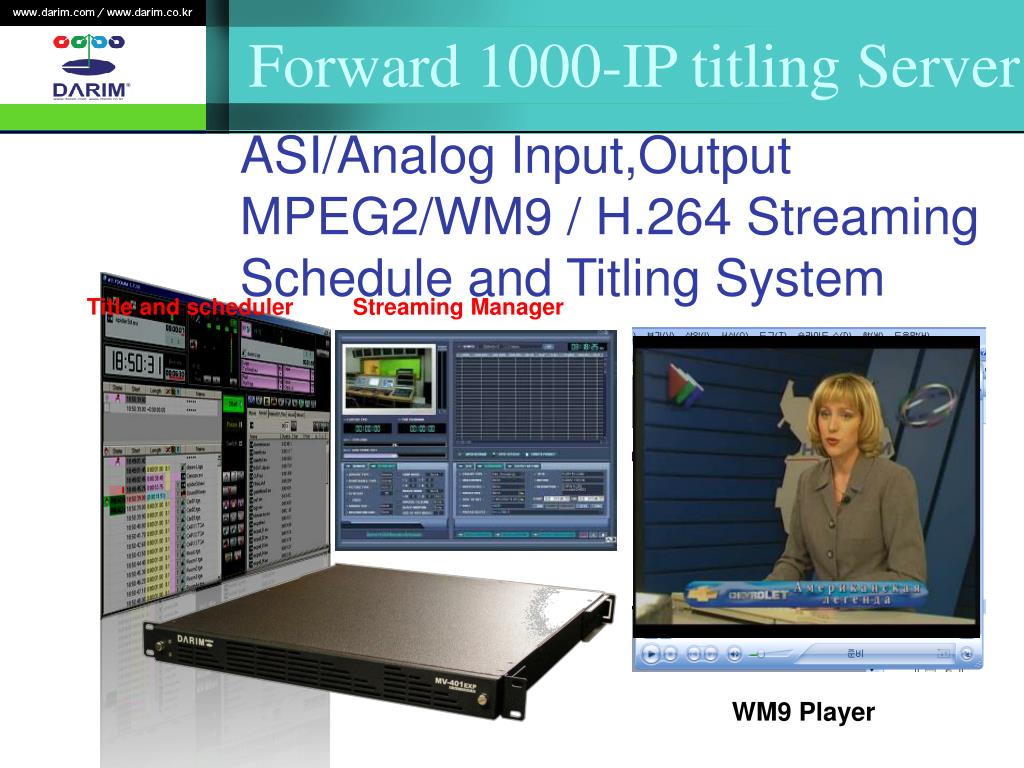

  26. Forward 1000-IP titling Server ASI/Analog Input,Output MPEG2/WM9 / H.264 Streaming Schedule and Titling System Title and scheduler Streaming Manager WM9 Player

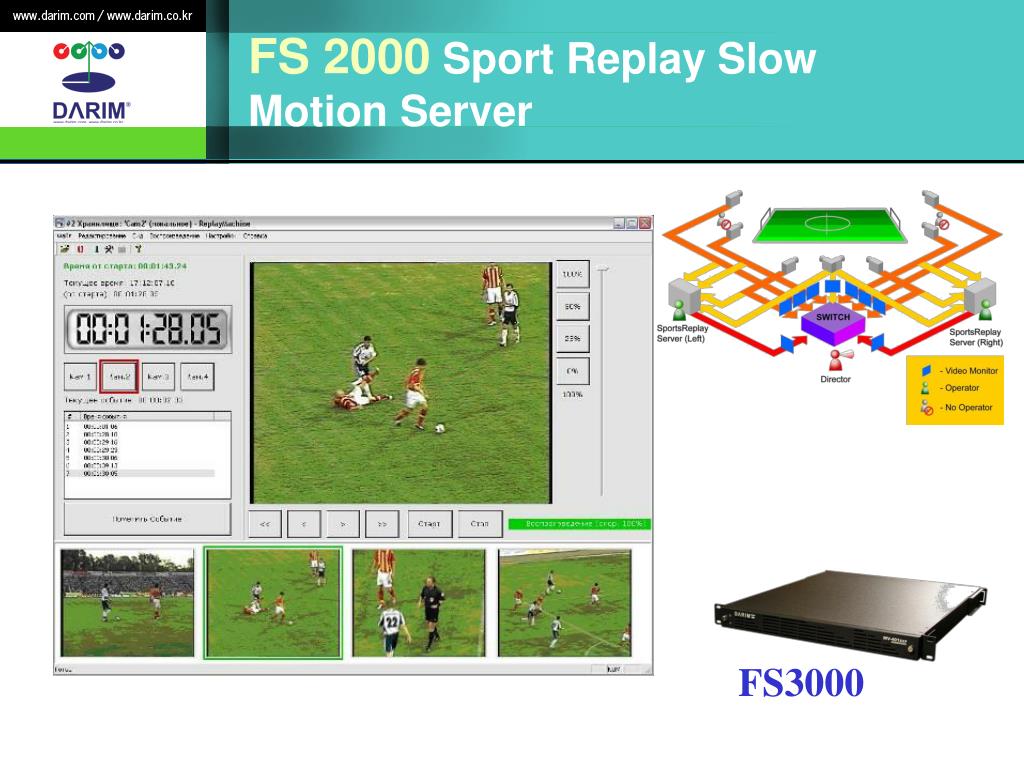

  27. FS 2000 Sport Replay Slow Motion Server FS3000

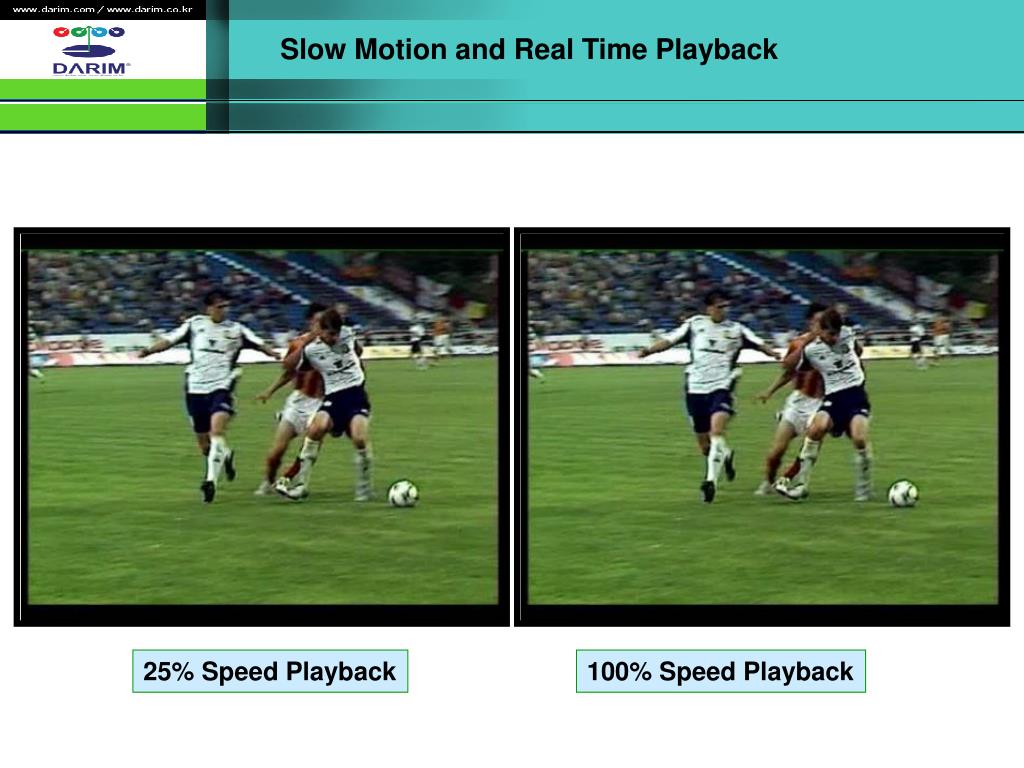

  28. Slow Motion and Real Time Playback 25% Speed Playback 100% Speed Playback

  29. Darim Virtual Set is designed for everybody • All previous virtual sets were for Big Broadcasters : Expensive and Complex .. • VS2000 can dramatically reduce expense of Operation: Smallest Operator ( mostly one ): easy to use, Easy to settup, Smallest Space with Fixed Cameras-but best looking • Just look on results and imagine – you can do it by yourself from tomorrow. Cost of whole environment and operation technology is unbeatable.

  30. VS2000 Virtual- Set Trackless/Tracking/Turnkey Easy, Simple, Fast, Affordable Real Time 3D Save SPACE of Studios, Operation Peoples, Set contructions

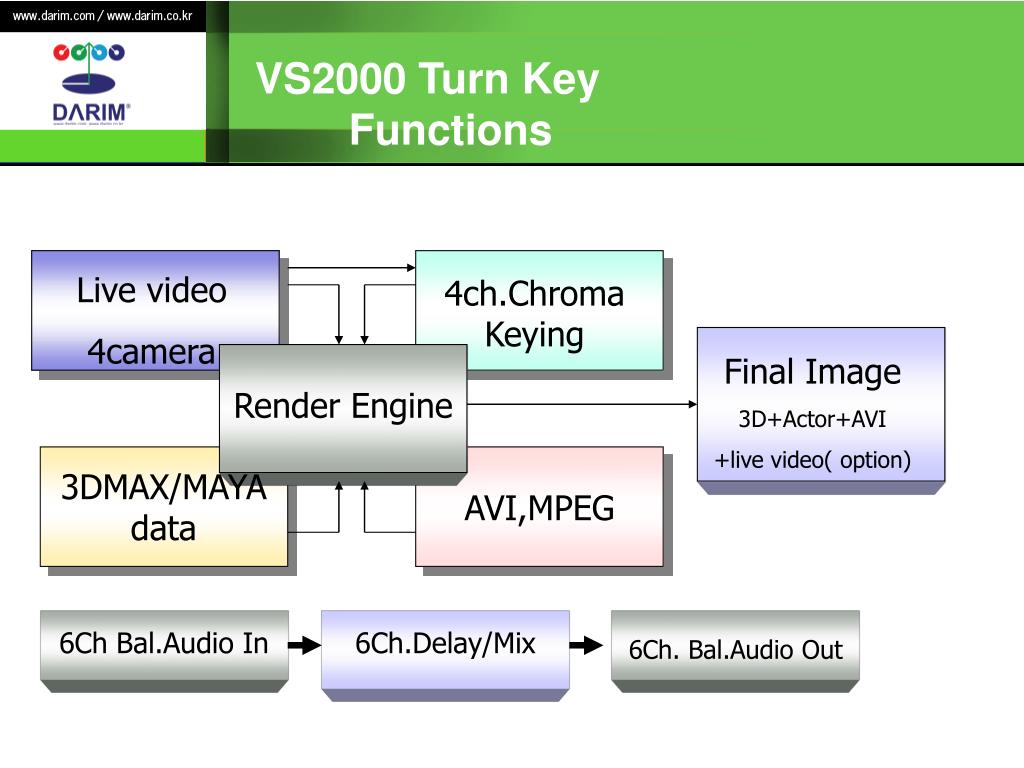

  31. VS2000 Turn Key Functions Live video 4camera 4ch.Chroma Keying Final Image 3D+Actor+AVI +live video( option) Render Engine 3DMAX/MAYA data AVI,MPEG 6Ch Bal.Audio In 6Ch.Delay/Mix 6Ch. Bal.Audio Out

  32. VS4000 Top-of-the line HD quality virtual studio Tracking + Trackless Product Line upVS models VS1000 VS2000 VS3000 Playback system limited set customization Full functionality including virtual set design/changes High-end tracking system for SD broadcasters

  33. Reference sites: Cincinnati University in USA Algebra in Russia

  34. VR Presenter Real Time Virtual Studio for3rd Generation Presentation Real Time VR Presentation & Recording/Streaming

  35. V R Presenter do lot more than that… How about Record and Streaming? With High 1024x768 Video ?

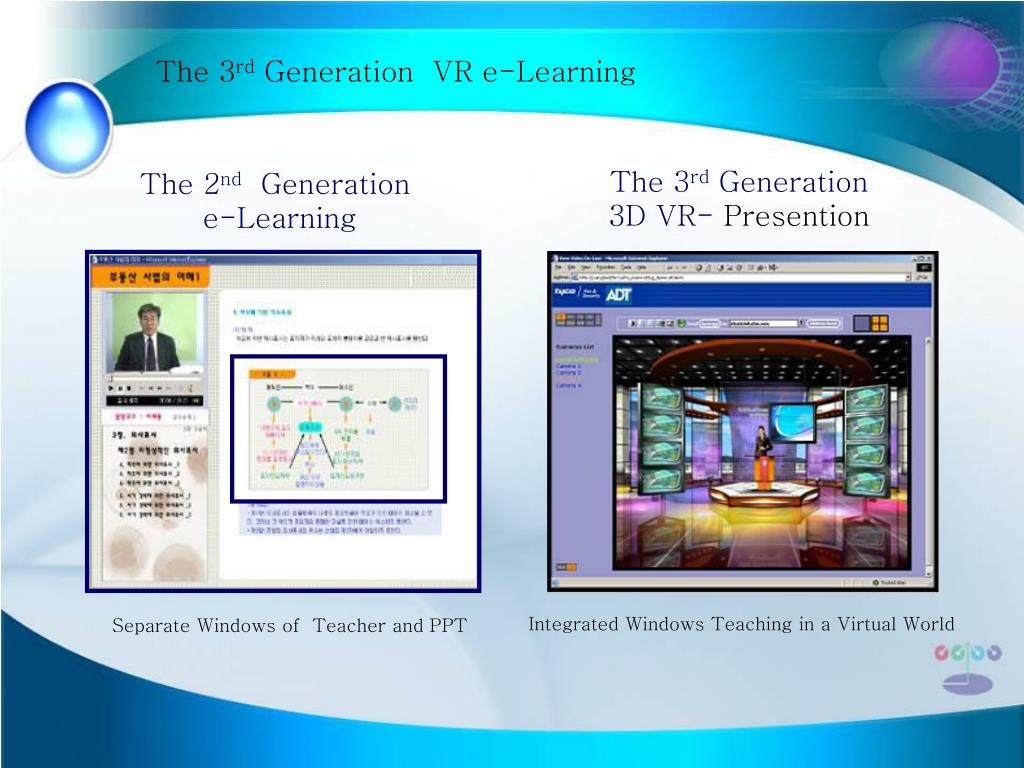

  36. The 3rd Generation VR e-Learning The 3rd Generation 3D VR- Presention The 2nd Generation e-Learning Integrated Windows Teaching in a Virtual World Separate Windows of Teacher and PPT

  37. VR-Presentor Main features * Real Time Operation by a Teacher * Five minutes to learn * One Touch operation * Enough Templates - Editable

  38. DARIM 2006BROADCAST Technical Seminar I .Video Capture & Streaming II. Studio Automation Video Server III. Virtual Set and VR Presentor
