  1. The Interplay between a Mountainous River and Nearby Submarine Canyon in Southern Taiwans Ray T. Hsu and James T. Liu Institute of Marine Geology and Chemistry, National Sun Yat-sen University, Kaohsiung, Taiwan 804-24

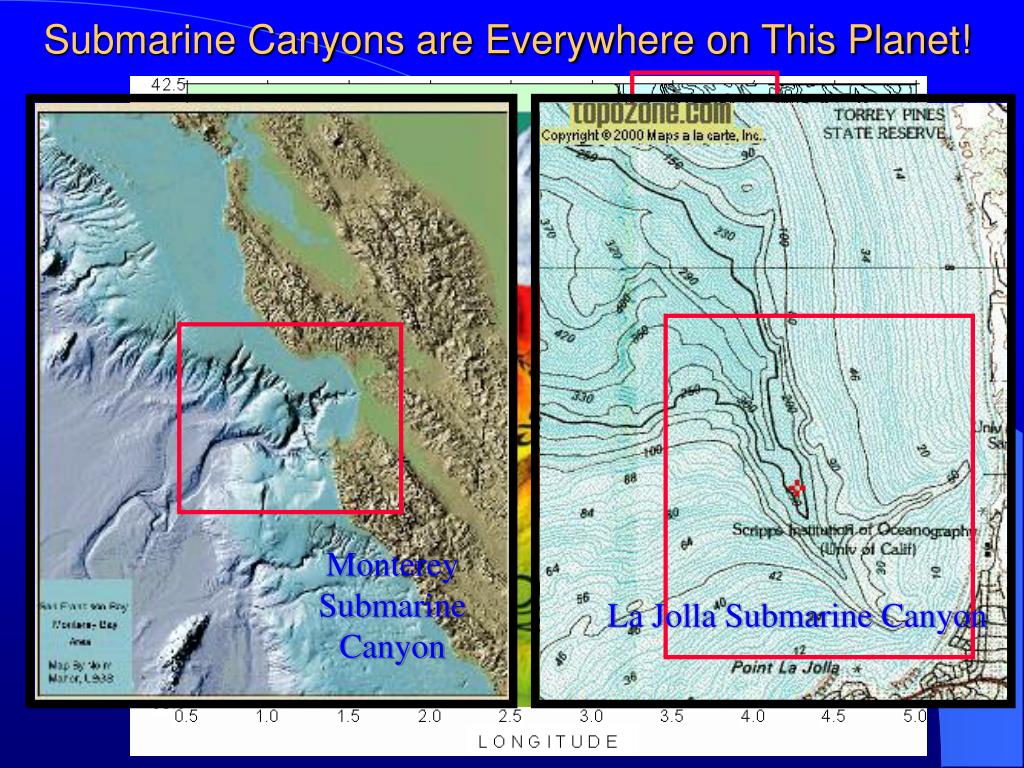

  2. Mediterranean sea Hudson Submarine Canyon Monterey Submarine Canyon La Jolla Submarine Canyon Kaikoura Canyon Submarine Canyons are Everywhere on This Planet!

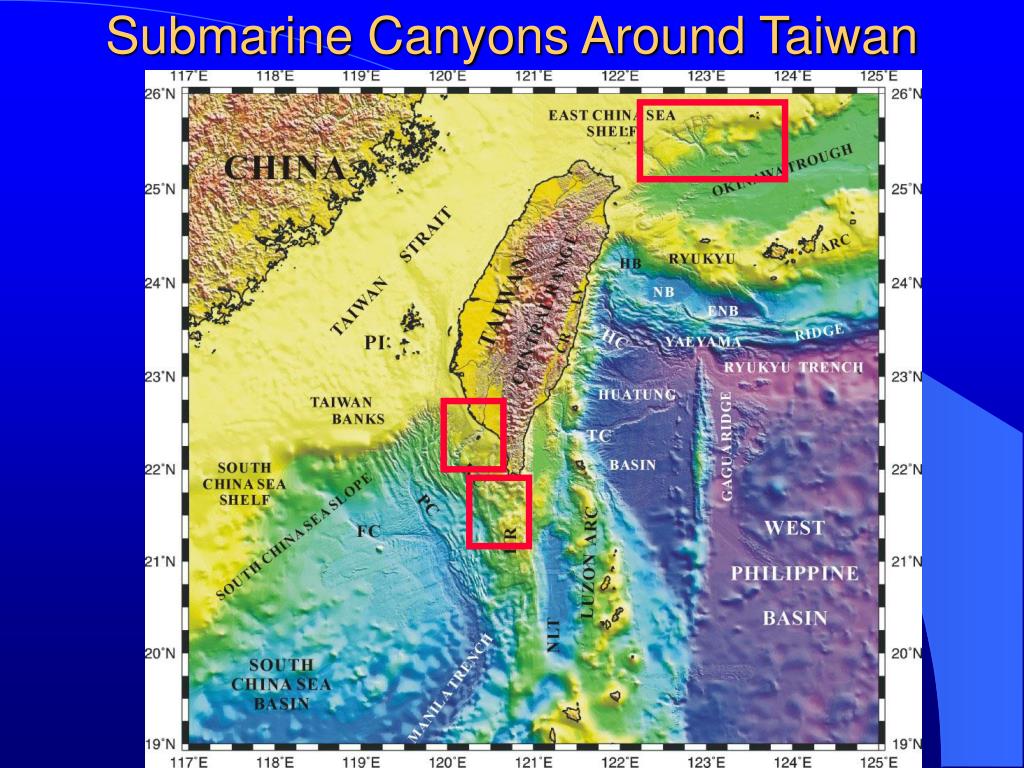

  3. Submarine Canyons Around Taiwan

  4. Study Area Taiwan Taiwan Strait Kaoping Submarine Canyon Pacific Ocean South China Sea

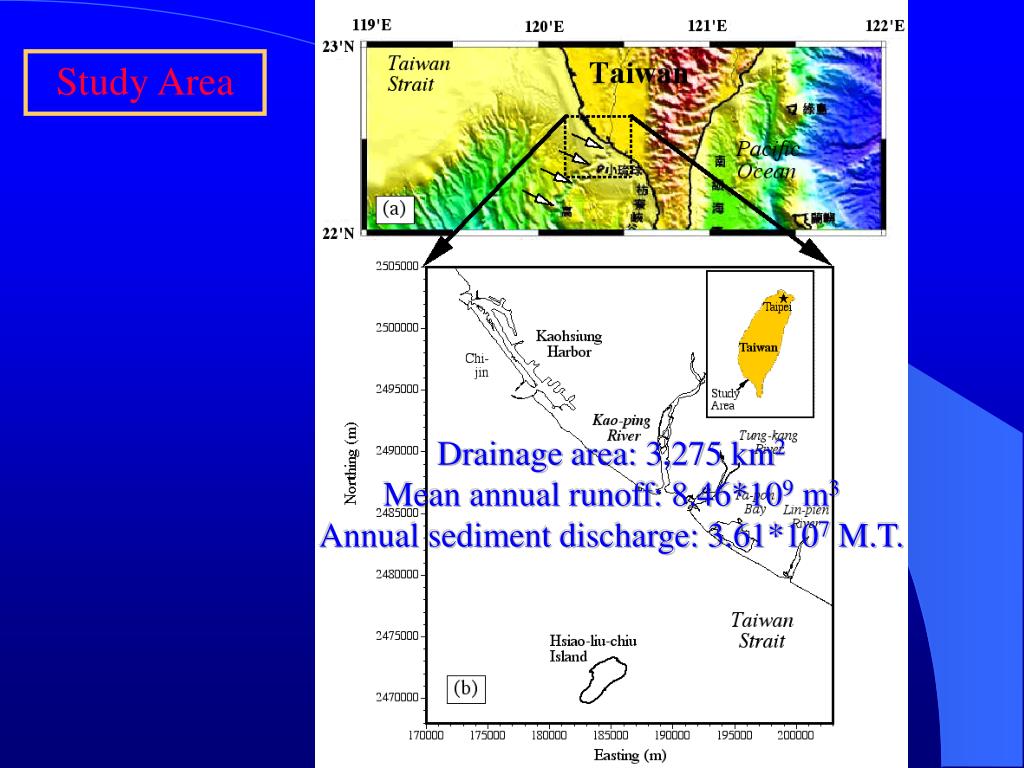

  5. Study Area Drainage area: 3,275 km2 Mean annual runoff: 8.46*109 m3 Annual sediment discharge: 3.61*107 M.T.

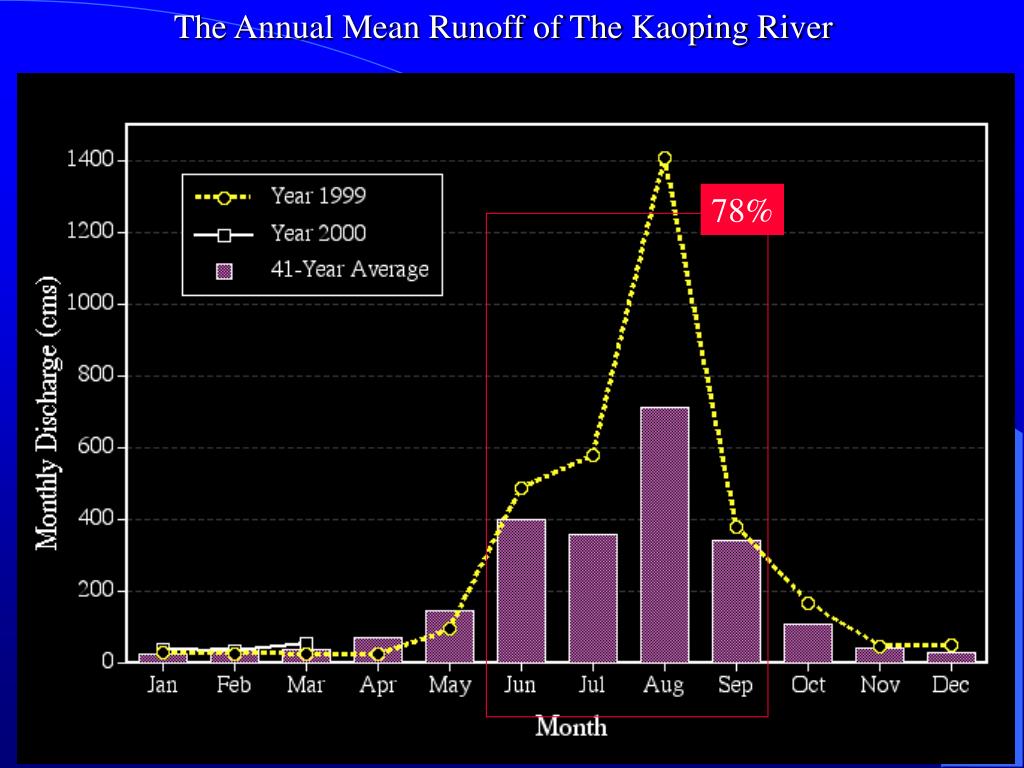

  6. The Annual Mean Runoff of The Kaoping River 78%

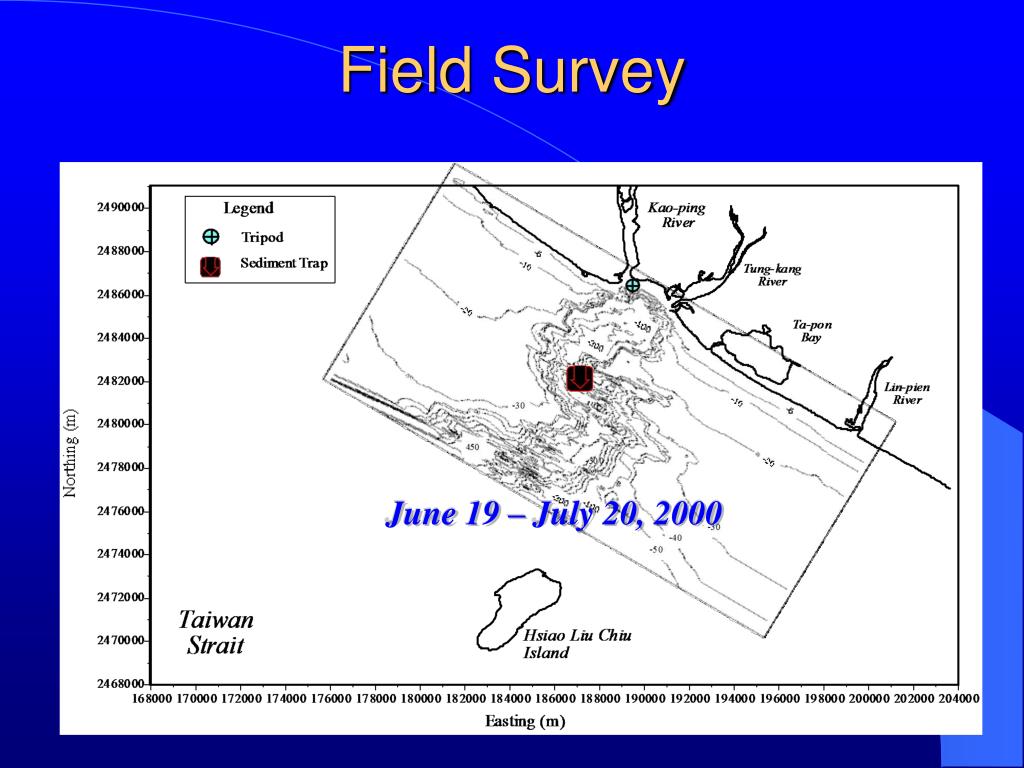

  7. Field Survey June 19 – July 20, 2000

  8. Trap Array and Tripod Tripod

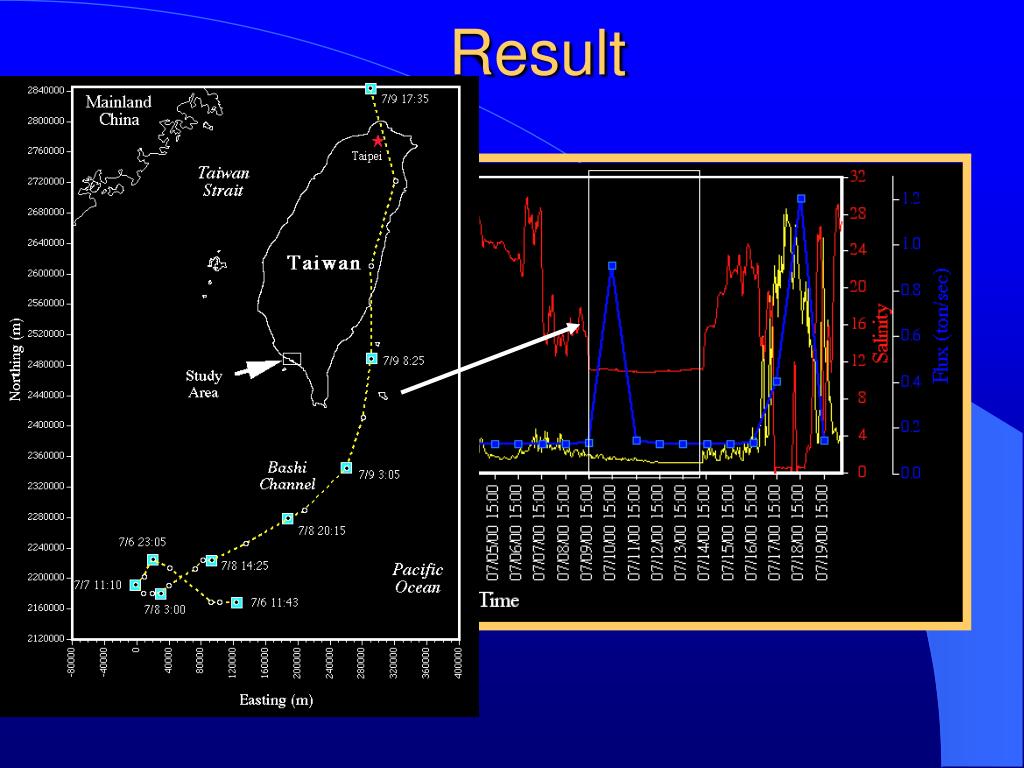

  9. Result

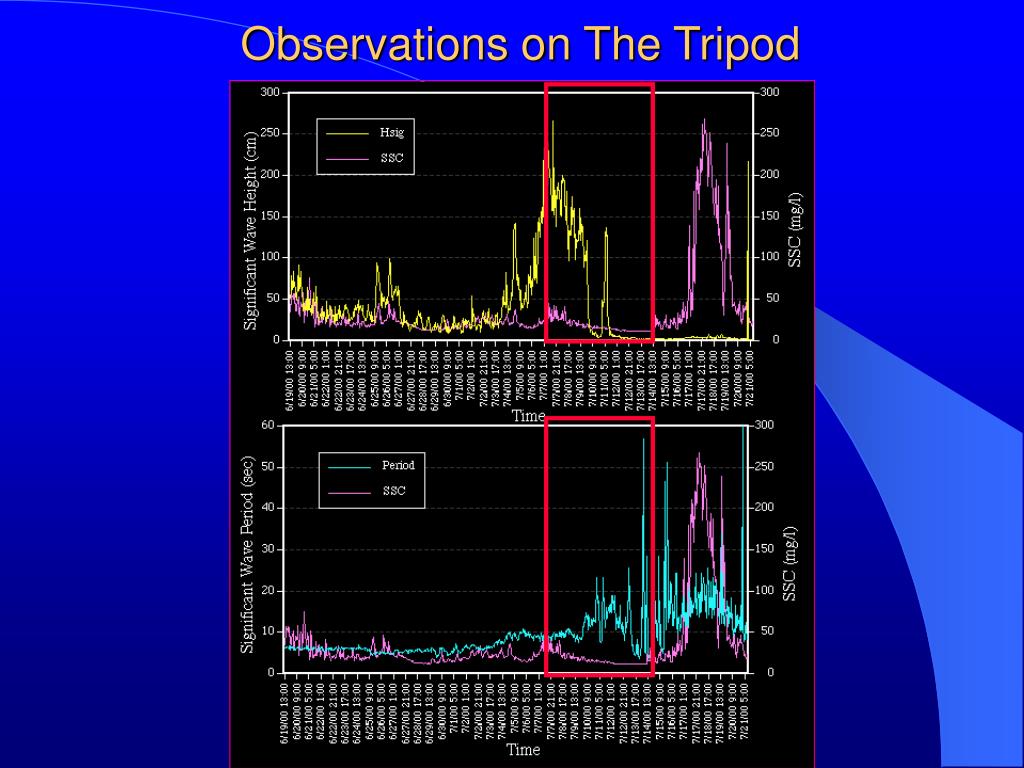

  10. Observations on The Tripod

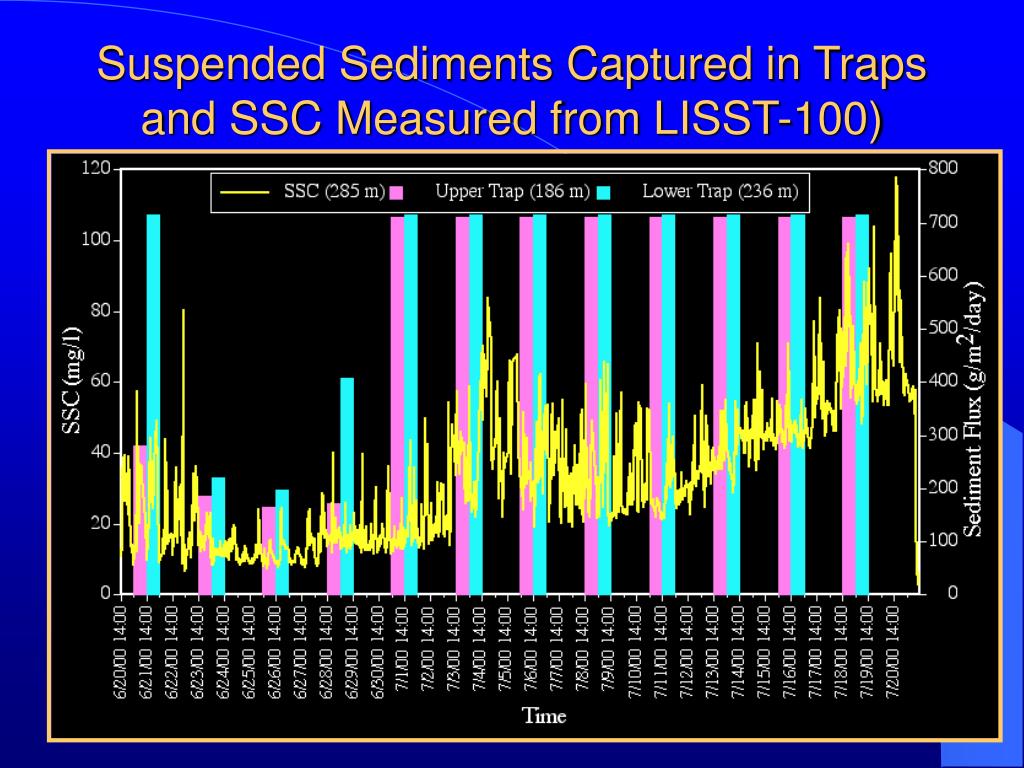

  11. Suspended Sediments Captured in Traps and SSC Measured from LISST-100)

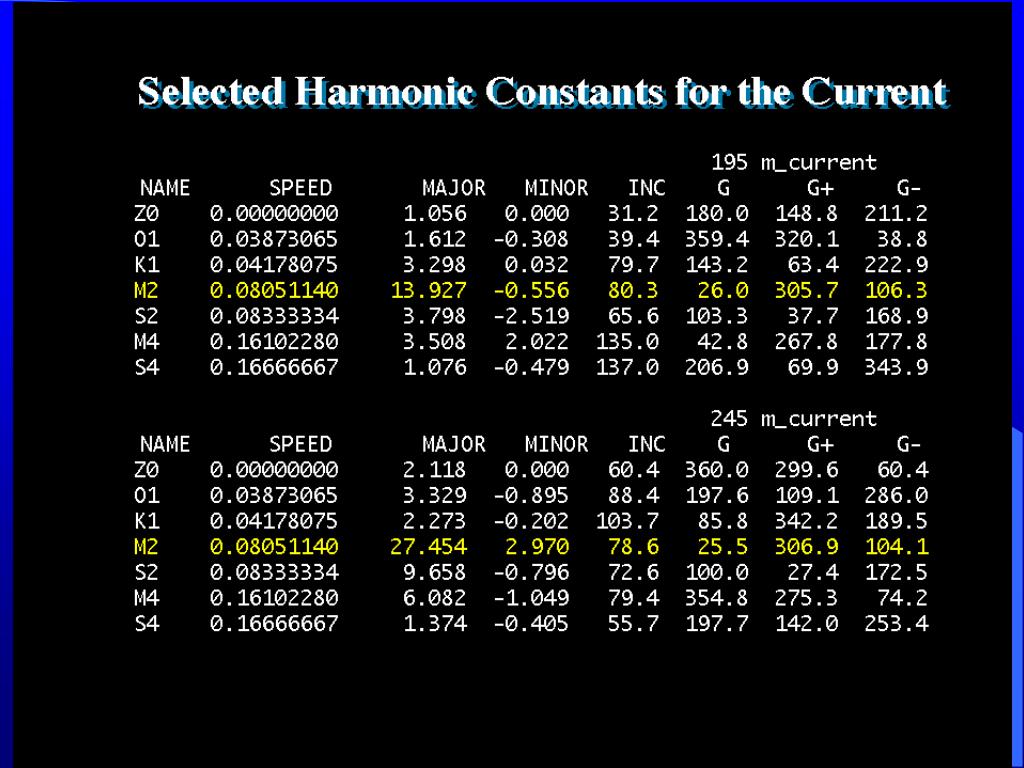

  12. Observation on RCM

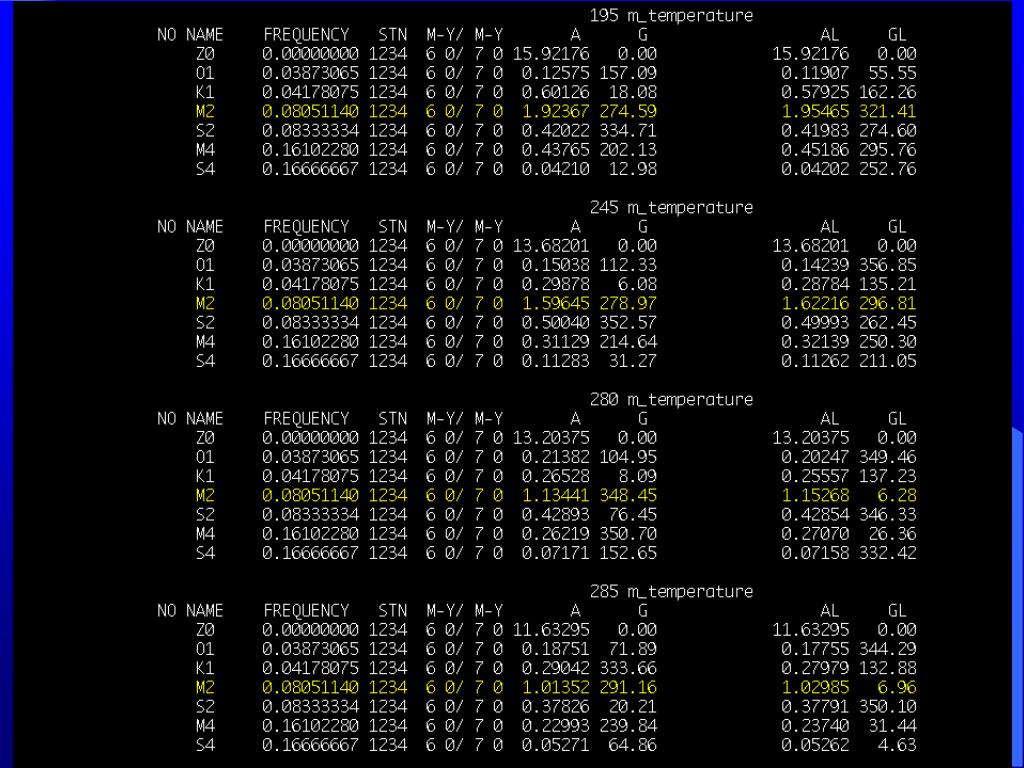

  13. Temperature (Tripod and Trap Array)

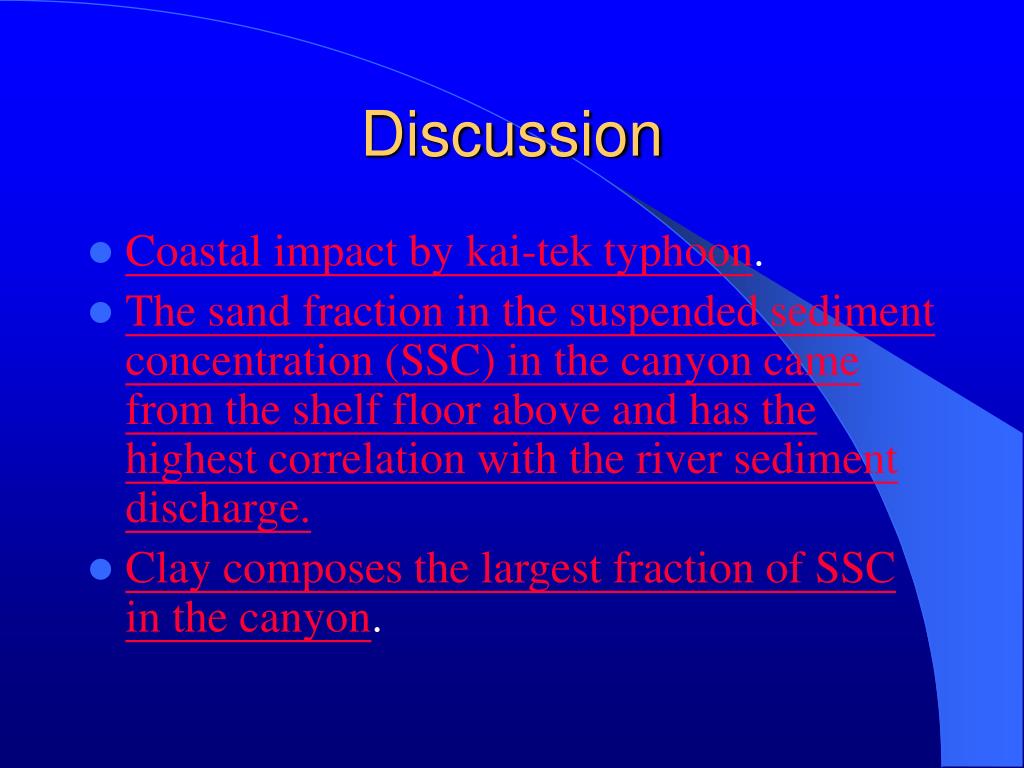

  14. Discussion • Coastal impact by kai-tek typhoon. • The sand fraction in the suspended sediment concentration (SSC) in the canyon came from the shelf floor above and has the highest correlation with the river sediment discharge. • Clay composes the largest fraction of SSC in the canyon.

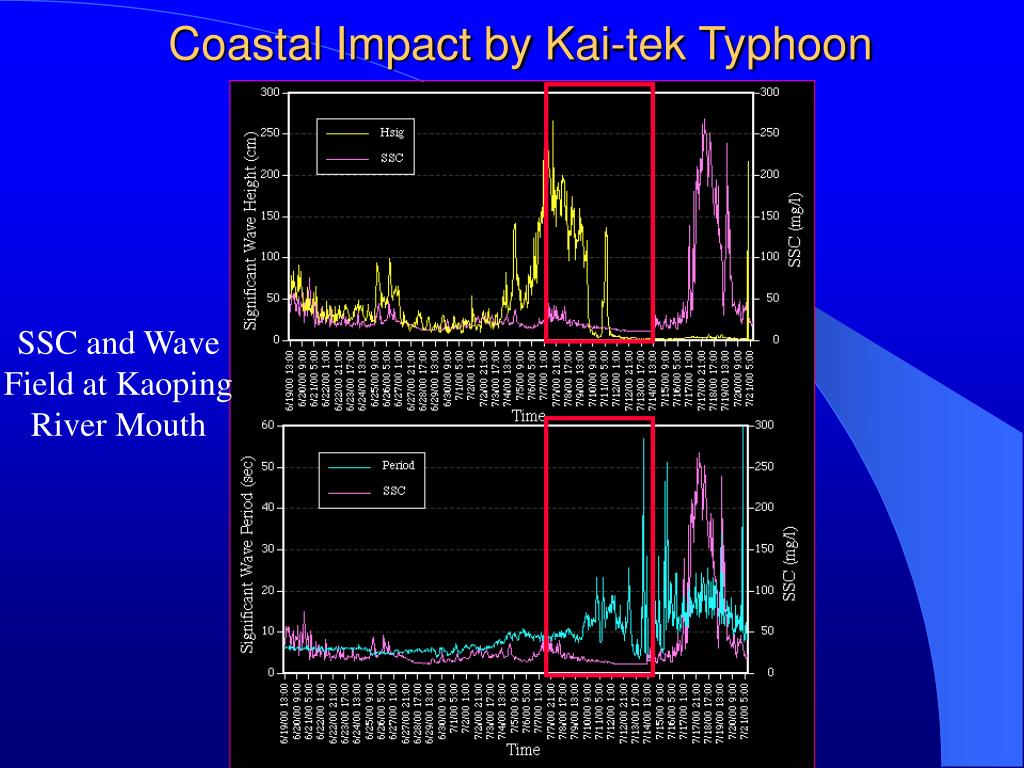

  15. Coastal Impact by Kai-tek Typhoon SSC and Wave Field at Kaoping River Mouth

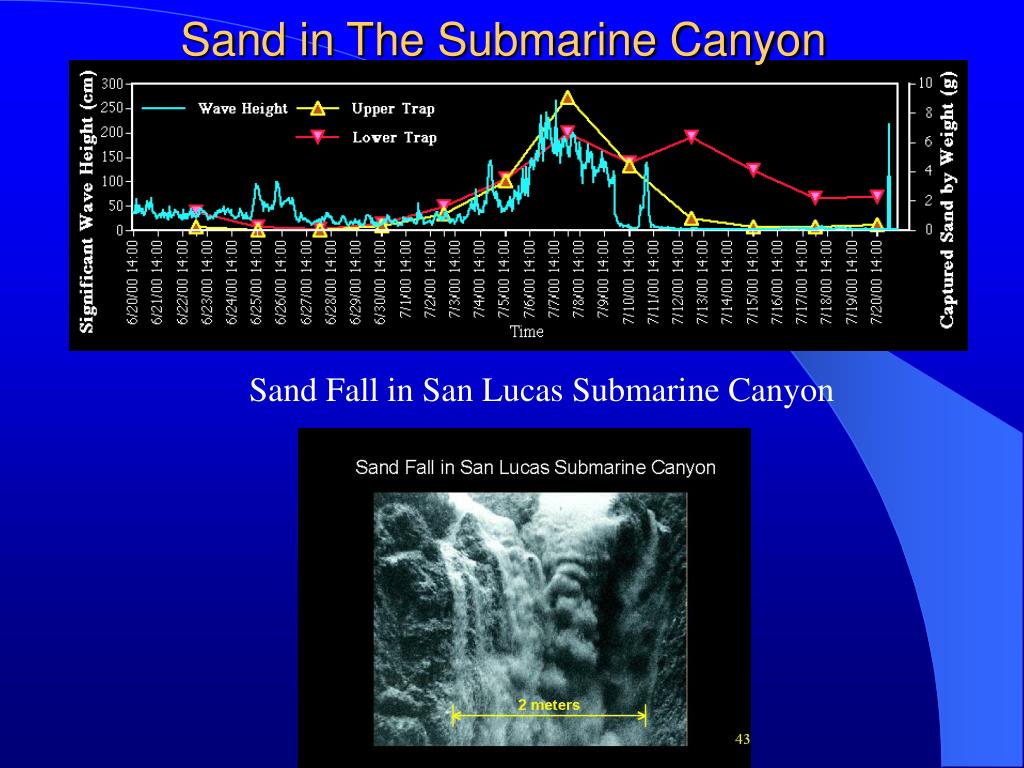

  16. Sand in The Submarine Canyon Sand Fall in San Lucas Submarine Canyon

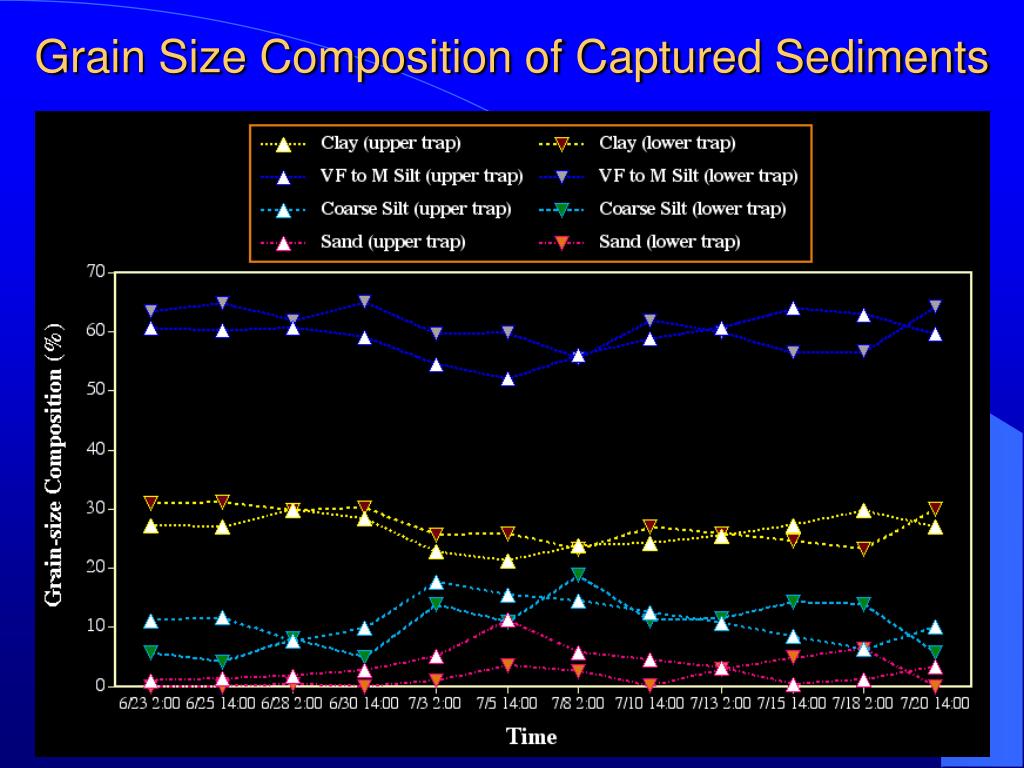

  17. Grain Size Composition of Captured Sediments

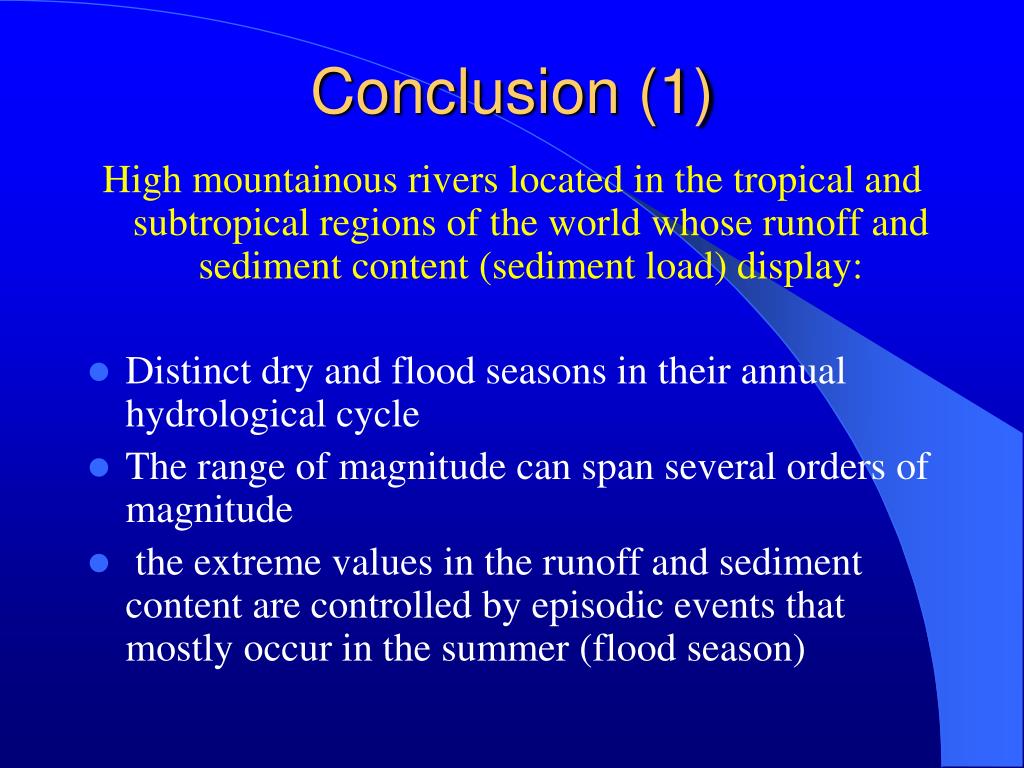

  18. Conclusion (1) High mountainous rivers located in the tropical and subtropical regions of the world whose runoff and sediment content (sediment load) display: • Distinct dry and flood seasons in their annual hydrological cycle • The range of magnitude can span several orders of magnitude • the extreme values in the runoff and sediment content are controlled by episodic events that mostly occur in the summer (flood season)

  19. Conclusion (2) • The largest fraction in SSC in Kaoping Submarine Canyon (KPCY) is from clay to very fine grains. • The role of the KPCY is an important conduit for sediments from the river to the ocean, especially in episodic events, such as typhoons
