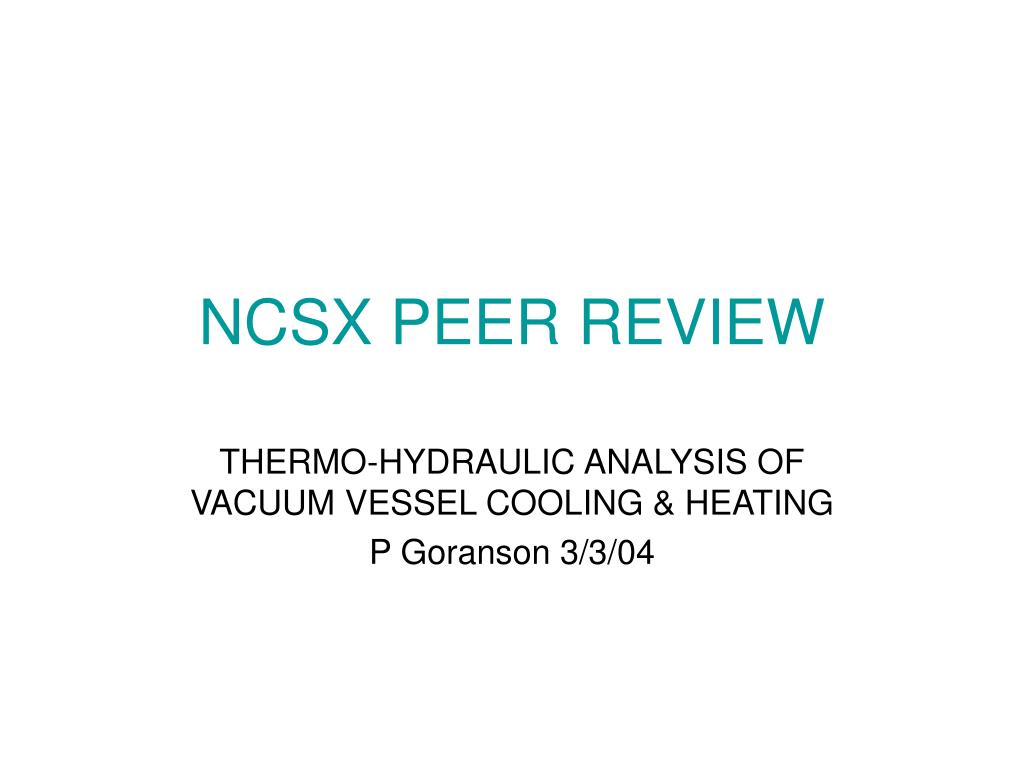

NCSX PEER REVIEW. THERMO-HYDRAULIC ANALYSIS OF VACUUM VESSEL COOLING & HEATING P Goranson 3/3/04. GOAL. DETERMINE SIZE AND NUMBER OF COOLANT LINES THERMO-HYDRAULIC PARAMETERS VIABILITY OF DESIGN. REQUIREMENTS/CRITERIA. VV BAKED AT 350 C MAINTAINED 20-40 C BEFORE AND AFTER OPERATION

lois-pratt
Download Presentation

NCSX PEER REVIEW

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. NCSX PEERREVIEW THERMO-HYDRAULIC ANALYSIS OF VACUUM VESSEL COOLING & HEATING P Goranson 3/3/04

  2. GOAL • DETERMINE SIZE AND NUMBER OF COOLANT LINES • THERMO-HYDRAULIC PARAMETERS • VIABILITY OF DESIGN

  3. REQUIREMENTS/CRITERIA • VV BAKED AT 350 C • MAINTAINED 20-40 C BEFORE AND AFTER OPERATION • 15 MINUTE REP RATE DURING OPERATION • FULL UPGRADE HEATING – 12 mw FOR 1.2 S

  4. ASSUMPTIONS • Heat Input and Output Based on DAC NCSX-CALC-121-03-00_dA, Heat Balance of the NCSX Vacuum Vessel During Operation and Bakeout. - 17 kW during bakeout - 16 kW average during cooling • VV temp rise 11.7 K during shot, evenly distributed. • Helium coolant

  5. CONFIGURATION • Dual tubes on common brackets - Grafoil gaskets - copper alloy pads • Increases heat transfer area • Decreases diameter - easier bending - smaller envelope • 16 pairs on half period (192 total tubes) Tracing Mount Detail Typical Field Period

  6. THERMO-HYDRAULIC CALCULATIONS • EXCEL Spreadsheet • Standard Incompressible Fluid Flow Equations • Inputs - tube dia • flow rate • pressure • vessel temperature • Outputs • flow parameters • film coef. • temperature changes, etc.

  7. HELIUM PROPERTIES 20 atmosphere Helium at 20 C • spec ht(J/g-K) 5.19 • density(g/cm^3) 0.0032 • cond.(w/cm-K) 0.00154 • dyn visc.(g/cm-s) 1.99E-04 • diffusivity (cm^2/s) 9.27E-02 • Prandtl 0.67 • He kin. visc. (cm^2/s) 6.22E-02 20 atmosphere Helium at 350 C • spec ht(J/g-K) 5.20 • density(g/cm^3) 0.0020 • cond.(w/cm-K) 0.0034 • dyn visc.(g/cm-s) 3.96E-04 • diffusivity (cm^2/s) 1.52E-01 • Prandtl 0.65 • He kin. visc. (cm^2/s) 9.83E-02

  8. INCONEL PROPERTIES • spec ht(J/g-K) 0.42 • density(g/cm^3) 8.03 • cond.(w/cm-K) 0.121 • diffusivity (cm^2/s) 0.036

  9. RESULTS - ROOM TEMP OPERATION Results for 5/16” OD tube, 0.028” wall Helium pressure 20 atmos

  10. Pressure Film coef Item Model Length Length Drop Mass flow (w/cm^2-K) Temp drop Bulk Exit vel Inlet vel No No (in) (cm) (atmos) (g/s) Re f h bulk dT(K) temp(C) (m/s) (m/s) 1 SE123-011.PRT 180.6 458.8 0.099 1.3 6588 0.035 0.117 15.9 351.1 19.1 19.5 2 SE123-012.PRT 173.8 441.4 0.099 1.4 6716 0.035 0.119 15.2 351.8 19.5 19.9 3 SE123-013.PRT 171.5 435.7 0.099 1.4 6760 0.035 0.120 15.0 352.0 19.6 20.1 4 SE123-014.PRT 191.6 486.8 0.099 1.3 6395 0.035 0.114 16.9 350.1 18.5 19.0 5 SE123-015.PRT 190.6 484.2 0.099 1.3 6413 0.035 0.115 16.8 350.2 18.5 19.0 6 SE123-016.PRT 194.7 494.7 0.099 1.3 6344 0.035 0.114 17.2 349.8 18.3 18.8 7 SE123-017.PRT 207.5 527.1 0.099 1.2 6146 0.036 0.111 18.5 348.5 17.7 18.2 8 SE123-018.PRT 215.9 548.5 0.099 1.2 6025 0.036 0.109 19.3 347.7 17.3 17.8 9 SE123-019.PRT 245.3 623.0 0.099 1.1 5653 0.036 0.104 22.2 344.8 16.1 16.7 10 SE123-020.PRT 246.2 625.2 0.099 1.1 5643 0.036 0.104 22.3 344.7 16.1 16.6 11 SE123-021.PRT 256.1 650.5 0.099 1.1 5532 0.037 0.102 23.3 343.7 15.7 16.3 12 SE123-022.PRT 232.1 589.6 0.099 1.2 5811 0.036 0.106 20.9 346.1 16.6 17.2 13 SE123-023.PRT 215.6 547.5 0.099 1.2 6030 0.036 0.109 19.3 347.7 17.3 17.8 14 SE123-024.PRT 251.7 639.3 0.099 1.1 5581 0.037 0.103 22.9 344.1 15.9 16.5 15 SE123-025.PRT 262.2 666.1 0.099 1.1 5467 0.037 0.101 23.9 343.1 15.5 16.1 16 SE123-026.PRT 236.2 600.0 0.099 1.2 5760 0.036 0.105 21.3 345.7 16.4 17.0 total (m) 1058.2 total 19.6 av 0.110 19.4 av.(m) 5.51 av. 1.23 RESULTS – BAKEOUT Results for 5/16” OD tube, 0.028” wall Helium pressure 20 atmos

  11. Coolant tube THERMAL RESPONSE ANALYSIS Hand calculation using finite slab, cooled at edges • L = 4 inches • t = 0.375 inches • Constant heat transfer coef. at tube( from chart) • Constant starting temperature across plate t 2L

  12. HELIUM COOLED VESSEL RATCHETING TEMPERATURE AS A FUNCTION OF COOL DOWN TIME 60 55 50 45 40 35 30 25 20 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 TIME (MIN) VESSEL RATCHETING Vessel ratchets to 40 C at steady state End of cool down

  13. RESULTS SUMMARY, INCLUDING 3-D ANALYSIS

  14. CONCLUSIONS • 1/4” Tubes give inadequate mass flow • 10 Atmos Helium inadequate - 20 Atmos Helium required • 5/16” Tubes permit baking and cooling with large margin - small pressure drop - moderate flow velocity - moderate temperature drops • Vessel does not return to start temperature - Ratchets beyond 40 C with present bracket spacing

  15. CAVEATS • Additional ports have been added. • Tubes must be reconfigured, lengths changed somewhat • 3-D analysis of brackets indicates tube spacing or operation must change if GRD is to be accommodated.
