  1. TETRA in use by the Military K.-H. (Charly) Hengevoß Board Member TETRA MoU Association

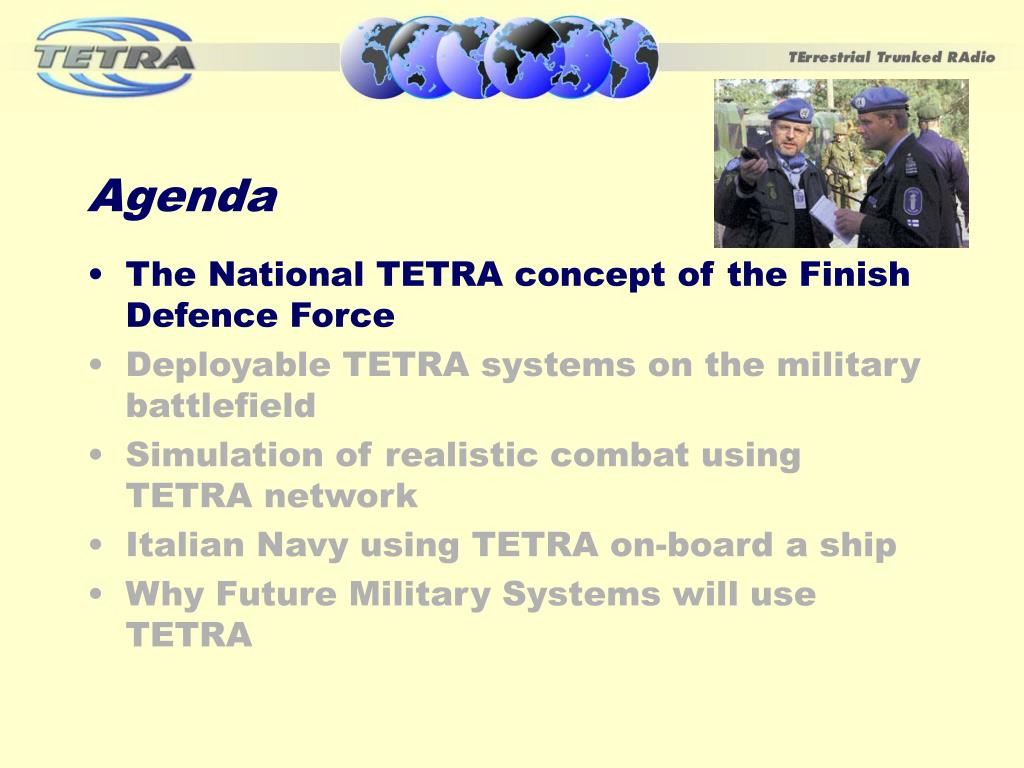

  2. Agenda • The National TETRA concept of the Finish Defence Force • Deployable TETRA systems on the military battlefield • Simulation of realistic combat using TETRA network • Italian Navy using TETRA on-board a ship • Why Future Military Systems will use TETRA

  3. Agenda • The National TETRA concept of the Finish Defence Force • Deployable TETRA systems on the military battlefield • Simulation of realistic combat using TETRA network • Italian Navy using TETRA on-board a ship • Why Future Military Systems will use TETRA

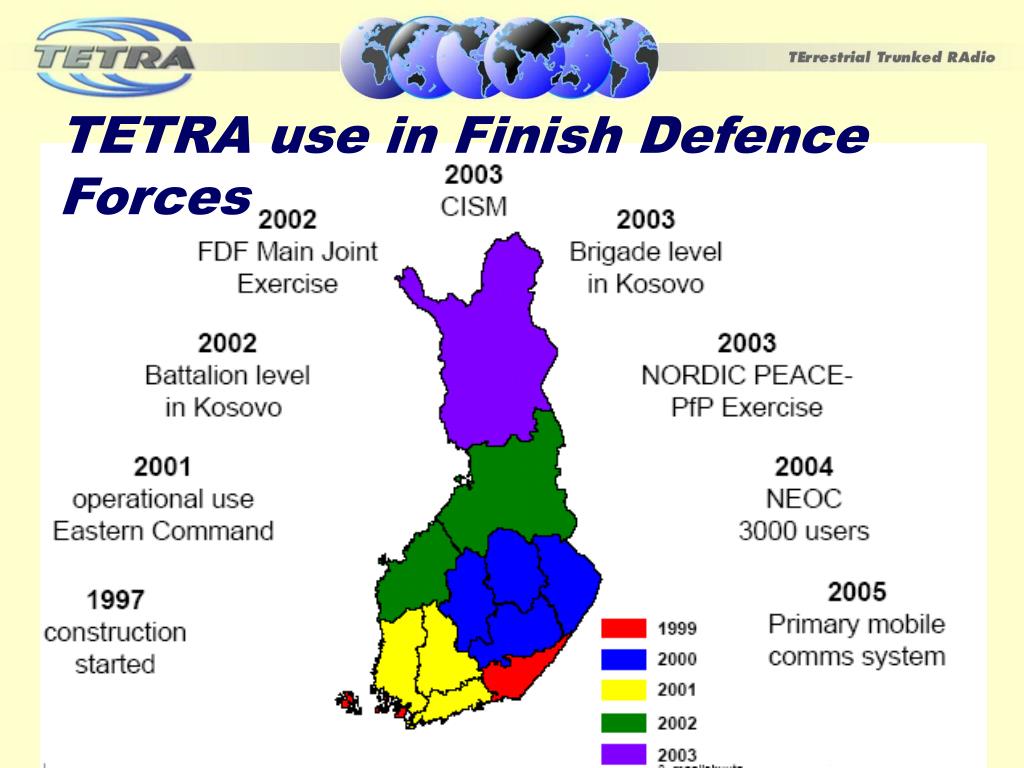

  4. TETRA use in Finish Defence Forces

  5. Examples of TETRA Sub Networks within Military Action/Operation C2 Network Guarding Units Network Military Medical Network Liaison Officers Network Military Police Network Transport Control Network Authority Cooperation Network

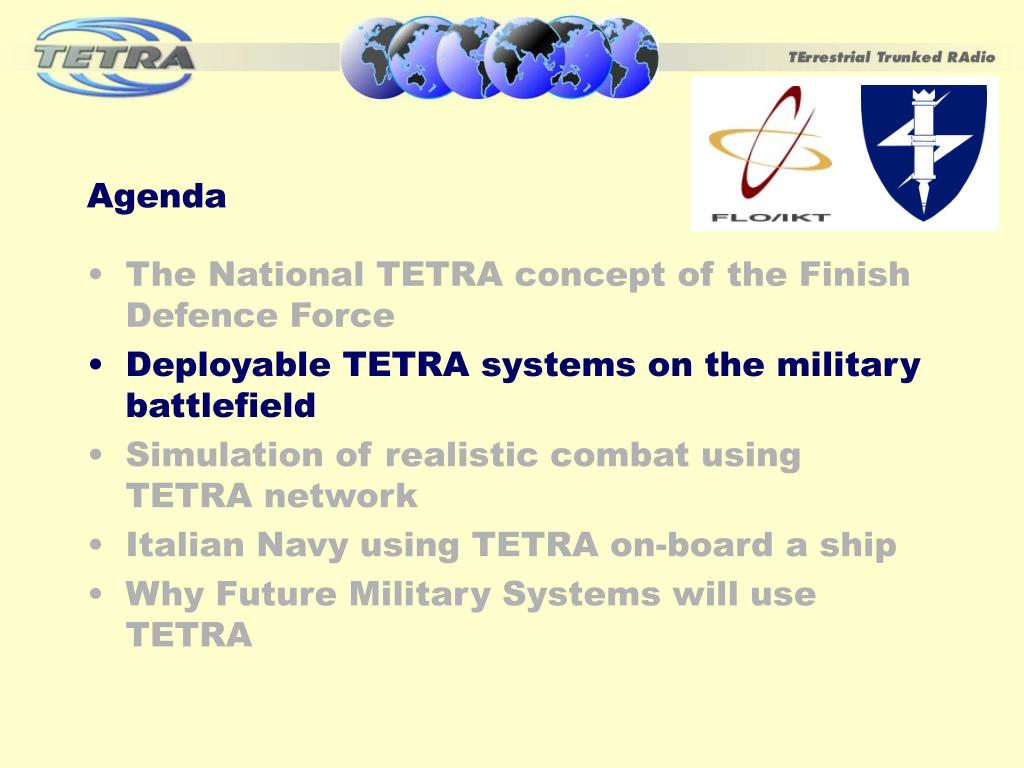

  6. Agenda • The National TETRA concept of the Finish Defence Force • Deployable TETRA systems on the military battlefield • Simulation of realistic combat using TETRA network • Italian Navy using TETRA on-board a ship • Why Future Military Systems will use TETRA

  7. Deployable TETRA systems on the military battlefield Deployable TETRA systems are used by • The Norwegian Army • The Swedish Army • The Finish Army • The Italian Army • The Brazilian Army • ….

  8. Voice recorder, SDS- and voice- mailboxes Switch, interfaces and dispatcher Base station in fall-back mode Terminals in DMO and REP System availability Terminals in DMO Equipment usage

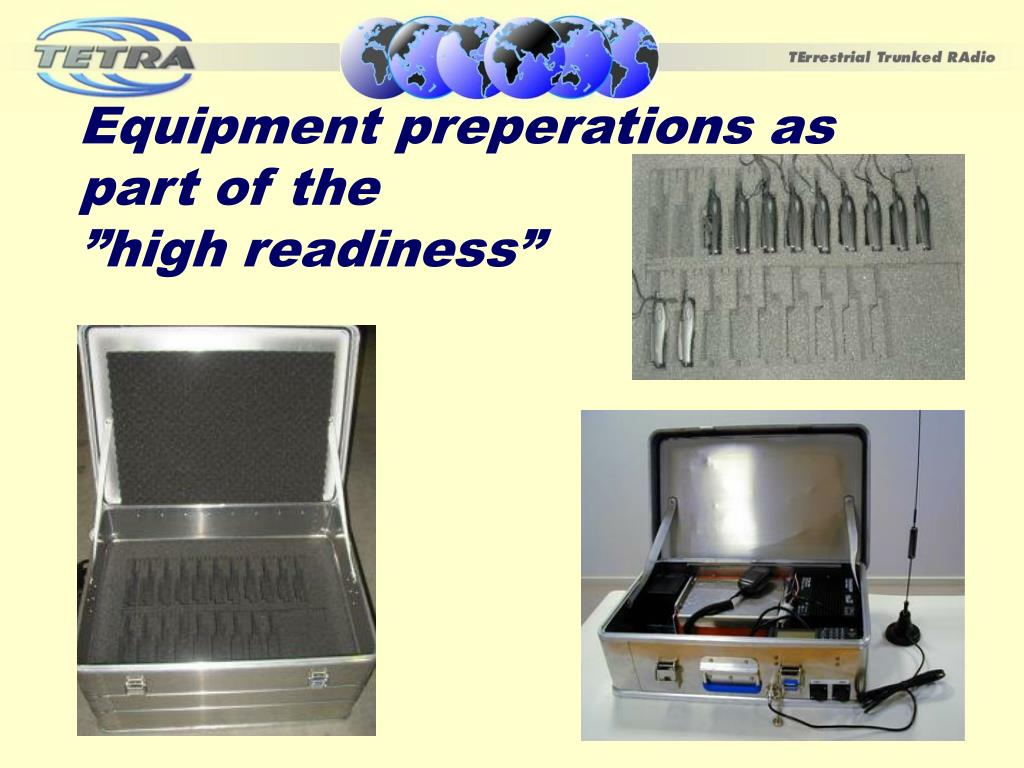

  9. Equipment preperations as part of the ”high readiness”

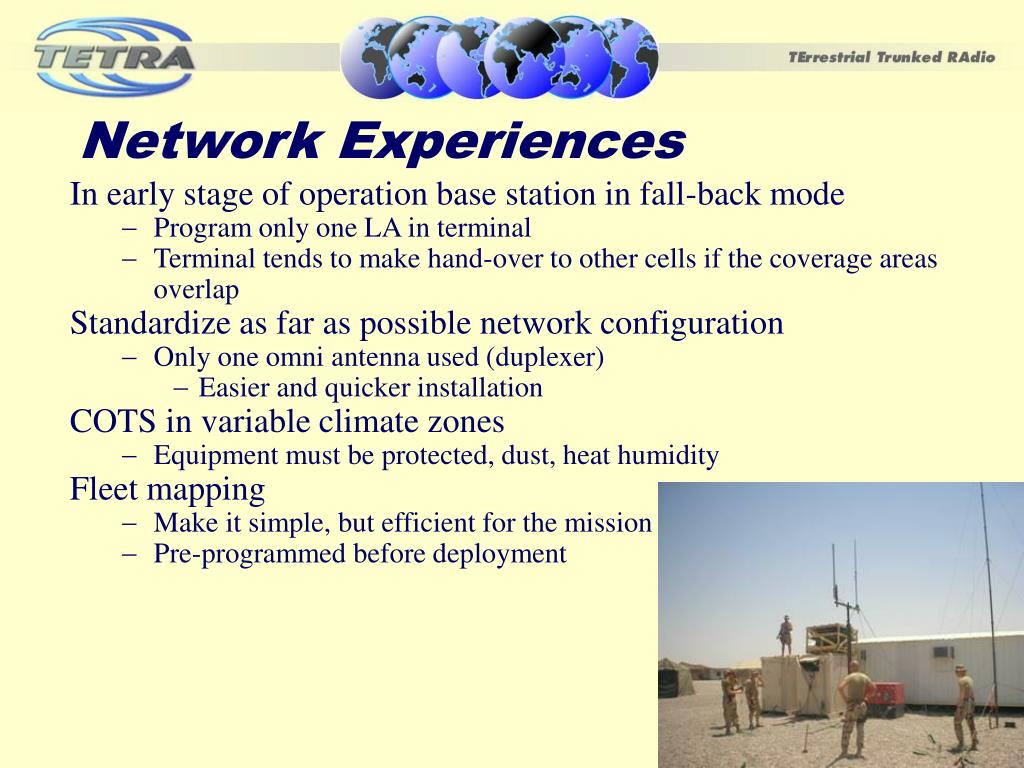

  10. Network Experiences • In early stage of operation base station in fall-back mode • Program only one LA in terminal • Terminal tends to make hand-over to other cells if the coverage areas overlap Standardize as far as possible network configuration • Only one omni antenna used (duplexer) • Easier and quicker installation COTS in variable climate zones • Equipment must be protected, dust, heat humidity Fleet mapping • Make it simple, but efficient for the mission • Pre-programmed before deployment

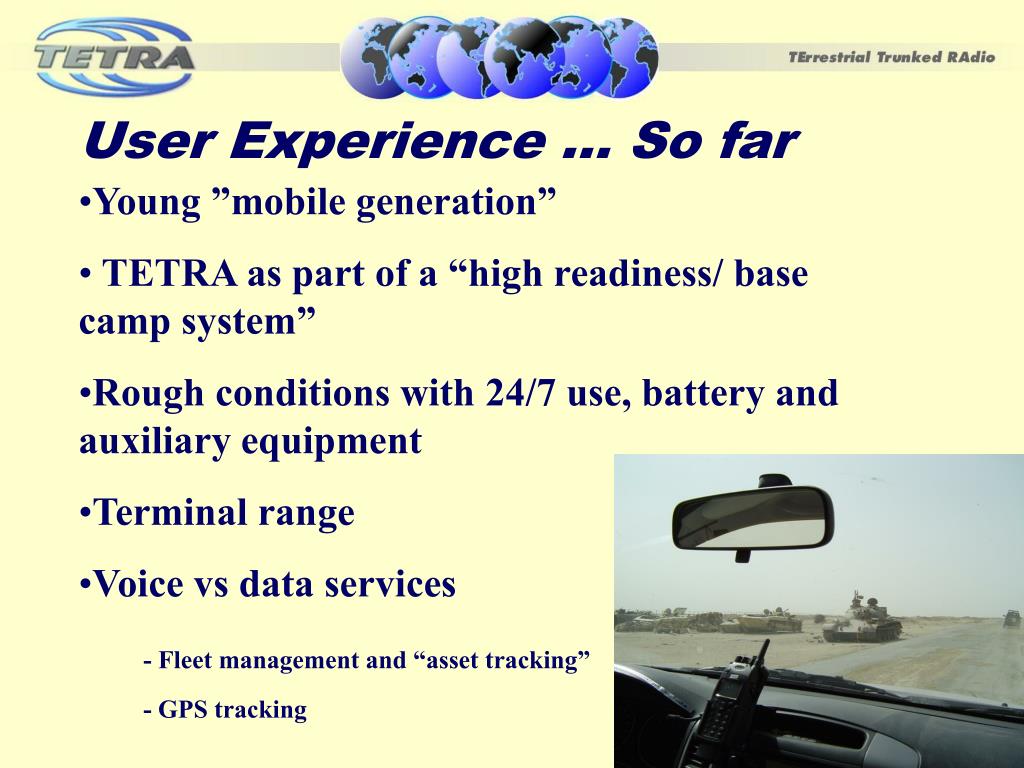

  11. User Experience ... So far • Young ”mobile generation” • TETRA as part of a “high readiness/ base camp system” • Rough conditions with 24/7 use, battery and auxiliary equipment • Terminal range • Voice vs data services • - Fleet management and “asset tracking” • - GPS tracking

  12. Agenda • The National TETRA concept of the Finish Defence Force • Deployable TETRA systems on the military battlefield • Simulation of realistic combat using TETRA network • Italian Navy using TETRA on-board a ship • Why Future Military Systems will use TETRA

  13. Command and Control Centre Radio station DGPS Ausb Technology for Training

  14. AusbildungsGerät DUellSimulator (AGDUS) Laser Engagement Simulators

  15. Command and Control Centre command and control Radio station GPS SR SR viewgraphs video radio analysis, evaluation & edition After Action Review in the field platoon / company / battalion Ausb Daily After Action Review Final After Action Review training report Technology-Training-Methodology

  16. Agenda • The National TETRA concept of the Finish Defence Force • Deployable TETRA systems on the military battlefield • Simulation of realistic combat using TETRA network • Italian Navy using TETRA on-board a ship • Why Future Military Systems will use TETRA

  17. Frigate Maestrale (123 m length)

  18. Agenda • The National TETRA concept of the Finish Defence Force • Deployable TETRA systems on the military battlefield • Simulation of realistic combat using TETRA network • Italian Navy using TETRA on-board a ship • Why Future Military Systems will use TETRA

  19. Military Programs considering TETRA as part of integrated communication solution • The Theatre Independent Tactical Army and Air Force Network (TITAAN) from the Netherlands Armed Forces • The Finish Software Radio Programme from the Finish Defense Forces Telecommunication Laboratory and Centre of Wireless Communications • C4ISR Framework from the US Army CEDECOM Security Assistance for utilizing US grant funds

  20. Why these and other military programs consider TETRA • The current features of TETRA- Direct Mode Operation (DMO)- Emergency call- Fast call setup • And the features of the evolution version of TETRA- enhanced data rates- roaming with other Networks TETRA is exceptionally advantageous radio access network in upcoming multinational peacekeeping and crises management operations

  21. Thank you for your attention
