  1. A Difference Resolution Approach to Compressing Access Control Lists James Daly, Alex Liu, Eric Torng Michigan State University INFOCOM 2013

  2. Motivation • Classifiers used for many applications • Packet Forwarding • Firewalls • Quality of Service • Classifiers are growing • New threats • New services

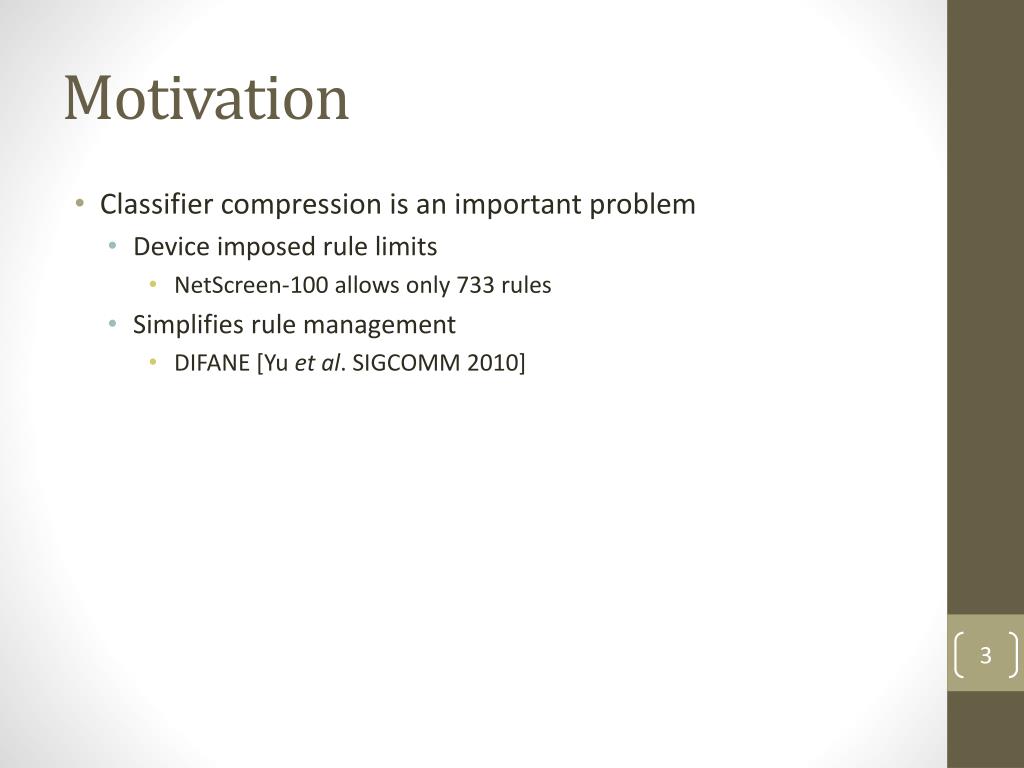

  3. Motivation • Classifier compression is an important problem • Device imposed rule limits • NetScreen-100 allows only 733 rules • Simplifies rule management • DIFANE [Yu et al. SIGCOMM 2010]

  4. Background Packet: [2, 4]

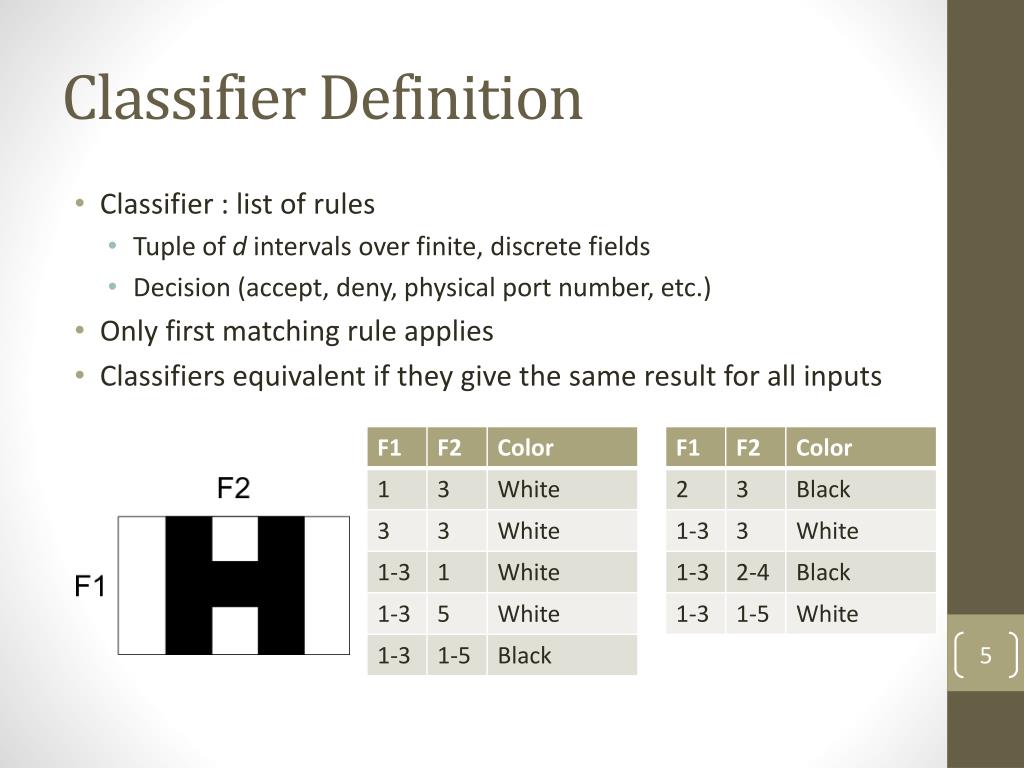

  5. Classifier Definition • Classifier : list of rules • Tupleof d intervals over finite, discrete fields • Decision (accept, deny, physical port number, etc.) • Only first matching rule applies • Classifiers equivalent if they give the same result for all inputs

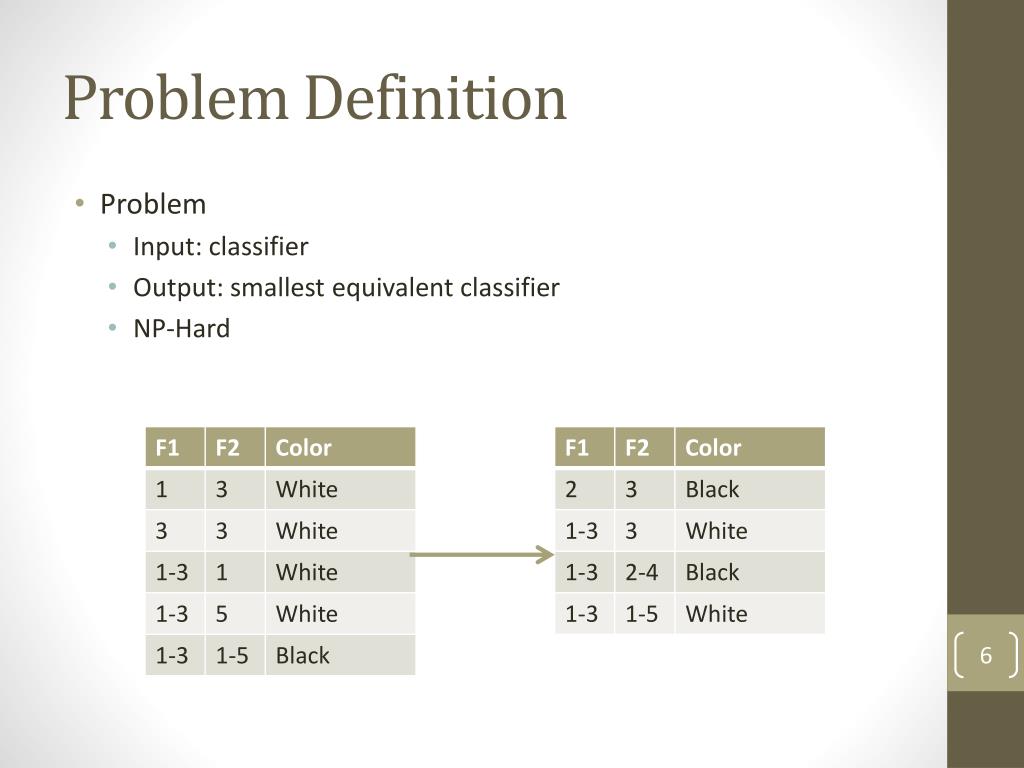

  6. Problem Definition • Problem • Input: classifier • Output: smallest equivalent classifier • NP-Hard 6

  7. Prior Work • Redundancy Removal [eg. Liu and Gouda. DBSec 2005] • Iterated Strip Rule [Applegate et al. SODA 2007] • Only two dimensions • Approximation guarantee: O(min(n1/3, Opt1/2)) • Firewall Compressor [Liu et al. INFOCOM 2008] • Optimal weighted 1-D case • Works on higher dimensions

  8. Motivating Example

  9. Dimension Reduction

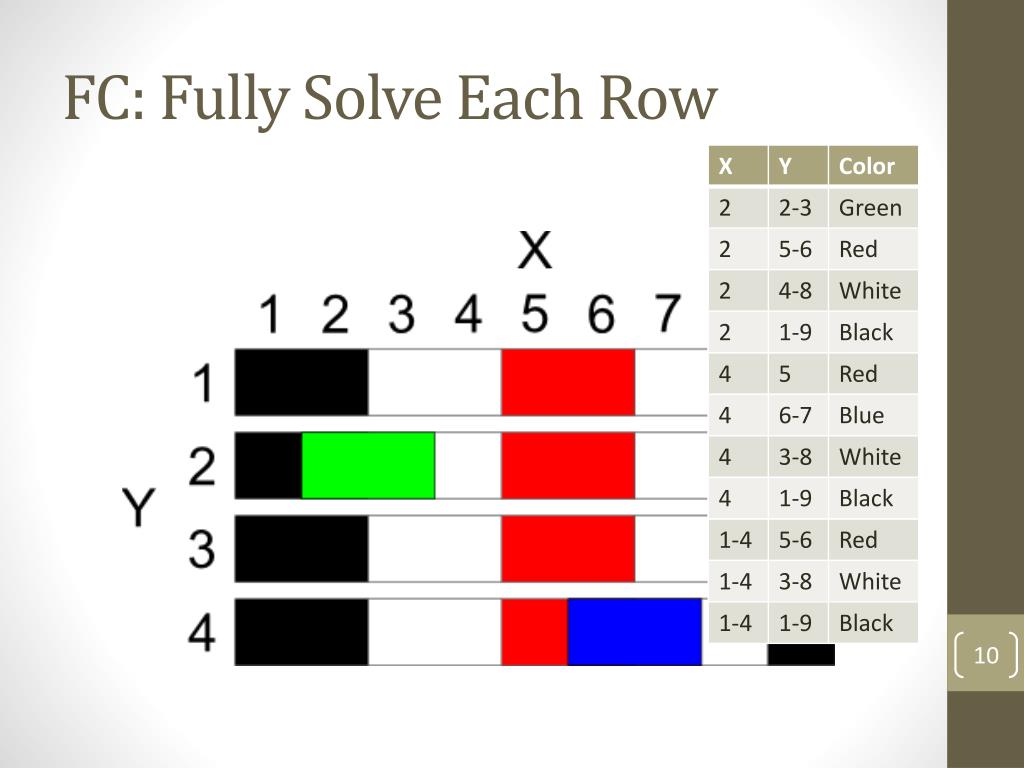

  10. FC: Fully Solve Each Row

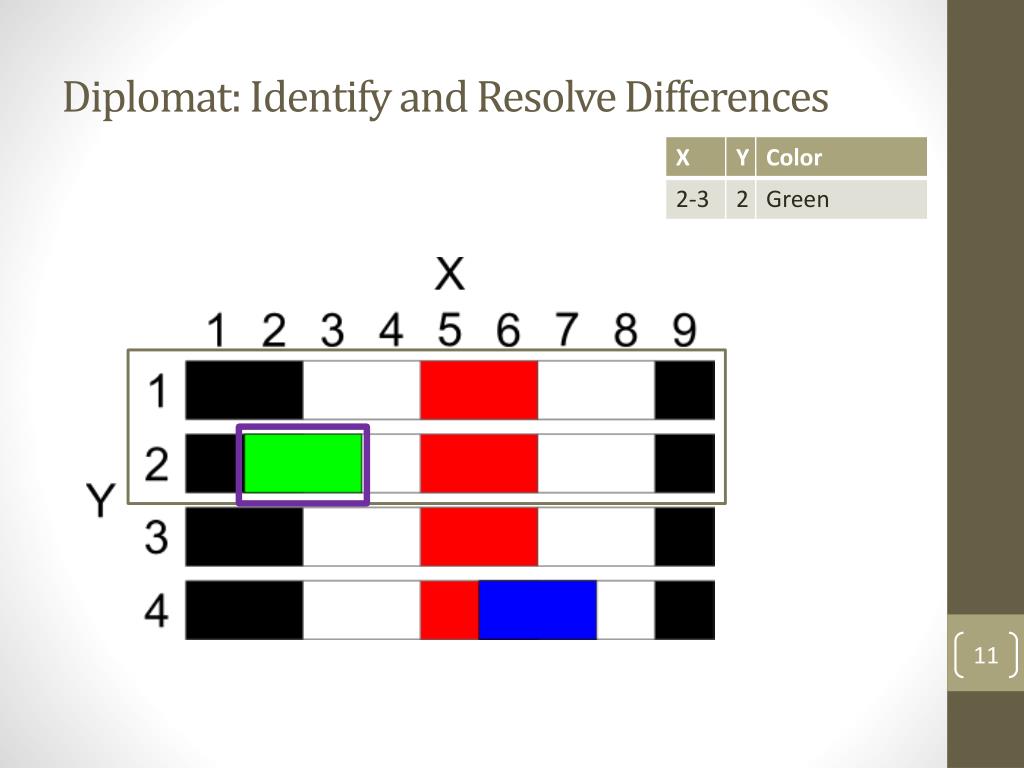

  11. Diplomat: Identify and Resolve Differences

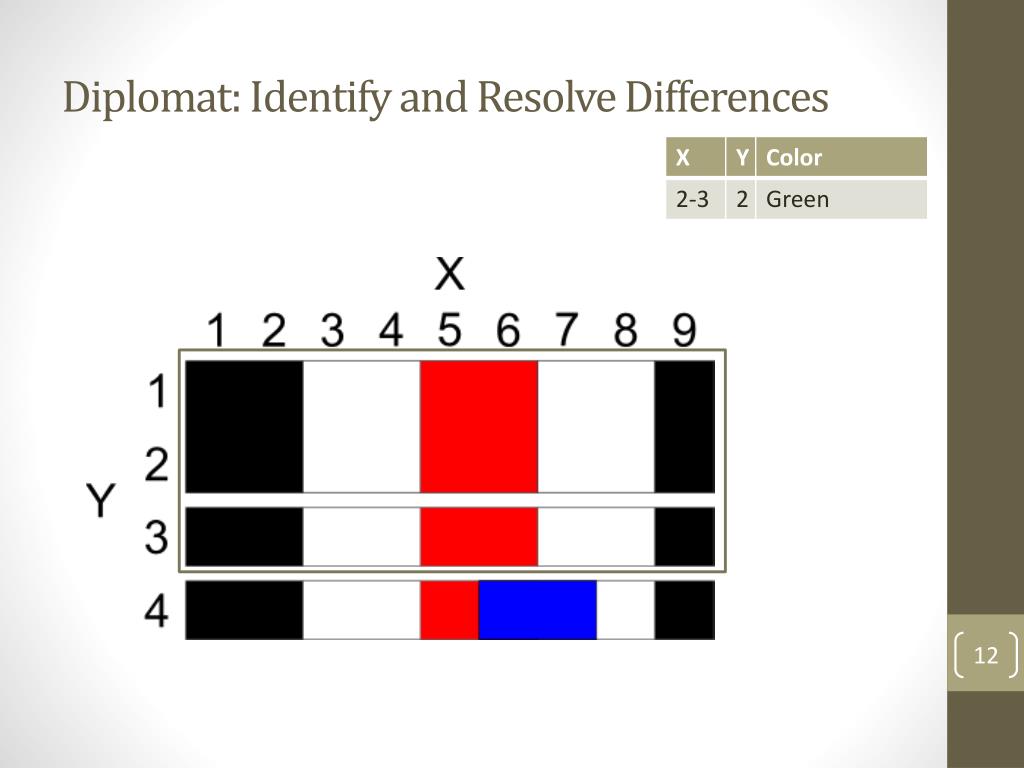

  12. Diplomat: Identify and Resolve Differences

  13. Diplomat: Identify and Resolve Differences

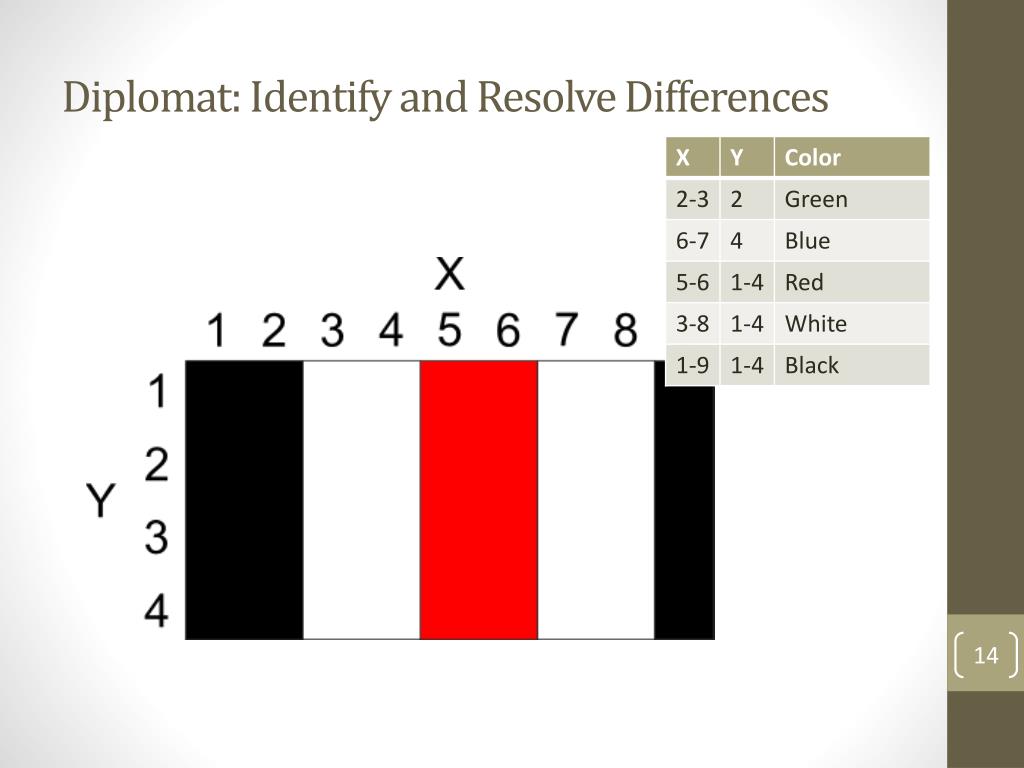

  14. Diplomat: Identify and Resolve Differences

  15. Higher Dimensions

  16. Diplomat • Three parts • Base solver for the last row • Firewall Compressor for 1D case • Diplomat otherwise • Resolver • Given two rows identify and resolve differences • Merge rows together into one • Scheduler • Find best order to resolve rows

  17. Different Resolvers

  18. Scheduling • Multi-row resolver: greedy schedule • Single-row resolver: dynamic programming schedule

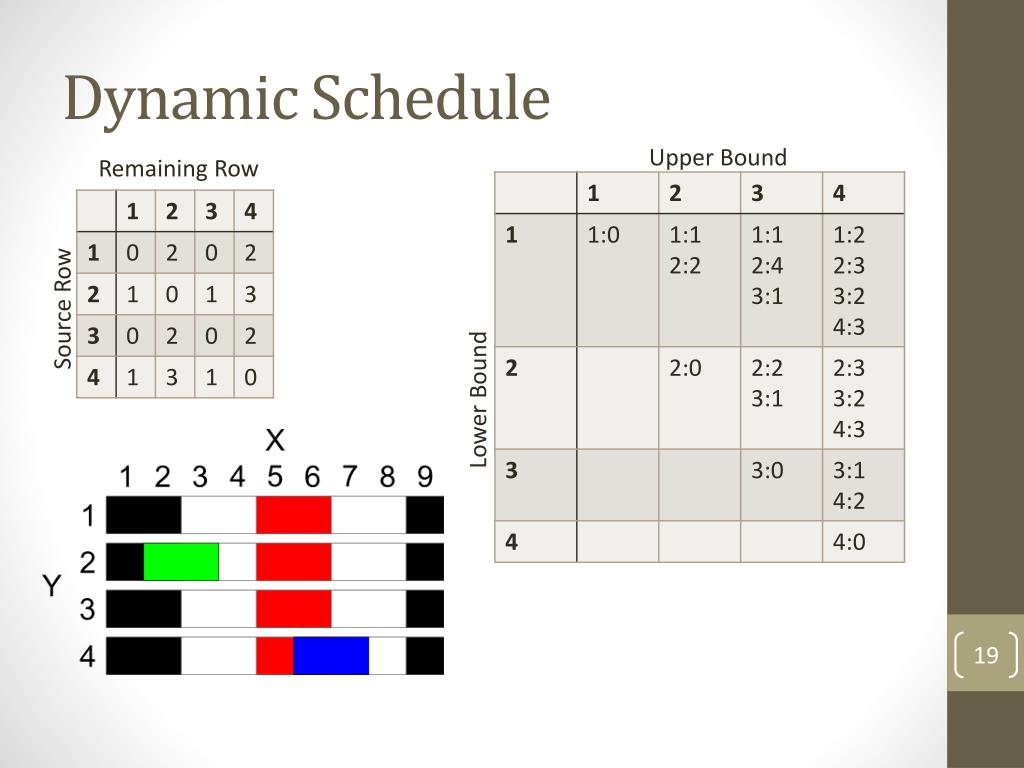

  19. Dynamic Schedule Upper Bound Remaining Row Source Row Lower Bound

  20. Results • Comparison of Firewall Compressor and Diplomat on 40 real-life classifiers • Divided into sets based on size • Diplomat requires 30% fewer rules on largest sets • 2-D bounds: O(min(n1/3, Opt1/2)) Mean Compression Ratio

  21. Conclusion • Diplomat offers significant improvements over Firewall Compressor because it focuses on the differences between rows • Results are most pronounced on larger classifiers • Can guarantee approximation bound for 2-D classifiers

  22. Questions?
