Making SharePoint 2010 Collaboration Rock by Increasing Findability

SPC245. Making SharePoint 2010 Collaboration Rock by Increasing Findability. Scott Jamison Chief Architect Jornata . Meet Scott Jamison. Chief Architect at Jornata (booth 650) SharePoint partner with Gold Competency in Portals & Collab Formerly a Director at Microsoft SharePoint MVP

nicholai
Download Presentation

Making SharePoint 2010 Collaboration Rock by Increasing Findability

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. SPC245 Making SharePoint 2010 Collaboration Rock by Increasing Findability Scott Jamison Chief Architect Jornata

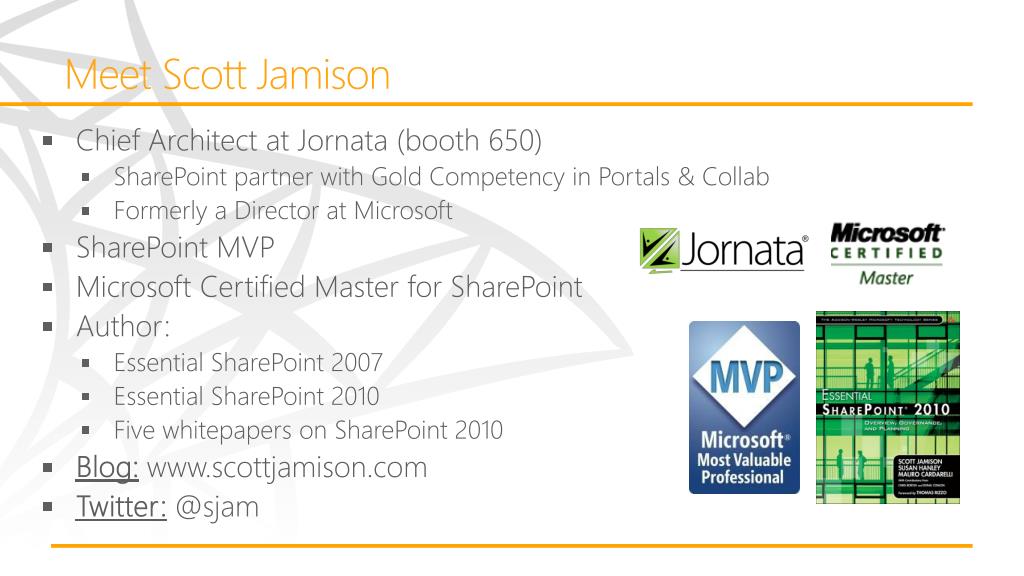

  2. Meet Scott Jamison • Chief Architect at Jornata (booth 650) • SharePoint partner with Gold Competency in Portals & Collab • Formerly a Director at Microsoft • SharePoint MVP • Microsoft Certified Master for SharePoint • Author: • Essential SharePoint 2007 • Essential SharePoint 2010 • Five whitepapers on SharePoint 2010 • Blog: www.scottjamison.com • Twitter:@sjam

  3. In This Session, We Will: • Show Ways that Out-of-Box SharePoint collaboration can be “Less Than Ideal” • Content Contribution • Browsing • Views • Navigation • Folders • Searching • Explain why it’s not obvious as to how to make things easier to find • Review five key ways to make “Findability” better (and SharePoint easier for users!)

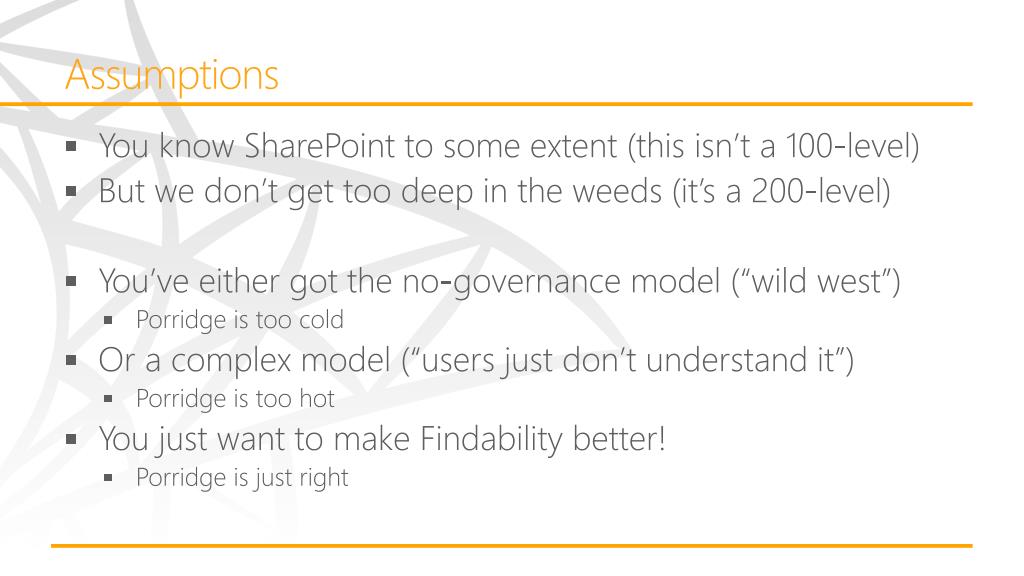

  4. Assumptions • You know SharePoint to some extent (this isn’t a 100-level) • But we don’t get too deep in the weeds (it’s a 200-level) • You’ve either got the no-governance model (“wild west”) • Porridge is too cold • Or a complex model (“users just don’t understand it”) • Porridge is too hot • You just want to make Findability better! • Porridge is just right

  5. Typical Ways to Set Up SharePoint for Collaboration Option 1: Like a file share (folders and default views) • Folders – lots of clicking, single dimension for viewing • No tags – no navigation, no search Great for contributors, a nightmare for consumers Option 2: Metadata instead of folders • Unfamiliar to users • Forces users to add metadata (they’re lazy and will pick the 1st choice) • No good drag & drop & tag Great for consumers, a nightmare for contributors

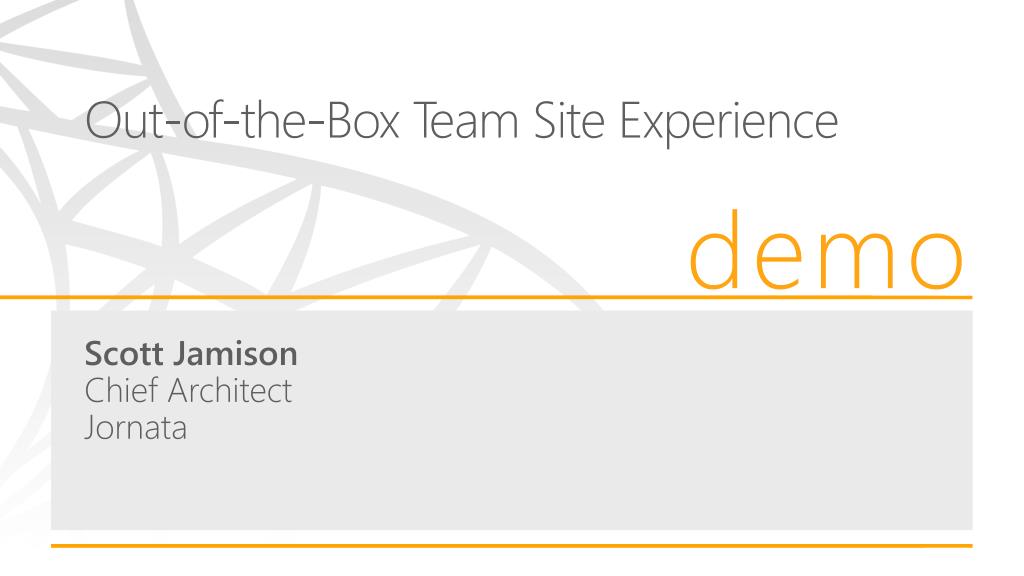

  6. Out-of-the-Box Team Site Experience demo Scott Jamison Chief Architect Jornata

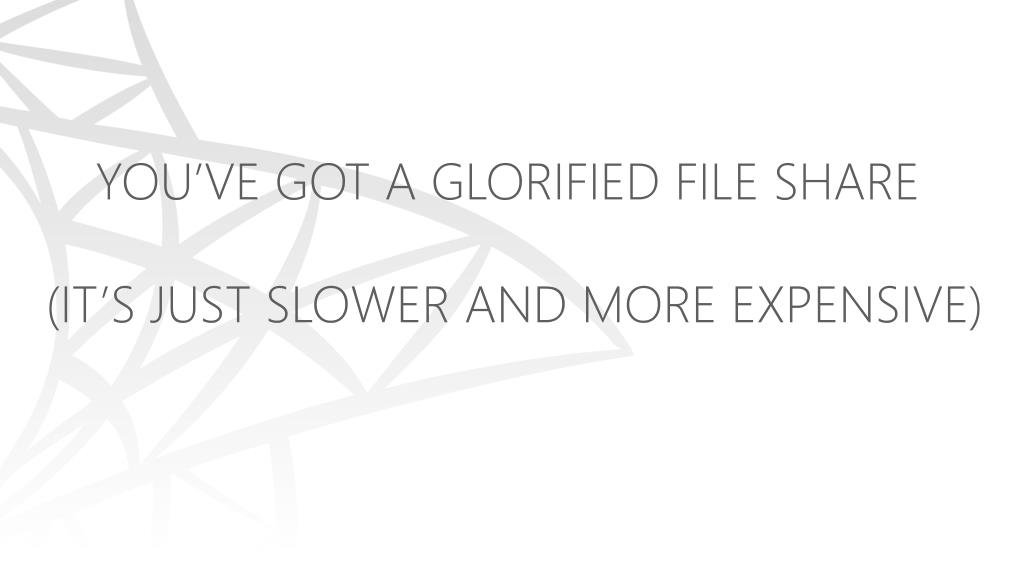

  7. YOU’VE GOT A GLORIFIED FILE SHARE (IT’S JUST SLOWER AND MORE EXPENSIVE)

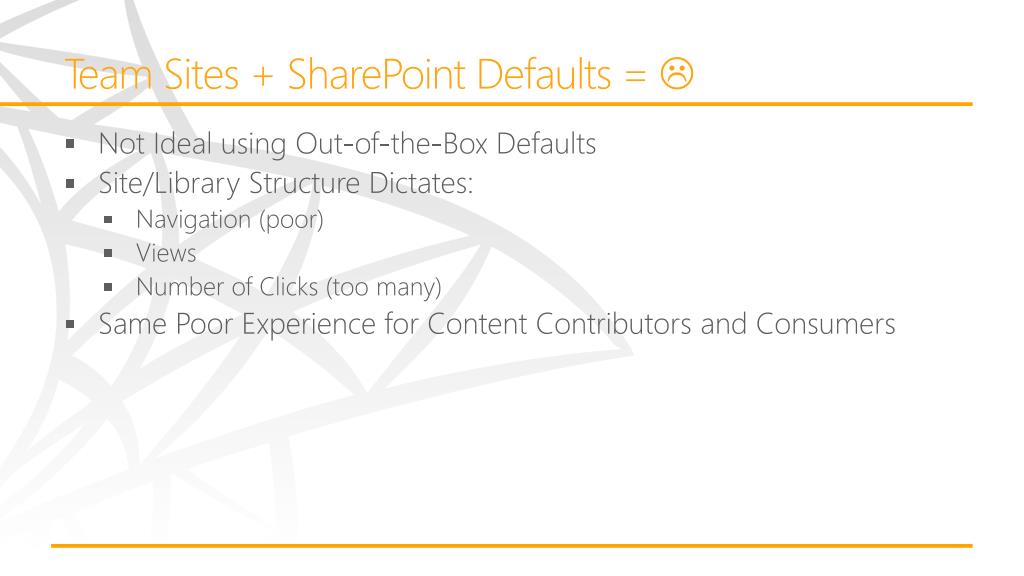

  8. Team Sites + SharePoint Defaults =  • Not Ideal using Out-of-the-Box Defaults • Site/Library Structure Dictates: • Navigation (poor) • Views • Number of Clicks (too many) • Same Poor Experience for Content Contributors and Consumers

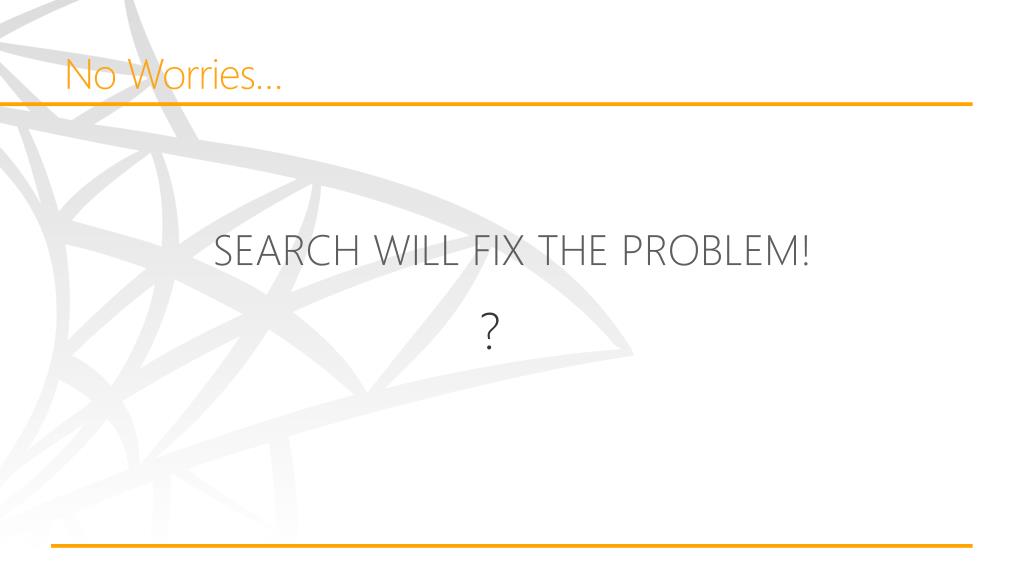

  9. No Worries… SEARCH WILL FIX THE PROBLEM! ?

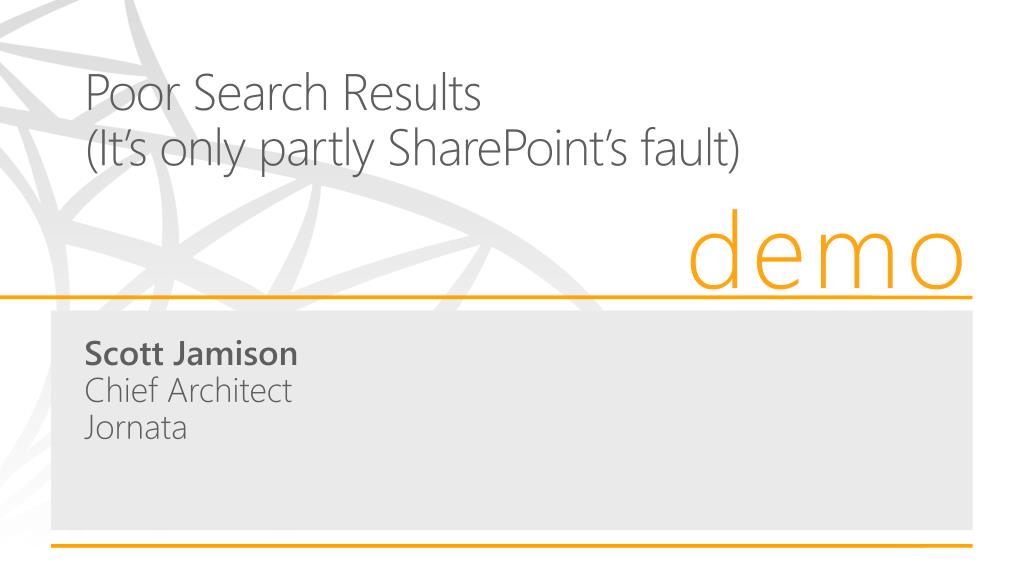

  10. Poor Search Results (It’s only partly SharePoint’s fault) demo Scott Jamison Chief Architect Jornata

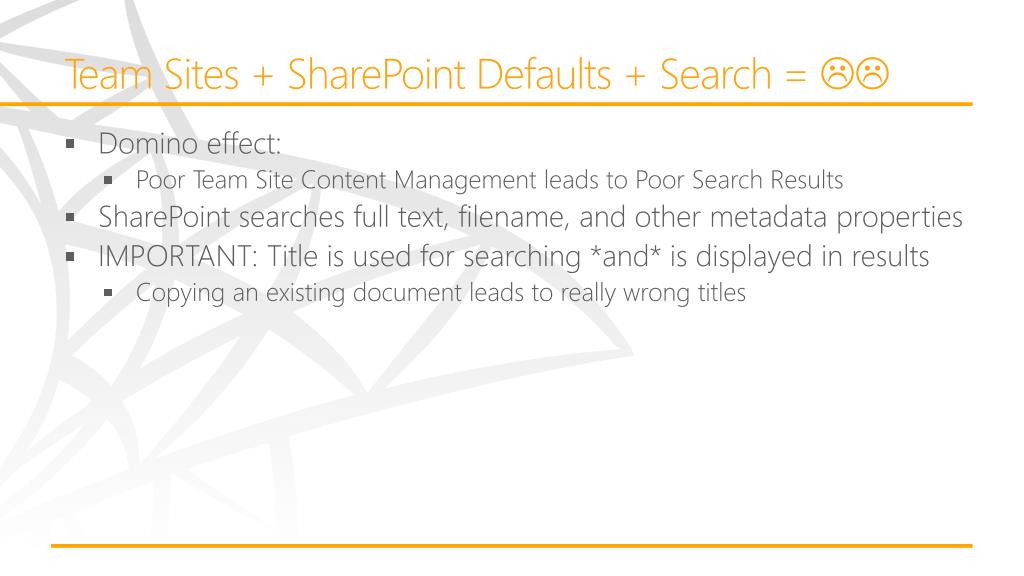

  11. Team Sites + SharePoint Defaults + Search =  • Domino effect: • Poor Team Site Content Management leads to Poor Search Results • SharePoint searches full text, filename, and other metadata properties • IMPORTANT: Title is used for searching *and* is displayed in results • Copying an existing document leads to really wrong titles

  12. So How Did We Do?The Typical Way (aka the “Old Way”) Contributor Experience: POOR Browsability: LOW Findabilty (via Search): LOW

  13. How Do We Fix This?

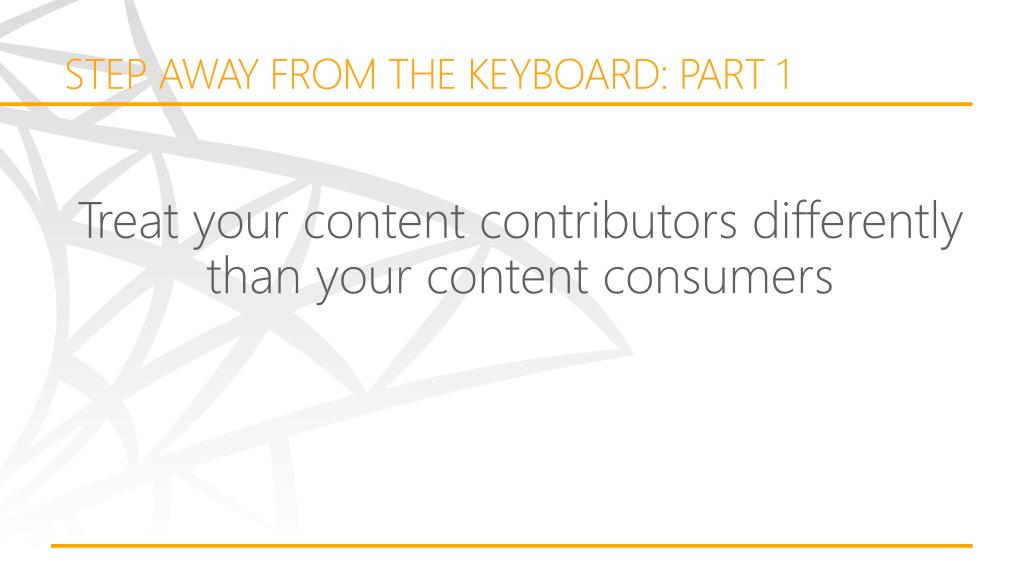

  14. STEP AWAY FROM THE KEYBOARD: PART 1 Treat your content contributors differently than your content consumers

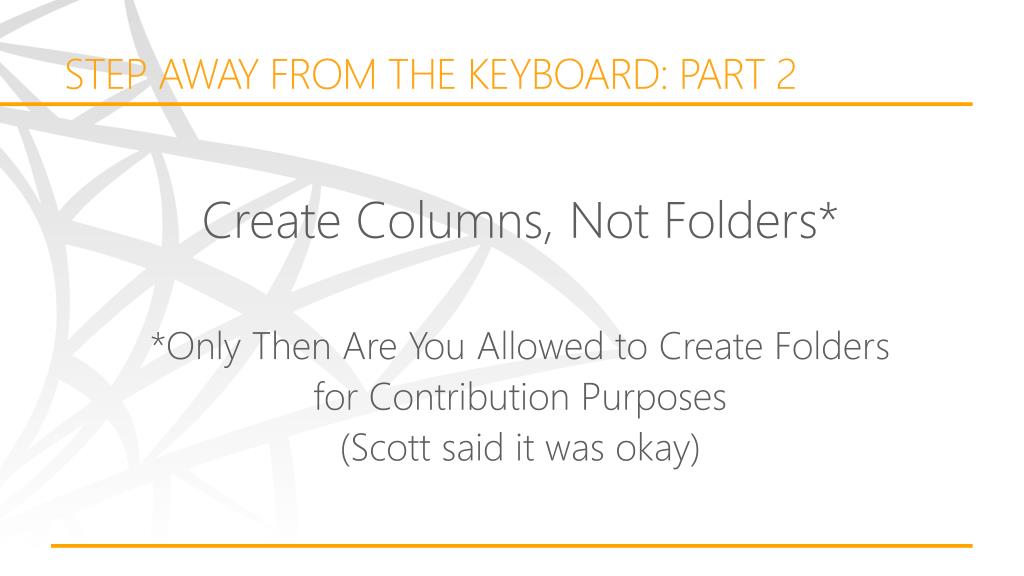

  15. STEP AWAY FROM THE KEYBOARD: PART 2 Create Columns, Not Folders* *Only Then Are You Allowed to Create Folders for Contribution Purposes (Scott said it was okay)

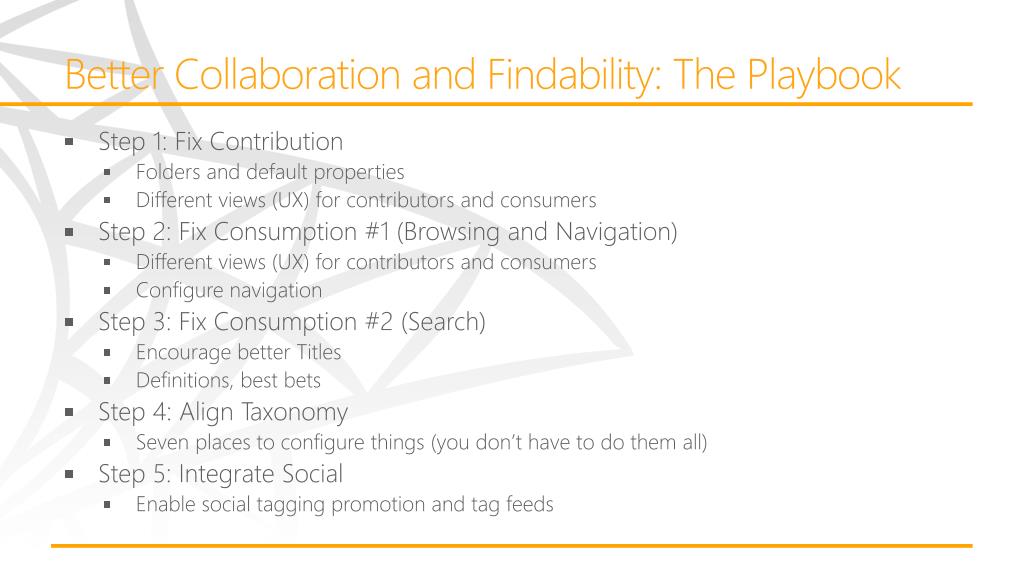

  16. Better Collaboration and Findability: The Playbook • Step 1: Fix Contribution • Folders and default properties • Different views (UX) for contributors and consumers • Step 2: Fix Consumption #1 (Browsing and Navigation) • Different views (UX) for contributors and consumers • Configure navigation • Step 3: Fix Consumption #2 (Search) • Encourage better Titles • Definitions, best bets • Step 4: Align Taxonomy • Seven places to configure things (you don’t have to do them all) • Step 5: Integrate Social • Enable social tagging promotion and tag feeds

  17. Better Collaboration and Findability: The Playbook • Step 1: Fix Contribution • Use the best of folders and columns • Different views for contributors and consumers • Contributors: folders with default metadata& permissions • Consumers: views without folders • Use Managed Metadata (Term Sets) • Provides type-ahead and centrally managed terms

  18. Creating A Better Site Experience:Contribution demo Scott Jamison Chief Architect Jornata

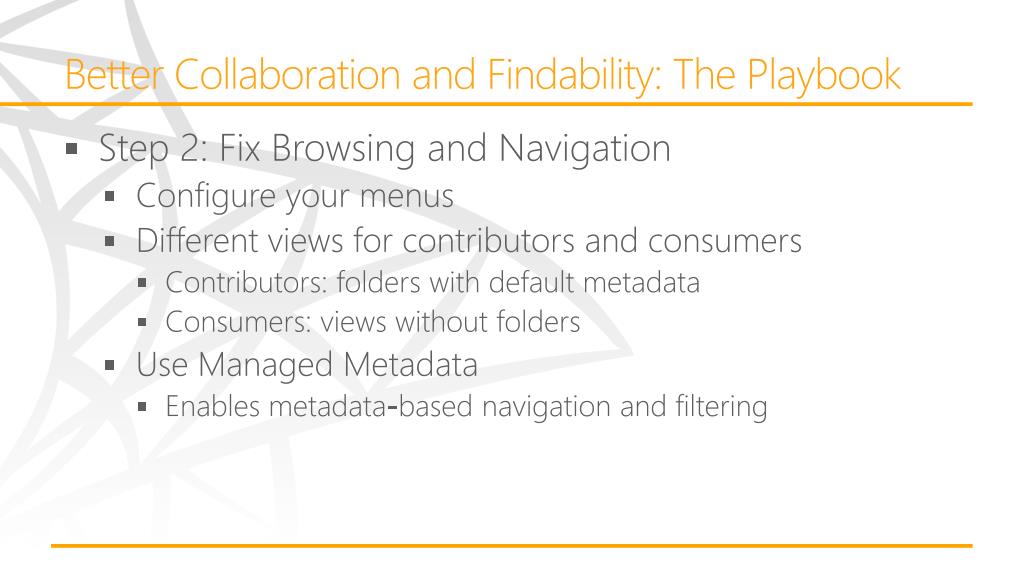

  19. Better Collaboration and Findability: The Playbook • Step 2: Fix Browsing and Navigation • Configure your menus • Different views for contributors and consumers • Contributors: folders with default metadata • Consumers: views without folders • Use Managed Metadata • Enables metadata-based navigation and filtering

  20. Creating A Better Site Experience:Navigation demo Scott Jamison Chief Architect Jornata

  21. Better Collaboration and Findability: The Playbook • Step 3: Fix Search • Educate users on the Title property and how it’s used • Educate users on how relevance works • Configure facets • Configure keywords, best bets

  22. First: my $.02 • SharePoint search can be *really* good • SharePoint search doesn’t work well at all • To clarify: SharePoint Search will work at about 20% satisfaction with the typical “Turn it on” approach • But…you can get close to 100% • You will need to do an additional 4 steps! • Each gives you another 20% of value

  23. Improving Search Results in 4 Easy Steps • Improve search engine relevancy • Enhance with stuff outside the engine • Review search reports and end-user feedback • Improve the overall experience

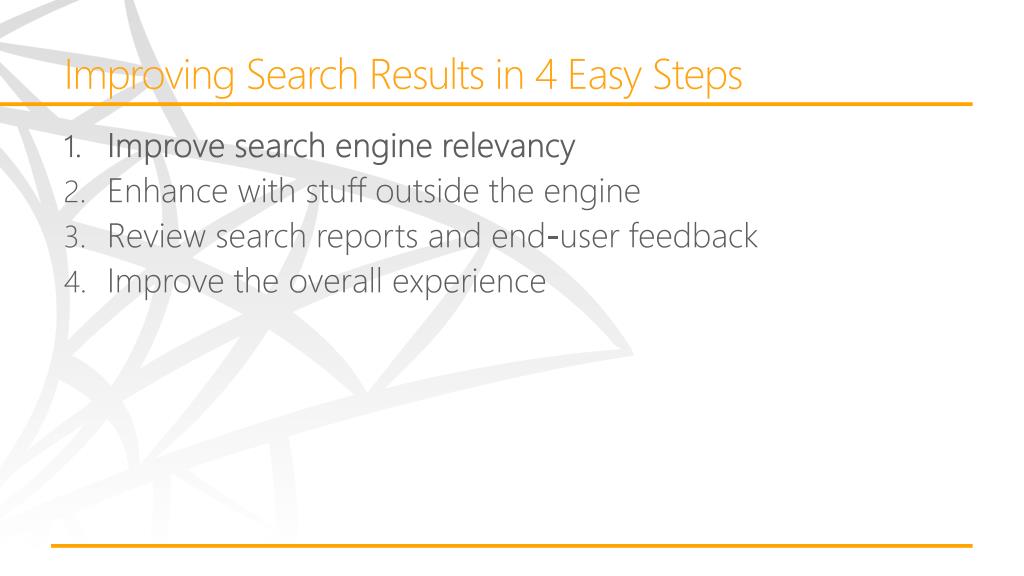

  24. Improving Search Results in 4 Easy Steps • Improve search engine relevancy • Enhance with stuff outside the engine • Review search reports and end-user feedback • Improve the overall experience

  25. Improving Search Results in 4 Easy Steps • Improve search engine relevancy • Name things well • Don’t bury relevant content • Use metadata (make sure Title is correct!) • Make sure people are tagged, too

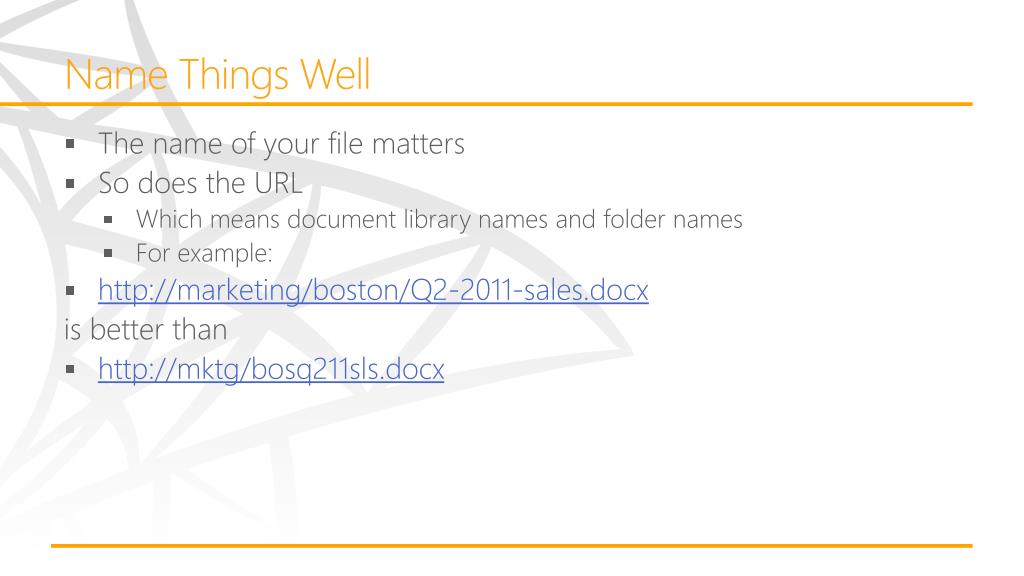

  26. Name Things Well • The name of your file matters • So does the URL • Which means document library names and folder names • For example: • http://marketing/boston/Q2-2011-sales.docx is better than • http://mktg/bosq211sls.docx

  27. Don’t Bury Highly Relevant Content Fewer slashes in a URL = higher relevancy Therefore: http://sharepoint/thatfile.docx is more relevant than http://sharepoint/hr/subsite/folder2/thatfile.docx

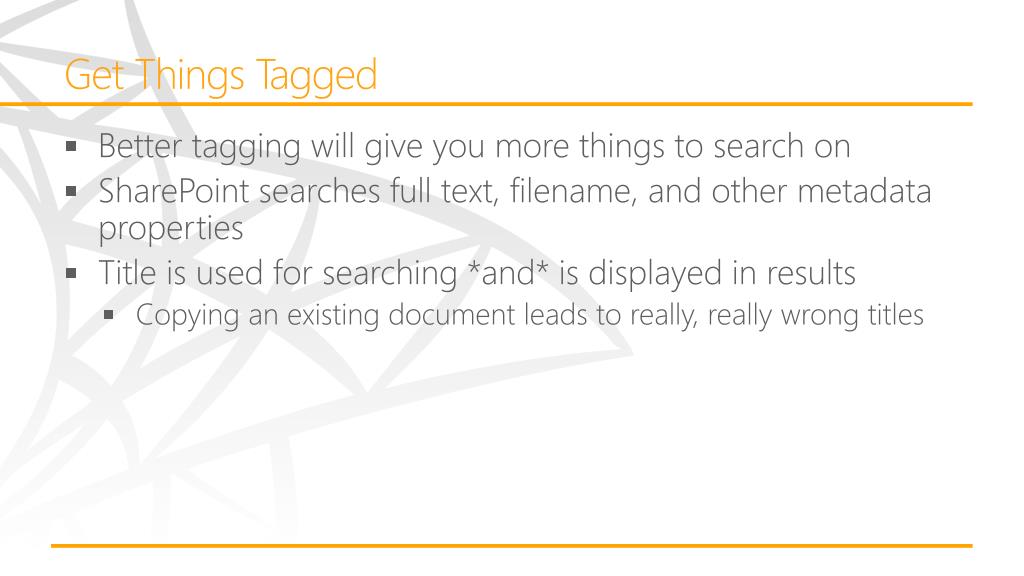

  28. Get Things Tagged • Better tagging will give you more things to search on • SharePoint searches full text, filename, and other metadata properties • Title is used for searching *and* is displayed in results • Copying an existing document leads to really, really wrong titles

  29. Search Results & Titles: What is going on? • Clean up your titles • The Title property is important • And it’s often wrong • SharePoint will use title property for searching and weights it heavily • But wait…there’s more! Since Title is often either wrong or blank, SharePoint sometimes attempts to ‘fix’ this • Actually a *feature* of SharePoint 2010! • It’s called “Optimistic Title Override”

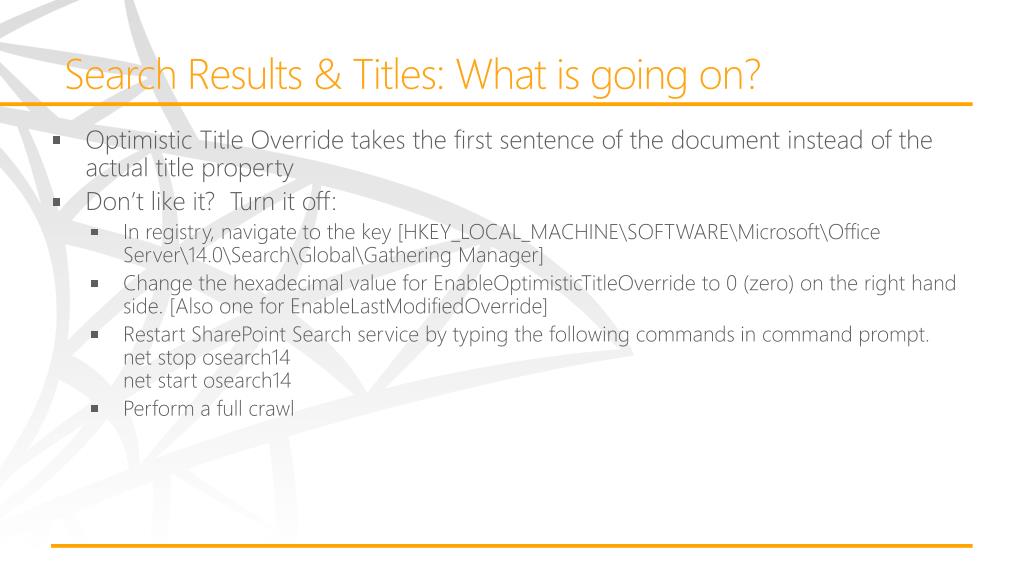

  30. Search Results & Titles: What is going on? • Optimistic Title Override takes the first sentence of the document instead of the actual title property • Don’t like it? Turn it off: • In registry, navigate to the key [HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Office Server\14.0\Search\Global\Gathering Manager] • Change the hexadecimal value for EnableOptimisticTitleOverride to 0 (zero) on the right hand side. [Also one for EnableLastModifiedOverride] • Restart SharePoint Search service by typing the following commands in command prompt.net stop osearch14net start osearch14 • Perform a full crawl

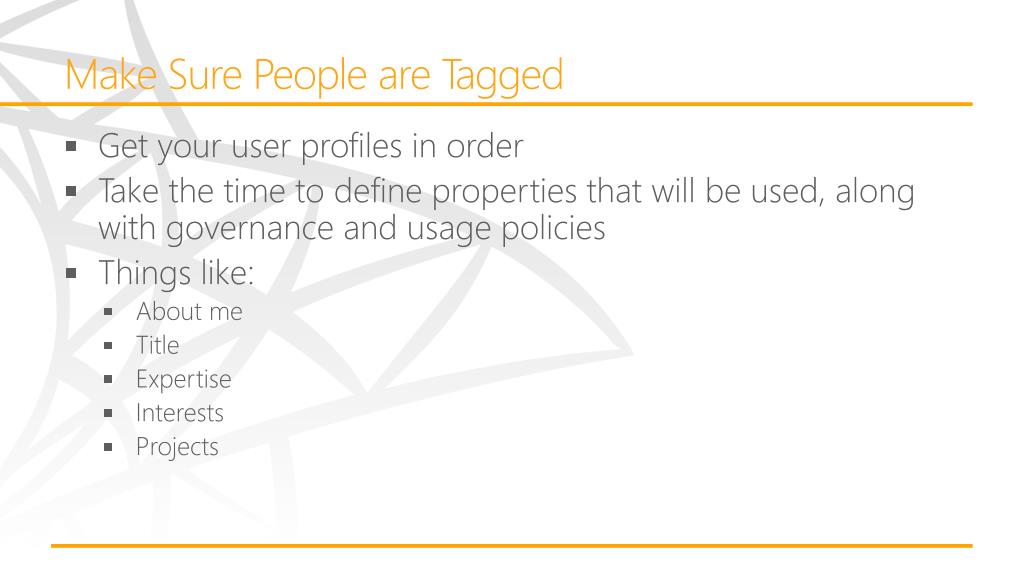

  31. Make Sure People are Tagged • Get your user profiles in order • Take the time to define properties that will be used, along with governance and usage policies • Things like: • About me • Title • Expertise • Interests • Projects

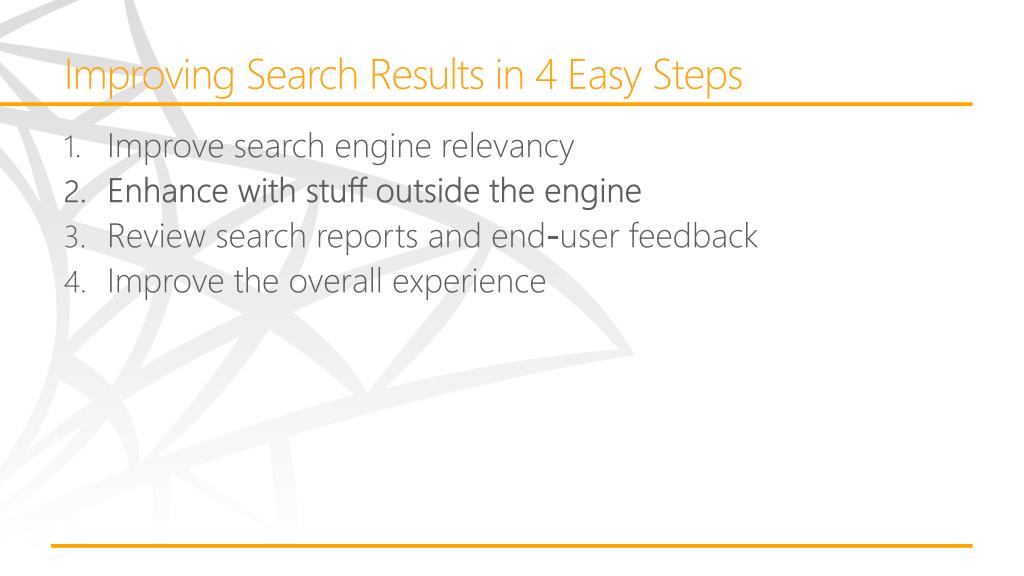

  32. Improving Search Results in 4 Easy Steps • Improve search engine relevancy • Enhance with stuff outside the engine • Review search reports and end-user feedback • Improve the overall experience

  33. Improving Search Results in 4 Easy Steps • Enhance with stuff outside the engine • Define keywords • Define 1-2 best bets per keyword • Provide a definition for keywords and acronyms

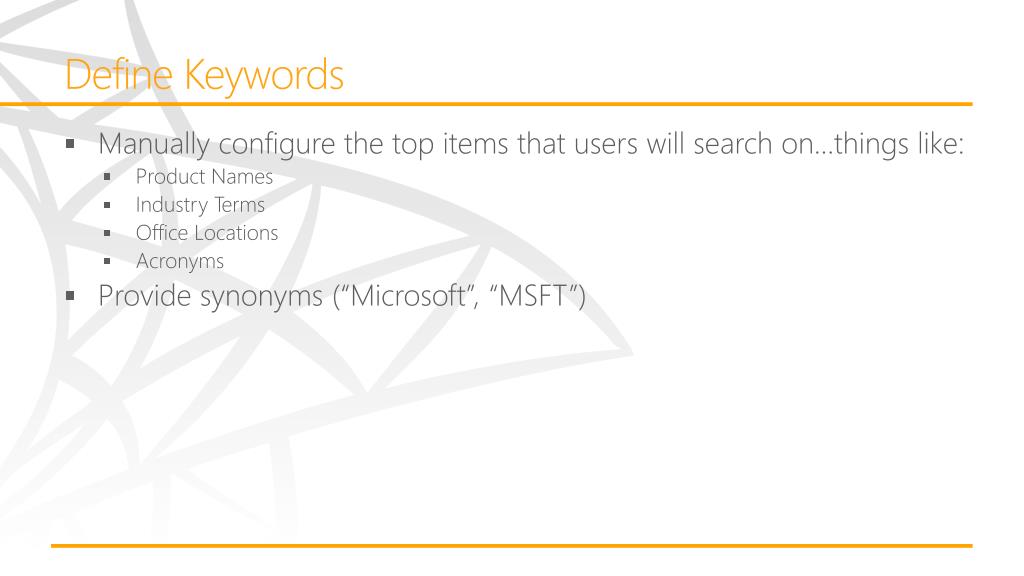

  34. Define Keywords • Manually configure the top items that users will search on…things like: • Product Names • Industry Terms • Office Locations • Acronyms • Provide synonyms (“Microsoft”, “MSFT”)

  35. Add Best Bets • Create 1-2 best bets for *each* keyword • For example, if someone types in: • Product Names • Provide a link to the publishing page for that product • Provide a link to the external product catalog • Provide a link to the product manager (user profile) • Office Locations • Provide a link to directions or office manager • Common Terms • Provide a link directly to the lunch menu or handbook

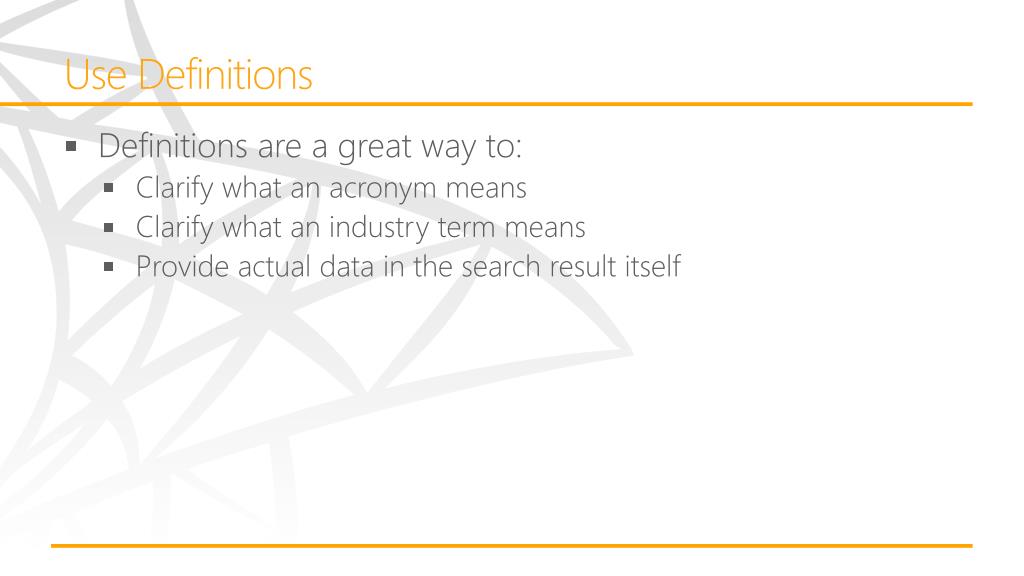

  36. Use Definitions • Definitions are a great way to: • Clarify what an acronym means • Clarify what an industry term means • Provide actual data in the search result itself

  37. Improving Search in 4 Easy Steps • Improve search engine relevancy • Enhance with stuff outside the engine • Review search reports and end-user feedback • Improve the overall experience

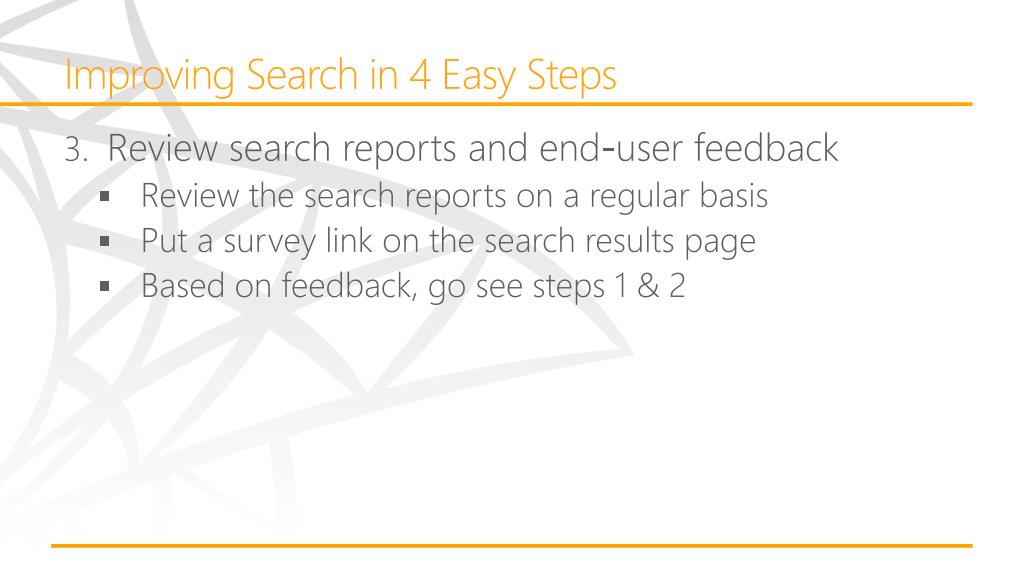

  38. Improving Search in 4 Easy Steps • Review search reports and end-user feedback • Review the search reports on a regular basis • Put a survey link on the search results page • Based on feedback, go see steps 1 & 2

  39. Review the Search Reports • There are great search reports in SharePoint 2010 • Make it part of your governance plan to review them and act upon them • Especially: • Queries with no results • Queries with no best bets

  40. Put a Survey on the Results Page • The #1 way to improve SharePoint? • Ask users what is working and what isn’t. • Find out what people are searching on and what they expected to find • And fix it!

  41. Improving Search in 4 Easy Steps • Improve search engine relevancy • Enhance with stuff outside the engine • Review search reports and end-user feedback • Improve the overall experience

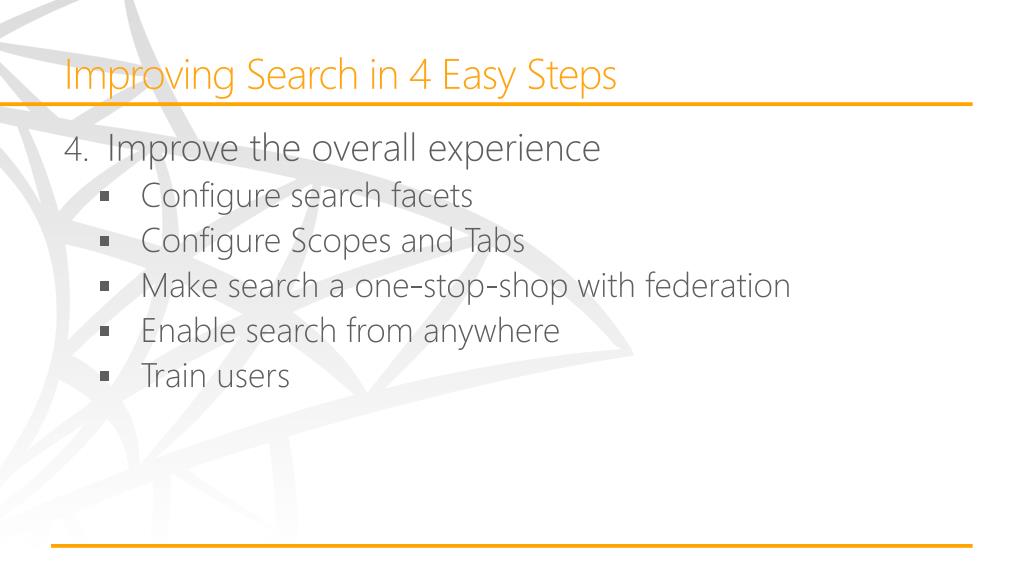

  42. Improving Search in 4 Easy Steps • Improve the overall experience • Configure search facets • Configure Scopes and Tabs • Make search a one-stop-shop with federation • Enable search from anywhere • Train users

  43. Configure Search Facets • Change the properties that users can filter with • Step 1: Promote your crawled property to a managed one • Step 2: Change the XML to make sure the facets work

  44. Configure Scopes and Tabs • Scopes enable you to segment content into easier-to-consume chunks • Examples: file types, locations, departments • Tabs let you create great UX for displaying scoped content

  45. Making Search Results Better • The #1 Thing you can do? • GET THE TITLE PROPERTY CORRECTED! • It’s pretty simple: • Explain this to users. Yes – train them! • By default, show the Title property in the default view • Tie the Title property to an actual field in the document

  46. Creating A Better Site Experience:Search demo Scott Jamison Chief Architect Jornata

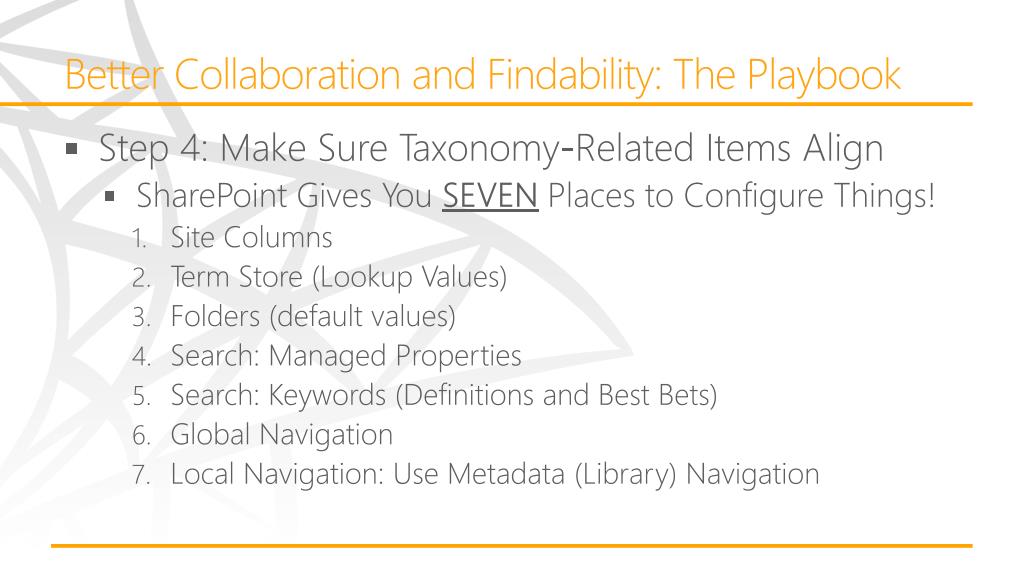

  47. Better Collaboration and Findability: The Playbook • Step 4: Make Sure Taxonomy-Related Items Align • SharePoint Gives You SEVEN Places to Configure Things! • Site Columns • Term Store (Lookup Values) • Folders (default values) • Search: Managed Properties • Search: Keywords (Definitions and Best Bets) • Global Navigation • Local Navigation: Use Metadata (Library) Navigation

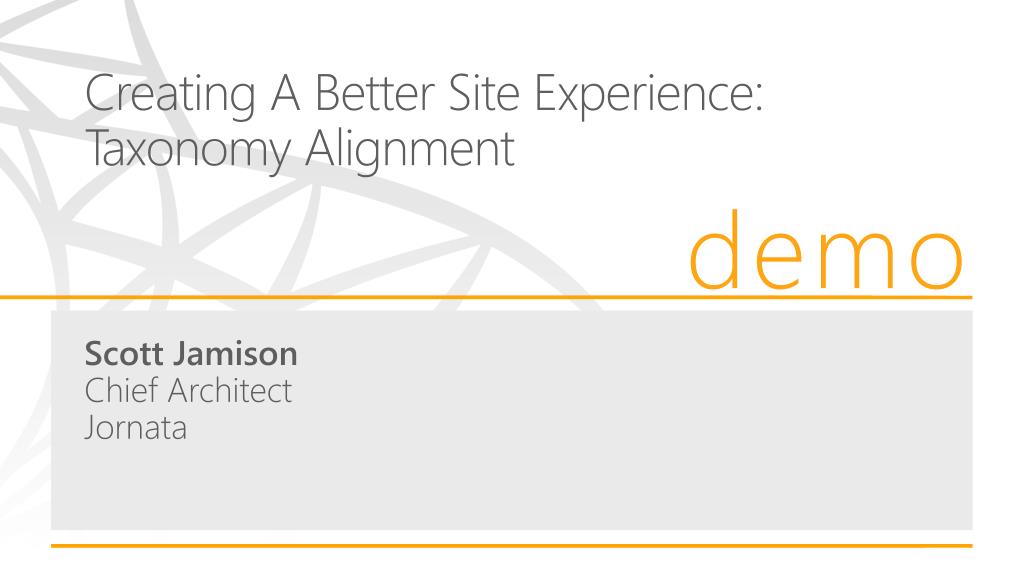

  48. Creating A Better Site Experience:Taxonomy Alignment demo Scott Jamison Chief Architect Jornata

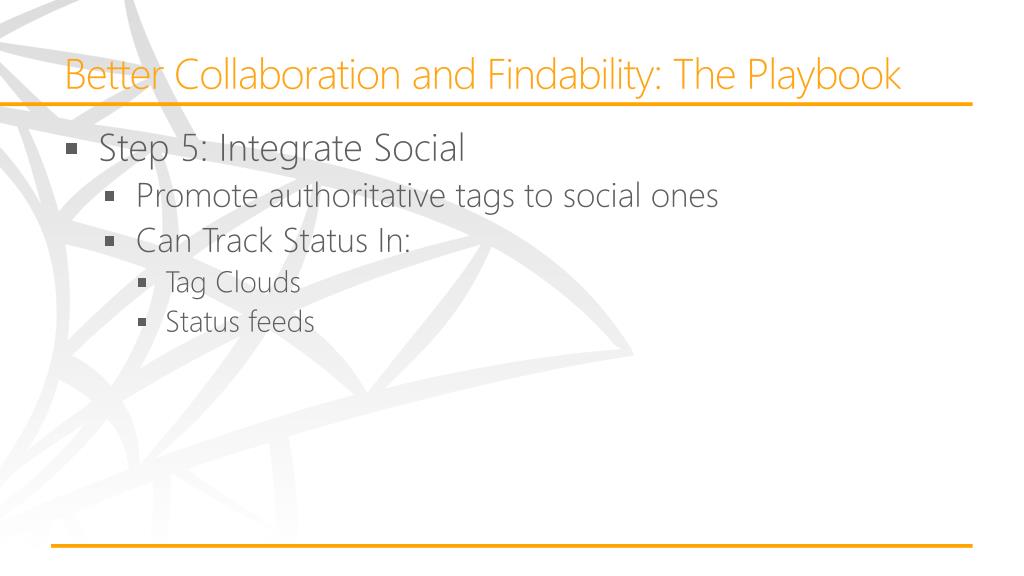

  49. Better Collaboration and Findability: The Playbook • Step 5: Integrate Social • Promote authoritative tags to social ones • Can Track Status In: • Tag Clouds • Status feeds

  50. Creating A Better Site Experience:Integrating Social demo Scott Jamison Chief Architect Jornata
