  1. Disk I/O Performancefocusing on Caching Guy Peleg President Maklee Engineering guy.peleg@maklee.com

  2. Why should I care? • Computers became very fast over the last decade • I/O performance remained (almost) the same • Disk I/O is an extremely! slow operation

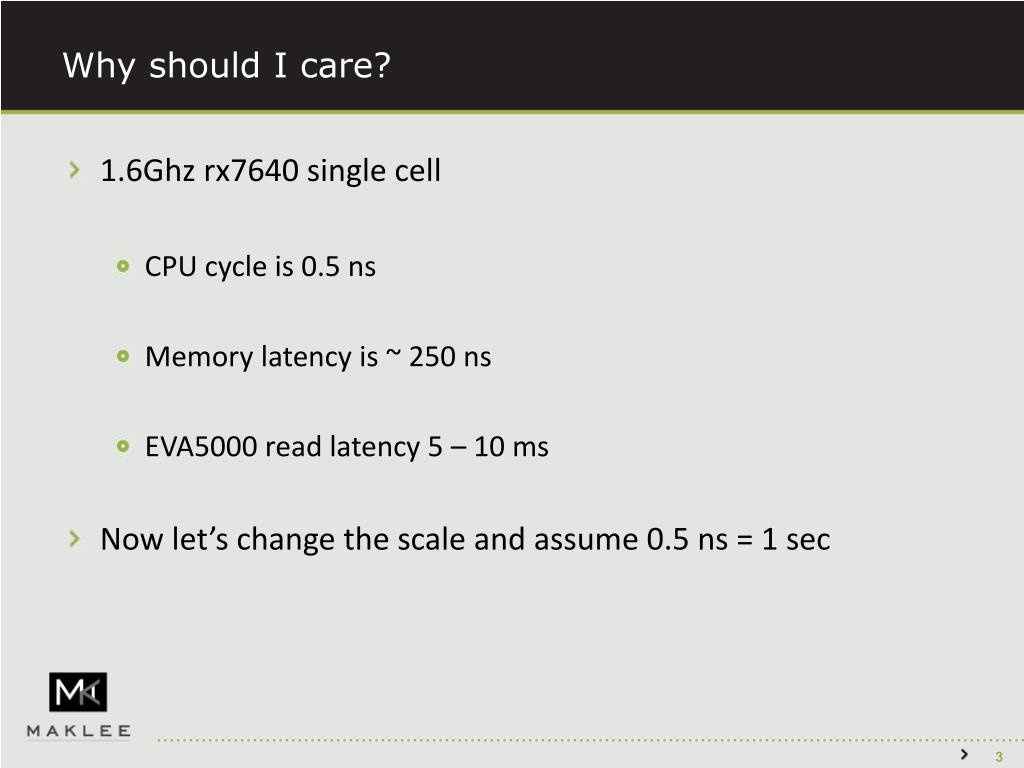

  3. Why should I care? • 1.6Ghz rx7640 single cell • CPU cycle is 0.5 ns • Memory latency is ~ 250 ns • EVA5000 read latency 5 – 10 ms • Now let’s change the scale and assume 0.5 ns = 1 sec

  4. Why should I care? • 1.6Ghz rx7640 single cell • CPU cycle is 1 second • Memory latency is 8.3 minutes • EVA5000 read latency 23 days !!!!!

  5. Why should I care? • Test program written in C • Creates a 1GB container file • Opens the newly created file • Positions at EOF • Writes a small record • Closes file • 1.6Ghz rx2600 • OpenVMS V8.3-1H1

  6. Why should I care? 88% difference Seconds to complete the test program less is better

  7. I/O Best Practices • “The fastest I/Os are those that are avoided” OpenVMS info desk Oct. 2004 • Cache as much as you can • Caching was invented to attempt and reduce the need for physical I/Os. • This session is all about providing techniques for avoiding/reducing I/O

  8. High Water Marking • The file highwater mark attribute guarantees that a user can not read data that was not written by the user. • The init command turns this feature on by default • Tradeoff between security and performacne • INIT/NOHIGH • SET VOLUME/NOHIGH

  9. The impact of highwater mark Seconds to create a container file less is better

  10. Data caching • Data could be cached by: • The Application • RMS (or Database cache) • OpenVMS file caching (XFC) • Hardware (disk controller) No one knows your application better than you !! Try to satisfies I/O requests as close to the application as possible

  11. XFC • eXtended File Cache • Introduced with OpenVMS V7.3 • Replaces VIOC • 64 bit • No closed file limit • Will cache I/Os larger than 35 blocks

  12. XFC • Supports readahead • (currently) does not support writeback • May grow up to 50% of physical memory • Grows and shrinks according to free physical memory. • May be forced to return memory instantly • No caching for files opened for write cluster wide

  13. XFC Reserved Memory Using reserved memory for XFC is slightly faster Reserved Memory for Permanent memory SYSMAN> RESERVED_MEMORY ADD VCC$MIN_CACHE_SIZE/SIZE=1500 /ALLOCATE/NOPAGE_TABLES/NOZERO/NOGLOBAL VCC_MAX_CACHE must be greater than the reserved memory size.

  14. XFC SYSGEN paraeters $ mc sysgen sh vcc Parameter Name Current Default Min. Max. Unit Dynamic -------------- ------- ------- ------- ------- ---- ------- VCC_FLAGS 2 2 0 -1 Bitmask VCC_MAXSIZE 6400 6400 0 3700000 Blocks VCC_MAX_CACHE -1 -1 0 -1 Mbytes D VCC_MAX_IO_SIZE 256 127 0 -1 Blocks D VCC_MAX_LOCKS -1 -1 50 -1 Locks D VCC_READAHEAD 1 1 0 1 Boolean D VCC_WRITEBEHIND 1 1 0 1 Boolean D VCC_WRITE_DELAY 30 30 0 -1 Seconds D VCC_PAGESIZE 0 0 0 -1 D VCC_RSVD 0 0 0 -1 D $

  15. $show memory /cache/full $ sh mem/cache/full System Memory Resources on 13-MAY-2008 12:44:19.80 Extended File Cache (Time of last reset: 8-MAY-2008 22:57:33.05) Allocated (GBytes) 1.35 Maximum size (GBytes) 4.00 Free (GBytes) 0.21 Minimum size (GBytes) 0.00 In use (GBytes) 1.13 Percentage Read I/Os 26% Read hit rate 95% Write hit rate 0% Read I/O count 2901784 Write I/O count 8118032 Read hit count 2781426 Write hit count 0 Reads bypassing cache 180 Writes bypassing cache 6860600 Files cached open 848 Files cached closed 993 Vols in Full XFC mode 0 Vols in VIOC Compatible mode 3 Vols in No Caching mode 0 Vols in Perm. No Caching mode 0 I/O Statistics - Distributions (MAX_IO_SIZE: 127) ------------------------------------------------- Transfer Size: Reads Read Hits Writes 1 Block IO: 193447 191602 435529 2 Block IO: 77685 76719 2148301 3 Block IO: 37242 37063 322191 4 Block IO: 108729 108557 238616 5 Block IO: 11719 11592 139933 6 Block IO: 77626 77453 92434 7 Block IO: 45780 45618 141327 8 Block IO: 191750 191351 136810 9 Block IO: 5359 5280 207786 10 Block IO: 17835 17787 140148 11 Block IO: 5343 5285 60112

  16. Show memory /cache/full … 27 Block IO: 4670 4655 14815 28 Block IO: 5657 5625 15013 29 Block IO: 5218 5192 14984 30 Block IO: 4717 4696 14841 31 Block IO: 4708 4679 14344 32 Block IO: 527966 467655 996501 33 Block IO: 48 33 2269 … 63 Block IO: 466 432 6366 64 Block IO: 1075132 1065615 22811 65 Block IO: 2 0 1144 124 Block IO: 200562 190862 193467 125 Block IO: 1 0 493 126 Block IO: 1 0 504 127 Block IO: 0 0 512 >127<256 Block IO: 21 263932 >255 Block IO: 49 176683 ------------------------------------------------- Totals: 2901784 2781426 8118032

  17. Forcing XFC to shrink $ show mem/cache System Memory Resources on 13-MAY-2008 12:42:54.59 Extended File Cache (Time of last reset: 13-MAY-2008 10:13:01.11) Allocated (MBytes) 222.32 Maximum size (MBytes) 4096.00 Free (MBytes) 0.19 Minimum size (MBytes) 3.12 In use (MBytes) 222.12 Percentage Read I/Os 87% Read hit rate 29% Write hit rate 0% Read I/O count 90334 Write I/O count 12864 Read hit count 26537 Write hit count 0 Reads bypassing cache 589 Writes bypassing cache 9969 Files cached open 383 Files cached closed 631 Vols in Full XFC mode 0 Vols in VIOC Compatible mode 2 Vols in No Caching mode 0 Vols in Perm. No Caching mode 0 SYSBCK> mc sysgen SYSGEN> SET VCC_MAX_CACHE 100 SYSGEN> W A SYSGEN> EXIT $ set cache/reset

  18. Forcing XFC to shrink $ sh mem/cache System Memory Resources on 13-MAY-2008 12:43:22.10 Extended File Cache (Time of last reset: 13-MAY-2008 10:13:01.11) Allocated (MBytes) 95.63 Maximum size (MBytes) 100.00 Free (MBytes) 0.02 Minimum size (MBytes) 3.12 In use (MBytes) 95.60 Percentage Read I/Os 87% Read hit rate 29% Write hit rate 0% Read I/O count 90391 Write I/O count 12894 Read hit count 26584 Write hit count 0 Reads bypassing cache 589 Writes bypassing cache 9996 Files cached open 383 Files cached closed 181 Vols in Full XFC mode 0 Vols in VIOC Compatible mode 2 Vols in No Caching mode 0 Vols in Perm. No Caching mode 0

  19. Cache pollution • The Cache is a limited resource • Avoid polluting the cache • OpenVMS attempts to reduce pulltion • VMS BACKUP • Caching disabled for all backup IO • Some utilities are not “cache safe” • COPY • CONVERT • Consider disabling caching temporarily • vcc_max_io_size = 0 • mount/nocache • set file/cache=no • OpenVMS provides DCL commands to view the contents of the cache

  20. Free Hot File Tracking Utility $ sh mem/cache=(volume=*,topqio) System Memory Resources on 26-APR-2008 01:39:15.03 Extended File Cache Top QIO File Statistics: _$1$DGA242: (DISK$SEC6), Caching mode is VIOC Compatible _$1$DGA242:[VMS$COMMON.SYSEXE]RIGHTSLIST.DAT;1 (open) Caching is enabled, active caching mode is Write Through Allocated pages 9 Total QIOs 107 Read hits 92 Virtual reads 107 Virtual writes 0 Hit rate 85 % Read aheads 0 Read throughs 107 Write throughs 0 Read arounds 0 Write arounds 0 _$1$DGA242:[VMS$COMMON.SYSEXE]VMS$OBJECTS.DAT;2 (open) Caching is enabled, active caching mode is Write Through Allocated pages 0 Total QIOs 9 Read hits 0 Virtual reads 9 Virtual writes 0 Hit rate 0 % Read aheads 0 Read throughs 9 Write throughs 0 Read arounds 0 Write arounds 0 _$1$DGA242:[VMS$COMMON.SYSEXE]VMS$AUDIT_SERVER.DAT;1 (open) Caching is enabled, active caching mode is Write Through Allocated pages 1 Total QIOs 4 Read hits 0 Virtual reads 4 Virtual writes 0 Hit rate 0 % Read aheads 0 Read throughs 4 Write throughs 0 Read arounds 0 Write arounds 0 Total of 3 files for this volume

  21. Free Hot File Tracking Utility _$1$DGA142: (DISK$MVMS), Caching mode is VIOC Compatible _$1$DGA142:[VMS$COMMON.SYSLIB]DECC$SHR.EXE;1 (open) Caching is enabled, active caching mode is Write Through Allocated pages 303 Total QIOs 1646 Read hits 1561 Virtual reads 1646 Virtual writes 0 Hit rate 94 % Read aheads 0 Read throughs 1642 Write throughs 0 Read arounds 4 Write arounds 0 _$1$DGA142:[VMS$COMMON.SYSLIB]LIBRTL.EXE;1 (open) Caching is enabled, active caching mode is Write Through Allocated pages 143 Total QIOs 1165 Read hits 1123 Virtual reads 1165 Virtual writes 0 Hit rate 96 % Read aheads 0 Read throughs 1164 Write throughs 0 Read arounds 1 Write arounds 0 _$1$DGA142:[VMS$COMMON.SYSLIB]CMA$TIS_SHR.EXE;1 (open) Caching is enabled, active caching mode is Write Through Allocated pages 12 Total QIOs 720 Read hits 711 Virtual reads 720 Virtual writes 0 Hit rate 98 % Read aheads 0 Read throughs 720 Write throughs 0 Read arounds 0 Write arounds 0 Avoid caching files that pollute the cache

  22. I/O response time SDA> xfc show volume/brief Summary of XFC Cached Volumes (CVBs)------------------------------------Volume Name       CVB                Open   Closed      Total       Read       Read      Write      ... Response (Milliseconds)...                                    Files    Files       I/Os       Hits      Count      Count          Hits       disk    AverageDISK$FOOBAR       FFFFFFFEE01895E0      0        0          0          0          0          0       (N/A)      (N/A)      (N/A)DISK$GP           FFFFFFFEE0189380      0        0          0          0          0          0       (N/A)      (N/A)      (N/A)DISK$ORACLE       FFFFFFFEE0189120     26        3    1872255          0          0    1872255       (N/A)       0.0000     0.0000DISK$ORA2        FFFFFFFEE0188EC0     73      177   22015701   14108183   21116834     898891        0.0232     0.5811     0.2236DISK$SYS      FFFFFFFEE0188C60      0        0          0          0          0          0       (N/A)      (N/A)      (N/A)DISK$ORAIDX      FFFFFFFEE0188A00      0        0          1          0          1          0       (N/A)      (N/A)      (N/A)DISK$SYSBCK    FFFFFFFEE01887A0      2        0          0          0          0          0       (N/A)      (N/A)      (N/A)DISK$LEEHE        FFFFFFFEE0188540      4        3   27676052   27667501   27674665       1387        0.0118     0.4007     0.0120DISK$MIKA     FFFFFFFEE01882E0      0        0          0          0          0          0       (N/A)      (N/A)      (N/A)DISK$SYS831H1     FFFFFFFEE0188080    313      183    2736618    2668894    2713025      23594        0.0179     0.5425     0.0308 SDA>XFC SHOW VOLUME/BRIEF

  23. The XFC “overhead” Elapsed time to copy 150MB file, rx2600, HSG80, OpenVMS V8.3

  24. The XFC “overhead” Seconds to create a container file less is better

  25. Shadowed RAM disk • Applications that mainly read data would benefit from using shadowed RAM disk. • The Shadow server will read from memory and will write to both devices. • Forces data to remain resident in memory. • Significantly boosts performance when files are opened cluster wide by multiple users. • XFC will not help

  26. Physical Disk Vs. RAM disk • C application that processes records read from sequential file • Each I/O 124 Blocks • RX2600, OpenVMS V8.3, HSG80 Elapsed time to read 250MB file (less is better)

  27. RMS • RMS holds great potential for reducing I/Os & improving performance • The C RTL uses RMS • Most C applications would benefit from RMS tuning

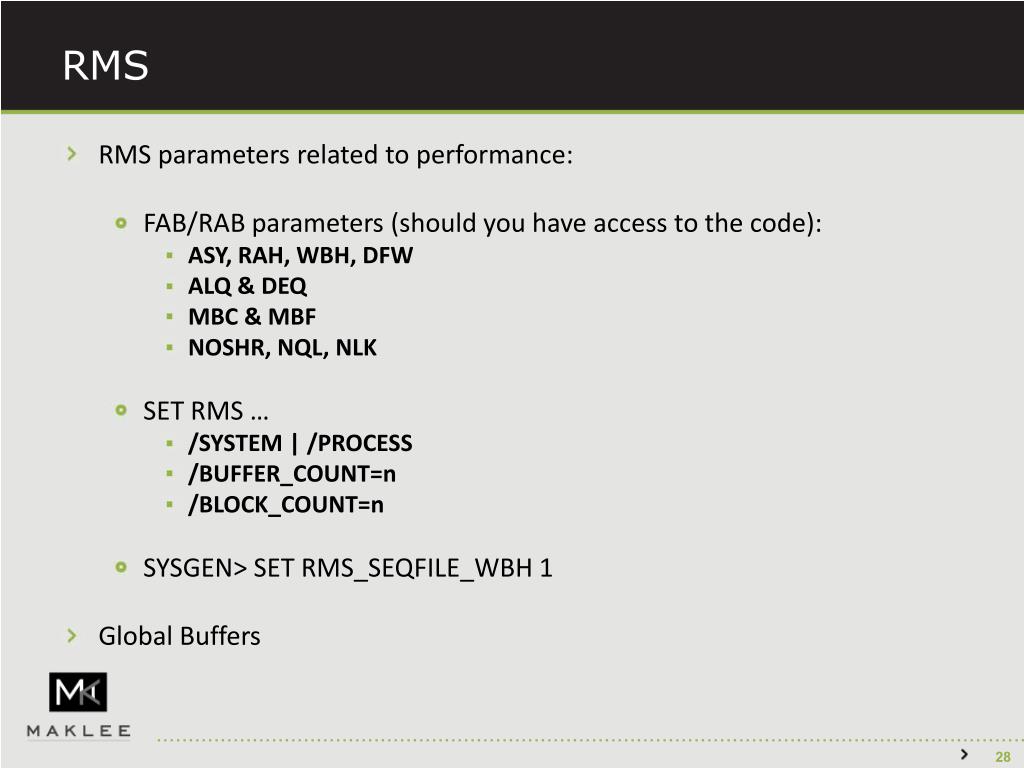

  28. RMS • RMS parameters related to performance: • FAB/RAB parameters (should you have access to the code): • ASY, RAH, WBH, DFW • ALQ & DEQ • MBC & MBF • NOSHR, NQL, NLK • SET RMS … • /SYSTEM | /PROCESS • /BUFFER_COUNT=n • /BLOCK_COUNT=n • SYSGEN> SET RMS_SEQFILE_WBH 1 • Global Buffers

  29. gZIP & RMS • gZIP is written in C – I/Os eventually reach RMS • 1.6 Ghz rx2600, MSA30, OpenVMS V8.3 • Test 1 • Compress 5.67 GB saveset • Decompress 2.74 gZIP archive • Default O/S & RMS settings • Test 2 • Compress 5.67 GB saveset • Decompress 2.74 gZIP archive • SET RMS/BLOCK=127/EXTEN=60000/BUFFER=8, RMS_SEQFILE_WBH=1

  30. gZIP & RMS Elapsed Time in Minutes (less is better)

  31. FTP Performance

  32. Impact of RMS tuning Seconds to create a container file less is better

  33. I/O Consolidation - PC Sampling – “Before” PC Sampling Information (CPU_CYCLES):-------------------------------------Start VA          End VA             Image                                             Count   Percent----------------- -----------------  ----------------------------------------    -----------  --------FFFFF802.89400000 FFFFF802.89415FFF  Kernel Promote VA                                     2     0.78%FFFFFFFF.80000100 FFFFFFFF.800111FF  SYS$BASE_IMAGE                                       10     3.89%FFFFFFFF.80011200 FFFFFFFF.80068FFF  SYS$PLATFORM_SUPPORT                                  1     0.39%FFFFFFFF.800A0000 FFFFFFFF.801D3CFF  SYSTEM_PRIMITIVES_MIN                                86    33.46%FFFFFFFF.801D3D00 FFFFFFFF.802537FF  SYSTEM_SYNCHRONIZATION_MIN                           21     8.17%FFFFFFFF.80365600 FFFFFFFF.80451FFF  EXCEPTION                                             1     0.39%FFFFFFFF.80452000 FFFFFFFF.80543EFF  IO_ROUTINES                                           6     2.33%FFFFFFFF.80553200 FFFFFFFF.80699DFF  PROCESS_MANAGEMENT                                   43    16.73%FFFFFFFF.80699E00 FFFFFFFF.807A25FF  SYS$VM                                                2     0.78%FFFFFFFF.807A2600 FFFFFFFF.807F05FF  LOCKING                                              14     5.45%FFFFFFFF.80847600 FFFFFFFF.80927CFF  F11BXQP                                              22     8.56%FFFFFFFF.80927D00 FFFFFFFF.80B40CFF  RMS                                                  10     3.89%FFFFFFFF.80B9CC00 FFFFFFFF.80C091FF  SECURITY                                              4     1.56%FFFFFFFF.80CB0A00 FFFFFFFF.80D2C9FF  SYS$XFCACHE                                          11     4.28%FFFFFFFF.810C1B00 FFFFFFFF.811080FF  SYS$DKDRIVER                                          1     0.39%FFFFFFFF.8406E000 FFFFFFFF.8425FFFF  LIBRTL                                                3     1.17%FFFFFFFF.84260000 FFFFFFFF.84285FFF  LIBOTS                                                2     0.78%FFFFFFFF.844FA000 FFFFFFFF.845ABFFF  PTHREAD$RTL                                          18     7.00%                                     Not Found                                             4

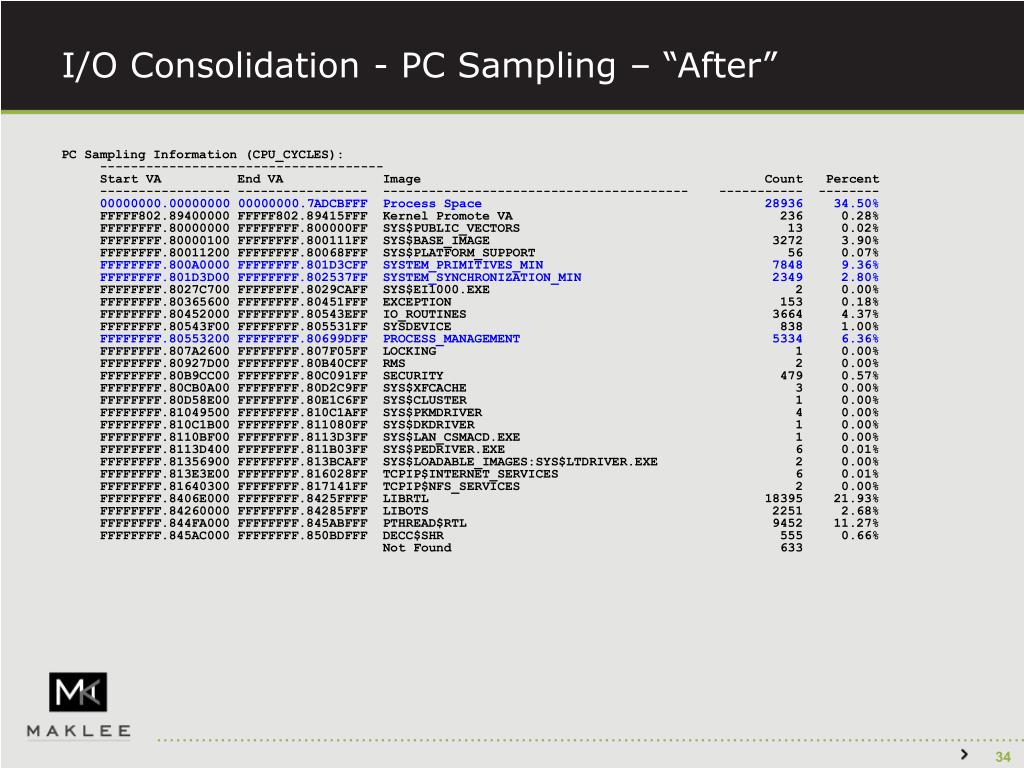

  34. I/O Consolidation - PC Sampling – “After” PC Sampling Information (CPU_CYCLES):-------------------------------------Start VA          End VA             Image                                             Count   Percent----------------- -----------------  ----------------------------------------    -----------  --------00000000.00000000 00000000.7ADCBFFF  Process Space                                     28936    34.50%FFFFF802.89400000 FFFFF802.89415FFF  Kernel Promote VA                                   236     0.28%FFFFFFFF.80000000 FFFFFFFF.800000FF  SYS$PUBLIC_VECTORS                                   13     0.02%FFFFFFFF.80000100 FFFFFFFF.800111FF  SYS$BASE_IMAGE                                     3272     3.90%FFFFFFFF.80011200 FFFFFFFF.80068FFF  SYS$PLATFORM_SUPPORT                                 56     0.07%FFFFFFFF.800A0000 FFFFFFFF.801D3CFF  SYSTEM_PRIMITIVES_MIN                              7848     9.36%FFFFFFFF.801D3D00 FFFFFFFF.802537FF  SYSTEM_SYNCHRONIZATION_MIN                         2349     2.80%FFFFFFFF.8027C700 FFFFFFFF.8029CAFF  SYS$EI1000.EXE                                        2     0.00%FFFFFFFF.80365600 FFFFFFFF.80451FFF  EXCEPTION                                           153     0.18%FFFFFFFF.80452000 FFFFFFFF.80543EFF  IO_ROUTINES                                        3664     4.37%FFFFFFFF.80543F00 FFFFFFFF.805531FF  SYSDEVICE                                           838     1.00%FFFFFFFF.80553200 FFFFFFFF.80699DFF  PROCESS_MANAGEMENT                                 5334     6.36%FFFFFFFF.807A2600 FFFFFFFF.807F05FF  LOCKING                                               1     0.00%FFFFFFFF.80927D00 FFFFFFFF.80B40CFF  RMS                                                   2     0.00%FFFFFFFF.80B9CC00 FFFFFFFF.80C091FF  SECURITY                                            479     0.57%FFFFFFFF.80CB0A00 FFFFFFFF.80D2C9FF  SYS$XFCACHE                                           3     0.00%FFFFFFFF.80D58E00 FFFFFFFF.80E1C6FF  SYS$CLUSTER                                           1     0.00%FFFFFFFF.81049500 FFFFFFFF.810C1AFF  SYS$PKMDRIVER                                         4     0.00%FFFFFFFF.810C1B00 FFFFFFFF.811080FF  SYS$DKDRIVER                                          1     0.00%FFFFFFFF.8110BF00 FFFFFFFF.8113D3FF  SYS$LAN_CSMACD.EXE                                    1     0.00%FFFFFFFF.8113D400 FFFFFFFF.811B03FF  SYS$PEDRIVER.EXE                                      6     0.01%FFFFFFFF.81356900 FFFFFFFF.813BCAFF  SYS$LOADABLE_IMAGES:SYS$LTDRIVER.EXE                  2     0.00%FFFFFFFF.813E3E00 FFFFFFFF.816028FF  TCPIP$INTERNET_SERVICES                               6     0.01%FFFFFFFF.81640300 FFFFFFFF.817141FF  TCPIP$NFS_SERVICES                                    2     0.00%FFFFFFFF.8406E000 FFFFFFFF.8425FFFF  LIBRTL                                            18395    21.93%FFFFFFFF.84260000 FFFFFFFF.84285FFF  LIBOTS                                             2251     2.68%FFFFFFFF.844FA000 FFFFFFFF.845ABFFF  PTHREAD$RTL                                        9452    11.27%FFFFFFFF.845AC000 FFFFFFFF.850BDFFF  DECC$SHR                                            555     0.66%                                     Not Found                                           633

  35. RMS Global Buffers • RMS Global Buffers provide another layer of caching between RMS & XFC • Does it make sense to use both? • YES !

  36. RMS Global Buffers and/or XFC? • RMS Global buffers WILL cache files open for writeshare in a cluster. • RMS GB require knowledge of application & I/O to apply them effectively. • $ SET FILE/GLOBAL_BUFFER=n • XFC is S2 Space based and has no effective limit to its size other than physical memory available • Prior to V8.3 RMS GB are limited to a max value of 32767 buffers per file.

  37. RMS Global Buffers AND XFC make a good pair • Remember slide 13? • RMS is closer to the application. • Use global buffers for files open for shared write in a cluster – RIGHTSLIST.DAT is a good example with a common system disk. • XFC will cache as much as it can once RMS passes I/O to it

  38. The Impact of RMS Global Buffers

  39. The Impact of RMS Global Buffers

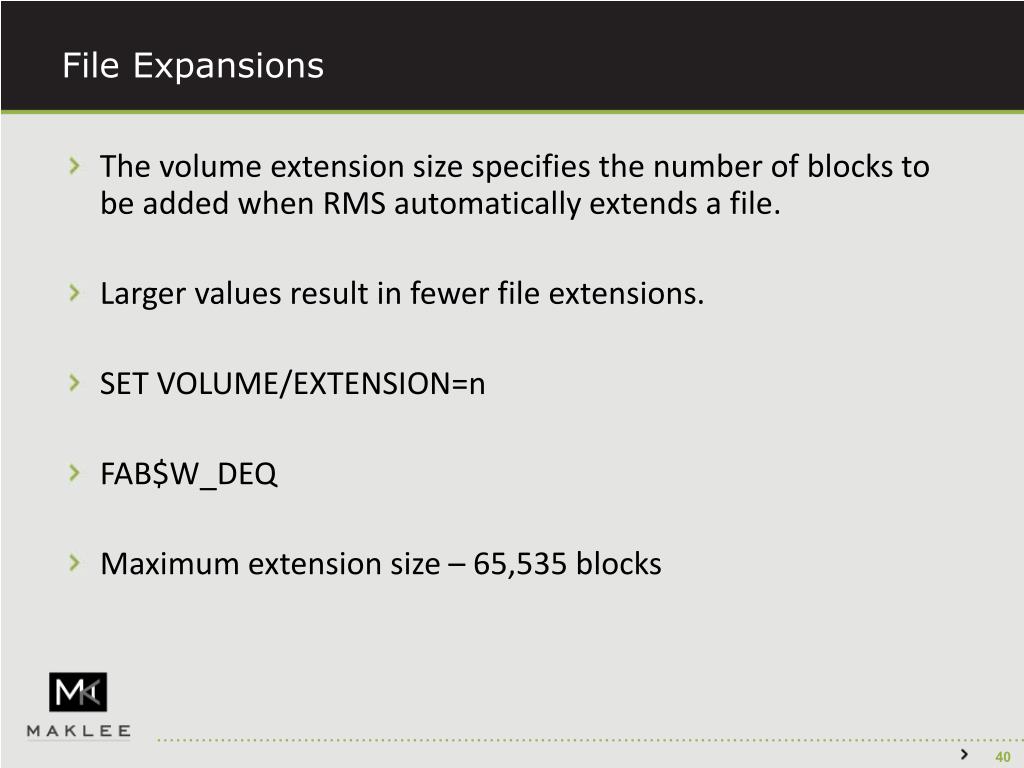

  40. File Expansions • The volume extension size specifies the number of blocks to be added when RMS automatically extends a file. • Larger values result in fewer file extensions. • SET VOLUME/EXTENSION=n • FAB$W_DEQ • Maximum extension size – 65,535 blocks

  41. File Expansions $ sh dev dka100/full Disk $1$DKA100: (STRIKE), device type DEC RZZ28B, is online, allocated, deallocate on dismount, mounted, file-oriented device, shareable, available to cluster, error logging is enabled. Error count 0 Operations completed 57 Owner process "SYSTEM" Owner UIC [SYSTEM] Owner process ID 00000222 Dev Prot S:RWPL,O:RWPL,G:R,W Reference count 2 Default buffer size 512 Total size 14.05GB Sectors per track 32 Total cylinders 28786 Tracks per cylinder 32 Logical Volume Size 14.05GB Expansion Size Limit 16.96GB Allocation class 1 Volume label "XBC3_RESD$" Relative volume number 0 Cluster size 4 Transaction count 1 Free space 106.93MB Maximum files allowed 2947659 Extend quantity 5 Mount count 1 Mount status Process Cache name "_$1$DKA0:XQPCACHE" Extent cache size 64 Maximum blocks in extent cache 21900 File ID cache size 64 Blocks in extent cache 0 Quota cache size 0 Maximum buffers in FCP cache 1724 Volume owner UIC [SYSTEM] Vol Prot S:RWCD,O:RWCD,G:RWCD,W:RWCD Volume access control list: (IDENTIFIER=%X80010033,ACCESS=READ+WRITE+CREATE+DELETE)

  42. Oracle 10g Database Export 20% Improvement Minutes to complete database export less is better

  43. Larger Block Size with RMS • Going beyond 127 blocks I/O requires using RAB64 • Implemented in VMS COPY • /BLOCK qualifier • The Port drivers currently support a maximum of 256 blocks per I/O • Larger I/Os are segmented

  44. Impact of larger block size Seconds to copy 5GB file from disk to disk less is better

  45. Evolution of the test program Seconds to create a container file less is better

  46. FastPath • Spread I/Os across all CPUs $ show fast Fast Path preferred CPUs on MAKLEE 13-MAY-2008 21:20:41.82 HP rx3600 (1.59GHz/9.0MB) with 4 active CPUs Device: Fastpath CPU: EIA0 1 EIB0 0 FGC0 1 FGA0 0 FGB0 3 FGD0 3 PKA0 2 OpenVMS TCP/IP is currently running on CPU 1

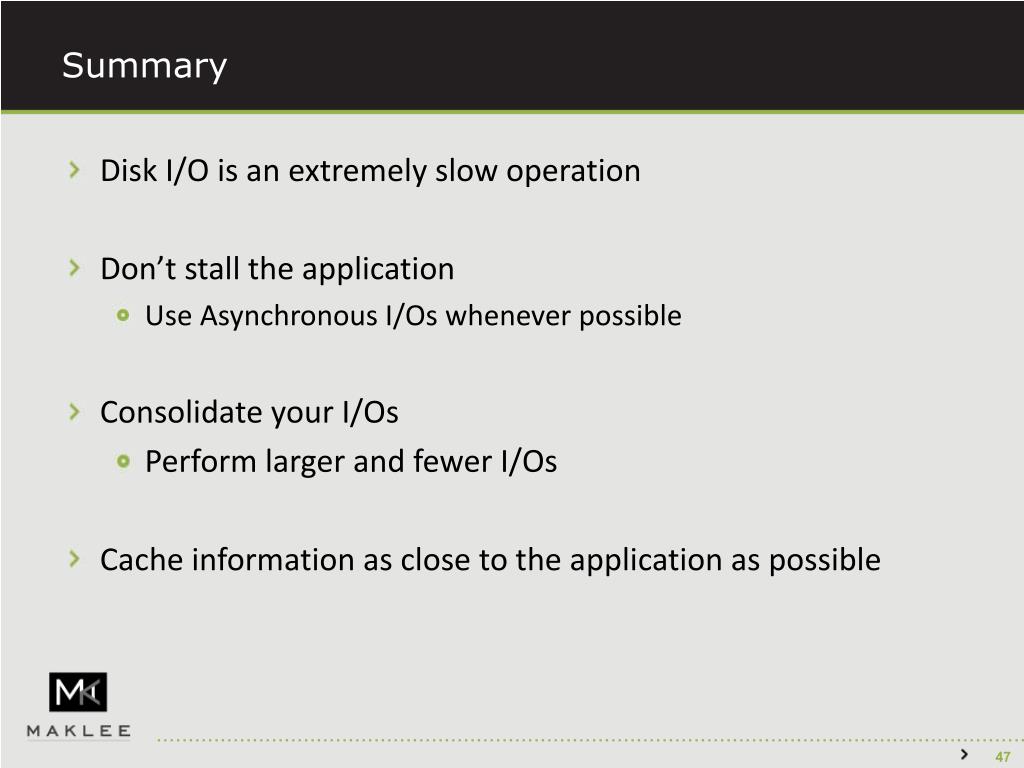

  47. Summary • Disk I/O is an extremely slow operation • Don’t stall the application • Use Asynchronous I/Os whenever possible • Consolidate your I/Os • Perform larger and fewer I/Os • Cache information as close to the application as possible

  48. Questions? • See us at www.maklee.com for: • Performance improvements • Oracle Tuning • Platform Migration • Custom Engineering solutions • Custom Training
