  1. Doppler Wind and Temperature Sounder:A breakthrough technique Larry Gordley, GATS Inc. Dave Fritts, GATS Inc. Tom Marshall, GATS Inc. GATS Proprietary

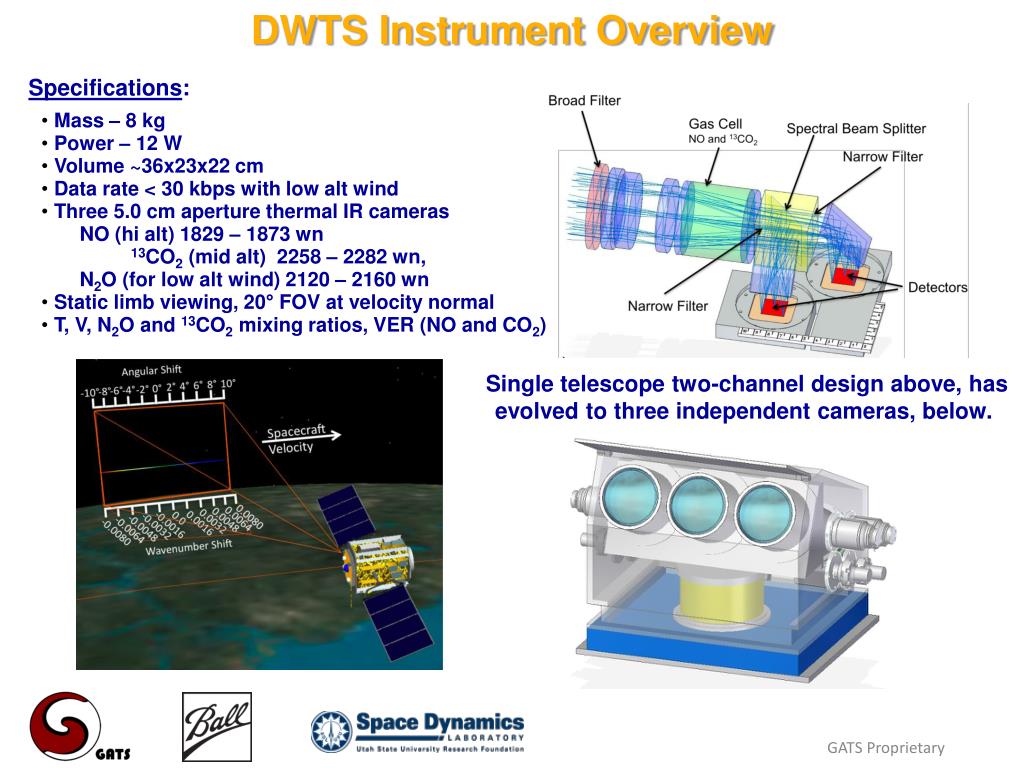

  2. DWTS Instrument Overview • Specifications: • Mass – 8 kg • Power – 12 W • Volume ~36x23x22 cm • Data rate < 30 kbps with low alt wind • Three 5.0 cm aperture thermal IR cameras • NO (hi alt) 1829 – 1873 wn • 13CO2 (mid alt) 2258 – 2282 wn, • N2O (for low alt wind) 2120 – 2160 wn • Static limb viewing, 20° FOV at velocity normal • T, V, N2O and 13CO2 mixing ratios, VER (NO and CO2) Single telescope two-channel design above, has evolved to three independent cameras, below. GATS Proprietary

  3. TemperatureMeasures Low Pressure Doppler Broadened Emission Line Width is proportional to square root of kinetic temperature

  4. Single Atmospheric Emission line 1 ν (wavenumber, frequency) Emission lines are typically a few thousandths of a wavenumber wide, requiring optical resolving powers of 100,000 or more to measure. Typically, good spectrometers achieve 10,000. DWTS achieves >300,000. GATS Proprietary

  5. Doppler Shift Measurements Broadband emission will not detect Doppler shift, nor will spectra measurements, unless there is a zero shift reference

  6. Atmospheric spectral emission from one line 0 signal shift, Δν ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

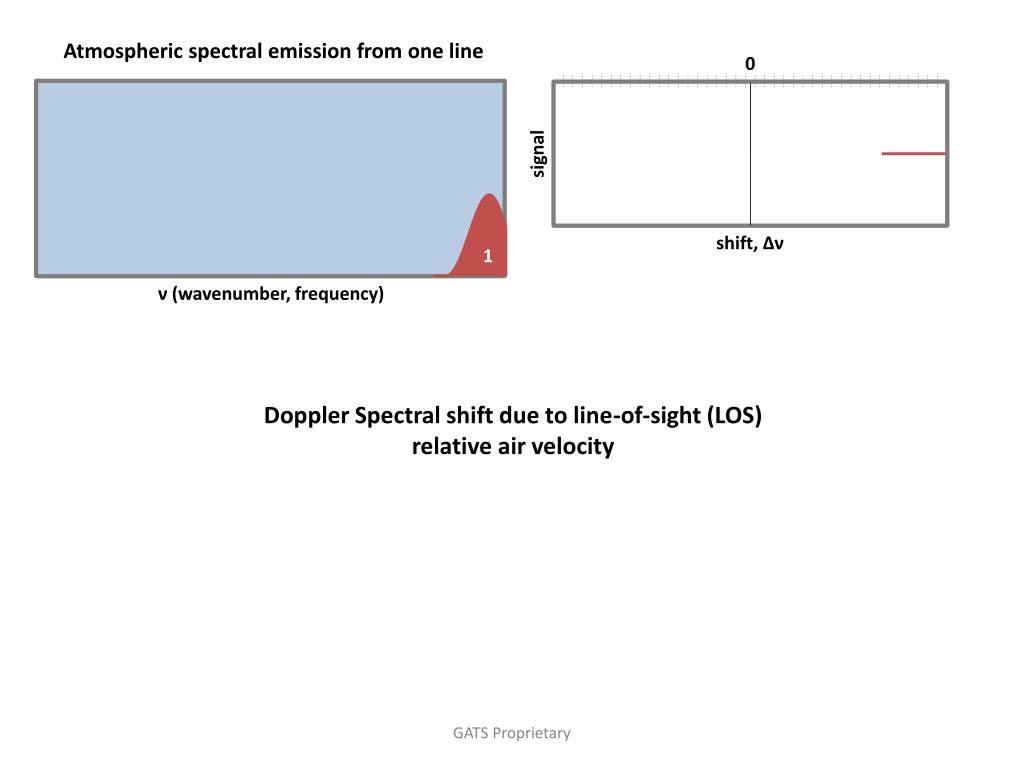

  7. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

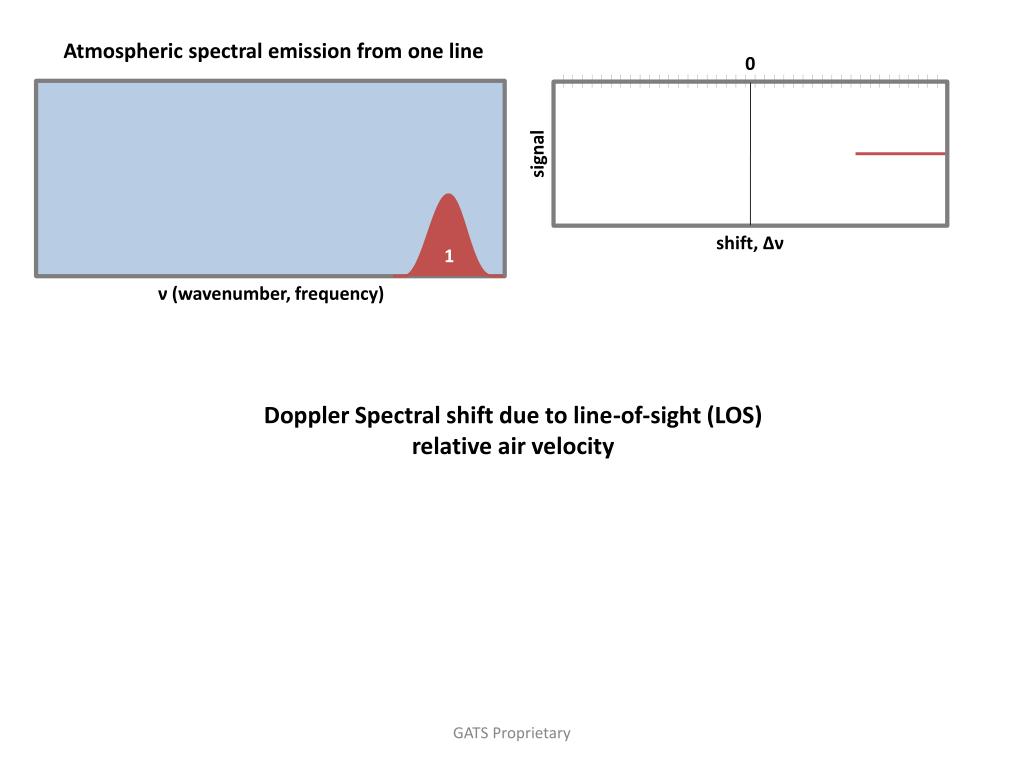

  8. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

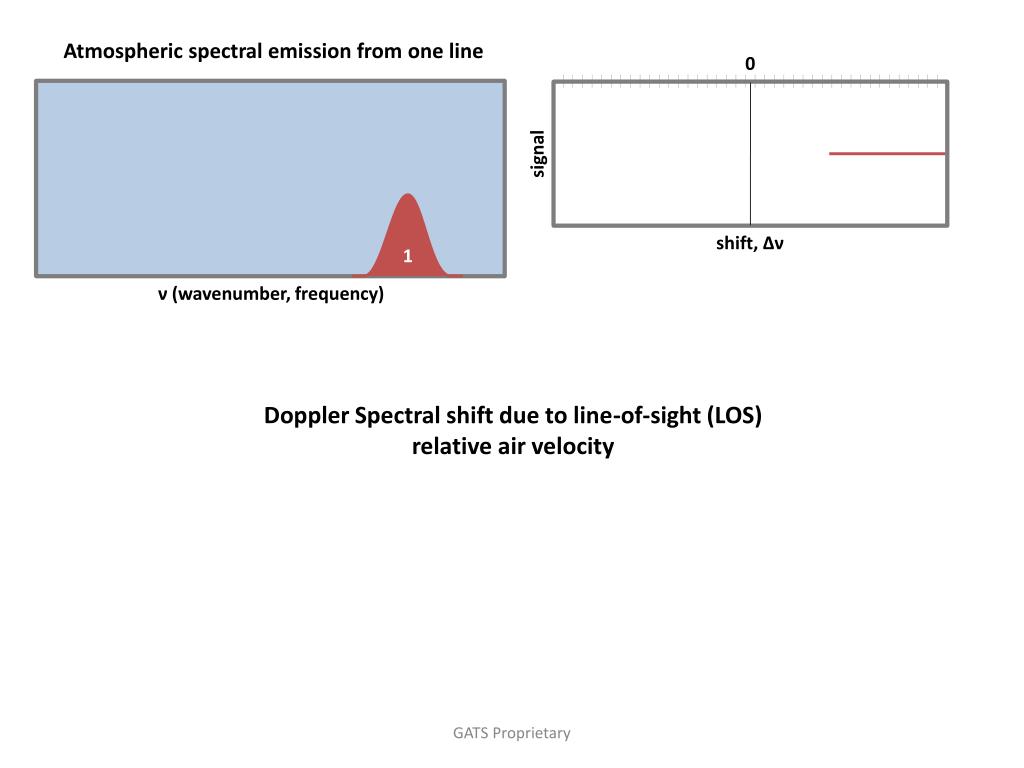

  9. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  10. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

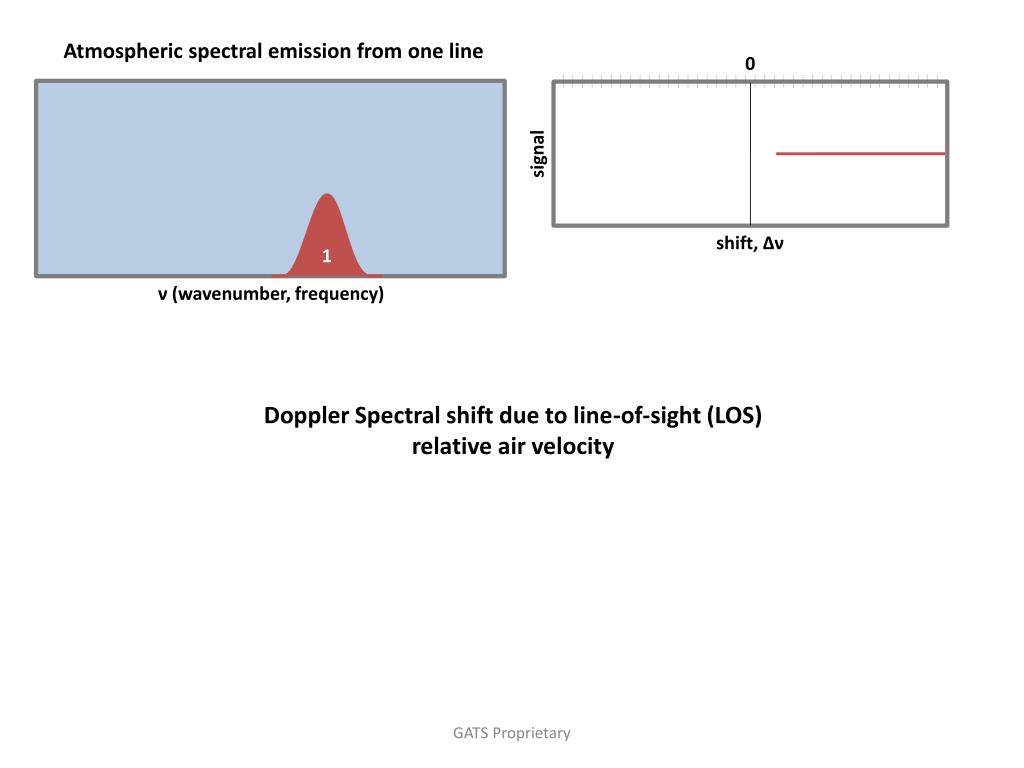

  11. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  12. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  13. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  14. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

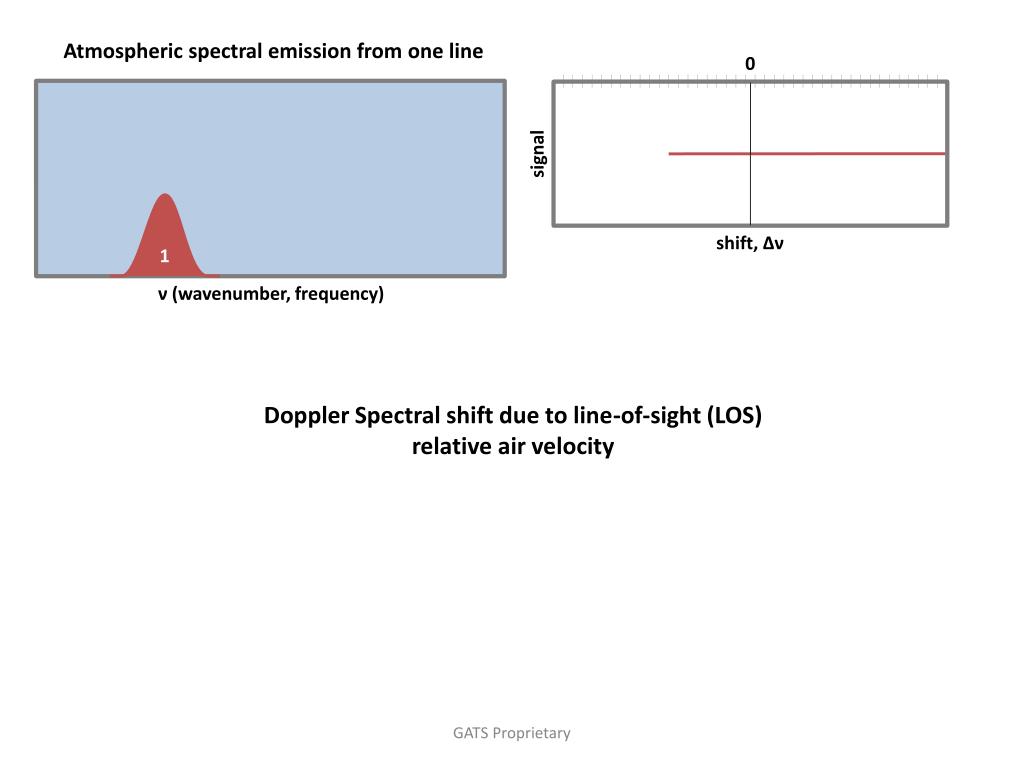

  15. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

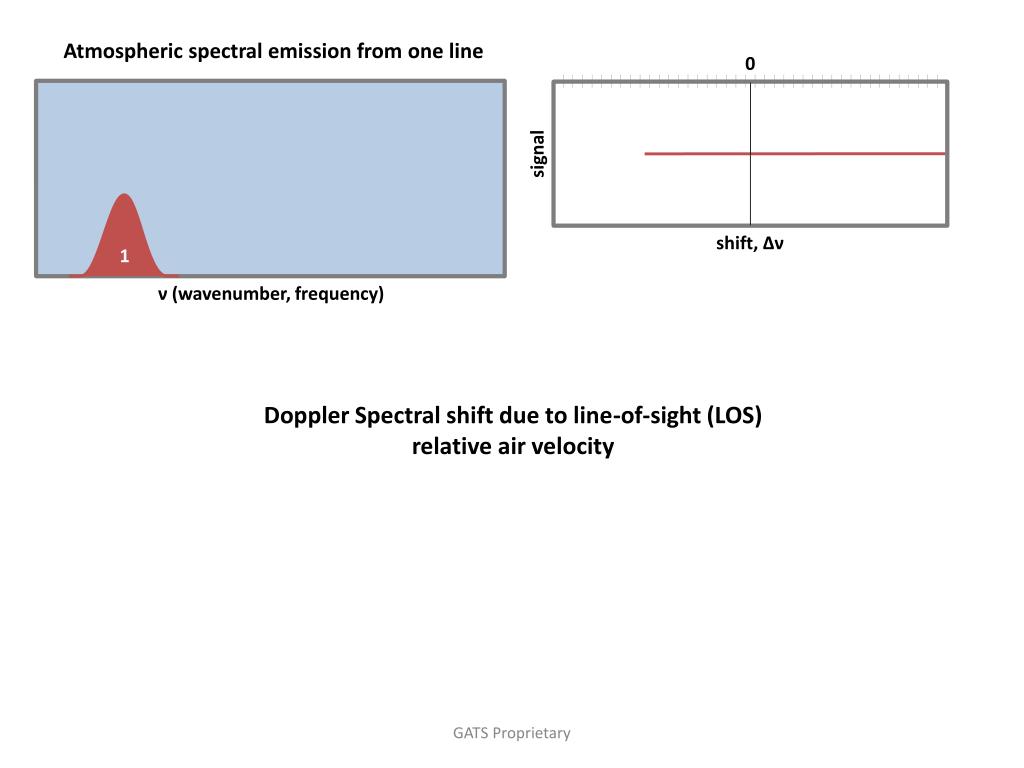

  16. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  17. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  18. Atmospheric spectral emission from one line 0 signal shift, Δν 1 ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  19. Atmospheric spectral emission from one line 0 signal shift, Δν ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  20. Atmospheric spectral emission from one line 0 signal shift, Δν ν (wavenumber, frequency) Doppler Spectral shift due to line-of-sight (LOS) relative air velocity GATS Proprietary

  21. A Gas Filter ReferenceDWTS “Notch” filter ApproachBy viewing through a sample of the emitting gas, a filter is produced that causes a drop in signal during the Doppler Integration Pass (DIP) through the zero shift position

  22. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν ν (wavenumber, frequency) Add Gas Cell – One Emission Line Example. Gas cell acts as high resolution notch filter and effectively serves as the zero shift reference point. The “shift, Δν ” is the spectral separation of the cell spectra (black absorption feature) from the observed atmospheric spectra (red emission feature). GATS Proprietary

  23. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν ν (wavenumber, frequency) Add Gas Cell – One Emission Line Example GATS Proprietary

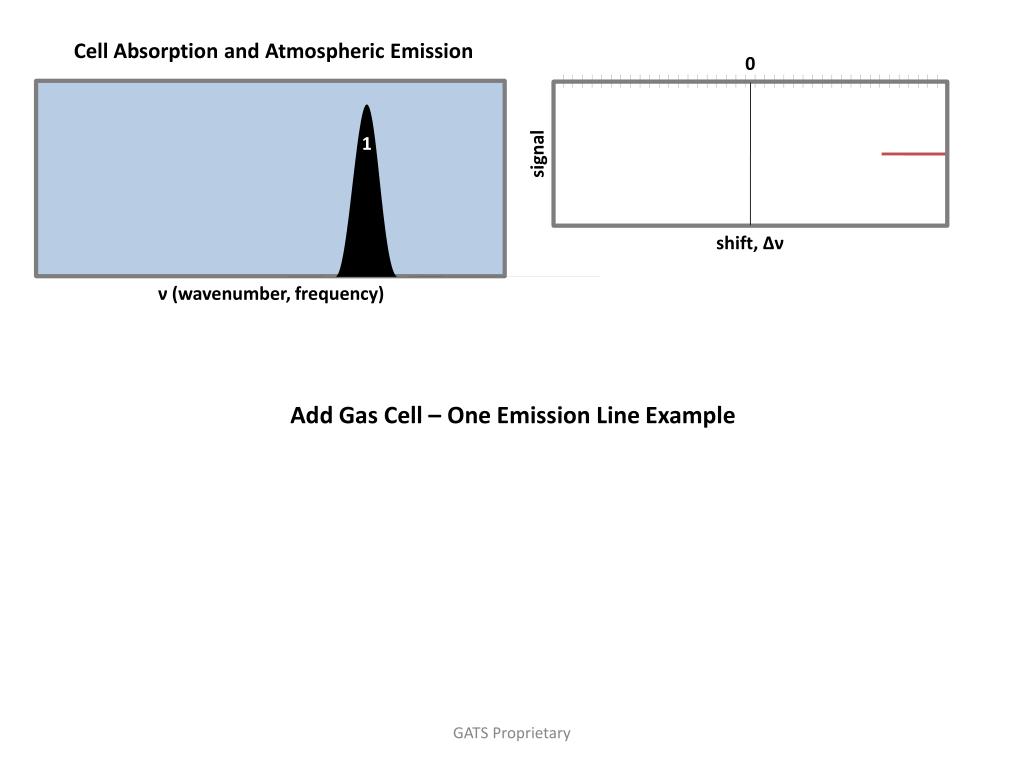

  24. Cell Absorption and Atmospheric Emission 0 1 2 signal shift, Δν ν (wavenumber, frequency) Add Gas Cell – One Emission Line Example GATS Proprietary

  25. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  26. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  27. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  28. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  29. Cell Absorption and Atmospheric Emission 0 1 2 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

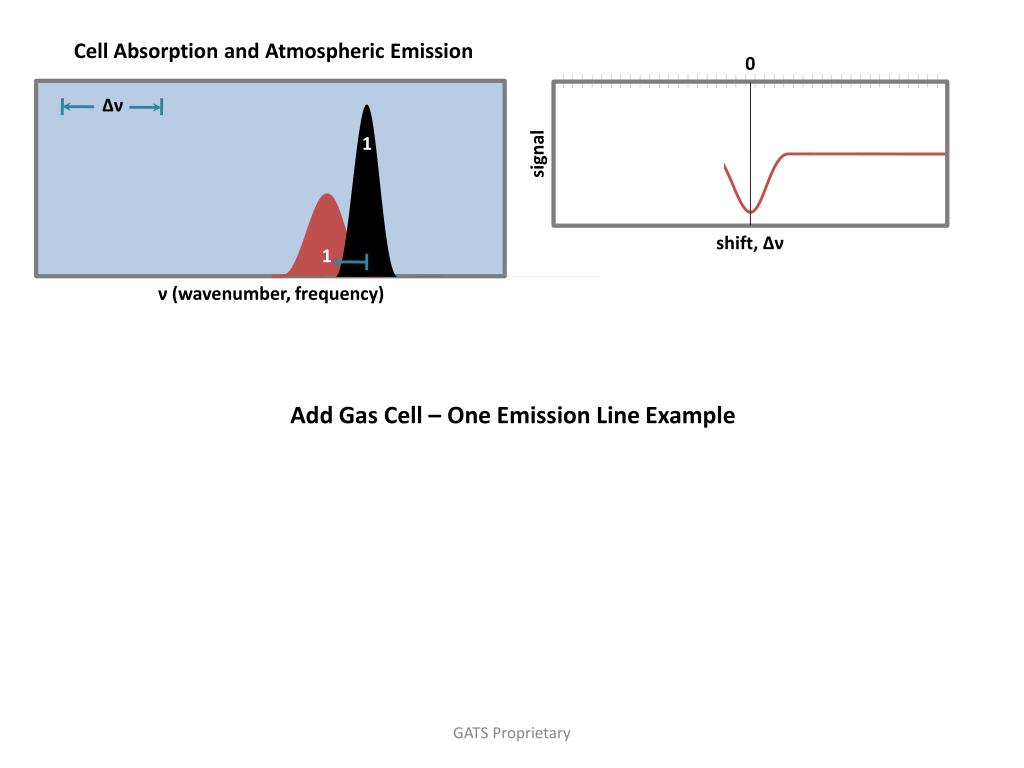

  30. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  31. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

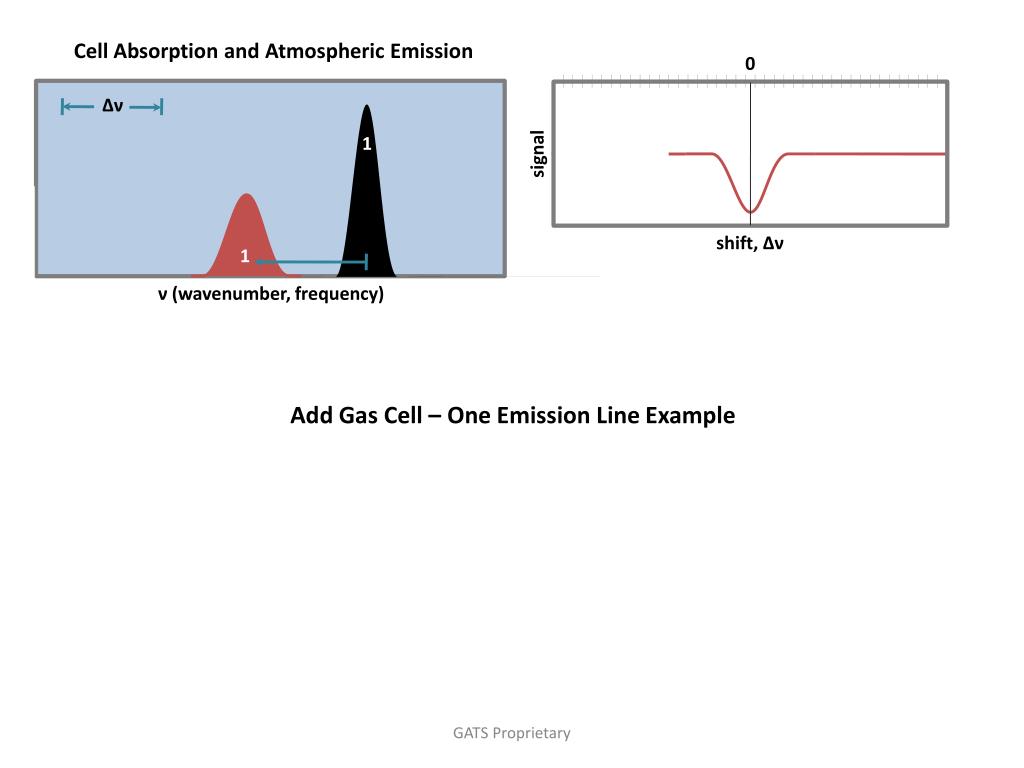

  32. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  33. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  34. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  35. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  36. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν 1 ν (wavenumber, frequency) Δν Add Gas Cell – One Emission Line Example GATS Proprietary

  37. Cell Absorption and Atmospheric Emission 0 1 signal shift, Δν DIP width is proportional to square root of cell temperature + atmospheric temperature ν (wavenumber, frequency) Add Gas Cell – One Emission Line Example GATS Proprietary

  38. Multi-line EffectThe emission lines that match the corresponding cell gas lines (i.e. “notch” filters), are scanned simultaneously, producing a DIP signal consistent with the total multi-line emission. The DIP width is the same as the single line DIP.

  39. Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Two Line Example GATS Proprietary

  40. Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Two Line Example GATS Proprietary

  41. Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Two Line Example GATS Proprietary

  42. Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Two Line Example GATS Proprietary

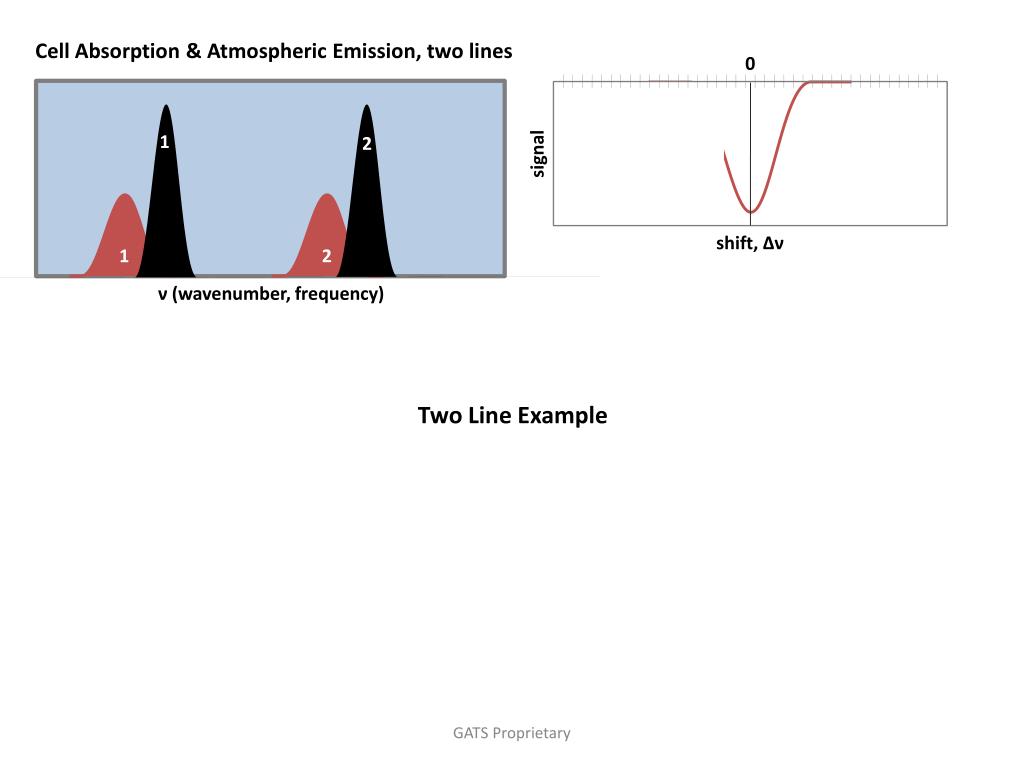

  43. Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Two Line Example GATS Proprietary

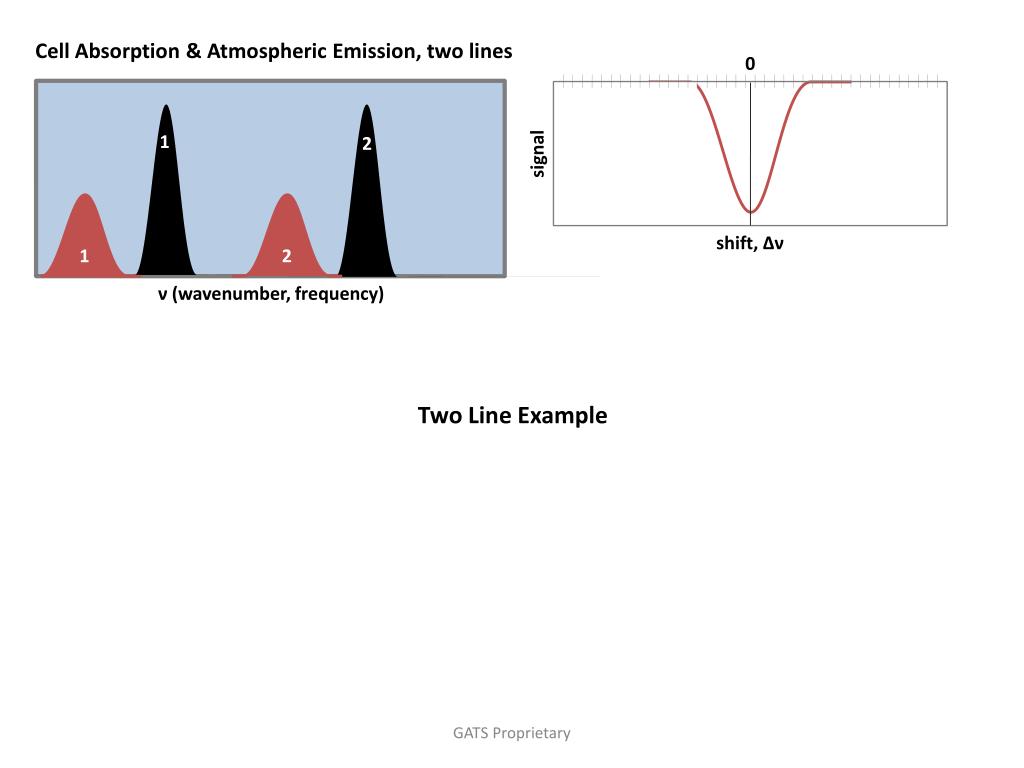

  44. Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Two Line Example GATS Proprietary

  45. Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Two Line Example GATS Proprietary

  46. Orbit ImplementationBy imaging the limb, normal to the spacecraft (SC) velocity vector, air parcels at all altitudes will produce a DIP signal as they traverse the FOV (i.e the 2D detector array).The animation tracks just one exaggerated Limb Air Volume (LAV).

  47. Implementation, In-Orbit Observations Observation Angle Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Above, Spectra and Signal from one LAV Figures below depict observation geometry Limb Air Volume (LAV) viewed from above DWTS FOV Imaged on 2D Detector FPA 0° -10° +10° Angle from Velocity Normal Relative Air Velocity due to SC LAV SC Velocity Altitude y z Observation Vectors Δν (wavenumber) shift Limb Air Volume (LAV) GATS Proprietary Observations Through Limb Atmospheric Volume x

  48. In-Orbit Observations Observation Angle Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Limb Air Volume (LAV) viewed from above DWTS FOV Imaged on 2D Detector FPA 0° -10° +10° Angle from Velocity Normal Relative Air Velocity due to SC SC Velocity Altitude y z Observation Vectors Δν (wavenumber) shift Limb Air Volume (LAV) GATS Proprietary Observations Through Limb Atmospheric Volume x

  49. In-Orbit Observations Observation Angle Cell Absorption & Atmospheric Emission, two lines 0 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Limb Air Volume (LAV) viewed from above DWTS FOV Imaged on 2D Detector FPA 0° -10° +10° Angle from Velocity Normal Relative Air Velocity due to SC SC Velocity Altitude y z Observation Vectors Δν (wavenumber) shift Limb Air Volume (LAV) GATS Proprietary Observations Through Limb Atmospheric Volume x

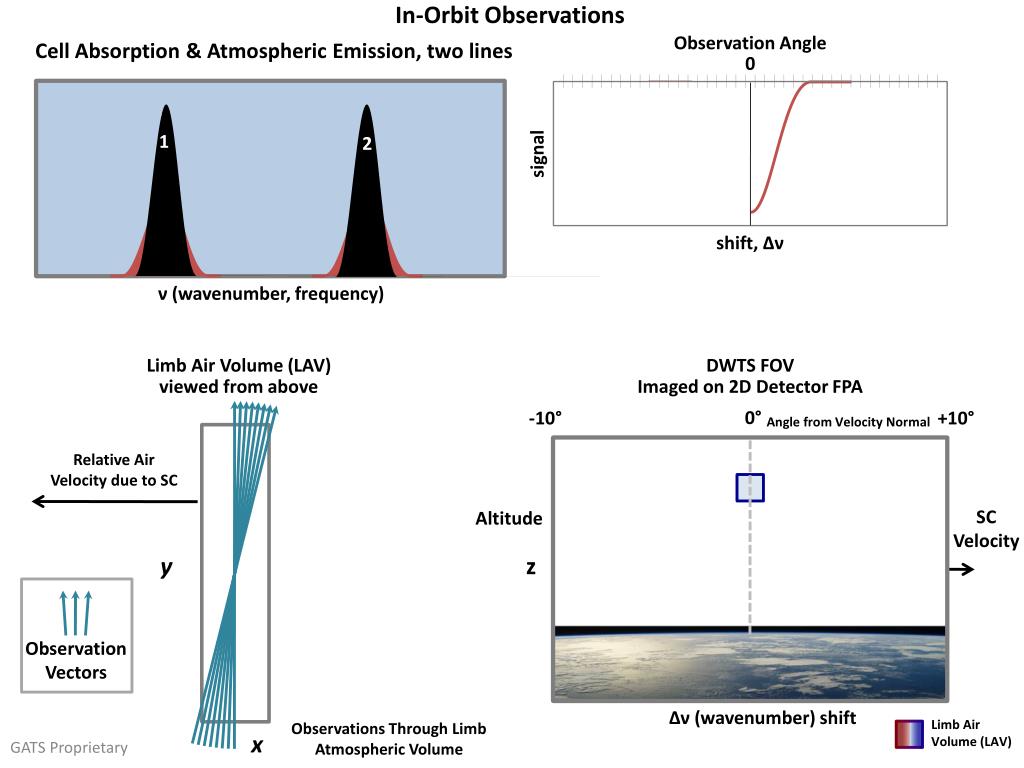

  50. In-Orbit Observations Observation Angle Cell Absorption & Atmospheric Emission, two lines 0 1 2 1 2 signal shift, Δν 1 2 ν (wavenumber, frequency) Limb Air Volume (LAV) viewed from above DWTS FOV Imaged on 2D Detector FPA 0° -10° +10° Angle from Velocity Normal Relative Air Velocity due to SC SC Velocity Altitude y z Observation Vectors Δν (wavenumber) shift Limb Air Volume (LAV) GATS Proprietary Observations Through Limb Atmospheric Volume x
