  1. The Process CIS 370, Fall 2013 Umass Dartmouth

  2. The notion of a process • In UNIX a process is an instance of a program in execution • A job or a task • Each process has program code, data segment, program stack etc. • The shell (or any command interpreter) starts a process for each command submitted.

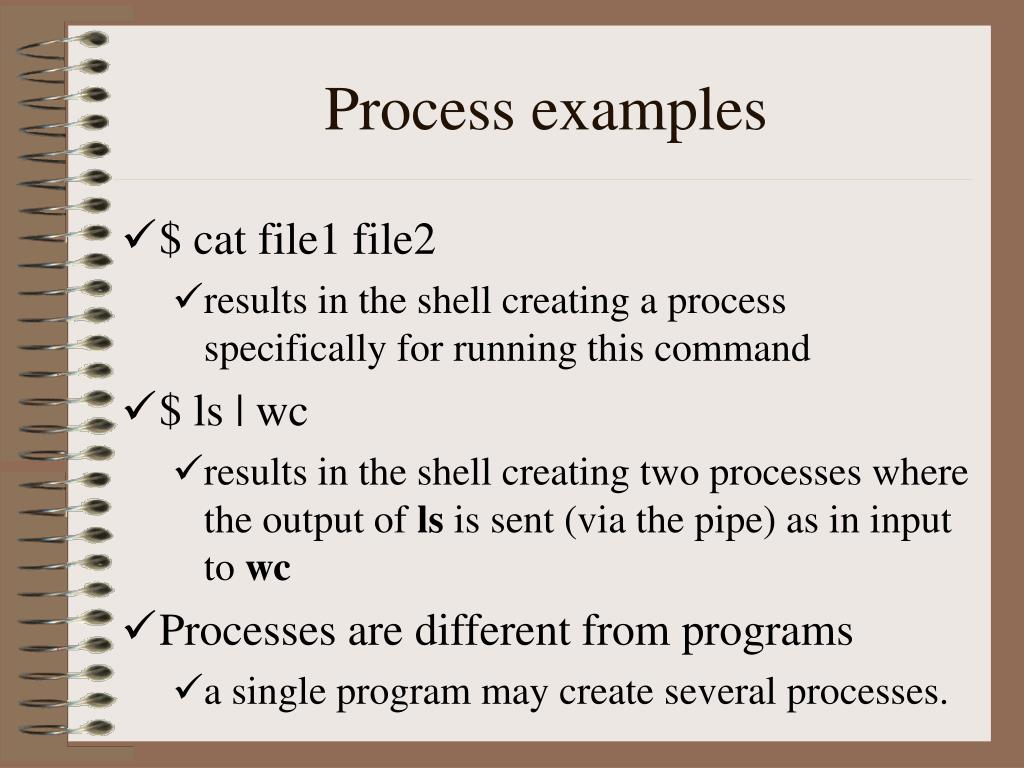

  3. Process examples • $ cat file1 file2 • results in the shell creating a process specifically for running this command • $ ls | wc • results in the shell creating two processes where the output of ls is sent (via the pipe) as in input to wc • Processes are different from programs • a single program may create several processes.

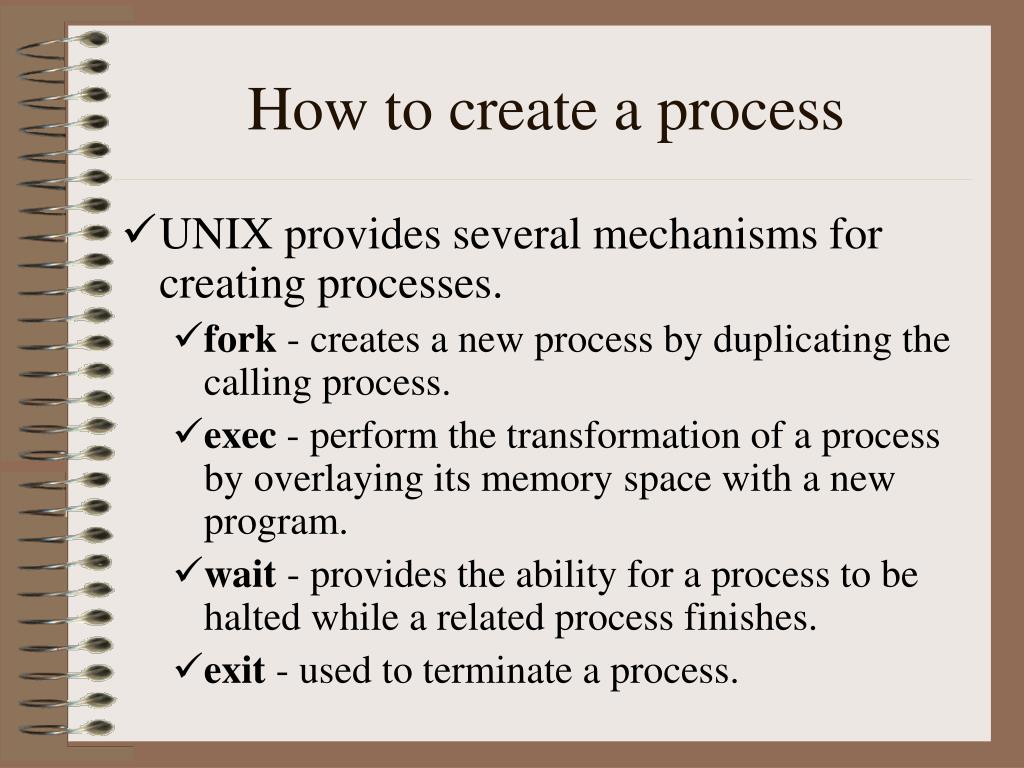

  4. How to create a process • UNIX provides several mechanisms for creating processes. • fork - creates a new process by duplicating the calling process. • exec - perform the transformation of a process by overlaying its memory space with a new program. • wait - provides the ability for a process to be halted while a related process finishes. • exit - used to terminate a process.

  5. The fork system call • Usage : #include <sys/types.h> #include <unistd.h> pid_t fork(void); • A successful call will result in the creation of a new process that is more or less identical to the calling process.

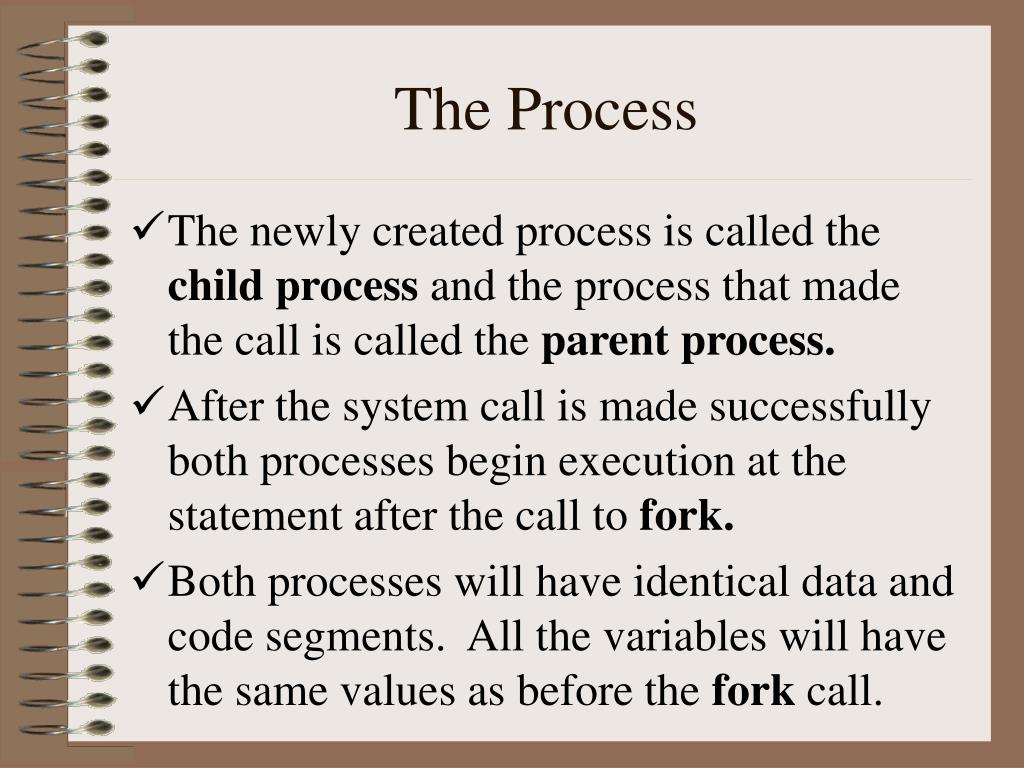

  6. The Process • The newly created process is called the child process and the process that made the call is called the parent process. • After the system call is made successfully both processes begin execution at the statement after the call to fork. • Both processes will have identical data and code segments. All the variables will have the same values as before the fork call.

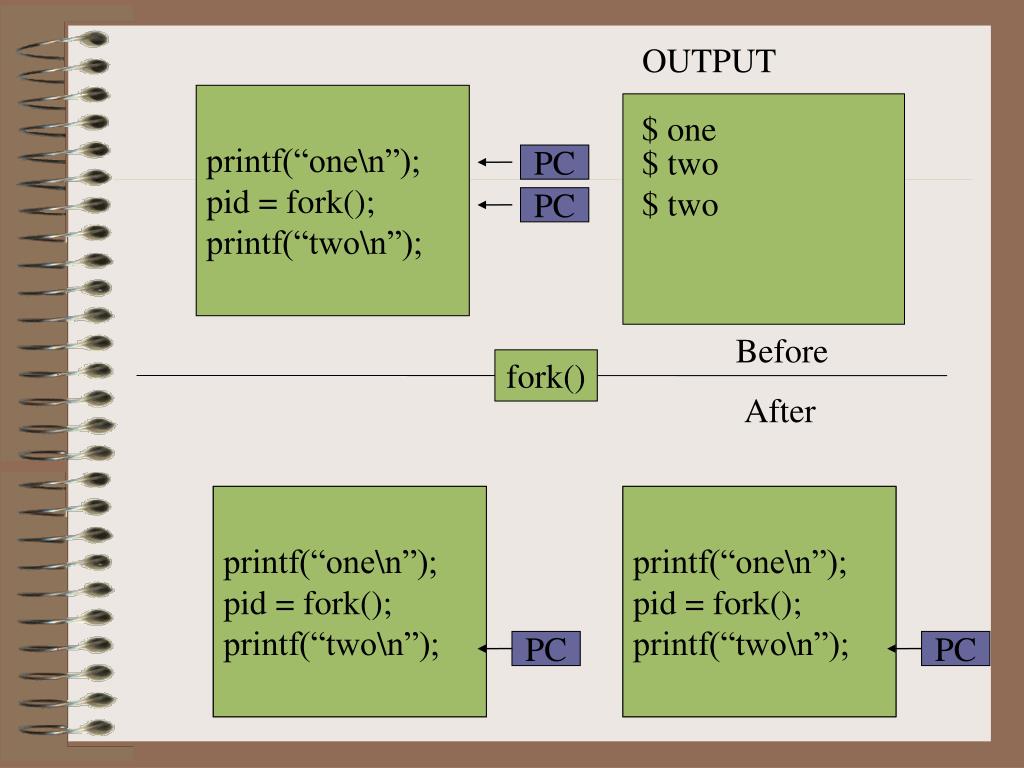

  7. PC PC PC PC OUTPUT printf(“one\n”); pid = fork(); printf(“two\n”); $ one $ two $ two Before fork()‏ After printf(“one\n”); pid = fork(); printf(“two\n”); printf(“one\n”); pid = fork(); printf(“two\n”);

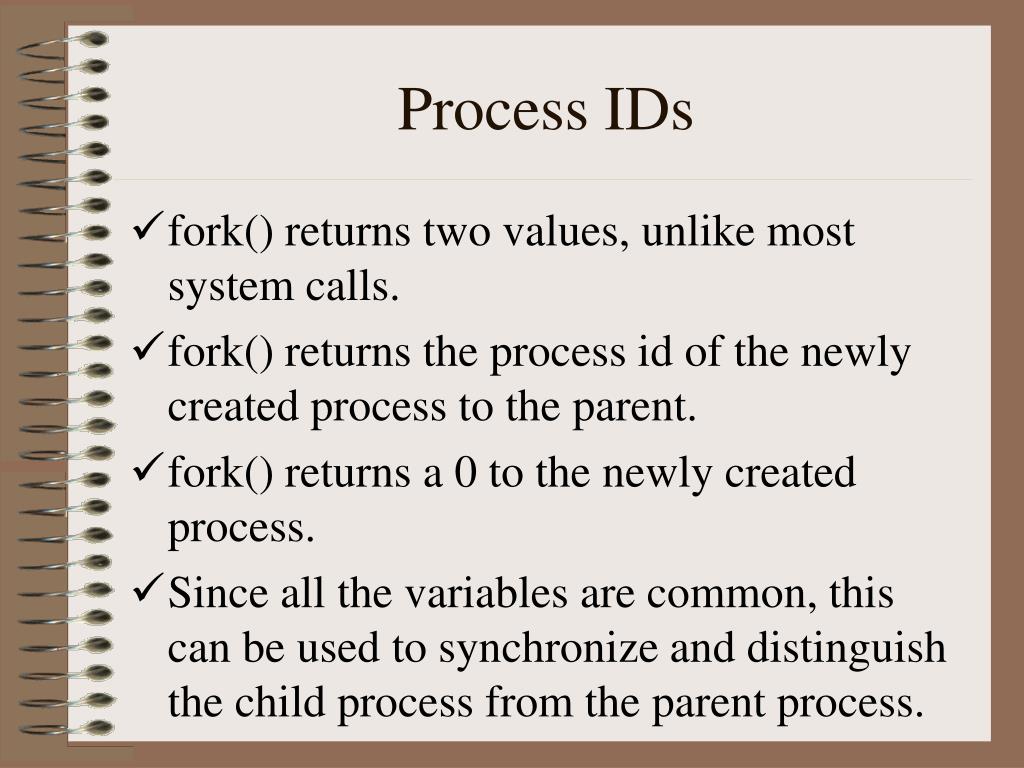

  8. Process IDs • fork() returns two values, unlike most system calls. • fork() returns the process id of the newly created process to the parent. • fork() returns a 0 to the newly created process. • Since all the variables are common, this can be used to synchronize and distinguish the child process from the parent process.

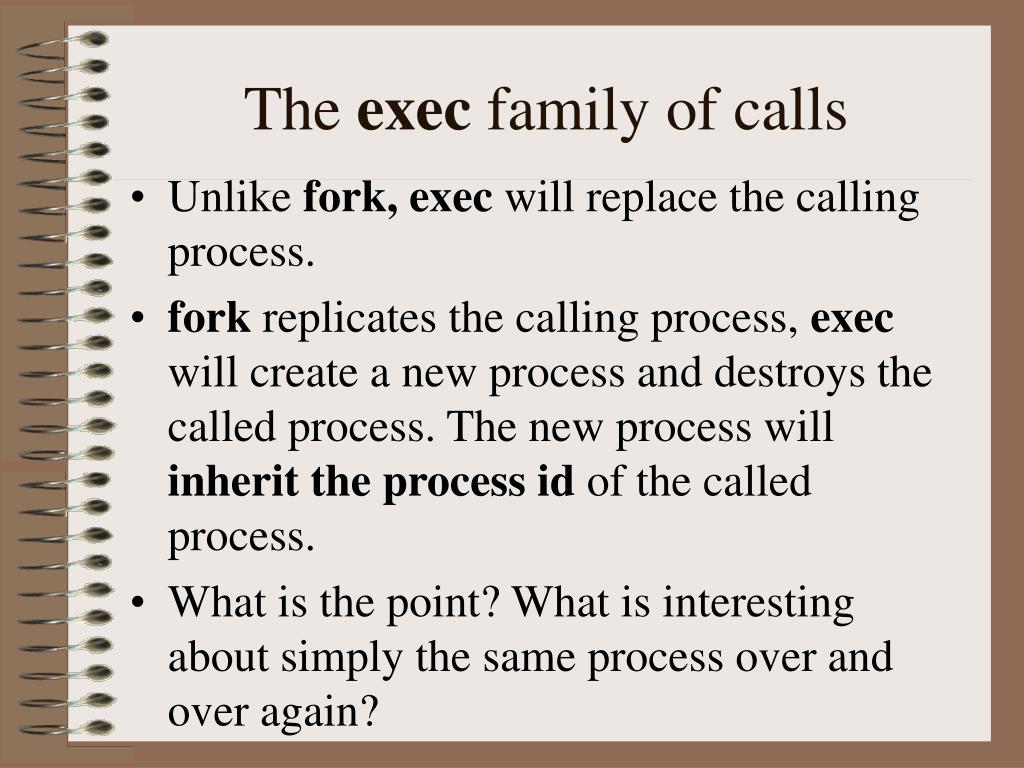

  9. The exec family of calls • Unlike fork, exec will replace the calling process. • fork replicates the calling process, exec will create a new process and destroys the called process. The new process will inherit the process id of the called process. • What is the point? What is interesting about simply the same process over and over again?

  10. PC PC PC printf (…)‏ execl(“bin/ls”,…)‏ Before exec After 1st line of ls

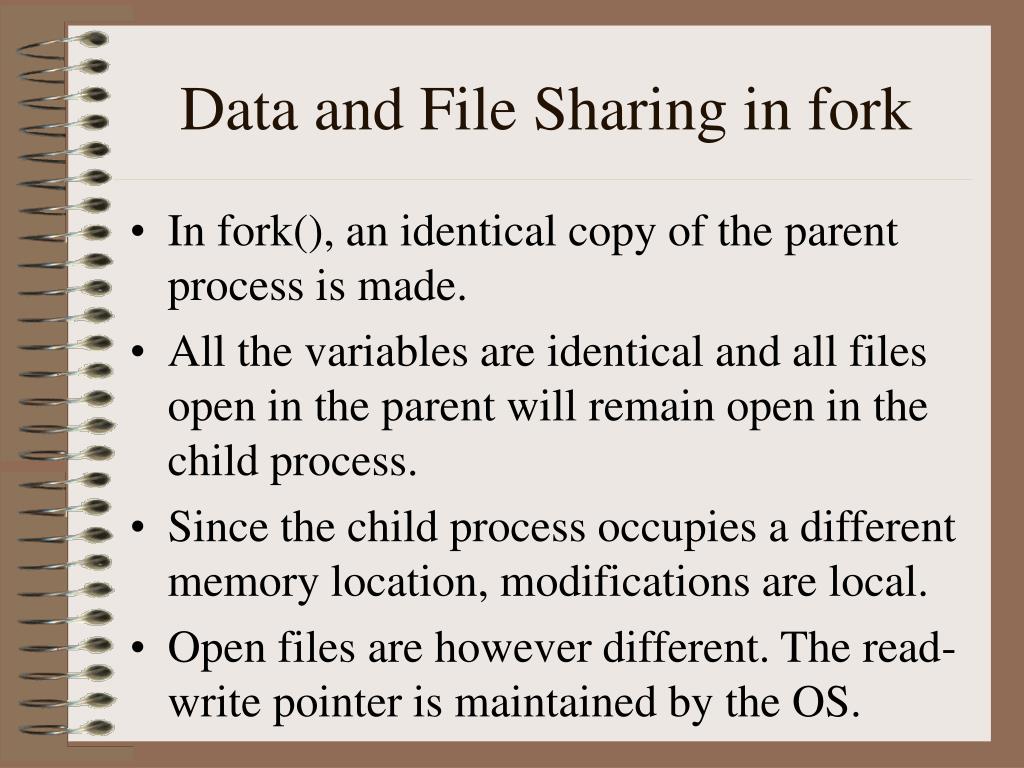

  11. Data and File Sharing in fork • In fork(), an identical copy of the parent process is made. • All the variables are identical and all files open in the parent will remain open in the child process. • Since the child process occupies a different memory location, modifications are local. • Open files are however different. The read-write pointer is maintained by the OS.

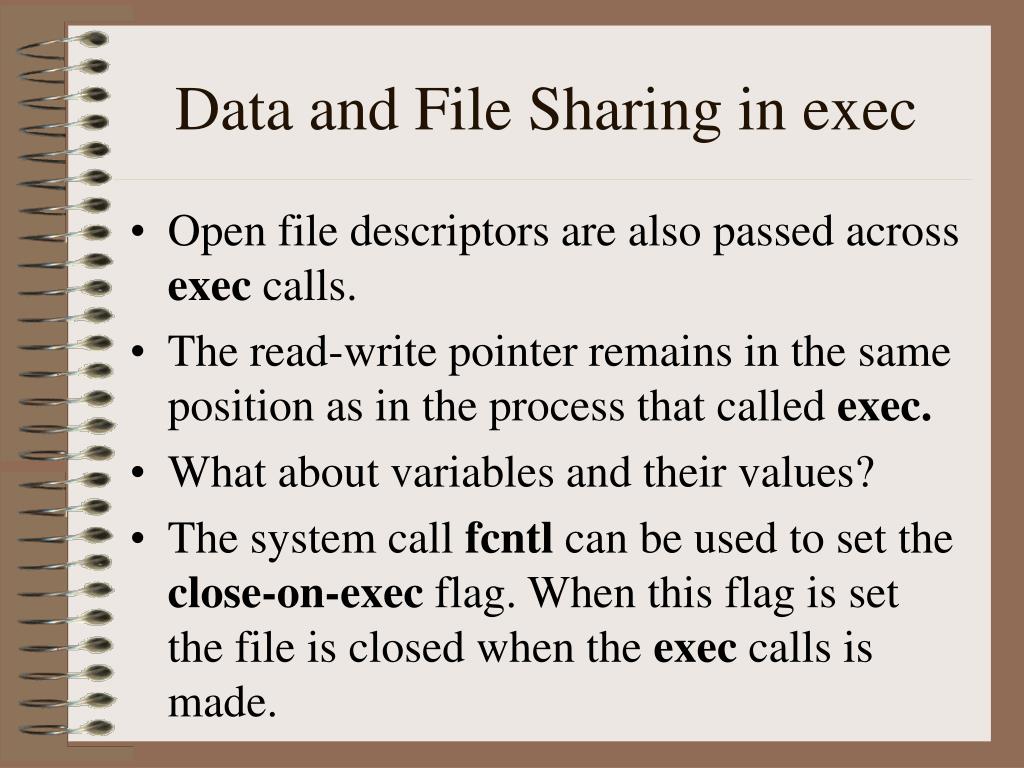

  12. Data and File Sharing in exec • Open file descriptors are also passed across exec calls. • The read-write pointer remains in the same position as in the process that called exec. • What about variables and their values? • The system call fcntl can be used to set the close-on-exec flag. When this flag is set the file is closed when the exec calls is made.

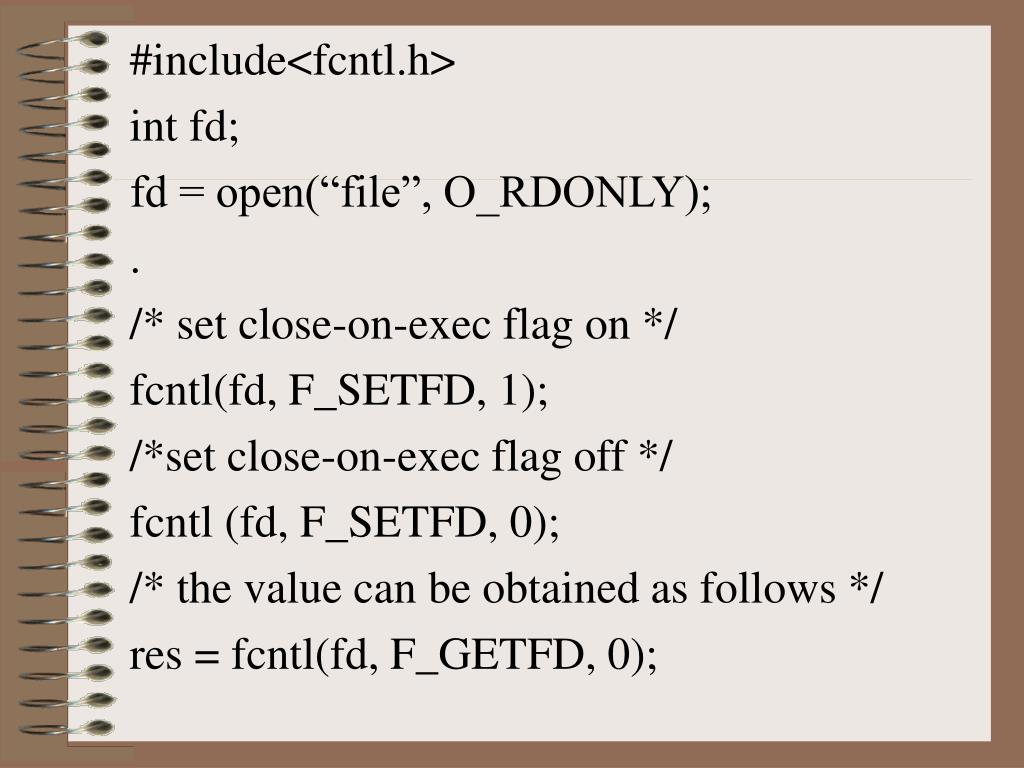

  13. #include<fcntl.h> int fd; fd = open(“file”, O_RDONLY); . /* set close-on-exec flag on */ fcntl(fd, F_SETFD, 1); /*set close-on-exec flag off */ fcntl (fd, F_SETFD, 0); /* the value can be obtained as follows */ res = fcntl(fd, F_GETFD, 0);

  14. Terminating a process - exit • Usage • #include < stdlib.h> • void exit(int status);

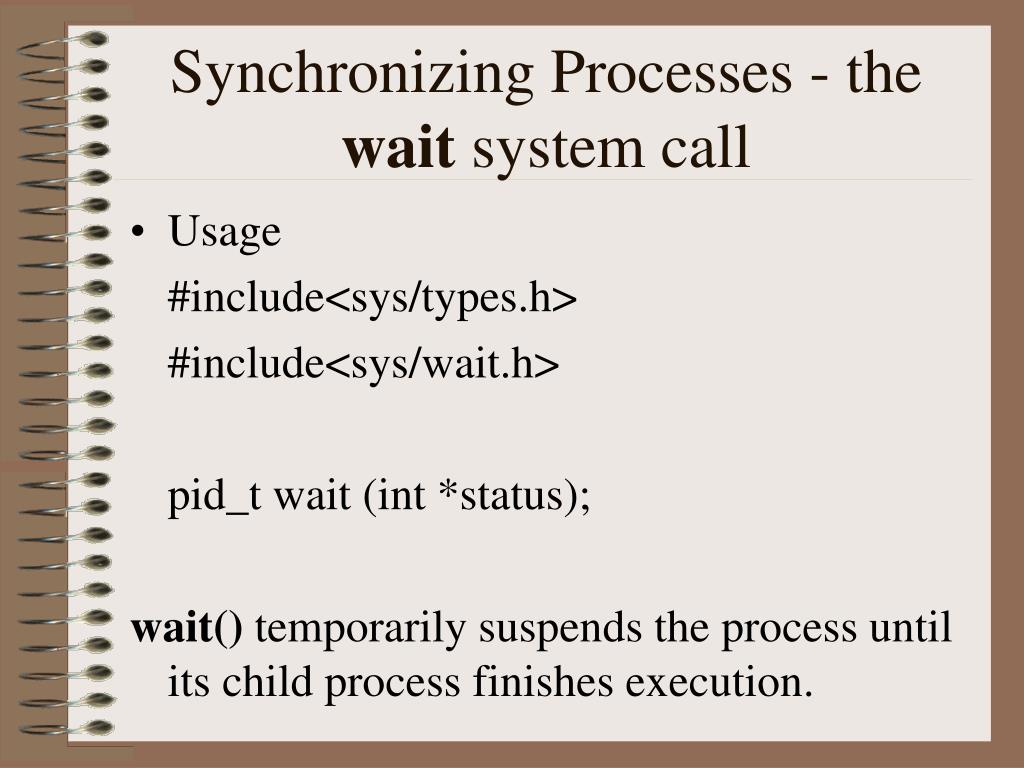

  15. Synchronizing Processes - the wait system call • Usage • #include<sys/types.h> • #include<sys/wait.h> • pid_t wait (int *status); • wait() temporarily suspends the process until its child process finishes execution.

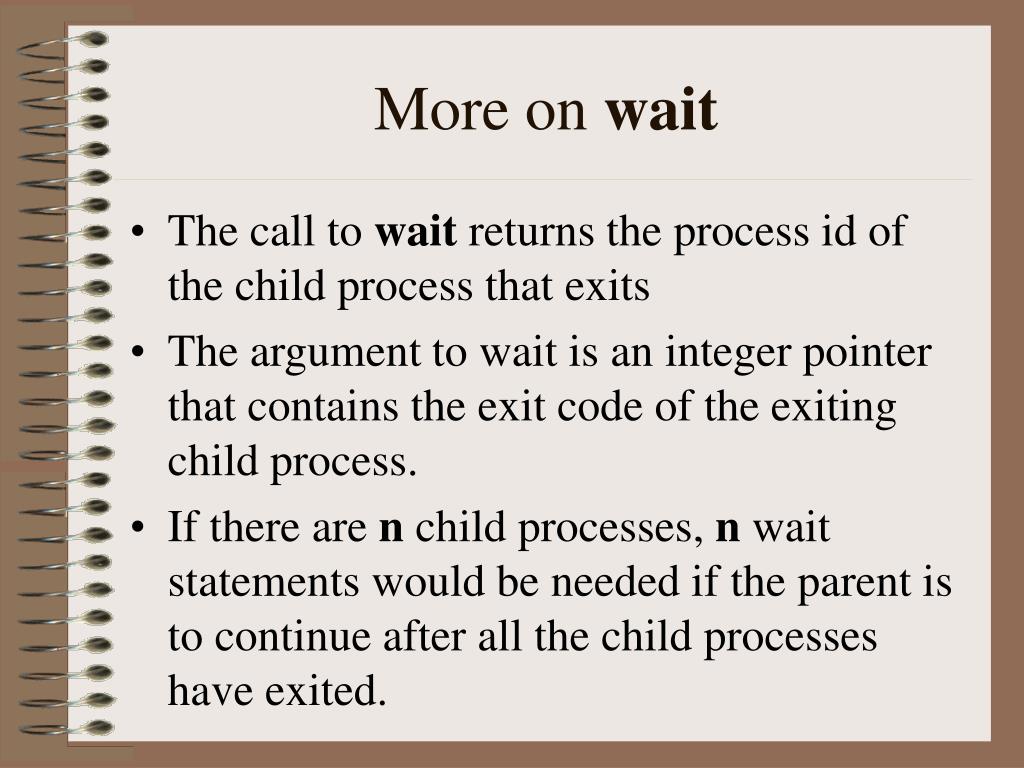

  16. More on wait • The call to wait returns the process id of the child process that exits • The argument to wait is an integer pointer that contains the exit code of the exiting child process. • If there are n child processes, n wait statements would be needed if the parent is to continue after all the child processes have exited.

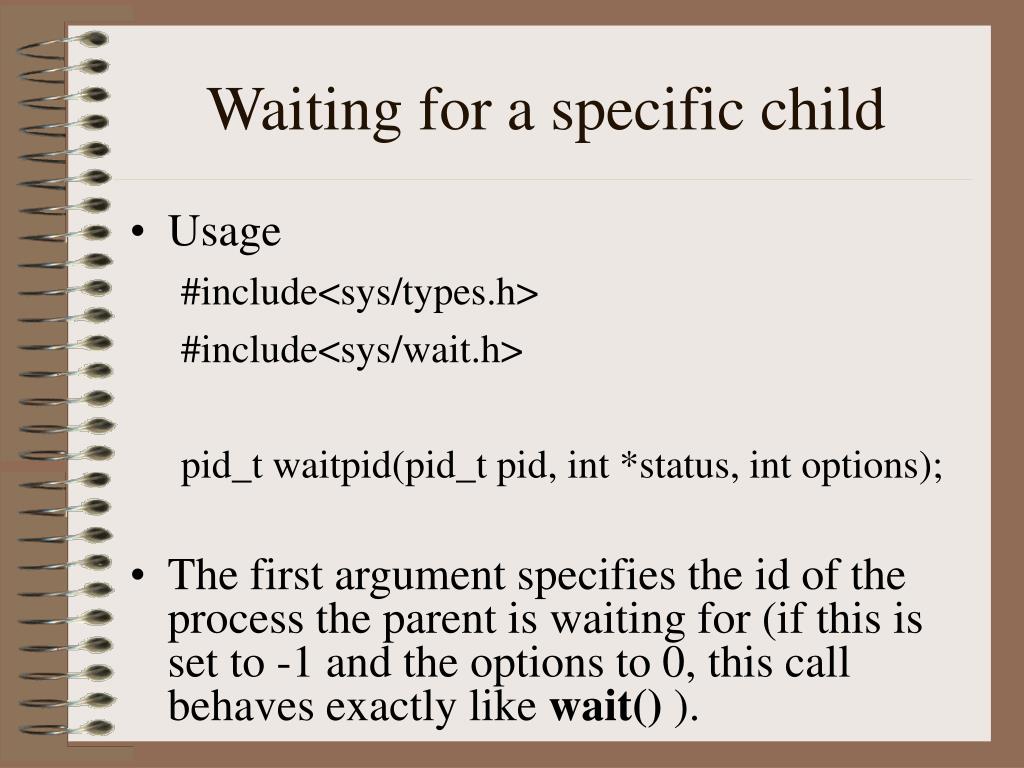

  17. Waiting for a specific child • Usage • #include<sys/types.h> • #include<sys/wait.h> • pid_t waitpid(pid_t pid, int *status, int options); • The first argument specifies the id of the process the parent is waiting for (if this is set to -1 and the options to 0, this call behaves exactly like wait() ).

  18. waitpid system call • The second argument contains the exit status of the child. • The final argument options can take a variety of values defined in <sys/wait.h> • The most useful is the option WNOHANG • This allows waitpid to sit in a loop, without blocking. • waitpid returns the process id of the child process once terminated.

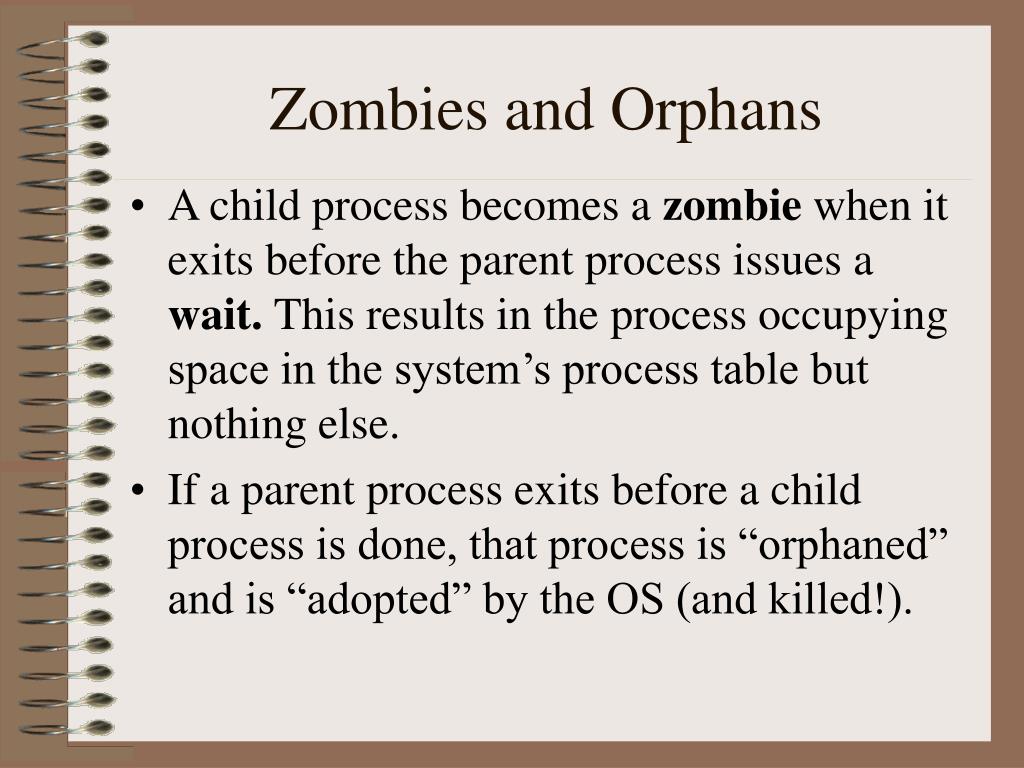

  19. Zombies and Orphans • A child process becomes a zombie when it exits before the parent process issues a wait. This results in the process occupying space in the system’s process table but nothing else. • If a parent process exits before a child process is done, that process is “orphaned” and is “adopted” by the OS (and killed!).
