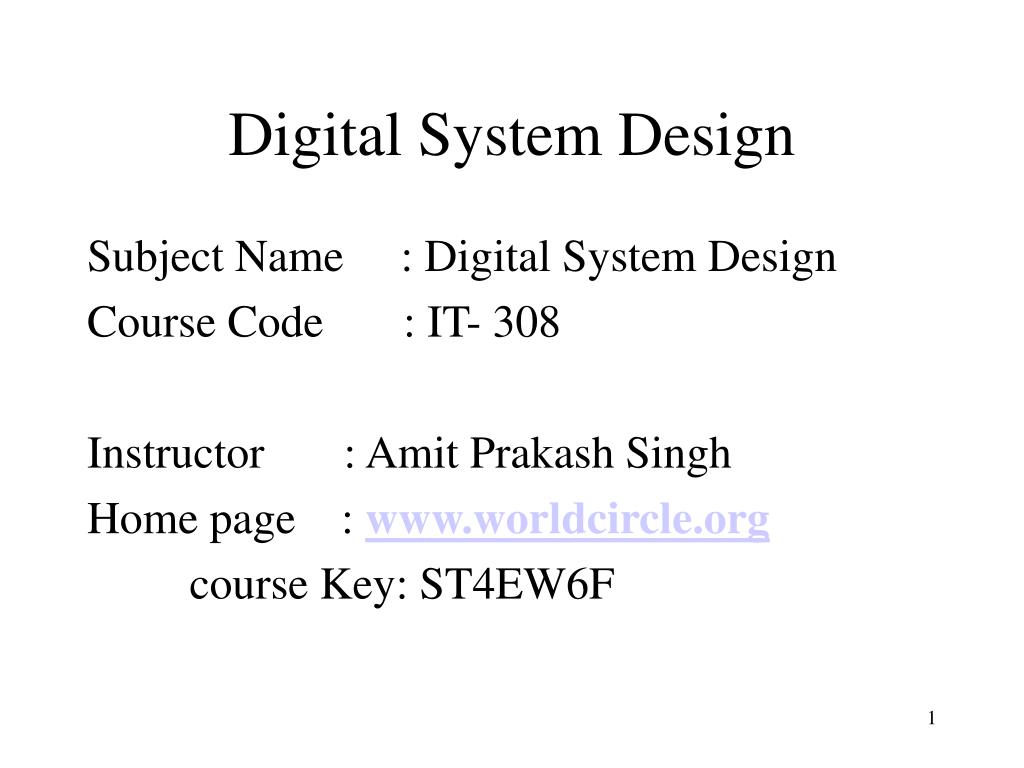

1. Digital System Design Subject Name : Digital System Design Course Code : IT- 308 Instructor : Amit Prakash Singh Home page : www.worldcircle.org course Key: ST4EW6F

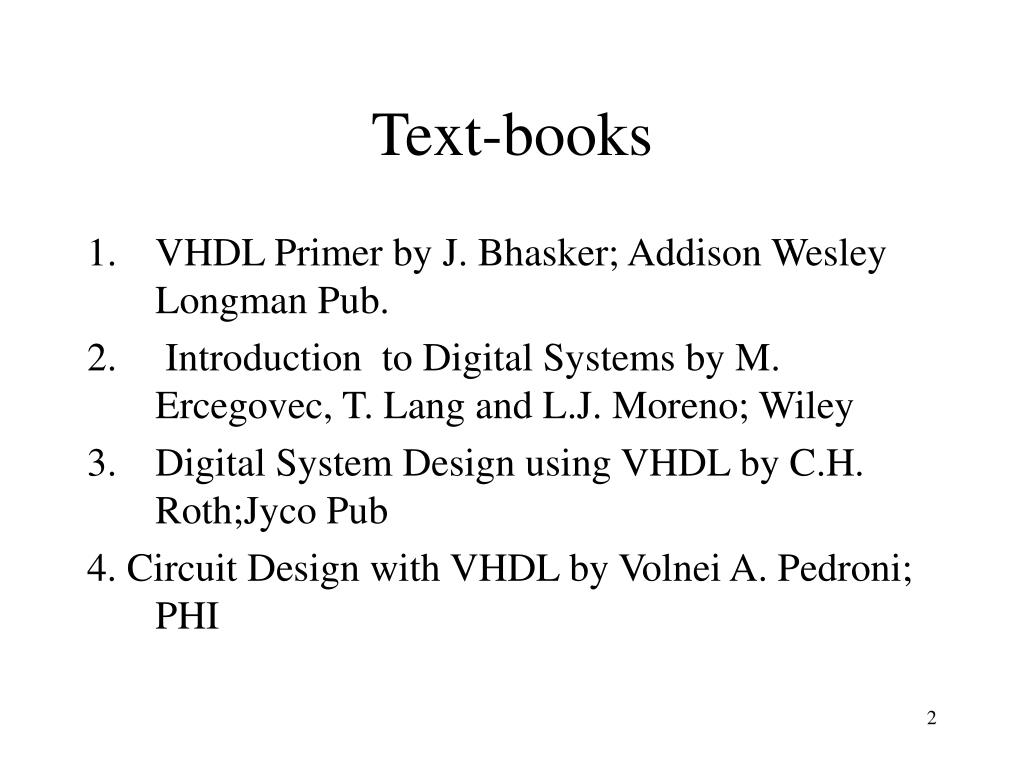

2. Text-books • VHDL Primer by J. Bhasker; Addison Wesley Longman Pub. • Introduction to Digital Systems by M. Ercegovec, T. Lang and L.J. Moreno; Wiley • Digital System Design using VHDL by C.H. Roth;Jyco Pub 4. Circuit Design with VHDL by Volnei A. Pedroni; PHI

3. Reference Book • VHDL: Analysis & Modeling of Digital Systems by Z. Navabi; MGH • VHDL Programming by Examples by Douglas L. Perry; TMH • VHDL by Douglas Perry • The Designer Guide to VHDL by P.J. Ashendem; Morgan Kaufmann Pub. • Digital System Design with VHDL by Mark Zwolinski; Prentice Hall Pub. • Digital Design Principles and Practices by John F. Wakerly, Prentice Hall (third Edition) 2001 includes Xilinx student edition).

4. Overview • What is digital system design? • Use of available digital components • Microprocessor, e.g. Pentium • Micro-controller, e.g. 8051 • Digital processing units, e.g. counters, shift registers. • Combine them to become a useful system

5. Programmable logic vs. microcontrollers in prototyping • In some situation you can design a digital system using programmable logic or microcontrollers • Programmable logic – more general and flexible, economic for mass production • Microcontrollers – more specific and less flexible, cost more in mass production

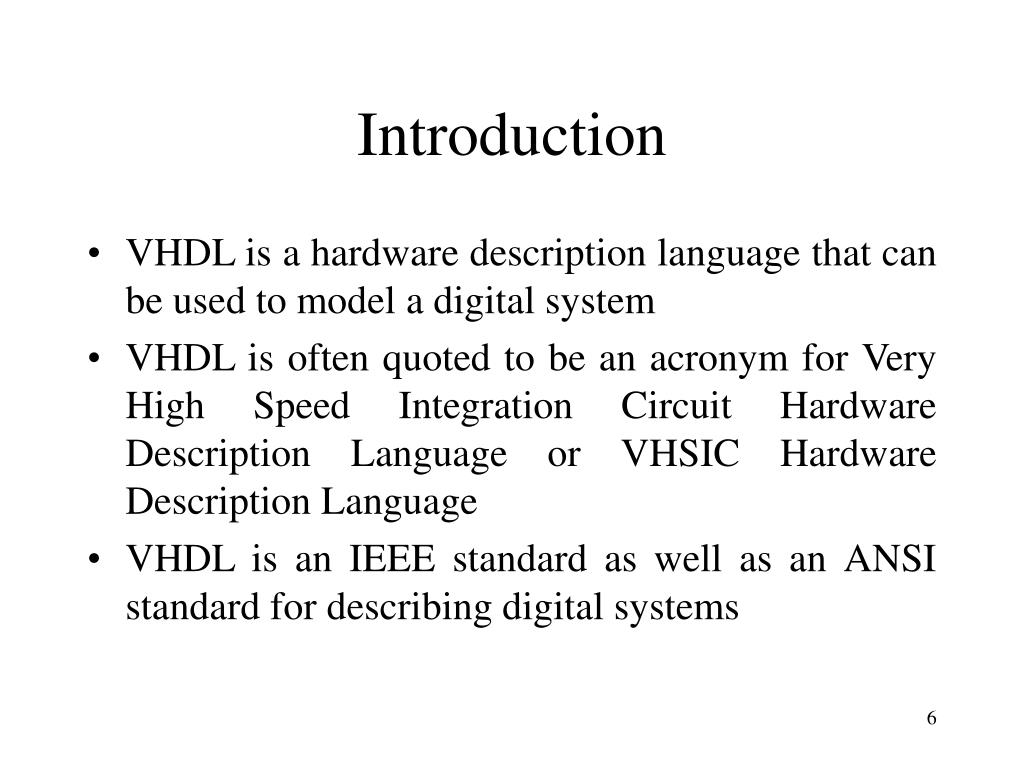

6. Introduction • VHDL is a hardware description language that can be used to model a digital system • VHDL is often quoted to be an acronym for Very High Speed Integration Circuit Hardware Description Language or VHSIC Hardware Description Language • VHDL is an IEEE standard as well as an ANSI standard for describing digital systems

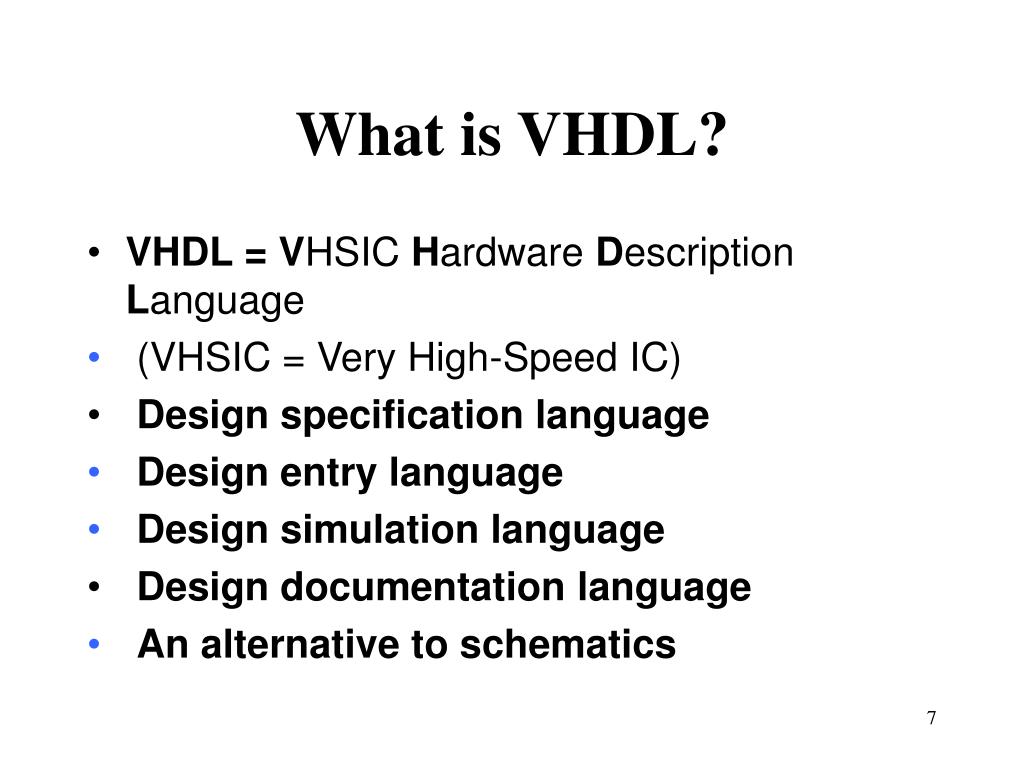

7. What is VHDL? • VHDL = VHSIC Hardware Description Language • (VHSIC = Very High-Speed IC) • Design specification language • Design entry language • Design simulation language • Design documentation language • An alternative to schematics

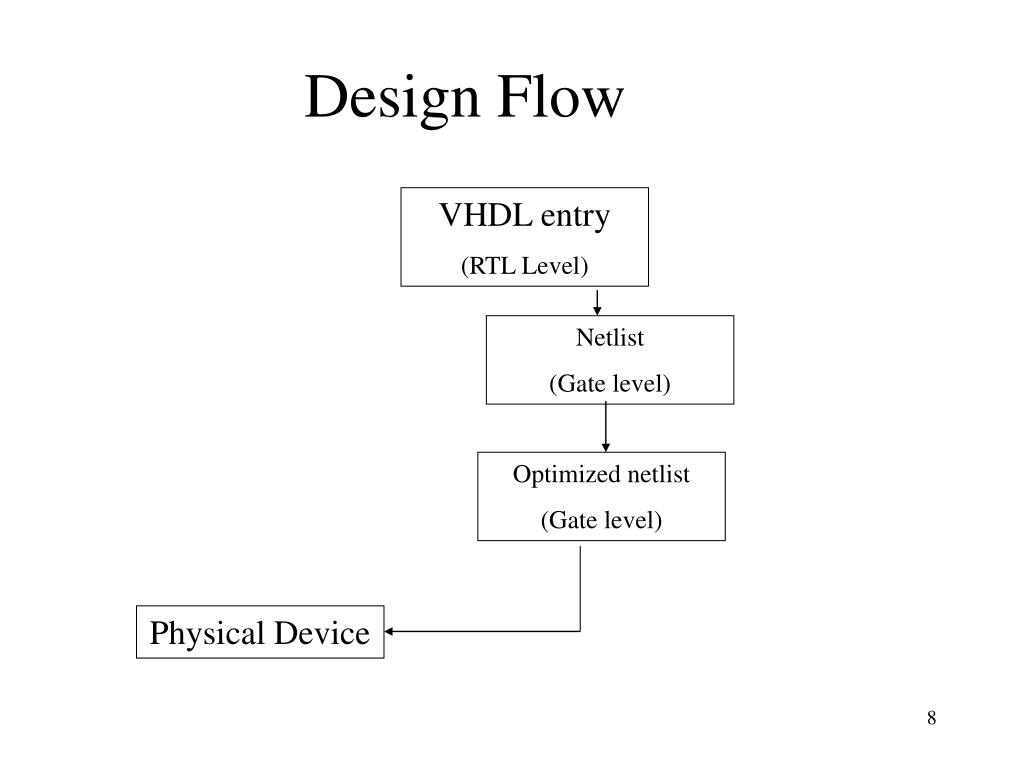

8. Design Flow VHDL entry (RTL Level) Netlist (Gate level) Optimized netlist (Gate level) Physical Device

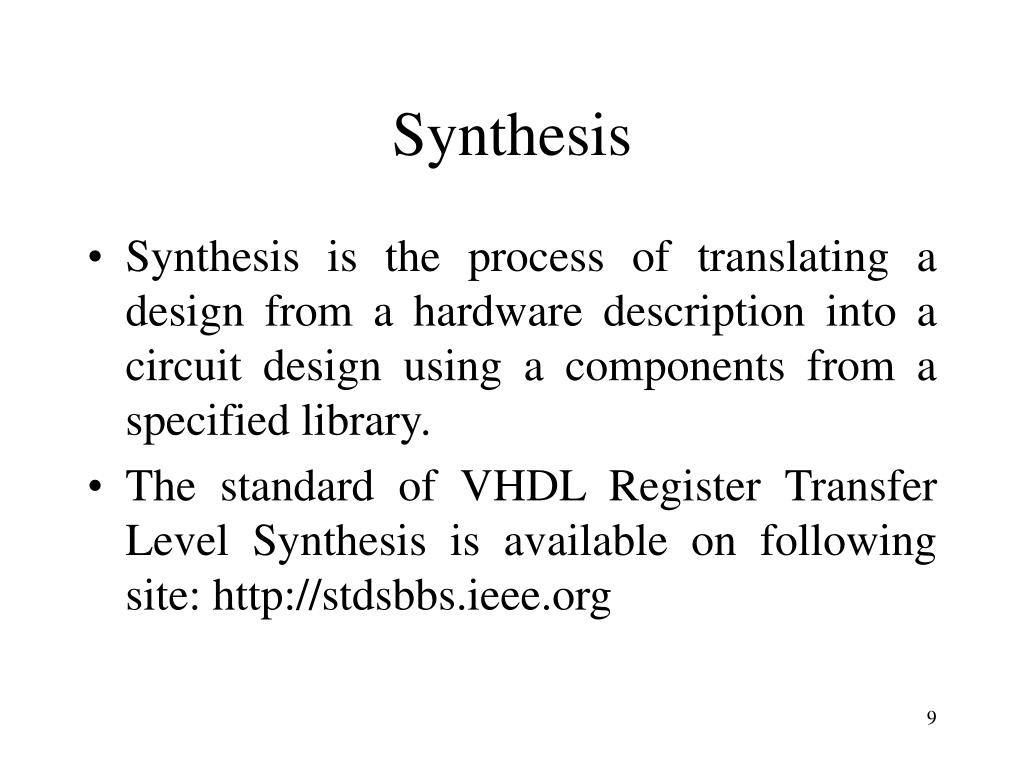

9. Synthesis • Synthesis is the process of translating a design from a hardware description into a circuit design using a components from a specified library. • The standard of VHDL Register Transfer Level Synthesis is available on following site: http://stdsbbs.ieee.org

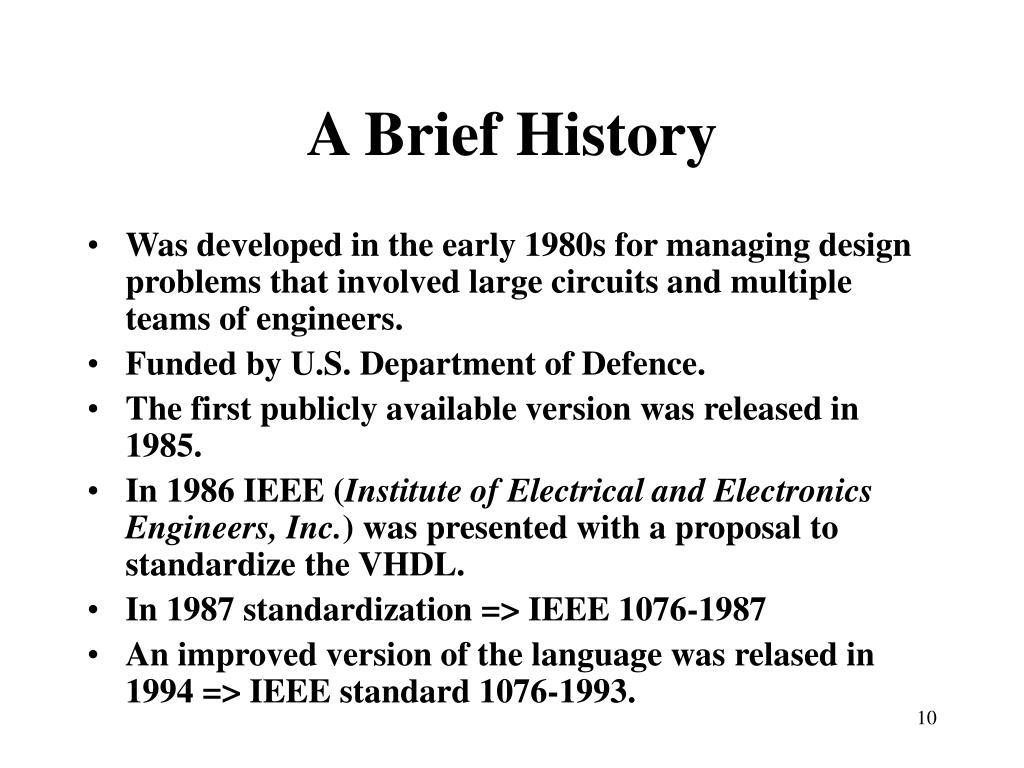

10. A Brief History • Was developed in the early 1980s for managing design problems that involved large circuits and multiple teams of engineers. • Funded by U.S. Department of Defence. • The first publicly available version was released in 1985. • In 1986 IEEE (Institute of Electrical and Electronics Engineers, Inc.) was presented with a proposal to standardize the VHDL. • In 1987 standardization => IEEE 1076-1987 • An improved version of the language was relased in 1994 => IEEE standard 1076-1993.

11. VHDL Environment

12. Domains and Levels of Modeling Functional Structural high level of abstraction low level of abstraction Geometric “Y-chart” due to Gajski & Kahn

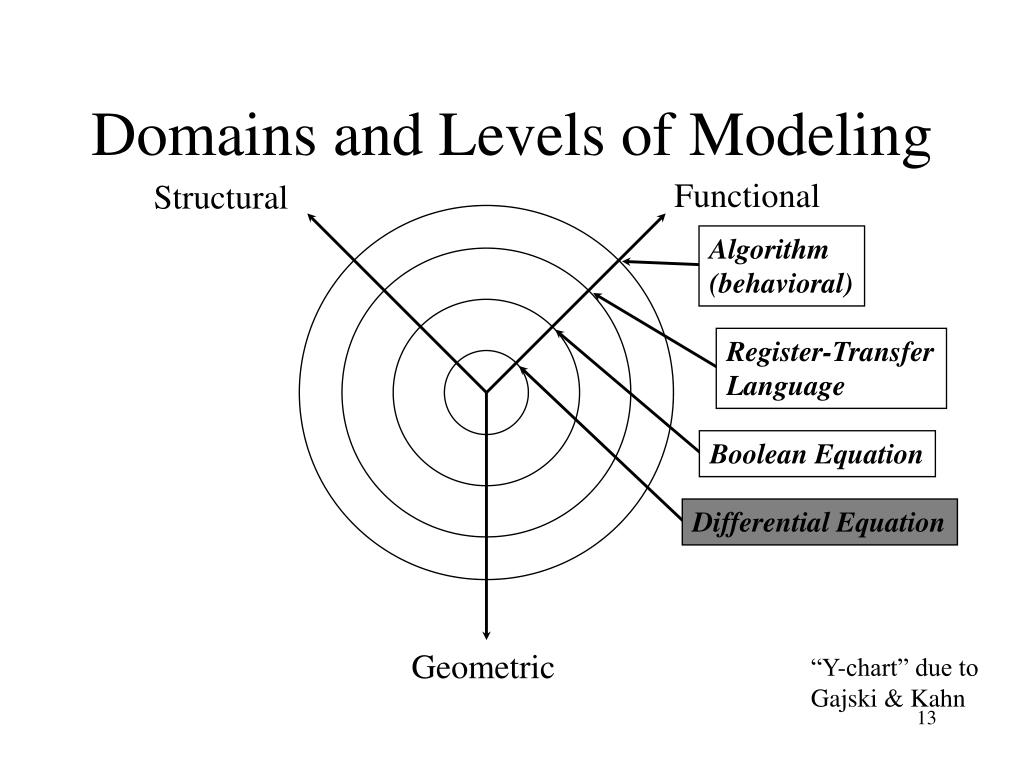

13. Domains and Levels of Modeling Functional Structural Algorithm(behavioral) Register-TransferLanguage Boolean Equation Differential Equation Geometric “Y-chart” due to Gajski & Kahn

14. Domains and Levels of Modeling Functional Structural Processor-MemorySwitch Register-Transfer Gate Transistor Geometric “Y-chart” due to Gajski & Kahn

15. Domains and Levels of Modeling Functional Structural Polygons Sticks Standard Cells Floor Plan Geometric “Y-chart” due to Gajski & Kahn

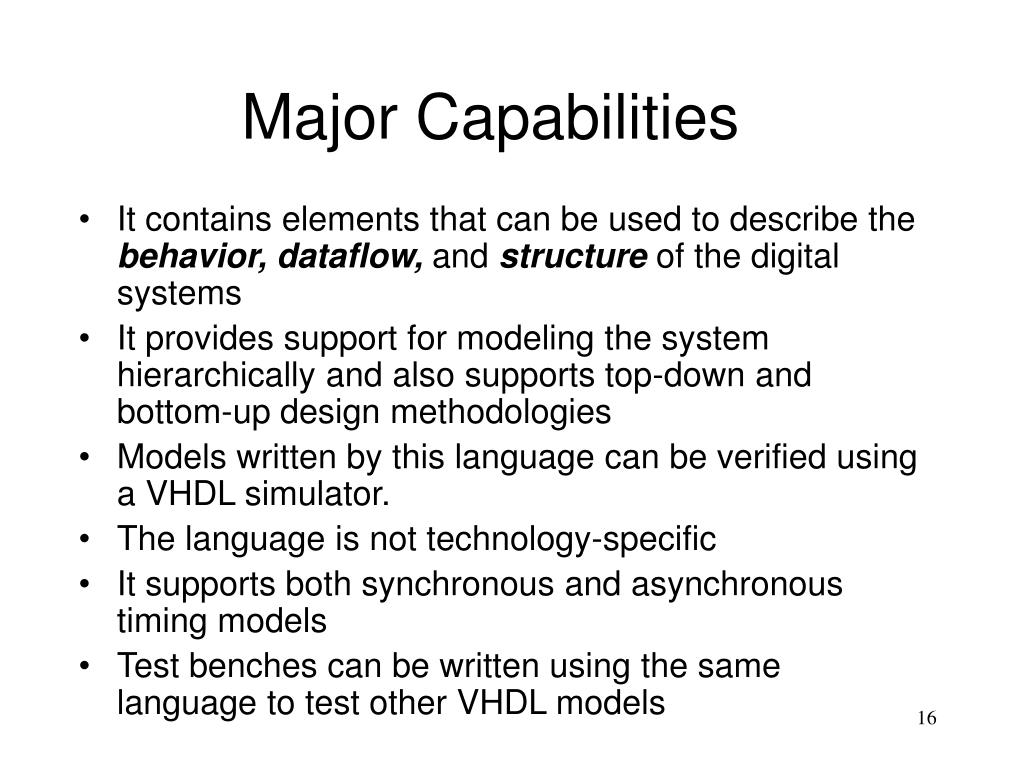

16. Major Capabilities • It contains elements that can be used to describe the behavior, dataflow, and structure of the digital systems • It provides support for modeling the system hierarchically and also supports top-down and bottom-up design methodologies • Models written by this language can be verified using a VHDL simulator. • The language is not technology-specific • It supports both synchronous and asynchronous timing models • Test benches can be written using the same language to test other VHDL models

17. Different Representation Models • Some, Not Mutually Exclusive, Models • Functional • Structural • Physical

18. Basic VHDL Concepts • Interface • Behavior • Structure • Test Benches • Analysis, elaboration, simulation • Synthesis

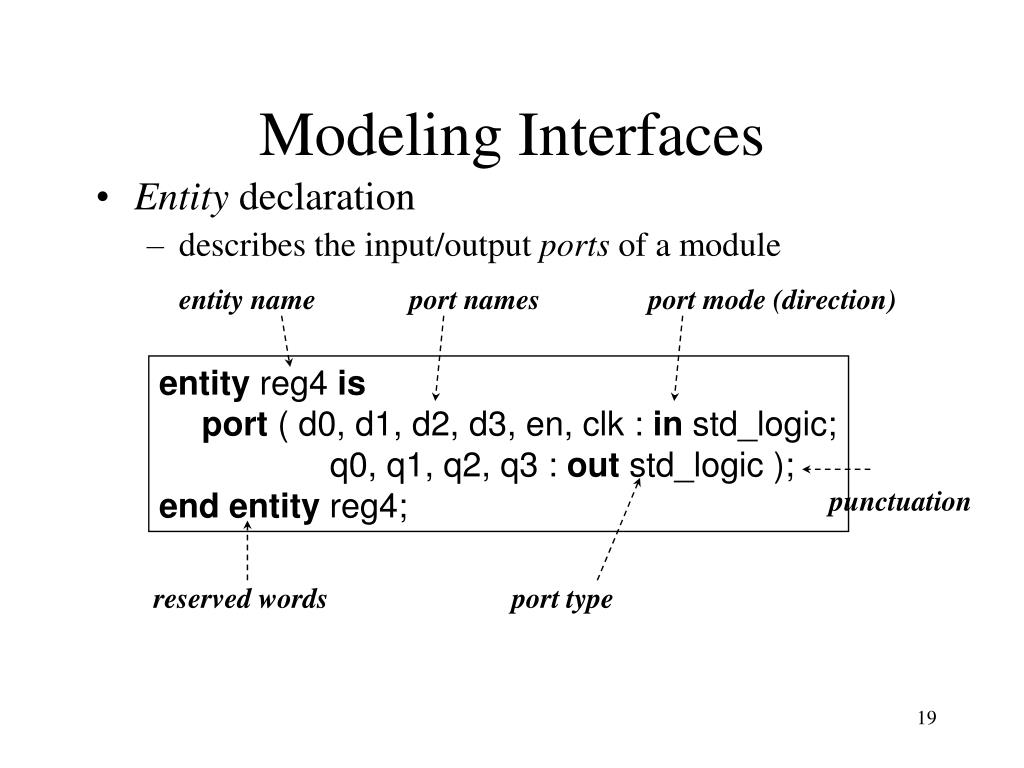

19. Modeling Interfaces • Entity declaration • describes the input/output ports of a module entity name port names port mode (direction) entity reg4 isport ( d0, d1, d2, d3, en, clk : in std_logic; q0, q1, q2, q3 : out std_logic );end entity reg4; punctuation reserved words port type

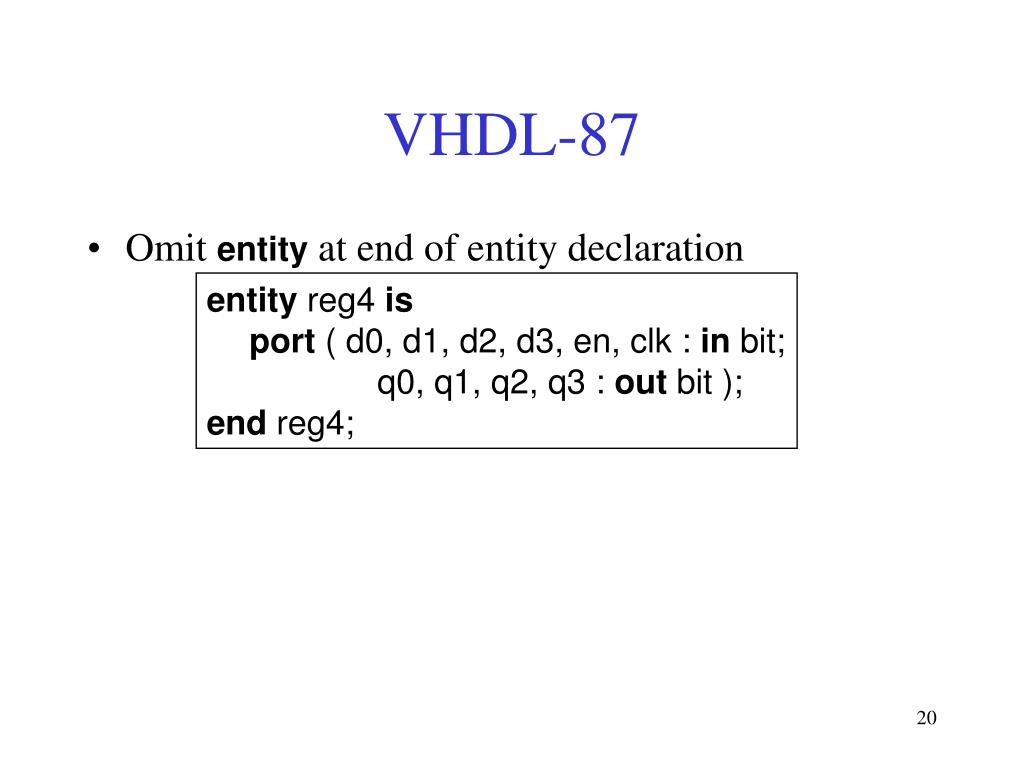

20. VHDL-87 • Omit entity at end of entity declaration entity reg4 isport ( d0, d1, d2, d3, en, clk : in bit; q0, q1, q2, q3 : out bit );end reg4;

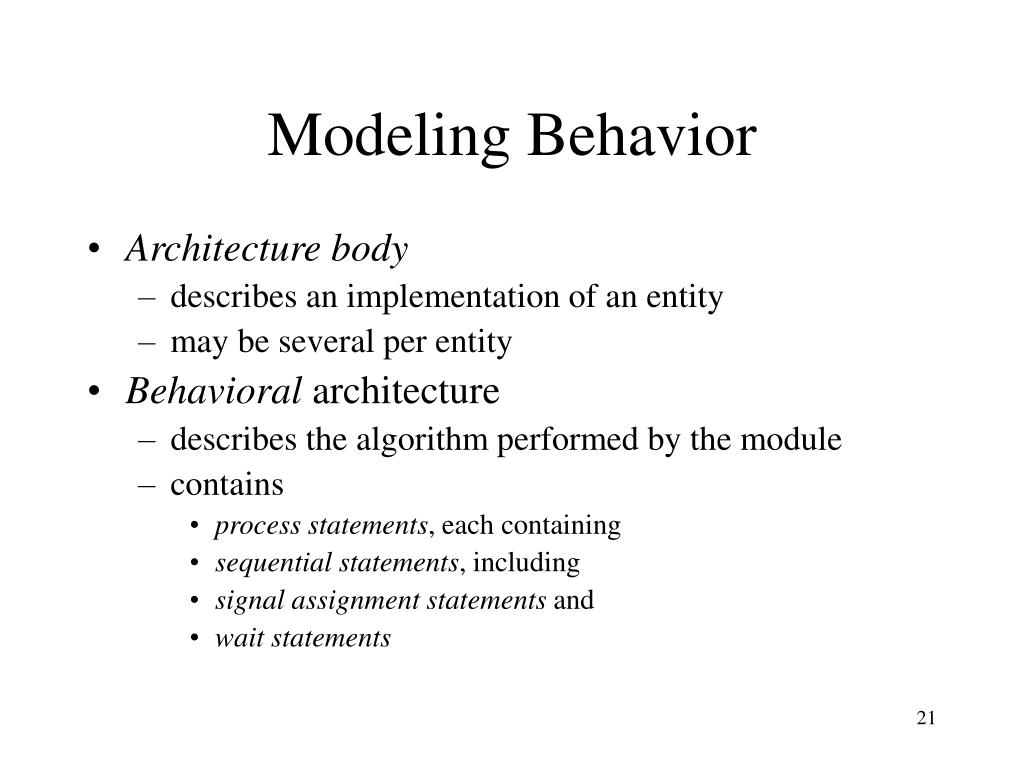

21. Modeling Behavior • Architecture body • describes an implementation of an entity • may be several per entity • Behavioral architecture • describes the algorithm performed by the module • contains • process statements, each containing • sequential statements, including • signal assignment statements and • wait statements

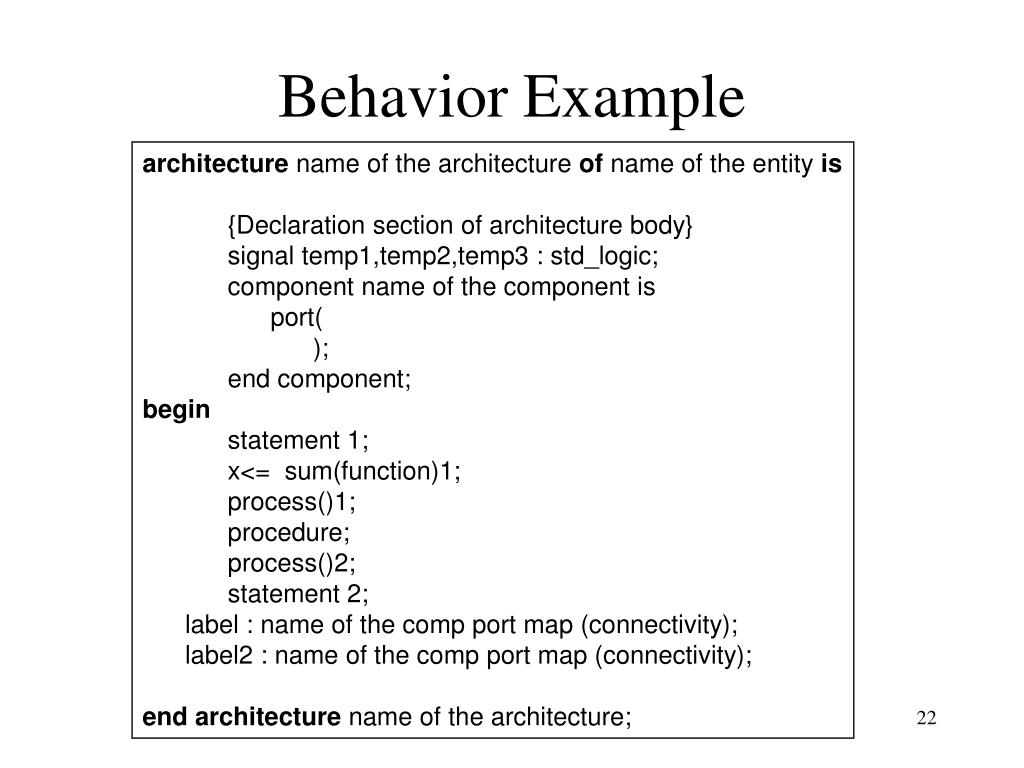

22. Behavior Example architecture name of the architecture of name of the entity is {Declaration section of architecture body} signal temp1,temp2,temp3 : std_logic; component name of the component is port( ); end component; begin statement 1; x<= sum(function)1; process()1; procedure; process()2; statement 2; label : name of the comp port map (connectivity); label2 : name of the comp port map (connectivity); end architecture name of the architecture;

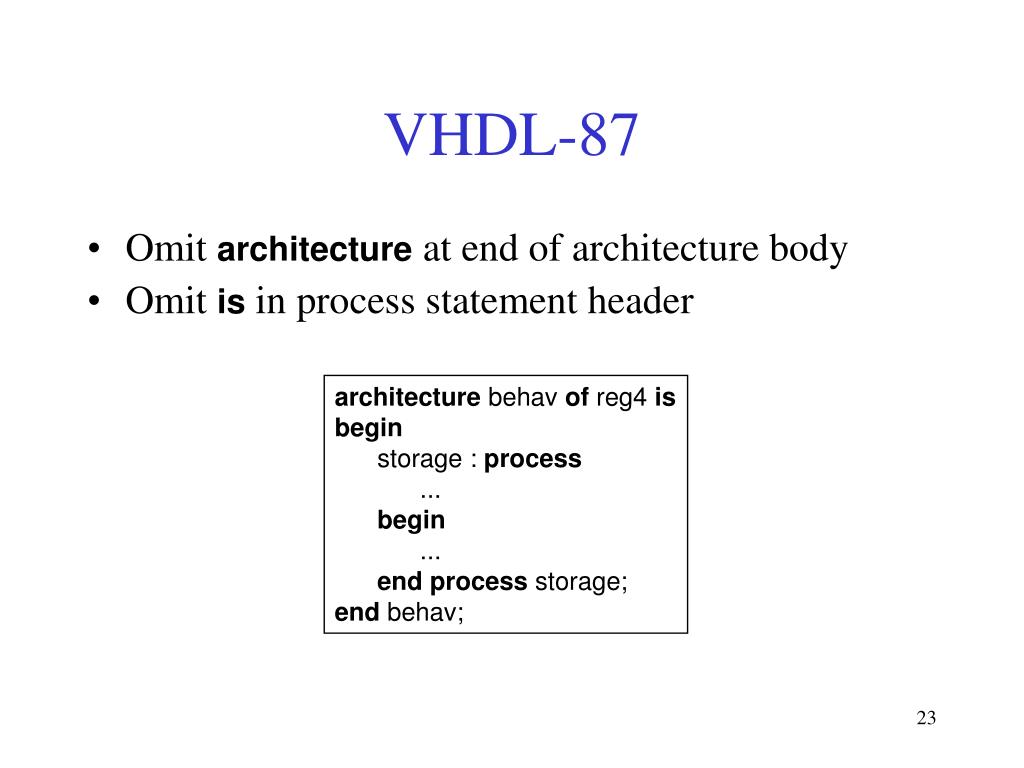

23. VHDL-87 • Omit architecture at end of architecture body • Omit is in process statement header architecture behav of reg4 isbegin storage : process ...begin ...end process storage; end behav;

24. Modeling Structure • Structural architecture • implements the module as a composition of subsystems • contains • signal declarations, for internal interconnections • the entity ports are also treated as signals • component instances • instances of previously declared entity/architecture pairs • port maps in component instances • connect signals to component ports
