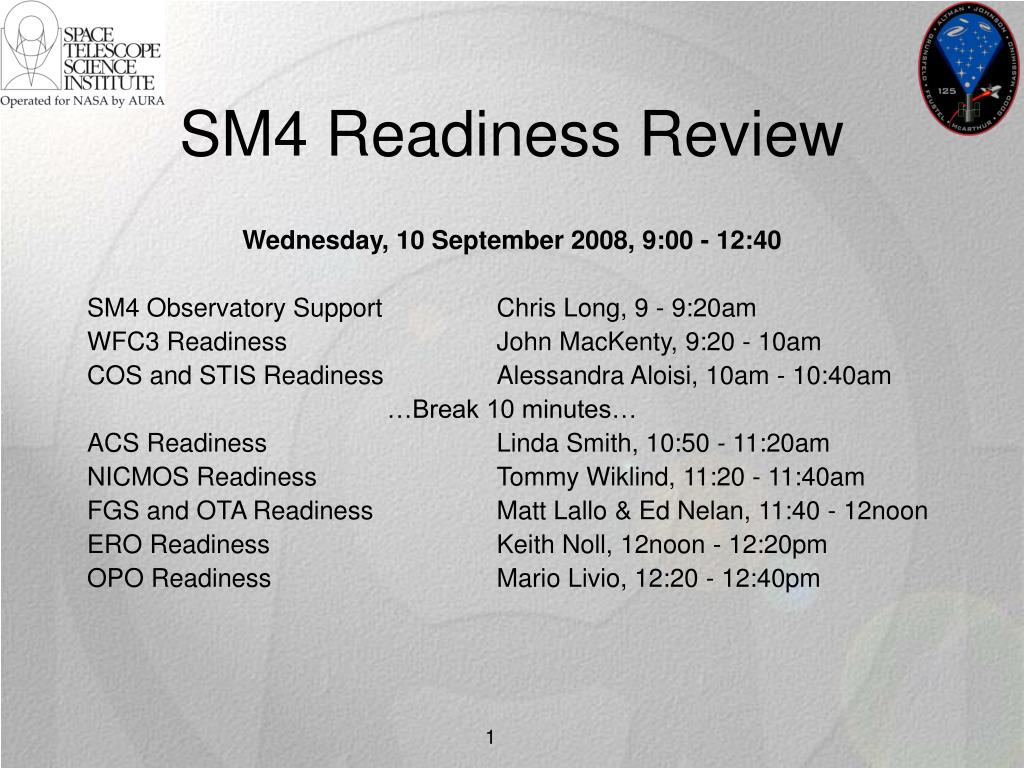

  1. SM4 Readiness Review • Wednesday, 10 September 2008, 9:00 - 12:40 • SM4 Observatory Support Chris Long, 9 - 9:20am • WFC3 Readiness John MacKenty, 9:20 - 10am • COS and STIS Readiness Alessandra Aloisi, 10am - 10:40am • …Break 10 minutes… • ACS Readiness Linda Smith, 10:50 - 11:20am • NICMOS Readiness Tommy Wiklind, 11:20 - 11:40am • FGS and OTA Readiness Matt Lallo & Ed Nelan, 11:40 - 12noon • ERO Readiness Keith Noll, 12noon - 12:20pm • OPO Readiness Mario Livio, 12:20 - 12:40pm

  2. SM4 Observatory Support Chris Long Telescopes Group - INS

  3. Outline

  4. Extra-Vehicular Activities 0:00 1:00 2:00 3:00 4:00 5:00 6:00 EVA 1 EGRESS SETUP • WFC3 Battery-3 LOCKs & SCM CLOSE-OUT INGRESS EVA 2 • GYROS Battery-2 CLOSE-OUT INGRESS EGRESS SETUP EVA 3 INGRESS EGRESS SETUP DOORS COS ACS Part 1 DOORS CLOSE-OUT EVA 4 EGRESS SETUP DOORS • STIS DOORS NOBL 5/~8 CLOSE-OUT INGRESS EVA 5 EGRESS SETUP FGS-2 DOORS ACS Part 2 DOORS CLOSE-OUT NOBL8 INGRESS

  5. Observatory Specific 0:00 1:00 2:00 3:00 4:00 5:00 6:00 EVA 1 EGRESS SETUP • WFC3 Battery-3 LOCKs & SCM CLOSE-OUT INGRESS EVA 2 • GYROS Battery-2 CLOSE-OUT INGRESS EGRESS SETUP EVA 3 INGRESS EGRESS SETUP DOORS COS ACS Part 1 DOORS CLOSE-OUT EVA 4 EGRESS SETUP DOORS • STIS DOORS NOBL 5/~8 CLOSE-OUT INGRESS EVA 5 EGRESS SETUP FGS-2 DOORS ACS Part 2 DOORS CLOSE-OUT NOBL8 INGRESS

  6. Observatory Team Roles

  7. Direct Execute Collaborate Report HST Shuttle HST SM4 Operations Re-plan GSFC Project JSC Project PROJECT MGMT SM-PART Mission Planning Ground Systems GSM STOCC Support VIPR Video HST COORD MOM SMM SM/PART GSM COORD HST SYSTEMS EDOCS ARM Anomalies Monitor  PRIME OPS  Tiger Team HST Systems STOCC Ops Command Plan Payloads EVA Checklist ARM COORD Support Execute 486 FSW STOCC Control CAPCOM “Houston” FSW Payload FSW FSW COORD CAD Mechanical MISS I/F PRIME I/F SCIENCE COORD SI Science Institute Flight Controllers AIR-TO- GROUND SI  SI COORD Thermal THERMAL EPS EPS/S&M STRESS OTA PCS/OTA DMS/I&C DMS / I&C PCS STOCC Safing SAC

  8. Observatory Support Team

  9. Direct Execute Collaborate Report HST Shuttle Communications? Re-plan GSFC Project JSC Project PROJECT MGMT SM-PART Mission Planning Ground Systems GSM STOCC Support VIPR Video HST COORD MOM SMM SM/PART GSM COORD HST SYSTEMS EDOCS ARM Anomalies Monitor  PRIME OPS  Tiger Team HST Systems STOCC Ops Command Plan Payloads EVA Checklist ARM COORD Support Execute 486 FSW STOCC Control CAPCOM “Houston” FSW Payload FSW FSW COORD CAD Mechanical MISS I/F PRIME I/F SCIENCE COORD SI Science Institute Flight Controllers AIR-TO- GROUND SI  SI COORD Thermal THERMAL EPS EPS/S&M STRESS OTA PCS/OTA DMS/I&C DMS / I&C PCS STOCC Safing SAC

  10. STScI Information Channel Primary Communications: SIC

  11. Comprehensive Communications SIC Project Mgmt Science Coord GSFC Project JSC Project Institute Console Backup Call-Me Science STRESS STOCC Landline Black Phones JSC Project: 281-483-8283 GSFC Project: 301-286-2804 Console Engineer: 301-286-5779 OSR Science Staff: 301-286-8950 STScI Room 112: 410-338-4585 • HSTMO Call-Me • 1-866-581-5326 Code: 9003434 • SIC Contact List • Landlines, Cells, Email

  12. INT3 INT4 CCS SUN Science Analysis and Reporting Press STOCC SIMOPS Project @JSC SISE Console Results Project @GSFC MOM Voice Loops Institute Console STRESS

  13. Conclusion: The observatory support team is...

  14. WFC3 Readiness John MacKenty WFC3 - Instruments Division

  15. WFC3 Readiness Outline • Team responsibilities, role, and organization • Commissioning Strategy and Contingencies • Science Priorities • STScI WFC3 SM4 Support • SMOV • Team Organization and Development Status • Goals and Strategy • Timeline • Calibration • Calibration Products • Cycle 17 Calibration Planning • Science Operations • User Support: Contact Scientist Program • Documentation, Operations, Software & Data Processing • Grism Support • MultiDrizzle • Conclusions

  16. WFC3 Team Role • WFC3 team at STScI has responsibility for all aspects on instrument commissioning (no separate IDT) • Engineering support from STScI and WFC3 Project at GSFC • Randy Kimble will provide part time Science IPT support in SMOV • GSFC/DCL retains some detector experiment and analysis resources • ERO team responsible for conduct of ERO program • WFC3 SOC responsible for Early Release Science (feedback on calibrations) • ESA/ECF responsible via MOU for GRISM support and calibration • WFC3 team is organized into “tasks” with individual task leads and matrixed team members supporting each task. • Most team members have extensive experience with WFC3 ground testing • Resources planned to accommodate work peaks • Evolving model to incorporate 3-4 FTE growth in Sept/Oct timeframe

  17. Team Organization & Leads • Group Tasks: • SM4 Support: Larry Petro • SMOV: Andre Martel • TV3 Analysis: Howard Bushouse (complete prior to SM4) • Cycle 17 Calibration: Susana Deustua • Process Tasks: • Calibration Products: Sylvia Baggett • Software and Data Processing: Howard Bushouse • User Support: Cheryl Pavlovsky • Documentation: Jessica Kim Quijano • Operations Support: Larry Petro • Analysis Tasks: • Imaging: Linda Dressel • Photometry: Tom Brown • Detectors: Peter McCullough • Grisms: ECF with Howard Bushouse as interface

  18. Commissioning Strategy • WFC3 is by design an instrument with few modes • UVIS Channel: Imaging and Spectra • IR Channel: Imaging and Spectra • Engineering: UVIS Detector Anneal • Commissioning Sequence • Provide operational integrity of instrument (mechs, memory, etc). • Establish operating conditions (e.g. thermal setpoints for detectors) • Optical Alignment • ERO Science • Initial SMOV calibrations • “Easy” Science enabled • Science Oversight Committee Early Release Science starts • Remainder of SMOV calibrations • “Hard” Science enabled

  19. Contingency Plans • WFC3 SMOV design is primarily channel based • Failure of initial engineering tests would lead to side switch • Any CSM problems should be seen in SM4 FT • Either UVIS or IR commissioning can proceed without the other • One LOS stability program is joint to save orbits • Major risk areas within each channel • Detector cooling: margin exists to operate warmer • Detector noise: most of SMOV can proceed during analysis of cause • Limitations of ground test/calibration: • IR background relies upon models • Astrometric and Photometric stability (including “bowtie”) • UVIS Shutter jitter and IR EMI • Phased start to GO science observations • EASY = programs not pushing on risk areas (can overlap sci cal part of SMOV) • HARD = programs dependent upon performance in “risk areas” • Defer 2-3 months until SMOV determines if these programs require modification

  20. SM4 Support from STScI/WFC3 • Larry Petro (STScI WFC3 group) is responsible for organization of Sci IPT support and training, FT science contents, software tool development for FT analysis, and science performance assessment • Orbit Shift @ GSFC • Larry Petro on SI Console monitoring AT • George Hartig in Science room • Planning Shift @ GSFC • Howard Bushouse on SI Console monitoring FT • Conducts FT analysis in Science room • John MacKenty in Science room to assess Science Pass/Fail • Planning Shift @ STScI • Sylvia Baggett and Bryan Hilbert in STRESS to provide independent analysis of FT data

  21. SMOV Organization • Andre Martel is responsible for WFC3 SMOV coordination • SMOV Activity Summaries (DONE) • SMOV Phase 2 Proposals and PIT reviews (DONE) • SMOV Analysis Plan (DONE) • SMOV Scheduling support • SMOV analysis, reporting (daily and via ISRs) • SMOV final report • Entire team involved in SMOV support • Proposal PI’s mostly based on Thermal Vac activity leads • Observing strategy combination of TV and ACS/NICMOS • Analysis strategy follows TV (quicklook, ISR, products)

  22. SMOV Development Status • WFC3 SMOV development process complete • One new Activity Summary (WF44) was added • “UVIS Bowtie monitor” • 3x3 binned internal flats at 2x per day for first 4 months • DCL testing indicates 10x saturation may alleviate bowtie • Proposal does 0.5 – 10 – 0.5 full well flats in F475X • Activity Summary (WF41) IR photometry monitor was in the Phase 1 plan as a contingency – not implemented based on TV3 results • Current plan is ~160 external orbits

  23. WFC3 SMOV Strategy • WFC3 schedule paced by 21 day detector venting and Bright Earth avoidance periods prior to cooling detectors. • Three phase approach: • Engineering Checks and Detector cooldown • overlaps/follows 21 day venting period • Optical Alignment • Calibration • Bifurcated SMOV4 design to avoid linkage between UVIS and IR channels • Each can proceed at its own pace • Only linked test is the CSM check immediately after cooldown • Anticipated Schedule for Oct 10 SM4 launch • Detector cooldown 9 November • Early Release Observations taken first week of December • SOC Early Release Science start third week of December • GO Science Observations begin late December/early January

  24. WFC3 SMOV Drivers • Re-commissioning of HST observatory to resume science operations at the earliest possible date • Without undue risk of obtaining unsatisfactory data • Acquire Early Release Observations to demonstrate results of SM4 to public • Detectors • Vent detector enclosures for 21 days per CARD • WFC3 in Protect/Safe to keep optics as warm as possible • HST in BEA to protect WFC3 Pick-Off-Mirror • Cool detectors to planned operating temperatures • Demonstrate we can reach and maintain for at least Cy17 -83C (UVIS) and -128C (IR) • Look at overall WFC3 thermal behavior – correlate TV3 performance and tune if needed • Establish optical alignment using same approach as ACS • Early Calibrations • Internal flat fields dependent upon (potentially) limited life D2 lamp • Photometric zero points to avoid taking overexposed science observations • Resolve issues for Cy18 CP • Remaining TV3 unknowns: bowtie, shutter jitter, LOS stability • Initiate key monitors • Hot pixel anneal, UV throughput/contamination, CTE

  25. WFC3 SMOV Timeline (1)

  26. WFC3 SMOV Timeline (2)

  27. Calibration Products • Calibration Products team is responsible for generating and validating products for Pipeline and Synphot: • Sylvia Baggett (lead) • Tom Brown: instrument model, Synphot updates • Howard Bushouse: pipeline expert, ECF/Grism interface • Susana Deustua: photometric analysis • Linda Dressel: astrometric • Bryan Hilbert: flats, IR detector noise, gain, darks, linearity • Jessica Kim: flats and CCD detector • Cheryl Pavlovsky: flats and CCD detector • Vera Platais: astrometric, CCD CTE • Elena Sabbi: flats, photometric analysis • Initial load with dummy products in place for pipeline testing • Currently building pre-launch load based on TV3 (flight detectors)

  28. UVIS Calibration Products

  29. IR Calibration Products

  30. Cycle 17 Calibration • Cycle 17 Calibration plan Part 1 in development with Susana Deustua as lead • Based upon • Instrument Handbook promised calibrations • Needs of Cycle 17 GO and ERS science programs (from CS reviews) • Part 1 review scheduled for 29 September 2008 • Part 2 to be developed in Feb 2009 based on SMOV outcomes • Entire team involved in Cycle 17 Calibration plan development and execution • Analysis task and Calibration Product leads form core group

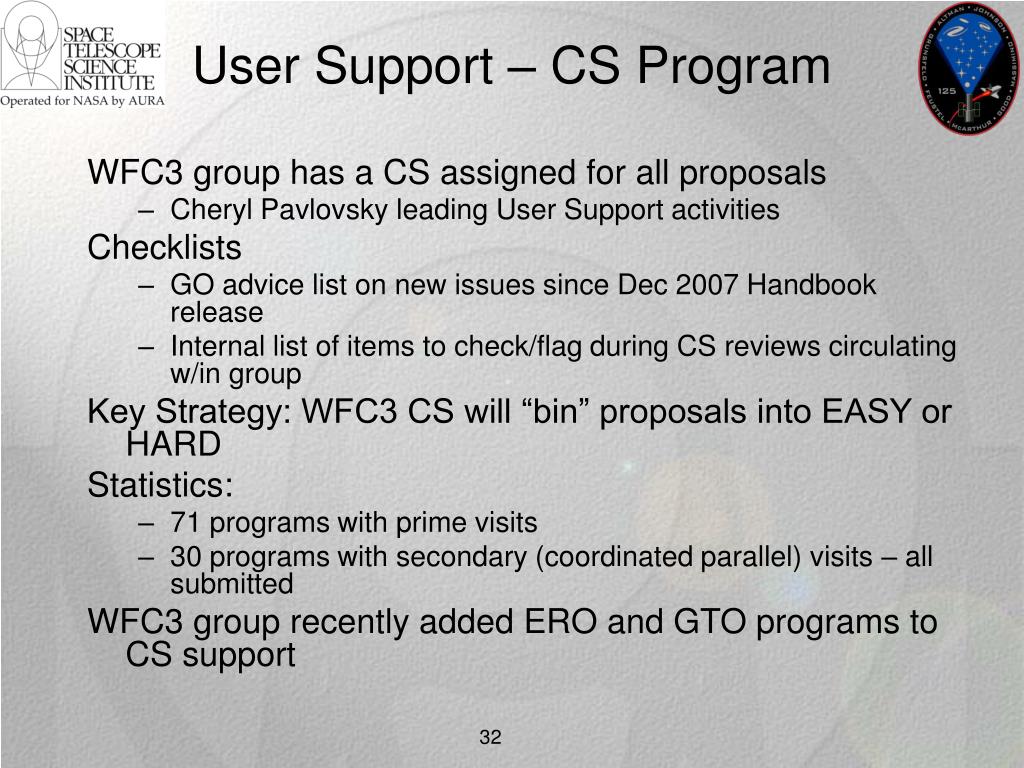

  31. User Support – CS Program • WFC3 group has a CS assigned for all proposals • Cheryl Pavlovsky leading User Support activities • Checklists • GO advice list on new issues since Dec 2007 Handbook release • Internal list of items to check/flag during CS reviews circulating w/in group • Key Strategy: WFC3 CS will “bin” proposals into EASY or HARD • Statistics: • 71 programs with prime visits • 30 programs with secondary (coordinated parallel) visits – all submitted • WFC3 group recently added ERO and GTO programs to CS support

  32. Other activities • Documentation (lead = Jessica Kim) • Data Handbook Chapter on WFC3 for 8 December • Susana Deustua, Howard Bushouse, Jessica Kim • Instrument Handbook update for Cy18 – Kim editor • WWW site maintenance • ISRs have been primary form of external communication • Operations Support (lead = Larry Petro) • Punchlist of open items maintained • Software and Data Processing (lead = Howard Bushouse) • Pipeline development • Pipeline testing • ETC and Synphot development and testing • Software tools (e.g. calibration automation)

  33. Grism Analysis • The WFC3 IR Grisms account for nearly as many scheduled orbits as the STIS instrument (352 orbits!) • The UV Grism is only used by a single SNAP proposal • The user support and calibration of the Grisms has been outsourced to the ESA/ECF team • They successfully supported TV2&3 plus Cy17 Phase 1 and 2 • Howard Bushouse is the STScI point of contact for the ECF • The UV Grism has many orders with spectral overlap • Difficult to use -- minimal effort is planned for SMOV & early Cy17 • No major issues are known with the IR Grisms • Ground and SMOV calibrations are in place

  34. MultiDrizzle • Multidrizzle important for WFC3 science and archive • WFC3 has greater geometric distortion than prior instruments • IR channel is 123 x 139 arc seconds FOV onto square detector • Users have become expert with image combination techniques • WFC3 pipeline designed to produce outputs ready for Multidrizzle (very similar to ACS) • WFC3 support for Multidrizzle lead by Linda Dressel • Calibration • SMOV provides initial geometric distortion and SI location data • Stability of these calibrations to be determined during SMOV/Cy17 • Testing • Thermal vac did not measure plate scale or distortion • Pre-launch database loaded with optical model derived data • Simulated WFC3 data successfully run in Multidrizzle • Full-up testing awaits on-orbit operations

  35. Conclusions • WFC3 team is ready for SMOV assuming nominal instrument performance • ERO timeline is challenging – especially geometric distortion for constructing mosaic images • Project should recognize that detailed understanding of the potential of WFC3 will probably not be in hand at time of AAS (~2-3 weeks later) • Team and Ground system is ready to support SM4 • FT analysis well practiced with realistic data from ground testing • Redundant analysis paths exist and have been tested • Team and Ground system is ready to support SMOV • Augmentations in process for central data store • Team well versed in processing WFC3 data from TV experience • Team and Ground system is ready for Cycle 17 science operations • Ground testing of geometric distortion and multi-drizzle limited in scope • Significant work post SM4 to obtain distortion calibration (schedule driver) • Multi-drizzle leverages ACS experience and is tested with WFC3 datasets • Future enhancements for efficiency are Cycle 18 issues (no Cy17 development)

  36. COS & STIS Readiness Alessandra Aloisi (INS) (with input from Tony Keyes & Charles Proffitt)

  37. COS+STIS Team COS+STIS Team Lead Alessandra Aloisi responsible for personnel and COS/STIS technical work COS Technical Lead Tony Keyes and STIS Technical Lead Charles Proffitt responsible for day-to-day oversight of technical work Currently 18 team members (including 3 JHU contracts)

  38. COS+STIS Team Alessandra Aloisi (Team Lead) • COS • Tom Ake (COS IHB) • Parviz Ghavamian • Paul Goudfrooij (COS C17 Cal Lead) • Tony Keyes (COS Tech & SMOV Lead) • Derck Massa (COS DHB) • Cristina Oliveira (COS ETCs) • Rachel Osten • Dave Sahnow (COS PVT) • Brittany Shaw (COS DHB) • Ed Smith • Dave Soderblom • STIS • Charles Proffitt (STIS Tech & SMOV Lead) • Danny Lennon (STIS C17 Cal Lead) • Mike Wolfe (STIS IHB, monitors & ref files) • Wei Zheng • COS+STIS • Rossy Diaz (Pipeline Lead) • Nolan Walborn (User Support Lead)

  39. COS SM4 Science Support (EVA3) Start of Orbit Shift through COS AT Dave Sahnow, Alessandra Aloisi John McPhate, Jim Green COS FT and data analysis through end of Planning Shift Scott Friedman, Tony Keyes Steve Osterman, Jim Green, Stephane Beland Back-up data analysis at STScI Tom Ake, Brittany Shaw Cynthia Froning, Steve Penton STScI Engineering Support Tom Wheeler, Chris Long

  40. STIS SM4 Science Support (EVA4) • Start of Orbit Shift through STIS-R AT • Mary Beth Kaiser, Cristina Oliveira • Bruce Woodgate • STIS-R FT and data analysis through end of Planning Shift • Charles Proffitt, Alessandra Aloisi • Ted Gull, Don Lindler • Back-up data analysis at STScI • Danny Lennon, Mike Wolfe • STScI Engineering Support • Tom Wheeler, Chris Long

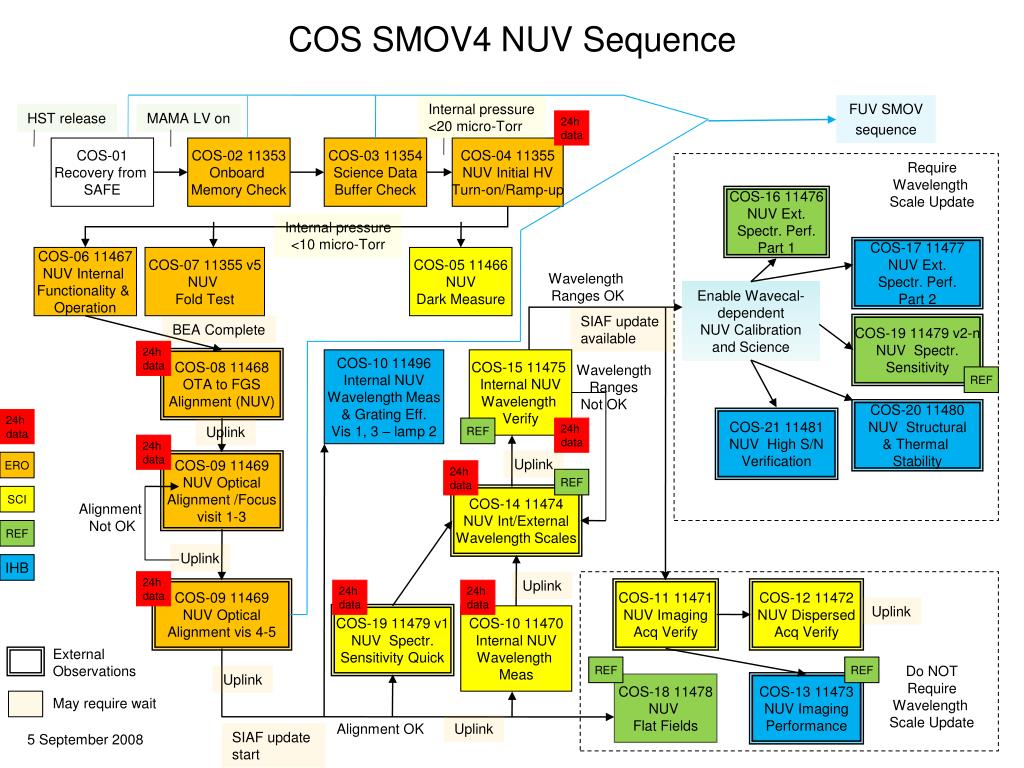

  41. COS SMOV4 NUV Sequence Internal pressure <20 micro-Torr FUV SMOV sequence HST release MAMA LV on 24h data COS-01 Recovery from SAFE COS-02 11353 Onboard Memory Check COS-03 11354 Science Data Buffer Check COS-04 11355 NUV Initial HV Turn-on/Ramp-up Require Wavelength Scale Update COS-16 11476 NUV Ext. Spectr. Perf. Part 1 Internal pressure <10 micro-Torr COS-17 11477 NUV Ext. Spectr. Perf. Part 2 COS-06 11467 NUV Internal Functionality & Operation COS-07 11355 v5 NUV Fold Test COS-05 11466 NUV Dark Measure Wavelength Ranges OK Enable Wavecal-dependent NUV Calibration and Science SIAF update available BEA Complete COS-19 11479 v2-n NUV Spectr. Sensitivity 24h data COS-08 11468 OTA to FGS Alignment (NUV) COS-10 11496 Internal NUV Wavelength Meas & Grating Eff. Vis 1, 3 – lamp 2 COS-15 11475 Internal NUV Wavelength Verify Wavelength Ranges Not OK REF COS-20 11480 NUV Structural & Thermal Stability 24h data COS-21 11481 NUV High S/N Verification Uplink REF 24h data 24h data Uplink ERO COS-09 11469 NUV Optical Alignment /Focus visit 1-3 24h data REF SCI COS-14 11474 NUV Int/External Wavelength Scales Alignment Not OK REF Uplink IHB 24h data Uplink COS-09 11469 NUV Optical Alignment vis 4-5 24h data 24h data COS-11 11471 NUV Imaging Acq Verify COS-12 11472 NUV Dispersed Acq Verify Uplink COS-19 11479 v1 NUV Spectr. Sensitivity Quick COS-10 11470 Internal NUV Wavelength Meas External Observations REF REF Do NOT Require Wavelength Scale Update Uplink COS-18 11478 NUV Flat Fields COS-13 11473 NUV Imaging Performance May require wait Alignment OK Uplink SIAF update start 5 September 2008

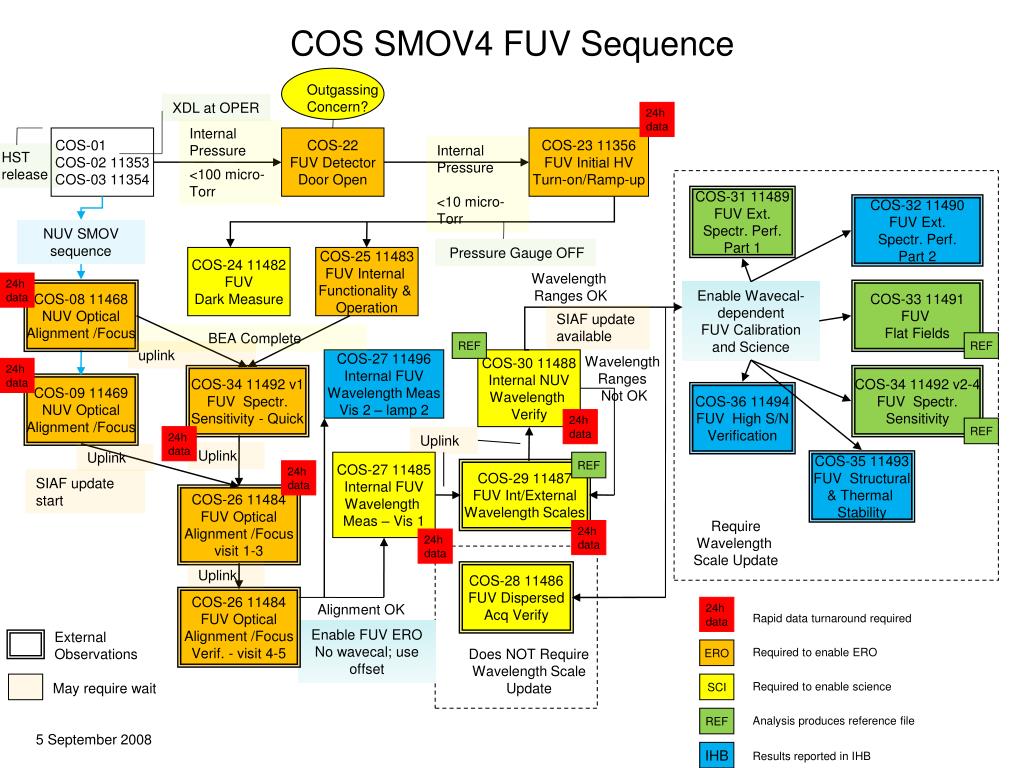

  42. COS SMOV4 FUV Sequence Outgassing Concern? XDL at OPER 24h data Internal Pressure <100 micro- Torr COS-01 COS-02 11353 COS-03 11354 COS-22 FUV Detector Door Open COS-23 11356 FUV Initial HV Turn-on/Ramp-up Internal Pressure <10 micro-Torr HST release COS-31 11489 FUV Ext. Spectr. Perf. Part 1 COS-32 11490 FUV Ext. Spectr. Perf. Part 2 NUV SMOV sequence Pressure Gauge OFF COS-24 11482 FUV Dark Measure COS-25 11483 FUV Internal Functionality & Operation Wavelength Ranges OK 24h data COS-08 11468 NUV Optical Alignment /Focus Enable Wavecal-dependent FUV Calibration and Science COS-33 11491 FUV Flat Fields SIAF update available BEA Complete REF REF uplink Wavelength Ranges Not OK COS-27 11496 Internal FUV Wavelength Meas Vis 2 – lamp 2 COS-30 11488 Internal NUV Wavelength Verify 24h data COS-34 11492 v1 FUV Spectr. Sensitivity - Quick COS-34 11492 v2-4 FUV Spectr. Sensitivity COS-09 11469 NUV Optical Alignment /Focus COS-36 11494 FUV High S/N Verification 24h data REF 24h data Uplink Uplink Uplink COS-27 11485 Internal FUV Wavelength Meas – Vis 1 REF COS-35 11493 FUV Structural & Thermal Stability 24h data COS-29 11487 FUV Int/External Wavelength Scales SIAF update start COS-26 11484 FUV Optical Alignment /Focus visit 1-3 Require Wavelength Scale Update 24h data 24h data Uplink COS-28 11486 FUV Dispersed Acq Verify COS-26 11484 FUV Optical Alignment /Focus Verif. - visit 4-5 Alignment OK 24h data Rapid data turnaround required Enable FUV ERO No wavecal; use offset External Observations Does NOT Require Wavelength Scale Update ERO Required to enable ERO May require wait SCI Required to enable science REF Analysis produces reference file 5 September 2008 IHB Results reported in IHB

  43. COS SMOV Timeline Oct 10: SM4 Launch Oct 17: COS installation (EVA3) Oct 21 - Nov 28: Beginning COS SMOV engineering and alignment activities Engineering Check-out and Detector Turn-on (NUV: Oct 21-23, FUV: Nov 3-14) Fast turnaround of turn-on visits Initial Detector verifications (NUV: Oct 29 - Nov 5, FUV: Nov 3-14) Optical Alignments (Nov: 8-28) Fast turnaround of each visit Dec 13: COS science observations enabled in FUV Jan 14: COS science observations enabled in NUV Nov 30: COS EROs enabled (EROs executed ~ 2 weeks later, Dec 14) Nov 26 - Jan 22: General Science Calibration Verification TA Verification (FUV: Dec 21-22, NUV: Jan 7-8) Imaging Verification (Jan 12) Wavelength Calibration (FUV: Nov 30 - Dec 6, NUV: Jan 8-13) Fast turnaround of each visit Flux Calibration (FUV: Dec 14-16, NUV: Jan 14-16) Fast turnaround of quick-look visits Internal and External Flat Fields (NUV: Nov 26-30, FUV: Dec 21) High S/N Verification (FUV: Jan 4, NUV: Jan 21) Spectroscopic Performance (FUV: Dec 28 - Jan 5, NUV: Jan 14-22) Thermal Stability (FUV: Dec 3, NUV: Jan 21) (Critical calibration programs for C17 & C18 updates are in boldface)

  44. COS SMOV Readiness (1/6) COS SMOV Personnel STScI Cox Hartig Lallo Wheeler Welty (involvement < 5%) BALL Harguth Delker GSFC Serrano COS/STIS Team Aloisi Ake Bohlin Ghavamian Keyes Massa Oliveira Sahnow Shaw Smith Soderblom COS IDT Beland Froning Penton BurghFrance (2 persons rotating at STScI) Green Osterman McPhate (for consultation)

  45. COS SMOV Readiness (2/6) COS/STIS Team & COS IDT Responsibilities Engineering programs divided between STScI and IDT/Ball personnel: STScI - memory load and dump, and science data buffer check, NUV initial turn-on and recovery after anomalous shutdown COS IDT - FUV door and FUV initial turn-on STScI & Ball - Alignment & focus Calibration programs divided 50-50 between COS/STIS team and COS IDT COS/STIS Team - detector functional tests, darks, spectroscopic sensitivities, wavelength calibration, structural & thermal stability COS IDT - TAs, flat fields, high S/N, imaging & spectroscopic performance characterization Every calibration program will have a co-lead from the other team (COS IDT or COS/STIS team)

  46. COS SMOV Readiness (3/6) Phase II 34 Phase II proposals in total PIT process 100% complete Phase II reviews and BOP check: 75% complete in terms of programs 90% complete in terms of visits 75% of programs are flight ready

  47. COS SMOV Readiness (4/6) Analysis Plans Drafts of 70% of COS Analysis Plans completed Final versions of all Analysis Plans to be written by September 30, 2008 Average of ~ 8 FTEs for 5 months (Nov-Mar); this corresponds to ~ 4 FTEs (50%) for 5 months for the COS/STIS team Deliverables: 14 up-links Updated Science Instrument Aperture File (SIAF) At least 6 reference files will be updated for use with CALCOS NUV & FUV flat fields NUV & FUV spectroscopic throughputs NUV & FUV dispersion solutions 1 Synphot file (for use with ETC) NUV imaging throughputs About 25 TIRs & ISRs Reports for some activities will be combined 3 EROs will use COS We will prioritize work in the following way: FUV spectroscopy NUV Imaging (for TA) NUV spectroscopy

  48. COS SMOV Readiness (5/6) Software and Training Analysis procedures and software requirements identified for most programs Much of the software and many of the procedures coming from IDT and already used in TV data analysis Identified data storage requirements on central storage and established accounts for all the personnel involved COS/STIS team members currently familiarizing themselves with relevant COS comparison data and analysis techniques;this isquite a large effort due to the high fraction (> 50%) of new team members working on COS that have joined the group within the last year

  49. COS SMOV Readiness (6/6) Ground System and Pipeline OPUS 2008.3 (2 Sep 2008) Change from native detector to user coordinate system (dispersion along +x and cross-dispersion direction along +y for all data) implemented in CALCOS OPUS 2008.4 (30 Sep 2008) Fixes on COS keywords, including incorrect mapping and new added keywords Fixes on output products and associations Implementation of critical changes in CALCOS as a result of the high-priority pipeline verification work COS catalog tables for archive search of data Work that remains to be done Remaining lower-priority pipeline verification work to be completed COS Accumulated Images and Pulse Height Histogram to be ready as soon as possible at the beginning of Cycle 17 FUV HV turn-on procedure after HV transient shut-down to be defined by 30 October 2008 COS lifetime adjustments procedures should be implemented by late Spring 2009
