Loss Monitors

SwissFEL Diagnostics Review, 2013-03-05 Loss Monitors Rasmus Ischebeck, Florian Löhl, Nick Schlumpf. Loss Monitors. Task: Measurement of electron beam losses for wire scanners (see Gian Luca’s presentation) for machine protection Personnel protection system uses different monitors

varuna
Download Presentation

Loss Monitors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SwissFEL Diagnostics Review, 2013-03-05Loss MonitorsRasmus Ischebeck, Florian Löhl, Nick Schlumpf

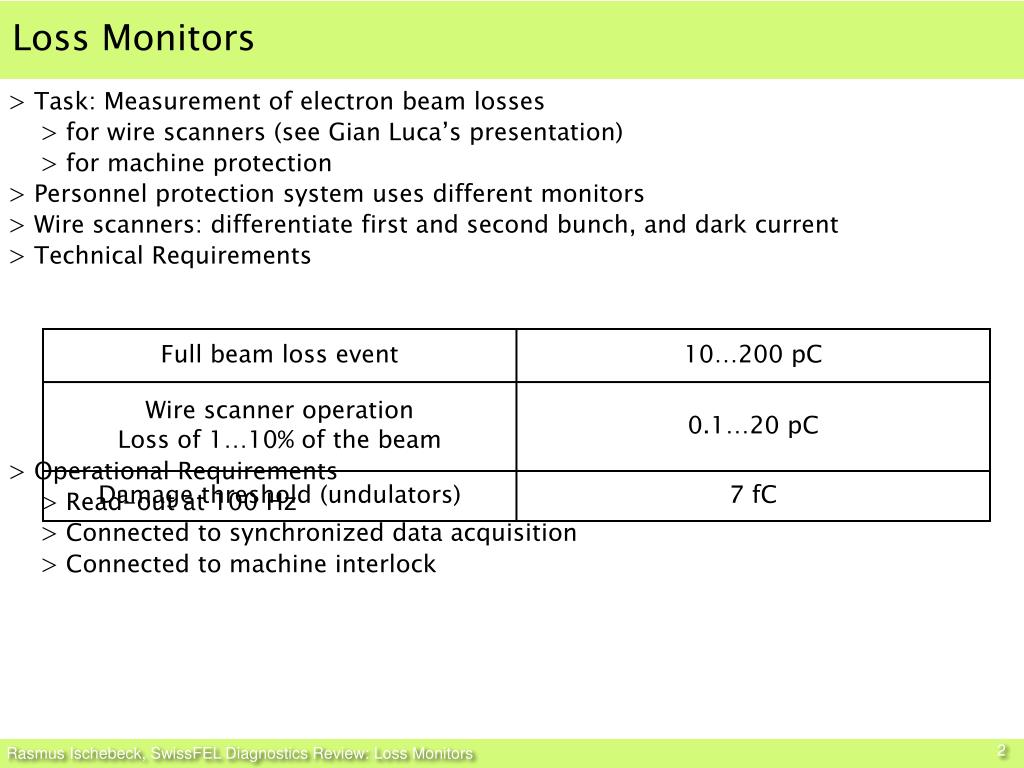

  2. Loss Monitors • Task: Measurement of electron beam losses • for wire scanners (see Gian Luca’s presentation) • for machine protection • Personnel protection system uses different monitors • Wire scanners: differentiate first and second bunch, and dark current • Technical Requirements • Operational Requirements • Read-out at 100 Hz • Connected to synchronized data acquisition • Connected to machine interlock Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 2

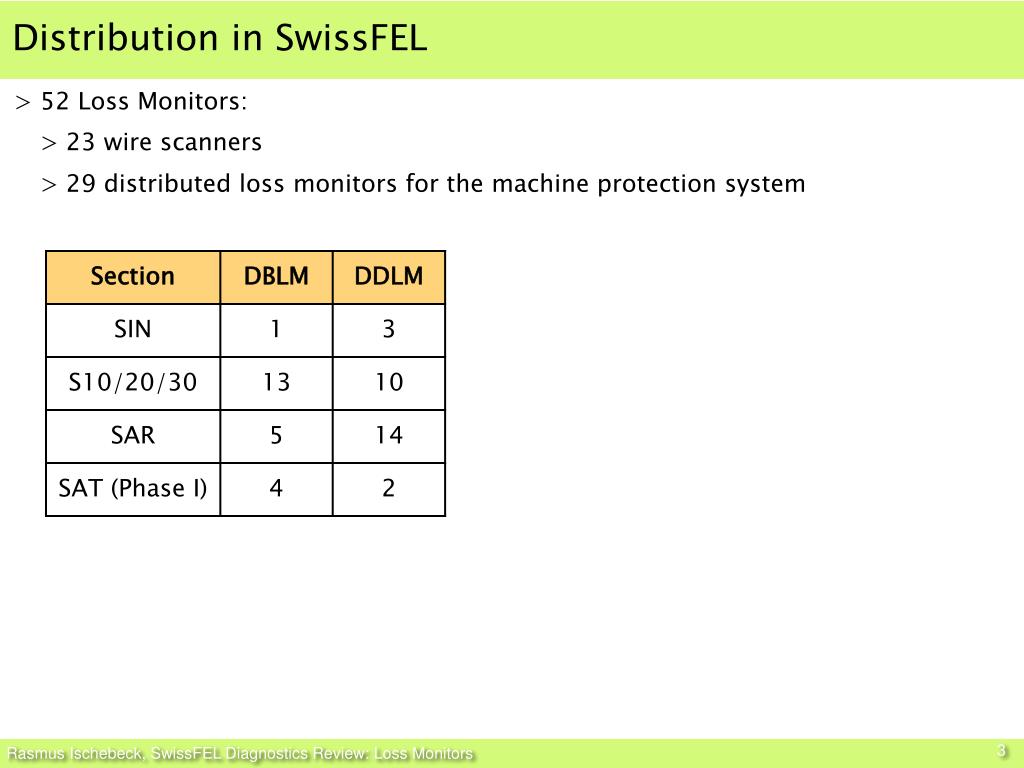

  3. Distribution in SwissFEL • 52 Loss Monitors: • 23 wire scanners • 29 distributed loss monitors for the machine protection system Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 3

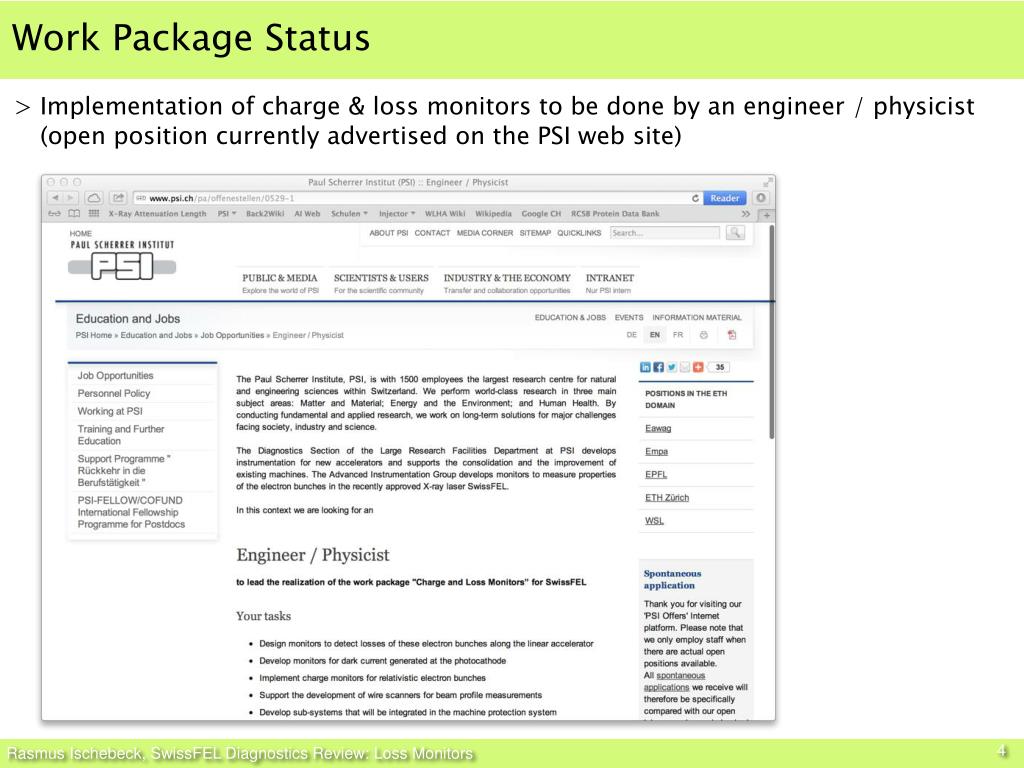

  4. Work Package Status • Implementation of charge & loss monitors to be done by an engineer / physicist (open position currently advertised on the PSI web site) Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 4

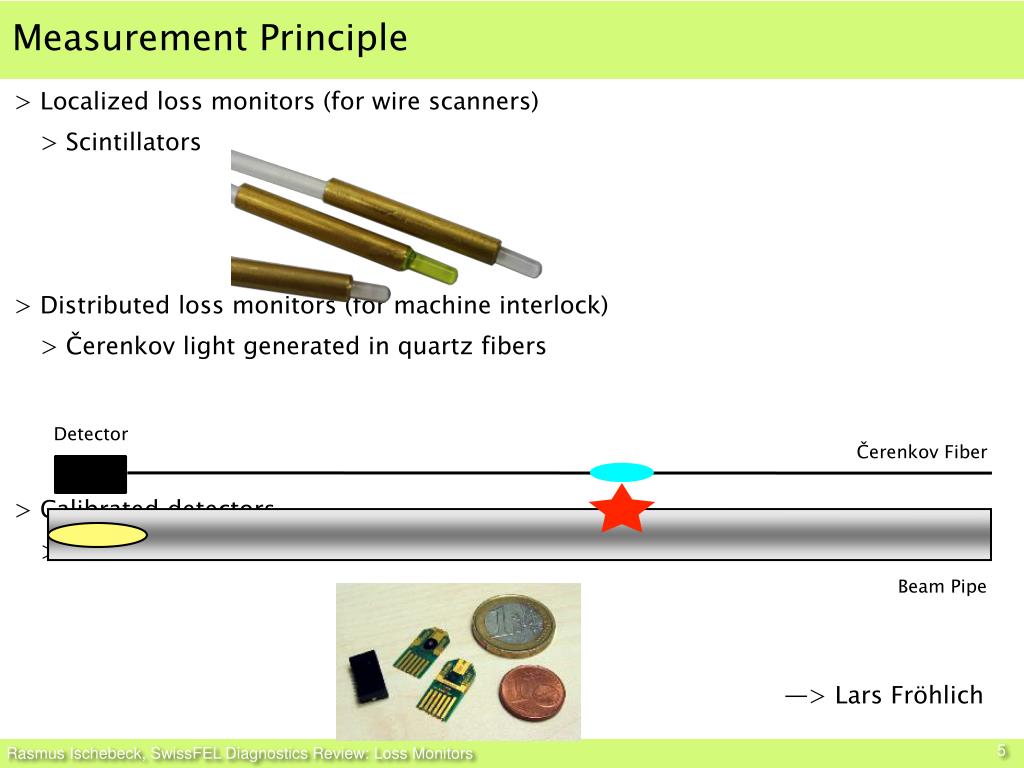

  5. Measurement Principle • Localized loss monitors (for wire scanners) • Scintillators • Distributed loss monitors (for machine interlock) • Čerenkov light generated in quartz fibers • Calibrated detectors • RadFETs Detector Čerenkov Fiber Beam Pipe —> Lars Fröhlich Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 5

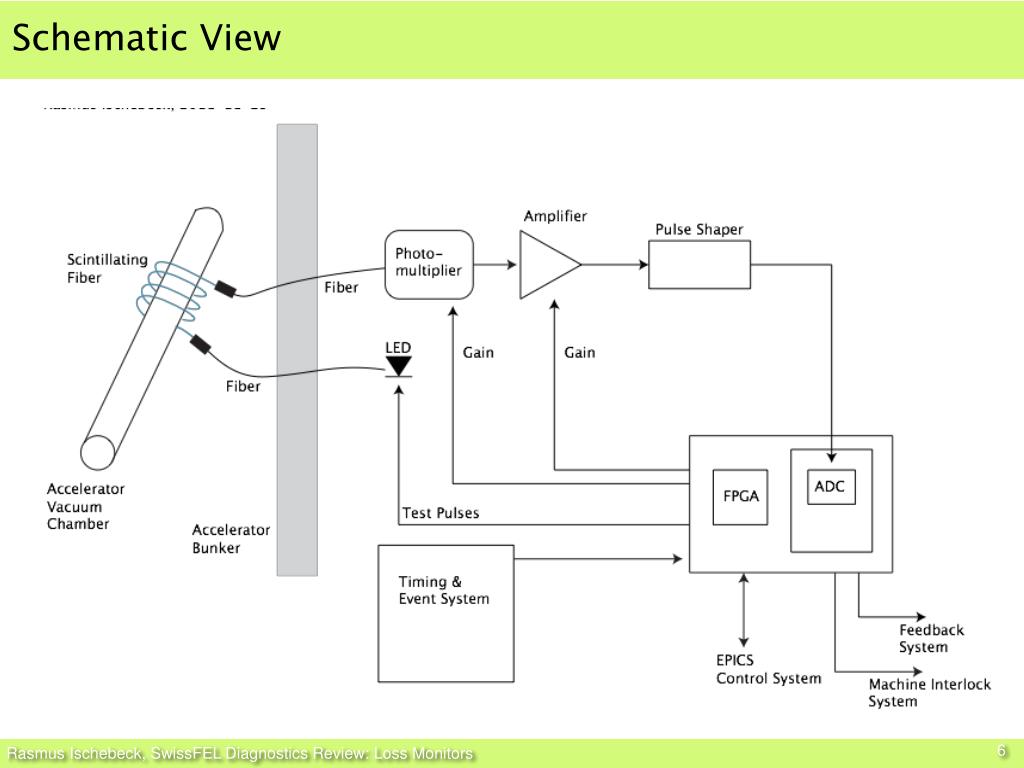

  6. Schematic View Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 6

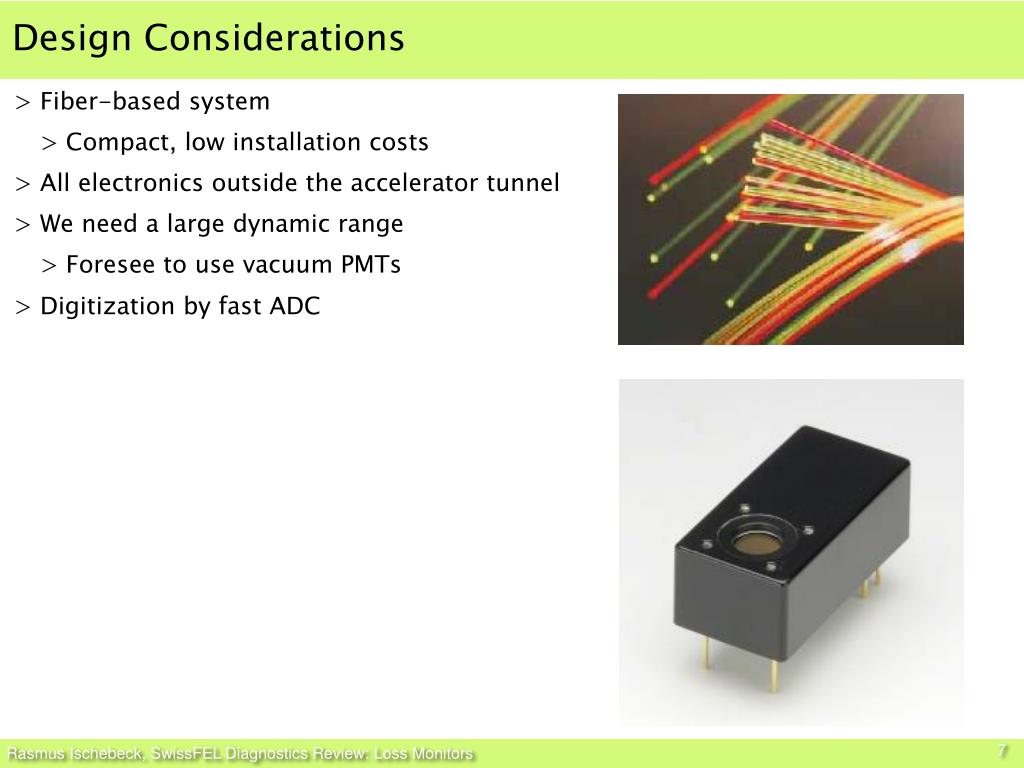

  7. Design Considerations • Fiber-based system • Compact, low installation costs • All electronics outside the accelerator tunnel • We need a large dynamic range • Foresee to use vacuum PMTs • Digitization by fast ADC Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 7

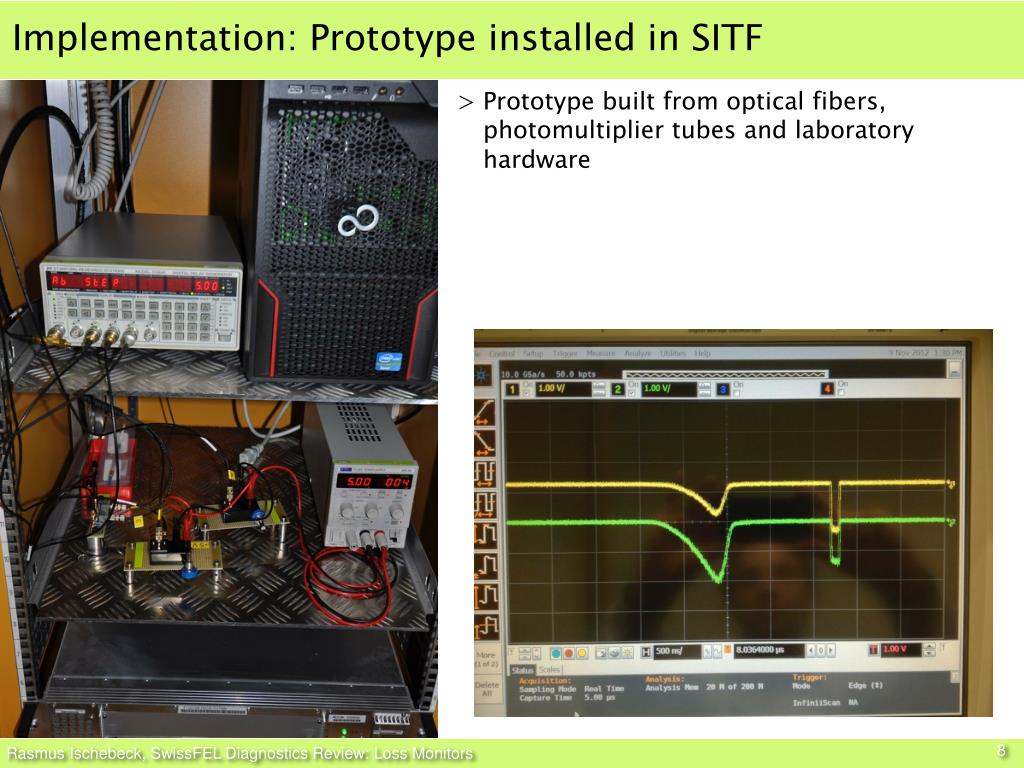

  8. Implementation: Prototype installed in SITF • Prototype built from optical fibers, photomultiplier tubes and laboratory hardware Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 8

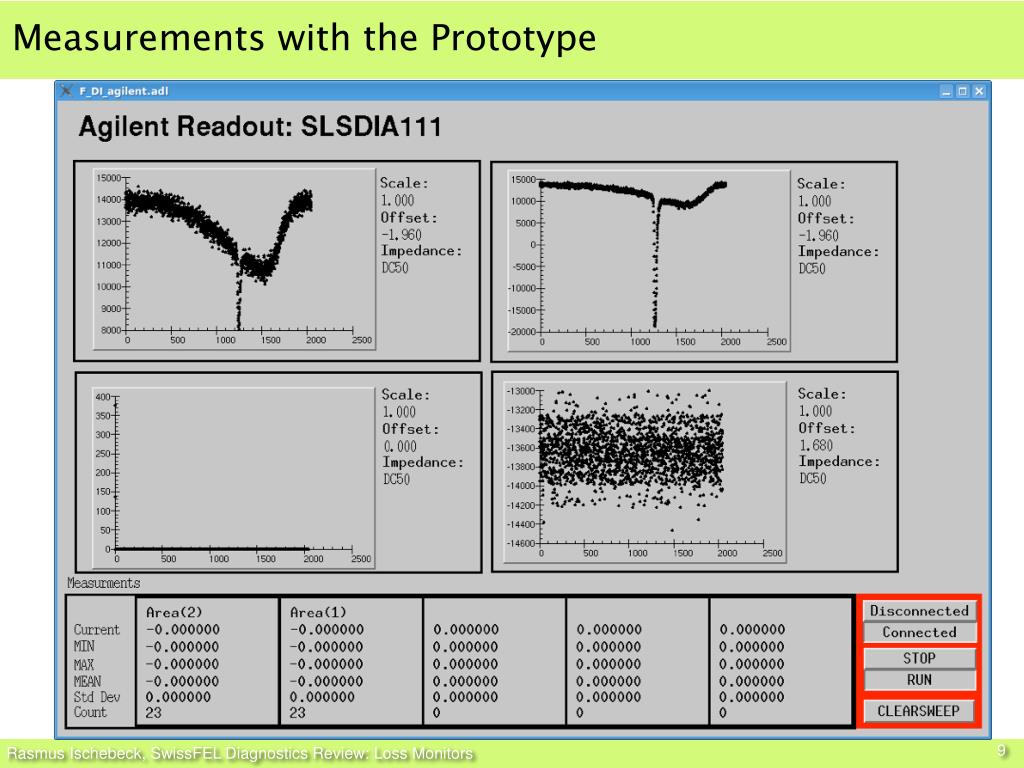

  9. Measurements with the Prototype Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 9

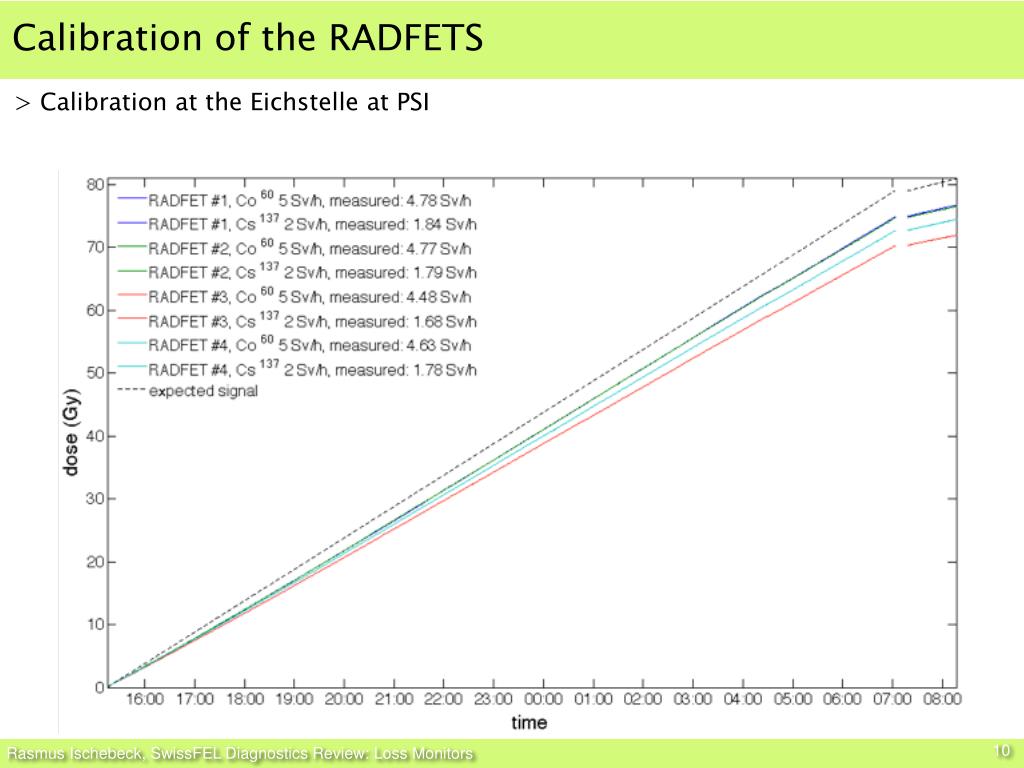

  10. Calibration of the RADFETS • Calibration at the Eichstelle at PSI Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 10

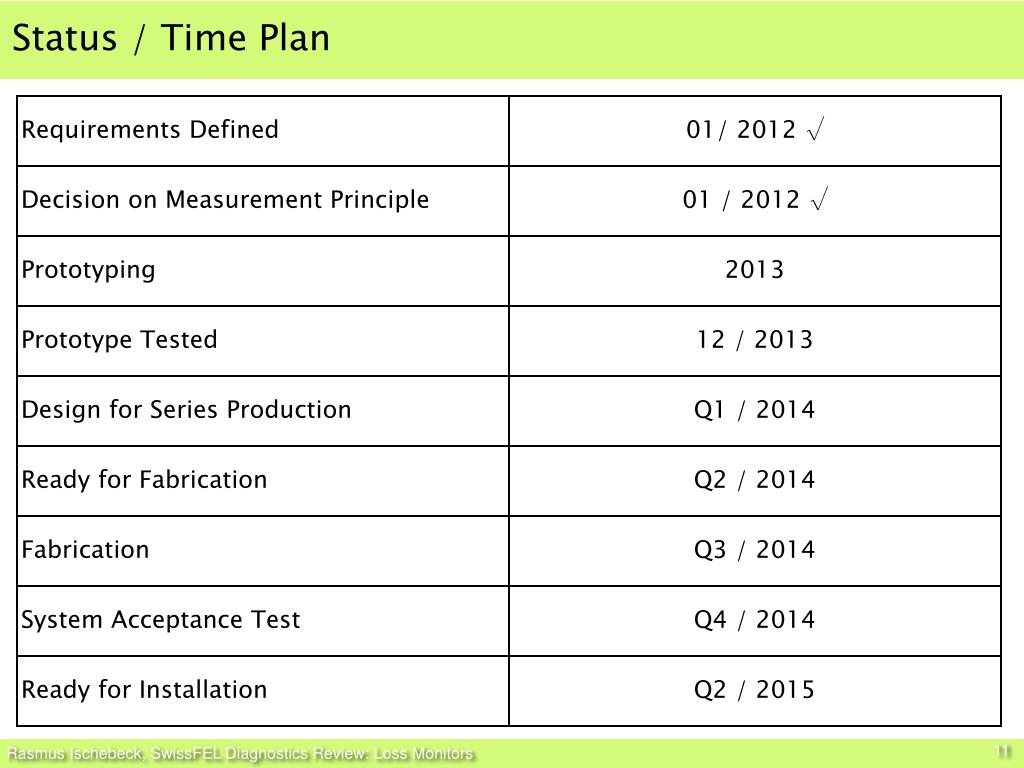

  11. Status / Time Plan Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 11

  12. Resources ⊠ Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 12

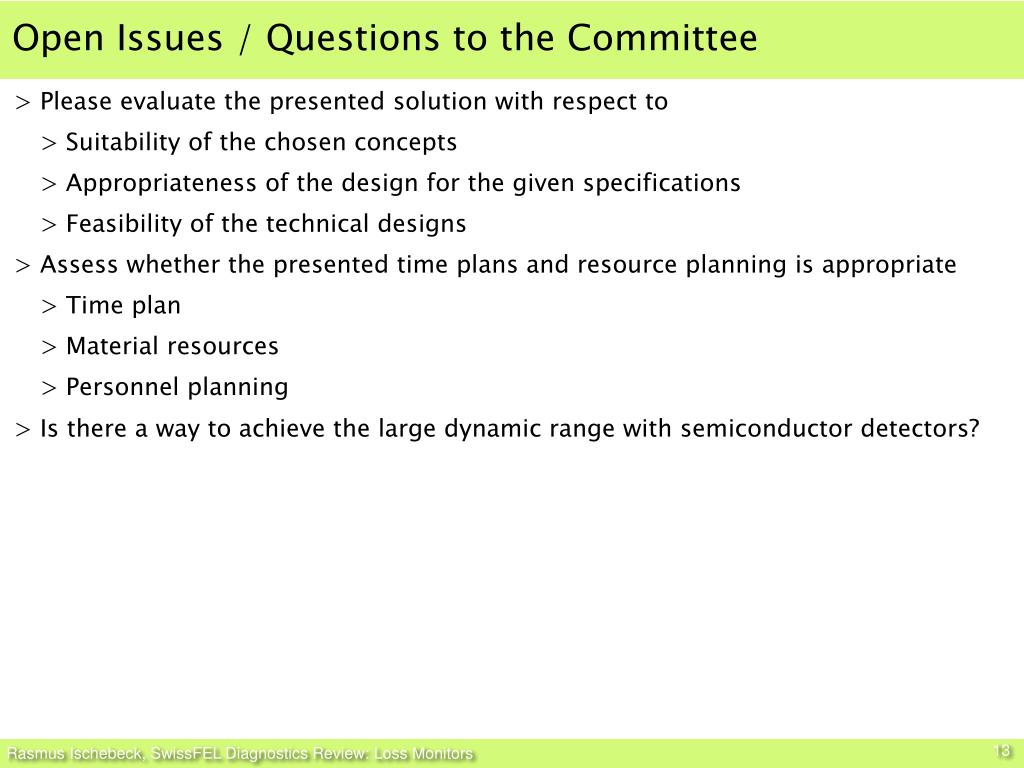

  13. Open Issues / Questions to the Committee • Please evaluate the presented solution with respect to • Suitability of the chosen concepts • Appropriateness of the design for the given specifications • Feasibility of the technical designs • Assess whether the presented time plans and resource planning is appropriate • Time plan • Material resources • Personnel planning • Is there a way to achieve the large dynamic range with semiconductor detectors? Rasmus Ischebeck, SwissFEL Diagnostics Review: Loss Monitors 13
