Intensifier Principles of Operation

1 u. 1 u. EXH. 2 u. PULLING. 10 u. Intensifier Principles of Operation. Use left click or right arrow to advance slides. Boyle’s Law for gasses:. “His law gives the relationship between pressure and volume if temperature and amount are held constant”

viviana
Download Presentation

Intensifier Principles of Operation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 1 u 1 u EXH 2 u PULLING 10 u Intensifier Principles of Operation Use left click or right arrow to advance slides

  2. Boyle’s Law for gasses: “His law gives the relationship between pressure and volume if temperature and amount are held constant” If the volume of a container is increased, the pressure decreases If the pressure in a container is decreased, the volume increases Pressure x Volume = Constant P1V1 = P2V2

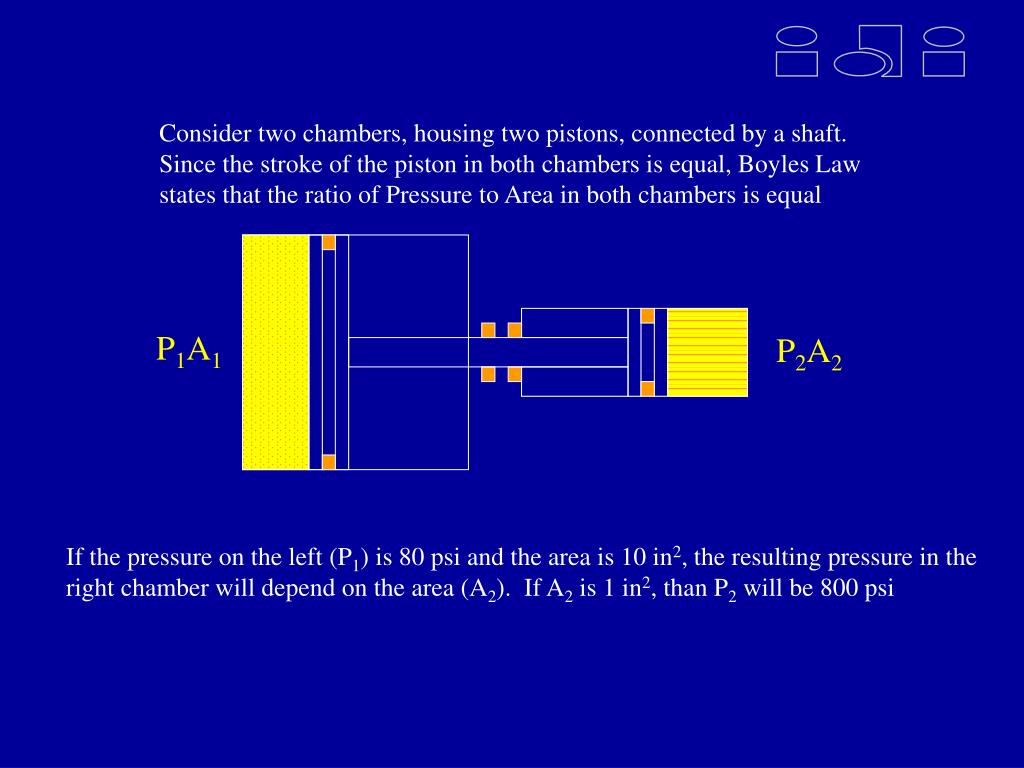

  3. Consider two chambers, housing two pistons, connected by a shaft. Since the stroke of the piston in both chambers is equal, Boyles Law states that the ratio of Pressure to Area in both chambers is equal P1A1 P2A2 If the pressure on the left (P1) is 80 psi and the area is 10 in2, the resulting pressure in the right chamber will depend on the area (A2). If A2 is 1 in2, than P2 will be 800 psi

  4. 1 u 1 u 2 u 1 u 10 u CVS1 PUSHING EXH 1 u 1 u EXH 2 u PULLING 10 u Double Acting Principle Pushing Air at 100 psi enters the left air cylinder chamber (air piston area = 10 in2) pushing it to the right. The hydraulic piston is 2.0 in2 and the rod is 1.0 in2. Since the crossover check valve allows oil to flow into the rod chamber, the effective area pushing is the rod area, yielding a 10:1 air to hydraulic ratio. Pulling Air at 100 psi enters the right air cylinder chamber pushing it to the left (pulling the hydraulic piston). The “pull” ratio is also 10:1 as determined by the differential area in the hydraulic piston and rod. Note also during this stroke, oil is being drawn into the piston end for the next “push” stroke.

  5. Click Next Slide for a Demonstration Of the Double Acting Principle Oil Pressure Out Air Pressure In Tank Exhaust

  6. Oil Pressure Out Air Pressure In Tank Exhaust

  7. Oil Pressure Out Air Pressure In Tank Exhaust

  8. Oil Pressure Out Air Pressure In Tank Exhaust

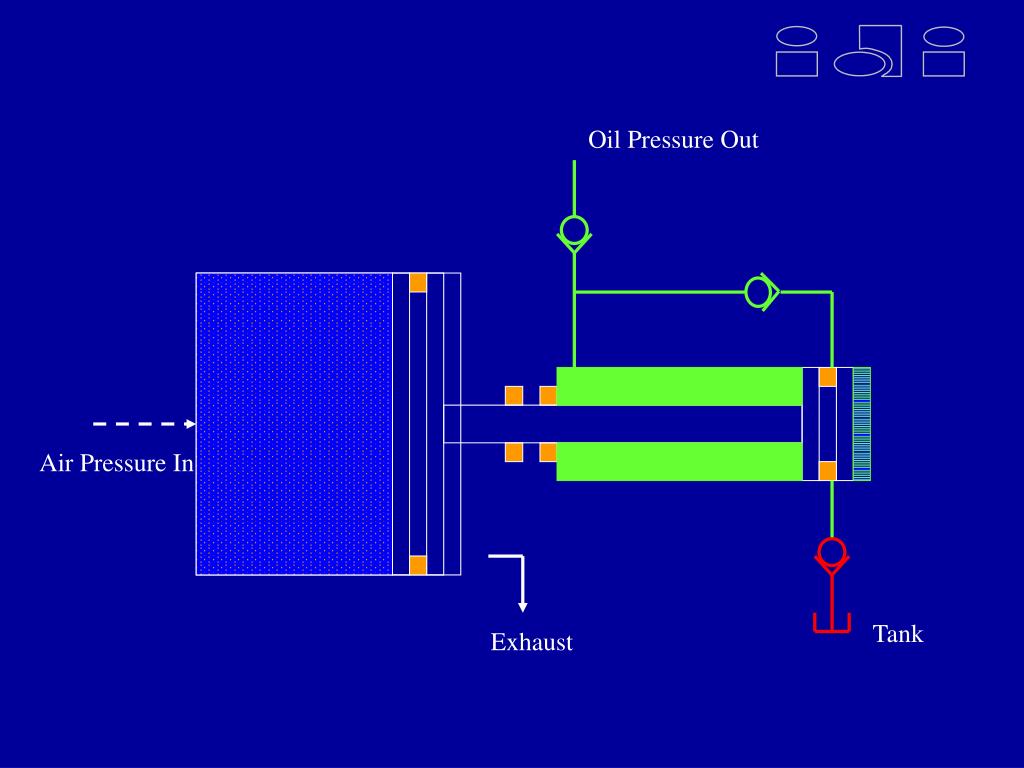

  9. Oil Pressure Out Air Pressure In Tank Exhaust

  10. Oil Pressure Out Exhaust Tank Air Pressure In

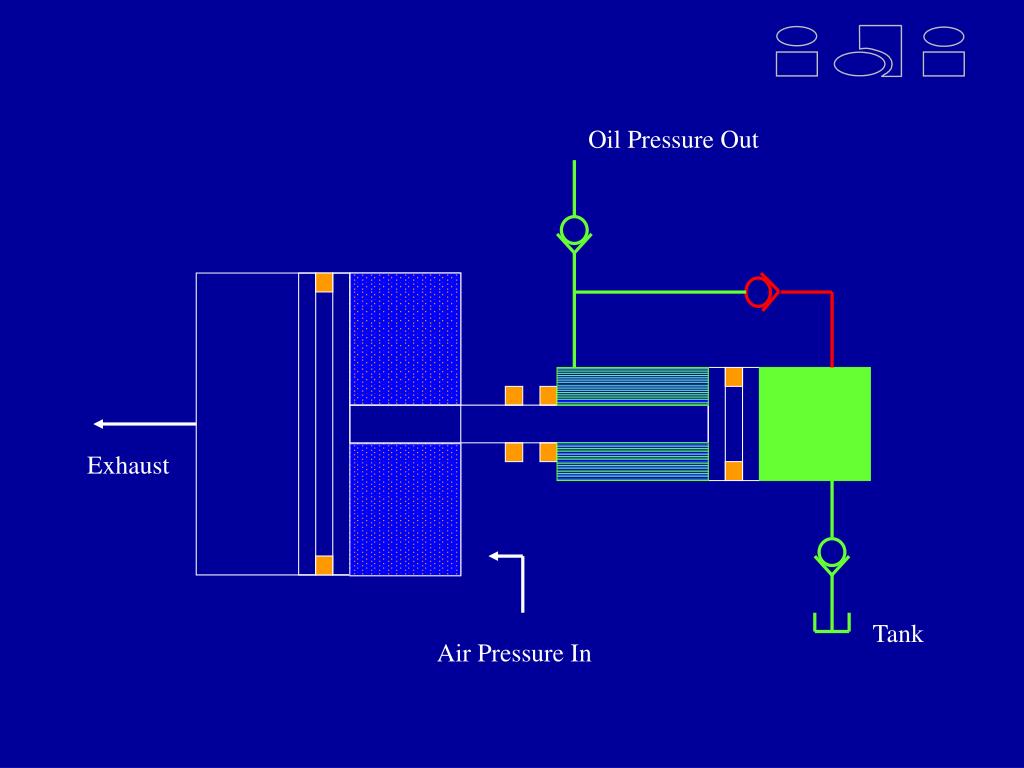

  11. Oil Pressure Out Exhaust Tank Air Pressure In

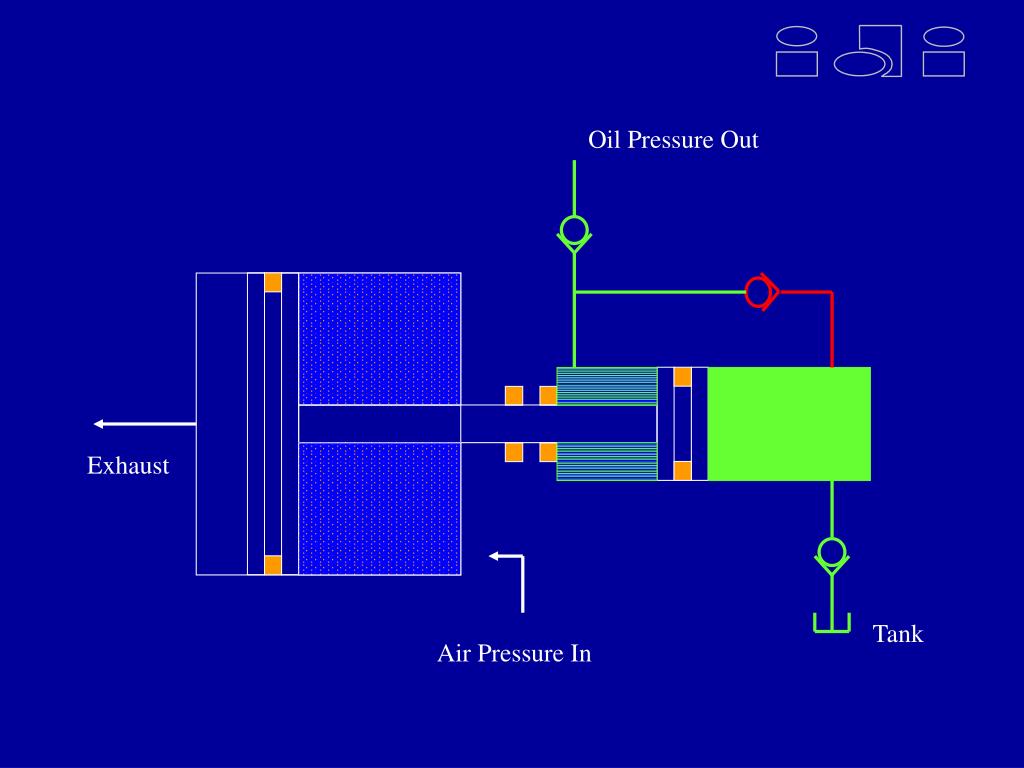

  12. Oil Pressure Out Exhaust Tank Air Pressure In

  13. Click next slide to view summary… Oil Pressure Out Exhaust Tank Air Pressure In

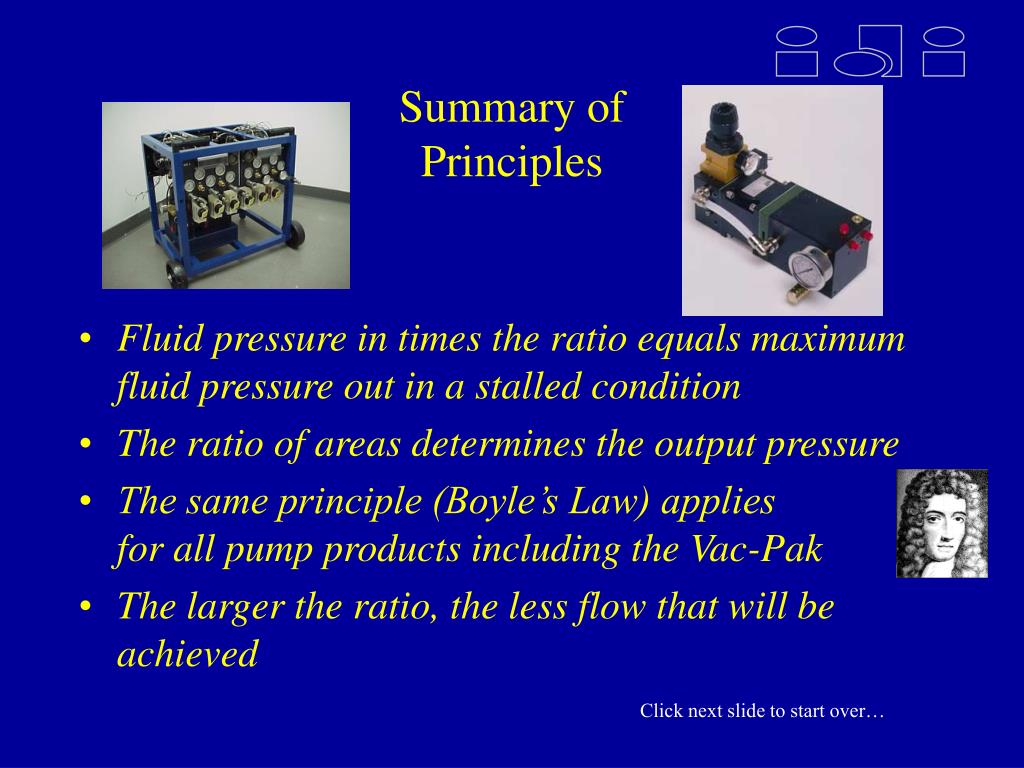

  14. Summary ofPrinciples • Fluid pressure in times the ratio equals maximum fluid pressure out in a stalled condition • The ratio of areas determines the output pressure • The same principle (Boyle’s Law) appliesfor all pump products including the Vac-Pak • The larger the ratio, the less flow that will be achieved Click next slide to start over…
