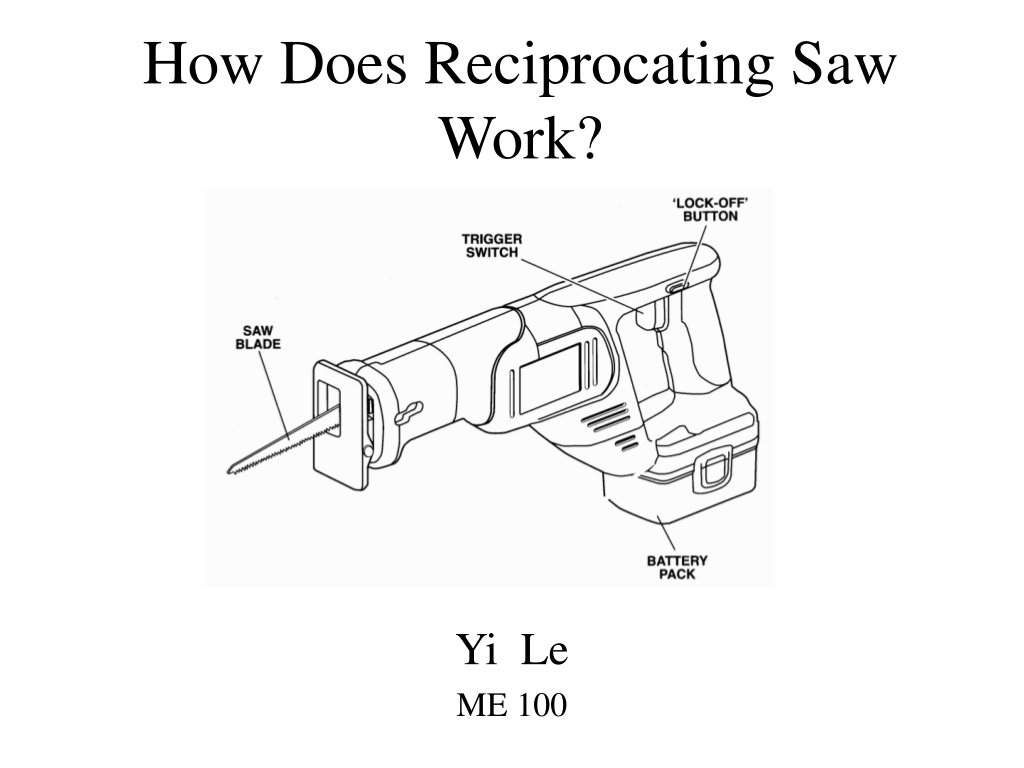

  1. How Does Reciprocating Saw Work? Yi Le ME 100

  2. Crank Slider Mechanism • Rotating circular crank • Reciprocating slider attached to the crank

  3. The Saw Shaft • Circular gear as the crank • A short slider • An reciprocating arm

  4. The Whole Picture • The gear crank and the motor • The saw

  5. References • http://www.flying-pig.co.uk/mechanisms/pages/crankslider.html • http://www.deyes.sefton.sch.uk/technology/AS&Alevel/mechanical_systems.htm • http://www.csunitec.com/saws/recip_fox.html • Mastercraft, 14.4 V Cordless Reciprocating Saw Operating Manual.
