Robot Integration and Testing. Pat Arrigo – Team Lead/ME Wes Coleman – ME Steve Guenther – EE Adam Spirer – EE Vernon Vantucci – CE Aaron Zimmerman - ME. Introduction. Third Team on Project Track Inherited Project from Locomotion and Navigation Teams

wenda
Download Presentation

Robot Integration and Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

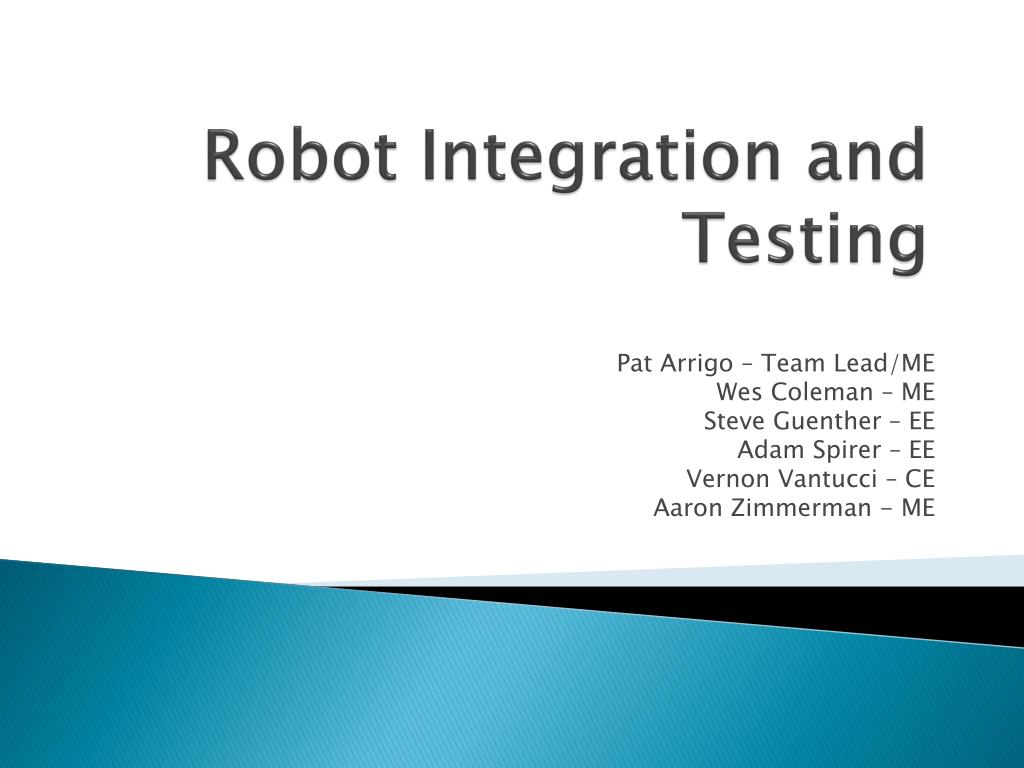

  1. Robot Integration and Testing Pat Arrigo – Team Lead/ME Wes Coleman – ME Steve Guenther – EE Adam Spirer – EE Vernon Vantucci– CE Aaron Zimmerman - ME

  2. Introduction • Third Team on Project Track • Inherited Project from Locomotion and Navigation Teams • Worked in parallel with Robot Applications Team

  3. Initial Project Expectations and Goals • Fully Integrate Navigation Software/Electrical Components with Locomotion Chassis and Motors/Motor Control • Test Customer Specifications • Integrate Robot with Application Team’s Software • Create and Mount shell to Chassis and Paint

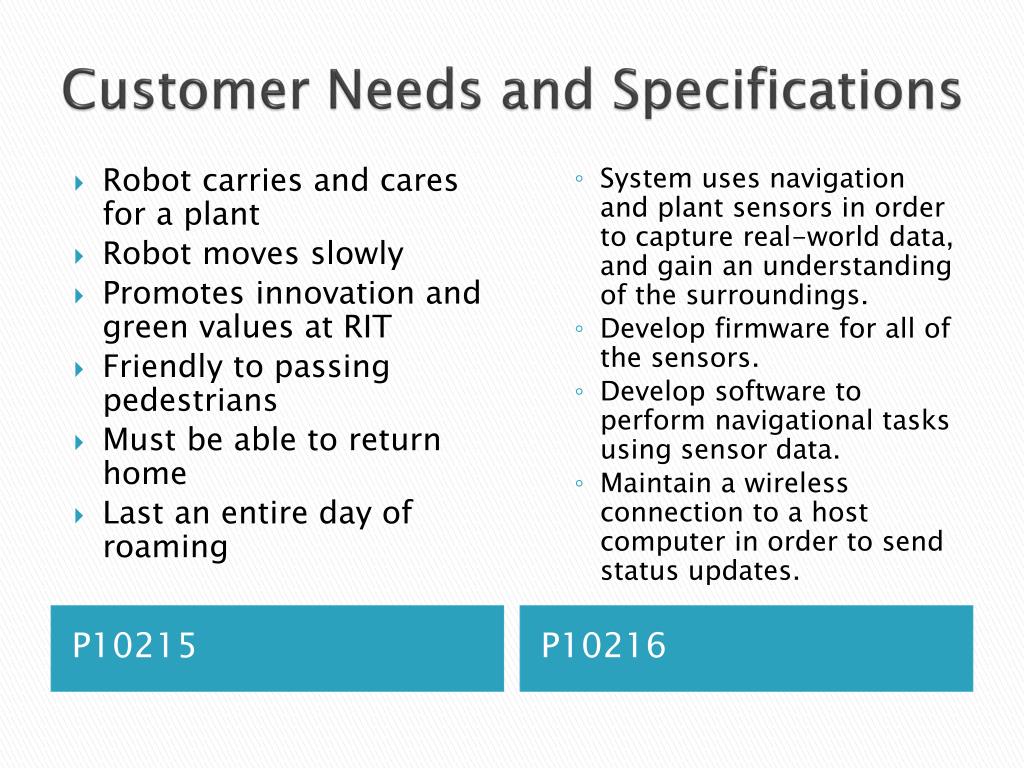

  4. Customer Needs and Specifications • Robot carries and cares for a plant • Robot moves slowly • Promotes innovation and green values at RIT • Friendly to passing pedestrians • Must be able to return home • Last an entire day of roaming • System uses navigation and plant sensors in order to capture real-world data, and gain an understanding of the surroundings. • Develop firmware for all of the sensors. • Develop software to perform navigational tasks using sensor data. • Maintain a wireless connection to a host computer in order to send status updates. P10215 P10216

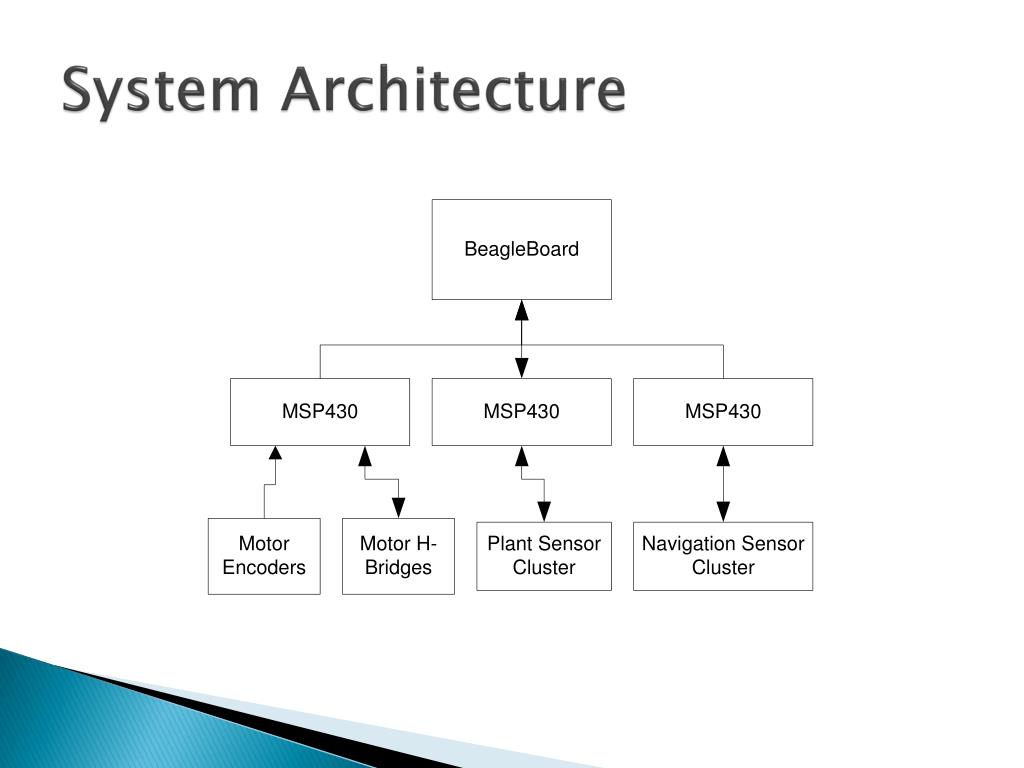

  5. System Architecture

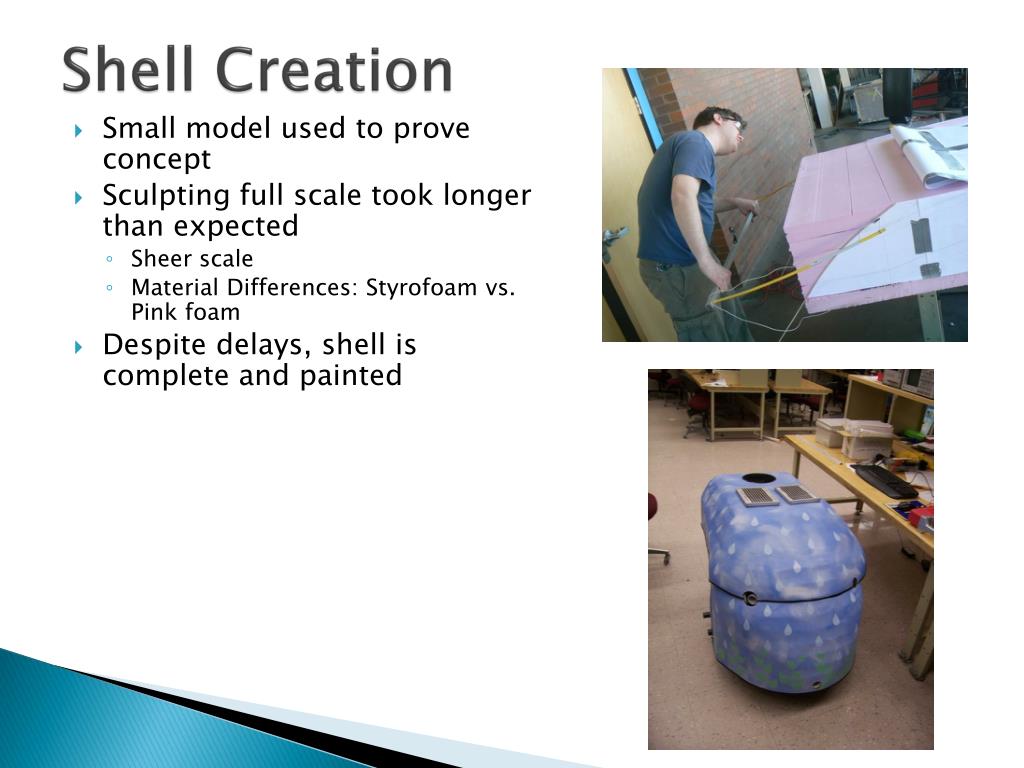

  6. Shell Creation • Small model used to prove concept • Sculpting full scale took longer than expected • Sheer scale • Material Differences: Styrofoam vs. Pink foam • Despite delays, shell is complete and painted

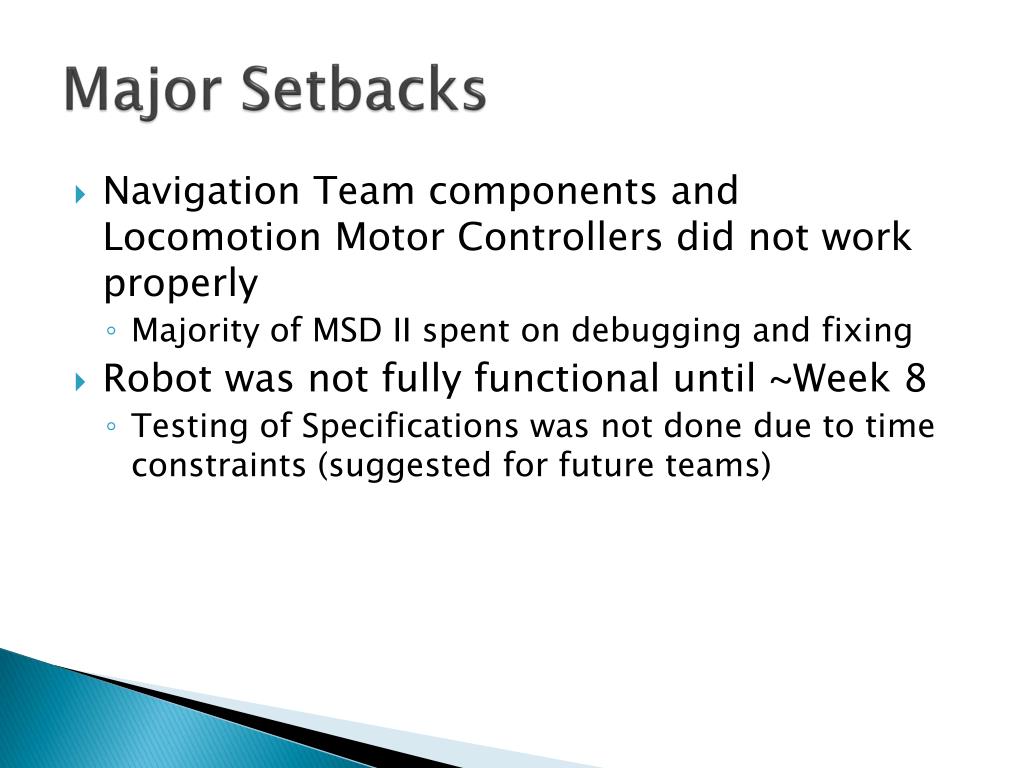

  7. Major Setbacks • Navigation Team components and Locomotion Motor Controllers did not work properly • Majority of MSD II spent on debugging and fixing • Robot was not fully functional until ~Week 8 • Testing of Specifications was not done due to time constraints (suggested for future teams)

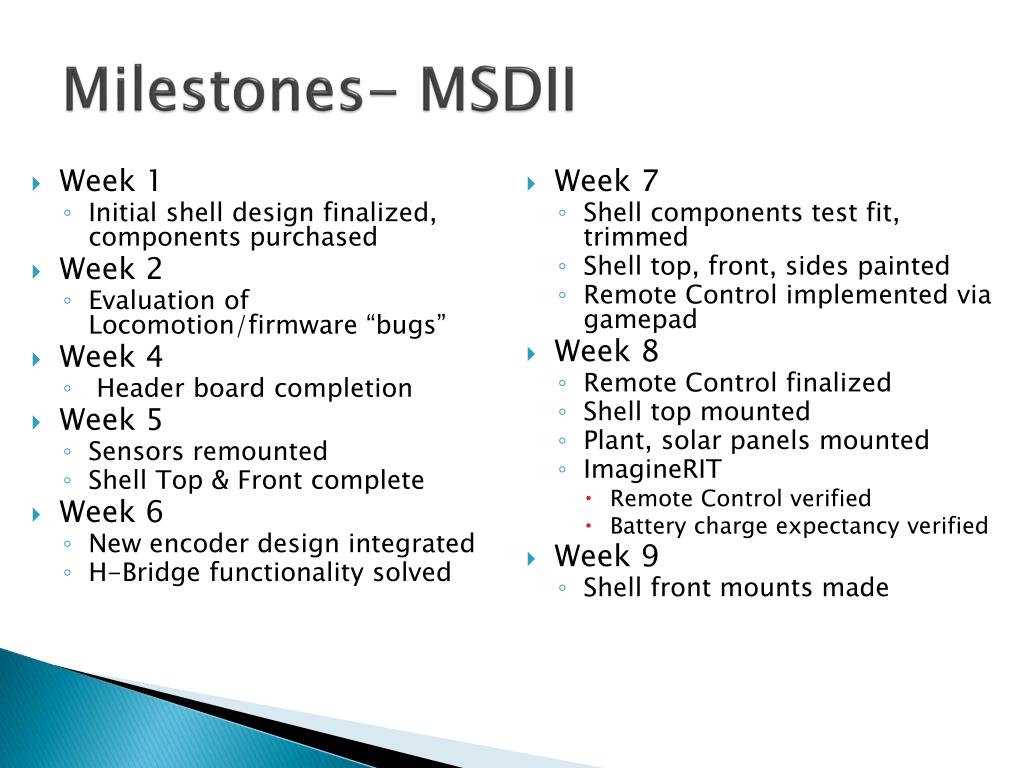

  8. Milestones- MSDII • Week 1 • Initial shell design finalized, components purchased • Week 2 • Evaluation of Locomotion/firmware “bugs” • Week 4 • Header board completion • Week 5 • Sensors remounted • Shell Top & Front complete • Week 6 • New encoder design integrated • H-Bridge functionality solved • Week 7 • Shell components test fit, trimmed • Shell top, front, sides painted • Remote Control implemented via gamepad • Week 8 • Remote Control finalized • Shell top mounted • Plant, solar panels mounted • ImagineRIT • Remote Control verified • Battery charge expectancy verified • Week 9 • Shell front mounts made

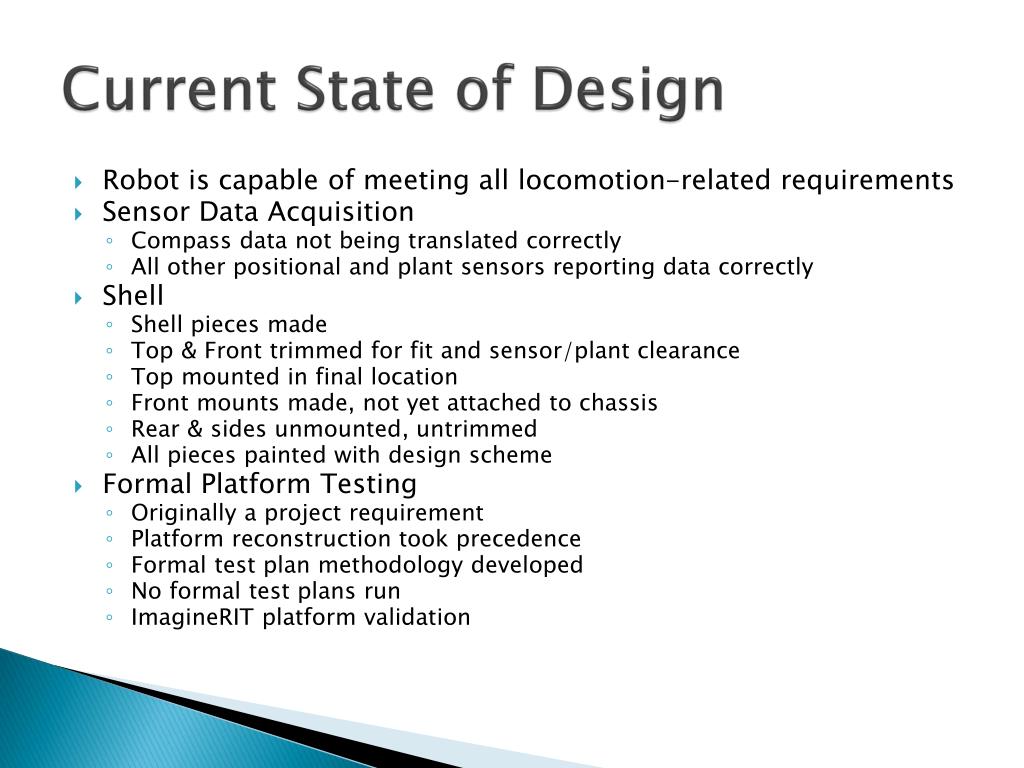

  9. Current State of Design • Robot is capable of meeting all locomotion-related requirements • Sensor Data Acquisition • Compass data not being translated correctly • All other positional and plant sensors reporting data correctly • Shell • Shell pieces made • Top & Front trimmed for fit and sensor/plant clearance • Top mounted in final location • Front mounts made, not yet attached to chassis • Rear & sides unmounted, untrimmed • All pieces painted with design scheme • Formal Platform Testing • Originally a project requirement • Platform reconstruction took precedence • Formal test plan methodology developed • No formal test plans run • ImagineRIT platform validation

  10. Suggestions for Future Teams • Test customer specifications (velocity, turning radius etc.) • Powder coat the chassis to prevent rust • Purchase printed circuit board • Integrate Application software with current Robot (to make autonomous) • Add 2 more rear Sonar Sensors • To guard against the back end of Robot bumping into things as it turns

  11. Summary • Number of Original Project Goals Met: 0 • Number of Robots Created: 1 • Senior Design Course: 0 • Senior Design Team: 1
