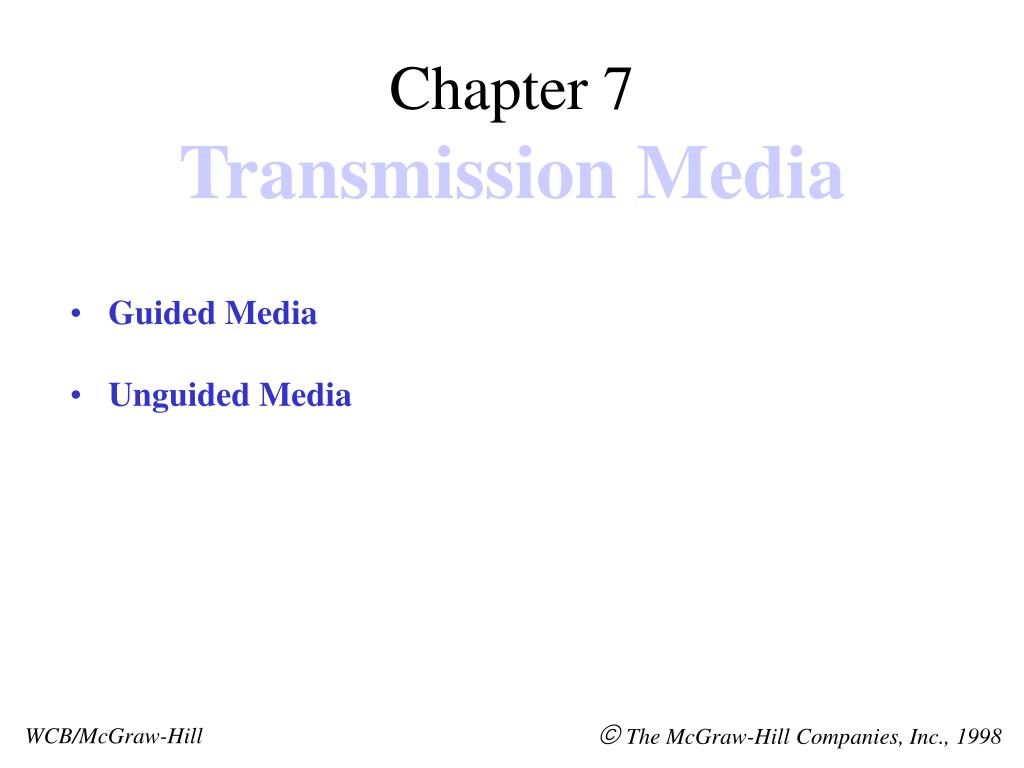

  1. Chapter 7Transmission Media • Guided Media • Unguided Media The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

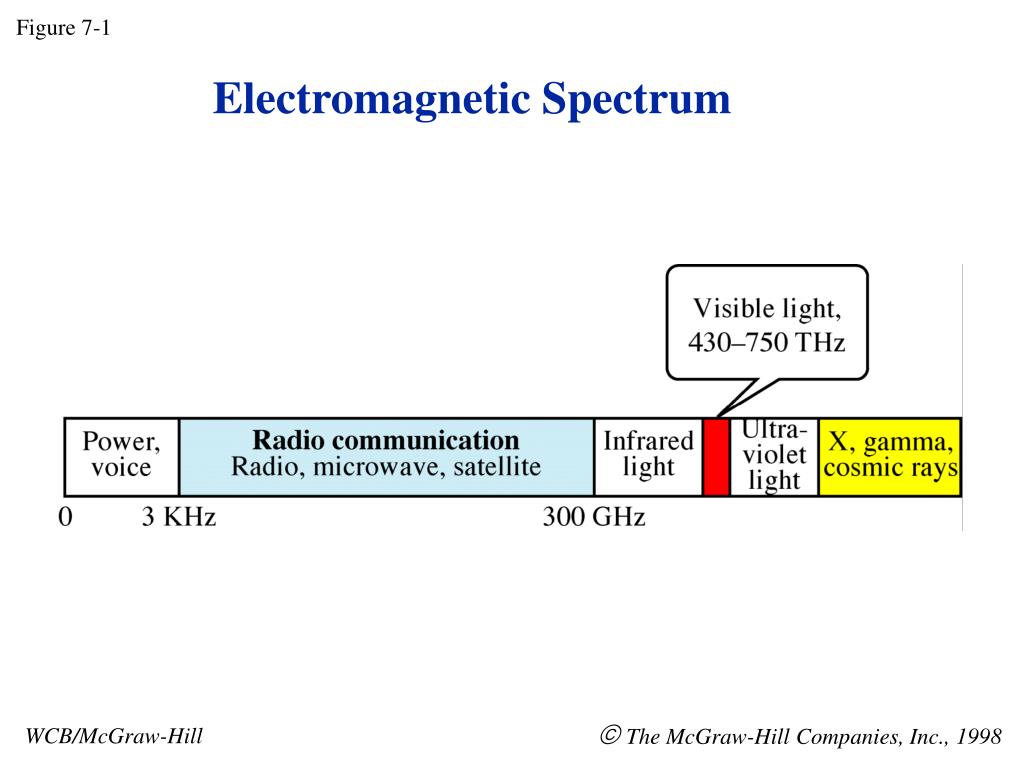

  2. Figure 7-1 Electromagnetic Spectrum The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

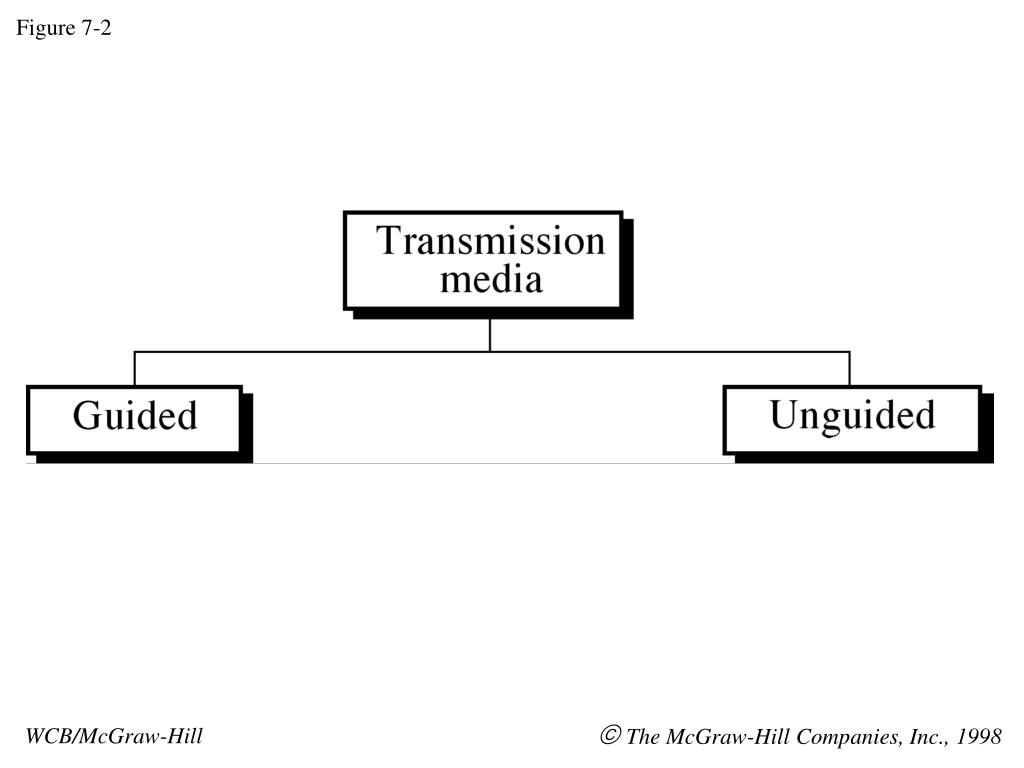

  3. Figure 7-2 The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

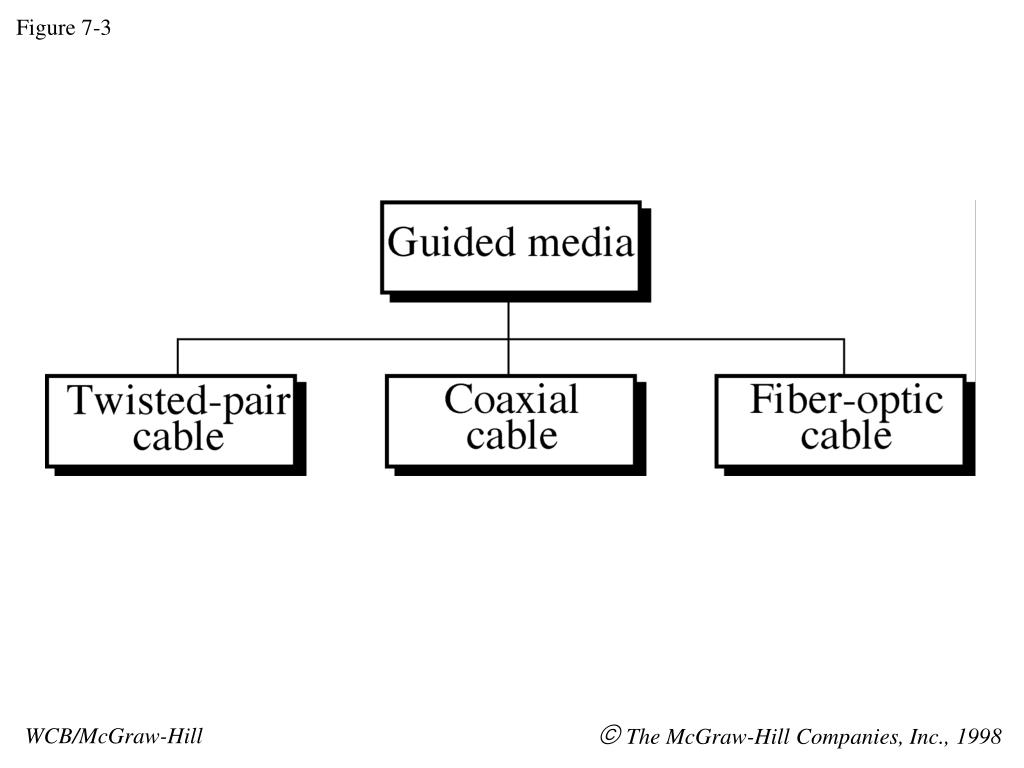

  4. Figure 7-3 The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  5. Twisted-Pair Cable Figure 7-4 and 7-5 The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

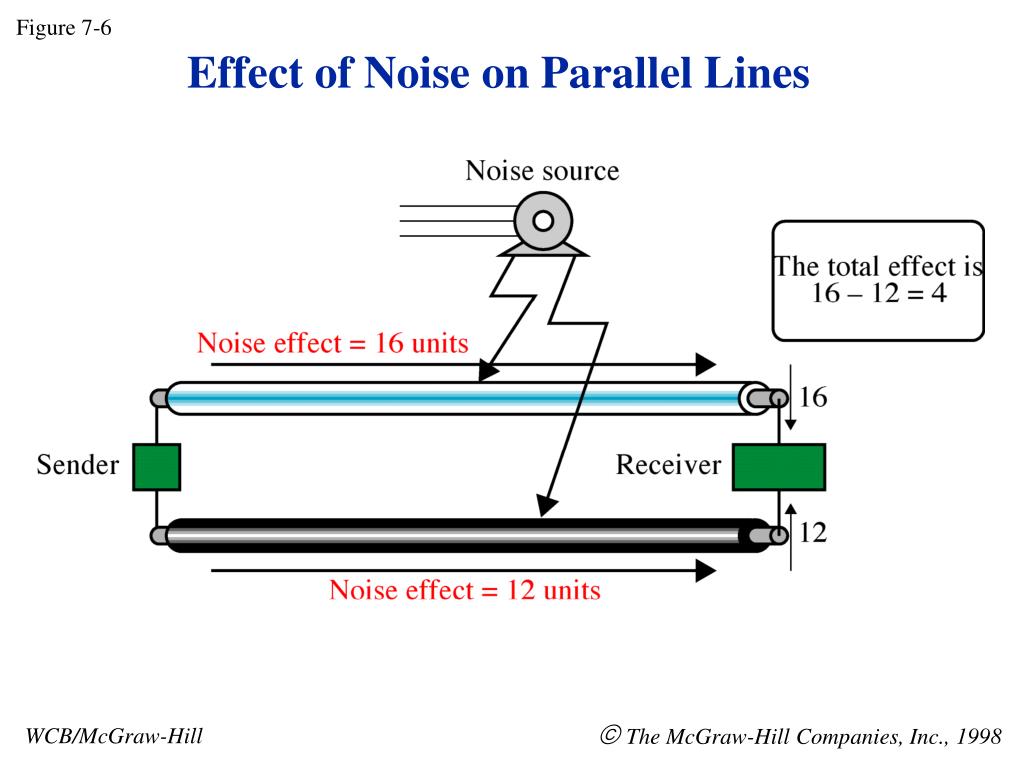

  6. Figure 7-6 Effect of Noise on Parallel Lines The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

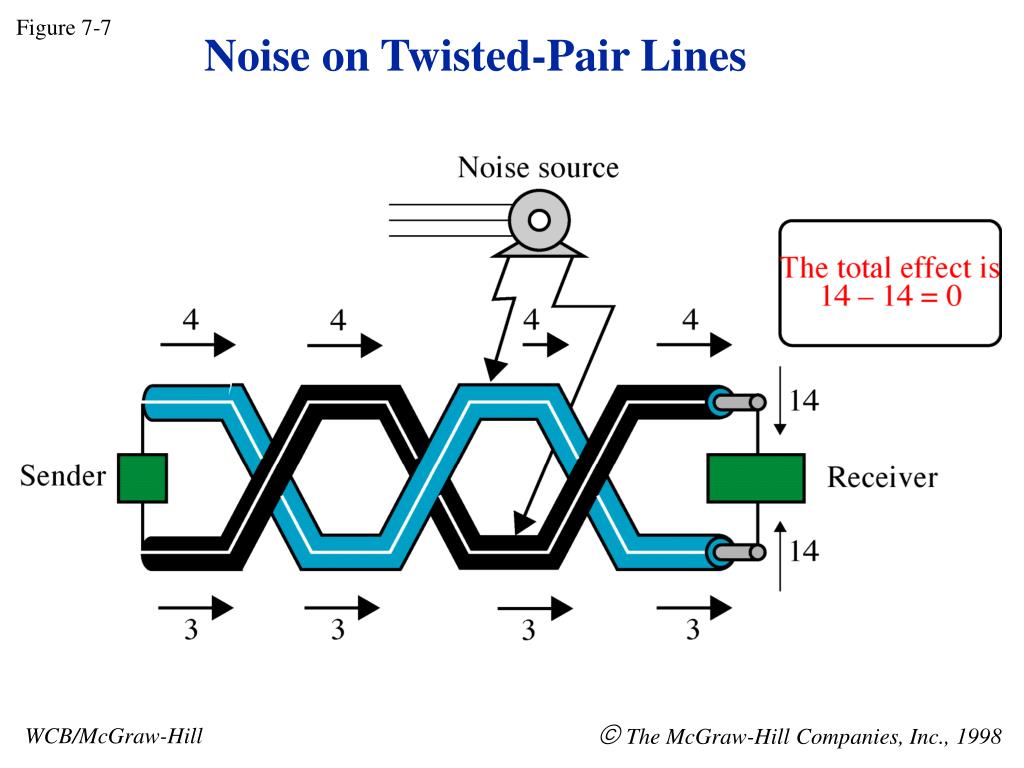

  7. Figure 7-7 Noise on Twisted-Pair Lines The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

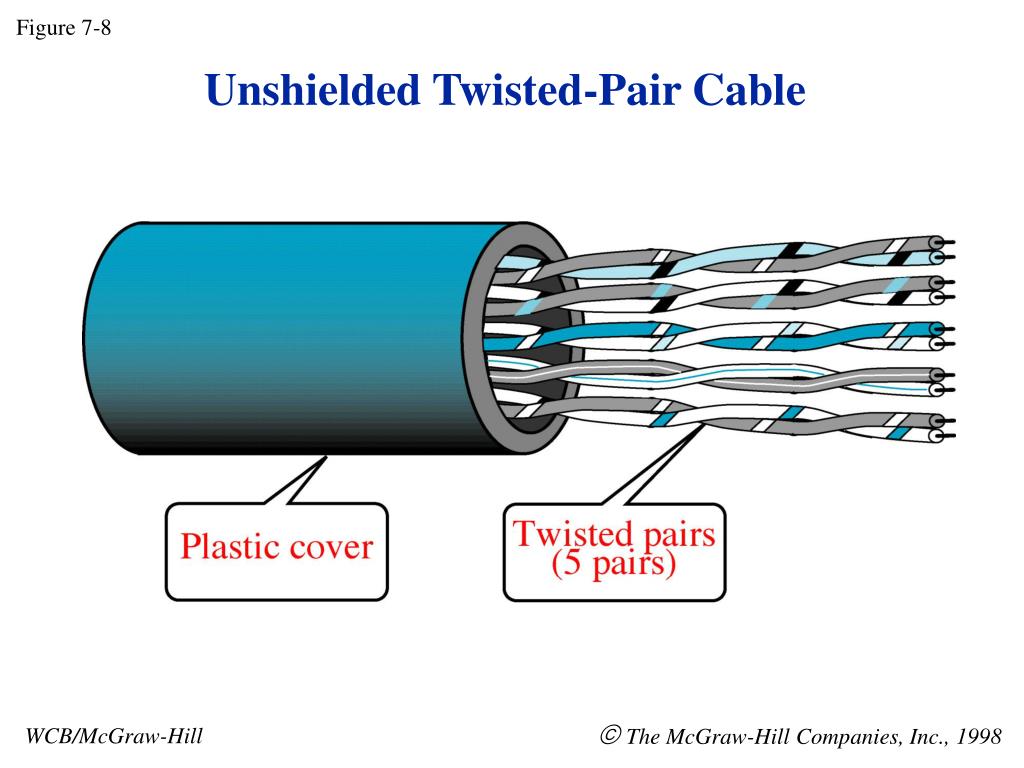

  8. Figure 7-8 Unshielded Twisted-Pair Cable The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

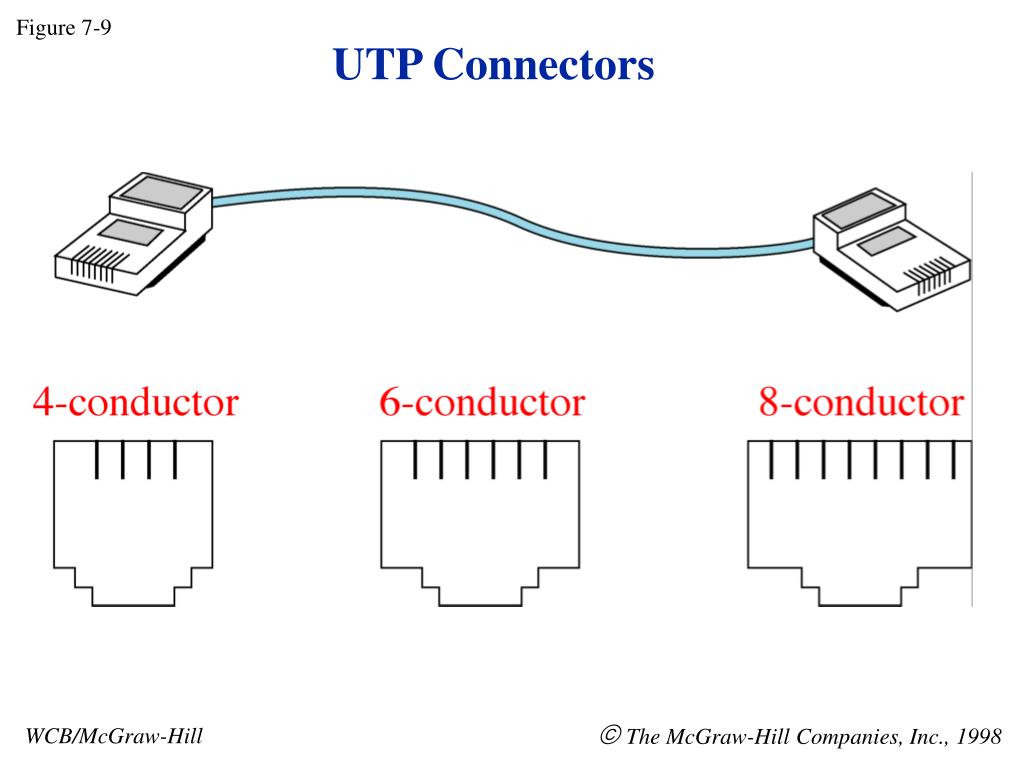

  9. Figure 7-9 UTP Connectors The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

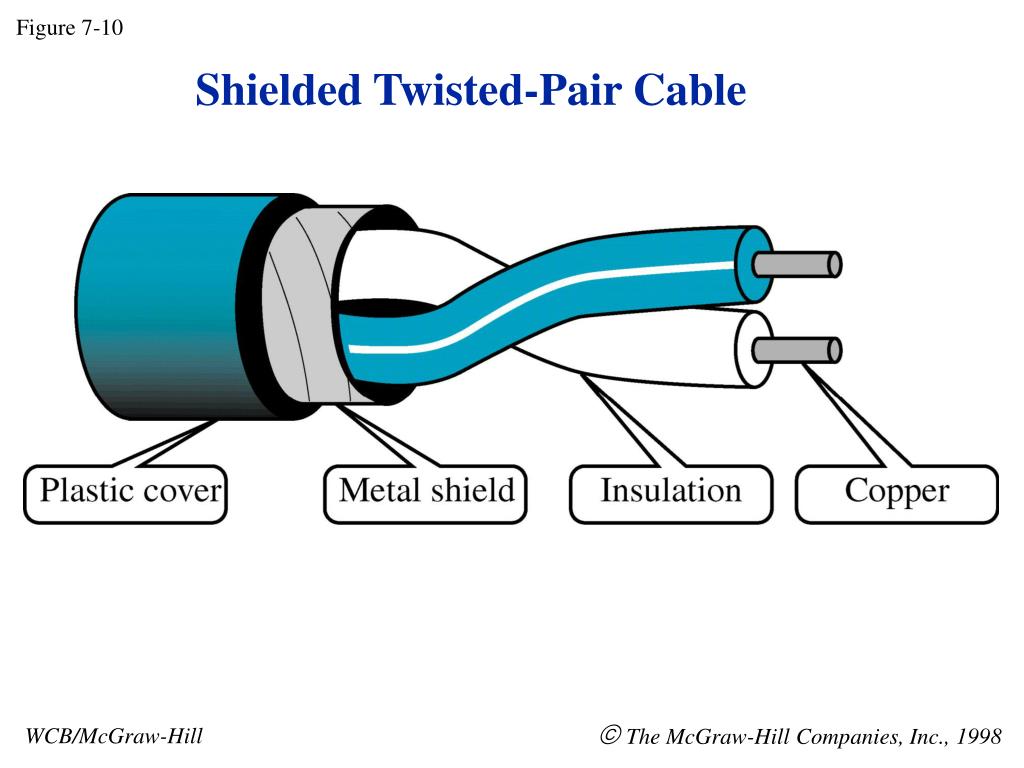

  10. Figure 7-10 Shielded Twisted-Pair Cable The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  11. Coaxial Cable Figure 7-11 and 7-12 The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

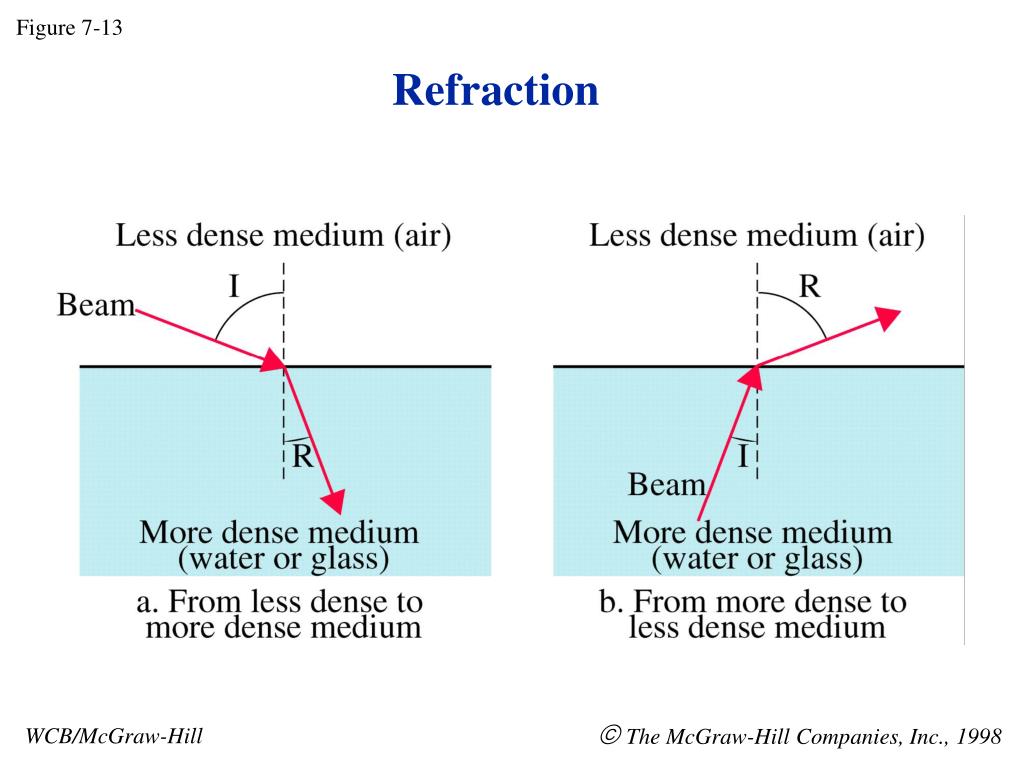

  12. Figure 7-13 Refraction The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

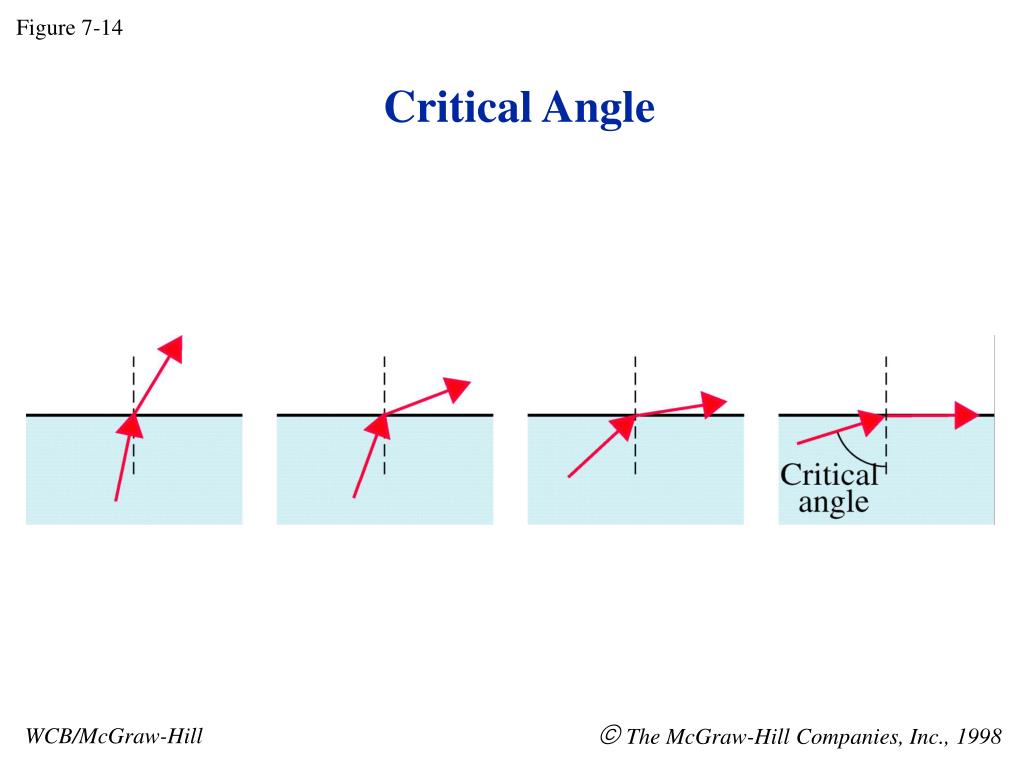

  13. Figure 7-14 Critical Angle The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  14. Figure 7-15 Reflection The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

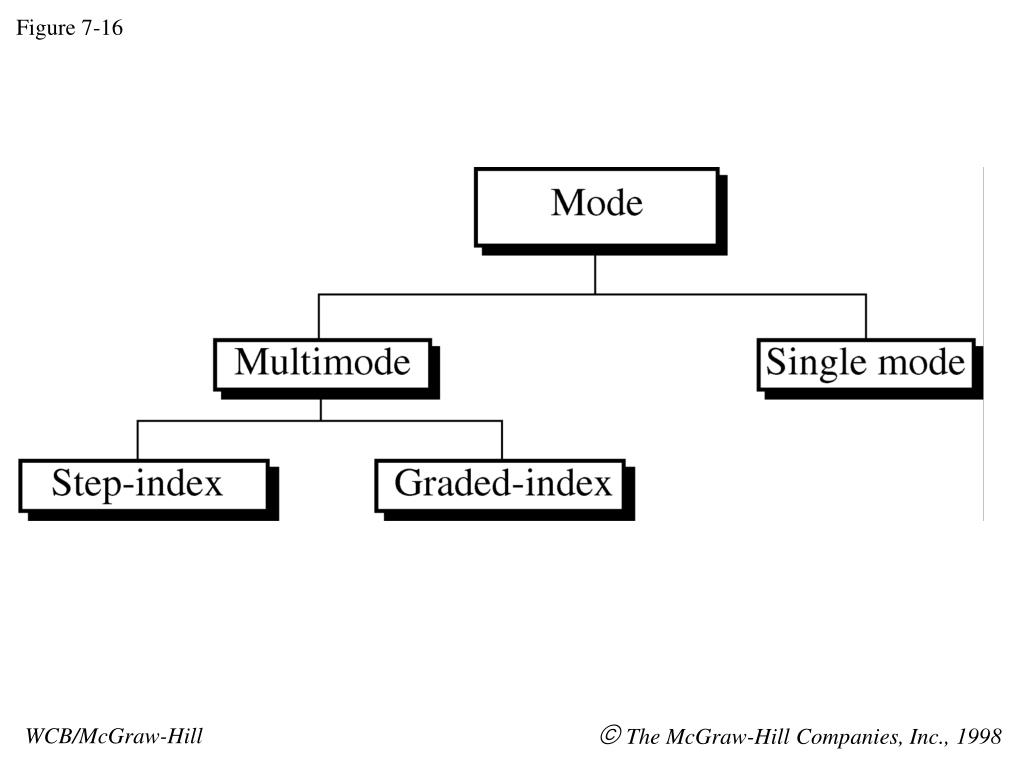

  15. Figure 7-16 The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  16. Figure 7-17 Multimode Step-Index The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

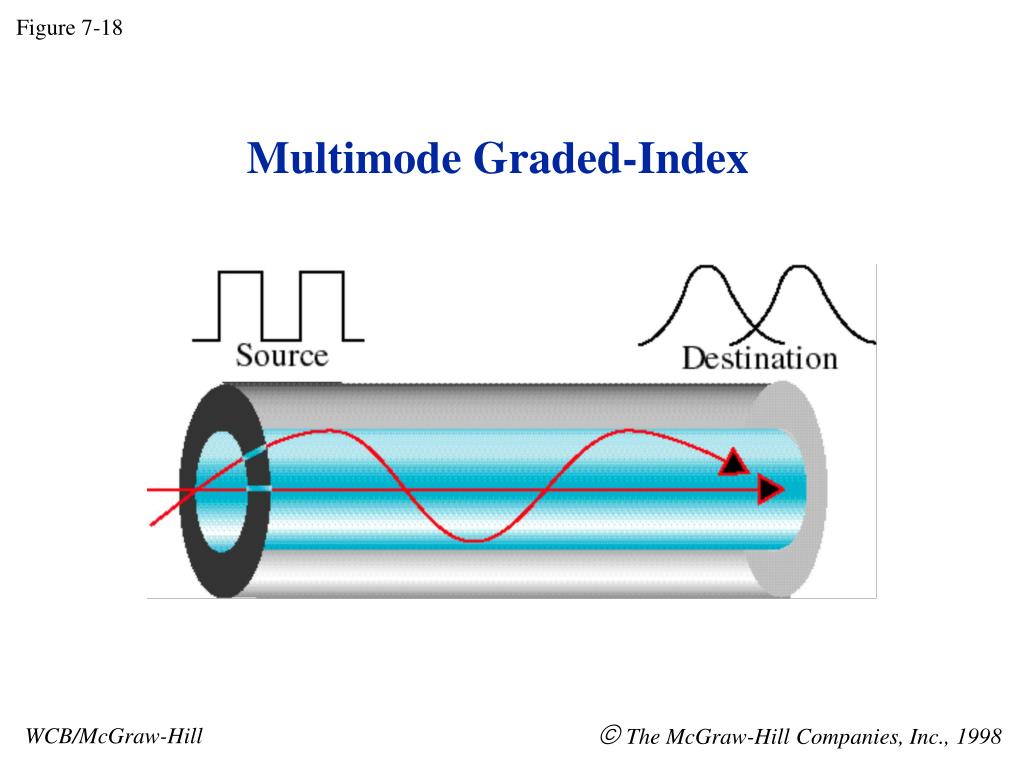

  17. Figure 7-18 Multimode Graded-Index The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  18. Figure 7-19 Single Mode The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

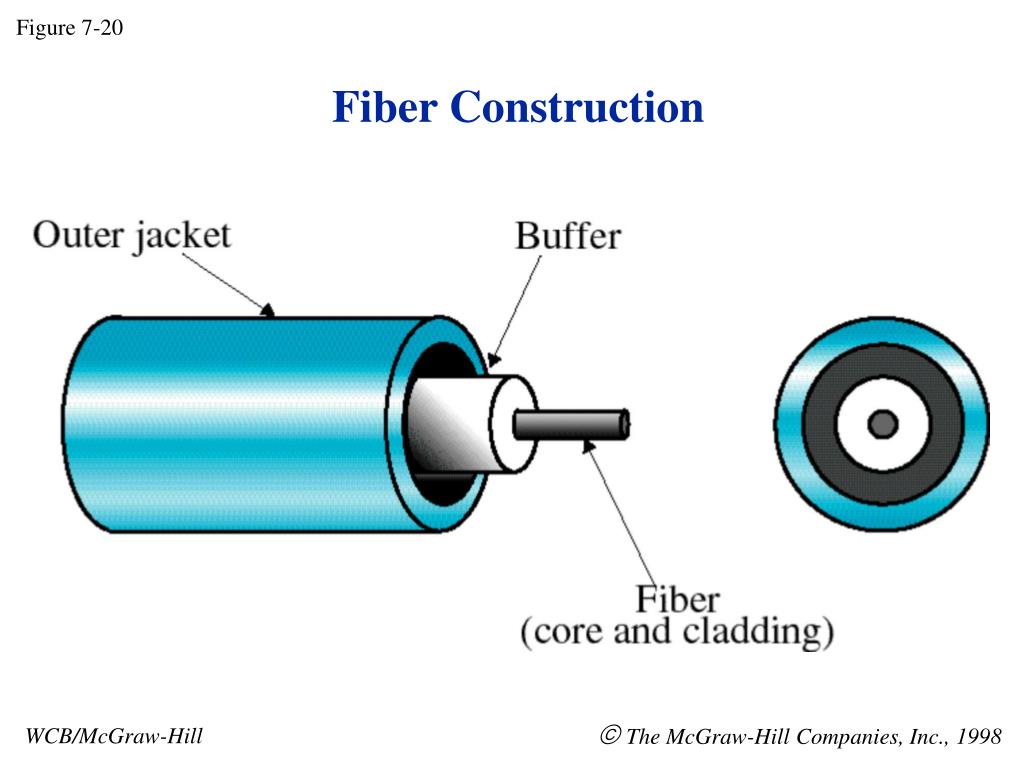

  19. Figure 7-20 Fiber Construction The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

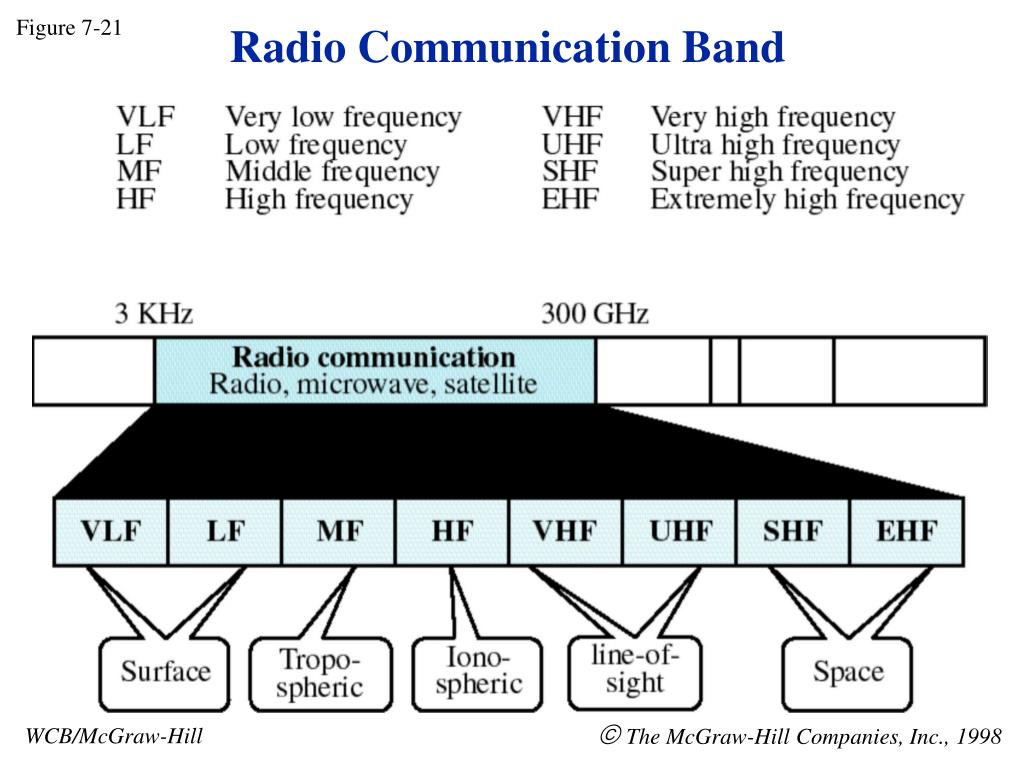

  20. Figure 7-21 Radio Communication Band The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

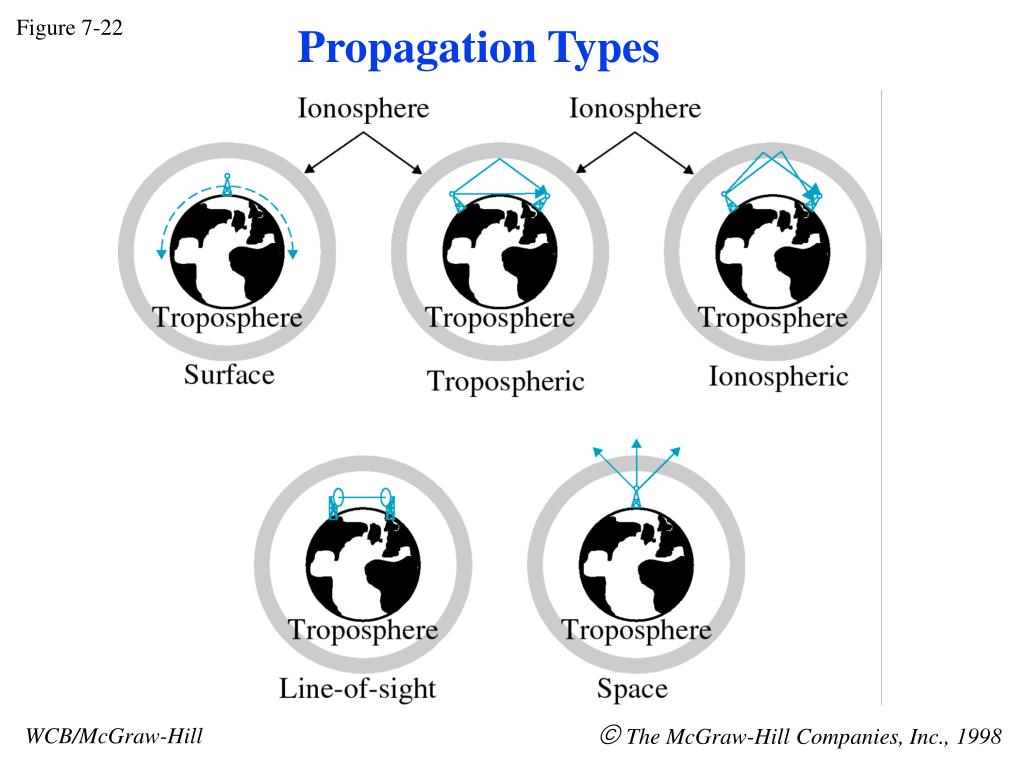

  21. Figure 7-22 Propagation Types The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

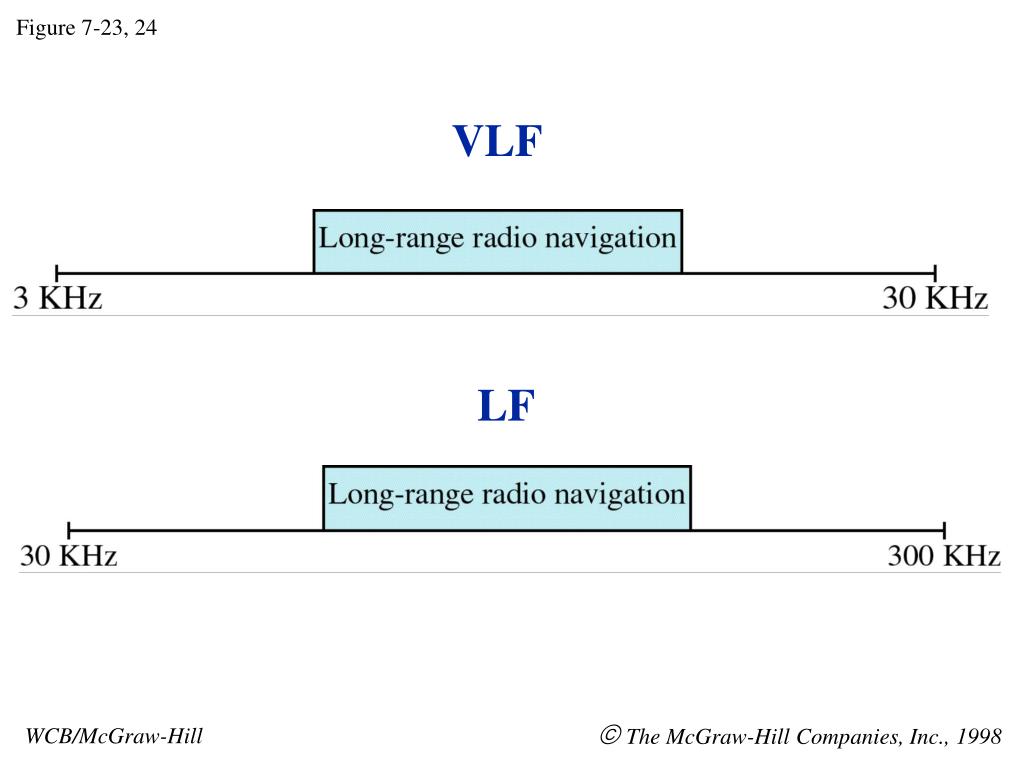

  22. Figure 7-23, 24 VLF LF The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

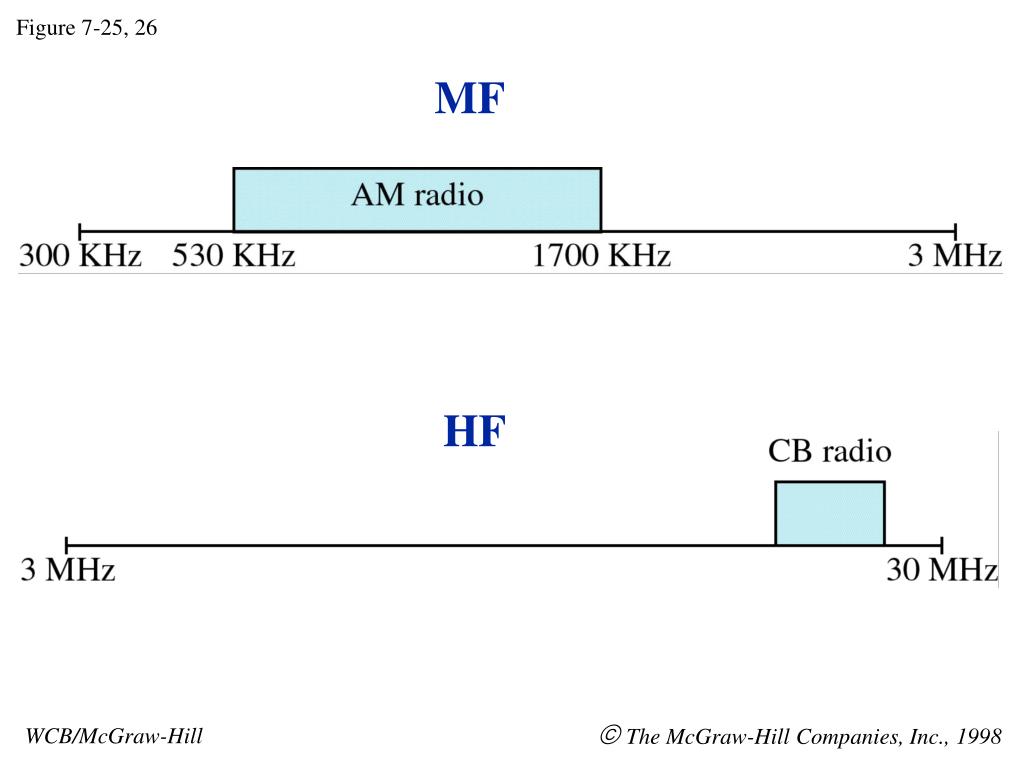

  23. Figure 7-25, 26 MF HF The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  24. Figure 7-27, 28 VHF UHF The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  25. Figure 7-29, 30 SHF EHF The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  26. Figure 7-31 Terrestrial Microwave The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

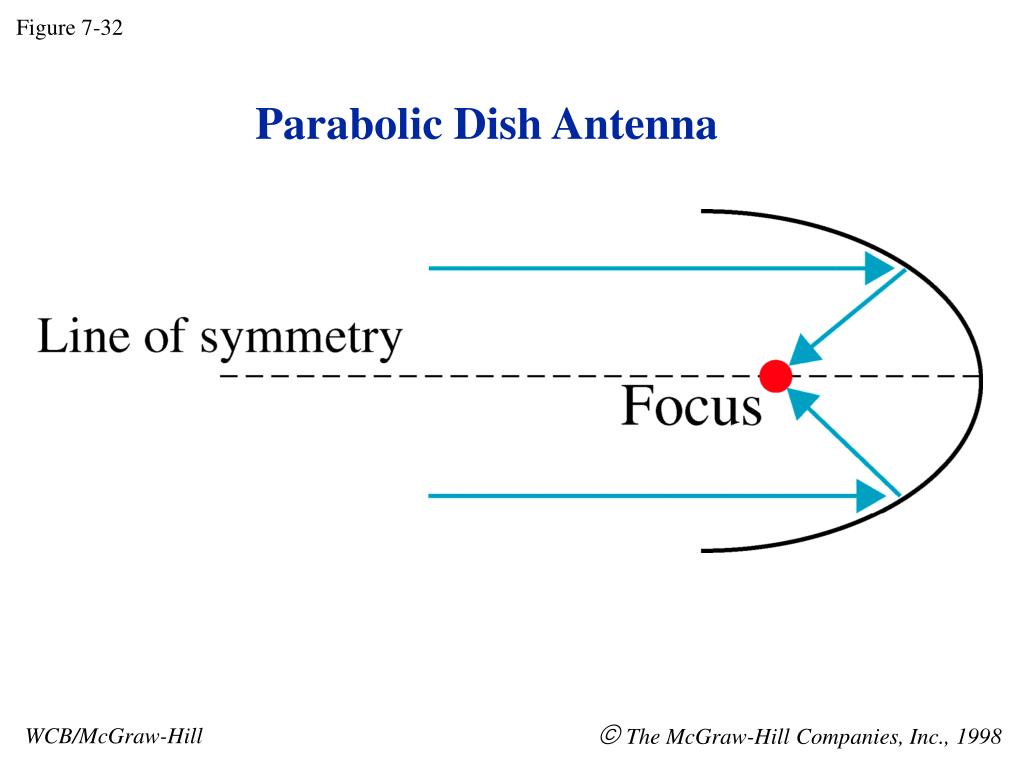

  27. Figure 7-32 Parabolic Dish Antenna The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  28. Figure 7-33 Horn Antenna The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

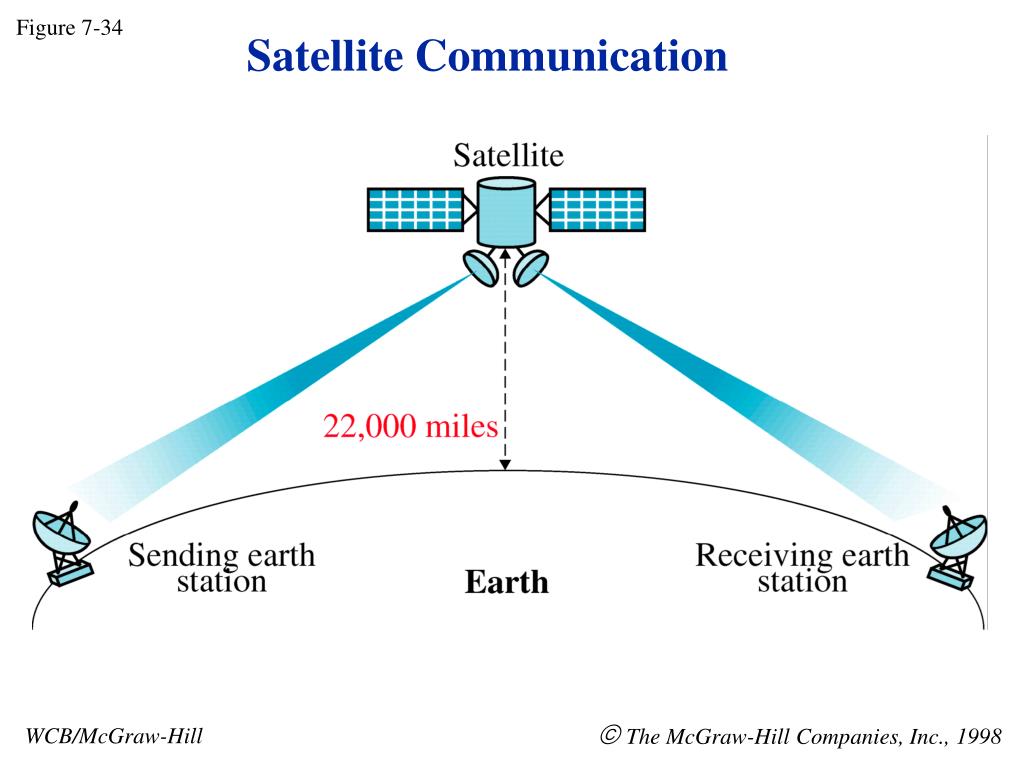

  29. Figure 7-34 Satellite Communication The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  30. Figure 7-35 Geosynchronous Orbit The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

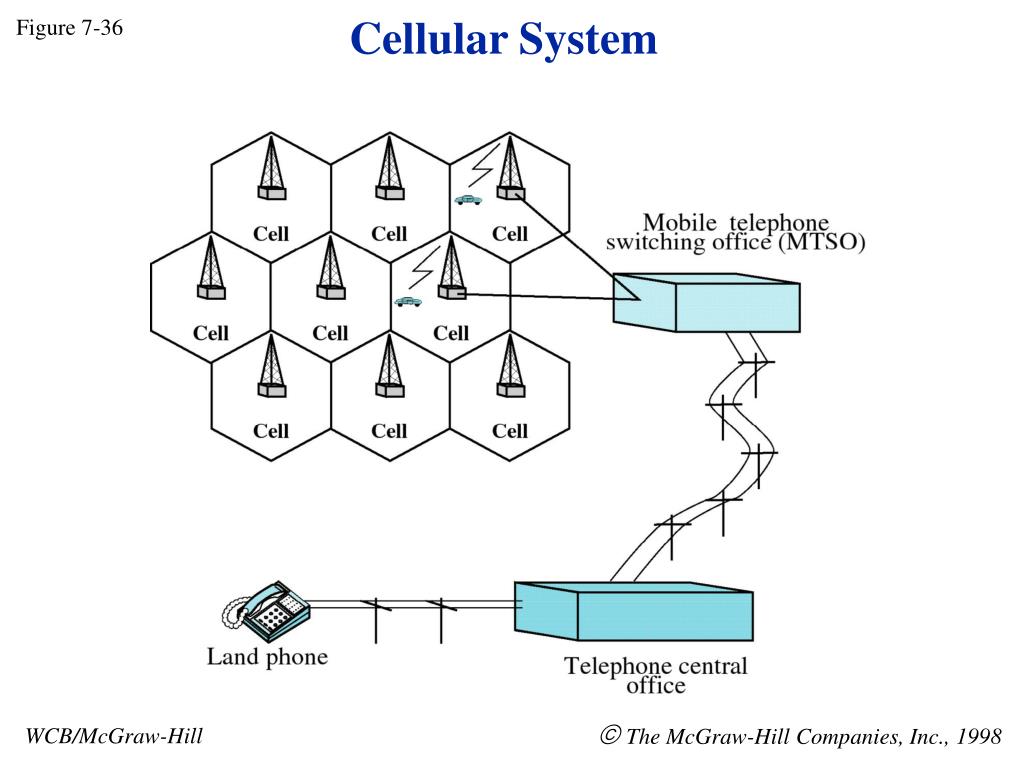

  31. Cellular System Figure 7-36 The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

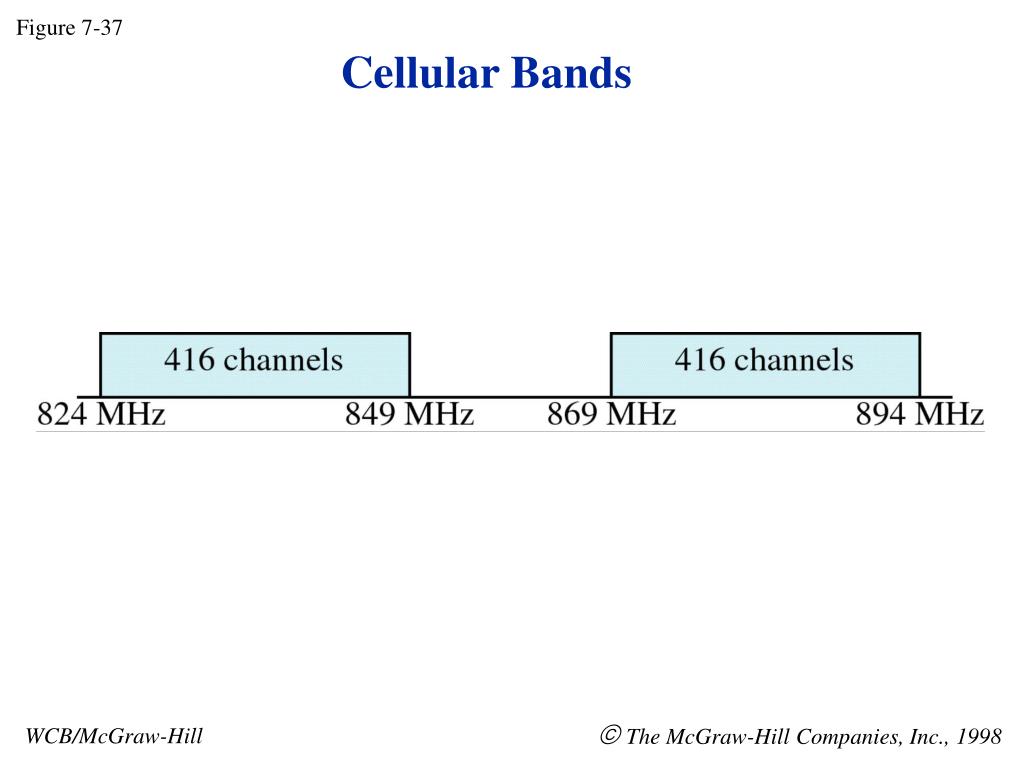

  32. Figure 7-37 Cellular Bands The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  33. Transmission Impairment • Attenuation • Loss of energy • Caused by resistance • dB = 10log10 Pout/Pin • -3dB is loss of half power + 3dB is double

  34. Distortion • Changes from original shape • Only occurs in composite signals • Each signal component has it’s own propagation speed

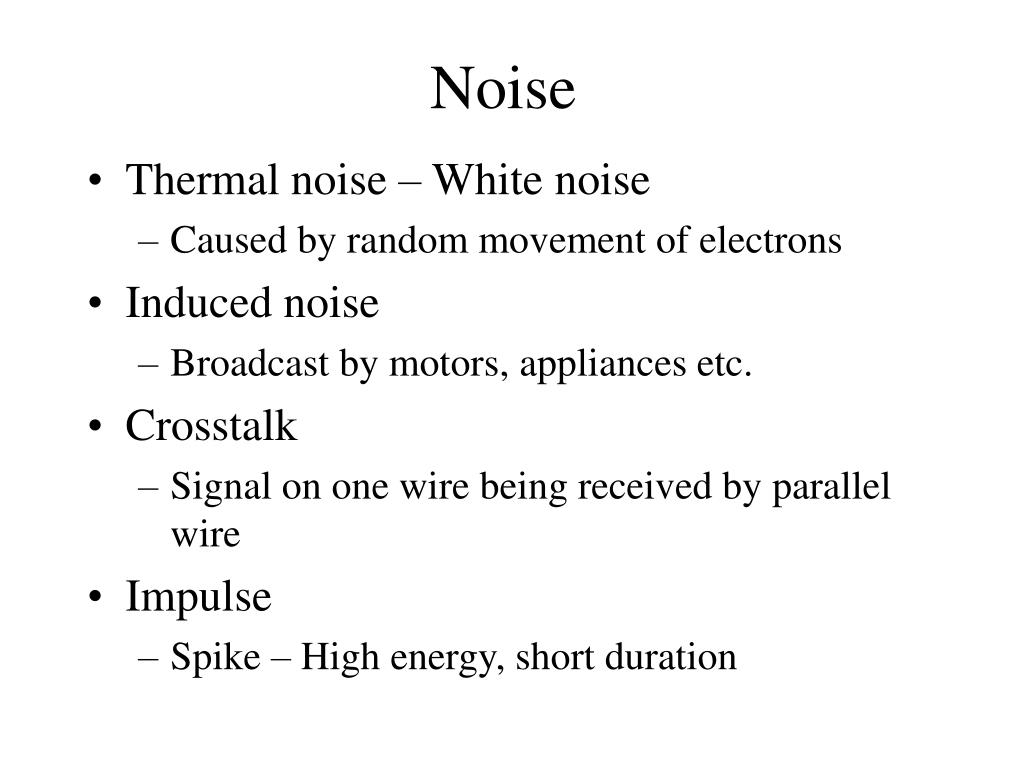

  35. Noise • Thermal noise – White noise • Caused by random movement of electrons • Induced noise • Broadcast by motors, appliances etc. • Crosstalk • Signal on one wire being received by parallel wire • Impulse • Spike – High energy, short duration

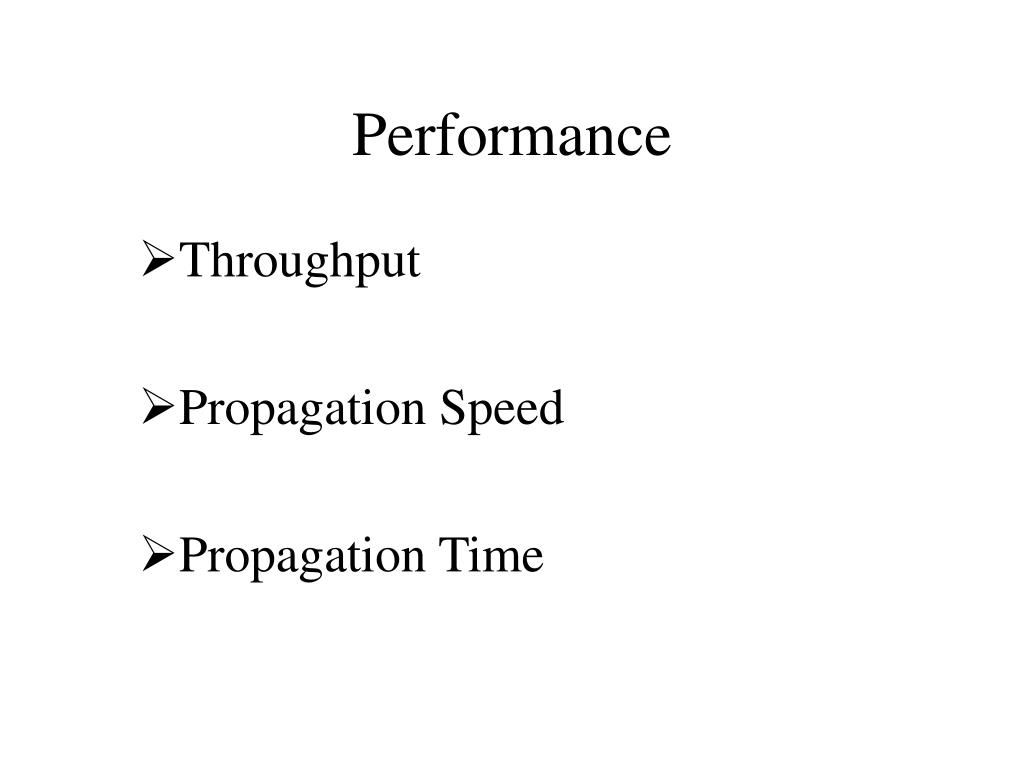

  36. Performance • Throughput • Propagation Speed • Propagation Time

  37. Throughput • Measurement of how fast data can pass through a point

  38. Propagation Speed • Distance a signal can travel through a medium in one second • Light in a vacuum 3 * 108 m/s • Almost same in twisted pair cable • Coax and Fiber 2 * 108 m/s for frequencies in MHz to GHz range

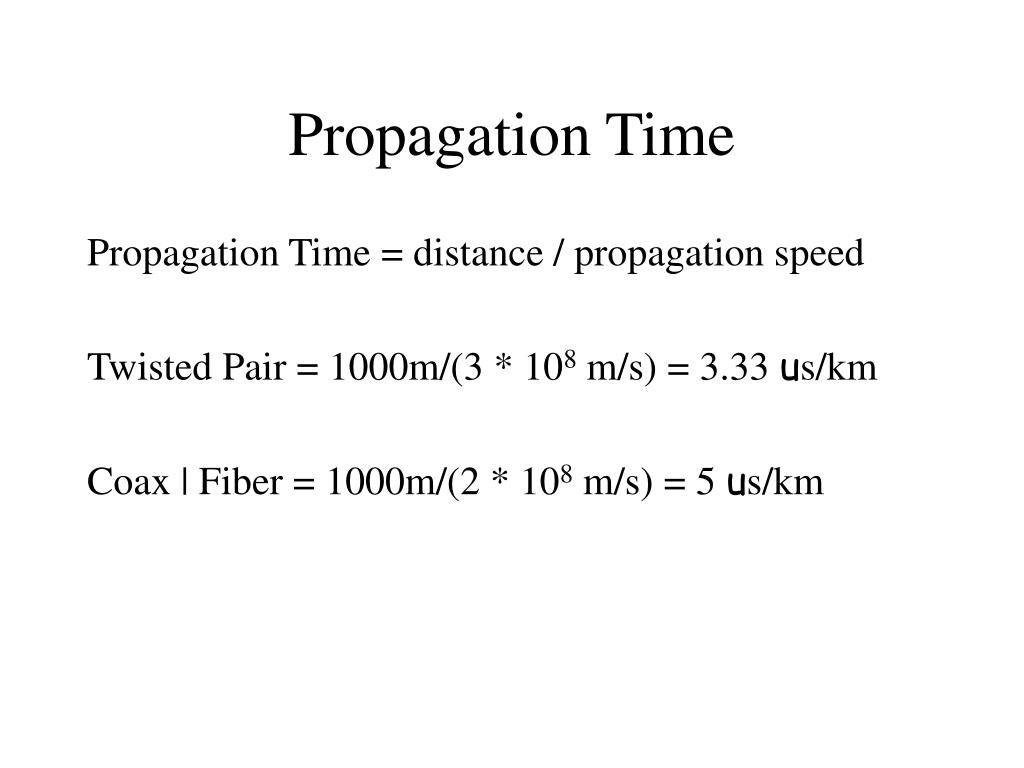

  39. Propagation Time Propagation Time = distance / propagation speed Twisted Pair = 1000m/(3 * 108 m/s) = 3.33 us/km Coax | Fiber = 1000m/(2 * 108 m/s) = 5 us/km

  40. Wavelength How Far signal travels in a period of time Wavelength = Propagation * Period • l= c/f • Red light in air f = 4*1014 • AIR = (3 * 108) / (4 * 1014) = .75 um • Coax/fiber = (2 * 108) / (4 * 1014) = . 5 um

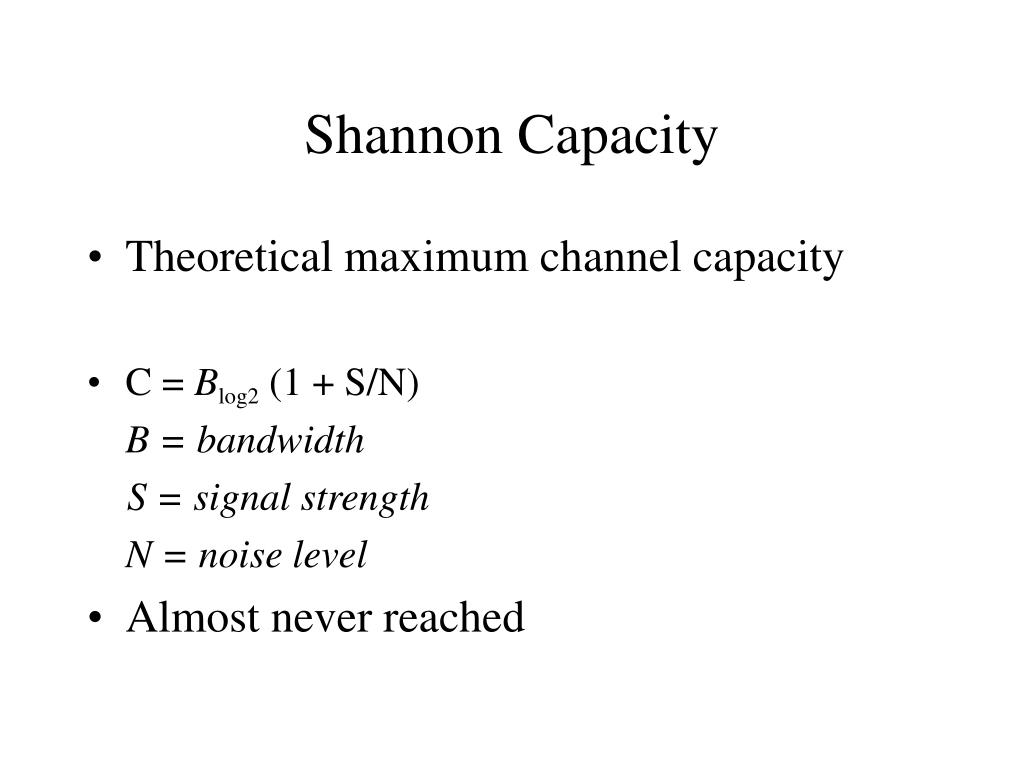

  41. Shannon Capacity • Theoretical maximum channel capacity • C = Blog2 (1 + S/N) B = bandwidth S = signal strength N = noise level • Almost never reached

  42. Shannon Capacity • C = Blog2 (1 + S/N) • Phone line example • B = 3300 – 300 = 3000 • S/n = 35db = 3162 • C = 3000 log2 (1 + 3162) = 3000 log2 (3163) • = 3000 * 11.62 = 34860 bps

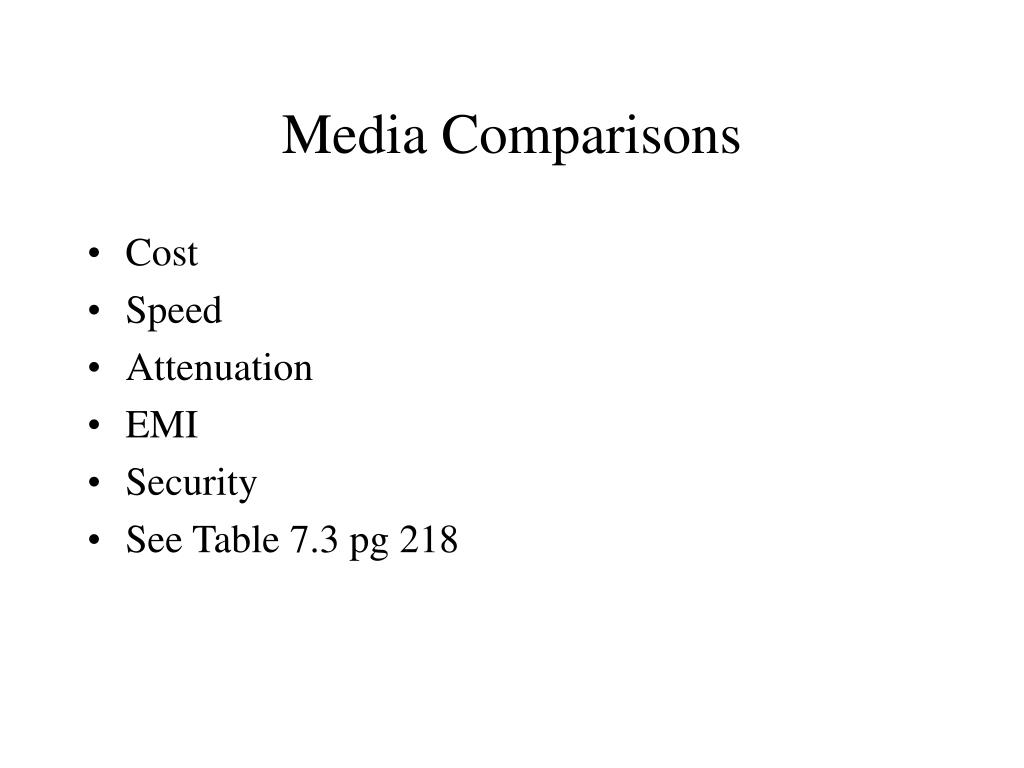

  43. Media Comparisons • Cost • Speed • Attenuation • EMI • Security • See Table 7.3 pg 218
