FINDING SET AND DRIFT

FINDING SET AND DRIFT. Given where you think you are going and where you end up you can find the CURRENT. A. DR. Find Start point “A” and draw DR line. This is a TRUE compass course or a course TO a given point. B. A. DR. Plot actual position “B”.

aglaia
Download Presentation

FINDING SET AND DRIFT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. FINDING SET AND DRIFT Given where you think you are going and where you end up you can find the CURRENT

  2. A DR Find Start point “A” and draw DR line. This is a TRUE compass course or a course TO a given point.

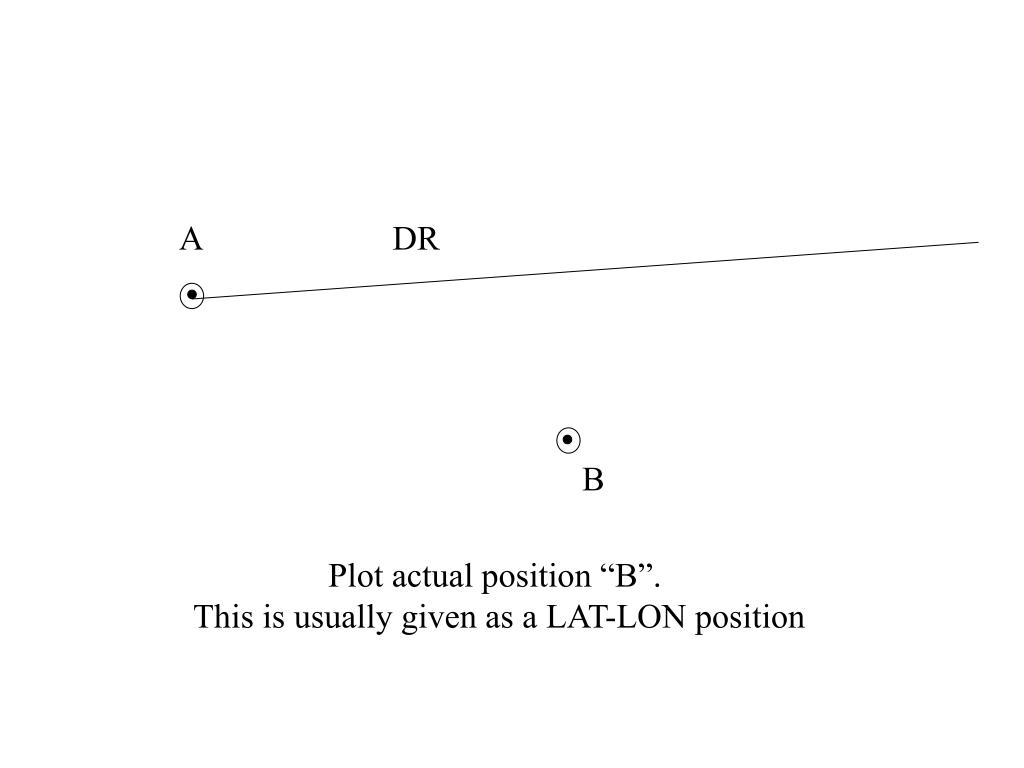

  3. B A DR Plot actual position “B”. This is usually given as a LAT-LON position

  4. B A DR TRACK The Boat has FOLLOWED the track from “A” to “B”

  5. B C A DR TRACK Calculate DR position “C”using same time as “B”. Plot ON DR line. (this is where you thought you should be)

  6. B C A DR Find SET TRACK Connect “C” to “B”. SET is direction from “C” to “B”

  7. B C A DR Find SET TRACK Connect “C” to “B”. SET is direction from “C” to “B”. To find direction use parallel rules and walk to compass rose.

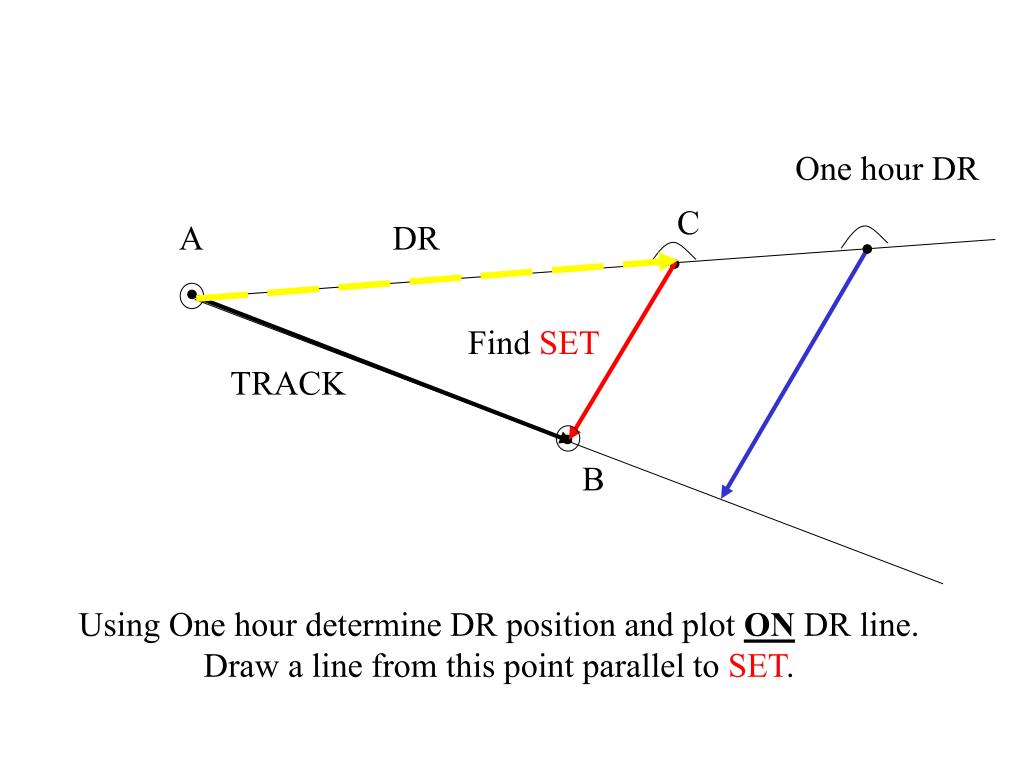

  8. B One hour DR C A DR Find SET TRACK Using One hour determine DR position and plot ON DR line. Draw a line from this point parallel to SET.

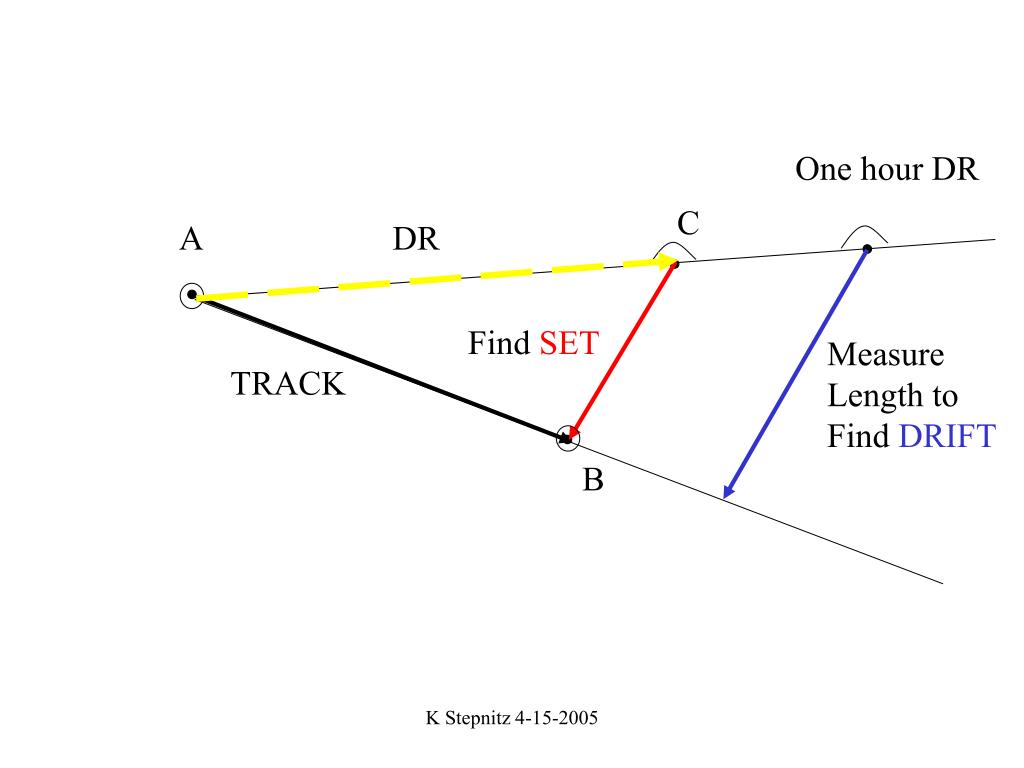

  9. B One hour DR C A DR Find SET Measure Length to Find DRIFT TRACK K Stepnitz 4-15-2005
