  1. Argos Emulator Georgios Portokalidis Asia Slowinska Herbert Bos Vrije Universiteit Amsterdam

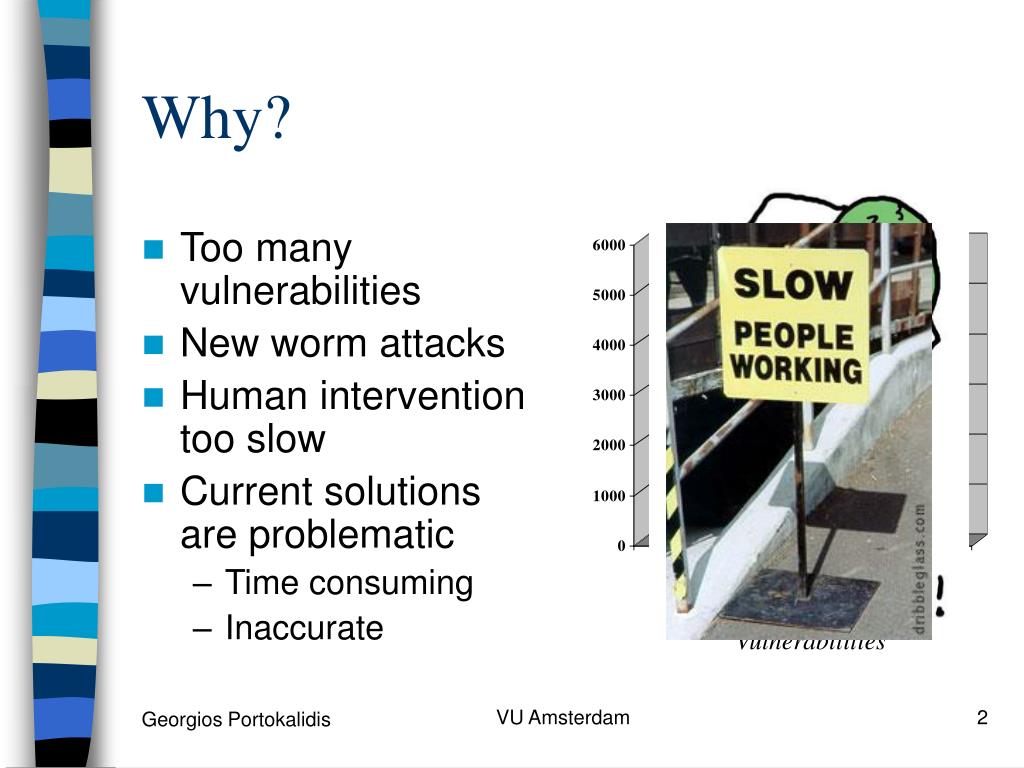

  2. CERT/CC Reported Vulnerabilities Why? • Too many vulnerabilities • New worm attacks • Human intervention too slow • Current solutions are problematic • Time consuming • Inaccurate VU Amsterdam

  3. Goals • Platform for next generation honeypots • Protect entire OS • Detect most common attack vectors • Accuracy VU Amsterdam

  4. It Works! VU Amsterdam

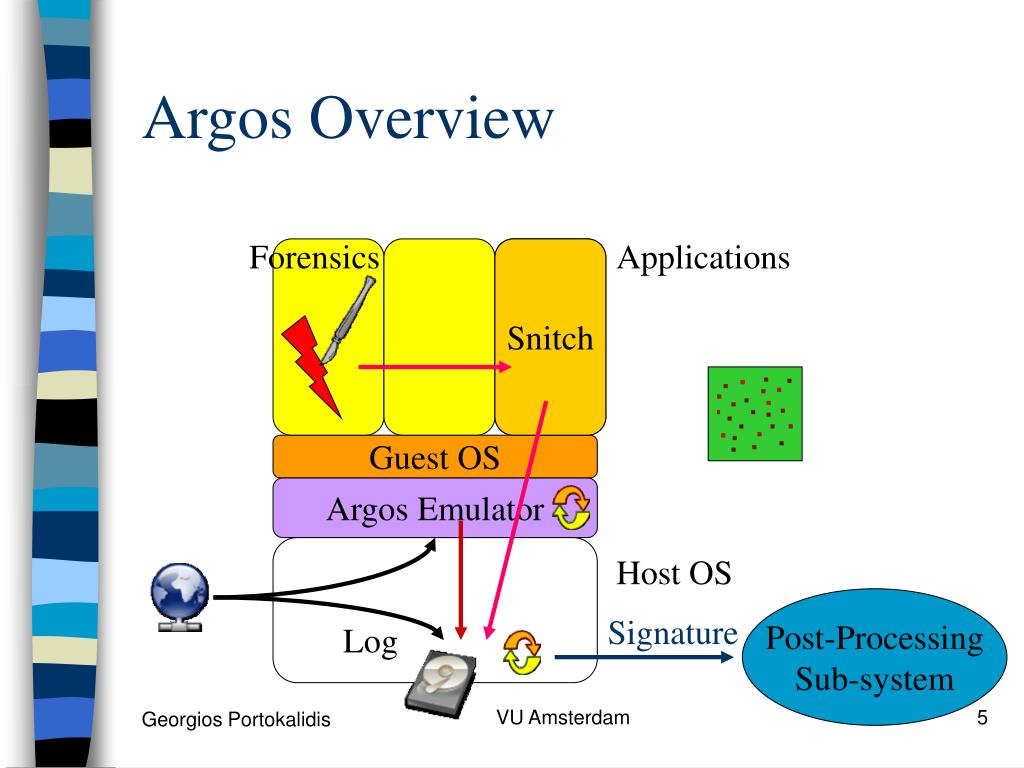

  5. Forensics Signature Log Argos Overview Applications Snitch Guest OS Argos Emulator Host OS Post-Processing Sub-system VU Amsterdam

  6. Register = network_read Registers Registers Reg. A = Reg. A + Reg. B Registers Memory(A) = Reg. A Memory Registers Reg.B = Reg.A / 156.345 Network Data Tracking VU Amsterdam

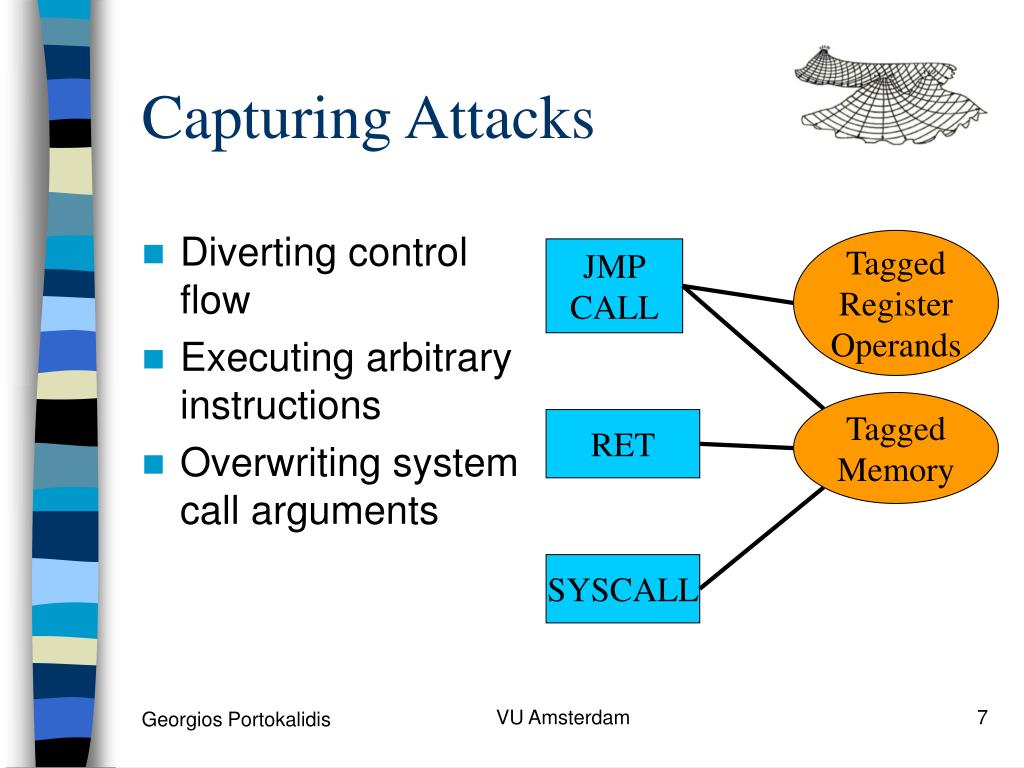

  7. Capturing Attacks • Diverting control flow • Executing arbitrary instructions • Overwriting system call arguments Tagged Register Operands JMP CALL Tagged Memory RET SYSCALL VU Amsterdam

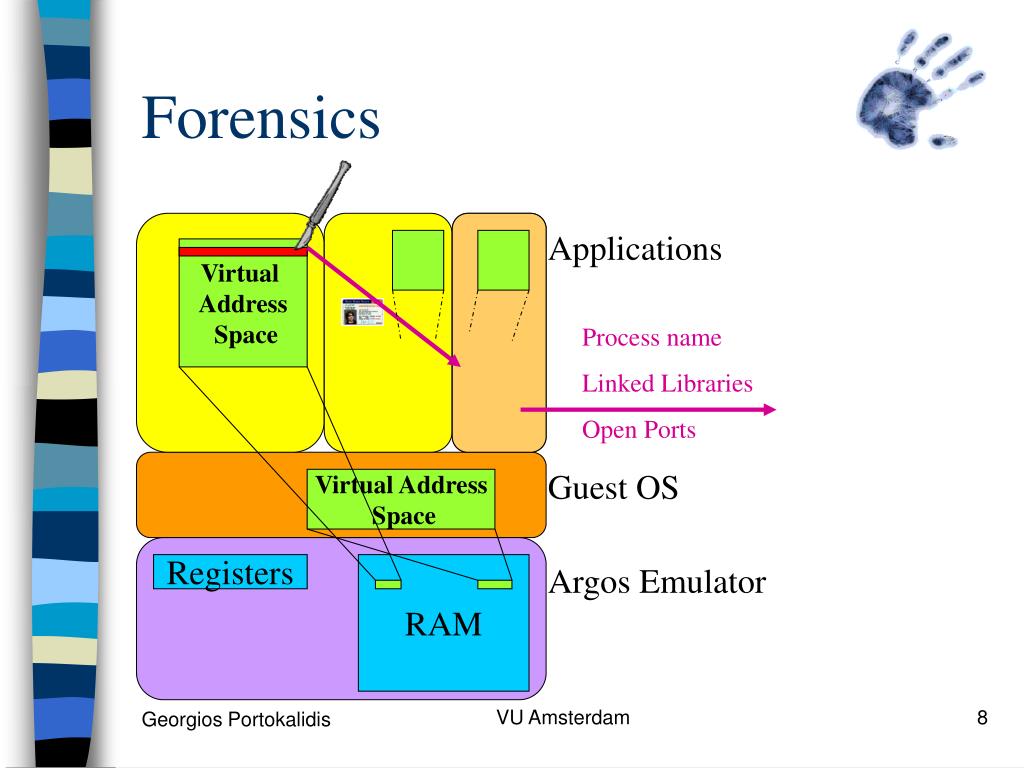

  8. Virtual Address Space Process name Linked Libraries Open Ports Virtual Address Space Registers RAM Forensics Applications Guest OS Argos Emulator VU Amsterdam

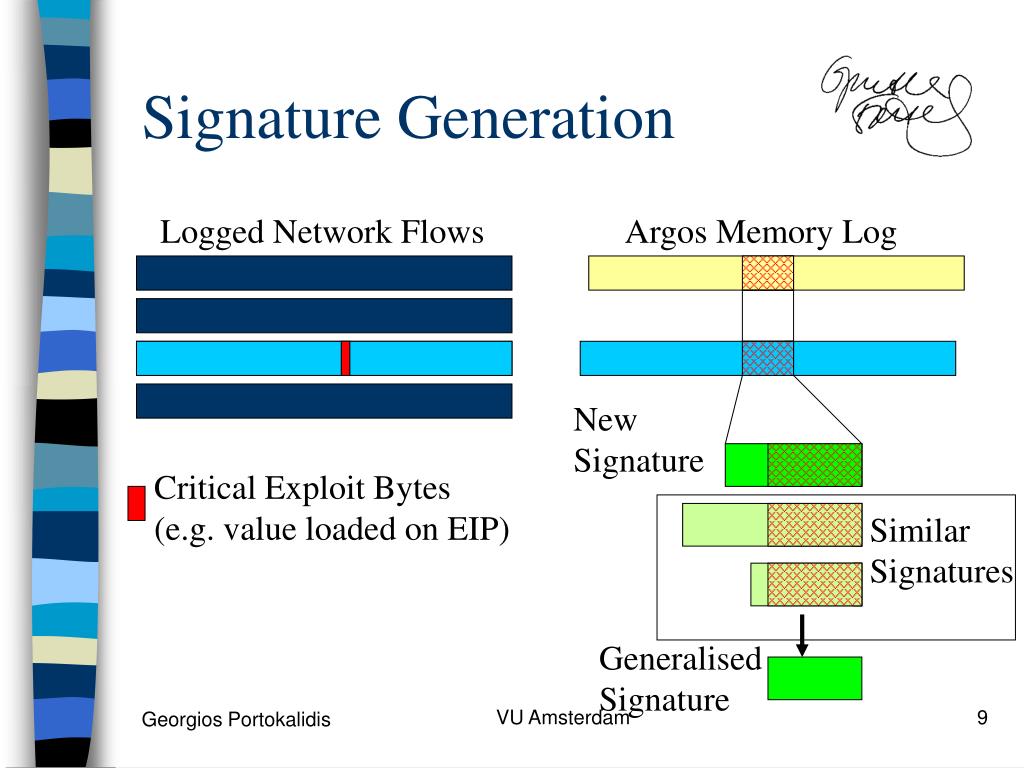

  9. Logged Network Flows New Signature Critical Exploit Bytes (e.g. value loaded on EIP) Similar Signatures Generalised Signature Signature Generation Argos Memory Log VU Amsterdam

  10. Emulator Performance Overhead (y times slower) VU Amsterdam

  11. Signature Generation Performance Time to generate signature(sec) Tcpdump trace size(MB) VU Amsterdam

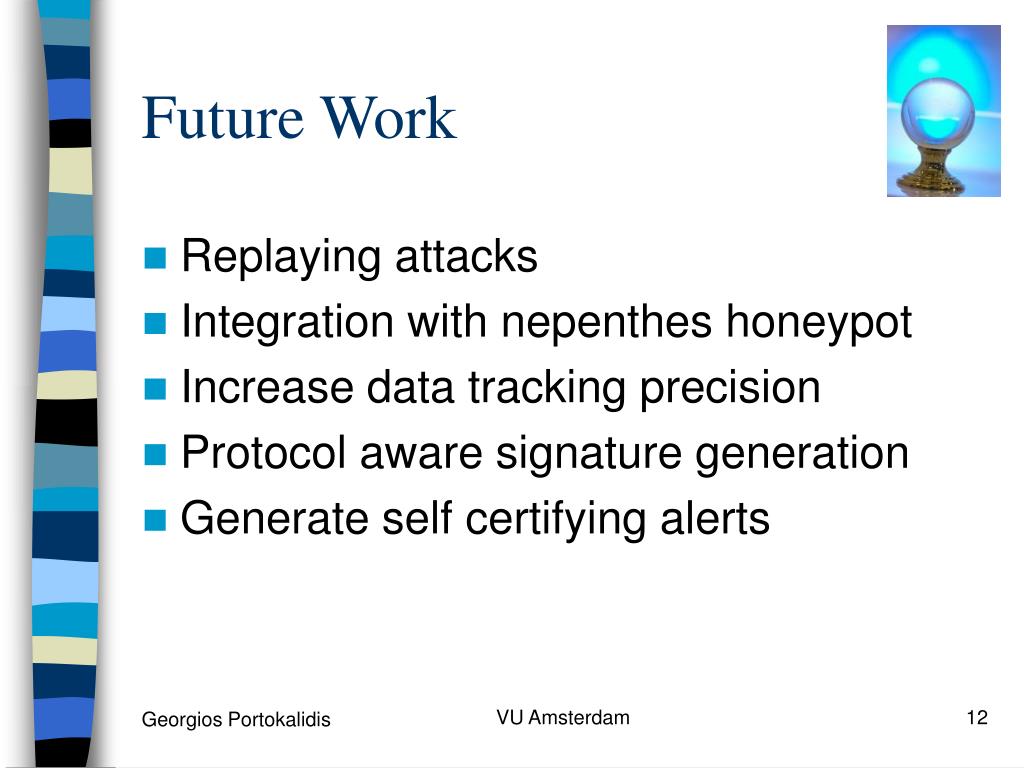

  12. Future Work • Replaying attacks • Integration with nepenthes honeypot • Increase data tracking precision • Protocol aware signature generation • Generate self certifying alerts VU Amsterdam

  13. On The Web http://www.few.vu.nl/argos VU Amsterdam

  14. RAM Port I/O Network Data Tracking • Tag network data as “tainted” EAX EBX EBX ECX EDX VU Amsterdam

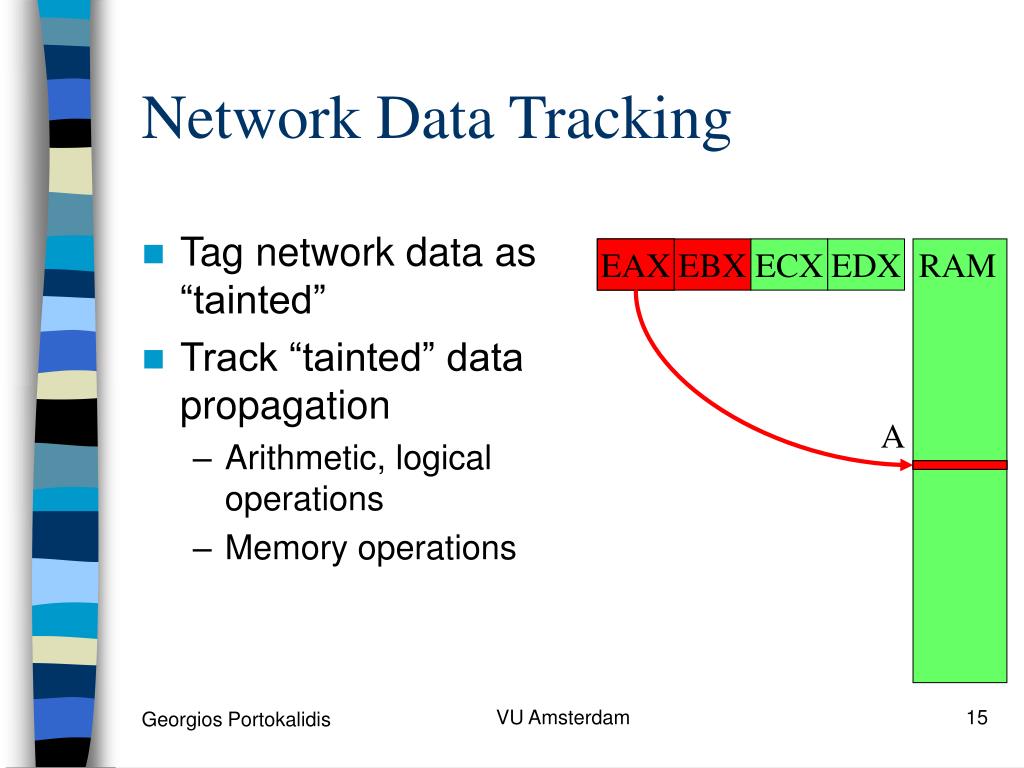

  15. RAM Network Data Tracking • Tag network data as “tainted” • Track “tainted” data propagation • Arithmetic, logical operations • Memory operations EAX EAX EBX ECX EDX A VU Amsterdam

  16. EAX EBX RAM Network Data Tracking • Tag network data as “tainted” • Track “tainted” data propagation • Arithmetic, logical operations • Memory operations • Sanitise data • Floating point, SSE EAX EBX ECX EDX A VU Amsterdam

  17. RAM Identifying Attacks • Jumps • Function calls • Function returns • System calls EAX EBX EBX ECX EDX JMP EAX CALL EAX RET JMP A INT 0x80 VU Amsterdam

  18. SweetBait Design VU Amsterdam

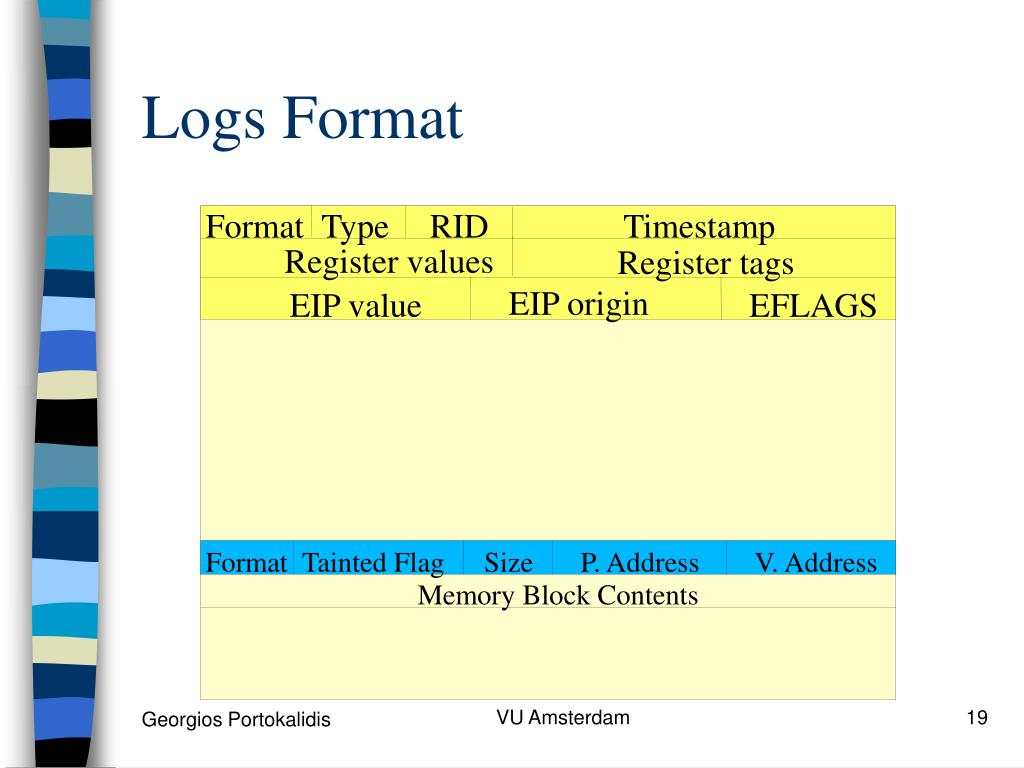

  19. Format Type RID Timestamp Register values Register tags EIP origin EIP value EFLAGS Format Tainted Flag Size P. Address V. Address Memory Block Contents Logs Format VU Amsterdam

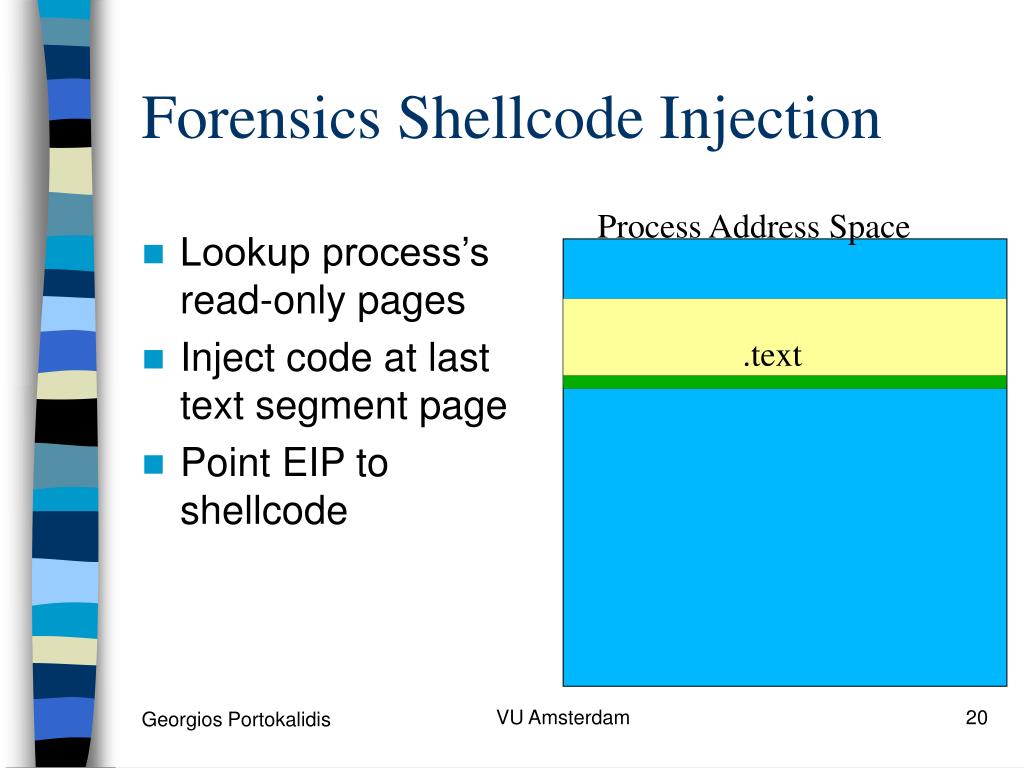

  20. Forensics Shellcode Injection (Windows PE, ELF, etc) Process Address Space • Lookup process’s read-only pages • Inject code at last text segment page • Point EIP to shellcode .text VU Amsterdam

  21. Pid = getpid() Rid [injected by Argos] Connect(localhost) Send(pid & rid) Listen() Accept() Read(pid & rid) Exec(Netstat or OpenPorts) Connect(argos host) Send(info) Forensics – The Snitch VU Amsterdam
