TEMA 1 1 PORŢI LOGICE

Operaţii şi porţi logice. TEMA 1 1 PORŢI LOGICE. Adunarea logică - SAU (OR) " + ". x = A + B. poarta logică SAU. Operaţii şi porţi logice. TEMA 1 1 PORŢI LOGICE. Multiplicarea logică - ŞI ( AND ) " . ". x = A . B. poarta logică ŞI. Operaţii şi porţi logice.

ariane
Download Presentation

TEMA 1 1 PORŢI LOGICE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

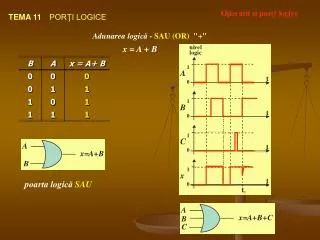

  1. Operaţii şi porţi logice TEMA 11PORŢI LOGICE Adunarea logică - SAU (OR) "+" x = A + B poarta logică SAU

  2. Operaţii şi porţi logice TEMA 11PORŢI LOGICE Multiplicarea logică - ŞI(AND) "." x = A. B poarta logică ŞI

  3. Operaţii şi porţi logice TEMA 11PORŢI LOGICE Inversiunea - NU (NOT) "_" circuitul NU

  4. Operaţii şi porţi logice TEMA 11PORŢI LOGICE Porţile SAU-NU şi ŞI-NU (NOR)(NAND)

  5. TEMA 11PORŢI LOGICE Electronica porţilor logice dacă VGS = 0V(nivel logic 0) Rcanal = 106W dacă VGS = -5V(nivel logic 1) Rcanal =200 W dacă VGS = 0V (nivel logic 0) Rcanal = 106W dacă VGS = 5V (nivel logic 1) Rcanal =100 W

  6. TEMA 11PORŢI LOGICE Electronica porţilor logice inversorul CMOS

  7. TEMA 11PORŢI LOGICE Electronica porţilor logice poarta SAU-NU

  8. TEMA 11PORŢI LOGICE Electronica porţilor logice poarta ŞI-NU
