Presentation Transcript

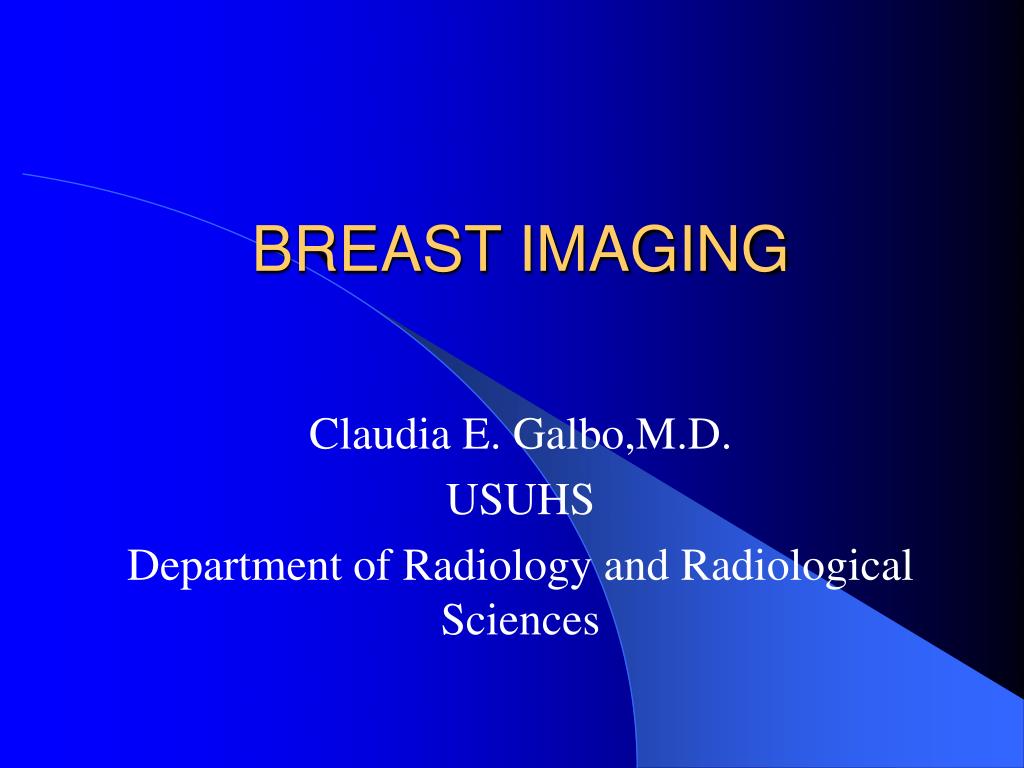

  1. BREAST IMAGING Claudia E. Galbo,M.D. USUHS Department of Radiology and Radiological Sciences

  2. Breast Studies • Film-Screen Mammography: Screening and Diagnostic • Ultrasound • Digital Mammography Computer Aided Diagnosis • Nuclear Medicine • MRI • CT • Galactography

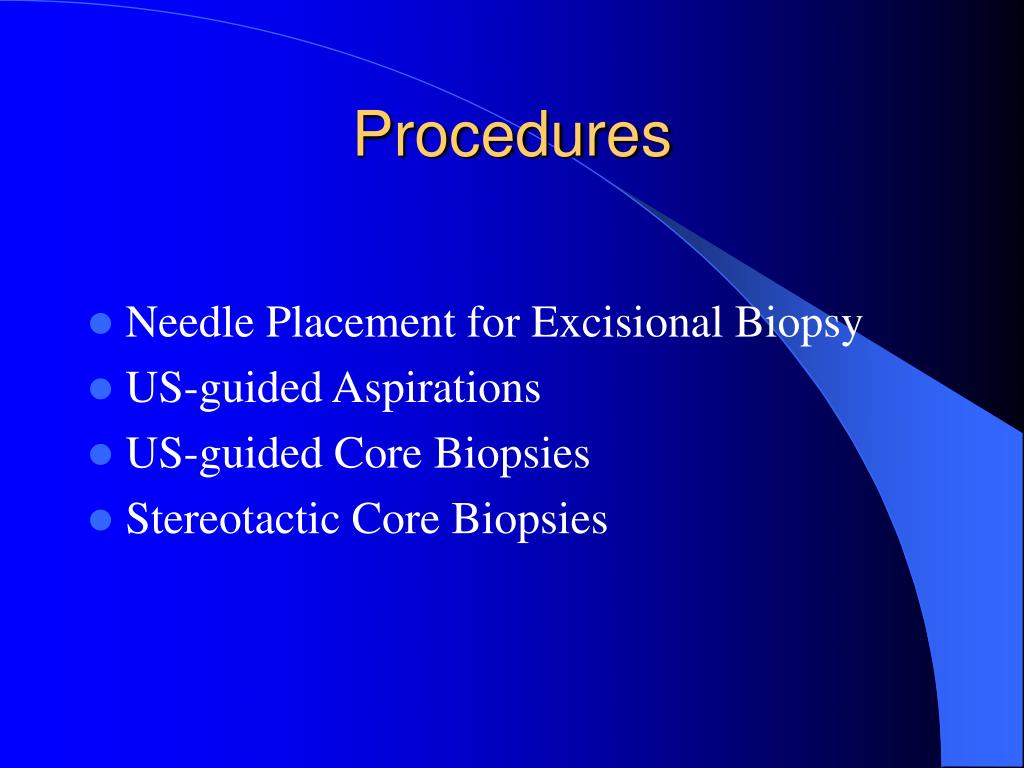

  3. Procedures • Needle Placement for Excisional Biopsy • US-guided Aspirations • US-guided Core Biopsies • Stereotactic Core Biopsies

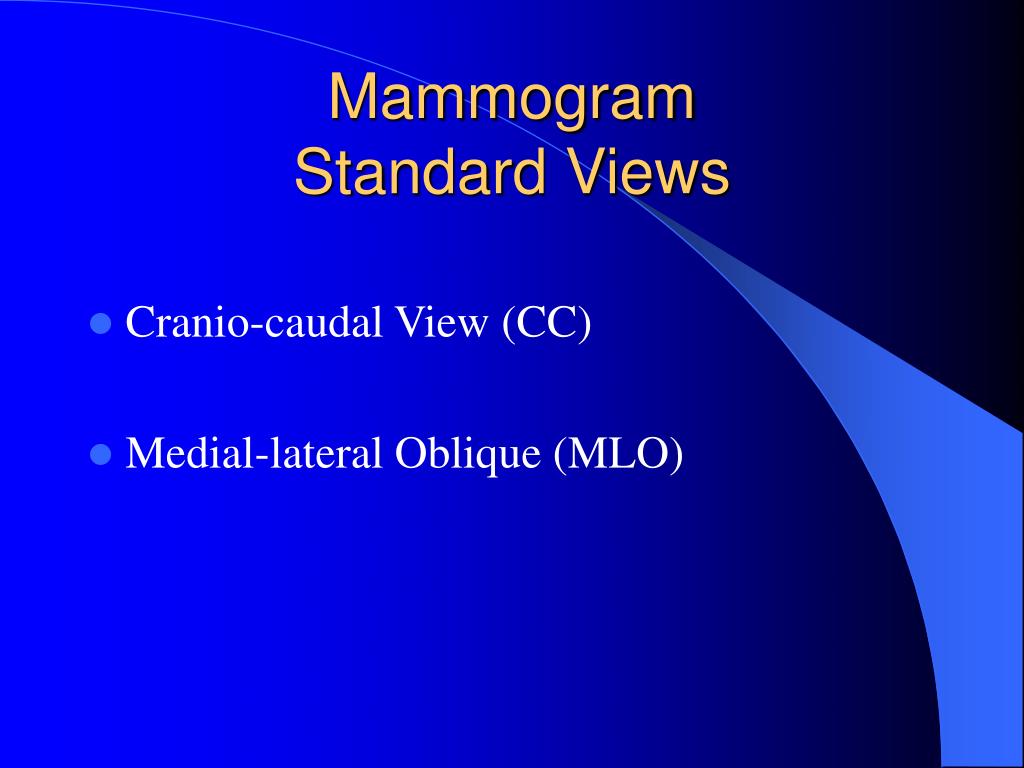

  4. MammogramStandard Views • Cranio-caudal View (CC) • Medial-lateral Oblique (MLO)

  5. Digital Mammography • More inherent contrast than film-screen • Post-processing will save on patient dose • Telemammography option is an advantage • Optical disc storage of images eliminates film loss • At present time, resolution is better for film screen

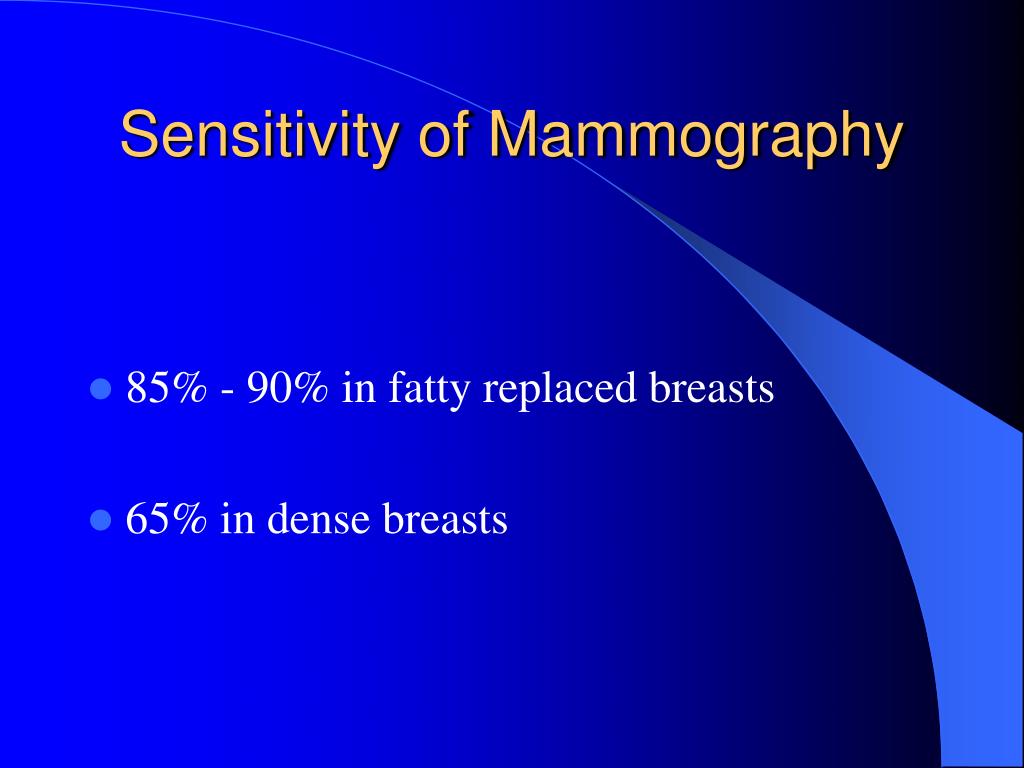

  6. Sensitivity of Mammography • 85% - 90% in fatty replaced breasts • 65% in dense breasts

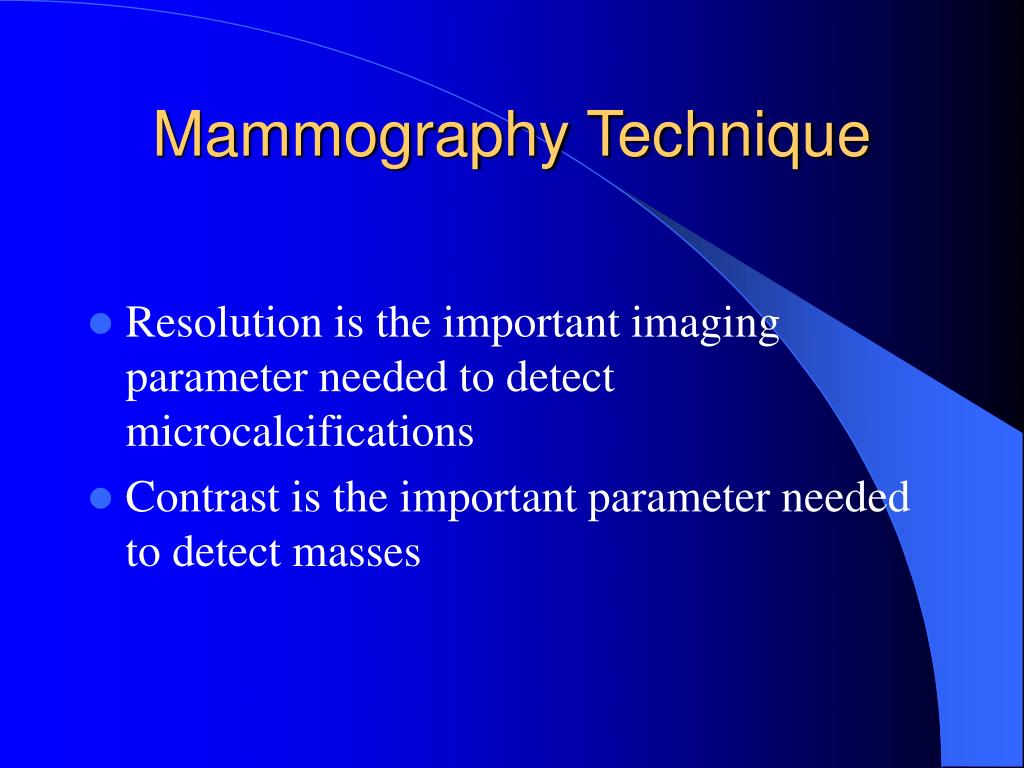

  7. Mammography Technique • Resolution is the important imaging parameter needed to detect microcalcifications • Contrast is the important parameter needed to detect masses

  8. Primary Signs of Canceron Mammography • Mass • Calcifications

  9. Secondary Signs of Canceron Mammography • Nipple Inversion • Architectural Distortion • Skin Thickening • Axillary Adenopathy • Skin Retraction • Tissue Asymmetry • Developing “Neodensity”

  10. American College of RadiologyScreening MammographyGuidelines • Baseline Mammogram by age 40 • Mammogram every year after 40 • Clinical Breast Examination every year after 40

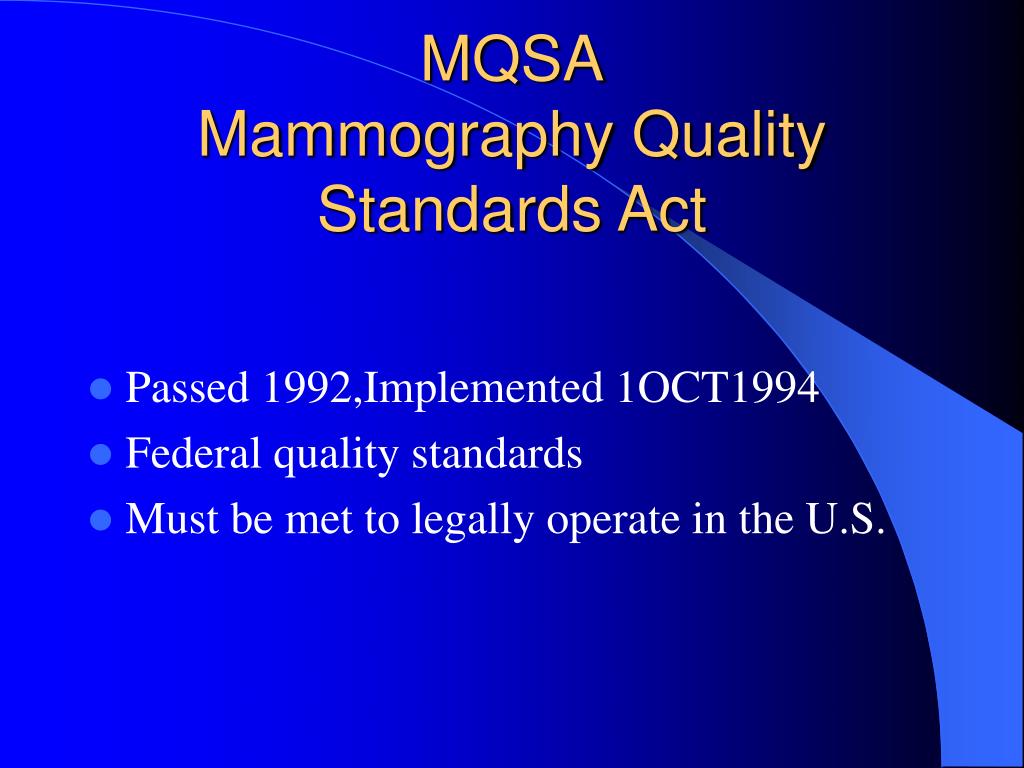

  11. MQSAMammography Quality Standards Act • Passed 1992,Implemented 1OCT1994 • Federal quality standards • Must be met to legally operate in the U.S.

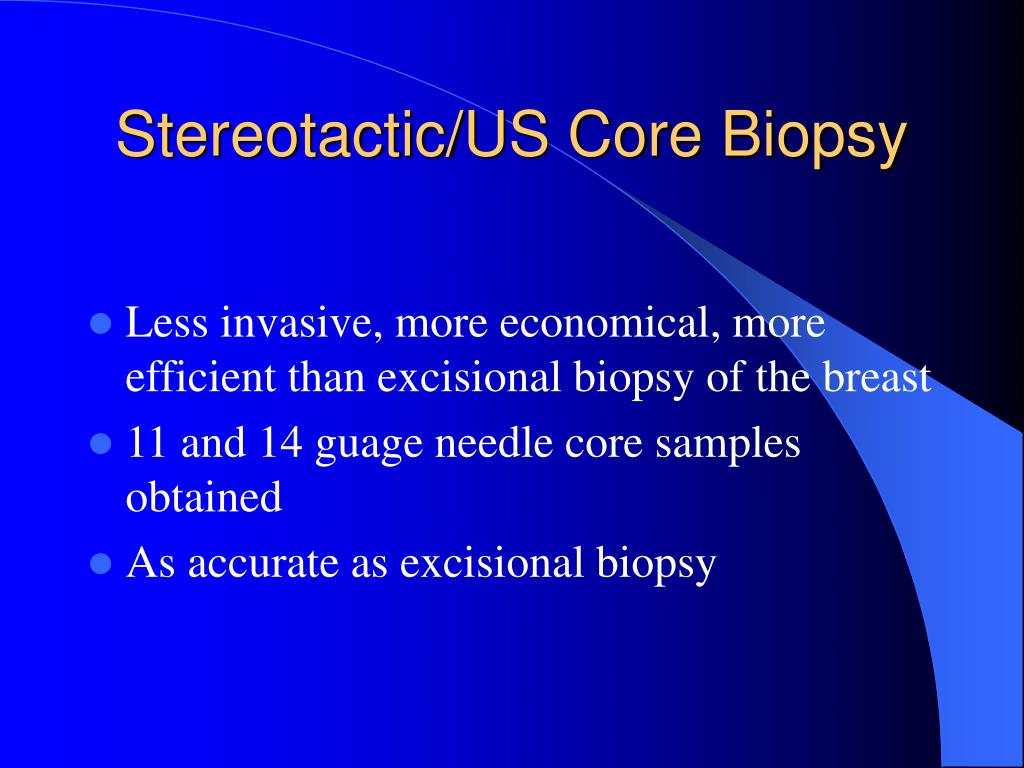

  12. Stereotactic/US Core Biopsy • Less invasive, more economical, more efficient than excisional biopsy of the breast • 11 and 14 guage needle core samples obtained • As accurate as excisional biopsy

  13. Core Biopsies • Patient is supine for US core biopsies • Patient is prone for most stereotactic core biopsies • Stereo procedures usually are used to sample calcifications; US cores are used to sample masses

  14. Mammography Dose Limit • The FDA dose limit for a single view mammogram is 300mRAD
