Quick flux calculation for real time feedback

Tabs select various functions. Injector design “jets.txt” files can be imported. Intersection of jets on platen. Injector hole pattern. Jet number gets entered automatically by program as you enter the other data. Quick flux calculation for real time feedback. Various ways of

bedros
Download Presentation

Quick flux calculation for real time feedback

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Tabs select various functions Injector design “jets.txt” files can be imported Intersection of jets on platen Injector hole pattern Jet number gets entered automatically by program as you enter the other data. Quick flux calculation for real time feedback Various ways of transforming data

  2. Parameters for calculation

  3. Results of 2 dimensional calculation Platen can be non-rotated, rotated, or partially rotated

  4. Diameter plot for rotating platen Tweak up and down

  5. Checks for intersection of holes Input hole diameter, plate thickness, and the minimum acceptable clearance

  6. Right clicking on table pops-up a menu for manipulating data To change axes on plots: Highlight value and type in new value. There are also zoom controls These controls autoscale the axes. The lock toggles between autoscale and fixed scale

  7. All of these controls work on the data that Is selected in the table Scale. Useful for adding small Increments of angle on selected jets. Create series. Useful for creating rings of holes or for spirals. Multi-series. Alternates between 2 or 3 different values. Green button selects 2 or 3 values. Randomize order of values in a selection You get one “undo” for any of these transformations

  8. Blue curve is a reference you can save to see if changes are helping or hurting. Changes injector design back to stored design Hide reference Stores current design

  9. When you first start the program you need to calculate the flux curve otherwise it is all zeros. (even though the graph shows a curve to start)

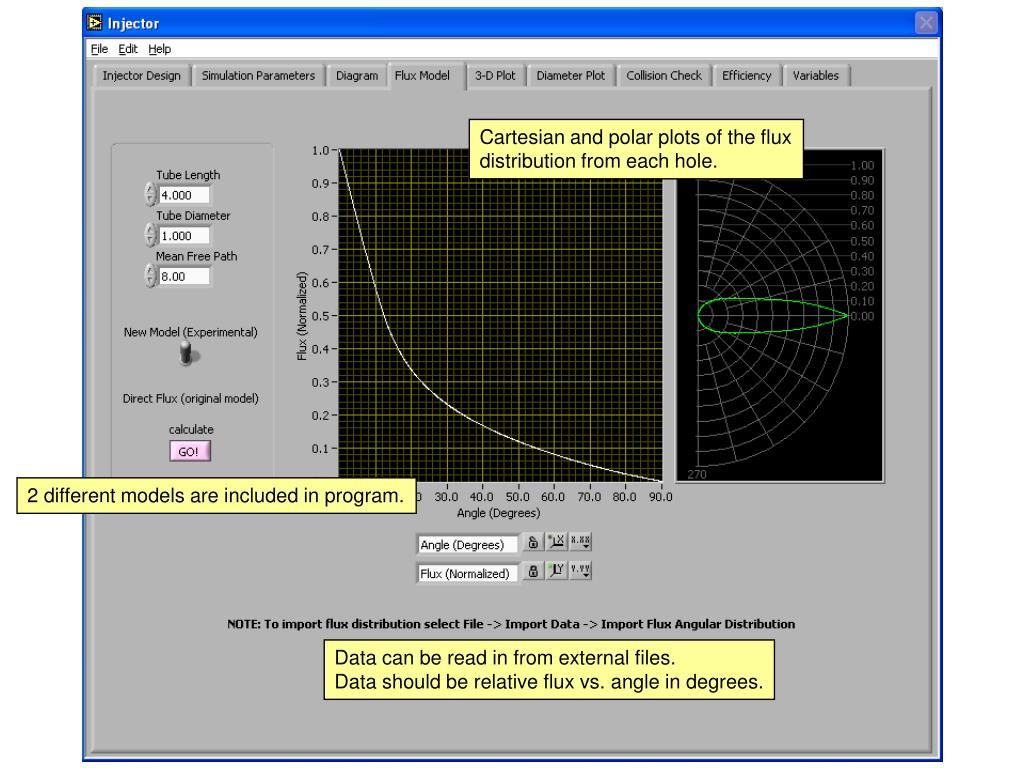

  10. Cartesian and polar plots of the flux distribution from each hole. 2 different models are included in program. Data can be read in from external files. Data should be relative flux vs. angle in degrees.

  11. Efficiency calculation calculates fraction of intercepted flux vs. platen radius.
