Photogrammetry Cont.

Photogrammetry Cont. Stereoscopic Parallax . The apparent displacement of the position of an object wrt a frame of reference due to a shift in the point of observation, try it. The shift is along the line of movement.

belisma
Download Presentation

Photogrammetry Cont.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. PhotogrammetryCont.

  2. Stereoscopic Parallax • The apparent displacement of the position of an object wrt a frame of reference due to a shift in the point of observation, try it. • The shift is along the line of movement. • The closer the object to the frame, the larger the shift for the same shift, so parallax is a function of height. • Parallax equations: What is (x) ? get the flying height or point elevation Parallax = p = x - x1 get ground coordinates Bf H-h = P B B y Y = X = x p p

  3. Stereoscopic Viewing • The theory of stereoscopic viewing and parallactic angles • Conditions for viewing a stereo model

  4. Stereoscopic Plotters • To compile maps, take cross sections, and DEM • Three main components: • Projection system • Viewing system • Tracing system • Major Types: • Optical, mechanical. • Analytical, and softcopy systems: mathematical model, require computers

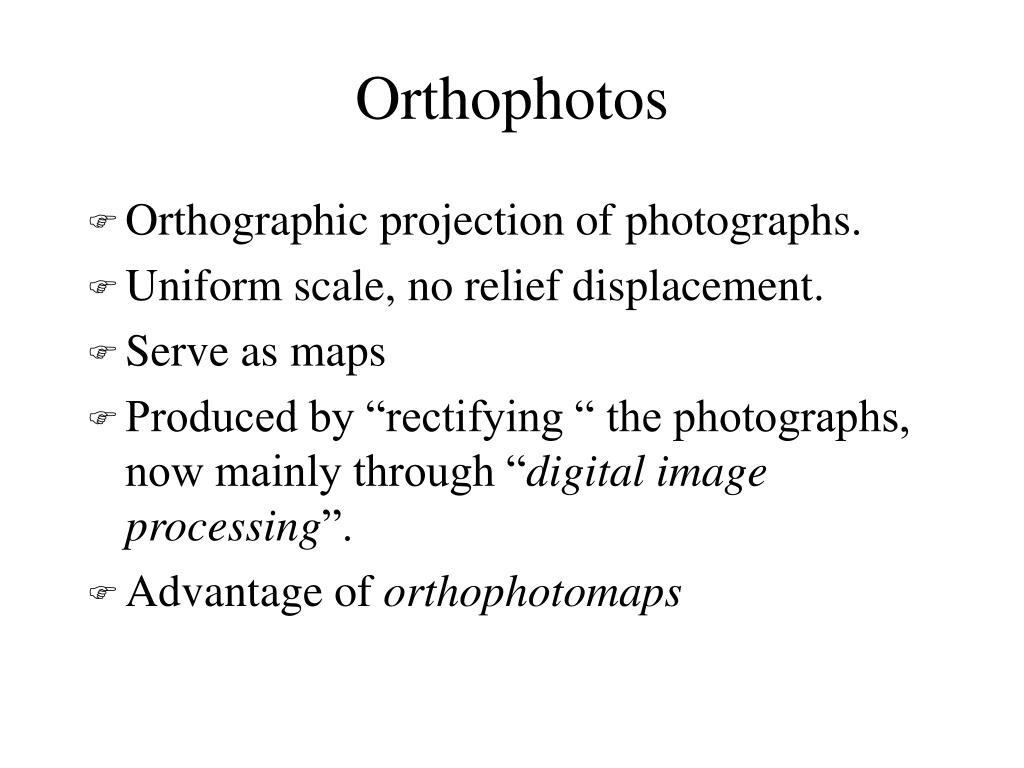

  5. Orthophotos • Orthographic projection of photographs. • Uniform scale, no relief displacement. • Serve as maps • Produced by “rectifying “ the photographs, now mainly through “digital image processing”. • Advantage of orthophotomaps

  6. Orthophoto of Washington, DC

  7. Ground Control for Photogrammetry • Each model requires three horizontal and four vertical control points. • Control points are chosen before (marked) or after (usually) and measured by ground surveying • Using “Aerial Triangulation” control can be intensified on the photos • GPS may eliminate the need for ground control.
