Input Latches

Stage 1. Ray Extent Test. clk. hit. clock. Input Latches. Stage 2. clk. Ray-BVH Intersect. hit. Top Level Ray-BVH Intersection Pipeline. rex min. rey min. rez min. 2:1. 2:1. 2:1. 2:1. 2:1. MagCmp. MagCmp. MagCmp. MagCmp. MagCmp. x min. y min. z min. x max. y max.

berne
Download Presentation

Input Latches

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Stage 1 Ray Extent Test clk hit clock Input Latches Stage 2 clk Ray-BVH Intersect hit Top Level Ray-BVH Intersection Pipeline

  2. rexmin reymin rezmin 2:1 2:1 2:1 2:1 2:1 MagCmp MagCmp MagCmp MagCmp MagCmp xmin ymin zmin xmax ymax zmax rexmax reymax rezmax rez ry rx rz rex rey rxs rys rzs rxs’ rys’ rzs’ 2:1 MagCmp < > < > < > > < > < > < rxs b:2:1 b:2:1 b:2:1 b:2:1 b:2:1 b:2:1 rys rzs ray.t HIT Stage 1: Ray Extent Test

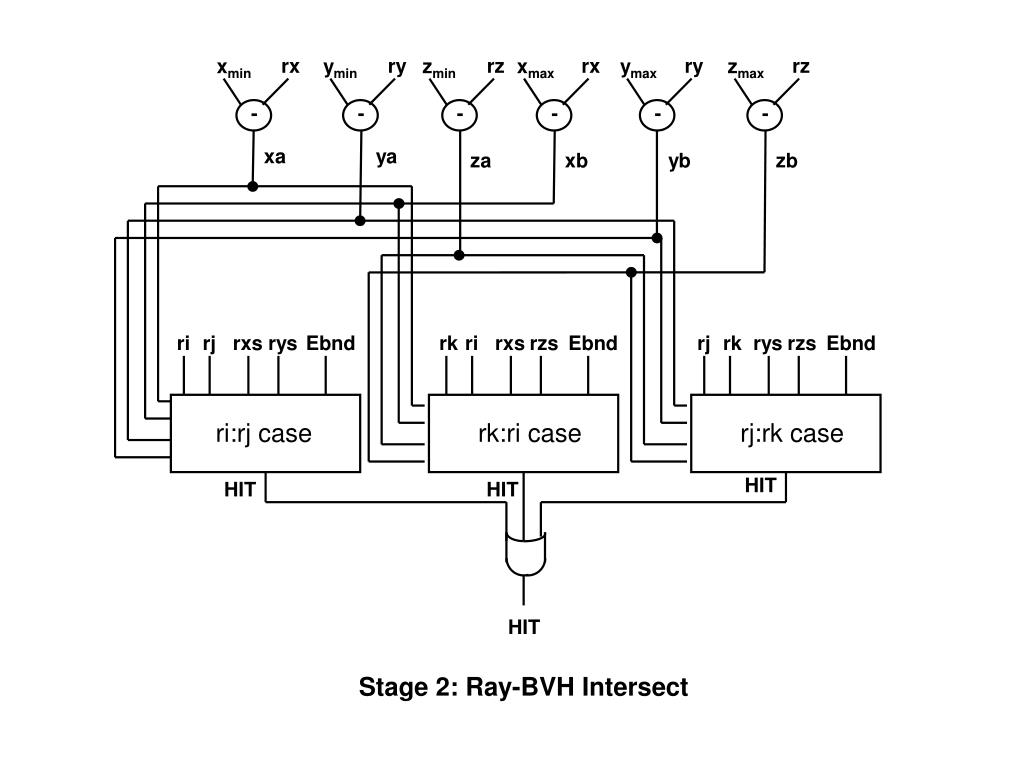

  3. rx ry rz rx ry rz xmin ymin zmin xmax ymax zmax - - - - - - xa ya za xb yb zb ri rj rxs rys Ebnd rk ri rxs rzs Ebnd rj rk rys rzs Ebnd ri:rj case rk:ri case rj:rk case HIT HIT HIT HIT Stage 2: Ray-BVH Intersect

  4. ya yb xb xa xa xb yb ya M1 P1 M2 P2 M2 P2 M1 P1 ri 2:1 rj 2:1 rj 2:1 ri 2:1 * * * * Ebnd Ebnd - - MagCmp MagCmp < < HIT Stage 2: ri:rj case

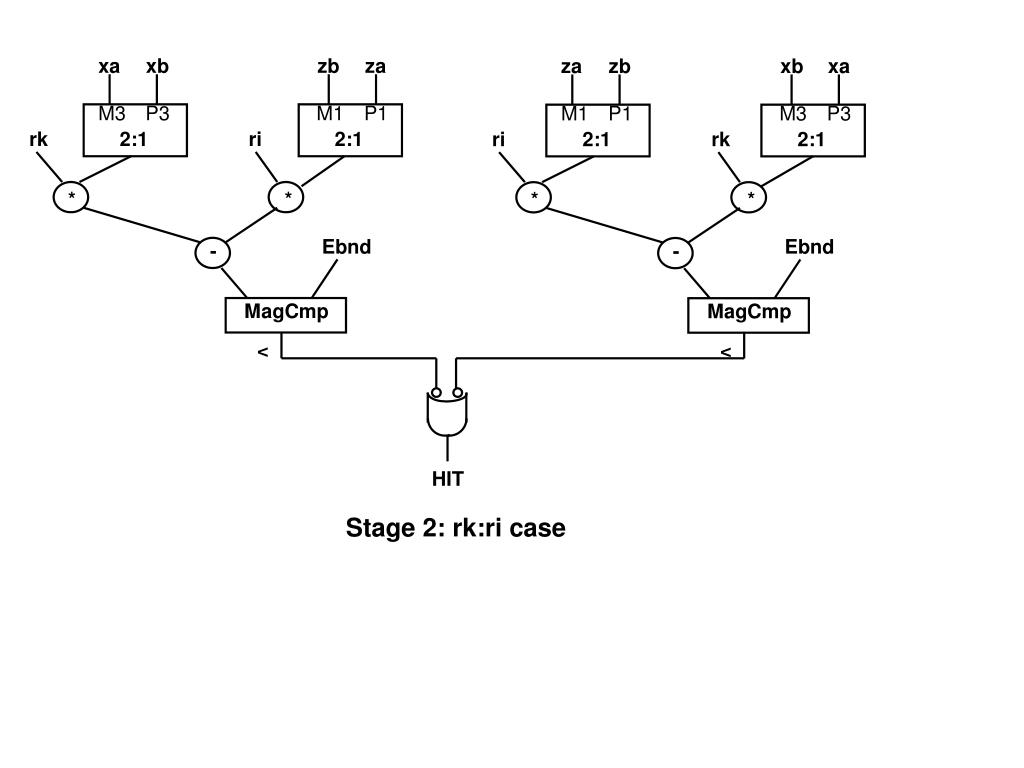

  5. xa xb zb za za zb xb xa M3 P3 M1 P1 M1 P1 M3 P3 rk 2:1 ri 2:1 ri 2:1 rk 2:1 * * * * Ebnd Ebnd - - MagCmp MagCmp < < HIT Stage 2: rk:ri case

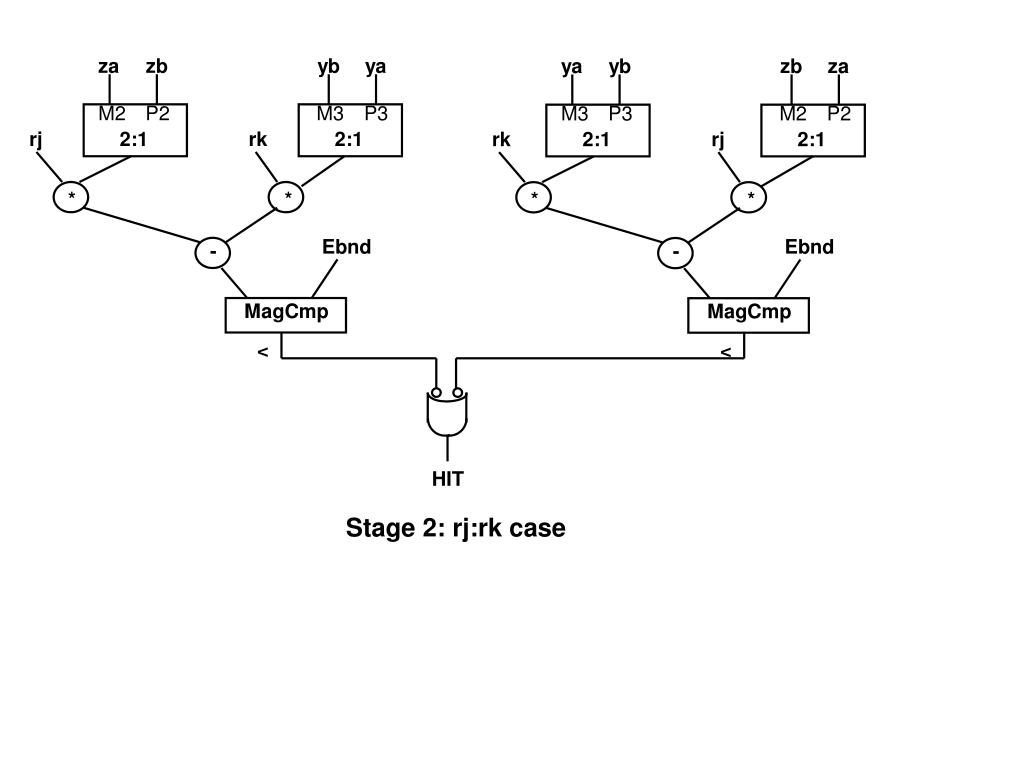

  6. za zb yb ya ya yb zb za M2 P2 M3 P3 M3 P3 M2 P2 rj 2:1 rk 2:1 rk 2:1 rj 2:1 * * * * Ebnd Ebnd - - MagCmp MagCmp < < HIT Stage 2: rj:rk case

  7. random drawing components HIT M1
