  1. Paper and Progress Report Artoni Kevin R. Ang July 1, 2009

  2. Progress Report • Changed substrate holder • Added a new pair of electrodes and boat holder

  3. Progress Report • Coated Cr-Cu-Cr mirror (4 designs) • Measured transmission of the Cr-Cu-Cr coatings using the Ocean Optics Spectrophotometer

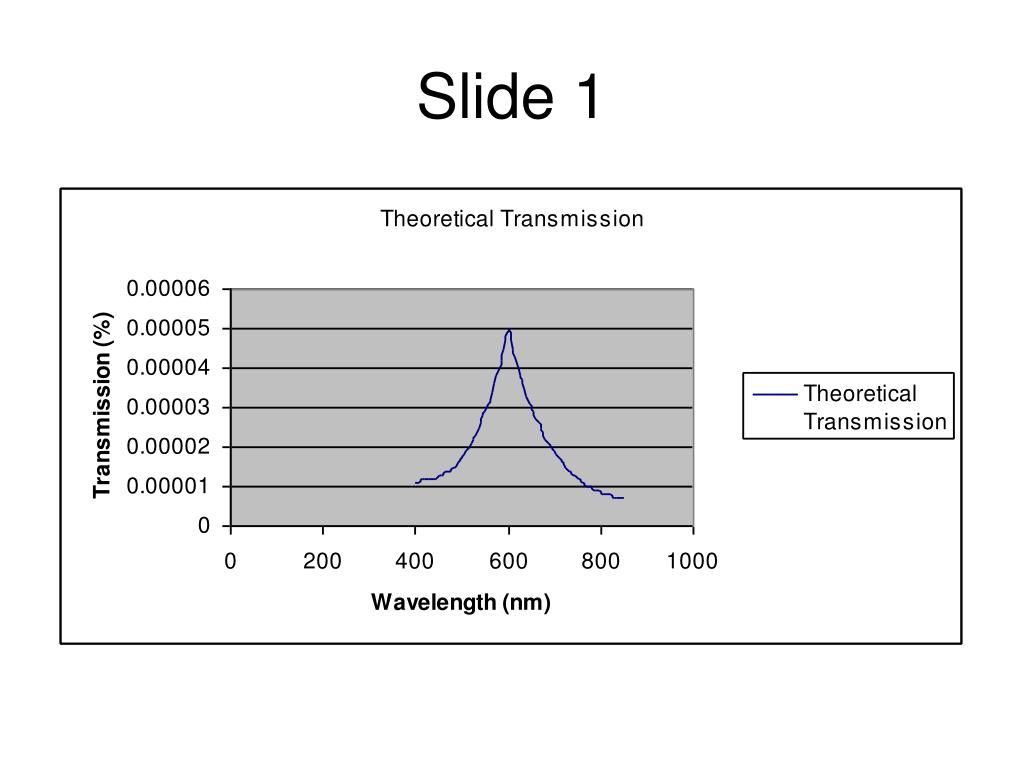

  4. Slide 1

  5. Slide 1

  6. Slide 1

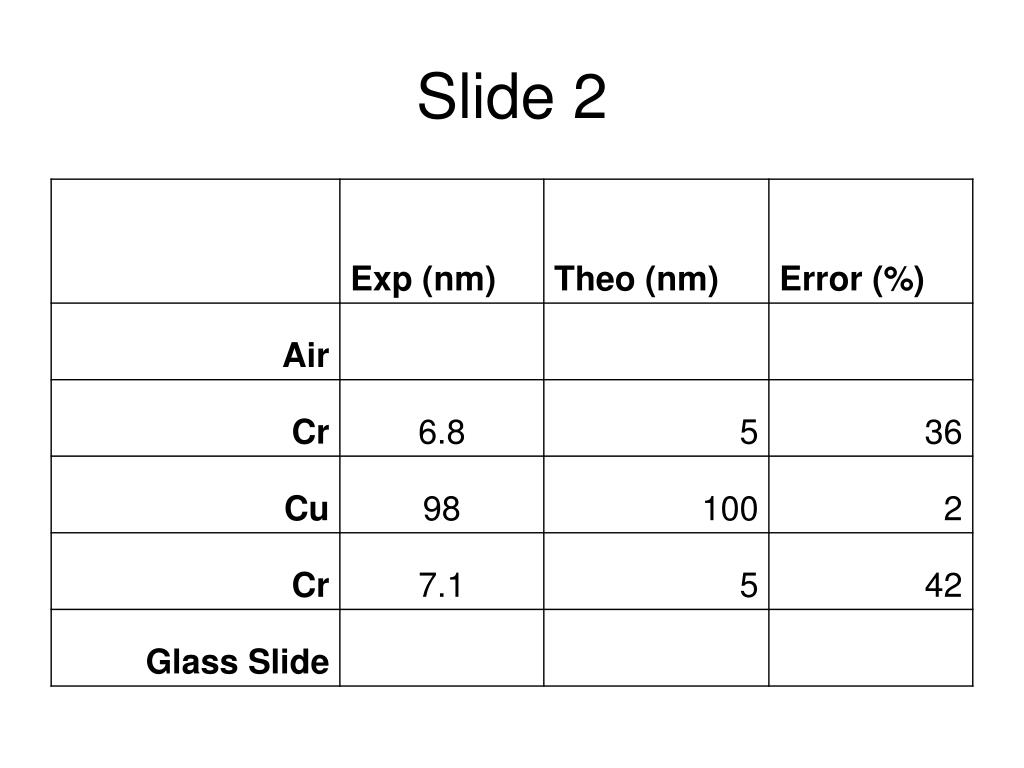

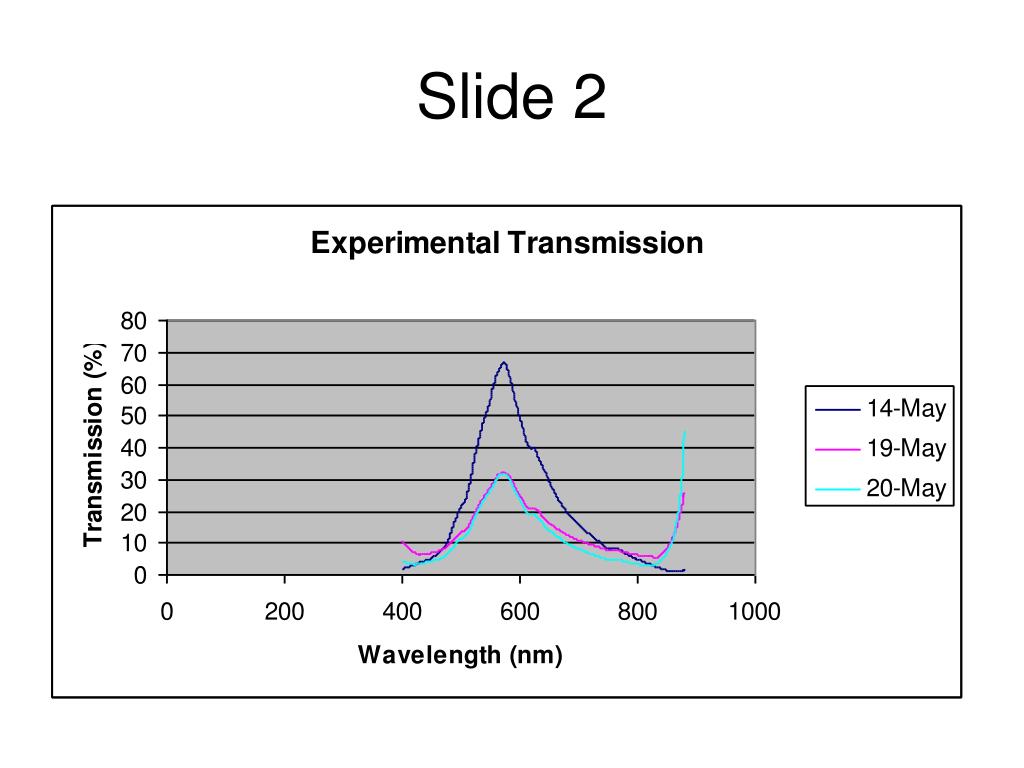

  7. Slide 2

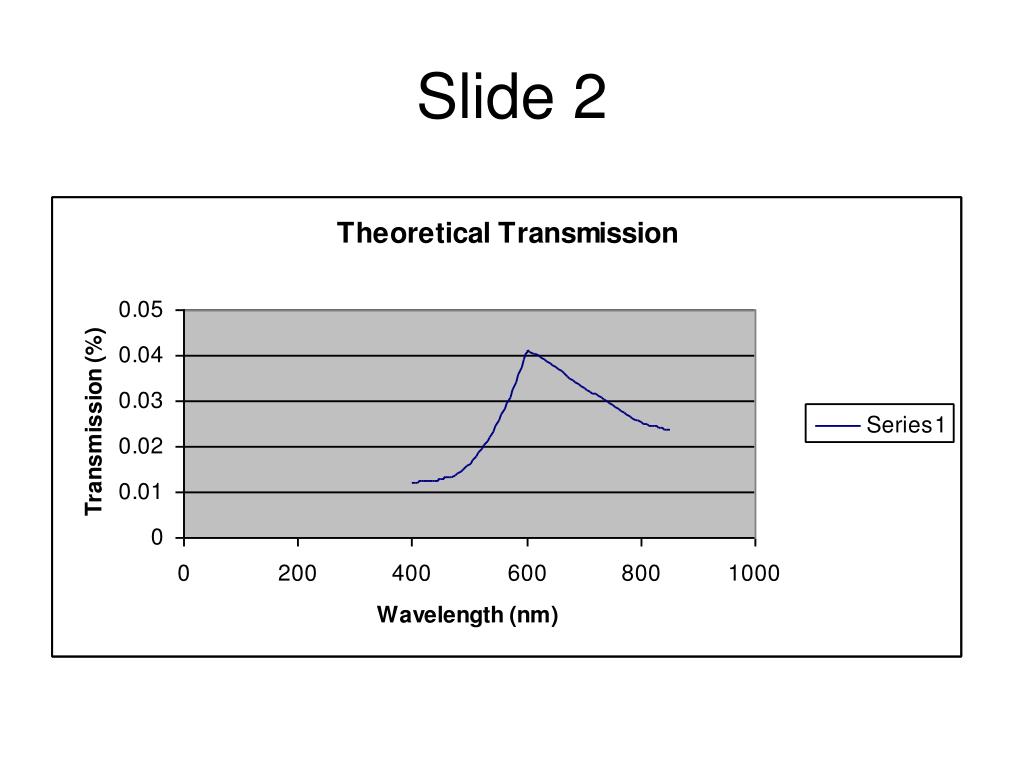

  8. Slide 2

  9. Slide 2

  10. Slide 4

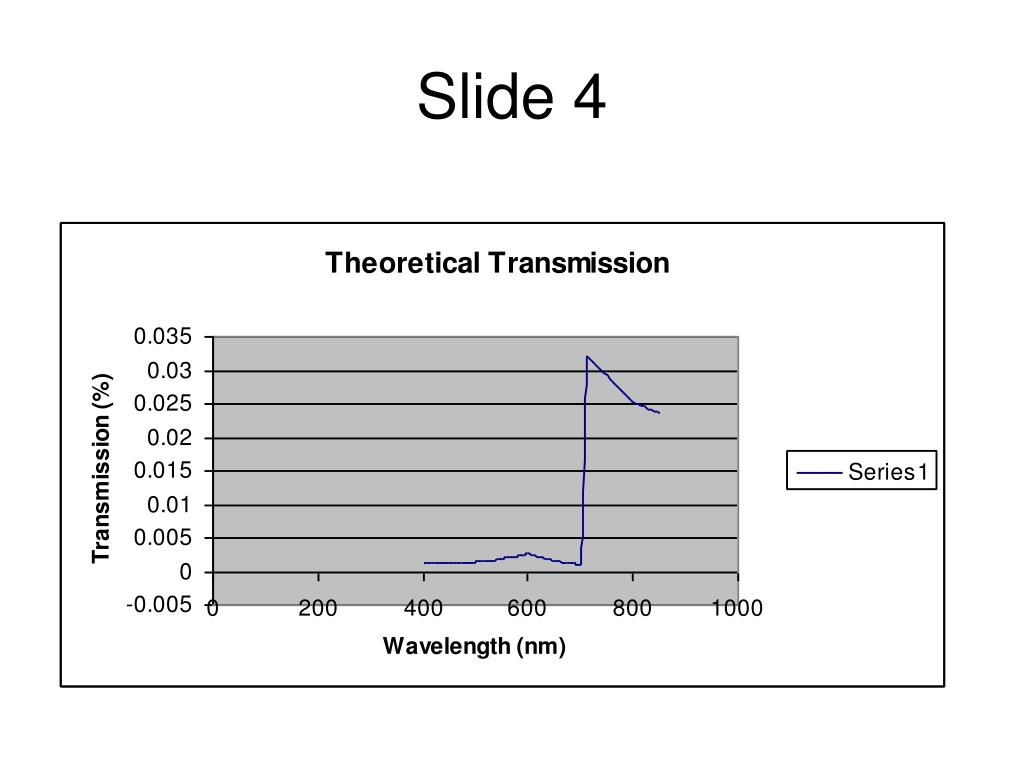

  11. Slide 4

  12. Slide 4

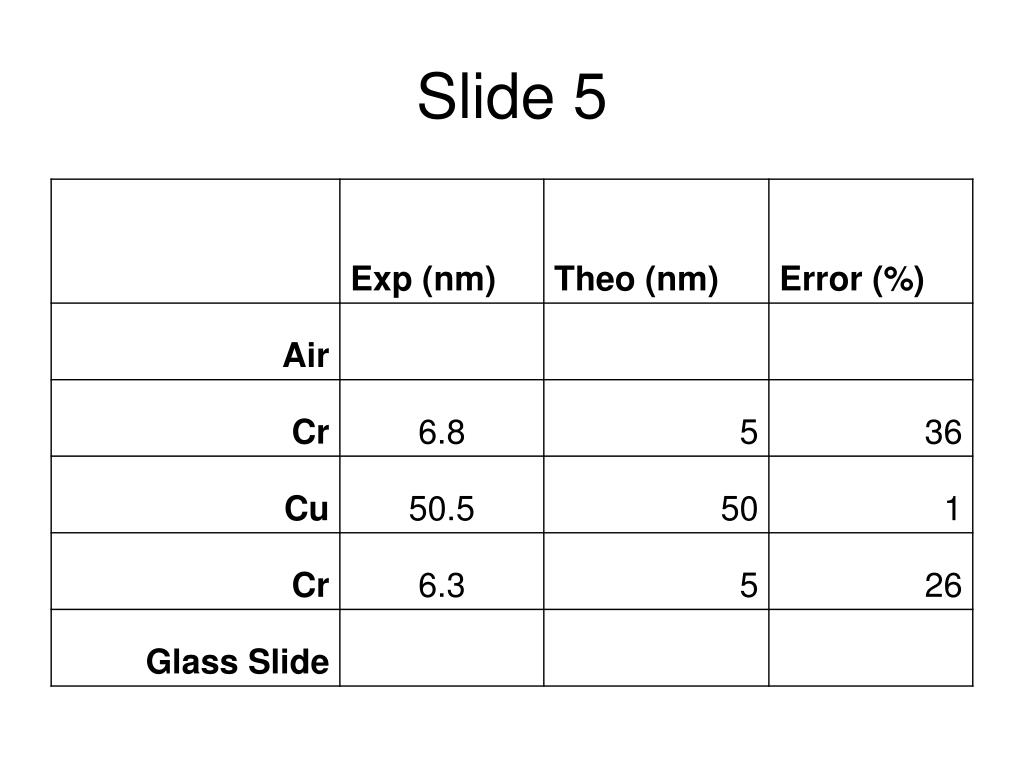

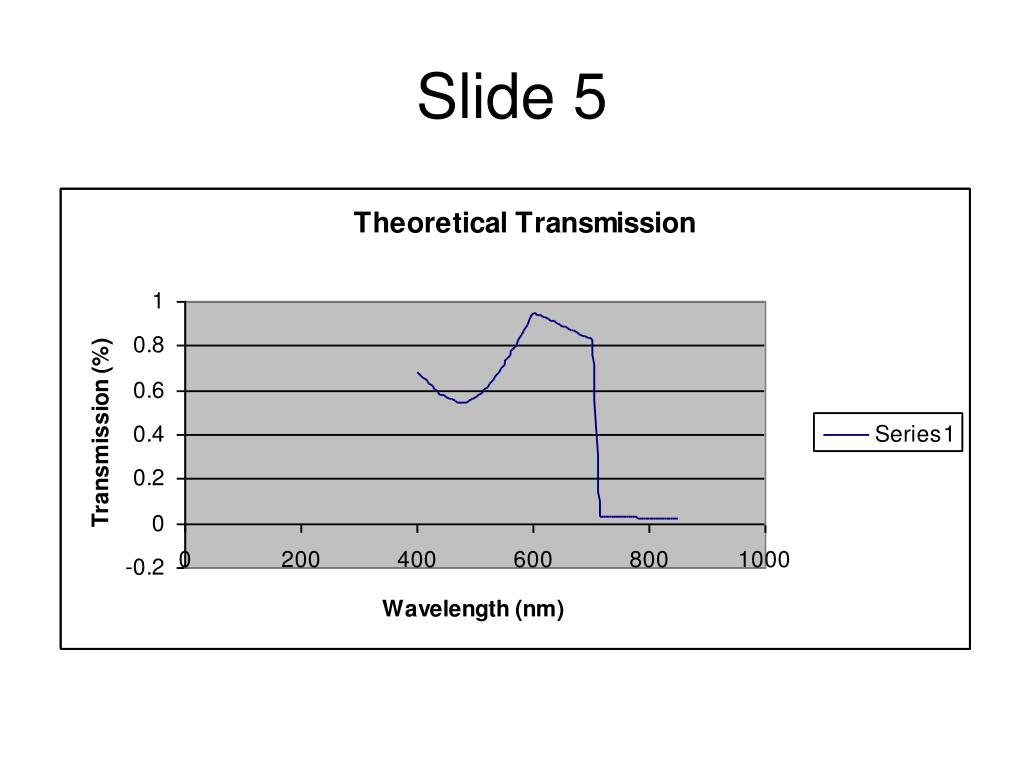

  13. Slide 5

  14. Slide 5

  15. Slide 5

  16. Things to do: • Get micrograph of Cr-Cu-Cr mirrors • Schedule FTIR analysis for mirrors • Perform adhesion tests on Cr-Cu-Cr mirrors • Finalize anti-reflection design • Modify evaporation set-up to allow evaporation of new film materials.

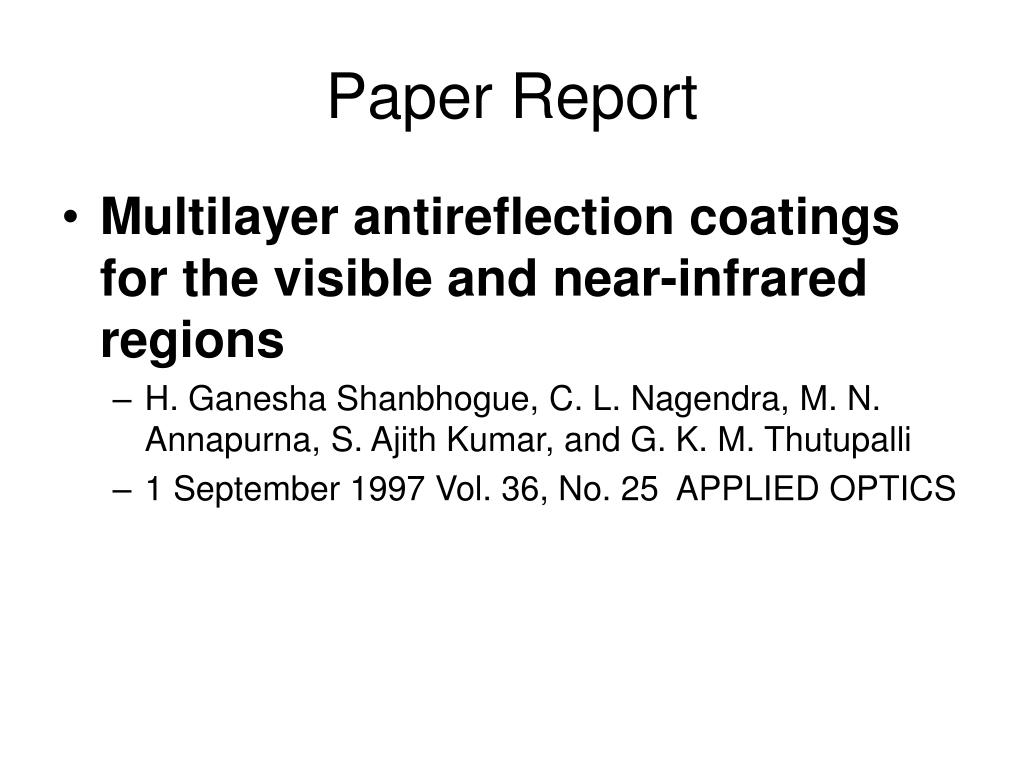

  17. Paper Report • Multilayer antireflection coatings for the visible and near-infrared regions • H. Ganesha Shanbhogue, C. L. Nagendra, M. N. Annapurna, S. Ajith Kumar, and G. K. M. Thutupalli • 1 September 1997 Vol. 36, No. 25 APPLIED OPTICS

  18. Introduction • Current research involves improving: • optical performance over a wider spectral range • transmission efficiency • spectral coverage • angle-of-incidence stability • durability • efficiency (residual reflection loss)

  19. Introduction • Problems: • AR coatings on a variety of glass substrates • Different indices, chemical compositions, hardness, environmental stability, etc. • Different uses • Residual reflection loss, transmission efficiency, angle of incidence stablity, etc.

  20. Optical material combinations • MgF2 and medium or high index materials • MgF2 and ZrTi04 and Zr02 (sub2) • MgF2 and Si02, Al2O3, oxides of tantalum, titanium zirconium, and niobium • Sub1 and Ta2O5+SiO2,TiO2+Ta2O5 and SiO2+TiO2

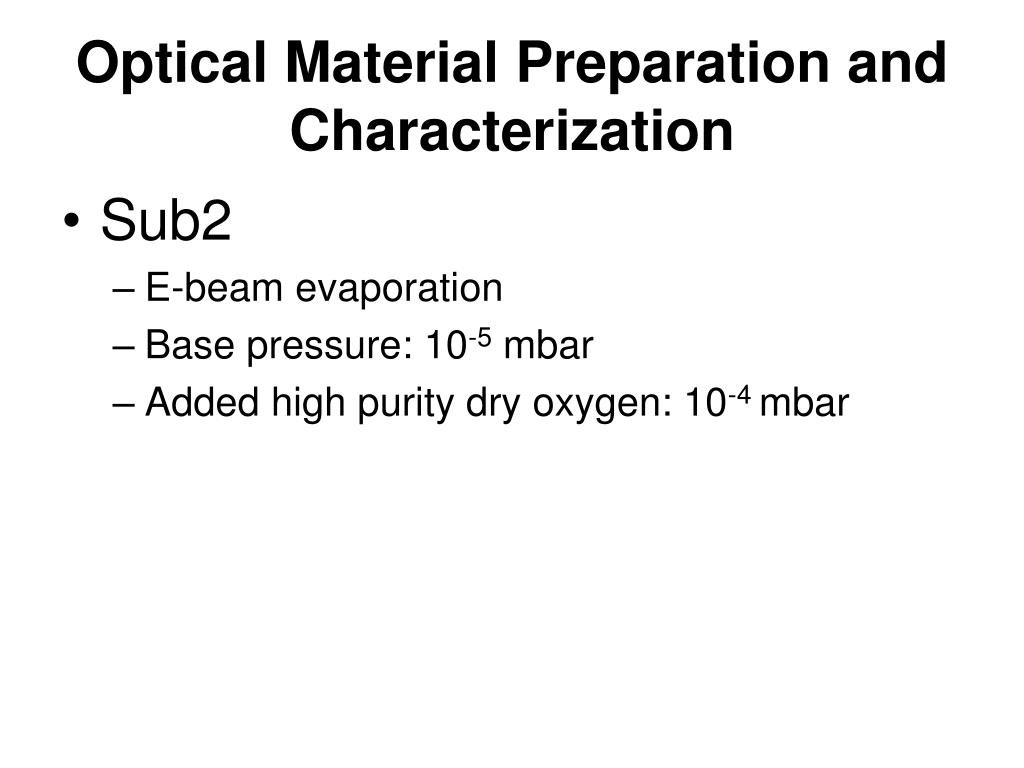

  21. Optical Material Preparation and Characterization • Sub2 • E-beam evaporation • Base pressure: 10-5 mbar • Added high purity dry oxygen: 10-4 mbar

  22. Optical Material Preparation and Characterization • Hitachi double-beam spectrophotometer, Model U 3400

  23. Optical Material Preparation and Characterization

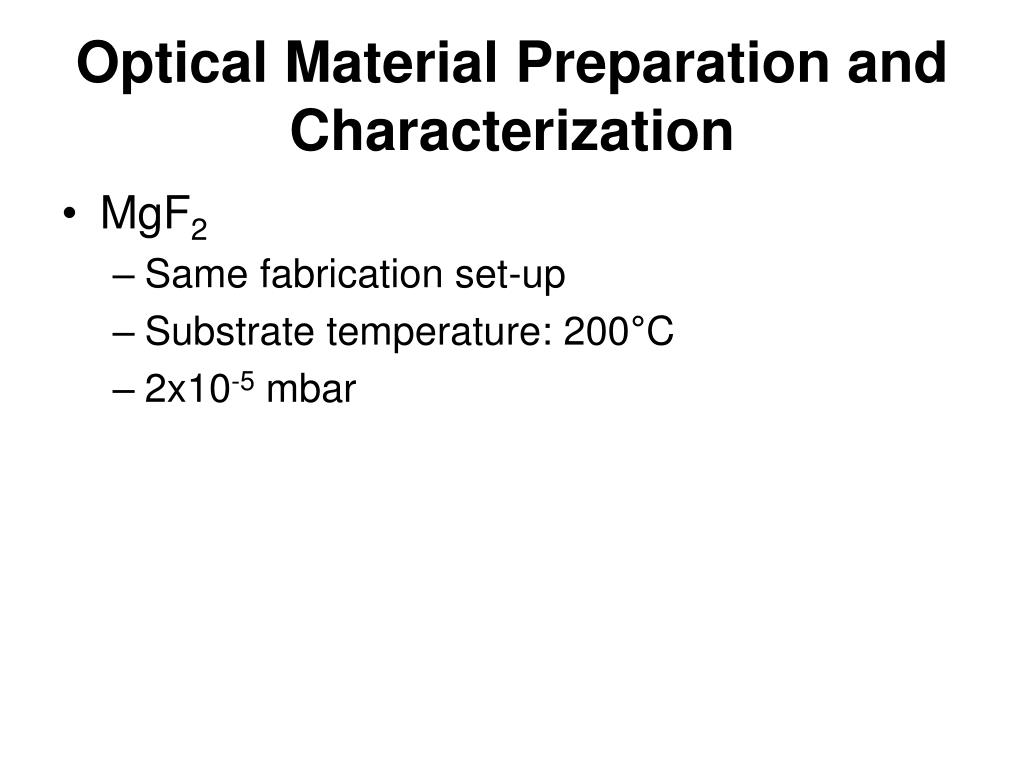

  24. Optical Material Preparation and Characterization • MgF2 • Same fabrication set-up • Substrate temperature: 200°C • 2x10-5 mbar

  25. Optical Material Preparation and Characterization • Tpeak: transmission peak • A: Cauchy dispersion constant

  26. Optical Material Preparation and Characterization • MgF2 index of 1.35±0.01 • Literature value of 1.38-1.37

  27. Design optimization • Seven layer system of MgF2 and Sub2 coatings in alternate layers • Wideband (WB) AR coatings • Limited band (LB) AR coatings • OPTOSOFT- software to optimize design

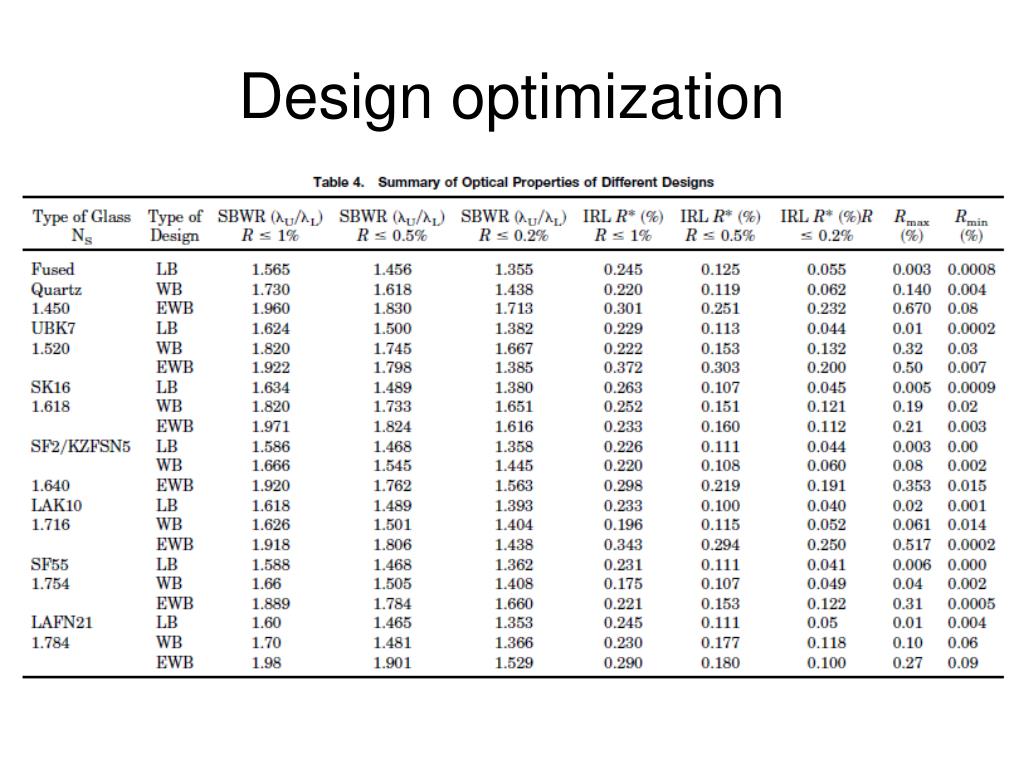

  28. Design optimization

  29. Design optimization

  30. Experimental investigation • Leybold Hereaus vacuum evaporation plant Model 560L • Optically polished and cleaned glass substrates • Substrate temperature: 200 ±5° • Rate: 0.3-0.5 nm/s for MgF2 and 0.05-0.1 nm/s for Sub2

  31. Experimental investigation • Optical transmittance and reflectance • Durability tests • High-temp. humidity • Thermal shock/ cycling • hot-cold soak.

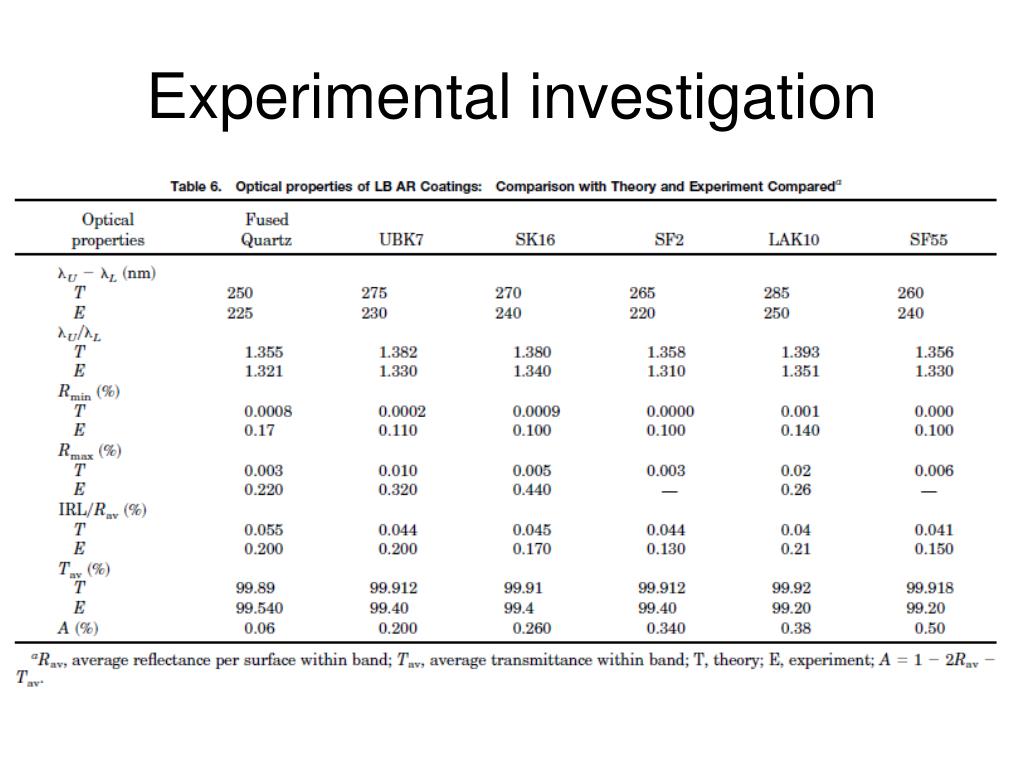

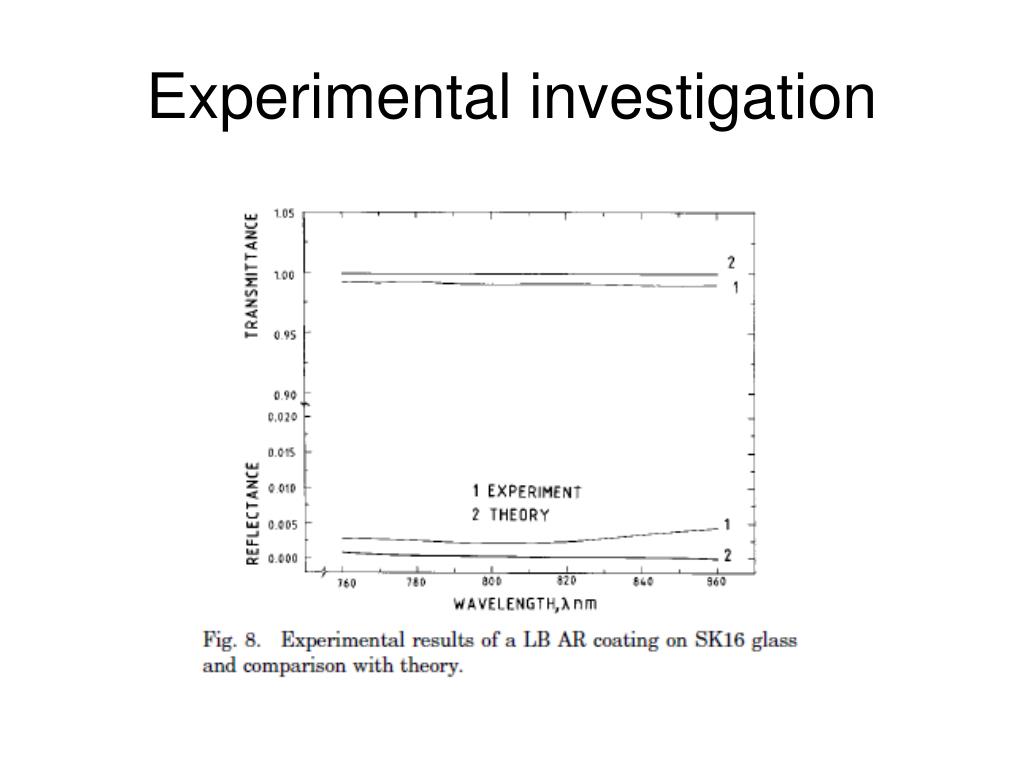

  32. Experimental investigation

  33. Experimental investigation

  34. Experimental investigation

  35. Experimental investigation

  36. Conclusions • IRL R*, Rav, ripple Rmax are interlinked to spectral bandwidth. The higher the bandwidth, the higher R*/Rav and the Rmax. 2.Higher-ripple designs can also have global optical properties (R*/Rav and Tav) that are comparable with those of lower-ripple designs but they have higher spectral instability.

  37. Conclusions 3. Sub2 high-index material in combination withMgF2 allows the production of efficient AR coatings with the electron-beam evaporation technique, in terms of both optical properties and durability of the coatings.
