Presentation Transcript

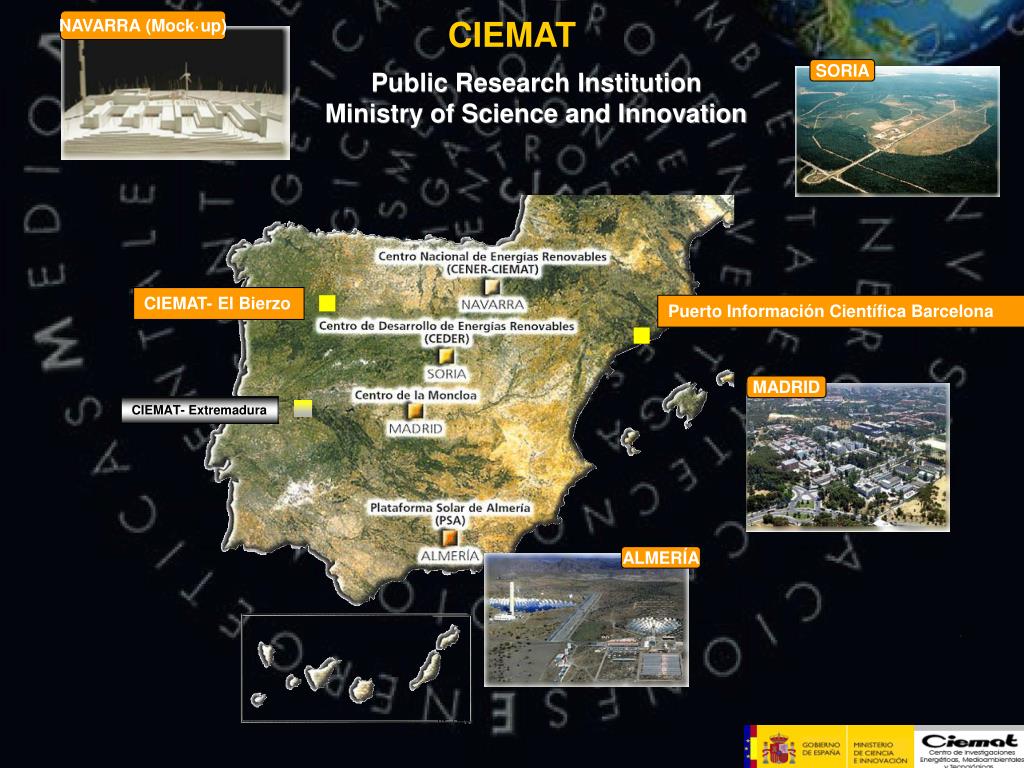

  1. NAVARRA (Mock·up) SORIA MADRID ALMERÍA CIEMAT Public Research Institution Ministry of Science and Innovation CIEMAT- El Bierzo Puerto Información Científica Barcelona CIEMAT- Extremadura

  2. CIEMAT Energy • Renewable Energies • Nuclear Fusion • Combustion Technology • Materials • Chemistry • Comm. and Inf. Tech • Infrastructures • Scientific Instrument. Environment • Radiological • Conventional • Long-term storage LNF • National Laboratory • for Nuclear Fusion • Particle Physics • Superconductivity • Cellular and Molecular • Biology Basic Research PIMIC • Refurbishment of old • facilities • Planning and prospective • Technology Transfer • All other horizontal services • Strategic projects (new centers) General Secretariat

  3. 140 M€ 120 M€ 100 M€ 80 M€ 60 M€ Budget 2007: 125 M€ Personnel: 2007: 1,500

  4. Division of Scientific Instrumentation Technology Activities: • Development of electronics within R&D projects, in collaboration with other teams at CIEMAT (large contribution to HEP projects) • Medical Applications. R&D line on non conventional radiation detectors for medical applications. Imaging reconstruction and simulation. • Accelerators Division of Scientific Instrumentation Technology Electronics Medical Applications Accelerators • AMS • FAST • DES • CMS • FEBEX • ACE2 • ECT • SEPTA • ITACA • The CSTD project • The BrainPET project • Monte Carlo simulation for radiology and neutron dosimetry • Magnets for particle accelerators, kinetic energy storage and superconductivity technology research. • A special program launched to extend these activities to other fields of accelerators

  5. Running Projects. ACE2 Control system for a kinetic energy accumulator.

  6. 16 1 2 15 3 14 4 13 5 12 6 11 9 8 7 10 Running Projects. ACT Fossil Fuels Development of a electrocapacitance tomography system Guard Radial Guard Electrodes (detail) Electrode belt

  7. AMS. The Rich detector Goals: Measurement of the charge particle velocity ( ) () /  10-3 @  = 1 (p+) Measurement of the mass: resolution  1% Measurement of the ion charge up to Z < 25 Discrimination e+/e- up to  10GeV • Measurement of the relative abundance of light atoms H/H2/H3, He3/He4, Be10/Be9 Radiator 3 cm Aerogel (n  1.05) Mirror Multilayer metallic layer deposited on Carbon Fiber Reinforced Composite • Light Detection 680 PMT (Hamamatsu7600-00-M16) • 4 x 4 mm2 /pixel • Size: 50 cm height • 160 cm diam • Weight < 200 Kg • Power < 100 Watt

  8. RICH Electronics x 680 units PMT Input Signal Divisor HV Distribution Pre- Amp ADC board LV - PP Capton connectort • Front End Electronics (ISN) • 5 boards (3 x 3 cm2) • HV divisor 80M • Pre-Amplification • HV distribution • Signal Distributor • ADC (AD7476BR) J-Crate RPD • RPD: • 2 Units • 6 DC-DC/RPD converters • Active redundancy • R-Crate: • 2 Units • 11 modules/R-Crate • 6 RDR • 2 HV modules • 2 Control modules • 1 Link module with the main DAQ

  9. 3556 mm 1575 mm Camera Scroll Shutter room for electronics Filters Optical Lenses 2.2 deg. FOV 4 -> 6-slot backplanes Dark Energy Survey (DES) • Partners • Fermilab • University of Illinois • The Lawrence Berkeley National • Laboratory • NOAO -- The National Optical • Astronomy Observatory • NCSA -- The National Center for • Supercomputer Applications • CIEMAT • The Barcelona Consortium • IEEC/CSIC - IFAE • The U.K. Consortium • University London, Cambridge, Edinburgh, Portsmouth • Technical goal • 500 MegaPixels Camera • 72 CCDs • CIEMAT: • Clock&Bias board • Master Control board CTIO (Chile)

  10. CMS. Muon chambers CIEMAT developed a layer of the CMS muon drift chambers.

  11. ROB ROS CMS. Electronics CIEMAT coordinates the overall electronics of the CMS muon drift chambers since 1995. Elaborates the design and construction of the read-out electronics (ROB, ROS) and its mechanics. Muon drift tube chamber Minicrate

  12. CMS. The LINK alignment system • Must establish relative coordinates between the inner detector at CMS • (Tracker) and the muon detectors in the Barrel and EndCap • Detectors are inter-connected via laser beams. Beams define six •  - planes, one each 60º. Detector positions are related through these planes Measure elements • Laser sources • Sensors • High precision mechanical • supports • Periscopes • Optics • Control and DAS • Optic (2D CMOS), CCD • Position (proximity sensors: • potentiometric and optical) • Tilt • Temperature (PT 100)

  13. Accelerators • The Superconductivity group started in 1989 and their activities include magnets for particle accelerators, kinetic energy storage, and superconductivity technology research. • In addition Ciemat has launched a special program to extend these activities to other fields of accelerator • A group of people is training at CERN who are contributing to LHC commissioning.
