  1. SMSC KBC1100 Keyboard / System Management Controller January 04,2005

  2. SMSC KBC1100 Power On Sequence

  3. KBC1100 Power Domain VCC0 14.318MHz CLOCKI Clock Battery Backed Resources XTAL1 XTAL2 EC_SCI PS2 Ports SFI GPIO PWM Count/Timer FIR/CIR SMbus Fan Tachometer SPI SERIAL PORT 32.768kHz Crystal VCC1 PWRGD PWRGD VCC1RST# LPC BUS PCI Signal VCC2 DAC_VCC DAC channel ADC_VCC ADC channel

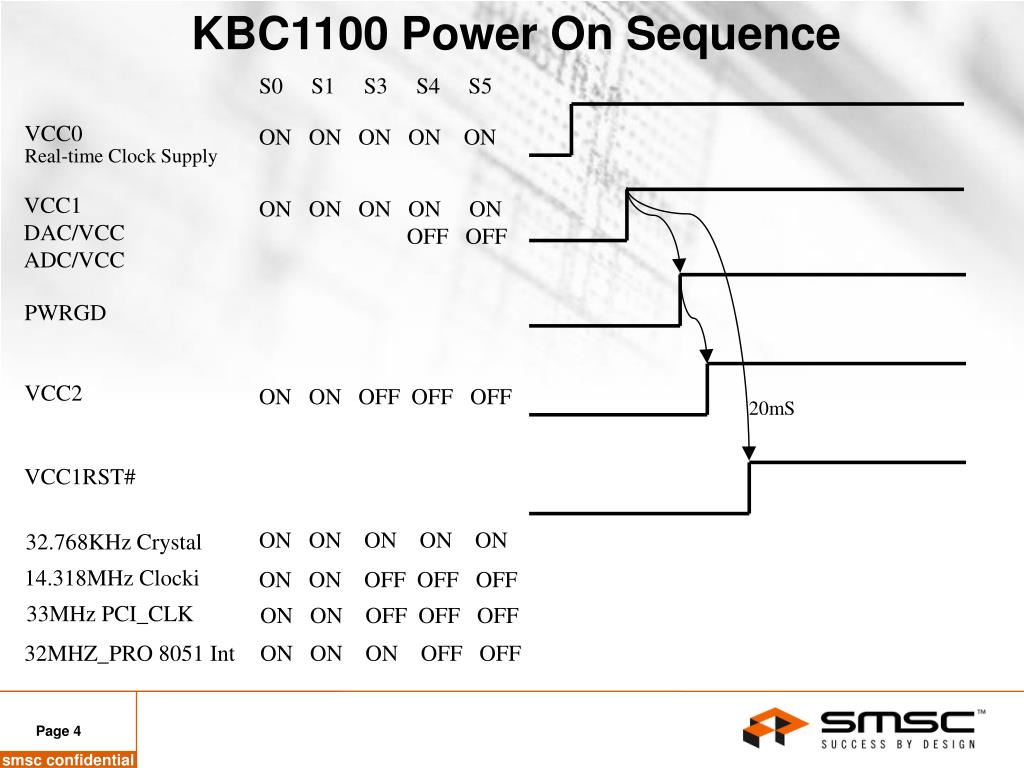

  4. KBC1100 Power On Sequence S0 S1 S3 S4 S5 VCC0 ON ON ON ON ON Real-time Clock Supply VCC1 DAC/VCC ADC/VCC ON ON ON ON ON OFF OFF PWRGD VCC2 ON ON OFF OFF OFF 20mS VCC1RST# ON ON ON ON ON 32.768KHz Crystal 14.318MHz Clocki ON ON OFF OFF OFF 33MHz PCI_CLK ON ON OFF OFF OFF 32MHZ_PRO 8051 Int ON ON ON OFF OFF

  5. SMSC KBC1100 Shared Flash Interface (SFI)

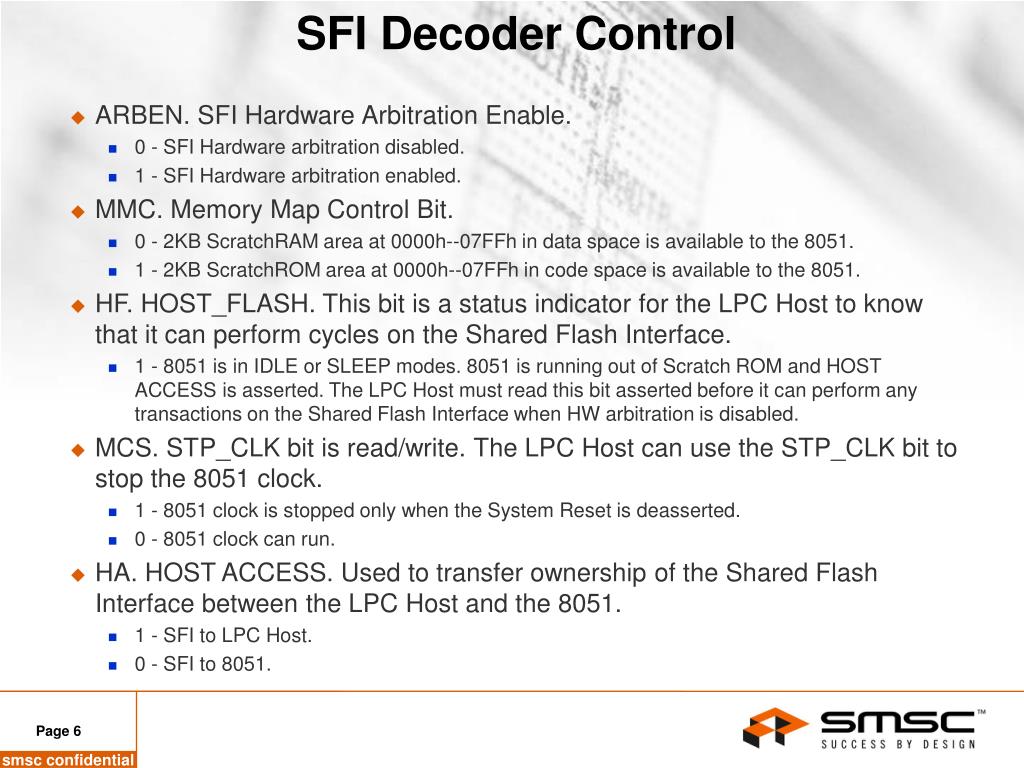

  6. SFI Decoder Control • ARBEN. SFI Hardware Arbitration Enable. • 0 - SFI Hardware arbitration disabled. • 1 - SFI Hardware arbitration enabled. • MMC. Memory Map Control Bit. • 0 - 2KB ScratchRAM area at 0000h--07FFh in data space is available to the 8051. • 1 - 2KB ScratchROM area at 0000h--07FFh in code space is available to the 8051. • HF. HOST_FLASH. This bit is a status indicator for the LPC Host to know that it can perform cycles on the Shared Flash Interface. • 1 - 8051 is in IDLE or SLEEP modes. 8051 is running out of Scratch ROM and HOST ACCESS is asserted. The LPC Host must read this bit asserted before it can perform any transactions on the Shared Flash Interface when HW arbitration is disabled. • MCS. STP_CLK bit is read/write. The LPC Host can use the STP_CLK bit to stop the 8051 clock. • 1 - 8051 clock is stopped only when the System Reset is deasserted. • 0 - 8051 clock can run. • HA. HOST ACCESS. Used to transfer ownership of the Shared Flash Interface between the LPC Host and the 8051. • 1 - SFI to LPC Host. • 0 - SFI to 8051.

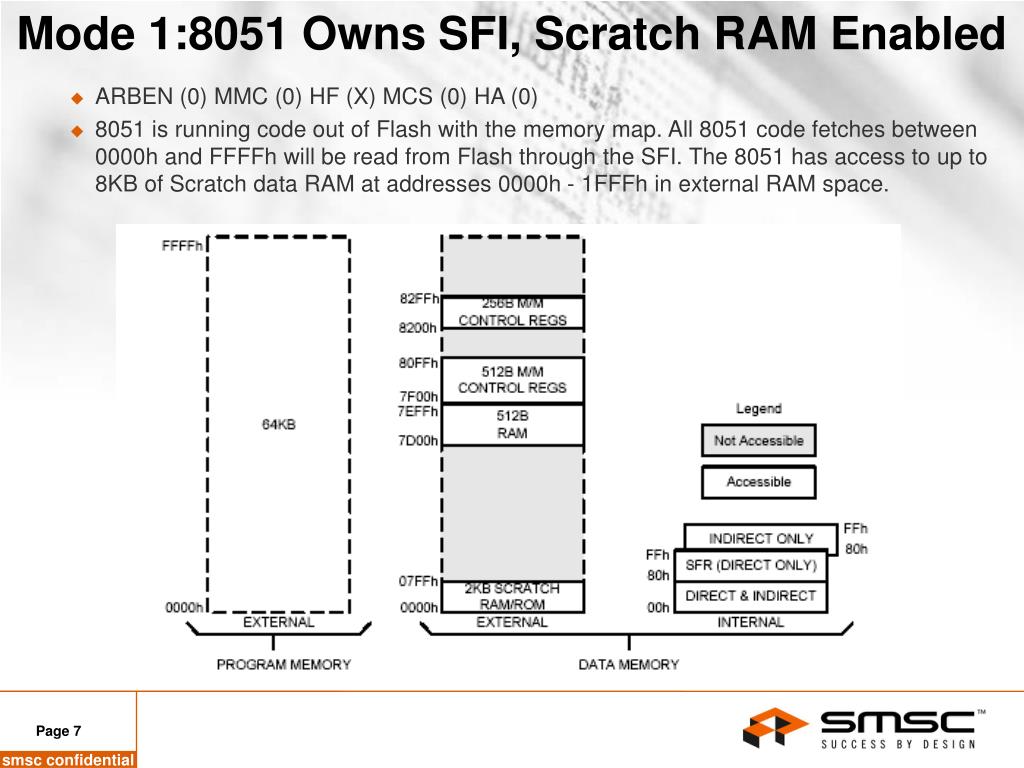

  7. Mode 1:8051 Owns SFI, Scratch RAM Enabled • ARBEN (0) MMC (0) HF (X) MCS (0) HA (0) • 8051 is running code out of Flash with the memory map. All 8051 code fetches between 0000h and FFFFh will be read from Flash through the SFI. The 8051 has access to up to 8KB of Scratch data RAM at addresses 0000h - 1FFFh in external RAM space.

  8. Mode 2:8051 Owns SFI, Scratch ROM Enabled • ARBEN (0) MMC (1) HF (0) MCS (0) HA (0) • 8051 executes from Scratch ROM while it still has access to Flash. This is the only SFI Decoder mode, 8051 can safely write the entire Flash device. When reading or fetching 8051 code in this mode, addresses 0000h to 1FFFh will be fetched from Scratch ROM and addresses 2000h to FFFFh will be fetched from Flash. All 8051 code writes (WRS =’1’) to 0000h to FFFFh ROM in this mode will be written to the Flash on the SFI and not Scratch ROM.

  9. Mode 3 : LPC Host Own SFI, 8051 Clock Stop • ARBEN (0) MMC (X) HF (X) MCS (1) HA (1) • The LPC Host initiates this mode as follow • Send command to 8051 to enter IDLE. • Wait for IDLE bit in 8051 Stop Clock Register to be set. • Set STP_CLK bit (8051 Stop Clock register). • 8051 clock will stop with STP_CLK set and System Reset is de-asserted. • Wait for HOST FLASH bit to be set. • Host may access SFI.

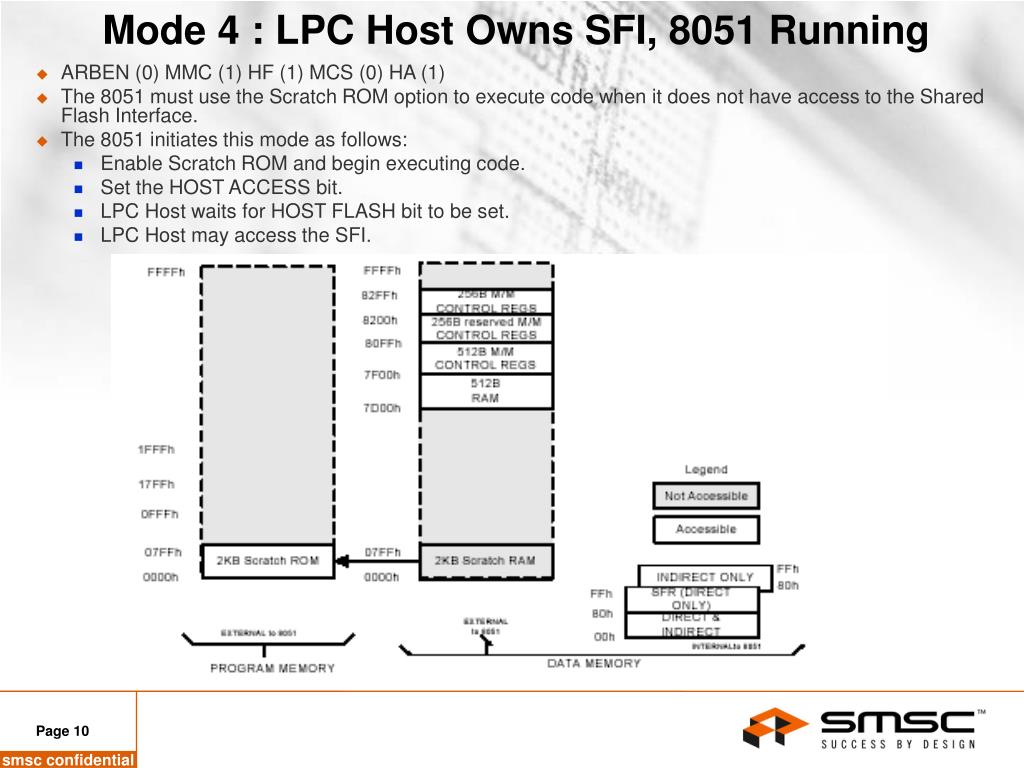

  10. Mode 4 : LPC Host Owns SFI, 8051 Running • ARBEN (0) MMC (1) HF (1) MCS (0) HA (1) • The 8051 must use the Scratch ROM option to execute code when it does not have access to the Shared Flash Interface. • The 8051 initiates this mode as follows: • Enable Scratch ROM and begin executing code. • Set the HOST ACCESS bit. • LPC Host waits for HOST FLASH bit to be set. • LPC Host may access the SFI.

  11. Mode 5:LPC Host/8051 Share SFI, Scratch RAM Enabled • ARBEN (1) MMC (0) HF (X) MCS (0) HA (0) • This is the default operating mode where the 8051 is running code out of Flash with the memory map. All 8051 code fetches between 0000h and FFFFh will be read from Flash through the SFI. • The LPC Host can read from Flash at any time. When the LPC Host reads from Flash the 8051 is idled for a short time to allow the LPC Host access to the Flash. • The 8051 has access to up to 8KB of Scratch data RAM at addresses 0000h - 1FFFh in external RAM space.

  12. Mode 6: LPC Host Owns SFI, 8051 Running • ARBEN (1) MMC (1) HF (X) MCS (0) HA (1) • The 8051 initiates this mode as follows • Enable Scratch ROM and begin executing code. • Set the HOST ACCESS bit.

  13. SFI Write Contention • Normally the 8051 is executing code from the Flash device and has ownership of the SFI. LPC Host may require access to the Flash device during this time and an SFI contention exists. 8051 is notified of the LPC Host access request by Host Access interrupt. Write access by the LPC Host to the Shared Flash Interface must be negotiated with the 8051 before FWH or LPC Memory write cycles can occur. • FWH Writes • When the LPC Host attempts a FWH Write to the SFI when it does not have ownership of the interface the KBC1100 will return a valid SYNC (0000b) on the LPC bus as if the write occurred without error. As long as the 8051 retains SFI ownership during this cycle, no LPC Host-related transaction will be seen on the SFI. A FWH write is the result of a serious error and there is no recovery method for erroneous writes of this type. • LPC Host Memory Writes • If the Host Wait bit is set and the LPC Host attempts an LPC Memory Write to the SFI when it does not have ownership of the interface the KBC1100 will drive Long Wait SYNCs on the LPC Bus until the 8051 grants SFI ownership to the LPC Host. If the Host Wait bit is cleared and the LPC Host attempts an LPC Memory Write to the SFI the KBC1100 will return a valid SYNC (0000b) on the LPC bus as if the write occurred without error. No LPC Host-related transaction will be seen on the SFI.

  14. SFI Read Contention • The KBC1100 provides hardware arbitration on the SFI so that the 8051 and the LPC interface can read from Flash without software intervention. Flash write accesses are not affected by the ARBEN bit. When SFI hardware arbitration is disabled, software arbitration of the SFI interface must be used. Hardware arbitration between the 8051 and LPC Host only during read accesses to the Shared Flash Interface. • SFI Hardware Arbitration • SFI hardware arbitration is enabled by setting the ARBEN bit. When SFI hardware arbitration is disabled, SFI access is controlled by the 8051. • The SFI hardware arbitration is achieved by stopping the 8051 clock for two cycles during each LPC access, long enough for the LPC host to read a byte of data from the Flash. • If the 8051 is operating out of scratch ROM, the 8051 can give the LPC host complete access to the Flash but can optionally reclaim the SFI when an 8051 interrupt occurs.

  15. SMSC KBC1100 Serial Peripheral Interface (SPI)

  16. SPI Full Duplex Mode • In Full Duplex Mode, serial data is transmitted and received simultaneously by the SPI master over two separate data transmission lines. • Every data exchange is a simultaneous transmit and receive operation. Data shifted out of the master is shifted into the slave and data shifted out of the slave is shifted into the master synchronized by the master-driven SPCLK. SPIMODE = 0 SPIDR SPDOUT SPDIN SPCLK SPI Master SPI Slave

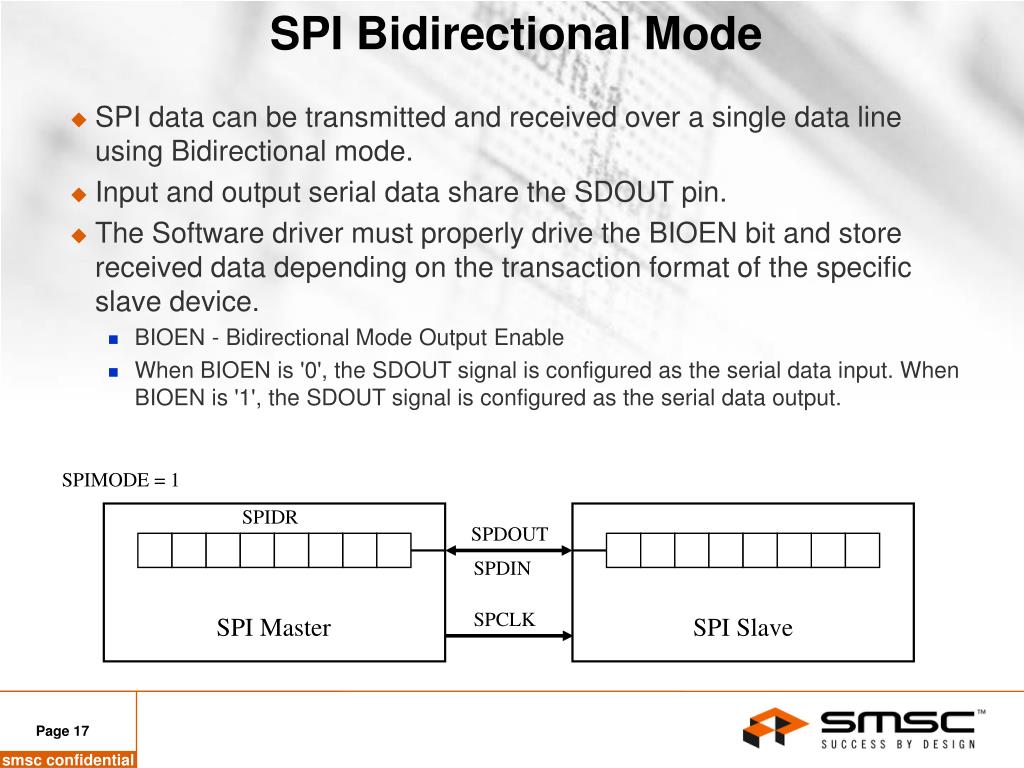

  17. SPI Bidirectional Mode • SPI data can be transmitted and received over a single data line using Bidirectional mode. • Input and output serial data share the SDOUT pin. • The Software driver must properly drive the BIOEN bit and store received data depending on the transaction format of the specific slave device. • BIOEN - Bidirectional Mode Output Enable • When BIOEN is '0', the SDOUT signal is configured as the serial data input. When BIOEN is '1', the SDOUT signal is configured as the serial data output. SPIMODE = 1 SPIDR SPDOUT SPDIN SPCLK SPI Master SPI Slave

  18. SPI Interface Description • Clock sources • 32Mhz_PRO, 48_MhzRO and PLL • SPI Pins • SPI block can be switch from the Primary Port to the Secondary Port and the last state of the Primary SPI Port's buffer mode, pin direction and pin logic state of the SPCLK, SPDOUT and SPDIN functions persists on the LGPIO70, LGPIO60 and LGPIO64 pins. The secondary port is on GPIO74, GPIO73 and GPIO39 pins. • SPDOUT - Serial Peripheral Data Out • Serial data output from the KBC1100 SPI interface. When the interface is configured for Bidirectional mode, SPDOUT is used for SPI serial I/O. • SPDIN - Serial Peripheral Data In • Serial data input to the KBC1100 SPI. When the interface is configured for Bidirectional mode, SPDIN is unused. • SPCLK - Serial Peripheral Clock • Serial clock driven by the KBC1100 SPI (master) and connected to all SPI slaves.

  19. SPI Data Clock Timing TCLKPH - Transmit Clock Phase CLKPOL - SPI Clock Polarity RCLKPH - Receive Clock Phase nBUSY bit Receive Transmit SPIDONE bit RCLKPH CLKPOL TCLKPH SPCLK 0 0 0 1 0 1 0 1 0 1 1 1 SPDOUT/SPDIN LSBF = 0 LSB 1 MSB 6 5 4 3 2 LSB 1 2 3 4 5 6 MSB LSBF = 1

  20. SPI Baud Rate • SPI Baud Rate • 48Mhz Clock • SPICS0 and SPICS1 bits in the SPI Baud Rate register can be used to scale the input clock (4 MHz, 8 MHz or 12 MHz) to the SPI Baud Rate Generator. • 32Mhz_PRO • SPICS0 and SPICS1 bits are ignored and the 32Mhz_PRO clock output is directly connected to the SPI Baud Rate Generator. • The divisor bits SPICD0, SPICD1 and SPICD2 in the SPI Baud Rate register can be programmed to divide down the clock from 1 to 128. CLKSRC=0 CLKEN 32Mhz_PRO Clock Divider SPICD2-0 /1,2,4,8,16,32,64,128 CLKSRC=1 Clock Scale SPICS1/0 /4,6,12 48Mhz Clock

  21. SMSC KBC1100 Mailbox Registers Interface

  22. Mailbox Interface Registers Block Diagram MBX Primary Base Address High/low Byte Activate=1 ESMI source register ESMI mask register MBX access port addresses decode INT3 8051 HOST CPU System-to-8051 Mailbox register 0 32 8 bits Mailbox Registers MBX INDEX MBX DATA 8051-to-system Mailbox register 1 SMI 8051STP_CLK IR data register UART1 FIFO Control register Fan Control Register Flash Recovery PWM 0-2 Frequency Multiply

  23. System/8051 Interface Registers • Mailbox Register 0, System-to-8051, and Mailbox Register 1, 8051-to-System, are specifically designed to pass commands between the host and the 8051. Mailbox Register 0/1 are not dual-ported, so the System BIOS and Keyboard BIOS must be designed to properly share these registers. • Mailbox Register 0: System-to-8051 • If enabled, an INT3 will be generated when the System writes to Mailbox Register 0. The interrupt source bit will be cleared when the 8051 reads this register. After reading Mailbox Register 0, the 8051 can clear the register to “00H” by a dummy write to inform the host that the register contents have been read. • Mailbox Register 1: 8051-to-system • If enabled, an SMI will be generated when the 8051 writes to Mailbox Register 1. The SMI interrupt will be cleared when the host reads this register. After reading Mailbox Register 1, the system can clear the register to “00H” by a dummy write to inform the 8051 that the register has been read.

  24. LPC Host Access SFI System is fully powered & the 8051is running keyboard code. System Reset deasserted and STP_CLK = 0 The host issues a defined command to put the 8051 into Idle mode 8051 goes into idle mode The host sets STP_CLK = 1 and combined with System Rests deasstered causes the 8051 clock to stop The host can operate as needed. When done, the host resets STP_CLK = 0 NOTE: in order to leave idle mode the 8051 must receive an interrupt; typically a software timer interrupt will be used 8051 IRQ? N Y 8051 wakes from idle mode and starts from where it left off LPC Host Sequence to Stop the 8051

  25. 8051 Stop Clock Register • IDLE • When the IDLE bit is 0, 8051 is not in idle mode • When the IDLE bit is 1, the 8051 is in idle mode. The IDLE bit is read-only. • HOST_FLASH • This bit is a status indicator for the LPC Host to know that it can perform cycles on the Shared Flash Interface. • Host_Flash is set, 8051 is in IDLE or SLEEP modes. 8051 is running out of Scratch ROM and HOST ACCESS is asserted. The LPC Host must read this bit asserted before it can perform any transactions on the Shared Flash Interface when HW arbitration is disabled. • STP_CLK • When the STP_CLK bit is 1, the 8051 clock is stopped only when the System Reset is deasserted; • when the STP_CLK bit is ‘0’, the 8051 clock can run.

  26. SMSC KBC1100 BudgetBus Controller

  27. SMSC BudgetBus Controller Data Format • Packet Format for temperature 1 bit 3 bits 11 bits Sensor Type Sensor Number Sensor Reading 0 000b-111b 11 bits Sensor Type = 0 Temperature Data Format Bits 10-3 : number portion bits 2-0 : fractional portion Sensor Data Whole Number Register Temperature data is transmitted in two’s compliment form with a decimal offset of 64 Number portion (Two's complement of Bits 10-3) + Fractional portion (Two's complement of Bits 2-0) + 64 = Actual temperature reading

  28. SMSC BudgetBUS Sensors EMC1201 EMC1202 • EMC1201 • Sensor number • 000 - internal temperature • EMC1202 • Sensor number • 000 - internal temperature • 001 - remote 1 • EMC1203 • Sensor number • 000 - internal temperature • 001 - remote 1 • 010 - remote 2 EMC1203

  29. SMSC BudgetBus Controller Data Format • Packet Format for voltage • Voltage data transmit in 10 bits or 8 bits binary • Bit 10 is reserved bit. • In 8 bits binary format, bits 0 and 1 are always zero • The voltage formula • V measurement = ( V max * Sensor Reading ) / 1024 • V max is the maximum voltage that can be read by the Voltage Sensor 1 bit 3 bits 11 bits Sensor Type Sensor Number Sensor Reading 1 000b-111b 11 bits Sensor Type = 1 Voltage Data Format 0 10 Bits Voltage Data 0 8 Bits Voltage Data 00

  30. Two's compliment of number and fractional portion • Number portion • MSB bit indicate the sign of the number • 0 : positive number • 1 : negative number • Invert the digits. 0 becomes 1, 1 becomes 0. Then add 1. • Add sign • Fractional portion • Any bit after the point represents a number 2 raised to a negative power. This is how the fractions are represented.

  31. SMSC BB0/1 Thermal Events Routing Diagram Bus=0/1 Sensor Data Register FIFO0TR INT4(174h)-SENSOR WakeUp(12)-SENSOR 8 Reading Buffer FIFO EN0/1=1 Sensor0/1 data acquisition INT4(17Ch)-HWPRO WakeUp(10)-HWPRO Enable HTEVEN bit HWPRO Thermal Threshold Register HW_PROTECT# Pin INT4(178h)-SA_OVRTEMP WakeUp(13)-SA_OVRTEMP POL >< SentinelAlert Thermal Threshold Register SentinelAlert logic DAC[2:0] SA_GPIO[0:1] TEVEN bit Reset WDRST bit Enable Enable Watchdog Timer TTEN bit WDTEN bit Enable

  32. SMSC Budget Bus 0/1 Thermal Events • Interrupt • SENSOR, Sensor Reading Received, INT4 Priority 1 174h • FIFO0TR (FIFO Threshold 0), select 1-8 sensor readings. These bits set the interrupt threshold for SMSC BudgetBus 0. An interrupt is signalled when the FIFO threshold is reached. • HWPRO, Hardware Protect Event Detected, INT4 Priority 3 17Ch • A thermal event interrupt occurs when a temperature reading is greater than or equal to the value programmed in one of the Thermal Threshold registers (HWPRO_TT). Temperature readings from both BudgetBuses are compared against the Thermal Threshold registers when they are pushed into the FIFO. • SA_OVRTEMP, SMSC SentinelAlert! Thermal Event Detected, INT4 Priority 2 178h • When a temperature reading is greater than or equal to or lower than ( depend on POL) the value programmed in SentinelAlert! Thermal Threshold (SA_TT) Registers. Temperature readings from both BudgetBuses are compared against the SentinelAlert! Thermal Threshold (SA_TT) Registers when they are pushed into the FIFO.

  33. SMSC Budget Bus 0/1 Thermal Events • Wake-Up Event • SENSOR, Sensor Reading Received, Count 12 • FIFO0TR (FIFO Threshold 0), select 1-8 sensor readings. These bits set the wake-up event threshold for SMSC BudgetBus 0. An wake-up event is signalled when the FIFO threshold is reached. • HWPRO, HW_Protect Thermal Event, Count 10 • A thermal event occurs when a temperature reading is greater than or equal to the value programmed in one of the Thermal Threshold registers (HWPRO_TT). Temperature readings from both BudgetBuses are compared against the Thermal Threshold registers when they are pushed into the FIFO. • SA_OVRTEMP, SMSC SentinelAlert! Thermal Event Detected, Count 13 • When a temperature reading is greater than or equal to or lower than ( depend on POL) the value programmed in SentinelAlert! Thermal Threshold (SA_TT) Registers. Temperature readings from both BudgetBuses are compared against the SentinelAlert! Thermal Threshold (SA_TT) Registers when they are pushed into the FIFO.

  34. BudgetBus FIFO Status & Sensor Data • BudgetBus FIFO Status Register is used to report the status of the internal FIFO • OVFL1/0 • FIFO Overflow, This bit is set if the BudgetBus FIFO Overflow • FIFO1/0 • FIFO Space, these bits report the number of sensor reading present in the FIFO for BudgetBus • Sensor Data register report sensor data to the 8051. The 8051 selects which busses data is read from the Sensor Data Register by writing the BUS field in the SMSC BudgetBus Control Register. An interrupt can be generated each time the internal FIFO reaches the threshold set in the FIFO Threshold Register. • Sensor data is popped from the internal FIFO when the Sensor Data Whole number register is read. To ensure that the data is correct, the Fractional Sensor Data register must be read before reading the Sensor Data Whole Register.

  35. Temperature Sensor Number Calculate • Sensor Data Whole Number Register (Read second) • SD • Sensor Data. These bits return the upper 8 bits of the temperature data (11-bit sensor reading) and represent the whole number portion of the temperature reading. • Fractional Sensor Data Register (Read first) • SD • The Fractional Sensor Data register contains the lower 3-bits of the 11-bit sensor reading. This register determine the fractional portion of the temperature reading. • Actual temperature reading = Number portion (Two's complement of Bits 10-3) + Fractional portion (Two's complement of Bits 2-0) + 64 • TMPV • Temperature Threshold Violation. This bit is set when a temperature reading violates the Thermal threshold set in the Thermal Threshold Registers. • SNTYP • Sensor Type. 0:Temperature reading. 1:Voltage reading. • SN • Sensor Number. These bits return the 3 bits sensor number.

  36. SMSC BudgetBus Control Register • BudgetBus Control Register is used to control the behavior of the SMSC BudgetBus controller • TEVEN • Thermal Event Enable. Enables the comparison of temperatures against the Thermal Threshold Registers for signaling Thermal Events • HTEVEN • Hardware Thermal Event Enable. Enables the comparison of temperatures against the HWPRO Thermal Threshold Registers for signaling Thermal Shutdown Events • BUS • Select BudgetBus 0 or 1 temperature data is visible in the Sensor Data Register • 0 - Bus 0 Sensor Data • 1 - Bus 1 Sensor Data • EN1/0 • SMSC BudgetBus 1/0 Enable. Enable an disables the SMSC BudgetBus Controller from receiving data on SMSC BudgetBus 1/0. When the bus is disabled, the bus is placed in power down state • 0 - SMSC BudgetBus 1/0 disabled • 1 - SMSC BudgetBus 1/0 enabled

  37. Thermal Shutdown Temperature • Thermal shutdown temperature calculate • Number portion : Two's complement of [binary (Shutdown temperature -64)]+1 • Fractional portion : Two's complement of fraction • HWPRO Thermal Threshold Registers • HWPRO Thermal Threshold (HWPRO_TT) registers are used to set the thermal shutdown temperature. The default value of this register is 90°C. • HWPRO_TT Whole Number Register • The HWPRO Thermal Threshold Whole Number register contains the upper 8-bits (number portion) of the 11-bit temperature threshold. • HWPRO_TT Fractional Sensor Data Register • TT. The HWPRO_TT Fractional Sensor Data register contains the lower 3-bits (fractional portion) of the 11-bit temperature threshold.

  38. SentinelAlert Thermal Threshold • SentinelAlert Thermal Threshold (SA_TT) Registers are used to set the thermal threshold that cause interrupts to the 8051 • SA_TT Whole Number Register • SA_TT Whole Number register contains the upper 8-bits of the 11-bit temperature threshold. • SA_TT Sensor Data Register • The SA_TT Fractional Sensor Data register contains the lower 3-bits of the 11-bit temperature threshold. This register can be used to program the fractional portion of the temperature threshold. • POL. Thermal Threshold Polarity. This bit controls the polarity of the Thermal Event. • 0 : Temperature >= Thermal Threshold • 1 : Temperature < Thermal Threshold • SMSC SentinelAlert! Control Register • TTEN, temperature Threshold Enable. This bit controls if a Thermal Event causes the KBC1100 to enter SMSC SentinelAlert! Mode. • 0 = Thermal events do not cause SMSC SentinelAlert! Mode • 1 = Thermal events cause SMSC SentinelAlert! Mode

  39. SMSC KBC1100 SentinelAlert! Controls

  40. SMSC KBC1100 SentinelAlert! control • Enter SMSC SentinelAlert! Controls • The Watch-Dog timer expires • A programmable watchdog timer is used to monitor the 8051. The watchdog timer can be set from 25 milliseconds to 6.4 seconds. The watchdog is restarted anytime the 8051 writes the WDRST bit in the SMSC SentinelAlert! Control Register. • External thermal diode sensors exceed critical temperature limits • Temperatures are monitored by the SMSC BudgetBus Controller using the SMSC SentinelAlert! Thermal Threshold (SA_TT) Registers. • Action in SMSC SentinelAlert! Controls • 4 DAC outputs can be forced to minimum or maximum output voltage under program control • SA_GPIO pins can be programmed as an input or as an output and forced High or Low.

  41. Watchdog Timer Setting • SMSC SentinelAlert! Control Register • WDRST, Watchdog Timer Reset. Writing this bit restarts the Watchdog Timer. • WDTEN, Watchdog Timer Enable. This bit enables the Watchdog timer. If the timer is not restarted before the timer expires the KBC1100 enters SMSC SentinelAlert! Mode. If the Watchdog timer is disabled it can not cause the KBC1100 to enter SMSC SentinelAlert! Mode. • Watchdog Timer Length = (WDTLEN+1)x25mS • 25mS to 6.4 seconds • WDTLEN, Watchdog Timer Length Register is used to select the length of timer. The Watchdog Timer Length Register controls the length of the timer in 25ms steps. • Time remaining = (WDTCNT +1) x 25ms • WDTCNT, Watchdog Timer Count, these bits return the time remain before the timer expires.

  42. SMSC SentinelAlert! Output State • SentinelAlert! output control • SentinelAlert! DAC State Register • DAC3-0 SASTATE. DAC3-0 SMSC SentinelAlert! State. These bits control the SMSC SentinelAlert! State of DAC Channel. • 00 - Maintain current state • 01 - Tri-state output • 10 - Force Output Low • 11 - Force Output High • SentinelAlert! GPIO State Register • SA_GPIO1-0 status. SA_GPIO1-0 SMSC SentinelAlert! State. These bits control the SMSC SentinelAlert! State of the SA_GPIO1-0 pin. • 00 - Maintain current state • 01 - Tri-state output • 10 - Force Output Low • 11 - Force Output High
