  1. MAG RTP Southwest Area Transportation Study MAG TRC January 30, 2003

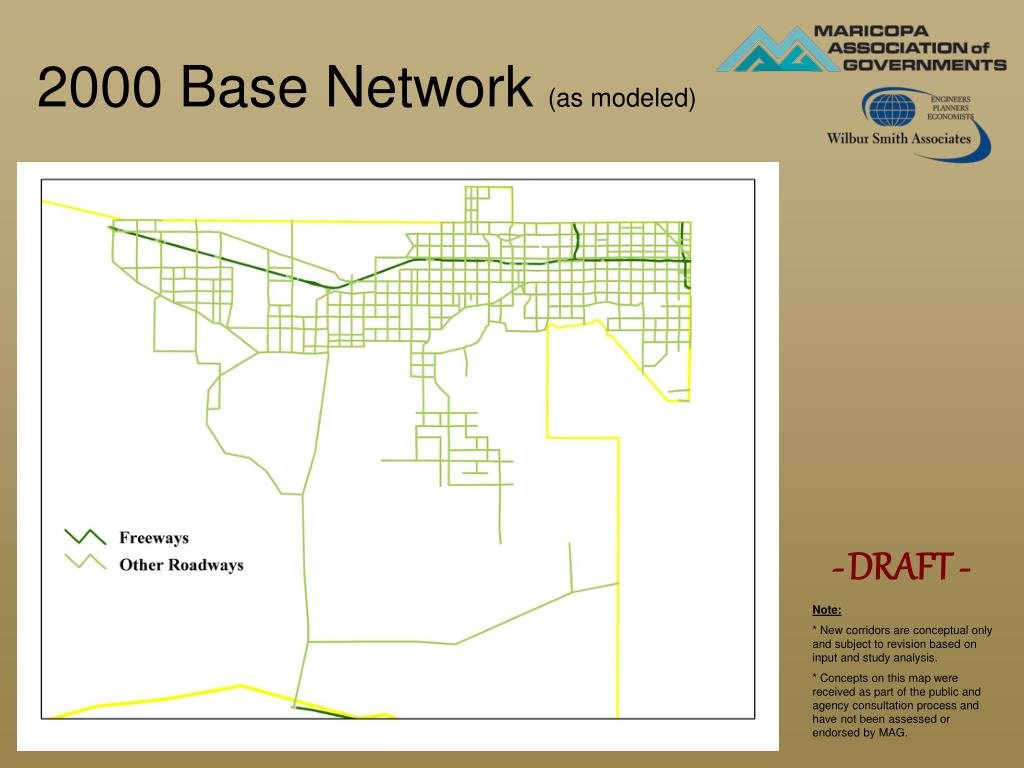

  2. 2000 Base Network(as modeled) - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

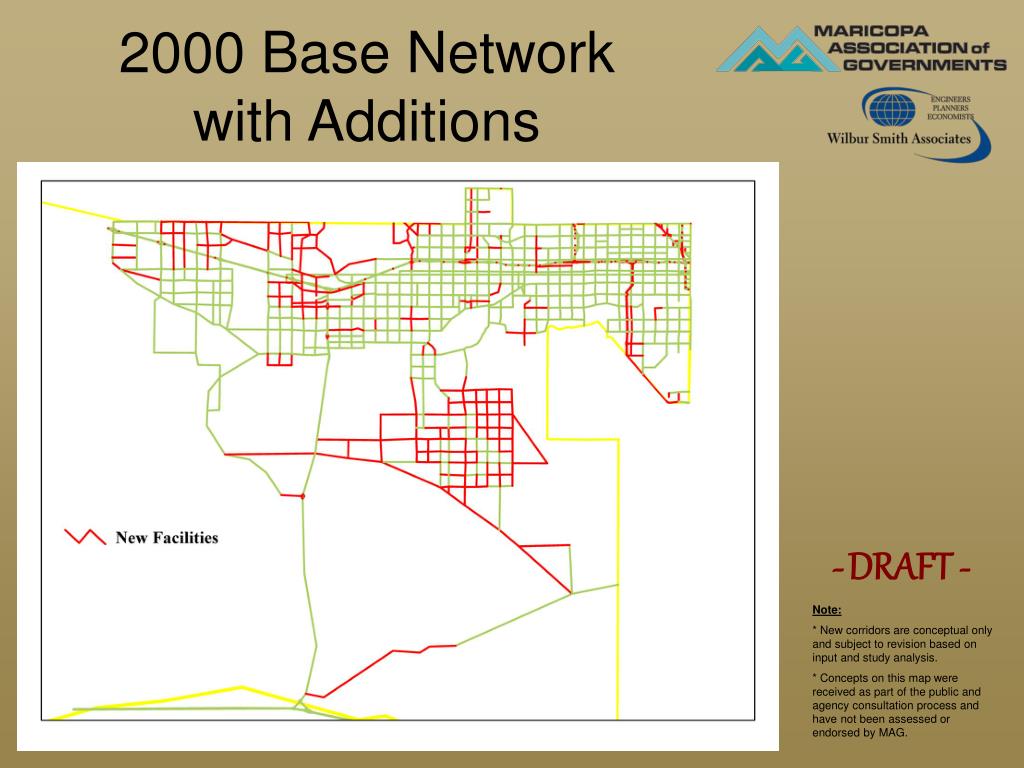

  3. 2000 Base Networkwith Additions - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

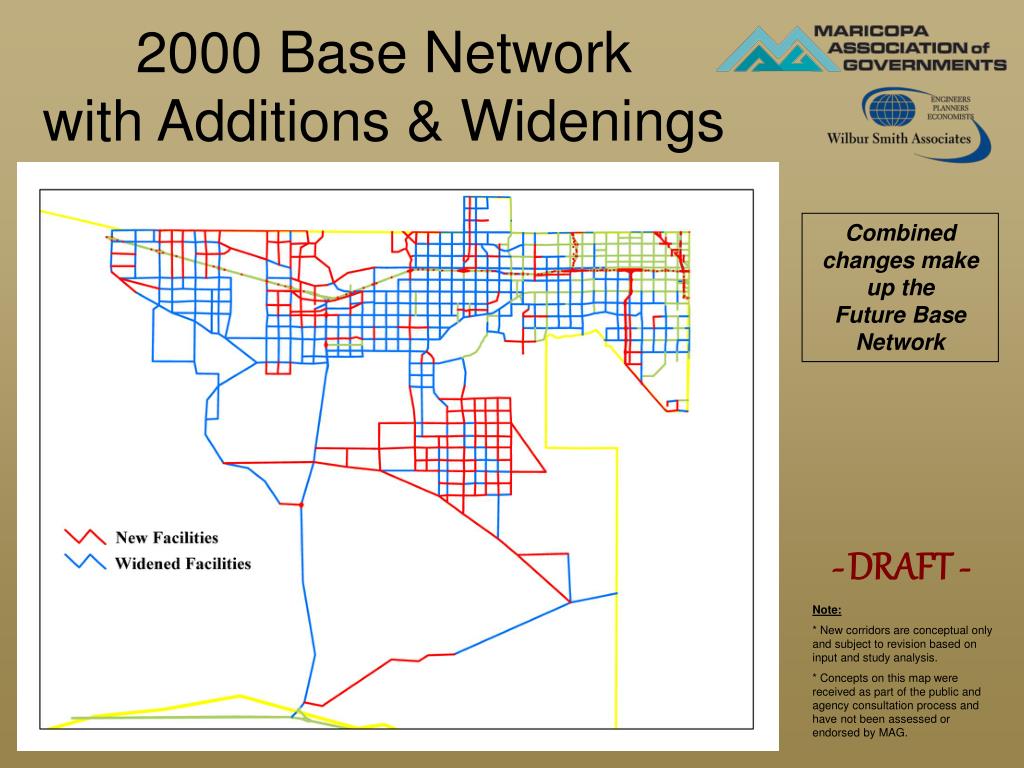

  4. 2000 Base Network with Additions & Widenings - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG. Combined changes make up the Future Base Network

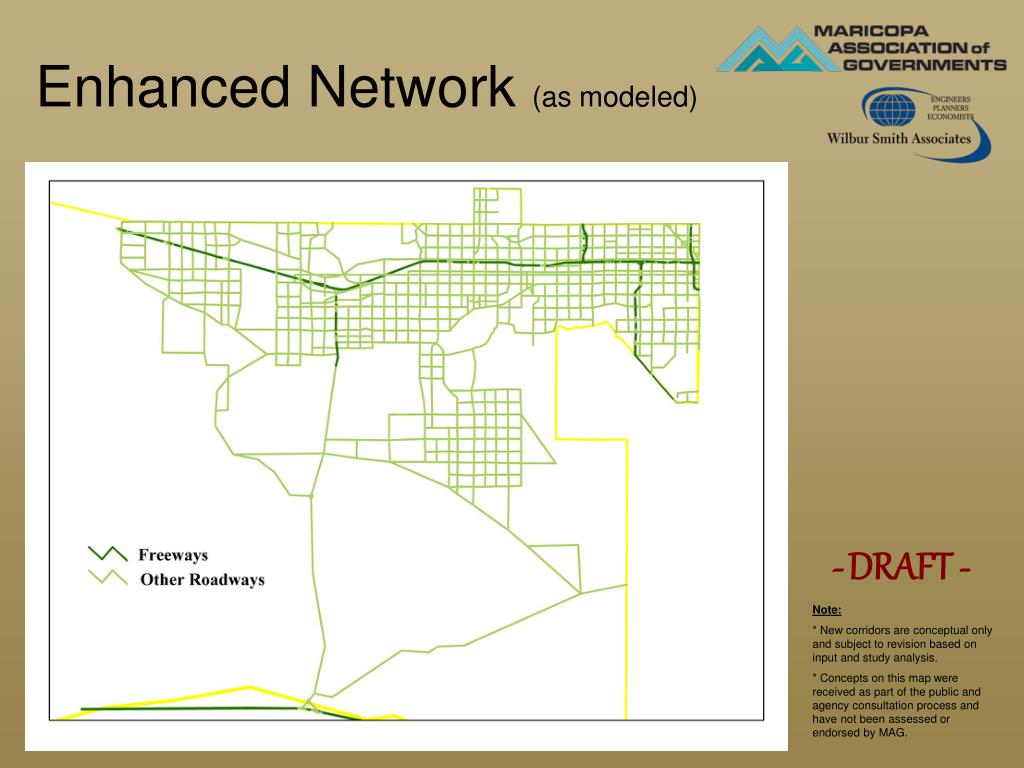

  5. Enhanced Network (as modeled) - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

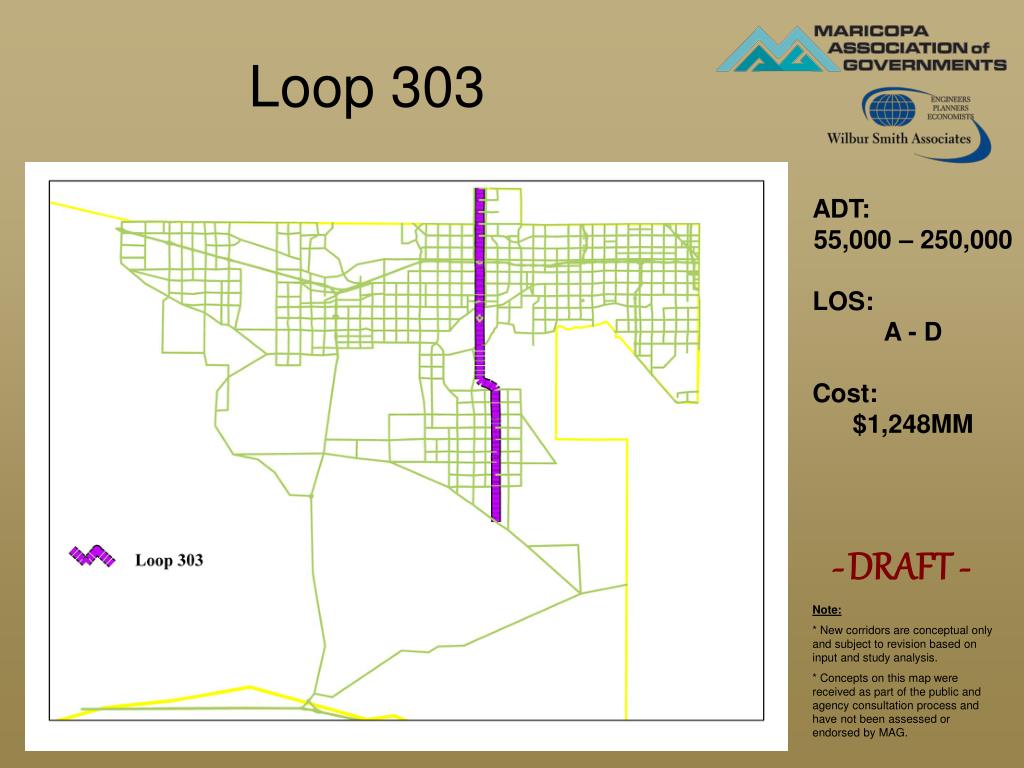

  6. Loop 303 - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG. ADT: 55,000 – 250,000 LOS: A - D Cost: $1,248MM

  7. East - West Reliever - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG. ADT: East of SR-85 145,000 – 315,000 LOS: A - E Cost: $3,480MM

  8. Rio Salado Parkway - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG. ADT: 40,000 – 60,000 LOS: A - D Cost: $172MM

  9. Komatke/Riggs Road - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG. ADT: 12,000 – 60,000 LOS: A - C Cost: $169MM

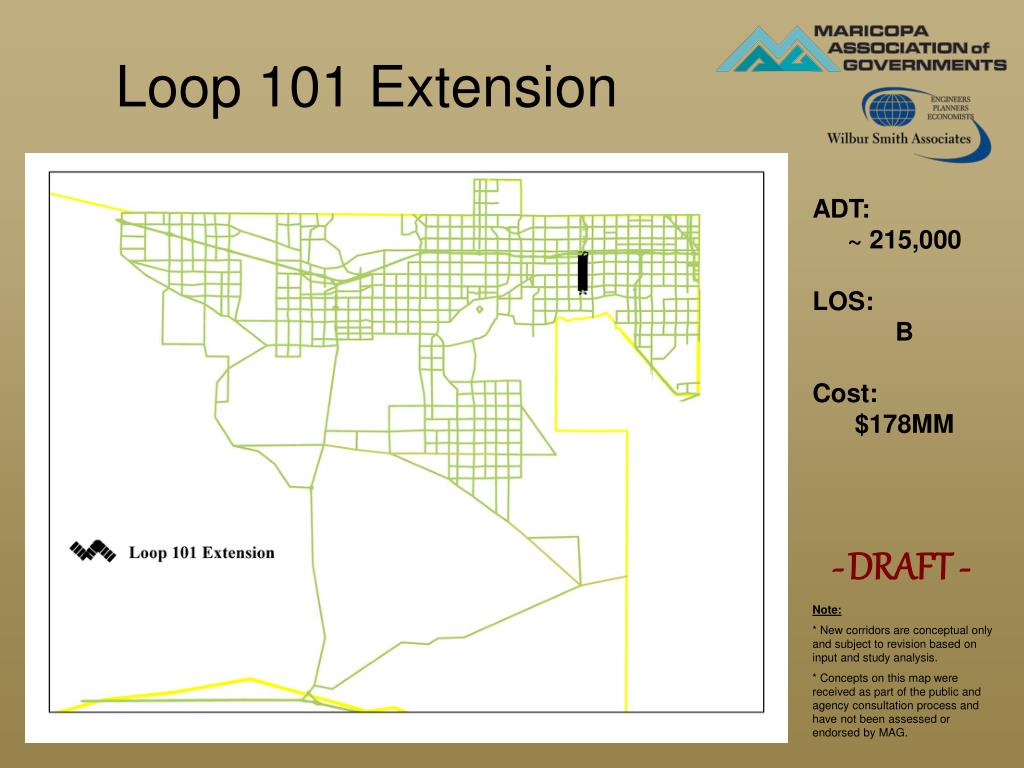

  10. Loop 101 Extension - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG. ADT: ~ 215,000 LOS: B Cost: $178MM

  11. New Corridors Network (as modeled) - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

  12. RPTA DRAFTProposed Regional Connections - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

  13. RPTA DRAFTProposed Fixed-Route Network - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG.

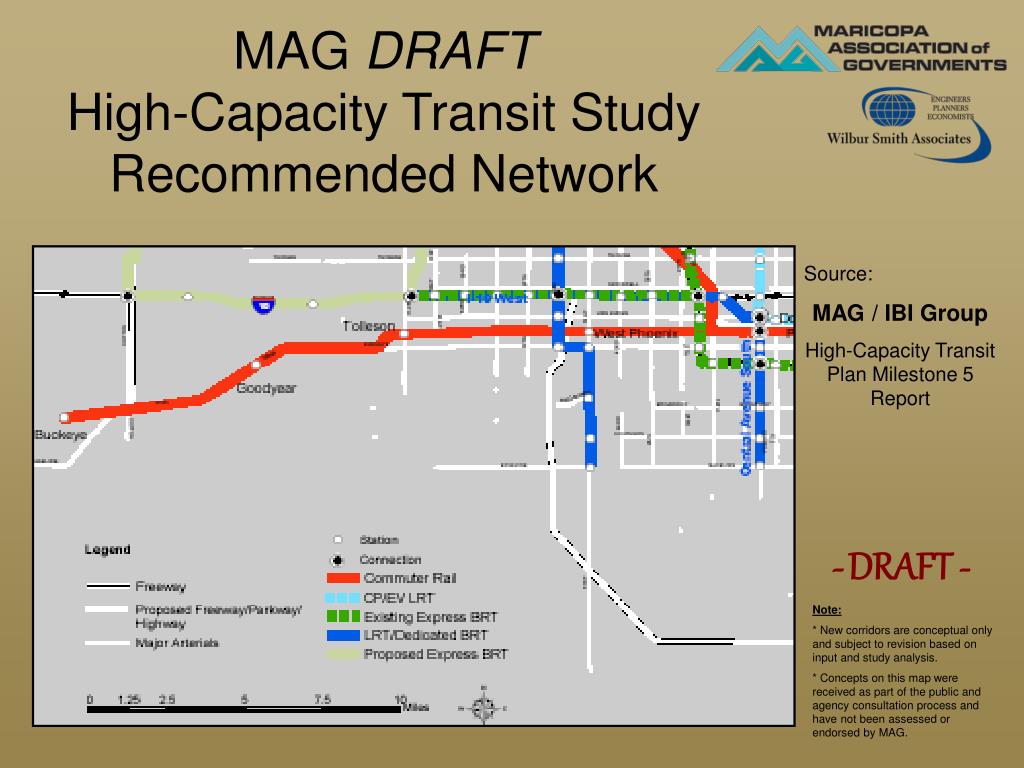

  14. MAG DRAFTHigh-Capacity Transit StudyRecommended Network - DRAFT - Note: * New corridors are conceptual only and subject to revision based on input and study analysis. * Concepts on this map were received as part of the public and agency consultation process and have not been assessed or endorsed by MAG. Source: MAG / IBI Group High-Capacity Transit Plan Milestone 5 Report

  15. SWATS Highlights (Draft) • Number of Arterial Lane Miles added (includes overlap with NWATS) • Current Base to Enhanced Model: 2,200 miles • Total cost of all new proposed corridors:$5.2 Billion • Cost of high capacity transit corridors in SW study area: approx. $816 Million

  16. Final Report will address Study Focus Issues: • Public modes of transportation • arterial and regional highway systems • transit (bus, LRT/BRT, rail) • non-motorized (bicycle and pedestrian) • freight mobility • recreational access • Cost estimates include: • Intelligent Transportation Systems (ITS) on major facilities • Bicycle lanes on arterial grid buildout

  17. Southwest Area Transportation Study Comments orQuestions Contact Information:email / fax / phone • Chris Voigt • Project ManagerMaricopa Association of Governments • 602-254-6300cvoigt@mag.maricopa.gov Linda Meronek Project Manager Wilbur Smith Associates 480-775-4344lmeronek@wilbursmith.com
