  1. National Enhance Technology Corp.VDSL Product Presentation NV-200D(2xRJ45) NV-200LC(CO) NV-200(CPE) NV-800S NV-2400S

  2. VDSL ( Very-High-Data-Rate Digital Subscriber Line ) The most promising technology capable of delivering full-service access is very-high-data-rate digital subscriber line (VDSL). VDSL is both symmetric and asymmetric and provides up to 15Mbps of bandwidth over voice on a single twisted-pair copper loop. • Our current VDSL series are: • NV-2400S(24-port Intelligent VDSL Concentrator) • NV-800S(8-port Intelligent VDSL Concentrator) • NV-200LC(VDSL CO Modem with External Console) • NV-200(VDSL CPE Modem) • NV-200D(VDSL Modem with 2 x 10/100 Ethernet)

  3. NV-2400S Benefits: • Supports bandwidth management function from 100Kbps up to 15Mbps(symmetric or asymmetric) • Supports Auto-MDIX & Copper/Fiber Media Auto-Link with Hot Swappable on Ethernet ports • Surge protection & Splitter on board for VDSL ports • Supports IEEE-802.1d spanning tree • Supports IEEE-802.1q tagging & IEEE-802.1v protocol V-Lan • Supports IEEE-802.1ad Port Trunking (Link aggregation) • Supports IEEE-802.1x port base network access control • Supports IGMP snooping • Supports Mac filtering • Supports internal fan & temperature monitor & management function • Supports SNMP with RMON 1,2,3,9 groups management • Supports IE, Mozilla & Netscape Web browsers • Supports SNR indicator for checking phone wiring quality • Supports interleave depth for fixing crosstalk issue • Supports TFTP & Broadcast storm filtering

  4. Specifications: • Ethernet Standards: IEEE802.3, 802.3u, 802.3ab & 802.3zVDSL Standards: ETSI, ITU, ANSIInterfaces: 1*10/100/1000 auto sensing RJ-45 + 1*SFP Giga Fiber port for connecting to backbone 1*RS-232 console port 2*RJ-21 connectors 1*System reset button • Protocol : IEEE 802.1d spanning tree IEEE 802.1ad port trunking IEEE 802.1q tagging v-lan IEEE 802.1p COS IEEE 802.1x port base network access control RFC-1112 IGMP • SNMP MIBS : RFC-1213 MIBII RFC-1493 Bridge MIB RFC-1643 Ether like MIB RFC-1757 RMON MIB • Dimensions : 444 x 362 x 44 m/m • EMI : FCC; CE

  5. NV-800S Benefits: • Supports 4/1; 5; 10; 15Mbps bandwidth selection • Supports Auto-MDIX on Ethernet ports • Surge protection & Splitter on board for VDSL ports • Supports IEEE-802.1d spanning tree • Supports IEEE-802.1q tagging & IEEE-802.1v protocol V-Lan • Supports IEEE-802.1ad Port Trunking (Link aggregation) • Supports IGMP snooping • Supports Mac filtering • Supports internal fan & temperature monitor & management function • Supports SNMP with RMON 1,2,3,9 groups management • Supports IE, Mozilla & Netscape Web browsers • Supports SNR indicator for checking phone wiring quality • Supports interleave depth for fixing crosstalk issue • Supports TFTP & Broadcast storm filtering

  6. Specifications: • Ethernet Standards: IEEE802.3, 802.3u • VDSL Standards: ETSI, ITU, ANSI • Interfaces: 8*RJ-45 VDSL ports 8*RJ-45 POTS/ISDN ports 2*10/100Mbps Ethernet ports for connecting to Backbone 1*RS-232 console port 1*System reset button • Protocol : IEEE 802.1d spanning tree IEEE 802.1ad port trunking IEEE 802.1q tagging v-lan IEEE 802.1p COS IEEE 802.1x port base network access control RFC-1112 IGMP • SNMP MIBS : RFC-1213 MIBII RFC-1493 Bridge MIB RFC-1643 Ether like MIB RFC-1757 RMON MIB • Dimensions : 412 x 258 x 44 m/m • EMI : FCC ; CE

  7. NV-200(CPE) NV-200LC(CO) Benefits: • Built-in surge protection to secure the reliability • Supports Auto-MDIX on Ethernet port • Provides 4 selective transmission rates(1/4, 5, 10, 15Mbps) • Long driver capable up to 1.9km on 1/4Mbps transmission rate mode • Provides Utility software for bandwidth set-up, checking link/ traffic/ SNR(NV-200LC only) • Specifications: • Ethernet Standards: IEEE802.3, 802.3u • VDSL Standards: ETSI, ITU, ANSI • Interfaces: 1*Auto-sensing RJ-45 10/100Mbps port • 1*RJ-11 POTS/ISDN port • 1*RJ-11 VDSL port • 1*RS-232 console port(NV-200LC only)

  8. NV-200D(2 x RJ45) Benefits: • Built-in surge protection to secure the reliability • Supports Auto-MDIX on Ethernet port • Long driver capable up to 1.9km on 1/4Mbps transmission rate mode • Provides 2 x 10/100 RJ-45(NV-200D only) • Specifications: • Ethernet Standards: IEEE802.3, 802.3u • VDSL Standards: ETSI, ITU, ANSI • POE Standards : IEEE-802.3af • Interfaces: 2*Auto-sensing RJ-45 10/100Mbps ports(NV-200D only) • 1*RJ-11 POTS/ISDN port • 1*RJ-11 VDSL port

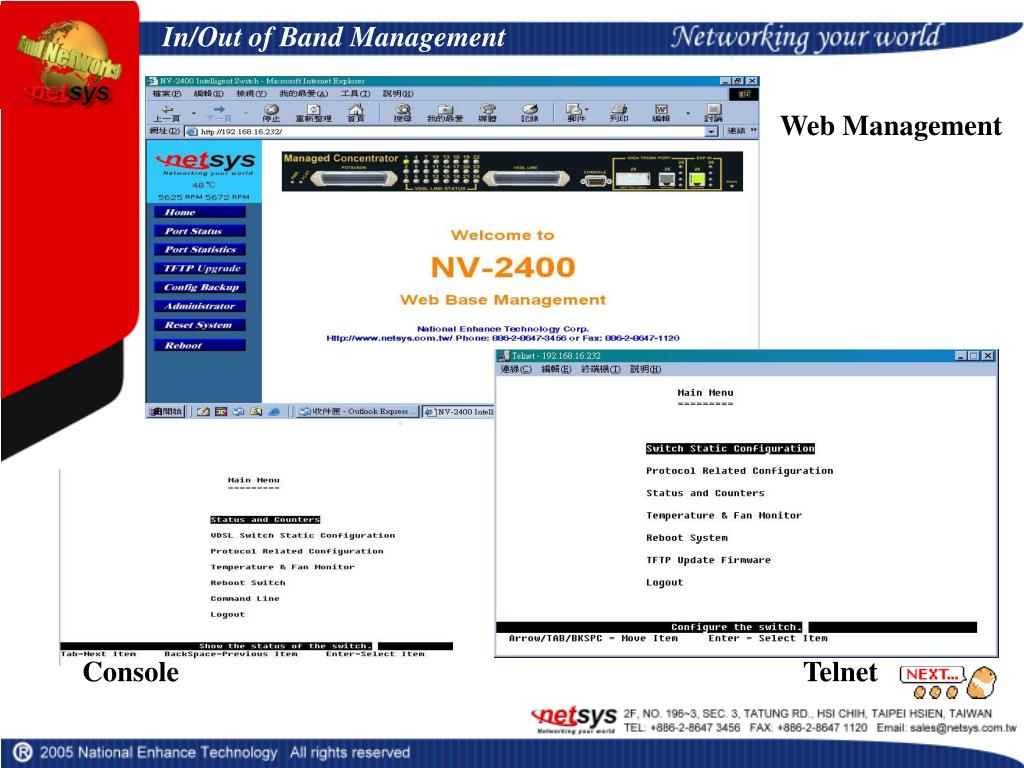

  9. In/Out of Band Management Web Management Console Telnet

  10. VDSL Applications

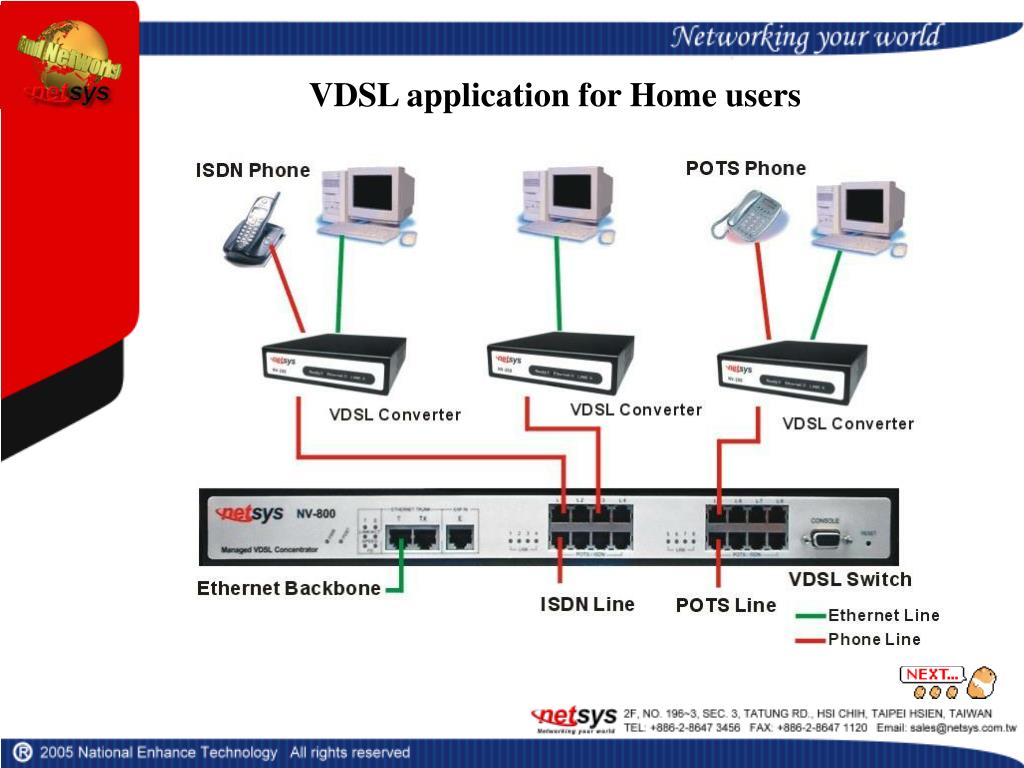

  11. VDSL application for Home users

  12. MDF configuration diagram
