Laser-Driven Generation of Fast Particles

Laser-Driven Generation of Fast Particles. Jan Badziak Institute of Plasma Physics and Laser Microfusion Warsaw, Poland. Outline 1. Introduction 2. Generation of light ion beams 3. Generation of highly charged heavy ion beams 4. Prospects for applications of laser-driven ion beams

coy
Download Presentation

Laser-Driven Generation of Fast Particles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Laser-Driven Generation of Fast Particles Jan Badziak Institute of Plasma Physics and Laser Microfusion Warsaw, Poland Outline 1. Introduction 2. Generation of light ion beams 3. Generation of highly charged heavy ion beams 4. Prospects for applications of laser-driven ion beams 5. Summary

  2. Laser-Driven Generation of Fast Ions in Laser-Produced Plasma • General schemes of experiments

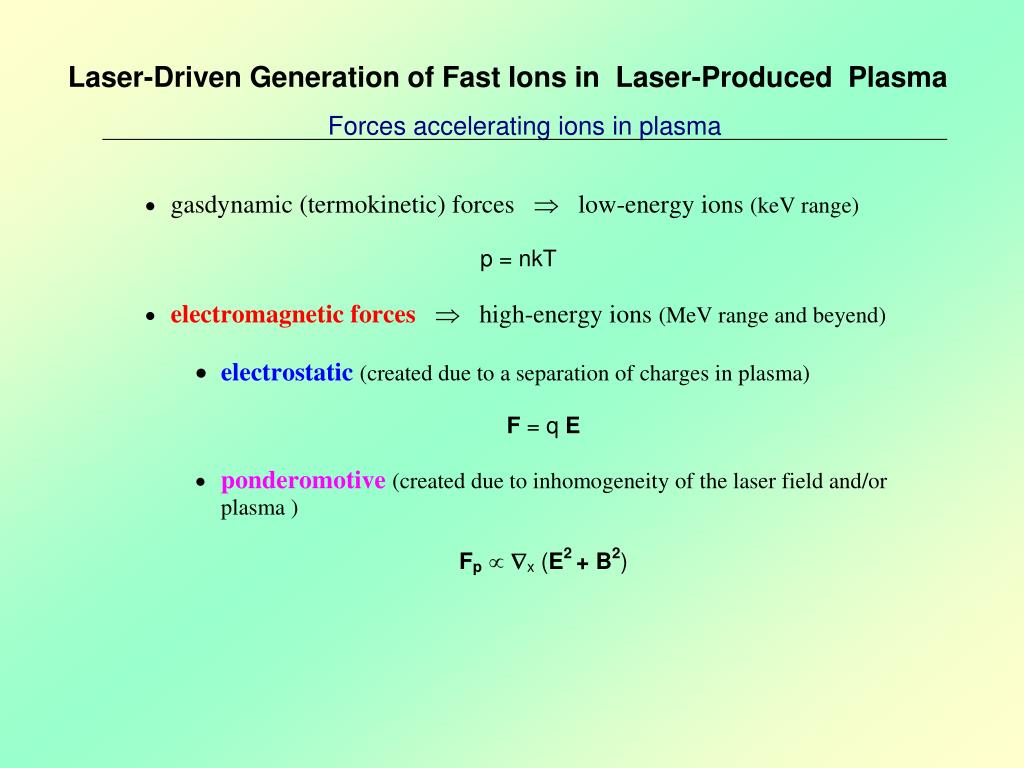

  3. Laser-Driven Generation of Fast Ions in Laser-Produced Plasma Forces accelerating ions in plasma

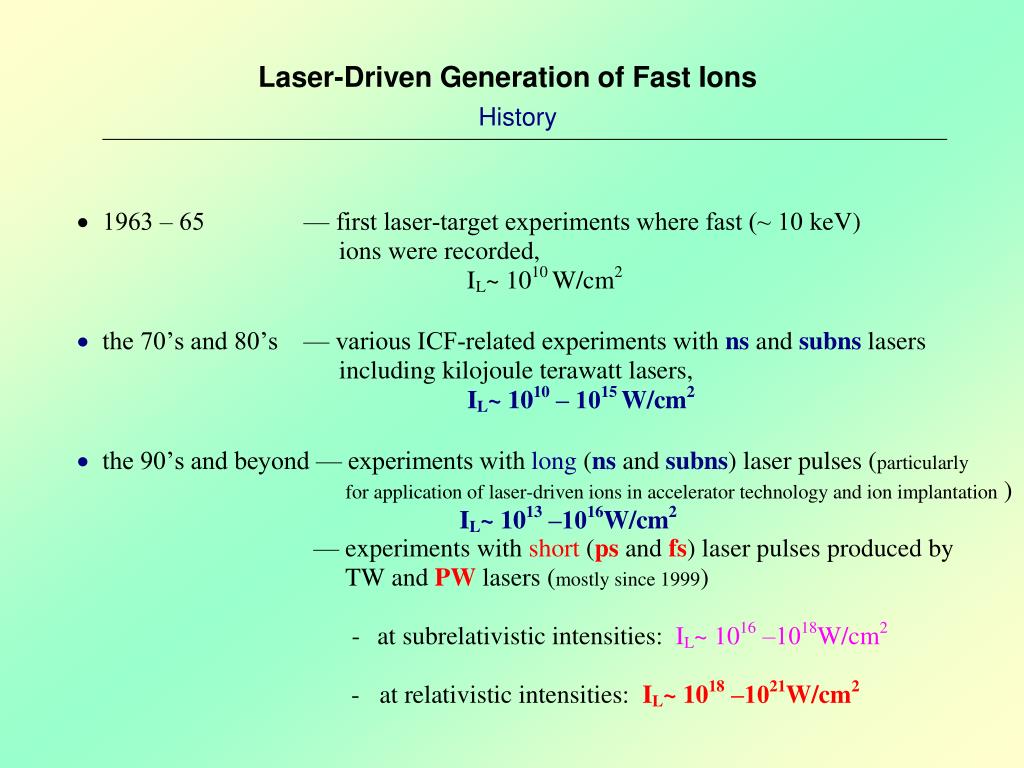

  4. Laser-Driven Generation of Fast Ions

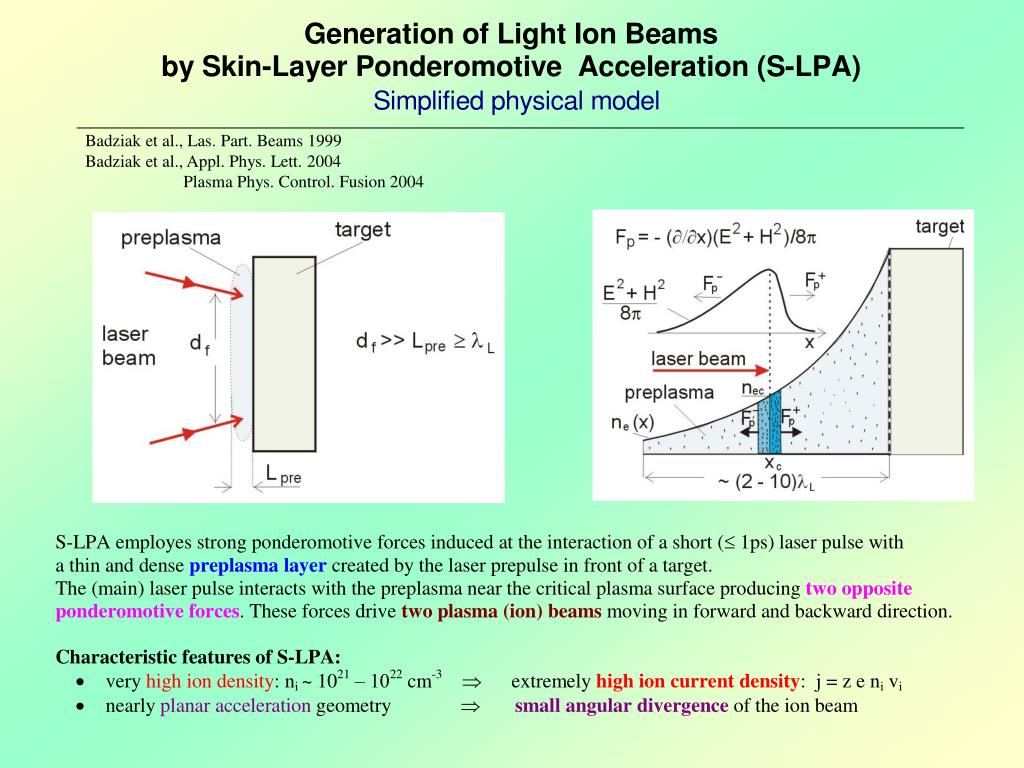

  5. Badziak et al., Las. Part. Beams 1999 Badziak et al., Appl. Phys. Lett. 2004 Plasma Phys. Control. Fusion 2004

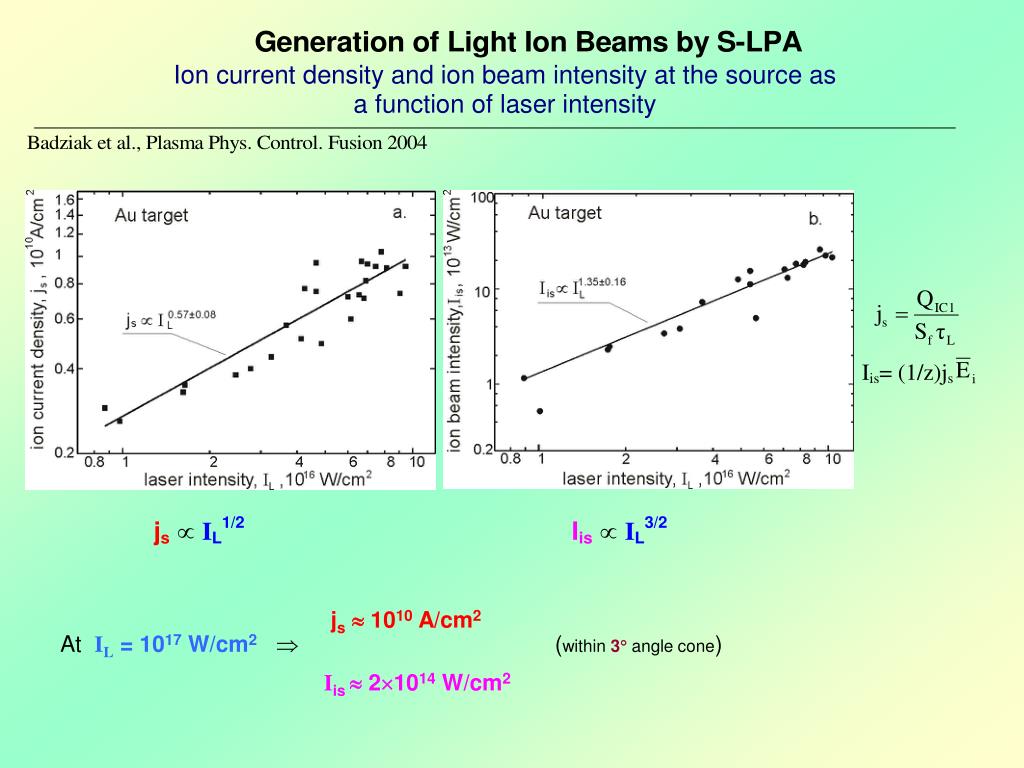

  6. js 1010 A/cm2 At IL = 1017 W/cm2 (within 3 angle cone) Iis  21014 W/cm2

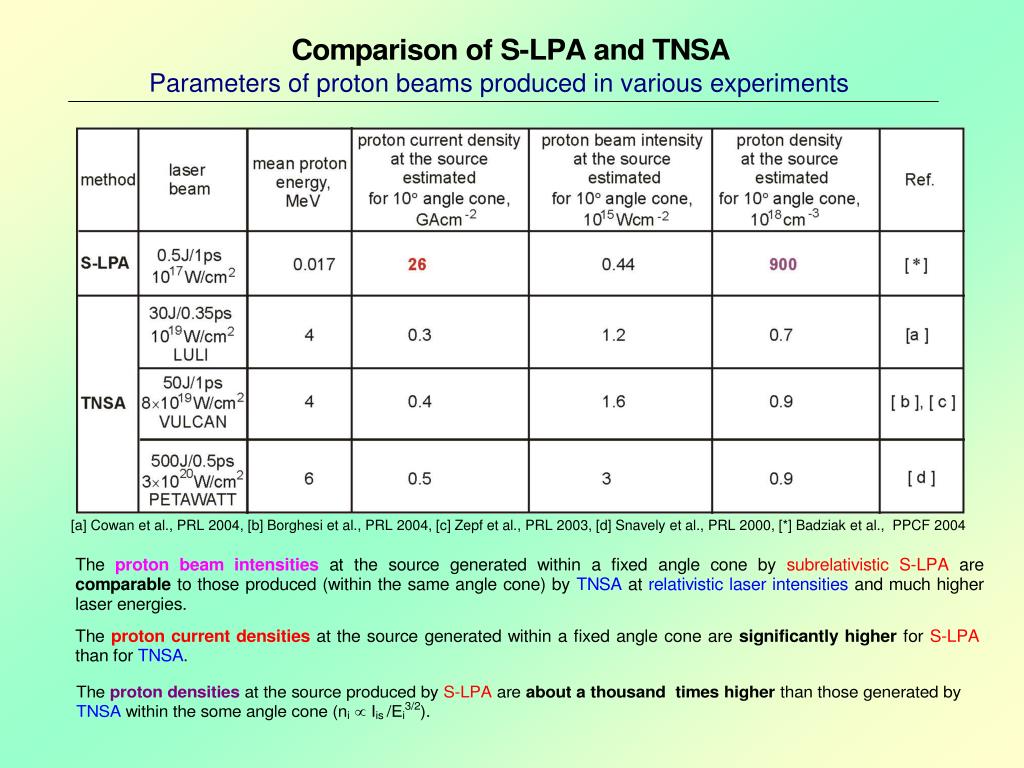

  7. [a] Cowan et al., PRL 2004, [b] Borghesi et al., PRL 2004, [c] Zepf et al., PRL 2003, [d] Snavely et al., PRL 2000, [*] Badziak et al., PPCF 2004

  8. 3D PIC simulations by Esirkepov et al., (Phys. Rev. Lett. 2004) L 25 fs, IL 1023 W/cm2, LT = L = 1m The ponderomotive force of a “laser piston” produces relativistic(Ei 3 GeV) high-density plasma (proton) beam of js  1013 A/cm2 and Iis  3  1022 W/cm2 with an efficiency hi 30%
