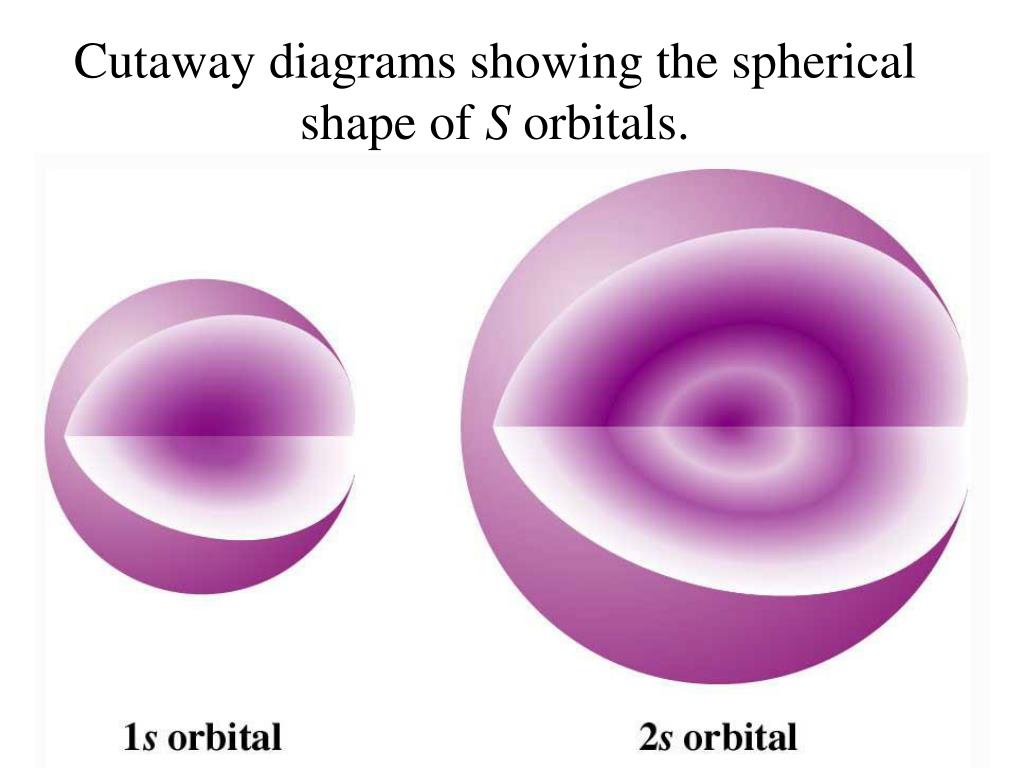

  1. Cutaway diagrams showing the spherical shape of S orbitals.

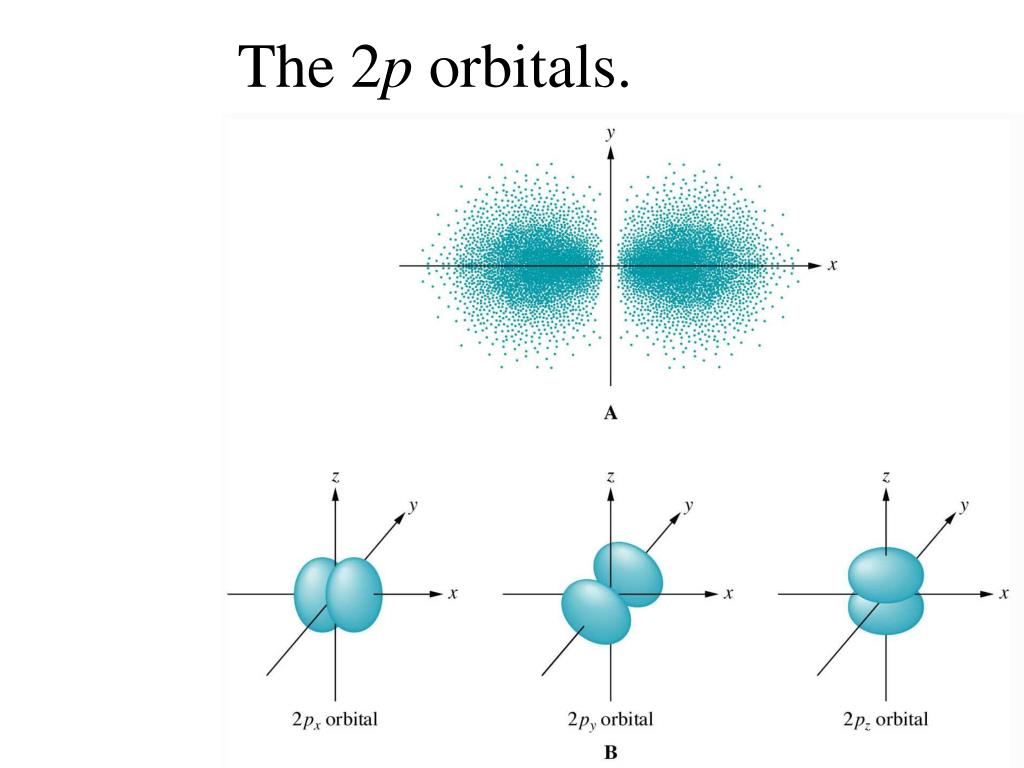

  2. The 2p orbitals.

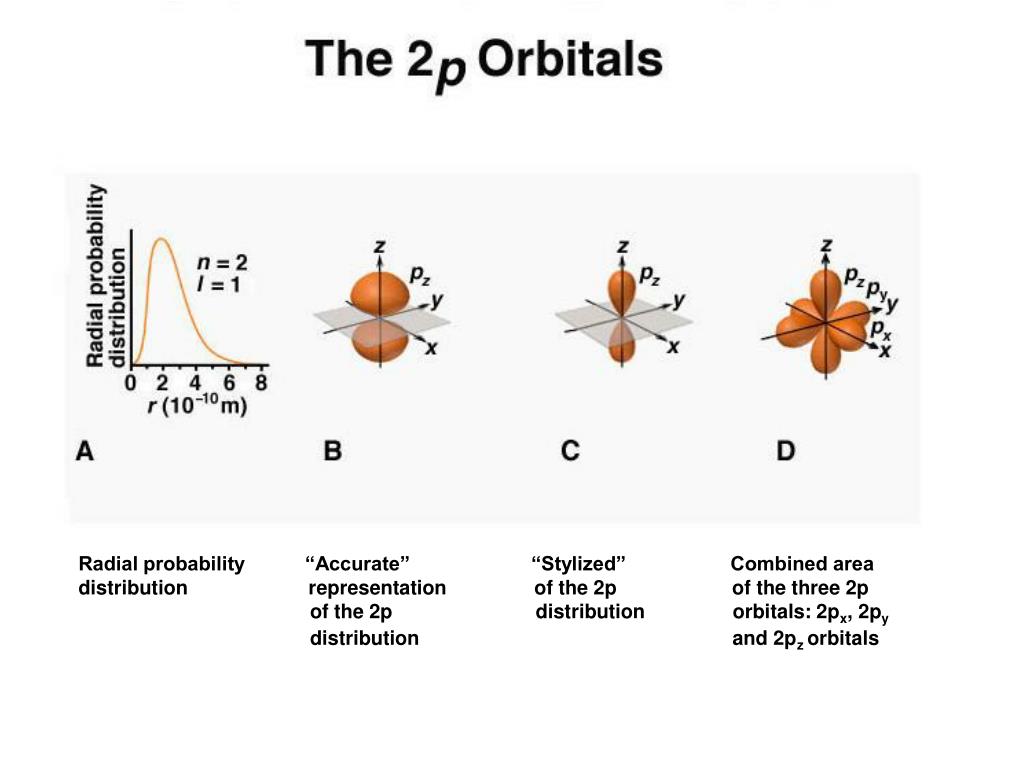

  3. Radial probability “Accurate” “Stylized” Combined area distribution representation of the 2p of the three 2p of the 2p distribution orbitals: 2px, 2py distribution and 2pz orbitals

  4. The five 3d orbitals.

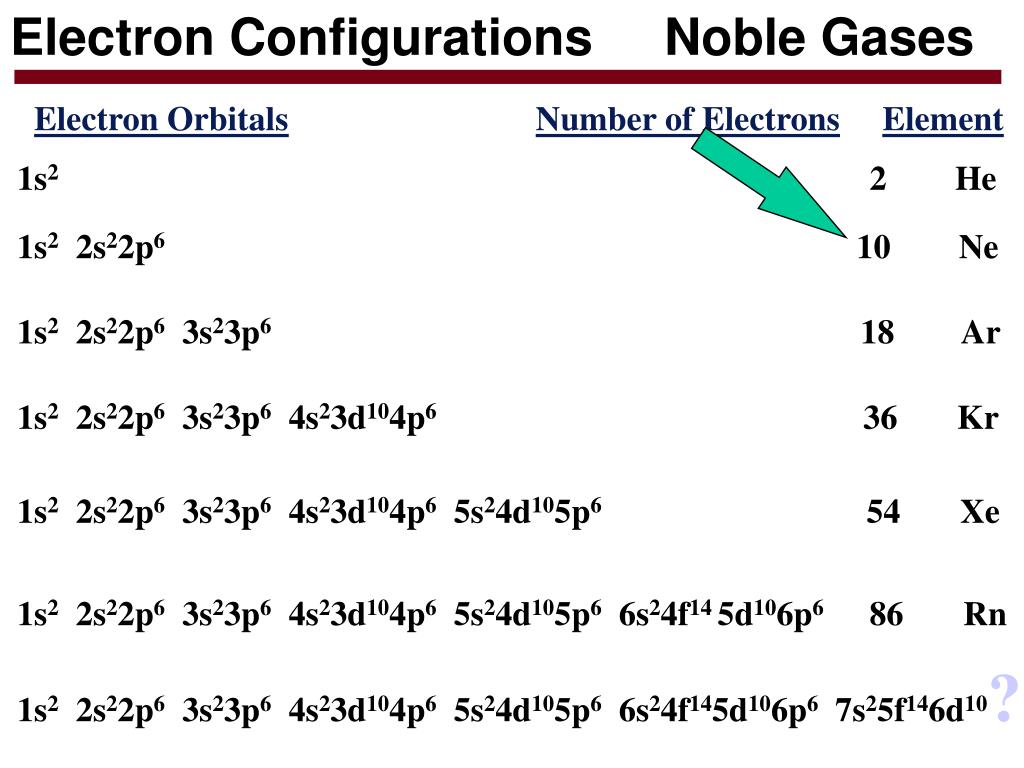

  5. Electron Configurations Noble Gases Electron OrbitalsNumber of ElectronsElement 1s2 2 He 1s2 2s22p6 10 Ne 1s2 2s22p6 3s23p6 18 Ar 1s2 2s22p6 3s23p6 4s23d104p6 36 Kr 1s2 2s22p6 3s23p6 4s23d104p6 5s24d105p6 54 Xe 1s2 2s22p6 3s23p6 4s23d104p6 5s24d105p6 6s24f14 5d106p6 86 Rn 1s2 2s22p6 3s23p6 4s23d104p6 5s24d105p6 6s24f145d106p6 7s25f146d10?

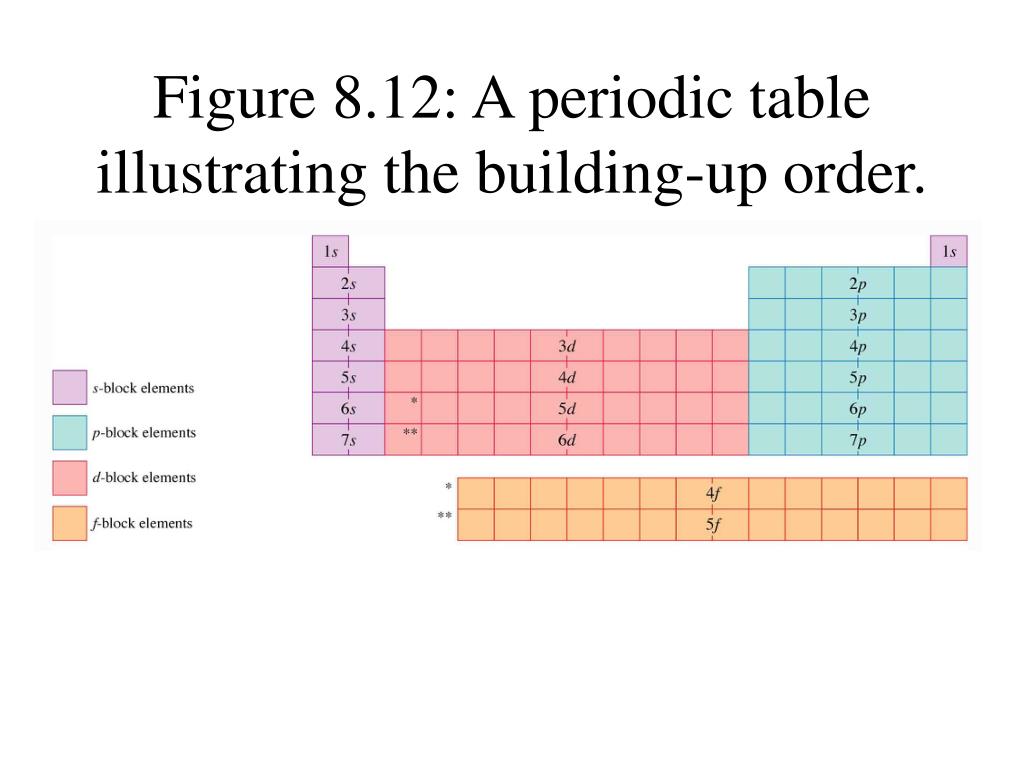

  6. Figure 8.12: A periodic table illustrating the building-up order.
