  1. SISTIM KELISTRIKAN

  2. LAMBANG KOMPONEN LISTRIK

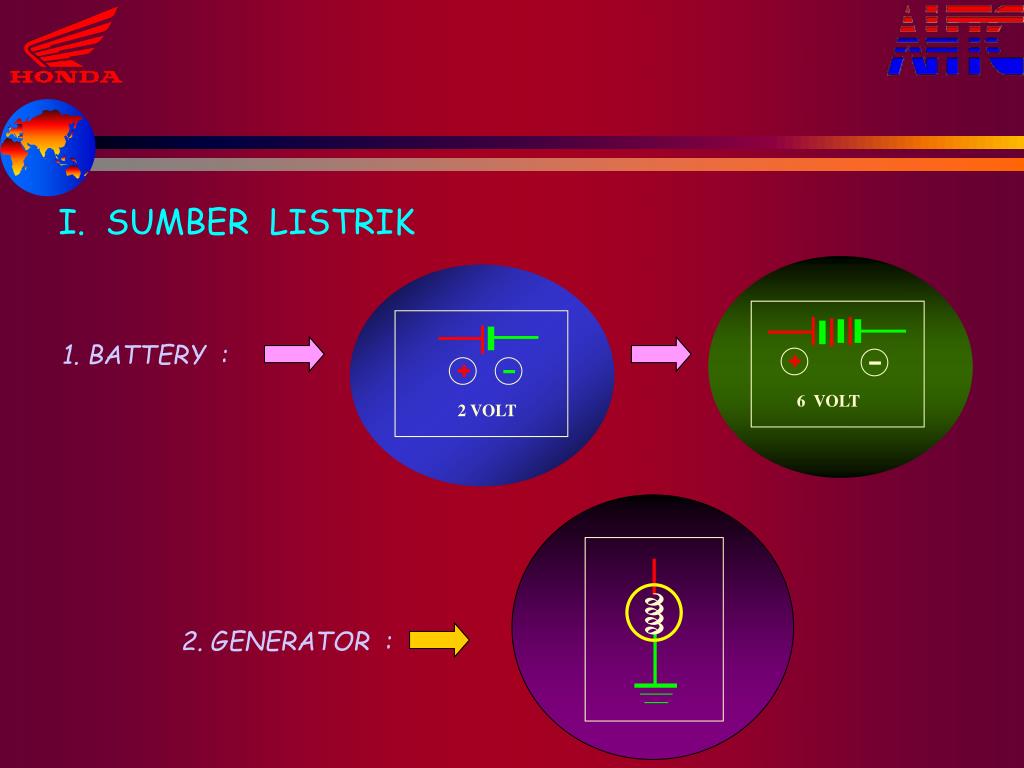

  3. 6 VOLT 2 VOLT e e e e I. SUMBER LISTRIK 1. BATTERY : 2. GENERATOR :

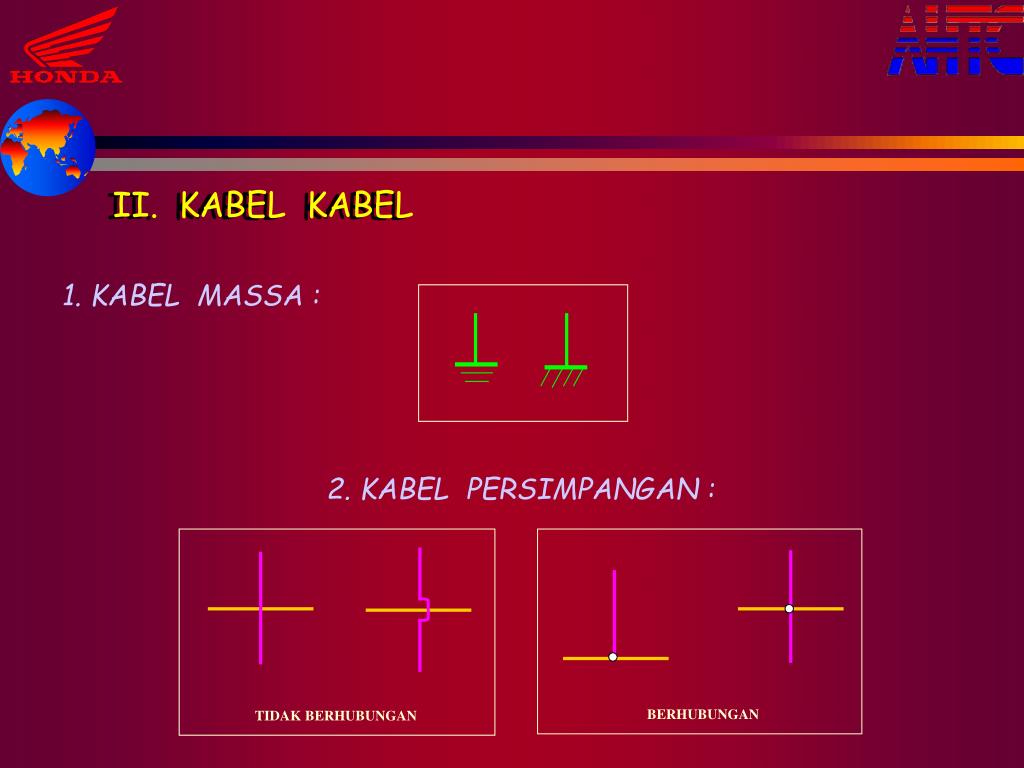

  4. BERHUBUNGAN TIDAK BERHUBUNGAN II. KABEL KABEL 1. KABEL MASSA : 2. KABEL PERSIMPANGAN :

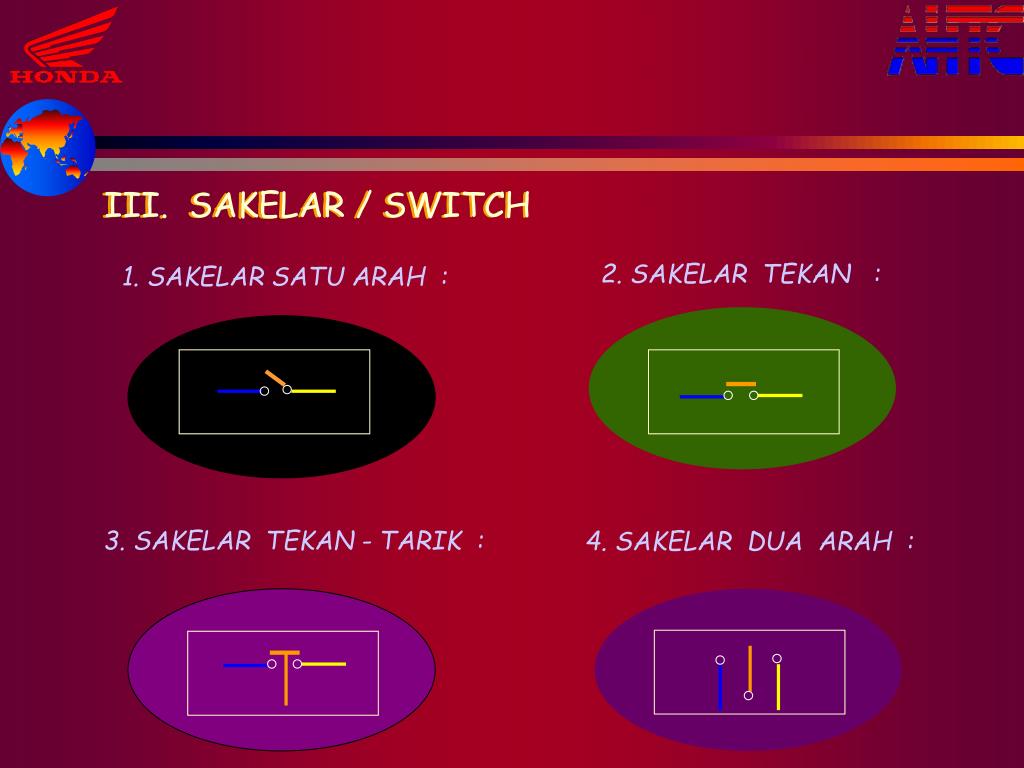

  5. III. SAKELAR / SWITCH 2. SAKELAR TEKAN : 1. SAKELAR SATU ARAH : 3. SAKELAR TEKAN - TARIK : 4. SAKELAR DUA ARAH :

  6. PNP TRANSISTOR NPN TRANSISTOR emiter colector emiter colector base base IV. ALAT DAYA 1. FUSE / SIKRING : 2. PLATINA : 3. TRANSISTOR :

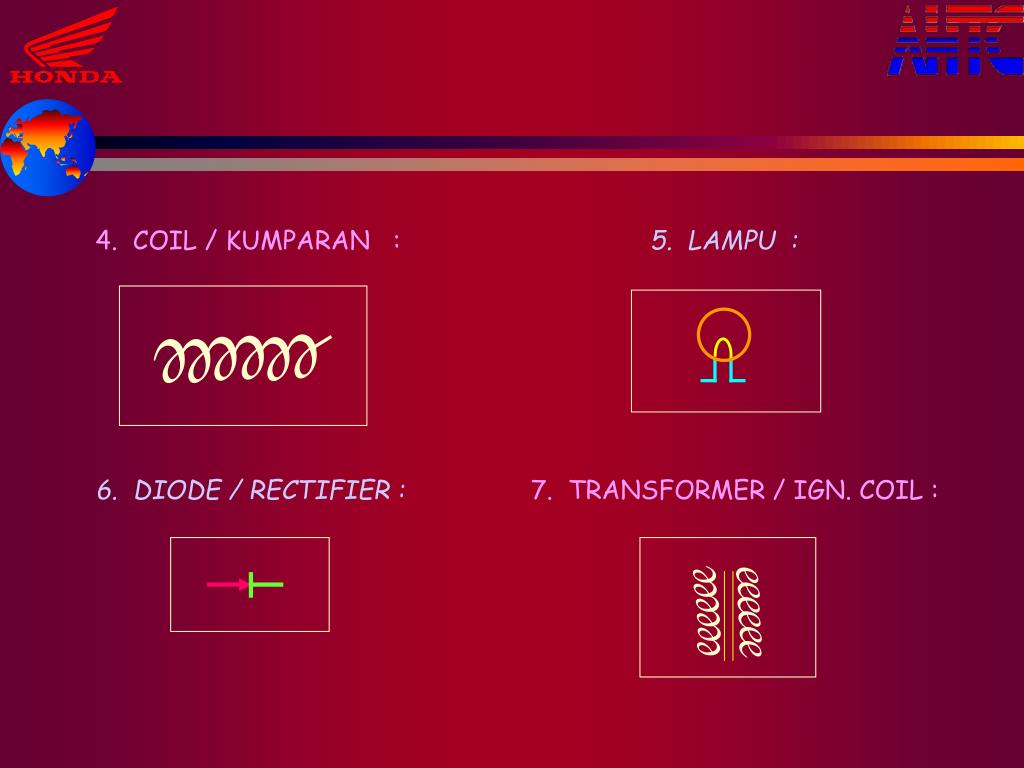

  7. e e e e e e e e e e e e e e e e e e 4. COIL / KUMPARAN : 5. LAMPU : 6. DIODE / RECTIFIER : 7. TRANSFORMER / IGN. COIL :

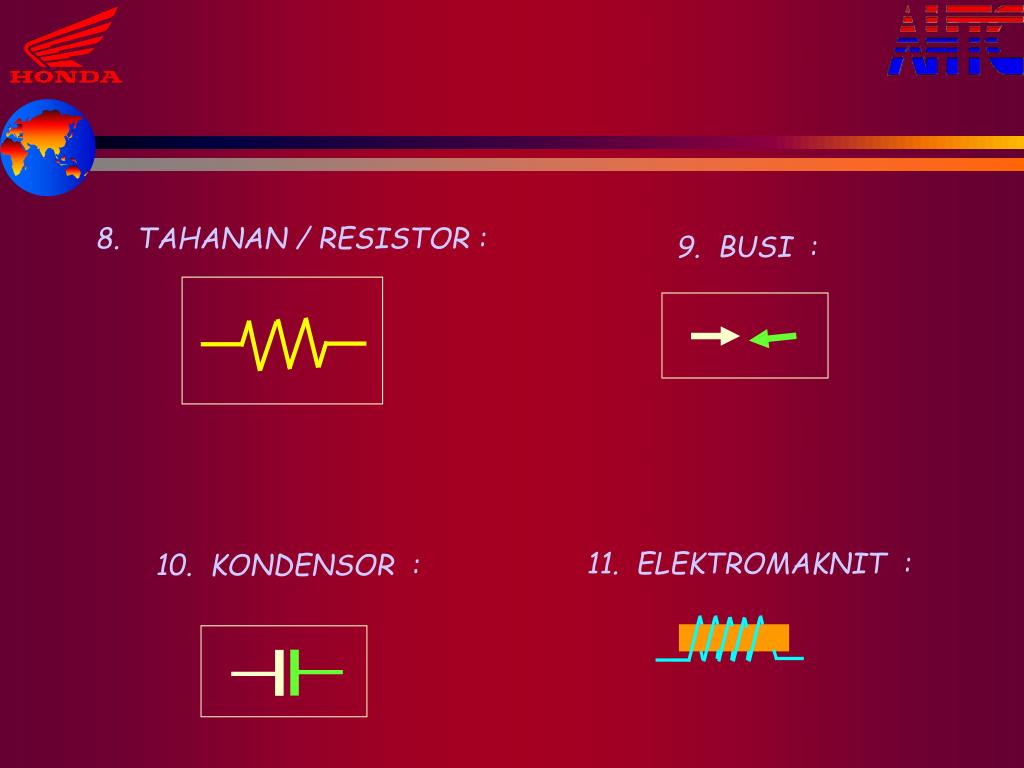

  8. 8. TAHANAN / RESISTOR : 9. BUSI : 11. ELEKTROMAKNIT : 10. KONDENSOR :

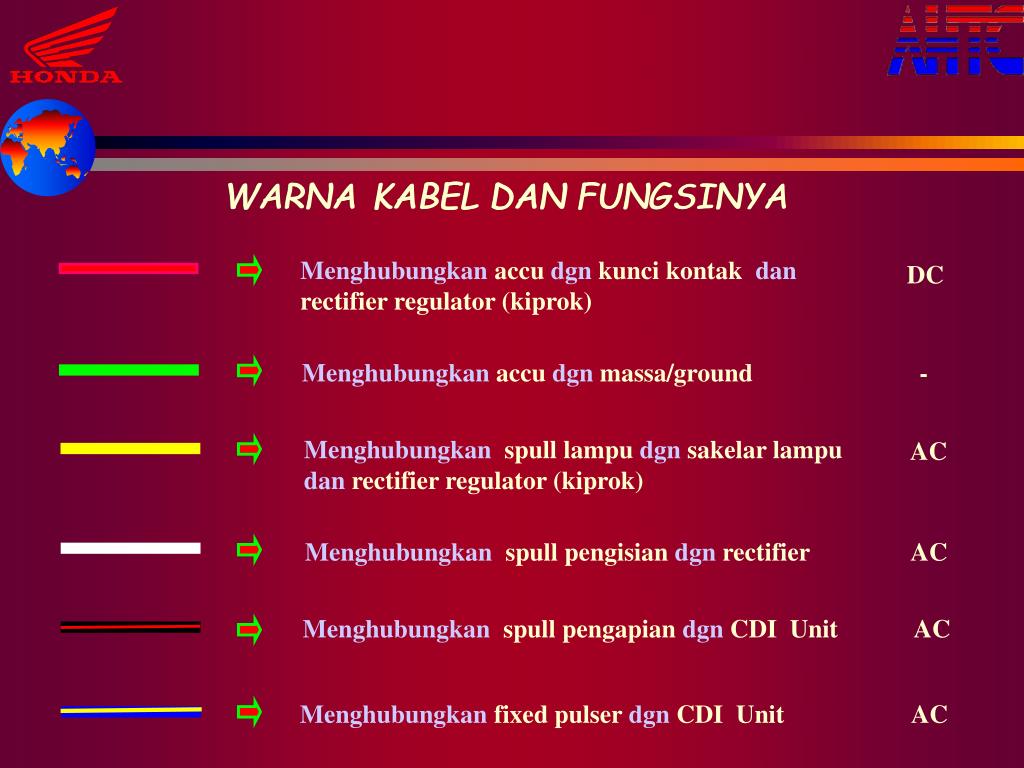

  9. WARNAKABEL DAN FUNGSINYA Menghubungkan accu dgn kunci kontak dan rectifier regulator (kiprok) DC Menghubungkan accu dgn massa/ground - Menghubungkan spull lampu dgn sakelar lampu dan rectifier regulator (kiprok) AC Menghubungkan spull pengisian dgn rectifier AC Menghubungkan spull pengapian dgn CDI Unit AC Menghubungkan fixed pulser dgn CDI Unit AC

  10. Menghubungkan switch gigi 1 dgn lampu gigi 1 DC Menghubungkan switch gigi netral dgn lampu netral DC Menghubungkan switch gigi 2 dgn lampu gigi 2 DC Menghubungkan switch gigi 3 dgn lampu gigi 3 DC Menghubungkan switch gigi 4 dgn lampu gigi 4 DC

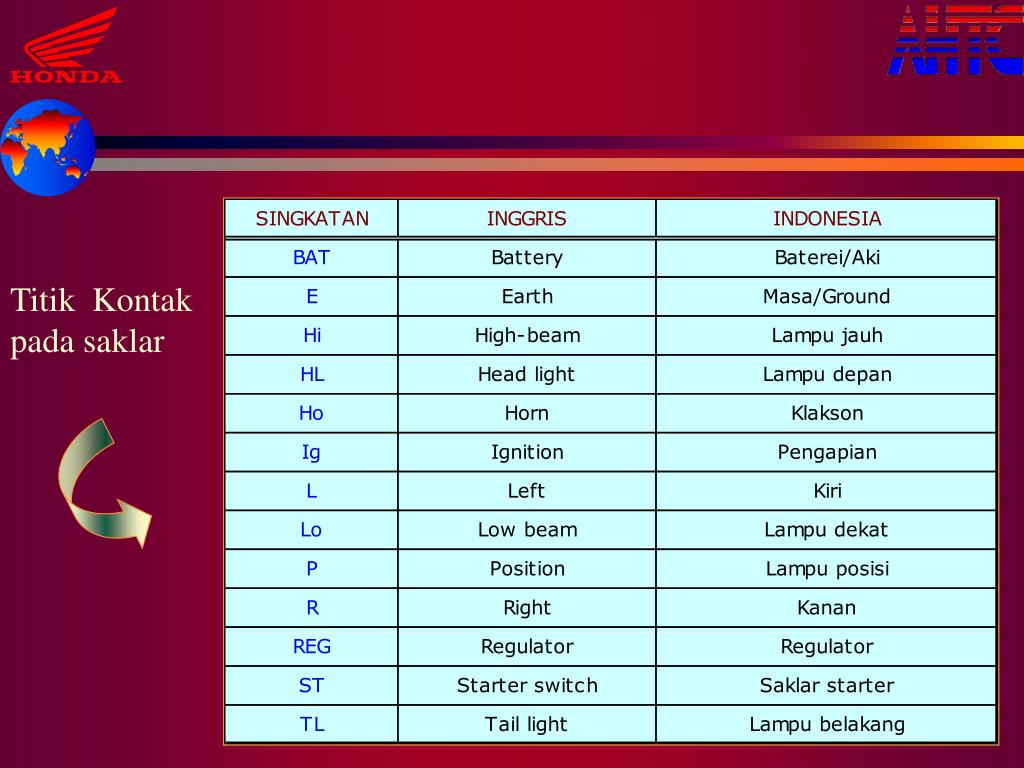

  11. Titik Kontak pada saklar

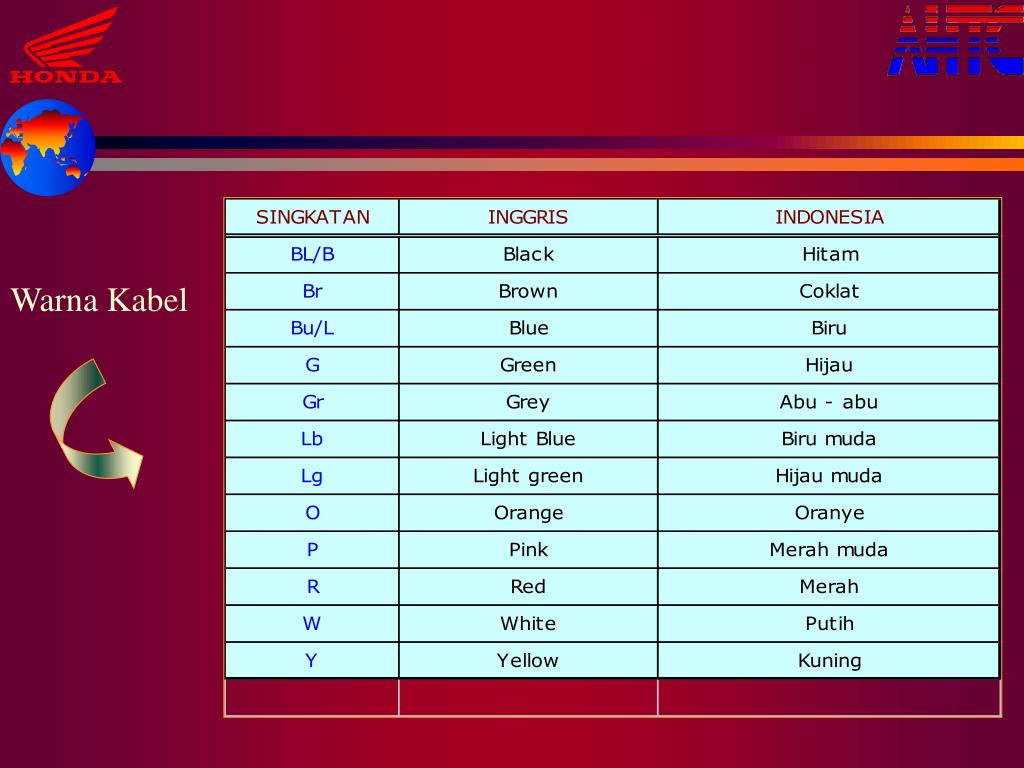

  12. Warna Kabel

  13. KARISMA KIRANA SUPRA/LEGENDA NEO TECH TIGER WARNA KABEL CDI

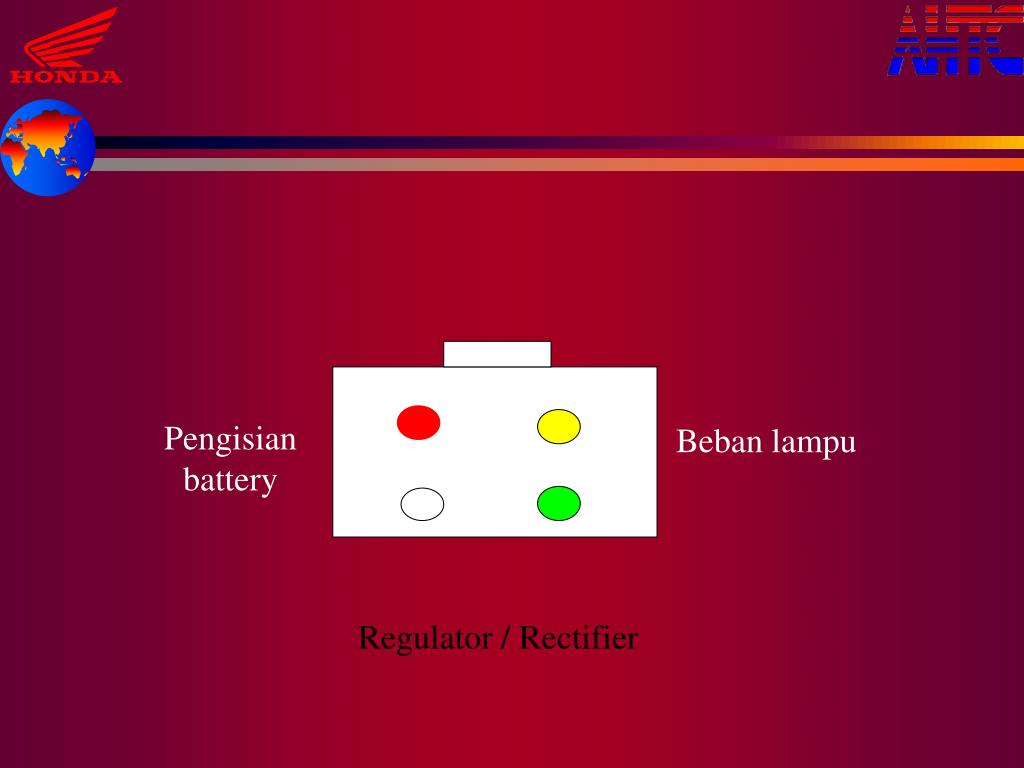

  14. Pengisian battery Beban lampu Regulator / Rectifier

  15. Selamat belajar
