  1. Remote Sensing for Space Exploration in 50 Years Steven Beckwith Space Telescope Science Institute Johns Hopkins University

  2. Investment Predictioning the Future • Most of the interesting science problems 50 years out are unknown, but we understand the limits of nature • (Almost) all technological breakthroughs that will change the nature of astronomical observations will be developed for other customers (not astronomers) NASA Space Science 1.5% NASA Other 16% NASA is a small fraction of the US space industry; space science is a small fraction of NASA Commercial Space 54% Military Space 28%

  3. Earth Observations from Space • Benefits of HEO: • Long dwell times on target: continuous coverage • Large field of view on Earth ⇒ high information / image • Few satellites to cover surface • LEO ⇒ 90 satellites, 200 km FOV • GEO ⇒ 3 satellites, 10,000 km FOV • Surveillance: 10 cm (r0) • 41 mas @ LEO: ~2m (KH series) • 0.5 mas @ GEO: 160m (0.5 µm) • Earth Science: 5m • 28 mas @ GEO: 7m (1 µm) • 0.6 mas @ L2: 150m (0.5 µm) Defensible 0.4 ≲≲ 20 µm

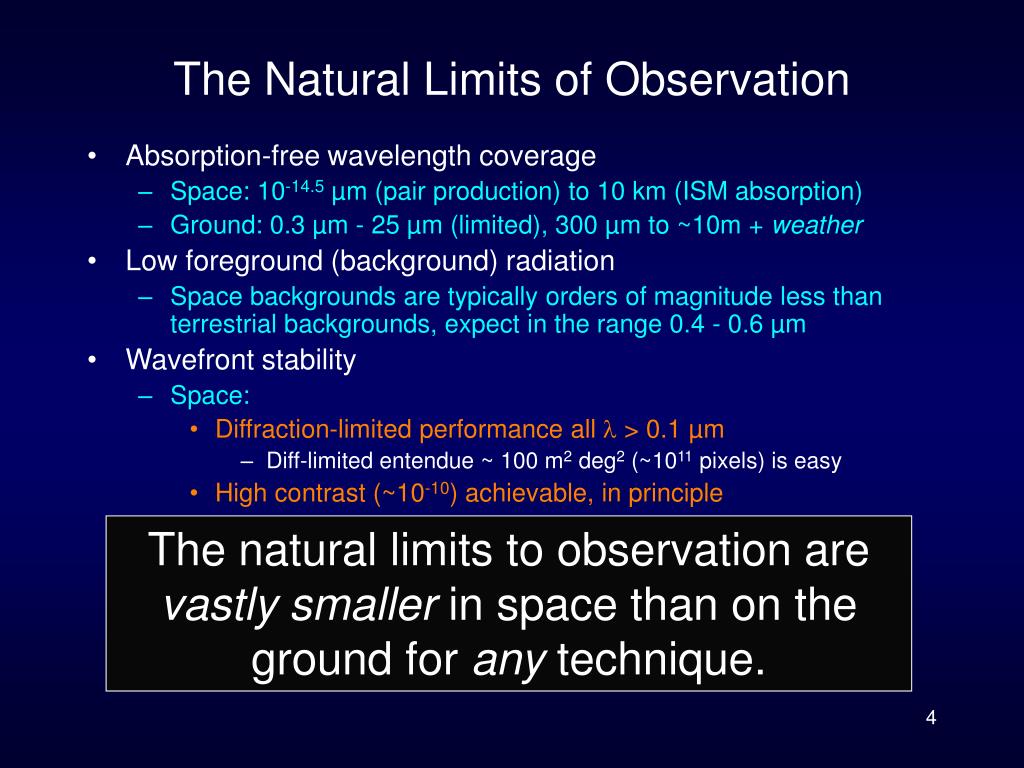

  4. The Natural Limits of Observation • Absorption-free wavelength coverage • Space: 10-14.5 µm (pair production) to 10 km (ISM absorption) • Ground: 0.3 µm - 25 µm (limited), 300 µm to ~10m + weather • Low foreground (background) radiation • Space backgrounds are typically orders of magnitude less than terrestrial backgrounds, expect in the range 0.4 - 0.6 µm • Wavefront stability • Space: • Diffraction-limited performance all  > 0.1 µm • Diff-limited entendue ~ 100 m2 deg2 (~1011 pixels) is easy • High contrast (~10-10) achievable, in principle • Ground: • Diffraction-limited performance all  > 1 µm, in principle • DL etendue < (30m x 0.03º)2 ~ 1 m2 deg2 (~108 pixels) is hard • Limited photometric contrast (~10-6?) The natural limits to observation are vastly smaller in space than on the ground for any technique.

  5. Background Radiation AO corrected

  6. DMT consortium http://dmtelescope.org/science.html Near Earth Objects Pan Starrs LST LSST

  7. Survey Information Rates • Space vs. ground based telescope per image: • >30x deeper (lower background / pixel) • >40x information capacity / image, (resolution x depth) • LSST 30s / image: • 319 m2 deg2 • 2.5x108 pix/image • 24.5 AB mag AW/t 15 sec exposures 2000 exposures per field LSST in space would have 2x slower mapping speed but 20x faster information rate for a similar cadence (3 days/3) • 6.5m space, 30s: • 163 m2 deg2 • 1010 pix/image • 28.1 AB mag

  8. 8m 4m 2m Mapping the Universe Dark energy: BAO, SN Ia, lensing Dark matter: lensing, structure of universe 1016 NEOs Asteroids KBOs Transients GRB-like Novae SN Moving obj. Microlens. 5 yr space mission all sky surveys 1014 1000x 4 sr with 0.5" seeing # Resolution elements LSST 1012 Pan-Starrs 30x SDSS Palomar Sky Survey 1010 108 Human eye HUDF 106 0 5 10 15 20 25 30 35 AB Magnitude

  9. Massively Parallel Astrophysics From Tony Tyson's LSST talk, STScI 11/7/07 Science from a large sky survey: • Dark matter/dark energy via weak lensing • Dark energy via baryon acoustic oscillations • Dark energy via supernovae • Galactic Structure encompassing local group • Dense astrometry over 20000 sq.deg: rare moving objects • Gamma Ray Bursts and transients to high redshift • Gravitational micro-lensing • Strong galaxy & cluster lensing: physics of dark matter • Multi-image lensed SN time delays: separate test of cosmology • Variable stars/galaxies: black hole accretion • QSO time delays vs z: independent test of dark energy • Optical bursters to 25 mag: the unknown • 5-band 27 mag photometric survey: unprecedented volume • Solar System Probes: Earth-crossing asteroids, Comets, TNOs • Planetary transits

  10. Exoplanet Atmospheres 's of interest

  11. ExoPlanet Atmospheres & Telescope Size IWA = 25 mas (10m / Dtel) 75 pc OHZ IHZ Nobs ~ Dtel3.3 9 pc Life-bearing planets to study = Nsampleearth Sample sizes given above.

  12. Space-Time Structure:Observing Black Holes Courtesy of Matt Mountain (2007) Image of accretion disk To observe the structure of Space -Time around a Schwarzschild Black Hole requires angular resolutions in the 10~50 arcsec. range Computations by Youri Dabrowski

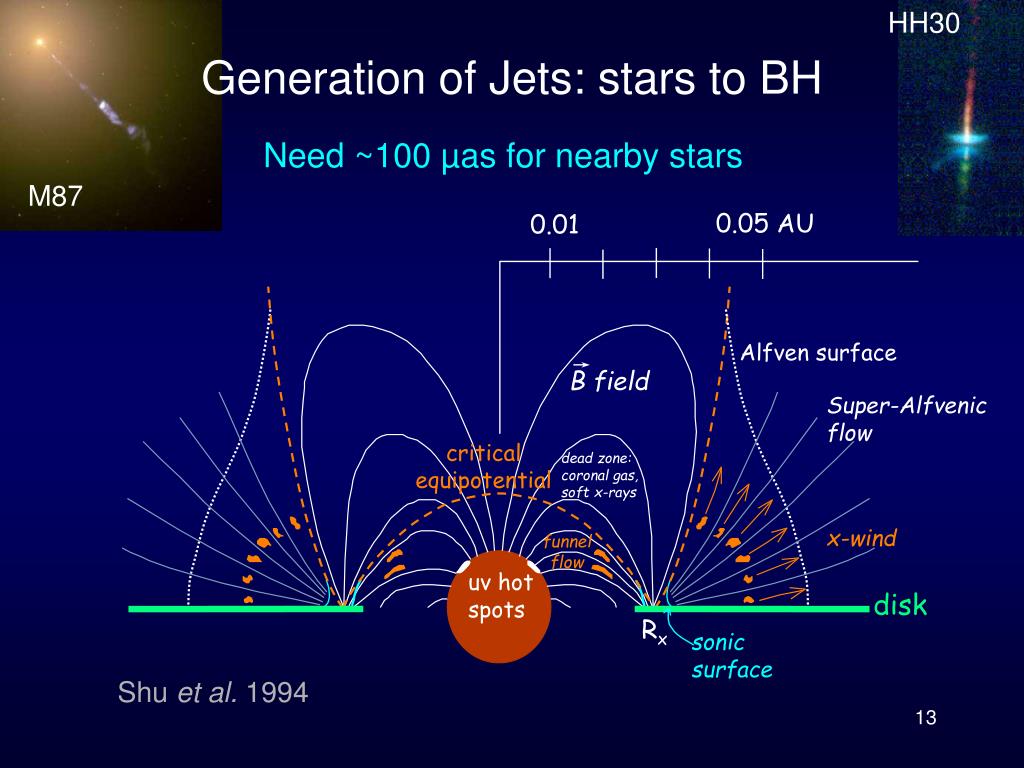

  13. HH30 Generation of Jets: stars to BH Need ~100 µas for nearby stars M87 0.05 AU 0.01 Alfven surface B field Super-Alfvenic flow critical equipotential dead zone: coronal gas, soft x-rays x-wind funnel flow uv hot spots disk Rx sonic surface Shu et al. 1994

  14. Surfaces of Stars Betelgeuse with HST Computer Model

  15. Technology Advances • Large optical facilities constructed & tested in space • Lifts today's limits on optical size • No data processing/transmission limits • Optical transmission; maybe optical/QC processing • Focal plane sampling limited by optics only • Essentially unlimited numbers of pixels (Moore's law) • Multiple customers for remote sensing • NRO/military reconniasance • Global Earth sensing from GEO • Real-time Earth imaging for commerce • In space servicing & maintanence allows long-term investment in very large telescopes

  16. The Power of Resolution M87 BH Milky Way BH Winds & Jets Interferometers Filled apertures
