Which GPS Receiver Do I Need?. Will you be… Mapping or Navigating ?. “Mapping” is any activity or process that produces a graphical representation of a ground feature by means of a point, line or polygon.

davis
Download Presentation

Which GPS Receiver Do I Need?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

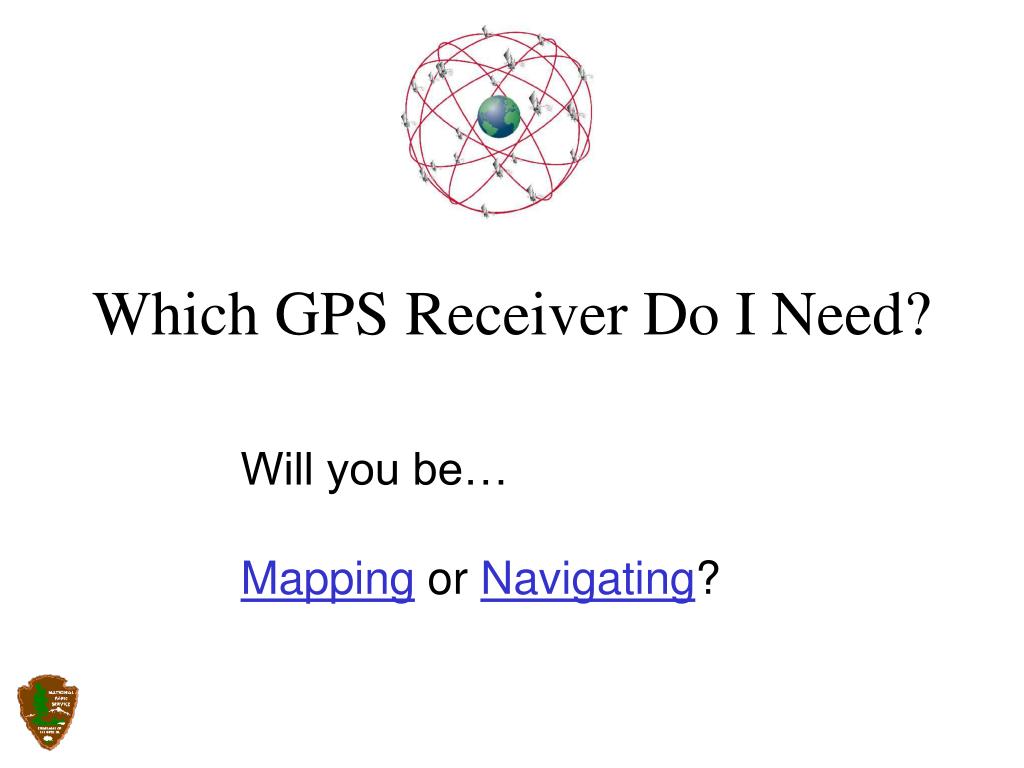

  1. Which GPS Receiver Do I Need? Will you be… Mapping or Navigating?

  2. “Mapping” is any activity or process thatproduces a graphical representation of a ground feature by means of a point, line or polygon. While mapping you may need to produce attributedata concerning the features that you are mapping. One resulting product from a mapping project is a GIS data layer or theme. If you would like to learn more about attribute featuredata collection choose the “Mapping Features” buttonbelow, otherwise pick the “Continue” button. Continue MappingFeatures

  3. Mapping RequiredAccuracy: Sub-meter 1 – 5 m. 5 – 25 m. Post-Processed Differential Post-Processed Differential Real-Time Differential Autonomous Process: NDGPS WAAS Home

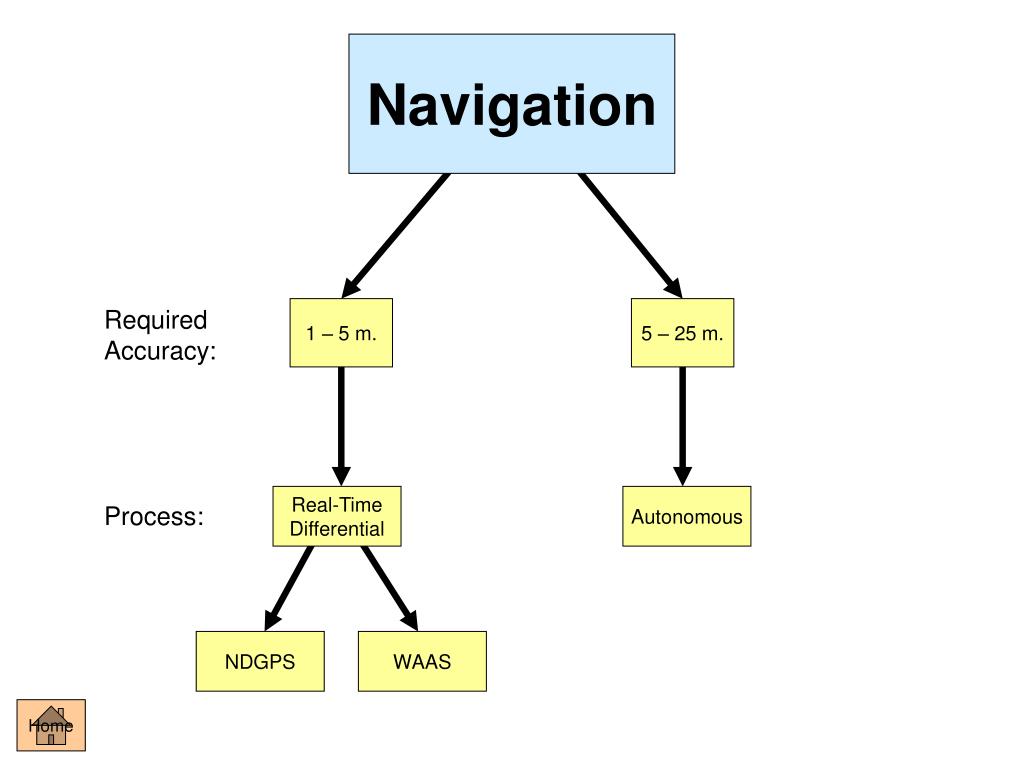

  4. Navigation RequiredAccuracy: 1 – 5 m. 5 – 25 m. Real-Time Differential Autonomous Process: NDGPS WAAS Home

  5. Post-Processed Differential Corrections Download and Post-Process the GPS Data Collect GPS Data • 1 – 5 meter accuracy • Sub-meter if you collect and process carrier-phase data Back Back toMapping More Information

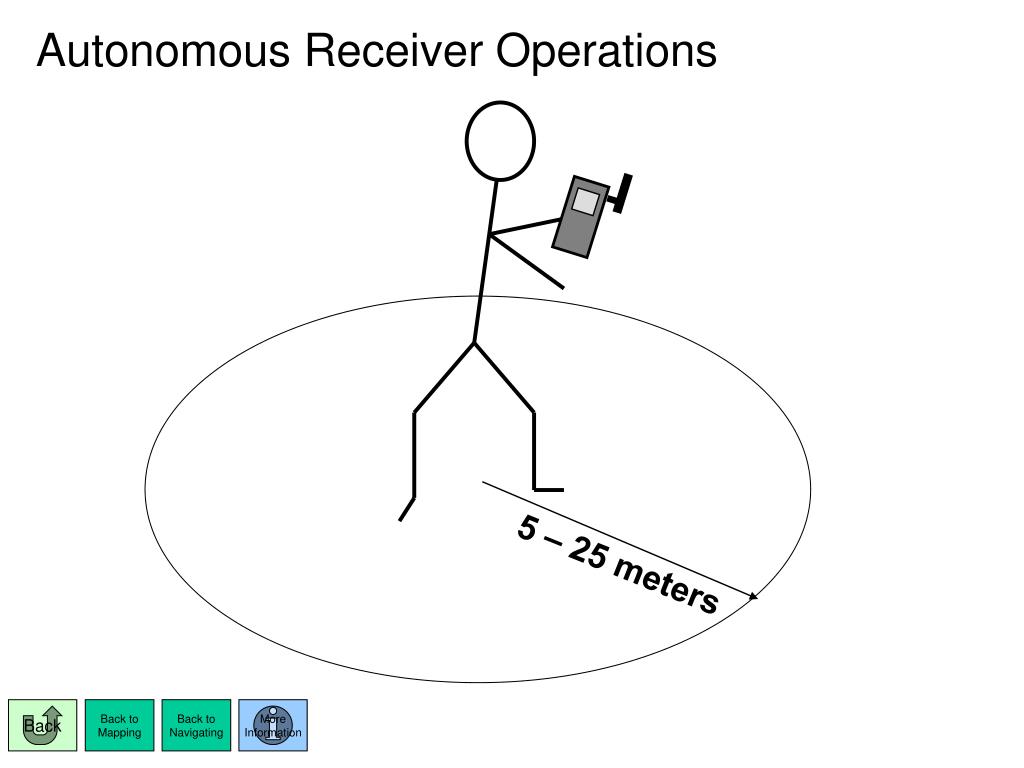

  6. Autonomous Receiver Operations 5 – 25 meters Back Back toMapping Back toNavigating MoreInformation

  7. Real-time Differential Corrections 1 – 5 meters 1 – 5 meters NDGPS WAAS Back Back toMapping Back toNavigating MoreInformation

  8. Post-Processed Differential Corrections Examples of Receivers: • Trimble XR and XRS Series (~ $10,000) • Trimble GeoExplorer CE XT (~ $6,000) • Garmin Receiver with Rhino™ Data Collection andPost-processing Software (~$1500) Back Back toMapping Back toNavigating

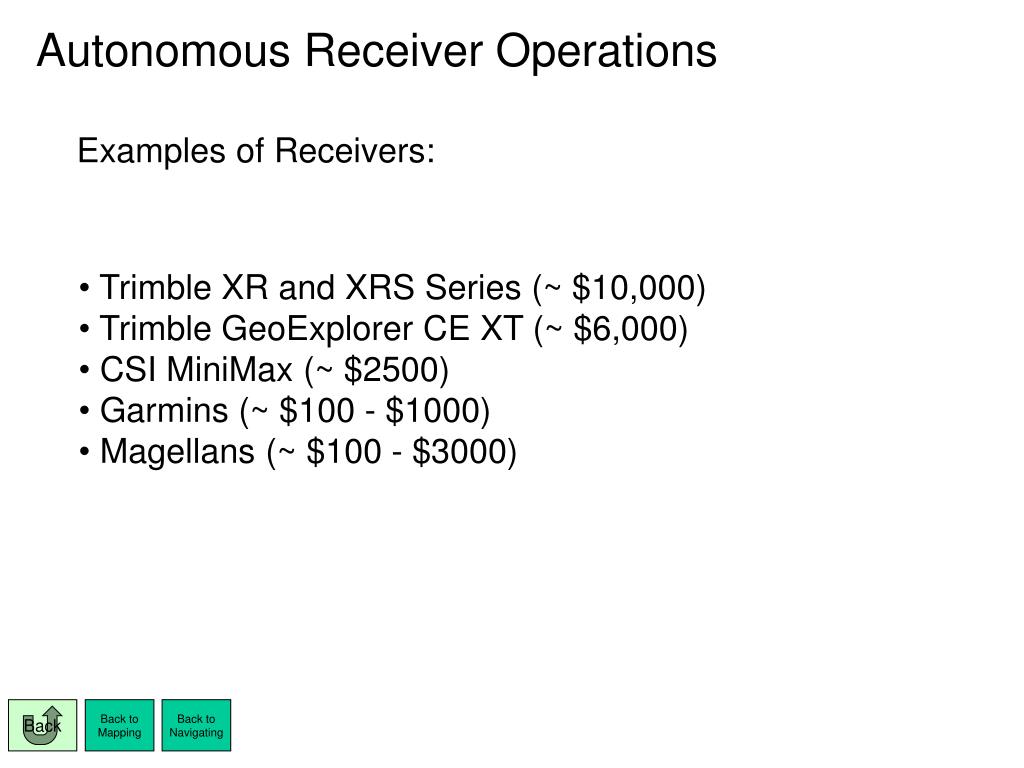

  9. Autonomous Receiver Operations Examples of Receivers: • Trimble XR and XRS Series (~ $10,000) • Trimble GeoExplorer CE XT (~ $6,000) • CSI MiniMax (~ $2500) • Garmins (~ $100 - $1000) • Magellans (~ $100 - $3000) Back Back toMapping Back toNavigating

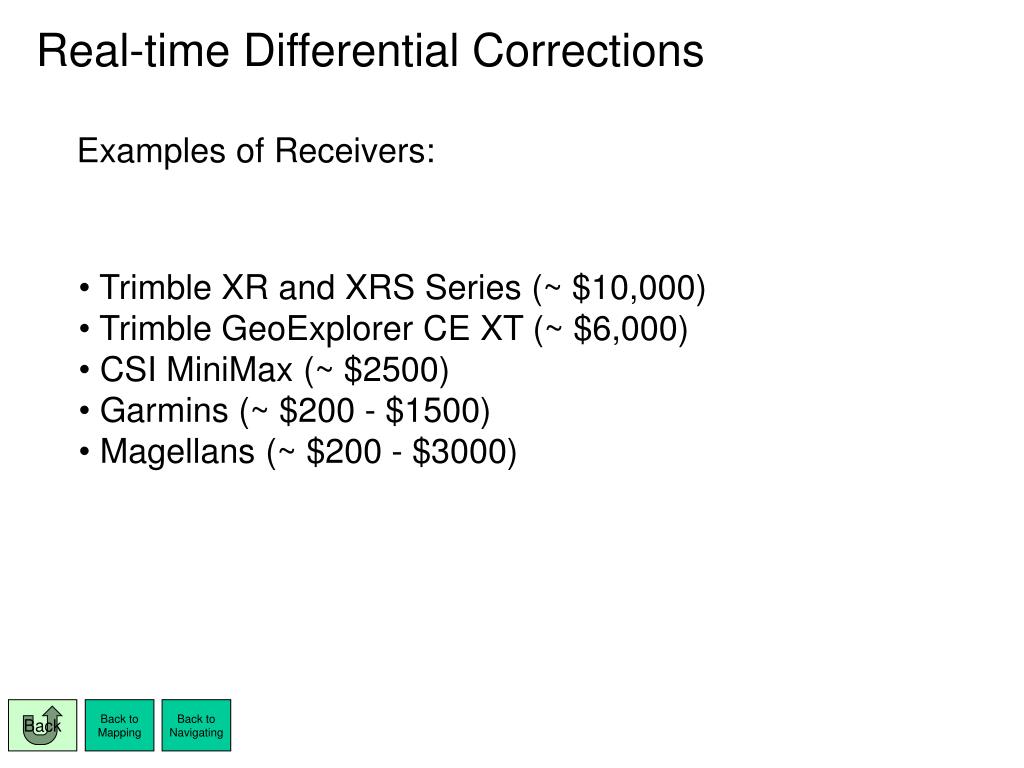

  10. Real-time Differential Corrections Examples of Receivers: • Trimble XR and XRS Series (~ $10,000) • Trimble GeoExplorer CE XT (~ $6,000) • CSI MiniMax (~ $2500) • Garmins (~ $200 - $1500) • Magellans (~ $200 - $3000) Back Back toMapping Back toNavigating

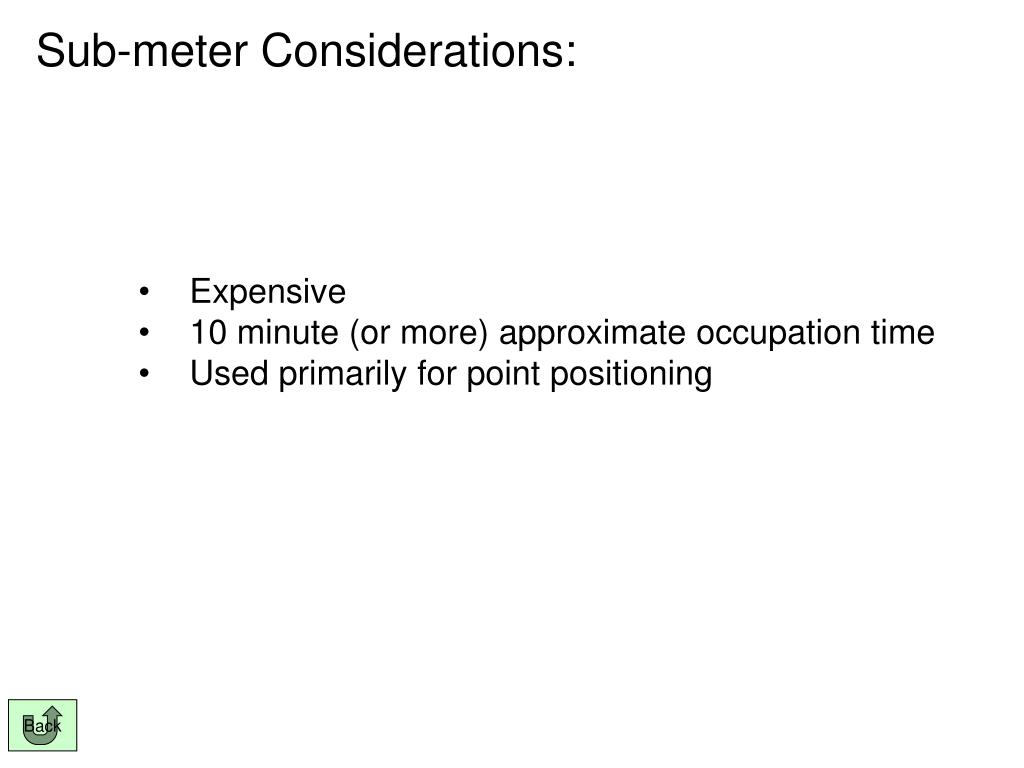

  11. Sub-meter Considerations: • Expensive • 10 minute (or more) approximate occupation time • Used primarily for point positioning Back

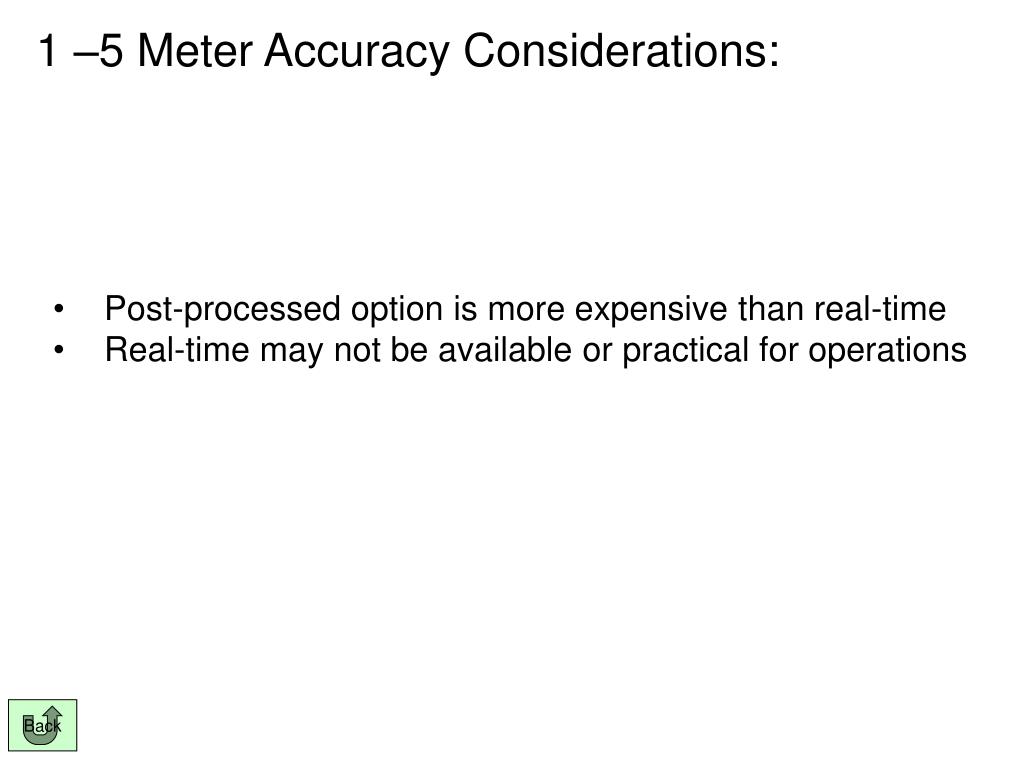

  12. 1 –5 Meter Accuracy Considerations: • Post-processed option is more expensive than real-time • Real-time may not be available or practical for operations Back

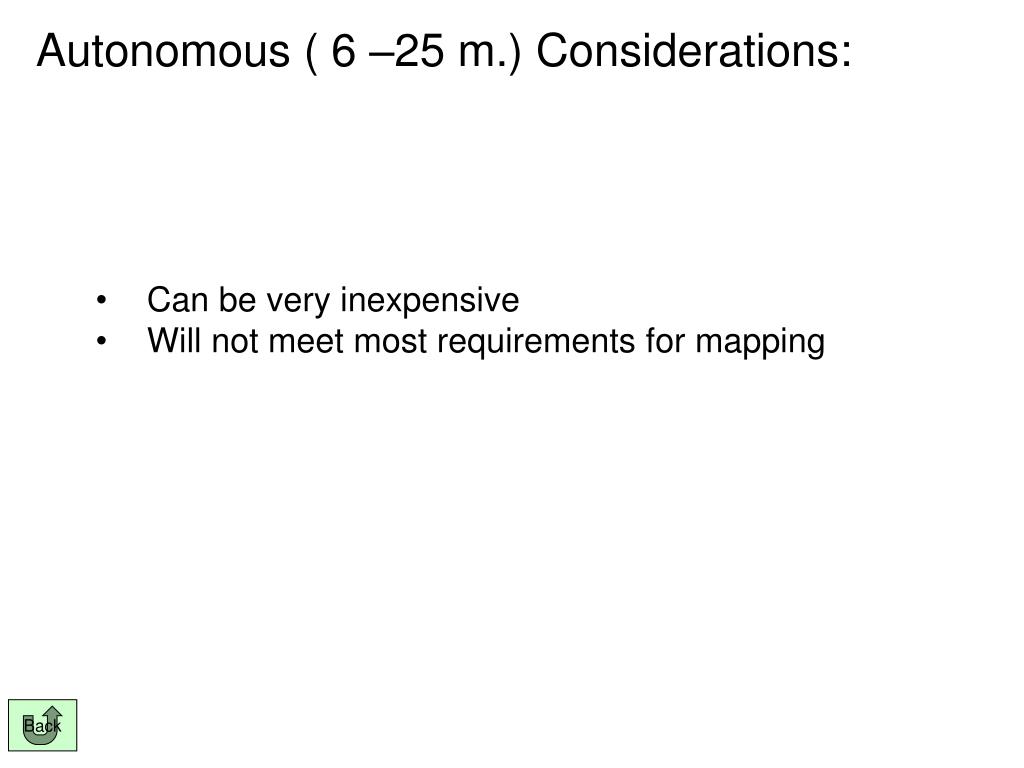

  13. Autonomous ( 6 –25 m.) Considerations: • Can be very inexpensive • Will not meet most requirements for mapping Back

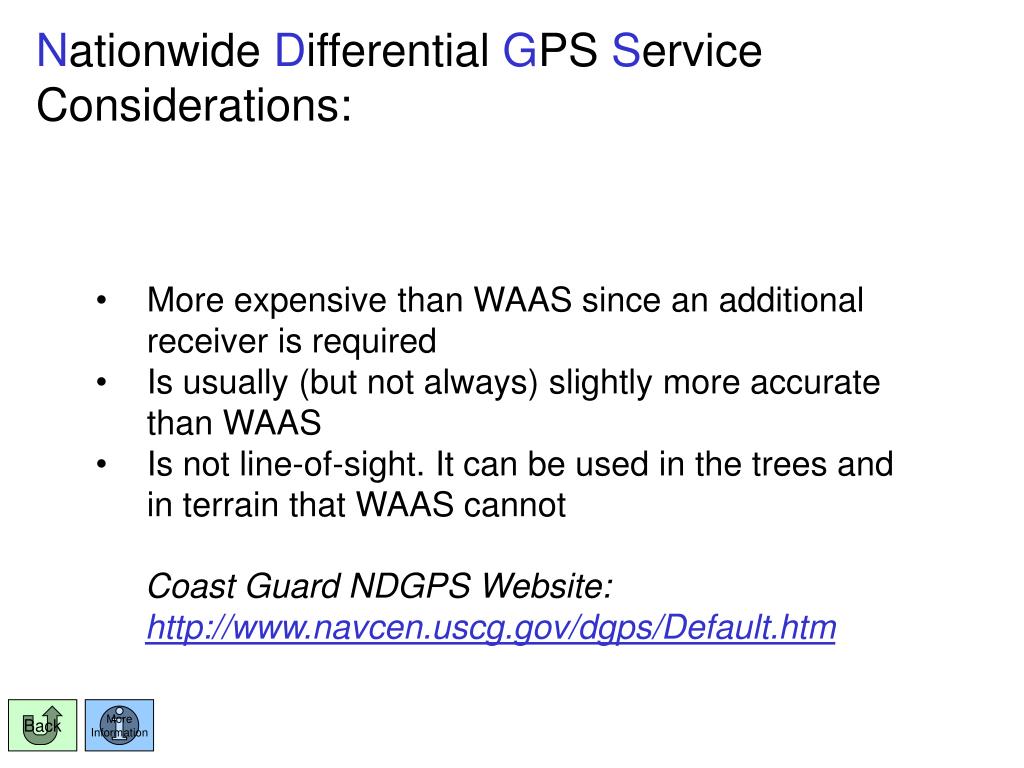

  14. Nationwide Differential GPS ServiceConsiderations: • More expensive than WAAS since an additional receiver is required • Is usually (but not always) slightly more accurate than WAAS • Is not line-of-sight. It can be used in the trees andin terrain that WAAS cannot Coast Guard NDGPS Website: http://www.navcen.uscg.gov/dgps/Default.htm Back MoreInformation

  15. Wide Area Augmentation SystemConsiderations: • Less expensive than NDGPS because no additionalreceiver is needed. GPS receiver must be WAAS enabled • No wires • Limited to line of sight operations to geo-stationarysatellite parked over equator • Unreliable in many field operating environments • Usually less accurate than NDGPS Department of Transportation WAAS Website:http://gps.faa.gov/programs/waas/howitworks.htm Back MoreInformation

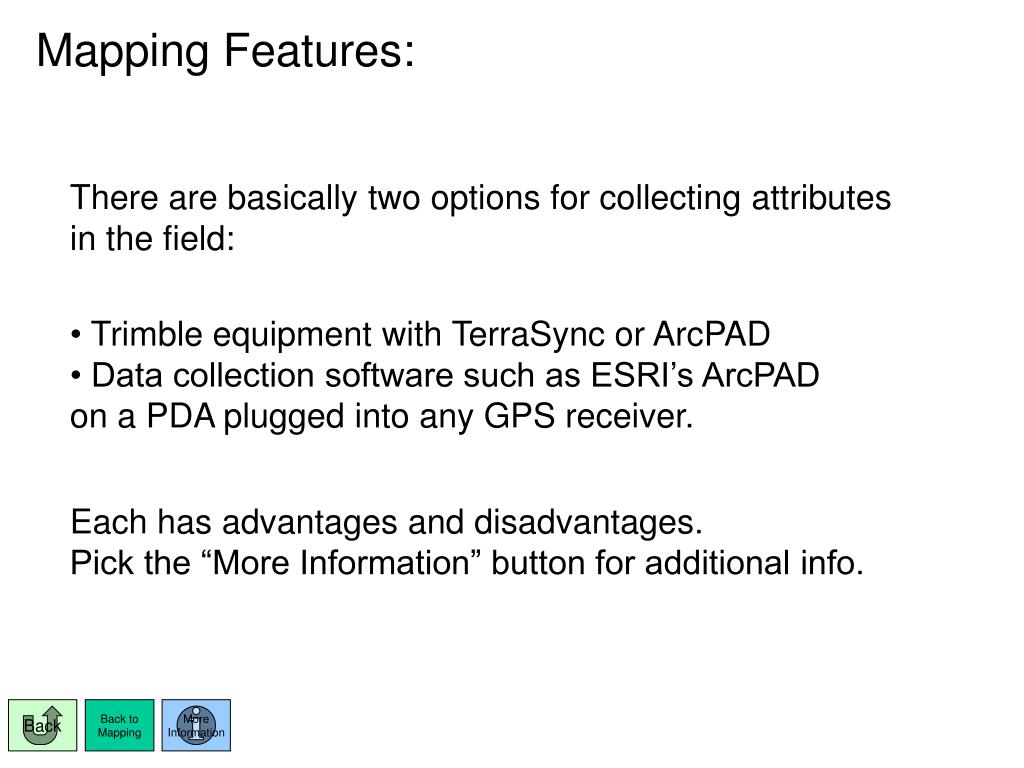

  16. Mapping Features: There are basically two options for collecting attributesin the field: • Trimble equipment with TerraSync or ArcPAD • Data collection software such as ESRI’s ArcPAD on a PDA plugged into any GPS receiver. Each has advantages and disadvantages. Pick the “More Information” button for additional info. Back Back toMapping MoreInformation

  17. GeoExplorer XT Trimble XR More Information at Trimble’s website: http://www.trimble.com • Trimble Equipment: • GeoExplorer XT is relatively small and self-contained • Trimble XR and XRS are highly accurate and reliable • Pathfinder Office Software is powerful and feature packed • Expensive ($6000 - $10,000) • Note: If you use ArcPAD and want to do post-processed differentialcorrections then you must buy “GPS Correct” software (~$500) from Trimble. Back Back toMapping MoreInformation

  18. PDA with Data Collection Software: • Flexible solution • Wide range of related costs ($250 - $6000) depends onselected hardware and software • Can be very powerful and feature packed ERSI’s ArcPAD Back Back toMapping
