  1. Blood Objective: describe the structure of red blood cells, phagocytes and lymphocytes and the role of haemoglobin for AS Biology

  2. Composition of blood Whole blood 55% plasma 45% cells 10% solutes 90% water red white platelets nutrients agranulocytes granulocytes salts (electrolytes) eosinophils monocytes lymphocytes hormones basophils plasma proteins neutrophils T cells B cells albumens globulins (antibodies) killer T cells helper T cells clotting factors

  3. Blood cells Platelets Neutrophil Monocyte Red blood cell T-lymphocyte False colour scanning electron micrograph of cells in arterial blood

  4. Red blood cells (erythrocytes) • 5 000 000 per mm3 • biconcave discs – maximises surface area for gas exchange • approx. 7 mm diameter, 2 mm thick • nucleus lost on maturation (more space for haemoglobin) • no mitochondria, very few organelles • short-lived (100-120 days) • made in bone marrow of ribs and vertebrae; broken down in liver and spleen (1-2 million/s)

  5. Objectives: * describe the role of haemoglobin in carrying oxygen and carbon dioxide ** describe and explain the significance of the dissociation curves of adult oxyhaemoglobin at different carbon dioxide levels (the Bohr effect)

  6. Haemoglobin and oxygen transport • Haemoglobin is a conjugated protein showing quaternary structure • One haemoglobin molecule is formed of two a-globin and two b-globin chains, each bonded to a haem group with an iron atom at its centre a-globin b-globin haem

  7. Haemoglobin and oxygen transport • Each haem group can bind one oxygen molecule (O2) to its iron atom: one haemoglobin molecule can therefore carry four oxygen molecules • Unbound haemoglobin has quite a low affinity for oxygen, and at low oxygen concentrations (as in respiring tissues) very little is bound • But the binding of an oxygen molecule to one haem group alters the shape of the whole molecule, making it easier for a second to bind; this alters the shape making it easier for a third to bind, and so on: this gives the characteristic oxygen dissociation curve of haemoglobin

  8. Oxygen dissociation curve of haemoglobin 100 An oxygen dissociation curve plots the percentage saturation of haemoglobin with oxygen against the partial pressure of oxygen in its surroundings. Percentage saturation is a measure of how ‘full up’ the haemoglobin is with oxygen: if none of the haem groups are bound to oxygen, saturation = 0%; if all of them are bound, saturation = 100%; if on average each haemoglobin molecule has two oxygen molecules bound to it, saturation = 50%, and so on. Percentage saturation of haemoglobin with oxygen 50 0 Partial pressure of oxygen (pO2) / kPa

  9. Oxygen dissociation curve of haemoglobin 100 Partial pressure of oxygen is a measure of oxygen concentration that allows direct comparison between, for example, oxygen concentration in the air, oxygen concentration when dissolved in water, or oxygen concentration when bound to haemoglobin. Other concentration measures (e.g. %, or mg per dm3, or whatever) would not allow such comparison. Percentage saturation of haemoglobin with oxygen 50 0 Partial pressure of oxygen (pO2) / kPa

  10. Oxygen dissociation curve of haemoglobin 100 Partial pressure of a gas in a mixture of gases is the part of the total pressure of the mixture that is exerted by that gas alone. E.g. if total atmospheric pressure is 100 kPa, and oxygen makes up 20.7% of the atmosphere, than the pO2 in the atmosphere is 20.7kPa. If a mixture of gases in a cylinder exerts a total pressure of 2000 kPa, and oxygen makes up 40% of the mixture, what is the pO2 in the cylinder? Percentage saturation of haemoglobin with oxygen 50 800 kPa 0 Partial pressure of oxygen (pO2) / kPa

  11. Oxygen dissociation curve of haemoglobin 100 Partial pressure of a gas in a solution or bound state is equal to the partial pressure of that gas in an atmosphere in equilibrium with that solution. E.g. if a body of water is in equilibrium with an atmosphere of pO2 20.7 kPa, so that oxygen is being neither gained nor lost by the water, then the pO2 of the water is also 20.7 kPa. If a test-tube full of blood is in equilibrium with an atmosphere of pO2 12.5 kPa, then the pO2 of the blood is also………. Percentage saturation of haemoglobin with oxygen 50 12.5 kPa 0 Partial pressure of oxygen (pO2) / kPa

  12. Oxygen dissociation curve of haemoglobin Tissue pO2 Alveolar pO2 100 As pO2 continues to rise, percent saturation rises increasingly steeply as the haemoglobin’s affinity for oxygen increases pO2 of exercising muscle At pO2 0 kPa (no oxygen present) percent saturation is of course 0 As pO2 rises from 0, so does percent saturation: but because of the increasing affinity of haemoglobin for oxygen as each O2 molecule binds, the curve is not linear but increases in gradient Percentage saturation of haemoglobin with oxygen Above a pO2 of about 8 kPa most of the haem groups are bound to oxygen, and the curve flattens out. 50 0 0 2 4 6 8 10 12 14 Partial pressure of oxygen (pO2) / kPa

  13. Oxygen dissociation curve of haemoglobin: why is it important? Tissue pO2 Alveolar pO2 100 The sigmoid dissociation curve means that at low pO2 haemoglobin binds oxygen less readily than expected – i.e. lets it go more readily than expected. The extra oxygen delivered is shown by pO2 of exercising muscle Percentage saturation of haemoglobin with oxygen 50 Compare the oxygen dissociation curve to the curve we would see if haemoglobin reached saturation at the same pO2 but without the increasing affinity. 0 0 2 4 6 8 10 12 14 Partial pressure of oxygen (pO2) / kPa

  14. Oxygen dissociation curve of haemoglobin: fetal haemoglobin Placental pO2 Alveolar pO2 100 At the placenta, fetal haemoglobin must load (take up oxygen) at a pO2 at which maternal haemoglobin unloads. This means that fetal haemoglobin must have a higher affinity for oxygen than maternal haemoglobin: its dissociation curve is therefore to the left of maternal haemoglobin’s curve. Percentage saturation of haemoglobin with oxygen Fetal haemoglobin Maternal haemoglobin 50 Fetal haemoglobin is made in the liver. Why not in bone marrow, like adult haemoglobin? 0 0 2 4 6 8 10 12 14 Oxygen delivered from maternal to fetal haemoglobin Partial pressure of oxygen (pO2) / kPa

  15. Oxygen dissociation curve of myoglobin Myoglobin is a dark red pigment found only in muscle. It acts as a ‘last-ditch’ oxygen reserve in severe exertion: its oxygen dissociation curve is a long way to the left of haemoglobin’s. Tissue pO2 Alveolar pO2 100 Myoglobin pO2 of exercising muscle Percentage saturation of haemoglobin with oxygen Adult haemoglobin 50 As the curve shows, myoglobin gives up most of its oxygen only when muscle pO2 falls well below 1 kPa – only in conditions of severe exertion. Next stop, anaerobic respiration … 0 0 2 4 6 8 10 12 14 Partial pressure of oxygen (pO2) / kPa

  16. Transport of carbon dioxide • About 5% of the carbon dioxide released from respiring cells is carried as CO2 molecules in solution in blood plasma • About 25% attaches to the protein in haemoglobin and is carried as carbaminohaemoglobin

  17. Transport of carbon dioxide • The remaining 70% enters red blood cells and is converted by the enzyme carbonic anhydrase into carbonic acid • The carbonic acid immediately dissociates into hydrogen ions and hydrogencarbonate ions: CO2 + H2O H2CO3 H+ + HCO3- • The hydrogencarbonate ions diffuse out into the plasma: the loss of negative ions is balanced by a corresponding uptake of chloride ions, Cl- (the chloride shift)

  18. Describe and explain the significance of the increase in the red blood cell count of humans at high altitude; • Describe how smoking can affect oxygen dissociation curve

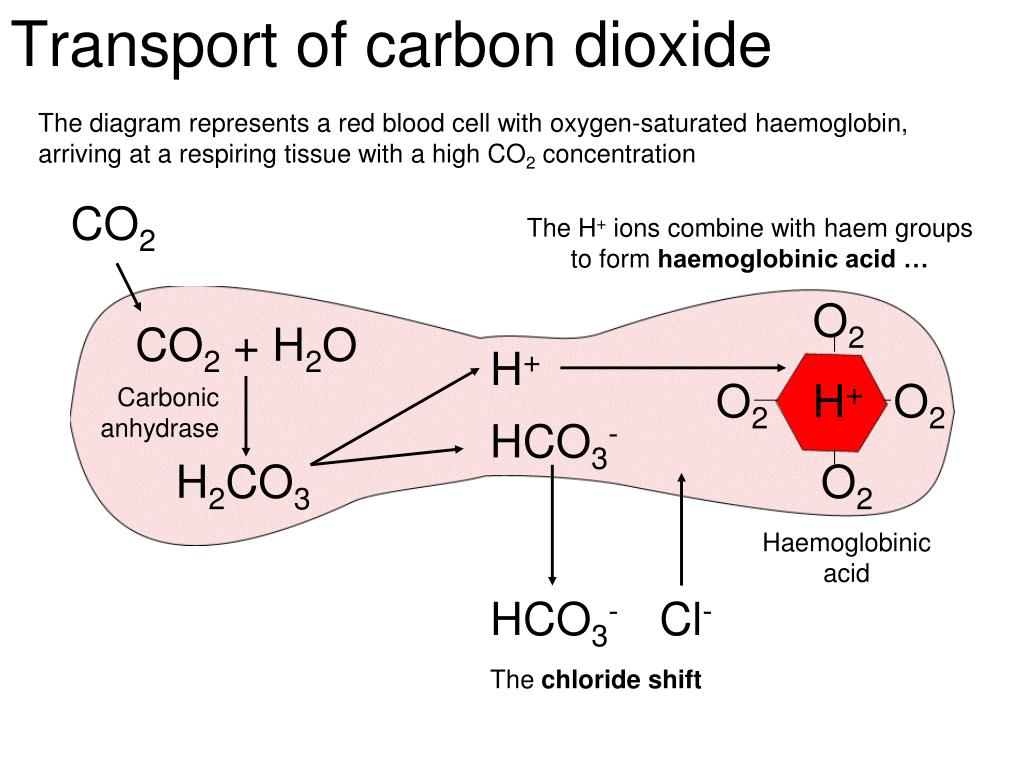

  19. Transport of carbon dioxide The diagram represents a red blood cell with oxygen-saturated haemoglobin, arriving at a respiring tissue with a high CO2 concentration CO2 The H+ ions combine with haem groups to form haemoglobinic acid … O2 CO2 + H2O H+ O2 H+ O2 Carbonic anhydrase HCO3- H2CO3 O2 Haemoglobinic acid HCO3- Cl- The chloride shift

  20. Transport of carbon dioxide The diagram represents a red blood cell with oxygen-saturated haemoglobin, arriving at a respiring tissue with a high CO2 concentration Haemoglobinic acid not only buffers the excess H+ ions, but its lower affinity for oxygen causes O2 to be released 4O2 CO2 CO2 + H2O H+ H+ Carbonic anhydrase HCO3- H2CO3 Haemoglobinic acid In the alveolar capillaries the opposite happens: the high O2 concentration displaces H+ from haemoglobin; the H+ ions combine with HCO3- to form carbonic acid, which decomposes to CO2 and water. HCO3- Cl- The chloride shift

  21. The formation of haemoglobinic acid means that in the presence of high CO2 concentrations the dissociation curve shifts to the right (a reduction in affinity for oxygen): this is called the Bohr effect. The Bohr effect 100 Loading occurs here High CO2 level Low CO2 level Percentage saturation of haemoglobin with oxygen The Bohr effect means that haemoglobin will load more easily in the pulmonary capillaries (low CO2 = high O2 affinity), and unload more easily in the tissue capillaries (high CO2 = lower O2 affinity). Medium CO2 level 50 Unloading occurs here 0 0 2 4 6 8 10 12 14 Partial pressure of oxygen (pO2) / kPa

  22. Oxygen dissociation curves: practice questions 1 Loading tension is defined as the partial pressure of oxygen (pO2) at which haemoglobin becomes 95% saturated; unloading tension is the pO2 at which haemoglobin becomes 50% saturated. State the loading and unloading tensions of the haemoglobin in the red curve. % saturation Partial pressure of oxygen (pO2) / kPa

  23. Oxygen dissociation curves: practice questions 2 1 dm3 of human blood can carry 200 cm3 of oxygen when fully saturated. Calculate the volume of oxygen delivered by 1 dm3 of blood when travelling from the alveoli (pO2 12 kPa) to the liver (pO2 4.6 kPa). % saturation Partial pressure of oxygen (pO2) / kPa

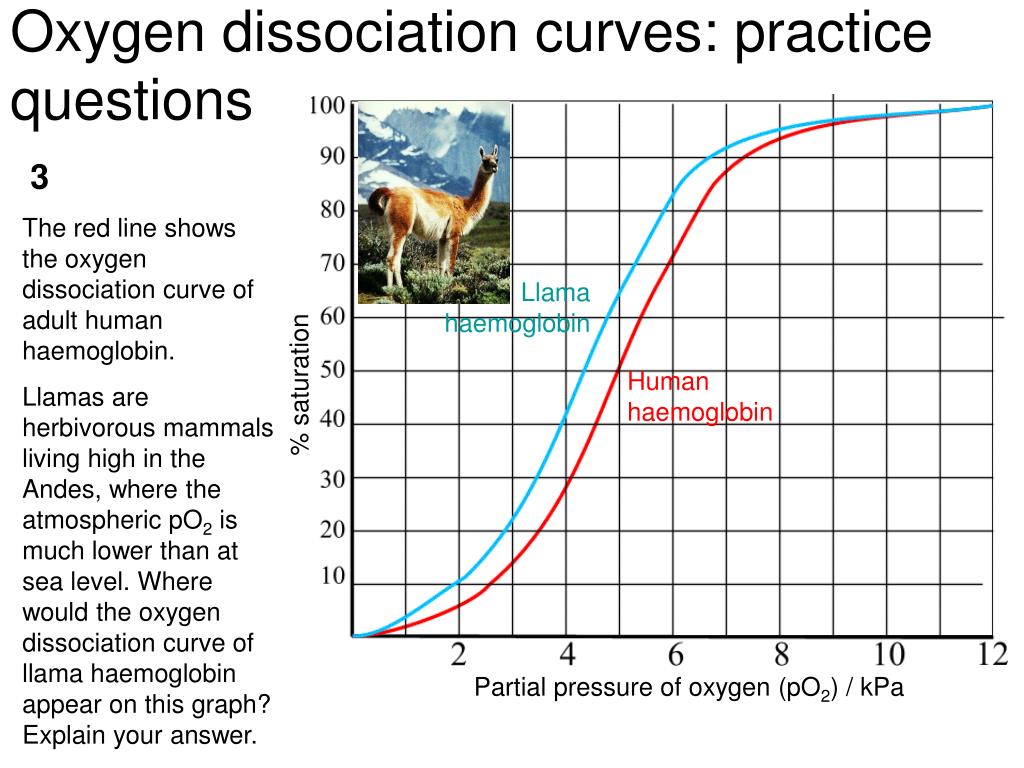

  24. Oxygen dissociation curves: practice questions 3 The red line shows the oxygen dissociation curve of adult human haemoglobin. Llamas are herbivorous mammals living high in the Andes, where the atmospheric pO2 is much lower than at sea level. Where would the oxygen dissociation curve of llama haemoglobin appear on this graph? Explain your answer. Llama haemoglobin Human haemoglobin % saturation Partial pressure of oxygen (pO2) / kPa

  25. Oxygen dissociation curves: practice questions 4 The red line shows the oxygen dissociation curve of adult human haemoglobin at pCO2 of 0.1 kPa. Where on this graph would you expect to see (a) the oxygen dissociation curve of human fetal haemo-globin at pCO2 0.1 kPa, (b) the oxygen dissociation curve of adult haemoglobin at pCO2 of 0.2 kPa? Explain your answers. Fetal haemoglobin at pCO2 0.1 kPa Adult haemoglobin at pCO2 0.2 kPa % saturation Partial pressure of oxygen (pO2) / kPa
