  1. Spatial and temporal patterns in food web accumulation of Hg Project Update RMP Exposure and Effects Work Group May 12, 2008 Draft data - do not cite or quote

  2. Workplan: Specific questions to address • Where is mercury entering the Bay food web? • What habitats, conditions, or factors help to identify hotspots of food web accumulation in Bay margins? • Are there interannual trends in MeHg bioaccumulation resulting from wetland and margin restoration activities? • What are the best biomonitoring tools for characterizing hotspots of MeHg bioaccumulation? Draft data - do not cite or quote

  3. General approach • Spatial analysis • Stratified random design • Identify hotspots based on conceptual model • Seasonal trend evaluation • Interannual trend detection • Field sampling for Hg isotopes and for DGT study Draft data - do not cite or quote

  4. Allocation of effort • Total of 62 sampling events per year to evaluate spatial, seasonal, and interannual patterns Draft data - do not cite or quote

  5. Spatial survey design - hypothesis testing Draft data – do not cite or quote

  6. Spatial survey sites chosen probabilistically Same GRTS method as Status and Trends Program What types of conditions Bay-wide higher Hg Stratified sampling scheme Even if all our hypotheses are wrong, we are still characterizing conditions and identifying hotspots Bay-wide Draft data – do not cite or quote

  7. How separating different site types? Draft data - do not cite or quote

  8. Map of areas to be sampled • GIS based on morphology, size, depth • Strata 1: • Open Shorelines • -Strata 2: • Enclosed areas and creeks Draft data – do not cite or quote

  9. Identifying Hg source areas Draft data - do not cite or quote

  10. Source site selection • Mining sources • Creeks draining probable source mines • POTW discharges • Feedback from RB NPDES Permitting Staff • Creeks draining urban/industrial areas • Feedback from BASMAA • Industrial areas with high sediment THg • Total of about 50 sites Draft data - do not cite or quote

  11. Wetland site selection Draft data - do not cite or quote

  12. Wetland site selection • Oversight by Josh Collins and Letitia Grenier • Based on GRTS sampling performed for SBMP and CRAM • Stratified based on: • relative wetland elevation and age • Is wetland hypothesized to be high or low in bioavailable Hg Draft data – do not cite or quote

  13. Results of site selection Draft data - do not cite or quote

  14. Non-wetland site selection Years 1 - 3 Draft data – do not cite or quote

  15. Wetland site selection Years 1-3 Draft data – do not cite or quote

  16. Source site selection Years 1-3 Draft data – do not cite or quote

  17. All sites Year One Draft data – do not cite or quote

  18. Source Sites Year One Draft data – do not cite or quote

  19. Enclosed vs. Open shoreline Year One Draft data – do not cite or quote

  20. All sites Year Two (does not include wetlands) Draft data – do not cite or quote

  21. Coordination and Collaboration • University of Michigan – RMP Hg stable isotope study (Joel Blum, Gretchen Gehrke) • Hg isotope sites characterize specific sources • Urban runoff, mining, waste water, atmospheric deposition • Sites will be chosen from small fish source sites after probabilistic site selection is complete • Sediment Hg and isotope analysis Draft data - do not cite or quote

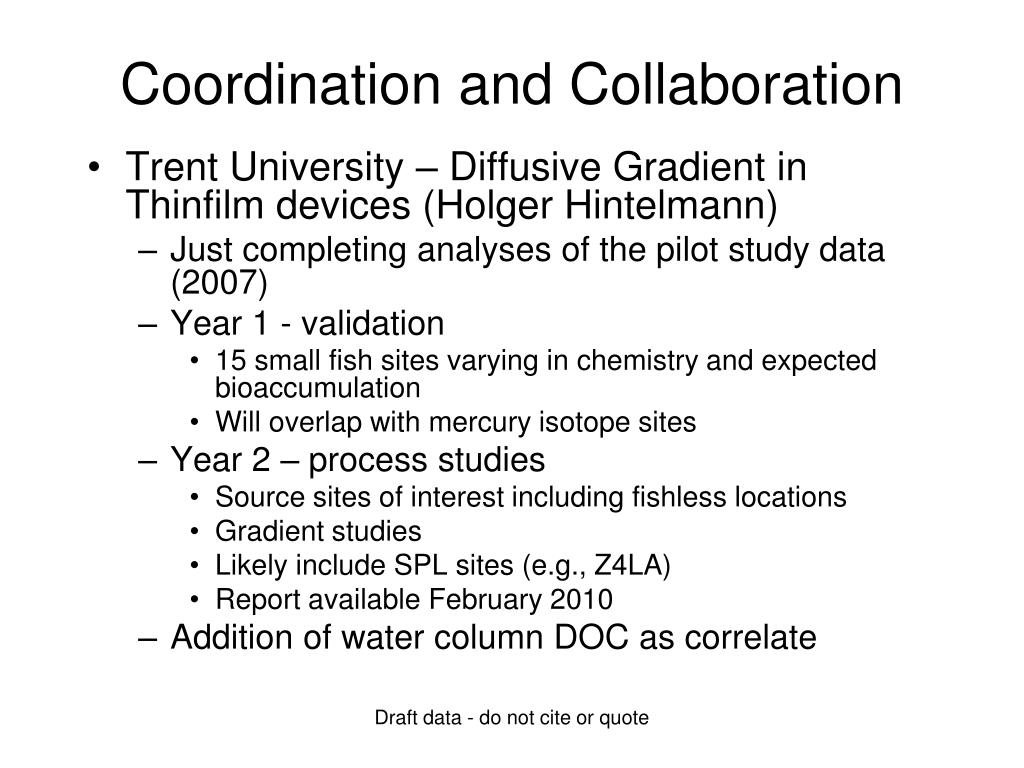

  22. Coordination and Collaboration • Trent University – Diffusive Gradient in Thinfilm devices (Holger Hintelmann) • Just completing analyses of the pilot study data (2007) • Year 1 - validation • 15 small fish sites varying in chemistry and expected bioaccumulation • Will overlap with mercury isotope sites • Year 2 – process studies • Source sites of interest including fishless locations • Gradient studies • Likely include SPL sites (e.g., Z4LA) • Report available February 2010 • Addition of water column DOC as correlate Draft data - do not cite or quote

  23. Discussion points • How select sites for DGT and Hg isotope in year one Draft data - do not cite or quote

  24. END OF TALK • REST IS ANCILLARY MATERIAL IN EVENT OF DISCUSSION Draft data - do not cite or quote

  25. Draft data – do not cite or quote

  26. Draft data - do not cite or quote Draft data – do not cite or quote

  27. Sediment MeHg may be correlated with topsmelt Hg • Topsmelt 2006 data • RMP and Calfed • sediment data within 1.5 km disk of fish • R2 = 0.61 Draft data - do not cite or quote

  28. Trend analysis – a multiple station BACI design Draft data – do not cite or quote

  29. Trend Sampling Locations Hamilton Benicia Park China Camp Control Point Isabel Impact (Restoration) Oakland Middle Harbor Candlestick Point Eden Landing Bird Island/ Steinberger Slough Newark Slough Alviso Slough Draft data – do not cite or quote

  30. Trend Sampling Locations Hamilton Benicia Park China Camp Control Point Isabel Impact (Restoration) Oakland Middle Harbor Candlestick Point Eden Landing Bird Island/ Steinberger Slough Newark Slough Alviso Slough Draft data – do not cite or quote

  31. Monthly sampling locations Additional North Bay Station Sampled by USFWS Martin Luther King Shoreline Draft data – do not cite or quote

  32. MLK Shoreline Location Draft data – do not cite or quote

  33. Collection of additional parameters • Aimed at better understanding mechanisms for spatial variation in bioavailable Hg • GIS spatial parameters • Sediment parameters Draft data - do not cite or quote

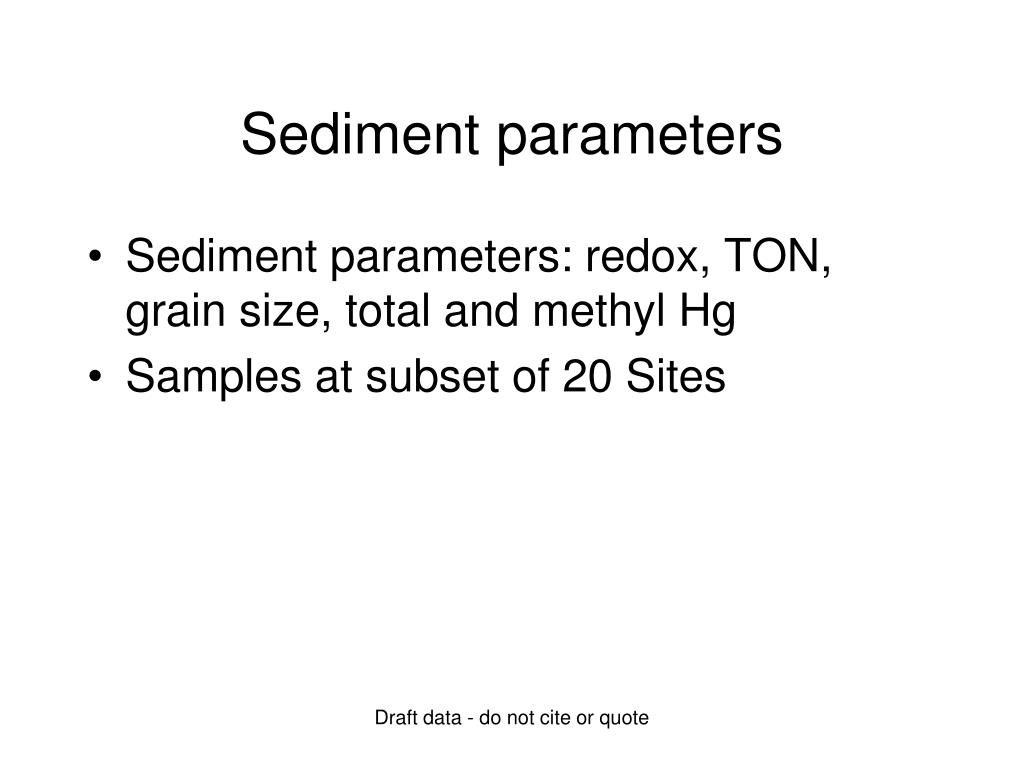

  34. Sediment parameters Sediment parameters: redox, TON, grain size, total and methyl Hg Samples at subset of 20 Sites Draft data - do not cite or quote

  35. Sediment MeHg: < 1 ng/g 1 – 2 ng/g > 2 ng/g Draft data - do not cite or quote

  36. Annual monitoring of trend stations
