  1. SENSORY AND MOTOR SYSTEMS: REFLEXES D. C. Mikulecky Professor of Physiology

  2. ADEQUATE STIMULUS • A SPECIFIC STIMULUS UNIQUE TO A SENSORY RECEPTOR • FOR EXAMPLE, PHOTORECEPTORS IN THE EYE RESPOND ONLY TO ELECTROMAGNETIC RADIATION

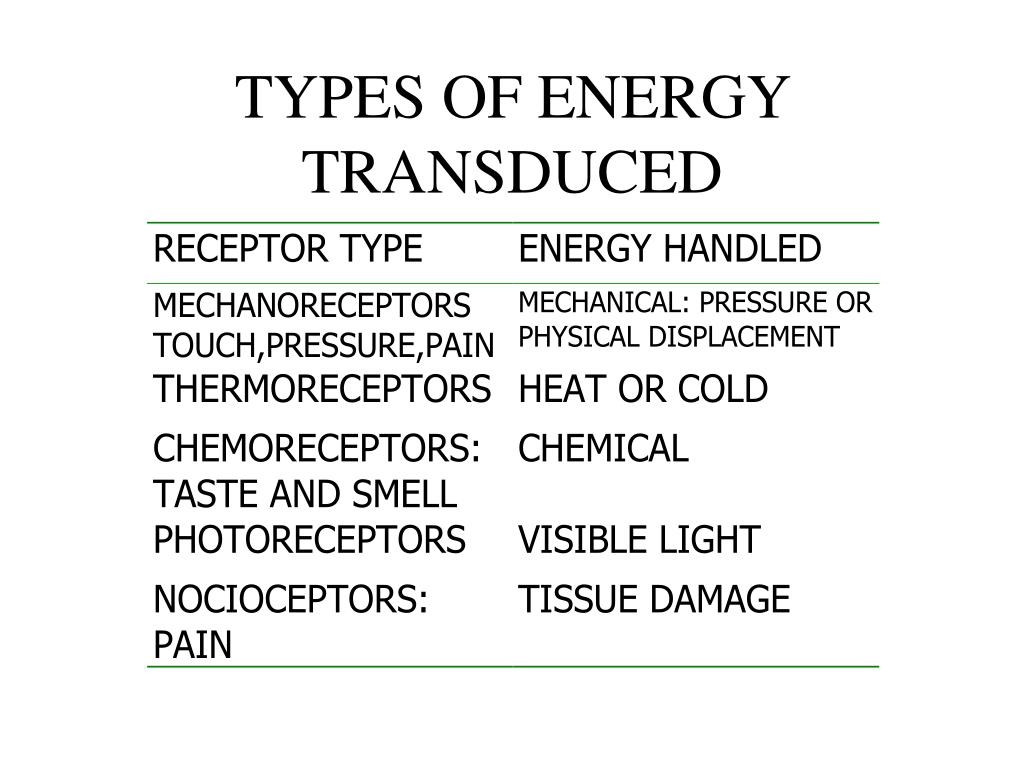

  3. TYPES OF ENERGY TRANSDUCED

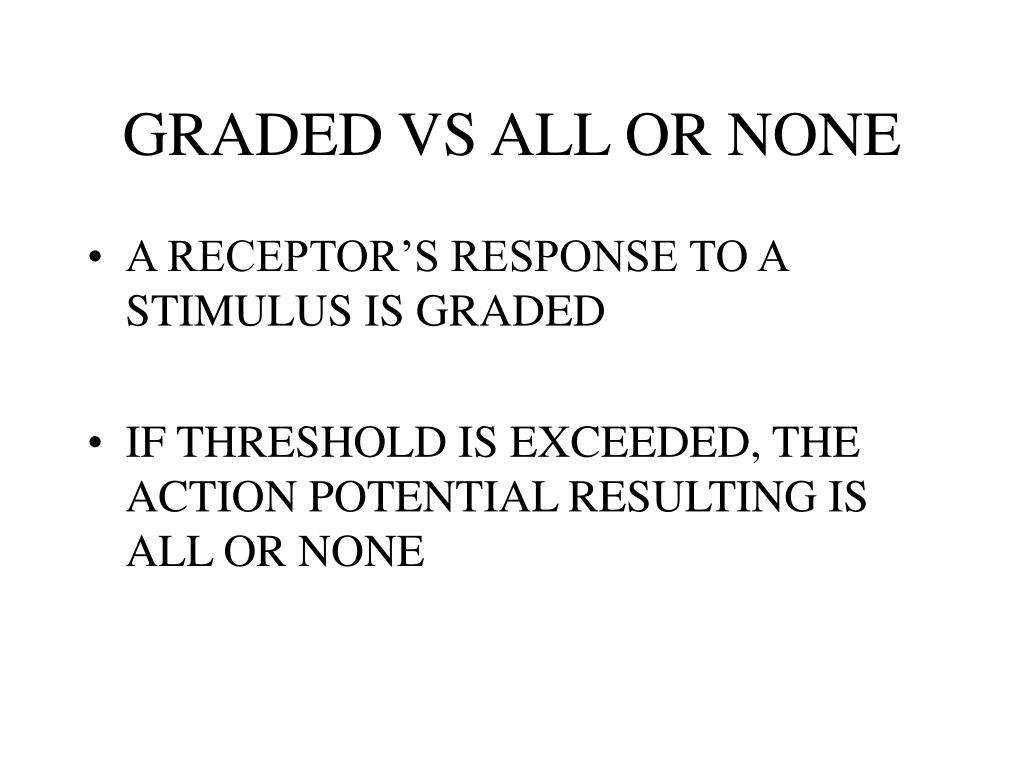

  4. GRADED VS ALL OR NONE • A RECEPTOR’S RESPONSE TO A STIMULUS IS GRADED • IF THRESHOLD IS EXCEEDED, THE ACTION POTENTIAL RESULTING IS ALL OR NONE

  5. SENSORY TRANSDUCTION ADEQUATE STIMULUS MEMBRANE CONDUCTANCE CHANGE GENERATOR POTENTIAL ACTION POTENTIAL

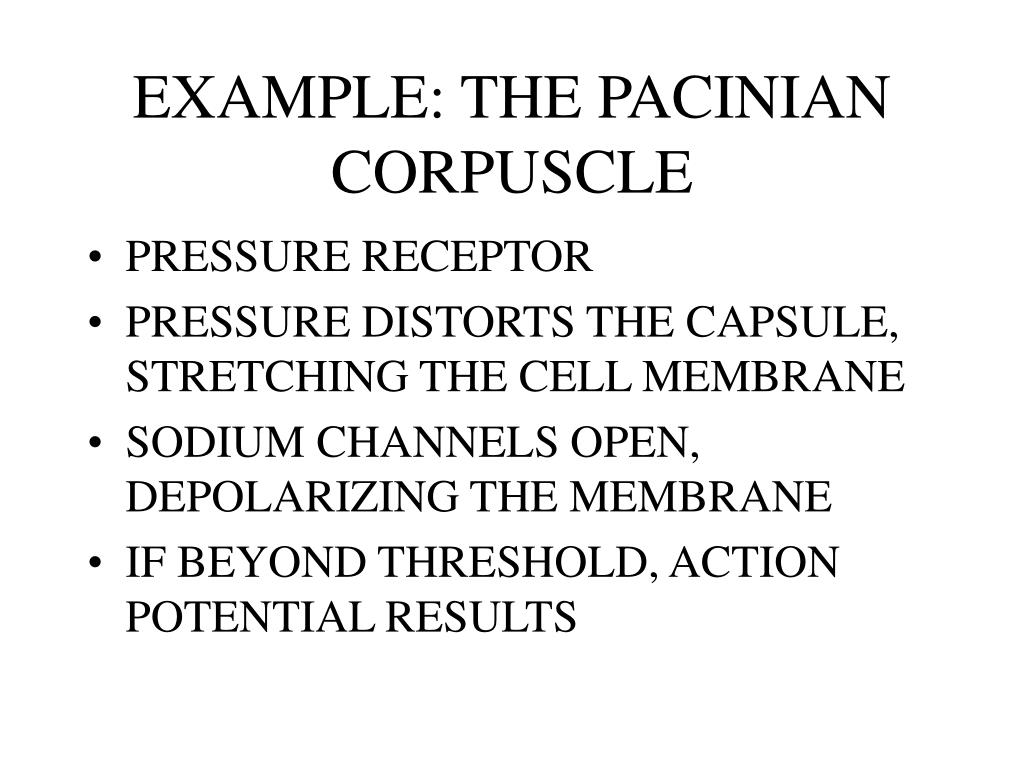

  6. EXAMPLE: THE PACINIAN CORPUSCLE • PRESSURE RECEPTOR • PRESSURE DISTORTS THE CAPSULE, STRETCHING THE CELL MEMBRANE • SODIUM CHANNELS OPEN, DEPOLARIZING THE MEMBRANE • IF BEYOND THRESHOLD, ACTION POTENTIAL RESULTS

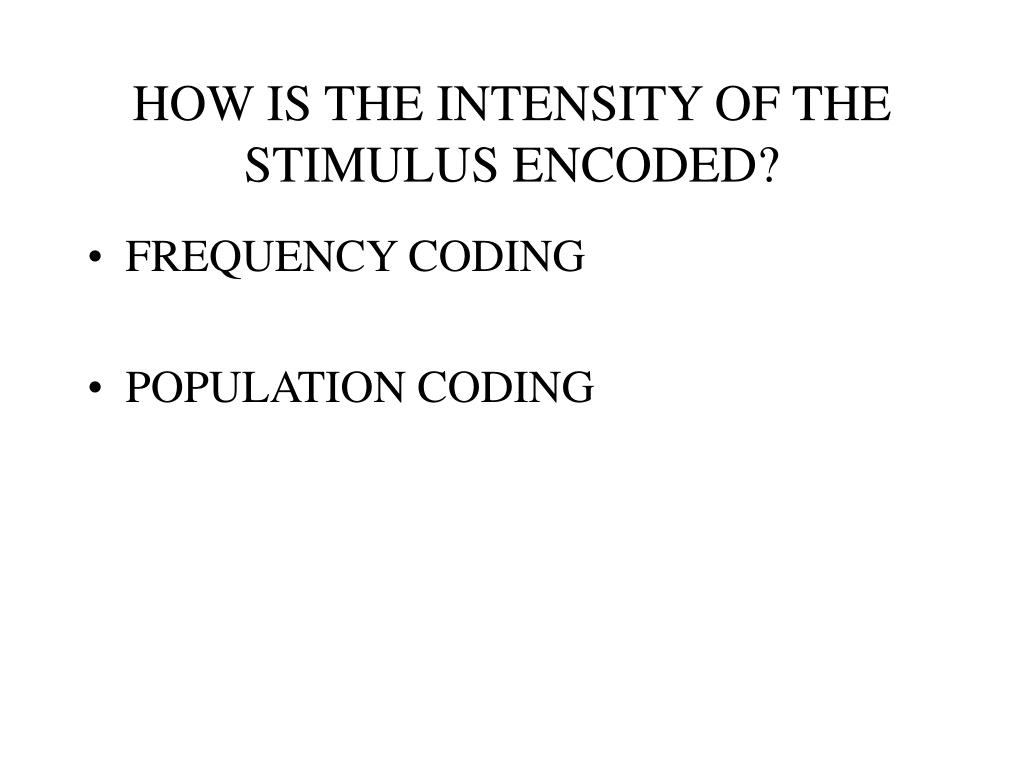

  7. HOW IS THE INTENSITY OF THE STIMULUS ENCODED? • FREQUENCY CODING • POPULATION CODING

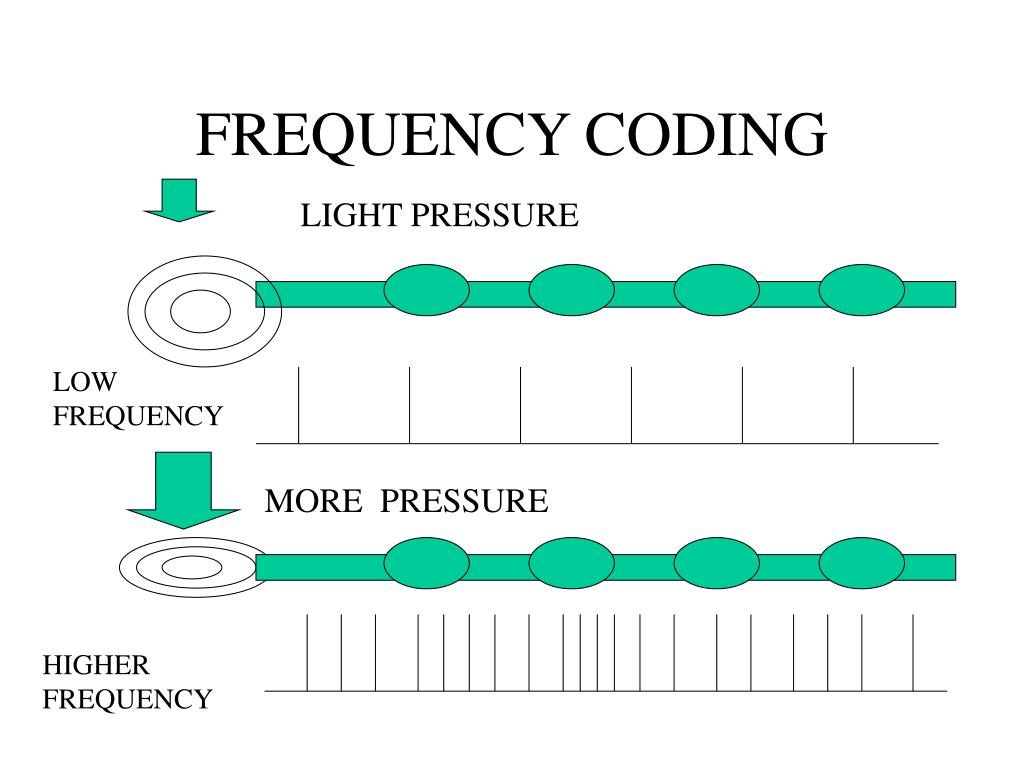

  8. FREQUENCY CODING LIGHT PRESSURE LOW FREQUENCY MORE PRESSURE HIGHER FREQUENCY

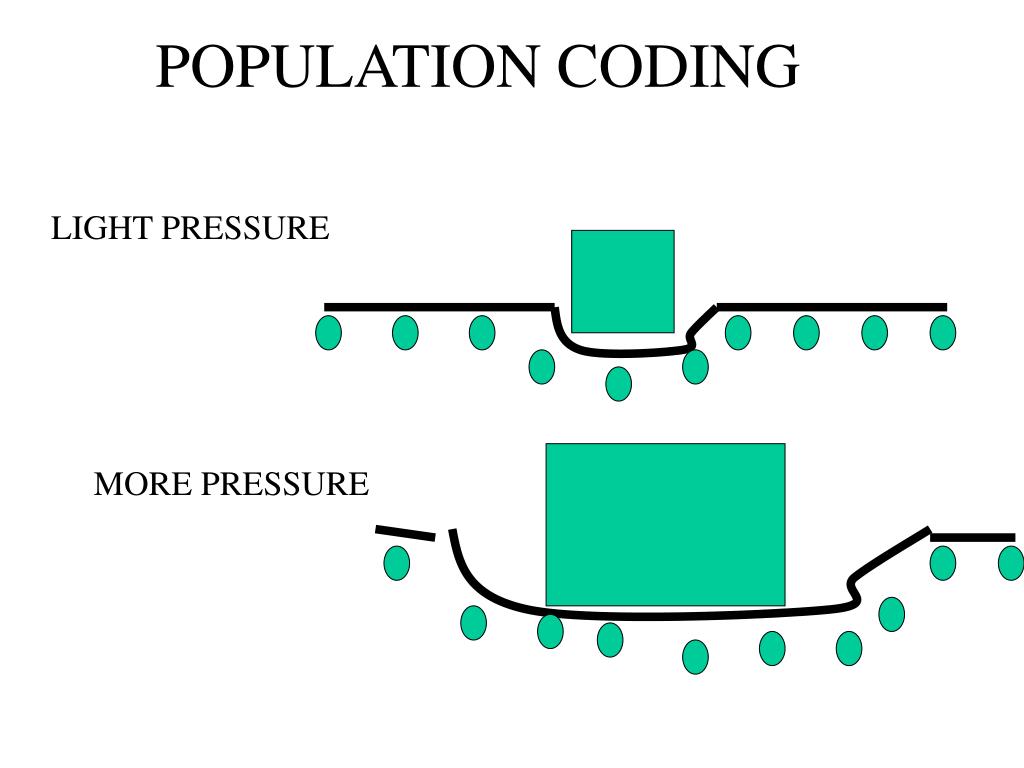

  9. POPULATION CODING LIGHT PRESSURE MORE PRESSURE

  10. THE LABELED LINE CODE OF STIMULUS QUALITY NEOCORTEX LIMBIC CORTEX NOSE SMELL THALAMUS EYE VISION TASTE TONGUE BRAIN STEM EAR AUDITION SKIN SOMATIC SPINAL CORD

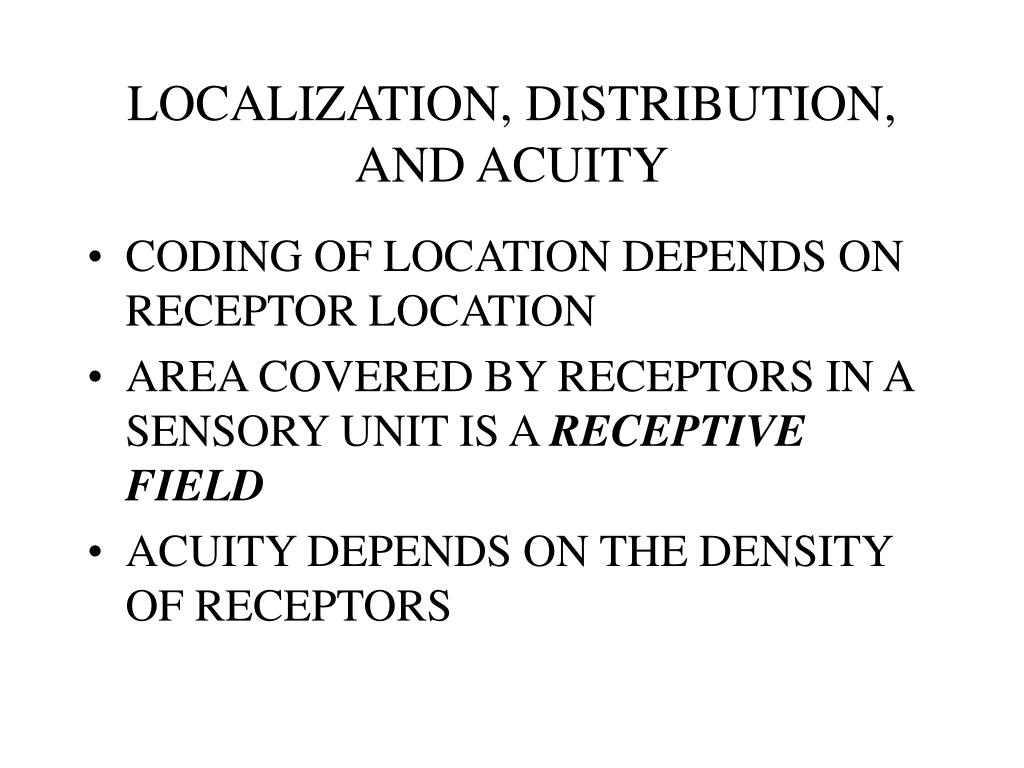

  11. LOCALIZATION, DISTRIBUTION, AND ACUITY • CODING OF LOCATION DEPENDS ON RECEPTOR LOCATION • AREA COVERED BY RECEPTORS IN A SENSORY UNIT IS A RECEPTIVE FIELD • ACUITY DEPENDS ON THE DENSITY OF RECEPTORS

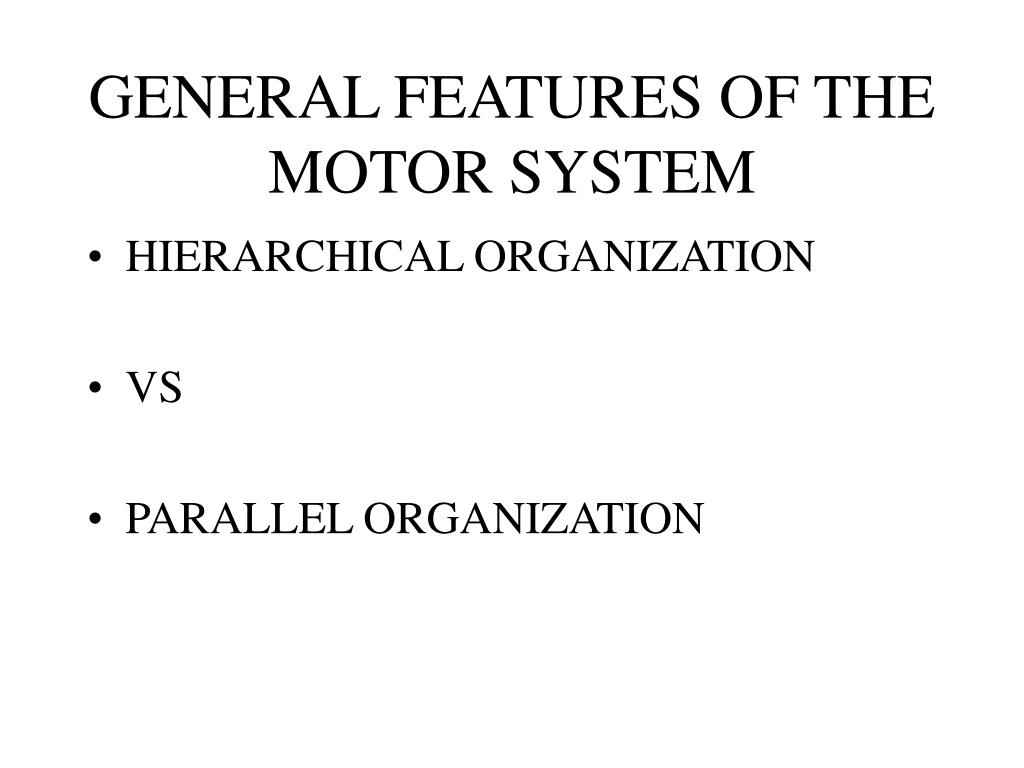

  12. GENERAL FEATURES OF THE MOTOR SYSTEM • HIERARCHICAL ORGANIZATION • VS • PARALLEL ORGANIZATION

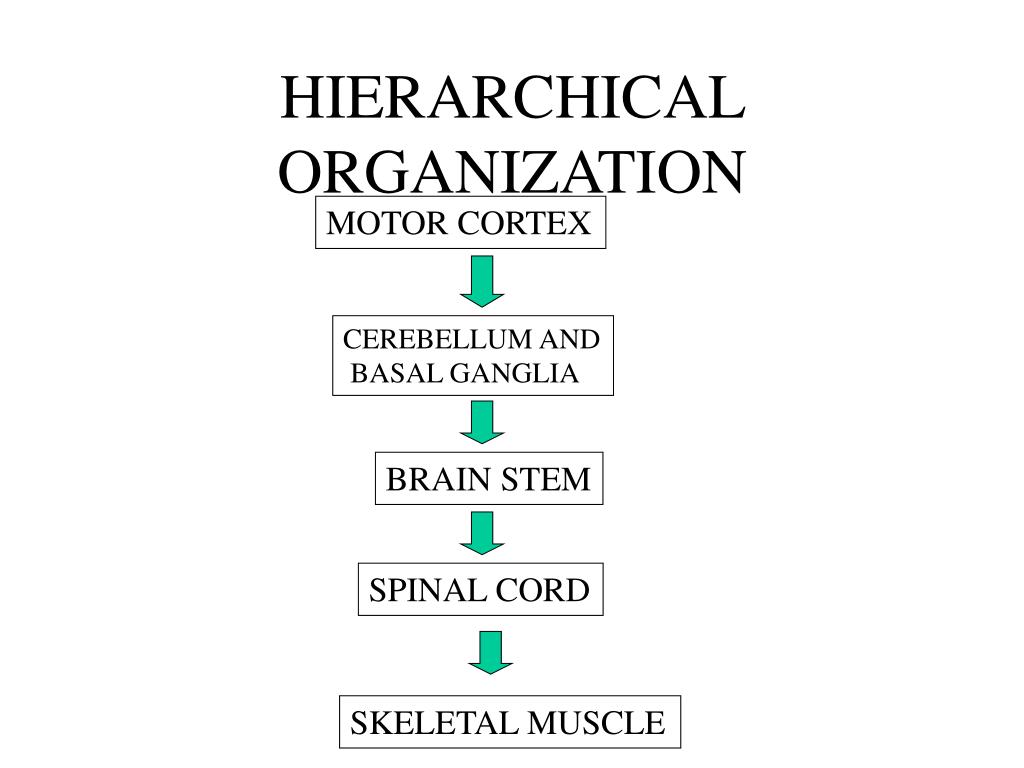

  13. HIERARCHICAL ORGANIZATION MOTOR CORTEX CEREBELLUM AND BASAL GANGLIA BRAIN STEM SPINAL CORD SKELETAL MUSCLE

  14. PARALLEL ORGANIZATION MOTOR CORTEX BRAIN STEM SPINAL CORD SKELETAL MUSCLE

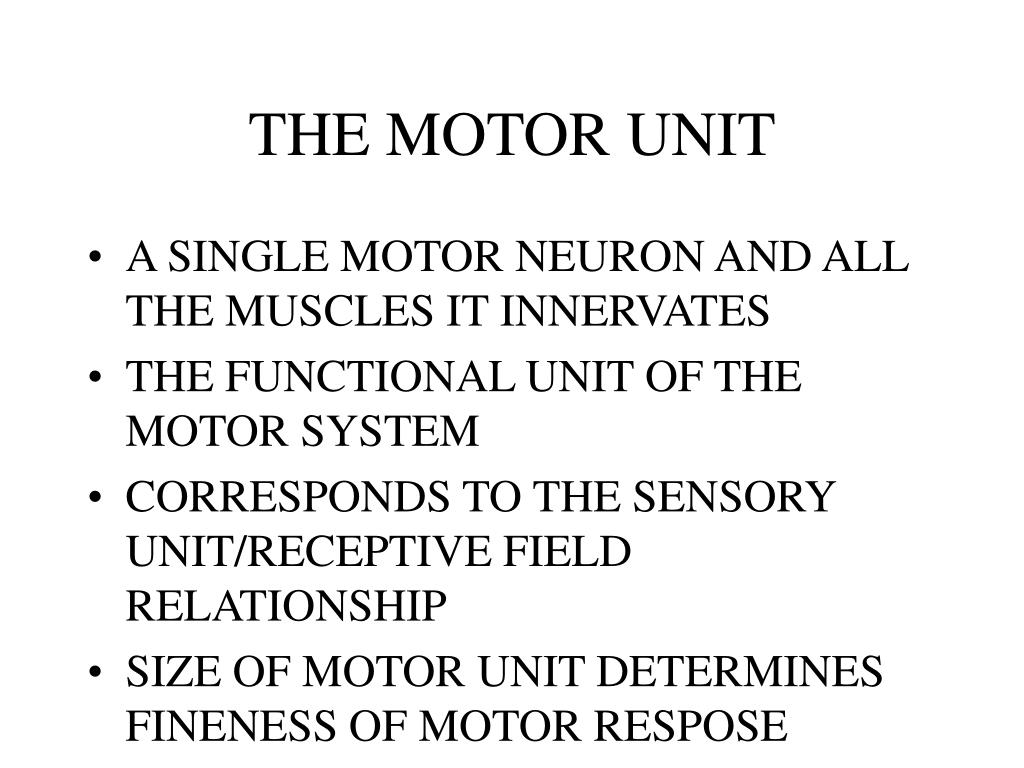

  15. THE MOTOR UNIT • A SINGLE MOTOR NEURON AND ALL THE MUSCLES IT INNERVATES • THE FUNCTIONAL UNIT OF THE MOTOR SYSTEM • CORRESPONDS TO THE SENSORY UNIT/RECEPTIVE FIELD RELATIONSHIP • SIZE OF MOTOR UNIT DETERMINES FINENESS OF MOTOR RESPOSE

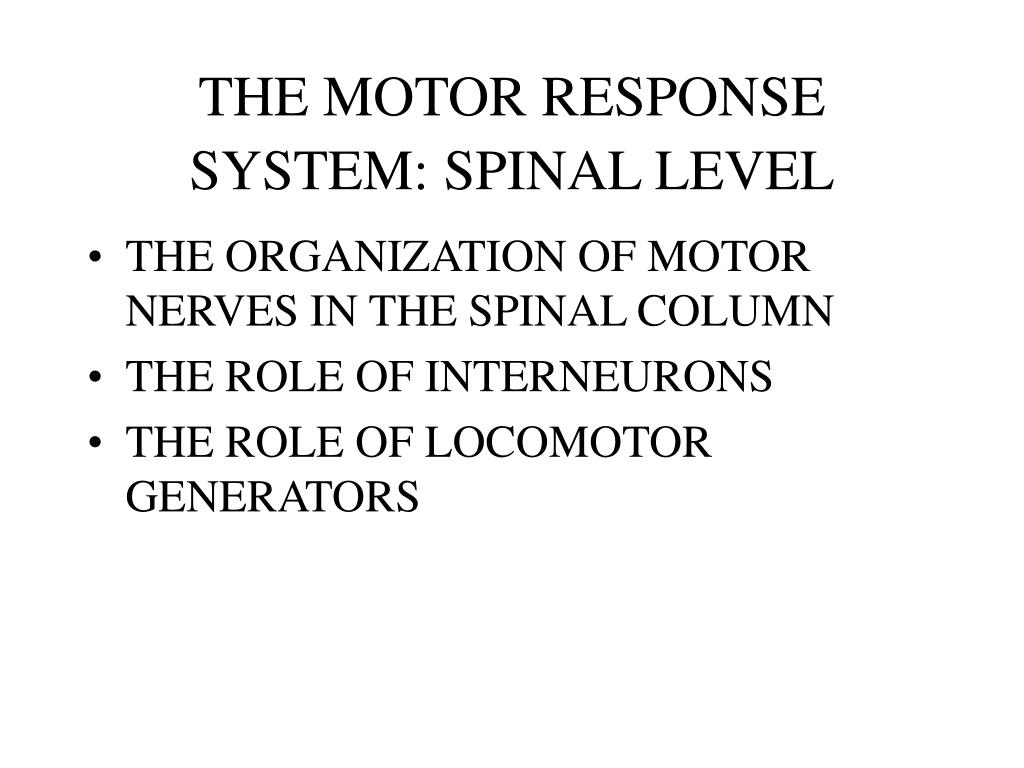

  16. THE MOTOR RESPONSE SYSTEM: SPINAL LEVEL • THE ORGANIZATION OF MOTOR NERVES IN THE SPINAL COLUMN • THE ROLE OF INTERNEURONS • THE ROLE OF LOCOMOTOR GENERATORS

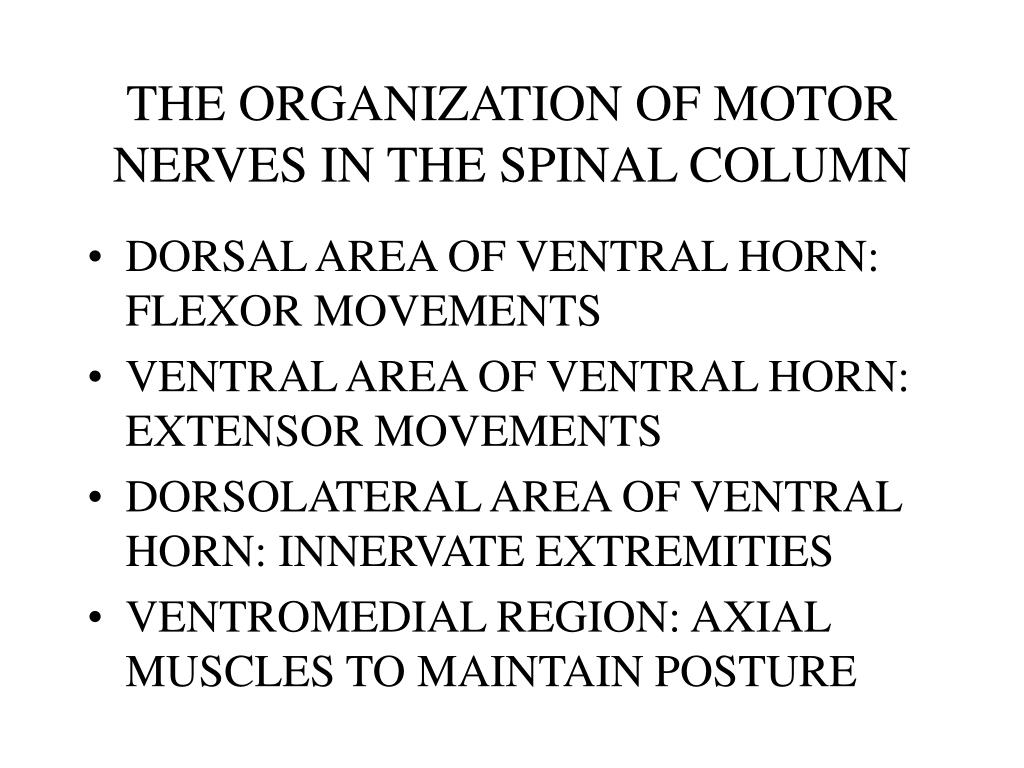

  17. THE ORGANIZATION OF MOTOR NERVES IN THE SPINAL COLUMN • DORSAL AREA OF VENTRAL HORN: FLEXOR MOVEMENTS • VENTRAL AREA OF VENTRAL HORN: EXTENSOR MOVEMENTS • DORSOLATERAL AREA OF VENTRAL HORN: INNERVATE EXTREMITIES • VENTROMEDIAL REGION: AXIAL MUSCLES TO MAINTAIN POSTURE

  18. LOCATION OF CELL BODIES FOR EXTENSORS AND FLEXORS FLEXORS EXTENSORS

  19. THE ROLE OF INTERNEURONS • LOCATED IN THE INTER MEDIATE ZONE OF THE SPINAL CORD • LATERAL SIDE NEURONS SYNAPSE IPSILATERALLY (TO DISTAL LIMB MUSCLES) • MIDLINE NEURONS SYNAPSE BOTH SIDES (MUSCLES FOR POSTURE) ALPHA MOTOR NEURONS:EXCITE SYNERGISTIC AND INHIBIT ANTAGONISTIC

  20. THE ROLE OF LOCOMOTOR GENERATORS • RHYTHMIC ACTION OF ALTERANATING FLEXION AND EXTENSION INVOVED IN WALKING MOVEMENTS (CHICKEN WITH ITS HEAD CUT OFF) • SPINAL TRANSECTED ANIMALS CAN WALK ON TREADMILL • UNDER CONTROL OF LOCOMOTOR COMMAND CENTER IN THE BRAIN STEM

  21. SENSORY FIBERS IN THE MUSCLE • THE MUSCLE SPINDLE AS LENGTH DETECTOR • GOGLI TENDON ORGANS: TENSION RECEPTORS

  22. THE MUSCLE SPINDLE AS LENGTH DETECTOR(SENSORY FIBERS) • TYPE Ia NERVE FIBERS: TRANSMIT INFORMATION ABOUT LENGTH AND VELOCITY TO THE CNS • TYPE II NERVE FIBERS:TRANSMIT INFORMATION ABOUT MUSCLE LENGTH TO CNS

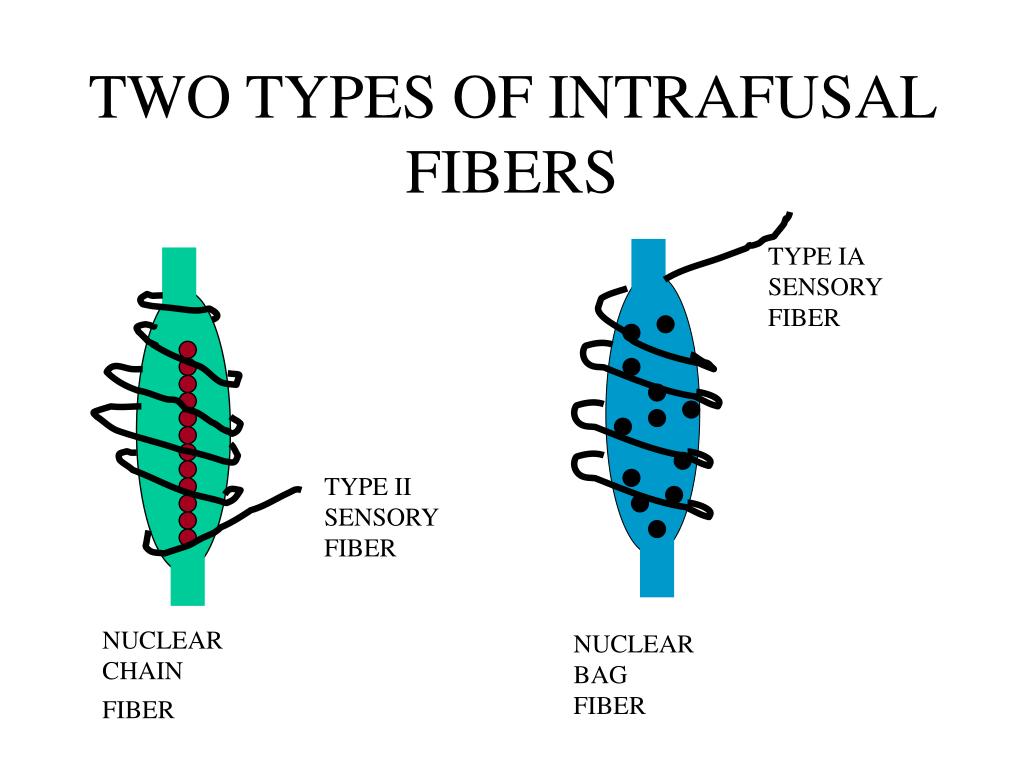

  23. TWO TYPES OF INTRAFUSAL FIBERS TYPE IA SENSORY FIBER TYPE II SENSORY FIBER NUCLEAR CHAIN FIBER NUCLEAR BAG FIBER

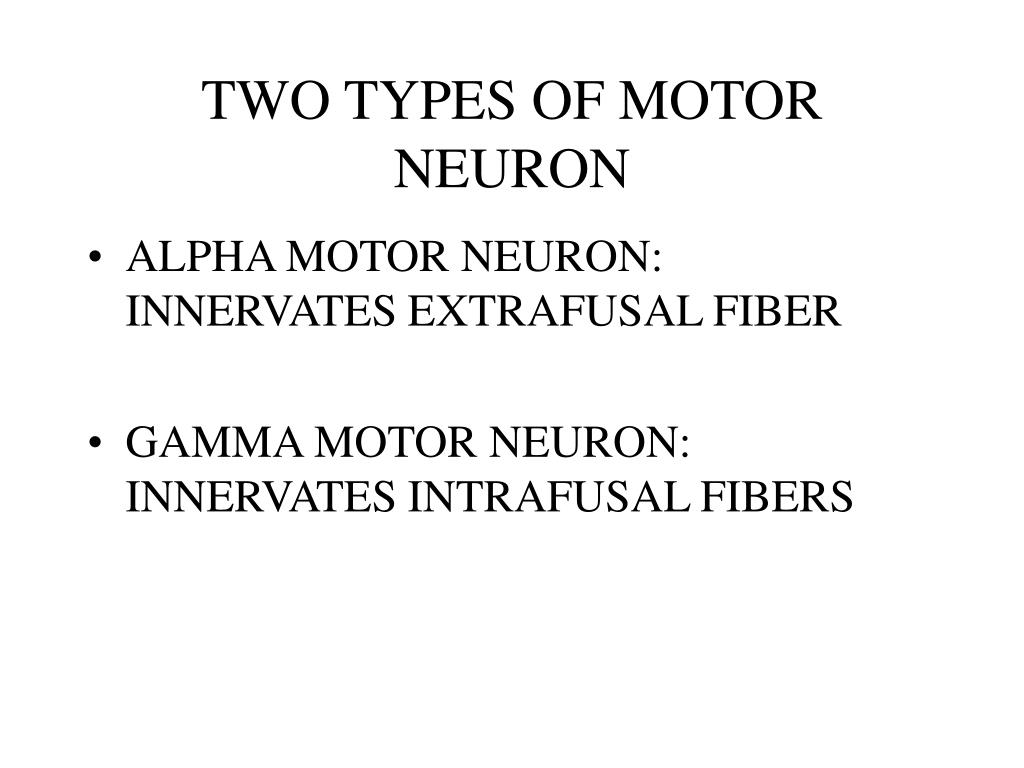

  24. TWO TYPES OF MOTOR NEURON • ALPHA MOTOR NEURON: INNERVATES EXTRAFUSAL FIBER • GAMMA MOTOR NEURON: INNERVATES INTRAFUSAL FIBERS

  25. STRETCHING AN INTRAFUSAL FIBER SENDS SIGNALS TO CNS

  26. THE ROLE OF GAMMA MOTOR NEURONS IN REGULATING MUSCLE SPINDLE RESPONSE STIMULATE RECORD RECORD Afferent Activity Muscle Force

  27. STIMULATE THE ROLE OF GAMMA MOTOR NEURONS IN REGULATING MUSCLE SPINDLE RESPONSE RECORD RECORD STIMULATE Afferent Activity Muscle Force

  28. GOGLI TENDON ORGANS: TENSION RECEPTORS • IN SERIES WITH EXTRAFUSAL FIBERS • TRANSMITS INFORMATION ABOUT FORCE OR TENSION TO CNS • FREQUENCCY CODING

  29. SPINAL REFLEXES • THE STRETCH REFLEX • THE INVERSE MYOTACTIC REFLEX • THE FLEXOR WITHDRAWAL REFLEX

  30. THE STRETCH REFLEX (KNEE JERK REFLEX) • TAP PATELLAR TENDON BELOW KNEE • SENSORY SIGNALS FROM MUSCLE SPINDLE INDICATE FLEXION OF LEG • FLEXOR IS INHIBITED • EXTENSOR ACTIVATED • LEG EXTENDS

  31. KNEE JERK REFLEX EXTENSOR ACTIVATED SENSORY NEURON FROM MUSCLE SPINDLE DETECTS STRETCH SPINAL CORD FLEXOR INHIBITED

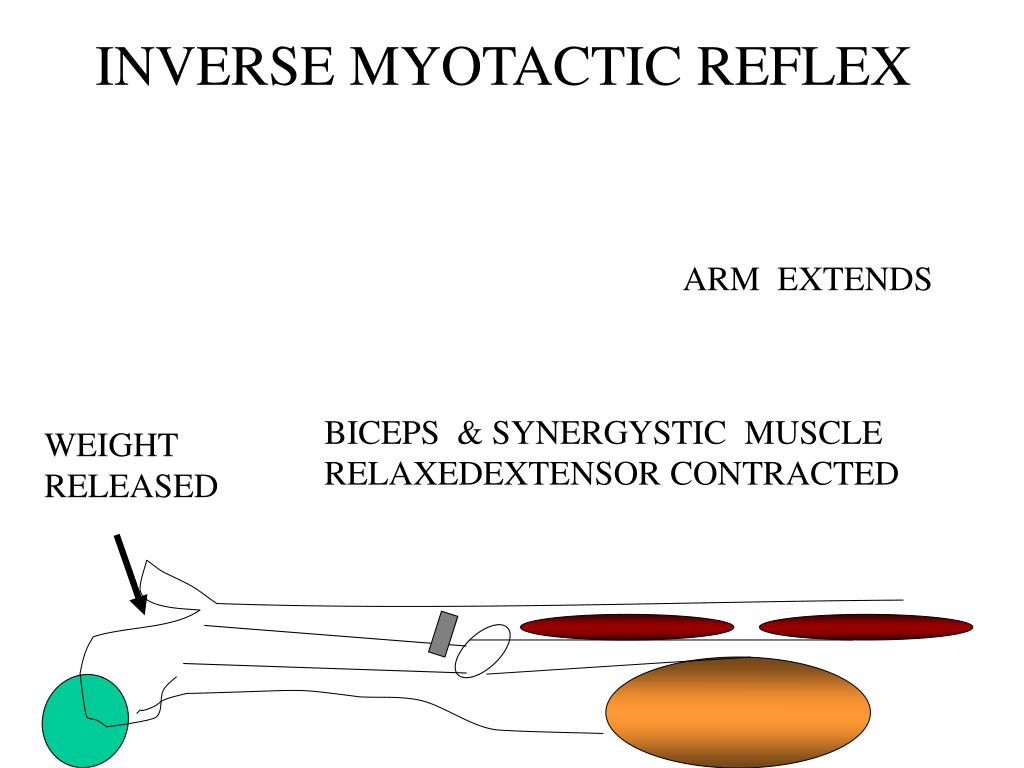

  32. INVERSE MYOTACTIC REFLEX ARM EXTENDS BICEPS & SYNERGYSTIC MUSCLE RELAXEDEXTENSOR CONTRACTED WEIGHT RELEASED

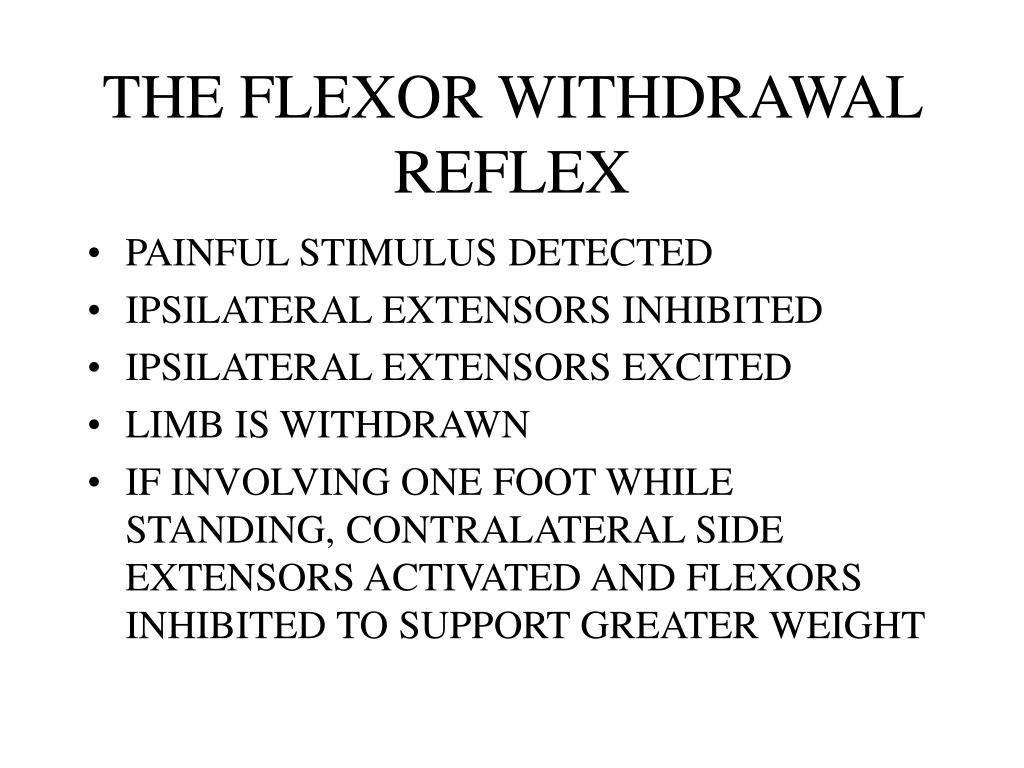

  33. THE FLEXOR WITHDRAWAL REFLEX • PAINFUL STIMULUS DETECTED • IPSILATERAL EXTENSORS INHIBITED • IPSILATERAL EXTENSORS EXCITED • LIMB IS WITHDRAWN • IF INVOLVING ONE FOOT WHILE STANDING, CONTRALATERAL SIDE EXTENSORS ACTIVATED AND FLEXORS INHIBITED TO SUPPORT GREATER WEIGHT

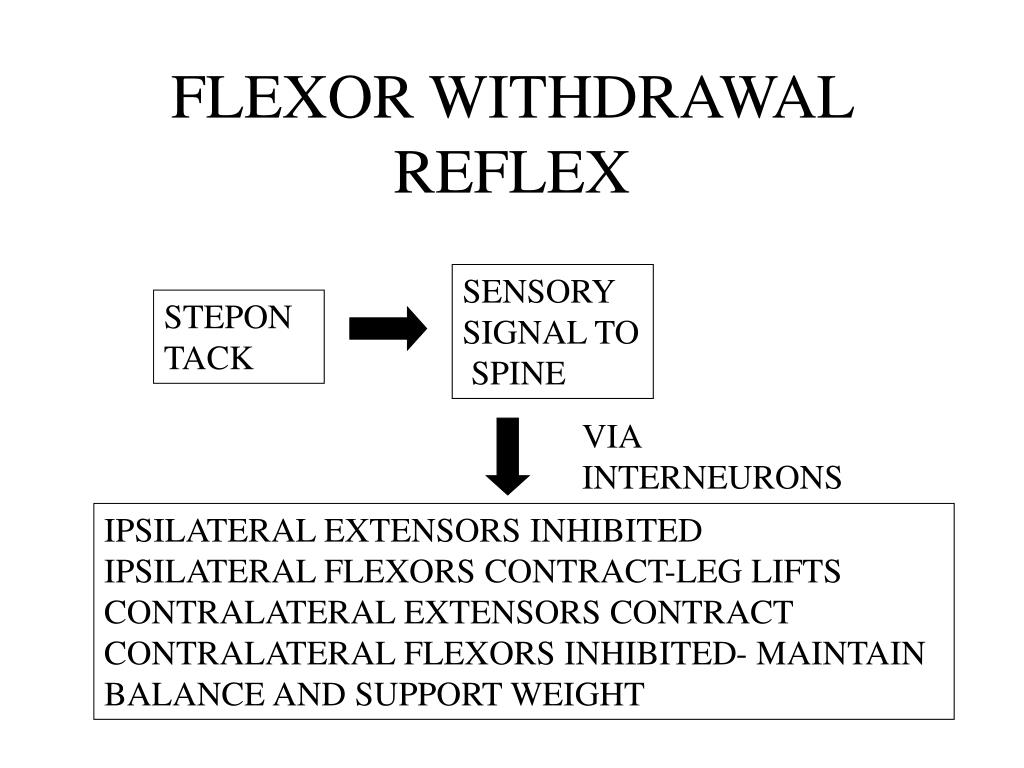

  34. FLEXOR WITHDRAWAL REFLEX SENSORY SIGNAL TO SPINE STEPON TACK VIA INTERNEURONS IPSILATERAL EXTENSORS INHIBITED IPSILATERAL FLEXORS CONTRACT-LEG LIFTS CONTRALATERAL EXTENSORS CONTRACT CONTRALATERAL FLEXORS INHIBITED- MAINTAIN BALANCE AND SUPPORT WEIGHT
