  1. Sub-sovereign Credit Markets Fixed Income Securities Applications to Municipal Markets Samir El Daher The World Bank May 1999

  2. Fixed Income SecuritiesMain Parameters • Definitions • Market Risk • Liquidity Risk • Credit Risk • Risk/Return Analysis • Structured Products/Derivatives

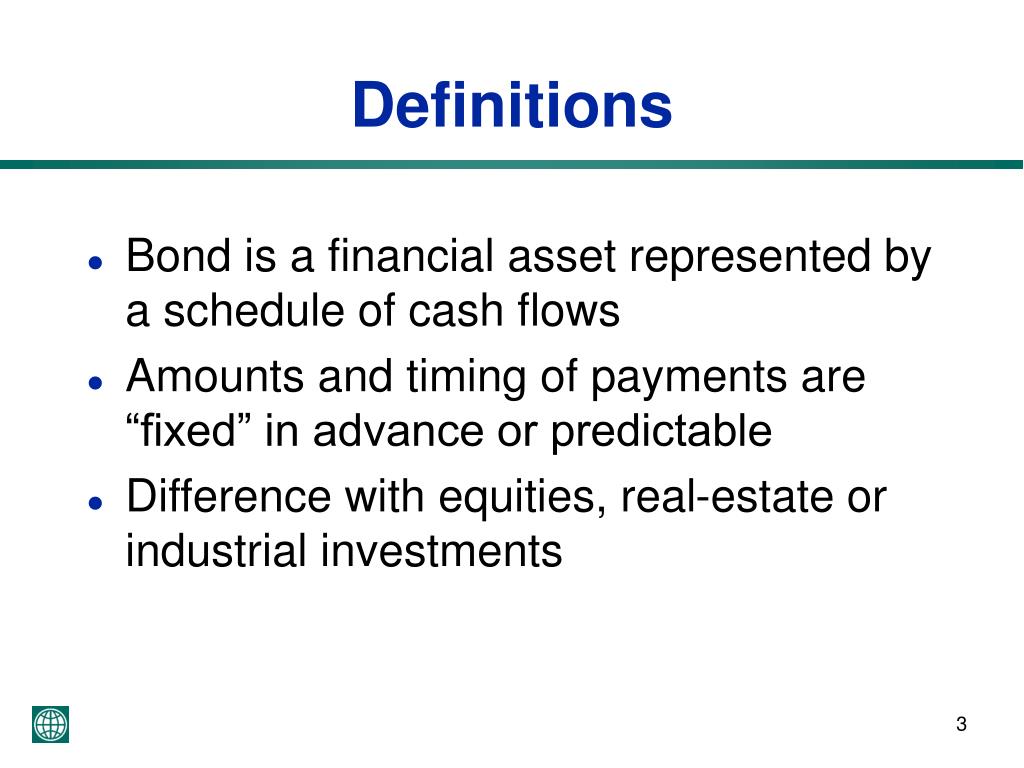

  3. Definitions • Bond is a financial asset represented by a schedule of cash flows • Amounts and timing of payments are “fixed” in advance or predictable • Difference with equities, real-estate or industrial investments

  4. Bond Price Formula • P = Ci / (1+r)i • P is a function of the variable r as cashflows Ci are constant numbers • Equation indicates that P is a decreasing function of variable r

  5. Market Risk • Unanticipated change in value of asset • Duration as a measure of risk of fixed income security • Measuring Duration: = - D • Duration D: Price elasticity of interest rate

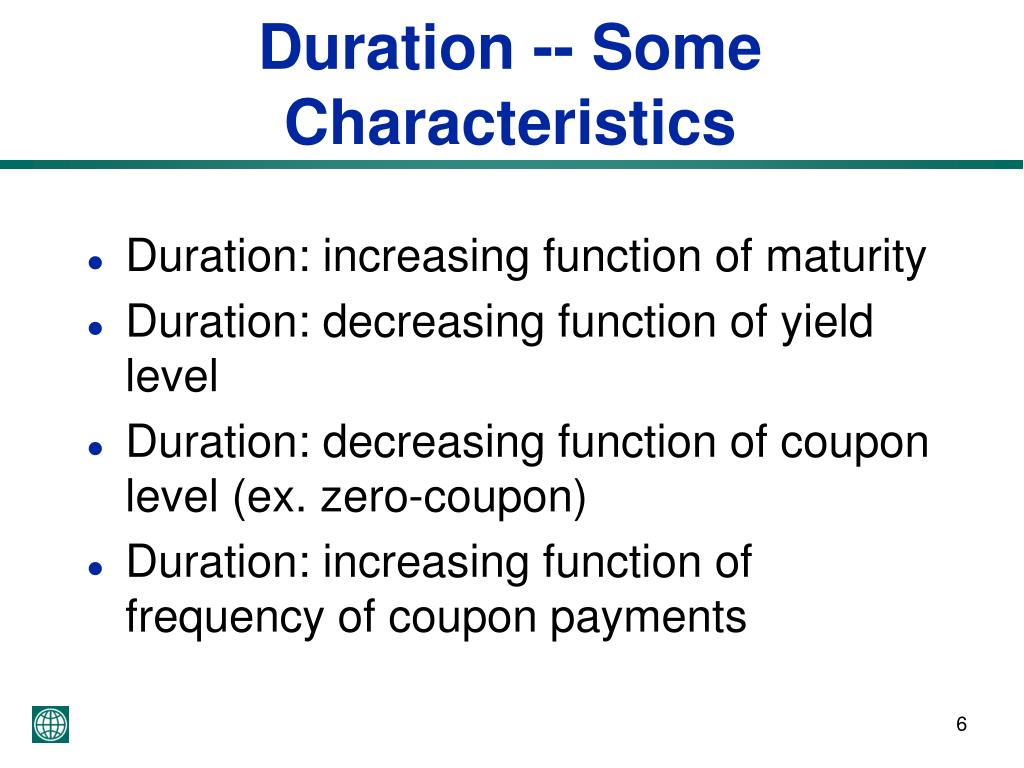

  6. Duration -- Some Characteristics • Duration: increasing function of maturity • Duration: decreasing function of yield level • Duration: decreasing function of coupon level (ex. zero-coupon) • Duration: increasing function of frequency of coupon payments

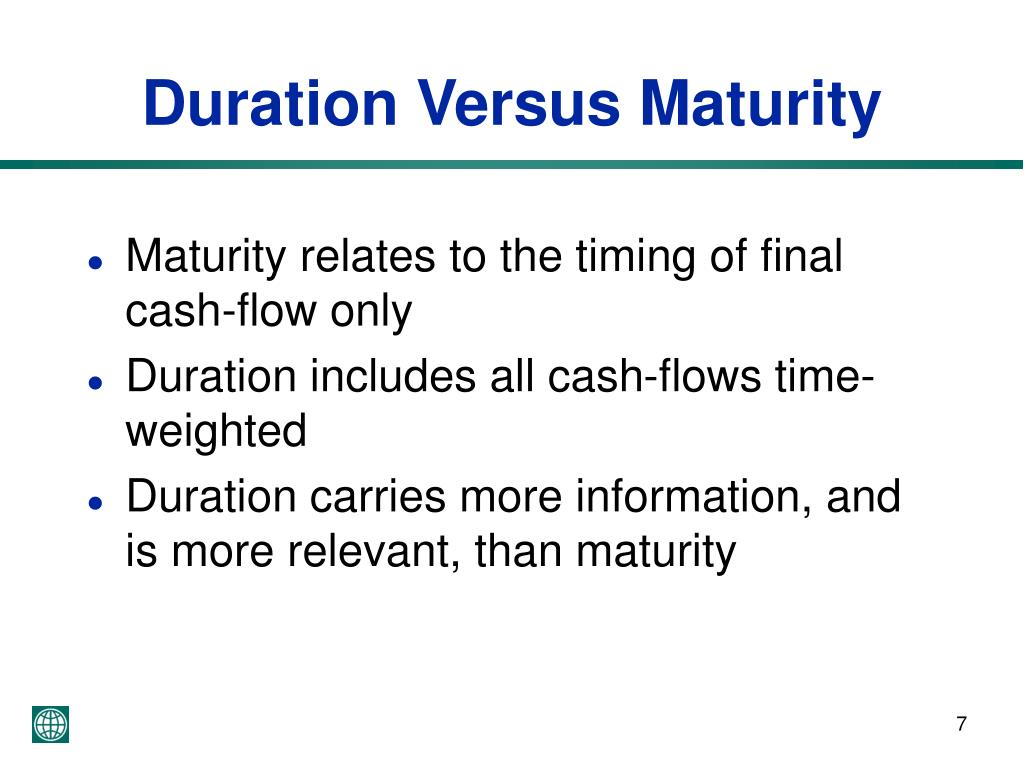

  7. Duration Versus Maturity • Maturity relates to the timing of final cash-flow only • Duration includes all cash-flows time-weighted • Duration carries more information, and is more relevant, than maturity

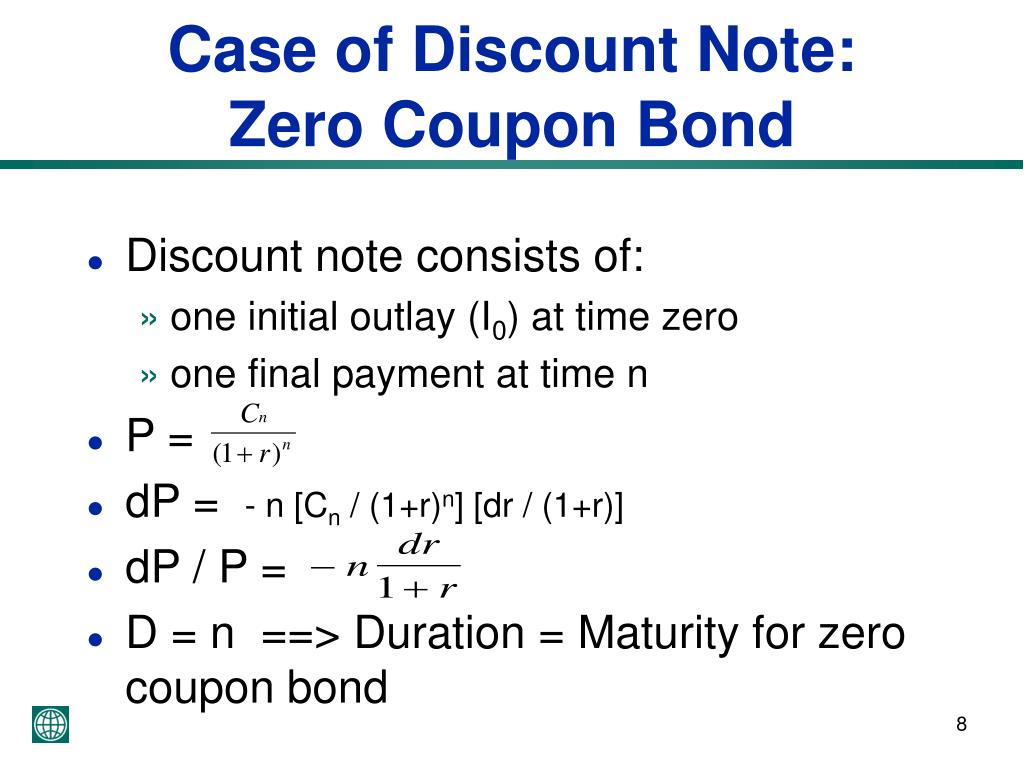

  8. Case of Discount Note:Zero Coupon Bond • Discount note consists of: • one initial outlay (I0) at time zero • one final payment at time n • P = • dP = - n [Cn / (1+r)n] [dr / (1+r)] • dP / P = • D = n ==> Duration = Maturity for zero coupon bond

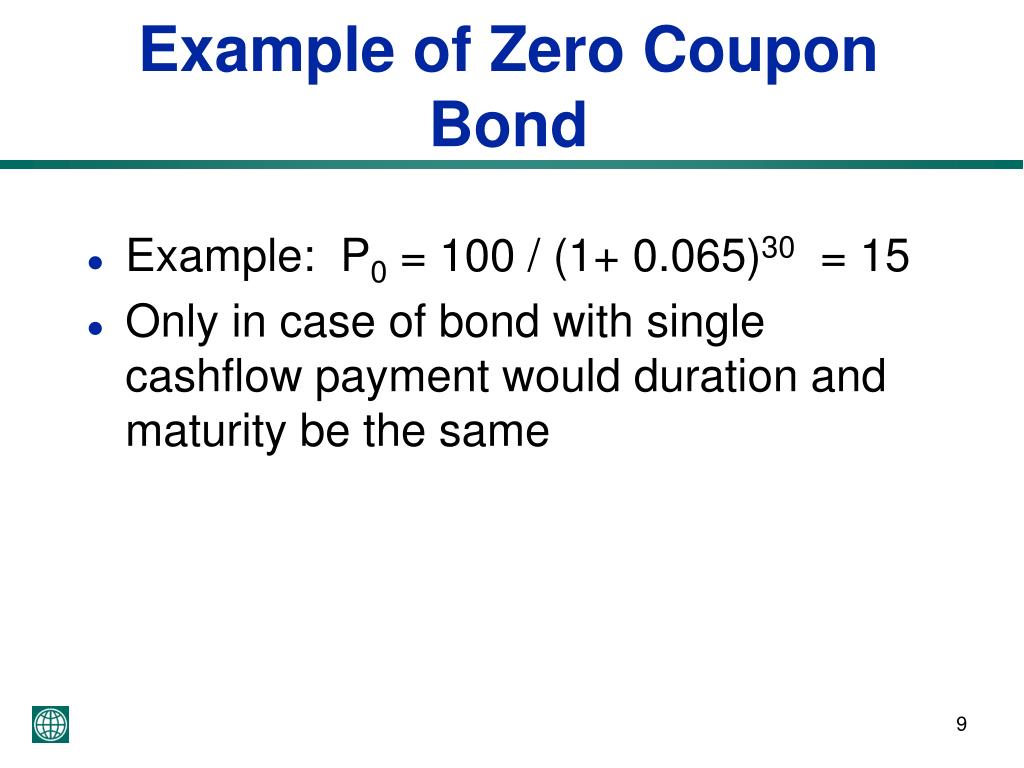

  9. Example of Zero Coupon Bond • Example: P0 = 100 / (1+ 0.065)30 = 15 • Only in case of bond with single cashflow payment would duration and maturity be the same

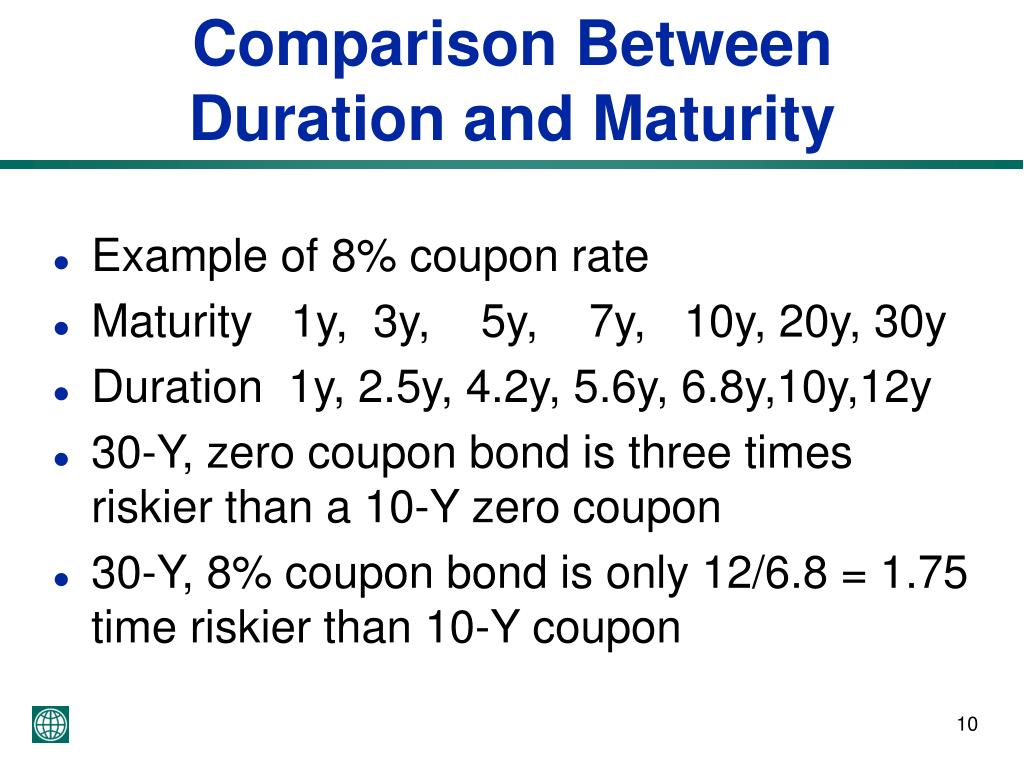

  10. Comparison Between Duration and Maturity • Example of 8% coupon rate • Maturity 1y, 3y, 5y, 7y, 10y, 20y, 30y • Duration 1y, 2.5y, 4.2y, 5.6y, 6.8y,10y,12y • 30-Y, zero coupon bond is three times riskier than a 10-Y zero coupon • 30-Y, 8% coupon bond is only 12/6.8 = 1.75 time riskier than 10-Y coupon

  11. Duration of a Portfolio • Portfolio is a group of securities • Portfolio concept essential for investors for whom “munis” are part of diversified basket of investment instruments • Duration of a portfolio of securities is equal to the sum of the market-value-weighted durations of its component securities

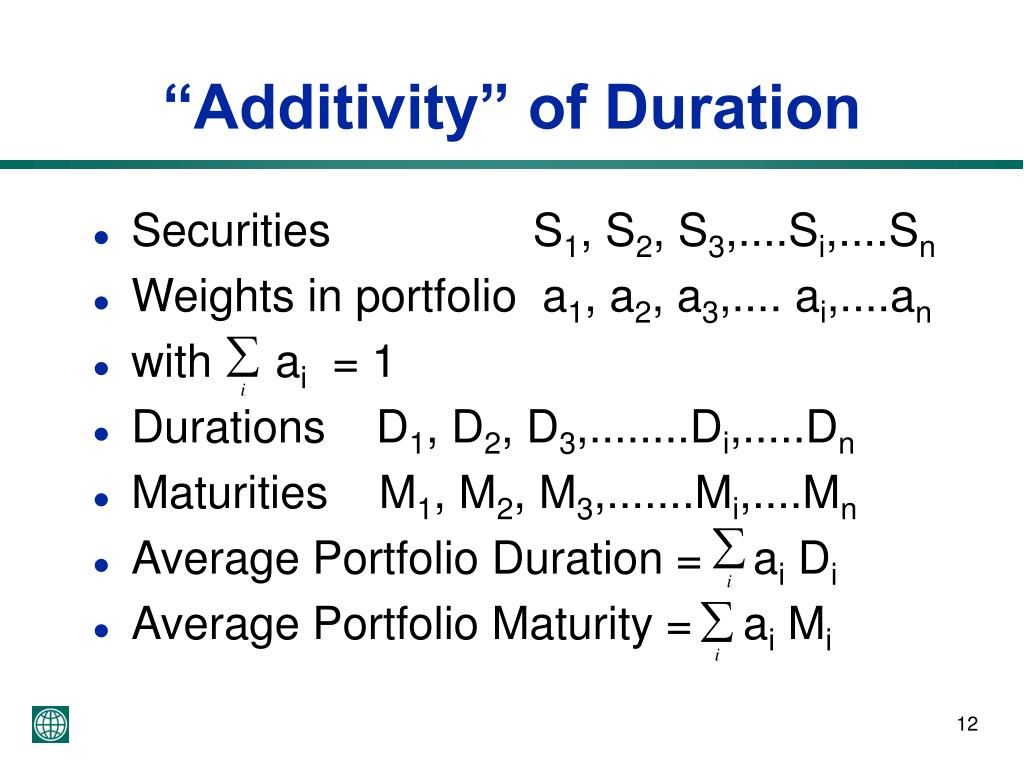

  12. “Additivity” of Duration • Securities S1, S2, S3,....Si,....Sn • Weights in portfolio a1, a2, a3,.... ai,....an • with ai = 1 • Durations D1, D2, D3,........Di,.....Dn • Maturities M1, M2, M3,.......Mi,....Mn • Average Portfolio Duration = ai Di • Average Portfolio Maturity = ai Mi

  13. Comparing Portfolios (A) & (B): Portfolio (A) • Portfolio (A) includes 50% 10-Year note and 50% 30-Year note • 10-Year note ===> Duration 7 years • 30-Year note ===> Duration 12 years • Average Duration, Portfolio (A) (50% x 7) + (50% x 12) = 9.5 years • Average Maturity, Portfolio (A) (50% x 10) + (50% x 30) = 20 years

  14. Comparing Portfolios (A) & (B): Portfolio (B) • Portfolio (B) includes 100% 20-Year zero coupon note • 20-Year zero coupon note ===> Duration 20 years • Average Duration, Portfolio (B) = 100% x 20 = 20 years • Average Maturity, Portfolio (B) = 100% x 20 = 20 years

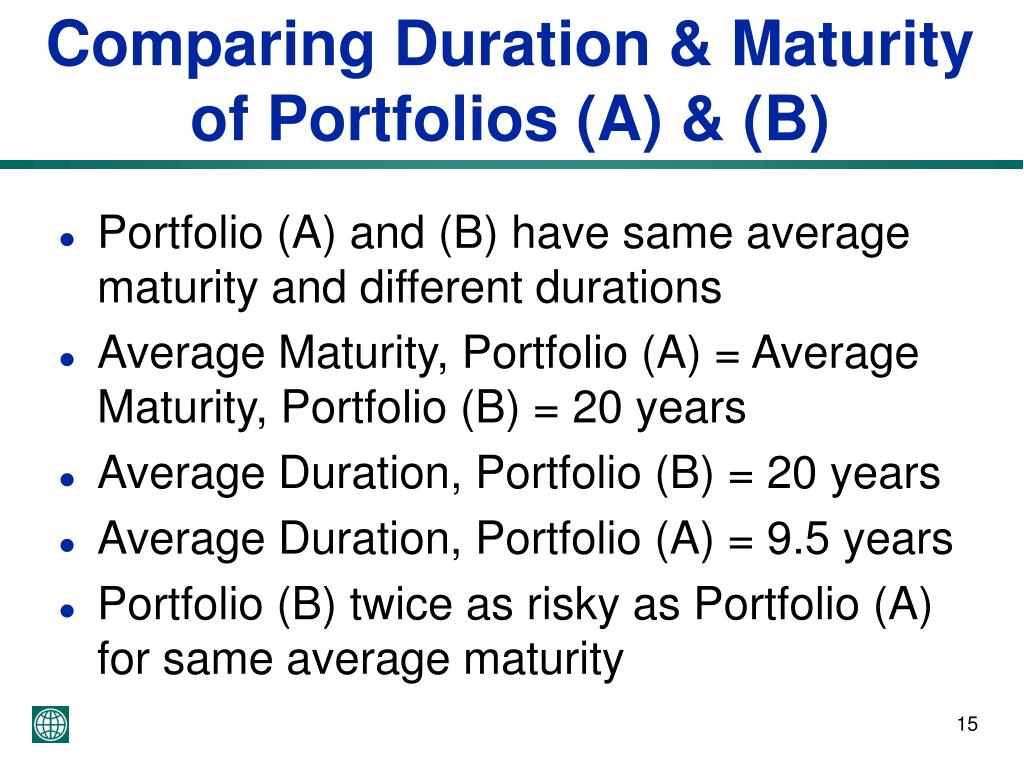

  15. Comparing Duration & Maturity of Portfolios (A) & (B) • Portfolio (A) and (B) have same average maturity and different durations • Average Maturity, Portfolio (A) = Average Maturity, Portfolio (B) = 20 years • Average Duration, Portfolio (B) = 20 years • Average Duration, Portfolio (A) = 9.5 years • Portfolio (B) twice as risky as Portfolio (A) for same average maturity

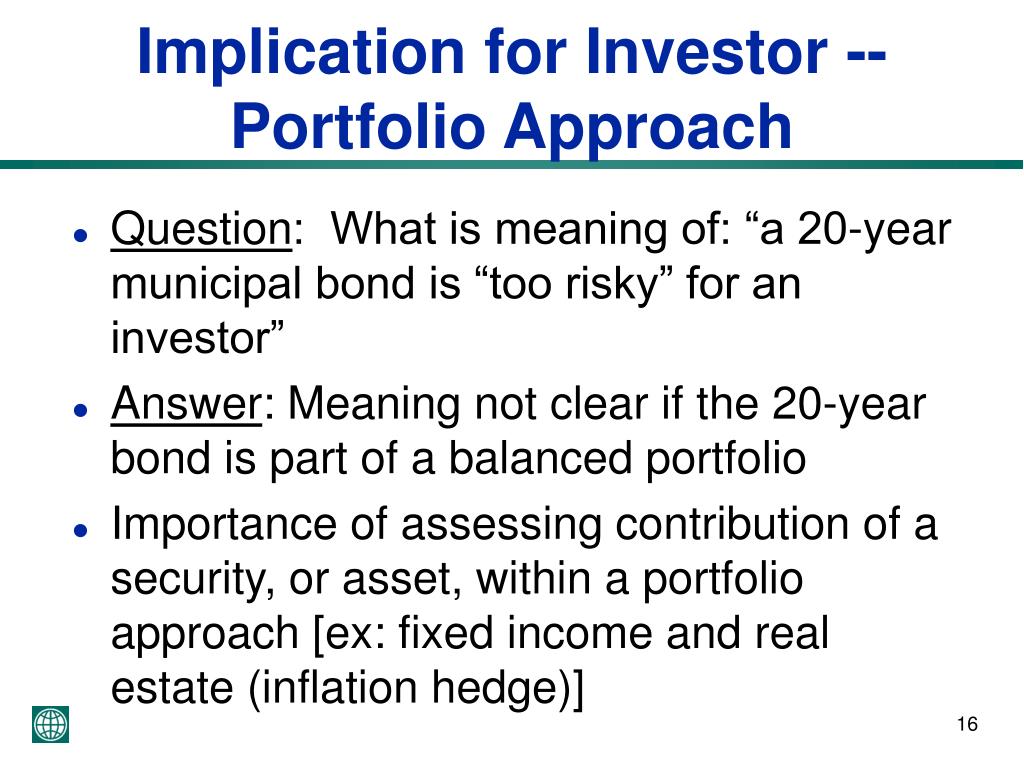

  16. Implication for Investor -- Portfolio Approach • Question: What is meaning of: “a 20-year municipal bond is “too risky” for an investor” • Answer: Meaning not clear if the 20-year bond is part of a balanced portfolio • Importance of assessing contribution of a security, or asset, within a portfolio approach [ex: fixed income and real estate (inflation hedge)]

  17. Example of “Balanced” Fixed Income Portfolio • One third Cash ===> Duration zero • One third 1-year bill ===> Duration 1 year • One third 20-year municipal bond ===> Duration 10 years • Average duration of portfolio: (1/3 x 0) + (1/3 x 1) + (1/3 x 10) = 3.6 years • Result might well be within risk tolerance of investor

  18. Liquidity Risk • Liquidity Spectrum • More liquid ---------to---------> Less Liquid • Cash, Gov Securities, ........... Fixed Assets,.. • Liquidity risk is associated with existence of “ready market” where assets may be exchanged at a small difference between sale and purchase price

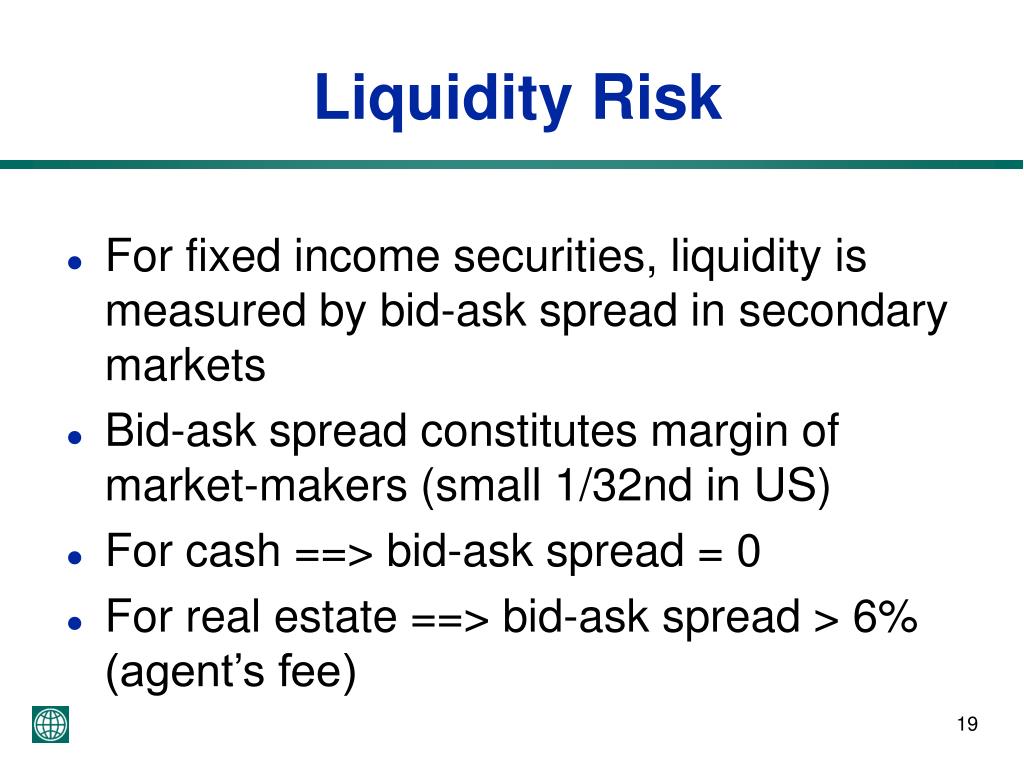

  19. Liquidity Risk • For fixed income securities, liquidity is measured by bid-ask spread in secondary markets • Bid-ask spread constitutes margin of market-makers (small 1/32nd in US) • For cash ==> bid-ask spread = 0 • For real estate ==> bid-ask spread > 6% (agent’s fee)

  20. Credit Risk -- Definition • Loss of value of an asset as a result of a party to a contract (seller, issuer,...) not fulfilling a contractual obligation - • Loss of value due to default: spot loss might overestimate real loss • Loss might affect principal and/or interest • Securities trading: c.o.d - Opportunity loss due to change in market value between trade date and delivery

  21. Credit Risk -- Estimation • Example: Fixed income Security • Years 0----(i) ----(10)------(j)----------(20) • Cashflows -----------(C10)-----(Cj)-------(C20) • Income -------------<---Forgone Income---> • Actual Loss at Year-10 = (In year-10 value) • Potential Loss at time Zero = Actual Loss at Year 10 / (1+r)10 =

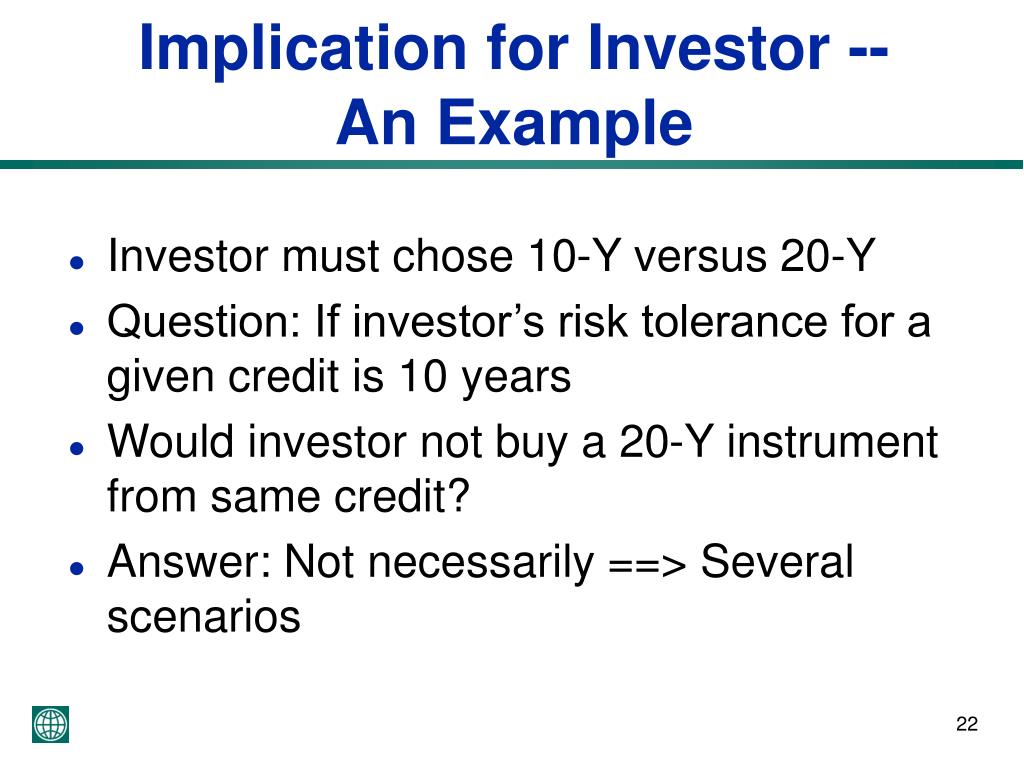

  22. Implication for Investor --An Example • Investor must chose 10-Y versus 20-Y • Question: If investor’s risk tolerance for a given credit is 10 years • Would investor not buy a 20-Y instrument from same credit? • Answer: Not necessarily ==> Several scenarios

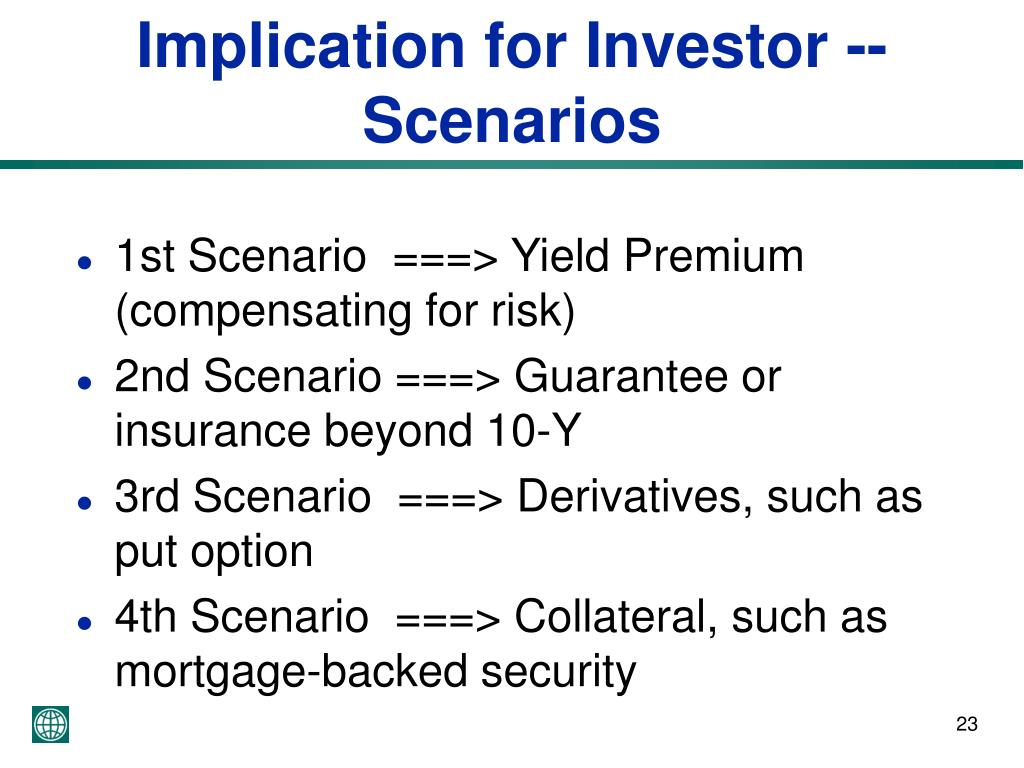

  23. Implication for Investor -- Scenarios • 1st Scenario ===> Yield Premium (compensating for risk) • 2nd Scenario ===> Guarantee or insurance beyond 10-Y • 3rd Scenario ===> Derivatives, such as put option • 4th Scenario ===> Collateral, such as mortgage-backed security

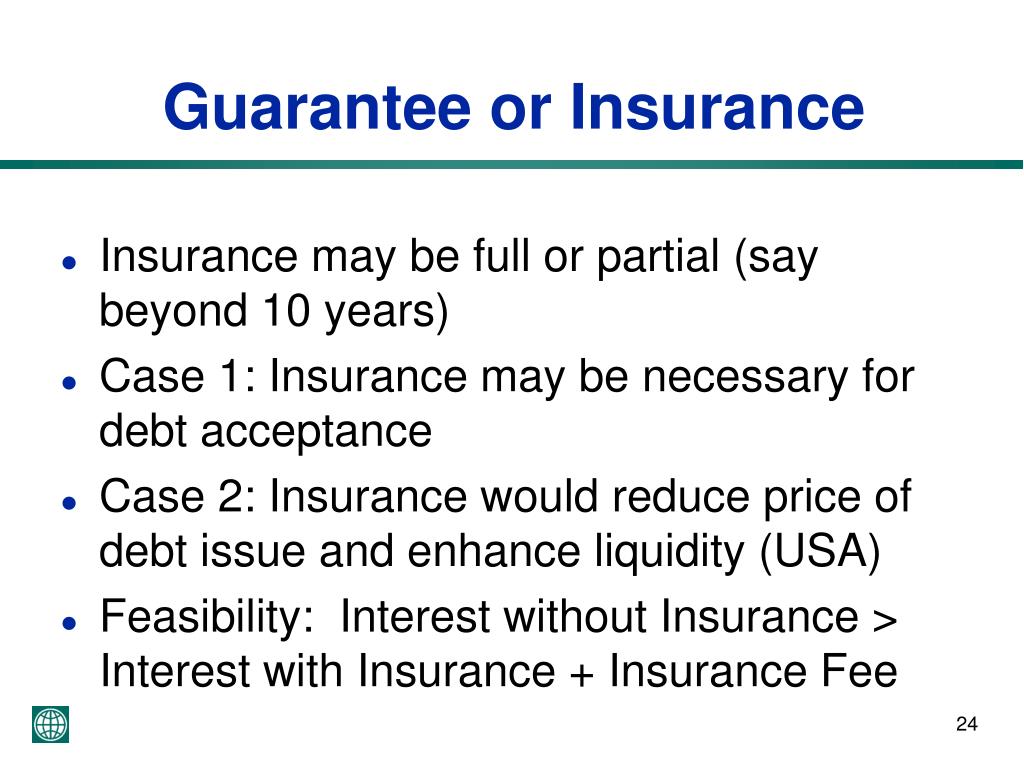

  24. Guarantee or Insurance • Insurance may be full or partial (say beyond 10 years) • Case 1: Insurance may be necessary for debt acceptance • Case 2: Insurance would reduce price of debt issue and enhance liquidity (USA) • Feasibility: Interest without Insurance > Interest with Insurance + Insurance Fee

  25. Other Enhancement Mechanisms • Structured finance and derivatives (e.g. put option allowing maturity “reduction”) • Other non-maturity related enhancements • Collateral (revenue pledge, MBS,...) • Bank letter of credit • Other features such as convertible debt

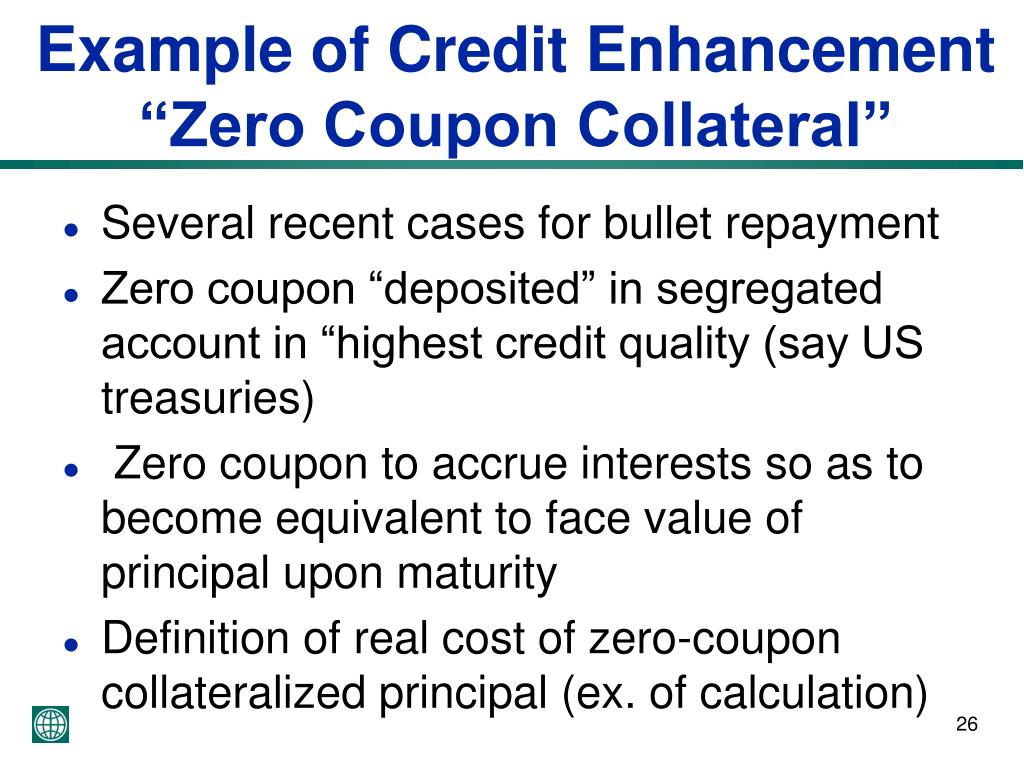

  26. Example of Credit Enhancement“Zero Coupon Collateral” • Several recent cases for bullet repayment • Zero coupon “deposited” in segregated account in “highest credit quality (say US treasuries) • Zero coupon to accrue interests so as to become equivalent to face value of principal upon maturity • Definition of real cost of zero-coupon collateralized principal (ex. of calculation)

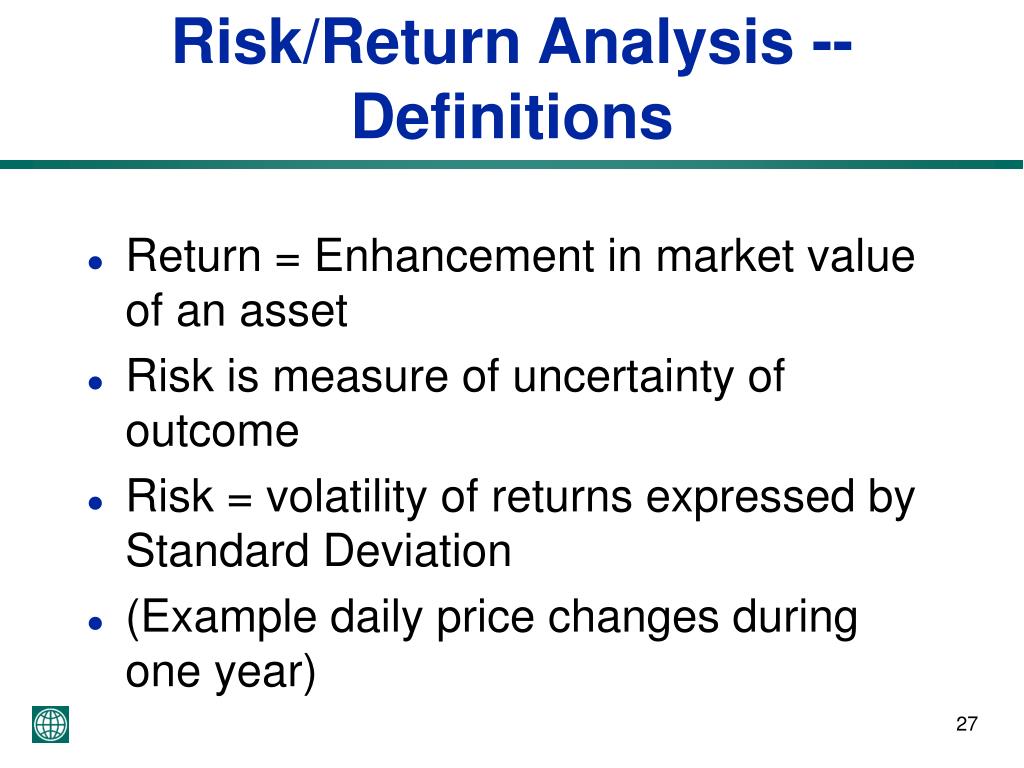

  27. Risk/Return Analysis -- Definitions • Return = Enhancement in market value of an asset • Risk is measure of uncertainty of outcome • Risk = volatility of returns expressed by Standard Deviation • (Example daily price changes during one year)

  28. Simple Risk/Return Measures • A number of ways to define and measure risk • Information Ratio = Return Standard Deviation • Sharpe Ratio = (Return - Risk-free Return) Standard Deviation

  29. Benchmark for Municipal Debt Security • “Risk -free” Government Securities in relevant maturity range • Ymuni = Ygvn + dYn • dYn = premium that covers, inter-alia, two categories of risks: • credit risk • liquidity risk

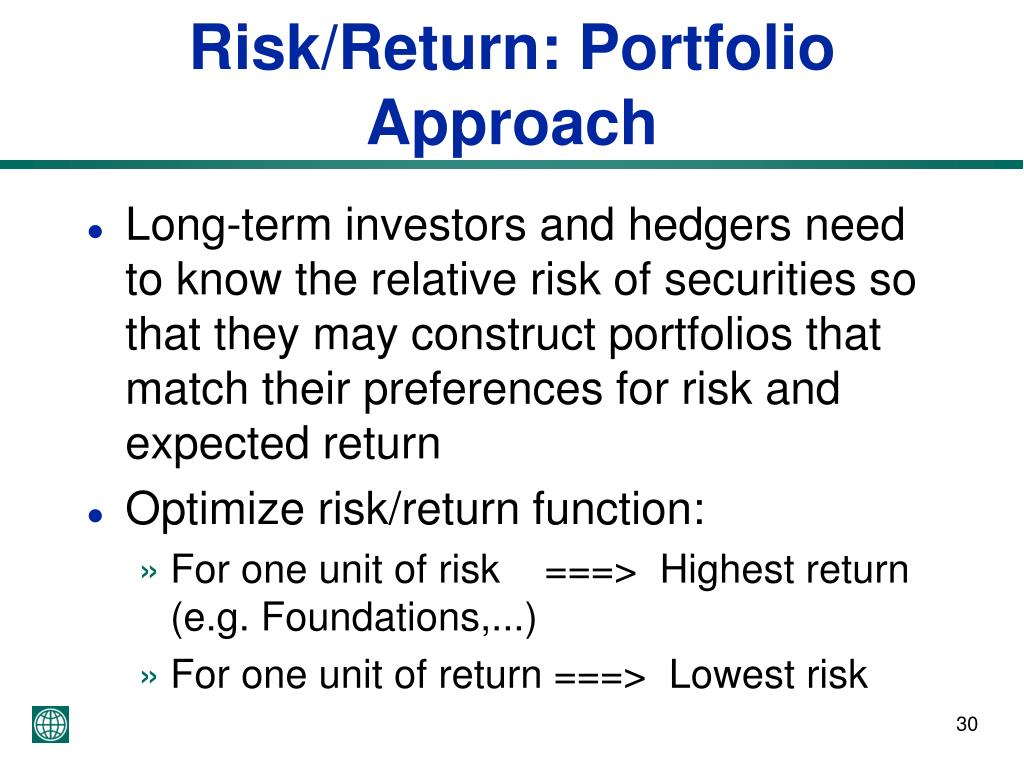

  30. Risk/Return: Portfolio Approach • Long-term investors and hedgers need to know the relative risk of securities so that they may construct portfolios that match their preferences for risk and expected return • Optimize risk/return function: • For one unit of risk ===> Highest return (e.g. Foundations,...) • For one unit of return ===> Lowest risk

  31. Defining a Portfolio for Institutional Investors • Definition of Classes of Assets: Fixed income, equities, commodities, real-estate, currencies,... • Analyses of historical returns (over representative period, say 20 years) • Analyses of volatilities • Analyses of correlations

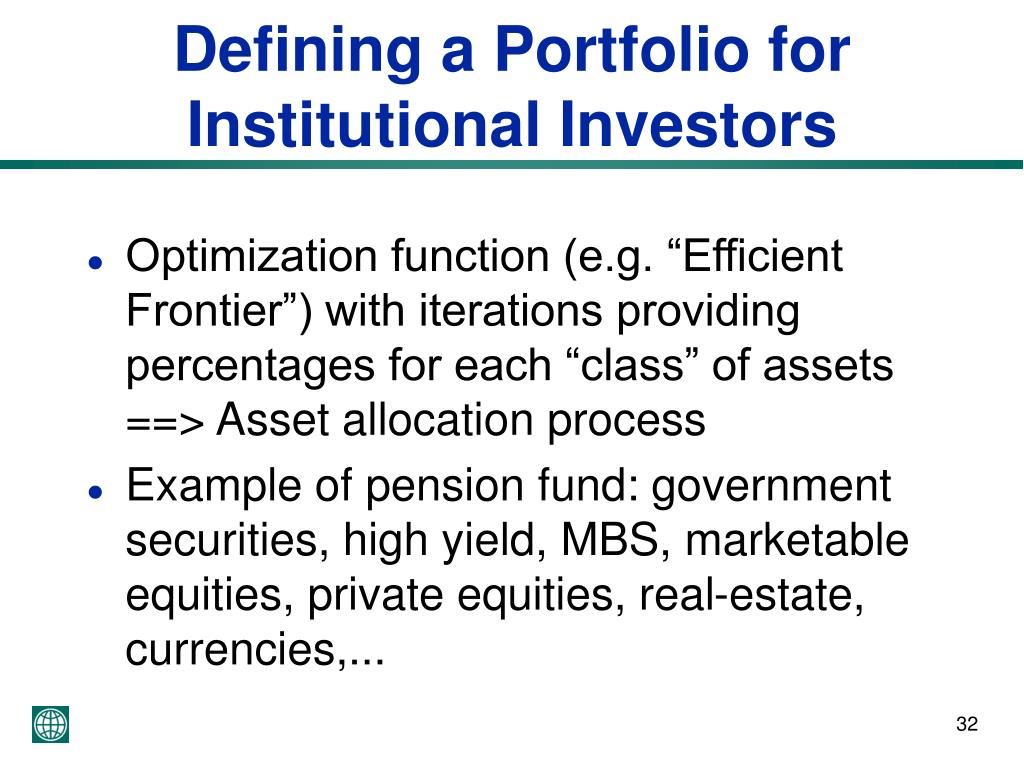

  32. Defining a Portfolio for Institutional Investors • Optimization function (e.g. “Efficient Frontier”) with iterations providing percentages for each “class” of assets ==> Asset allocation process • Example of pension fund: government securities, high yield, MBS, marketable equities, private equities, real-estate, currencies,...

  33. Structured Finance -- Derivatives • Main categories: Futures, Options, Swaps • Derivatives as investment vehicles: leverage • Derivatives as hedge and credit enhancement vehicles • Derivatives transfer investment risks to those (speculators) willing to assume risks • Futures, options and swaps traded over the counter (OTC) or on regulated exchanges

  34. Futures • Futures contract is a commitment to buy or sell a security at a future specified date and specified price • Future neutralizes price uncertainties • Example of farmer hedging crop with futures • Same result may be achieved by put option as both futures and options provide hedge

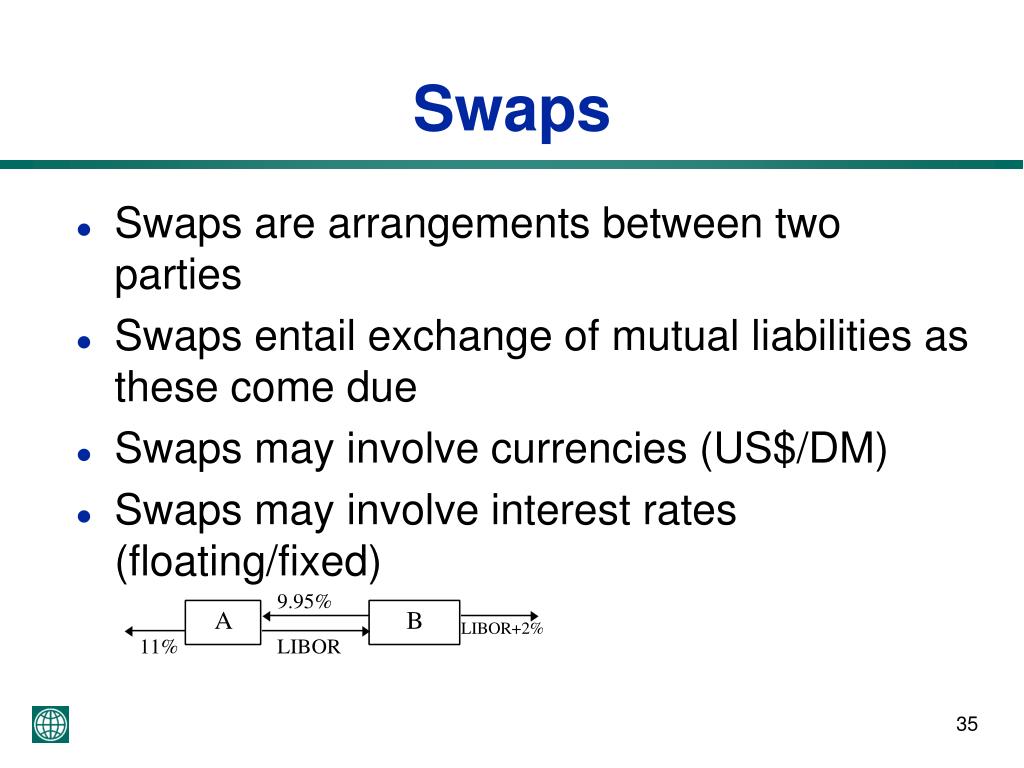

  35. Swaps • Swaps are arrangements between two parties • Swaps entail exchange of mutual liabilities as these come due • Swaps may involve currencies (US$/DM) • Swaps may involve interest rates (floating/fixed)

  36. Options • Option is a right -- not an obligation -- to buy or sell an asset at a pre-established price within a specified time period (US), or at a specified time (Europe) • Privilege to exercise such a right entails a fee, or option “premium” • Calculation of “premium” is crucial element • Option pricing models for equities and interest rate instruments

  37. Options • Call Option - Market position of an investor/hedger speculating that asset price would increase • Put Option - Market position of an investor/hedger speculating that asset price would decline

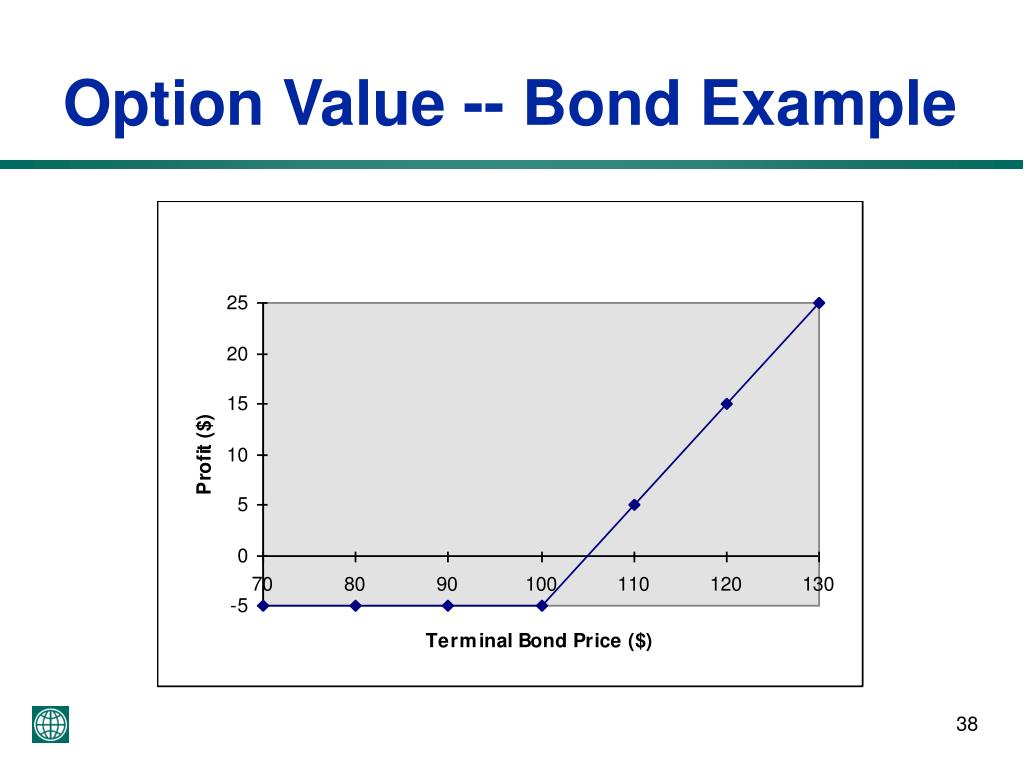

  38. Option Value -- Bond Example

  39. Option Parameters • Definition of “underlying” asset • Exercise or strike price • Time to expiration • “In-the-money”, “Out-of-the-money” and “At-the-money” options • Premium = Intrinsic Value + Time Value

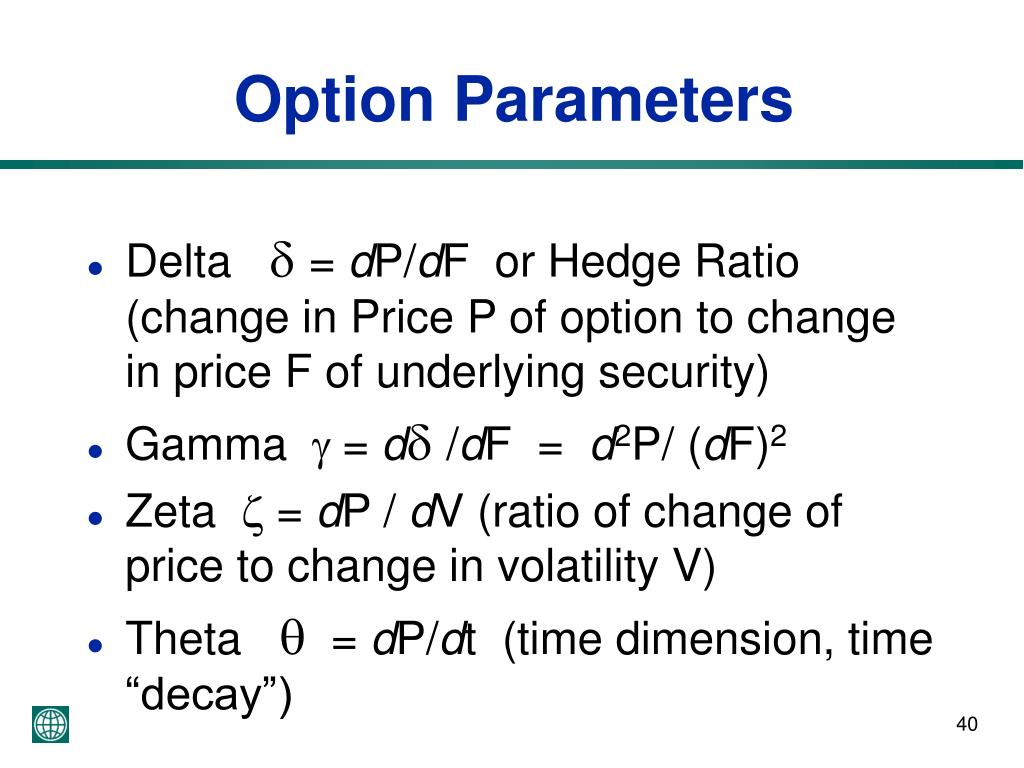

  40. Option Parameters • Delta = dP/dF or Hedge Ratio (change in Price P of option to change in price F of underlying security) • Gamma = d/dF = d2P/ (dF)2 • Zeta  = dP / dV (ratio of change of price to change in volatility V) • Theta  = dP/dt (time dimension, time “decay”)

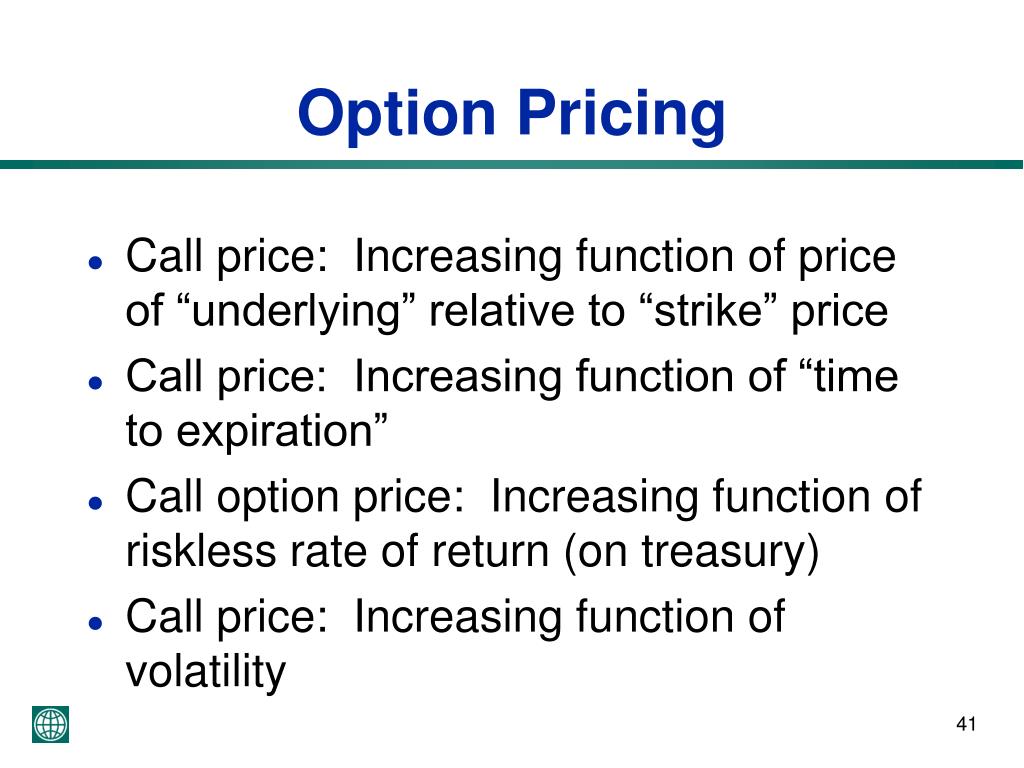

  41. Option Pricing • Call price: Increasing function of price of “underlying” relative to “strike” price • Call price: Increasing function of “time to expiration” • Call option price: Increasing function of riskless rate of return (on treasury) • Call price: Increasing function of volatility
