  1. An Analysis of Memory Access in Relation to Operations on Data Structures An Analysis of Memory Access in Relation to Operations on Data Structures Ryan Connaughton & Daniel RinzlerCSE 60641December 13, 2006

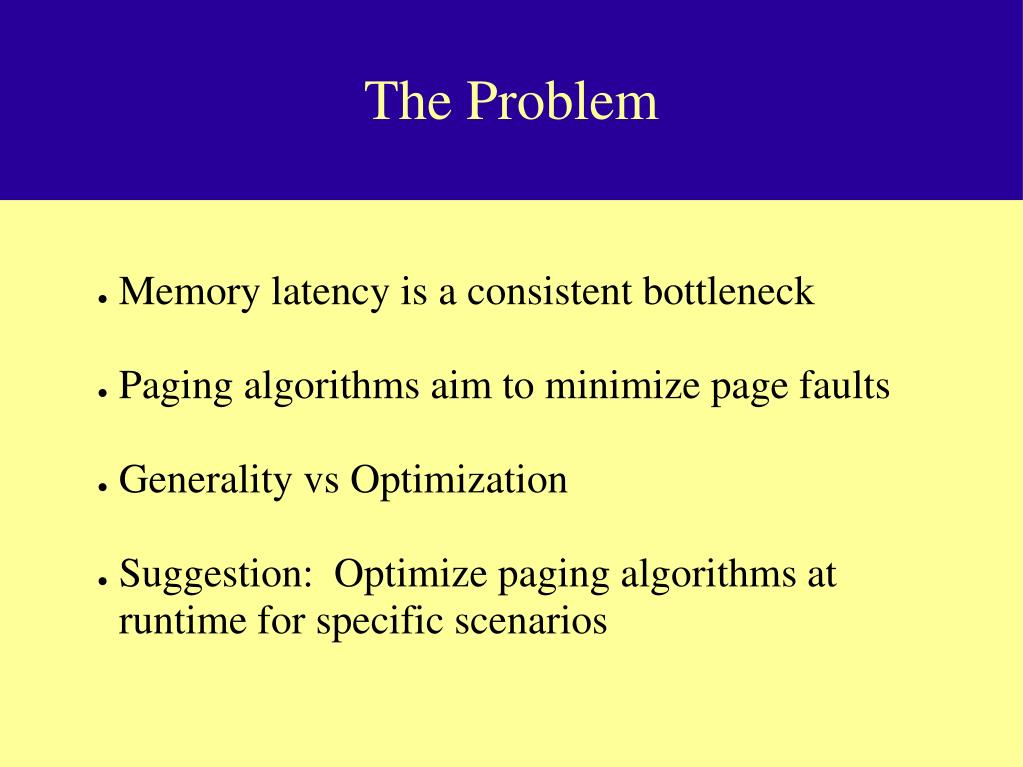

  2. Memory latency is a consistent bottleneck Paging algorithms aim to minimize page faults Generality vs Optimization Suggestion: Optimize paging algorithms at runtime for specific scenarios The Problem

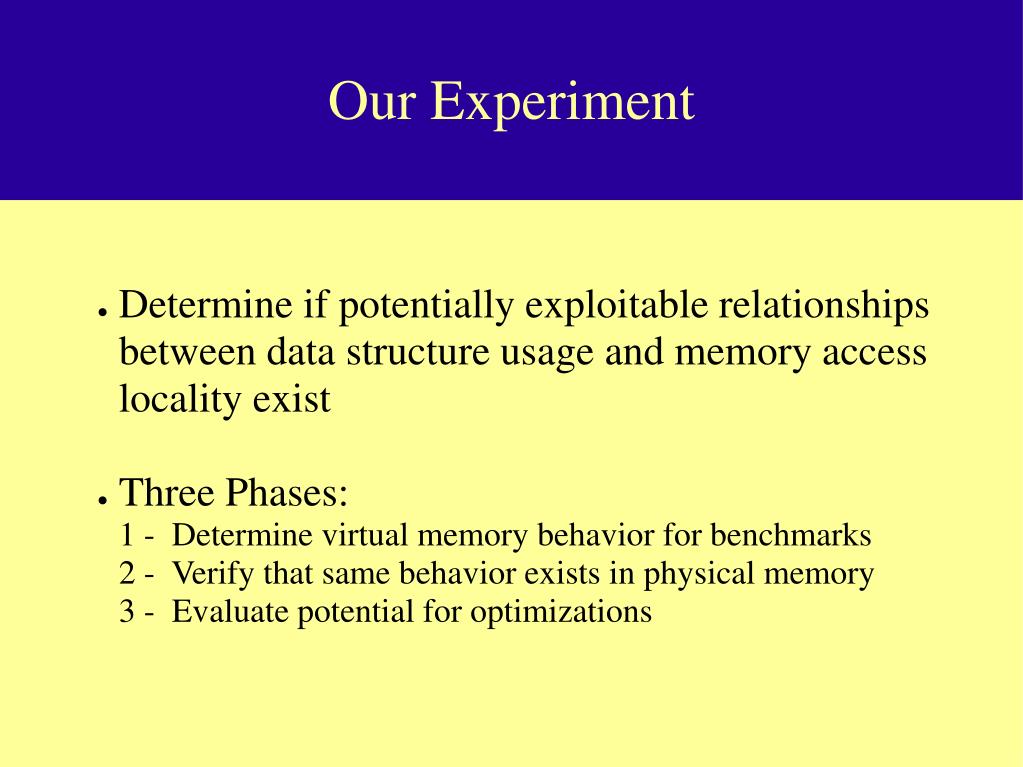

  3. Determine if potentially exploitable relationships between data structure usage and memory access locality exist Three Phases: 1 - Determine virtual memory behavior for benchmarks 2 - Verify that same behavior exists in physical memory 3 - Evaluate potential for optimizations Our Experiment

  4. Goal: To determine memory access behavior for an array Valgrind – Linux program debugger & profiler Scripts to filter for array accesses Phase 1: Virtual Memory Logging

  5. Goal: To verify that the access behavior from Phase 1 is consistent in physical memory Bochs Virtual Machine Modified to log physical memory access Phase 2: Physical Memory Logging

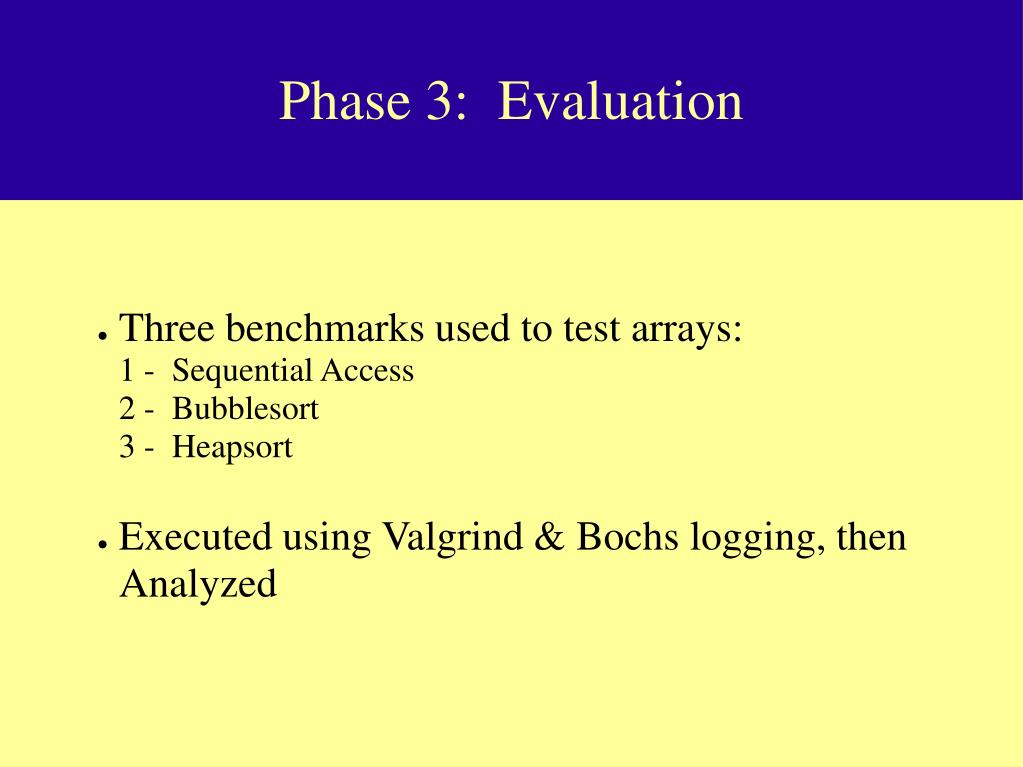

  6. Three benchmarks used to test arrays: 1 - Sequential Access 2 - Bubblesort 3 - Heapsort Executed using Valgrind & Bochs logging, then Analyzed Phase 3: Evaluation

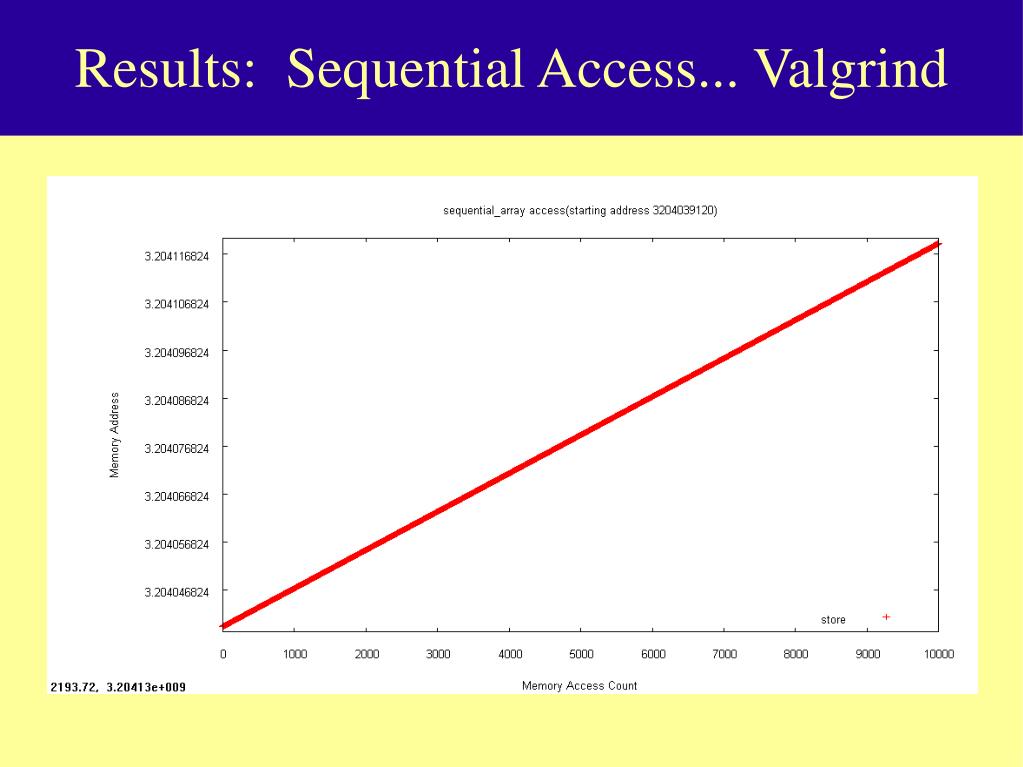

  7. Results: Sequential Access... Valgrind

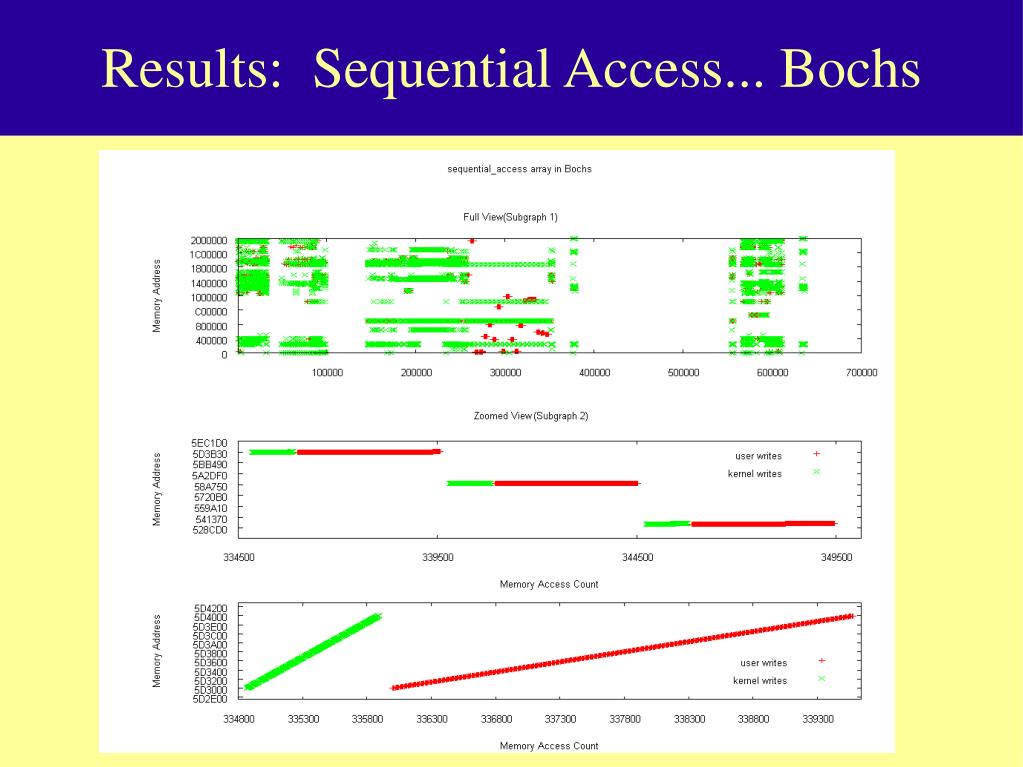

  8. Results: Sequential Access... Bochs

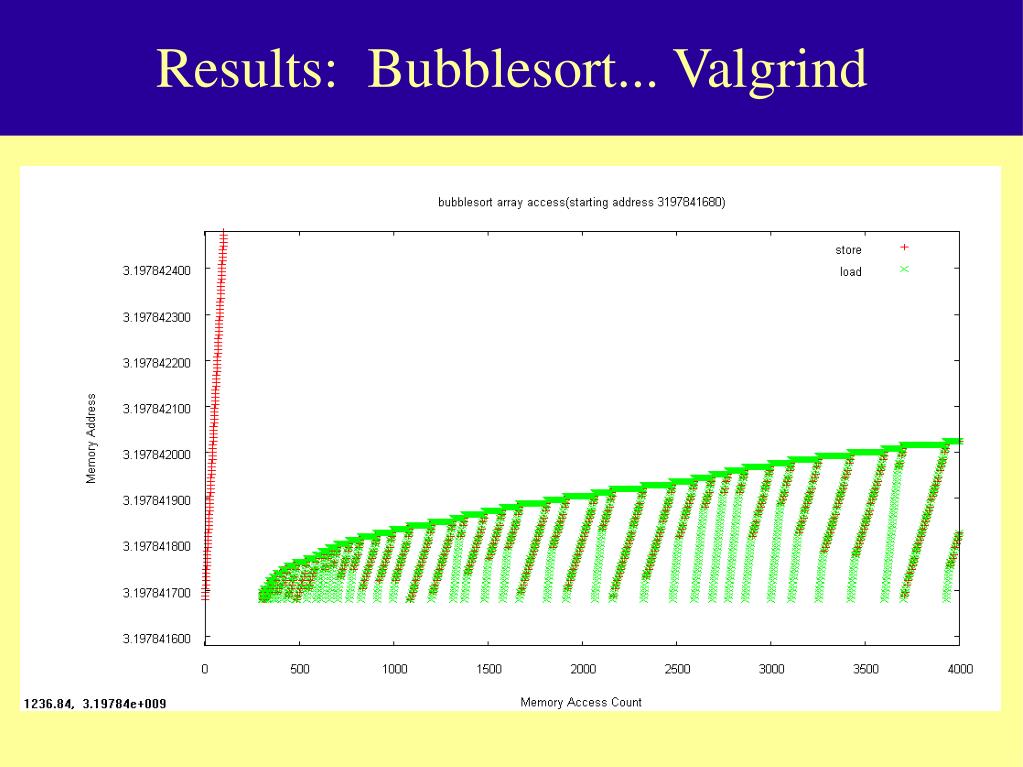

  9. Results: Bubblesort... Valgrind

  10. Results: Bubblesort... Bochs

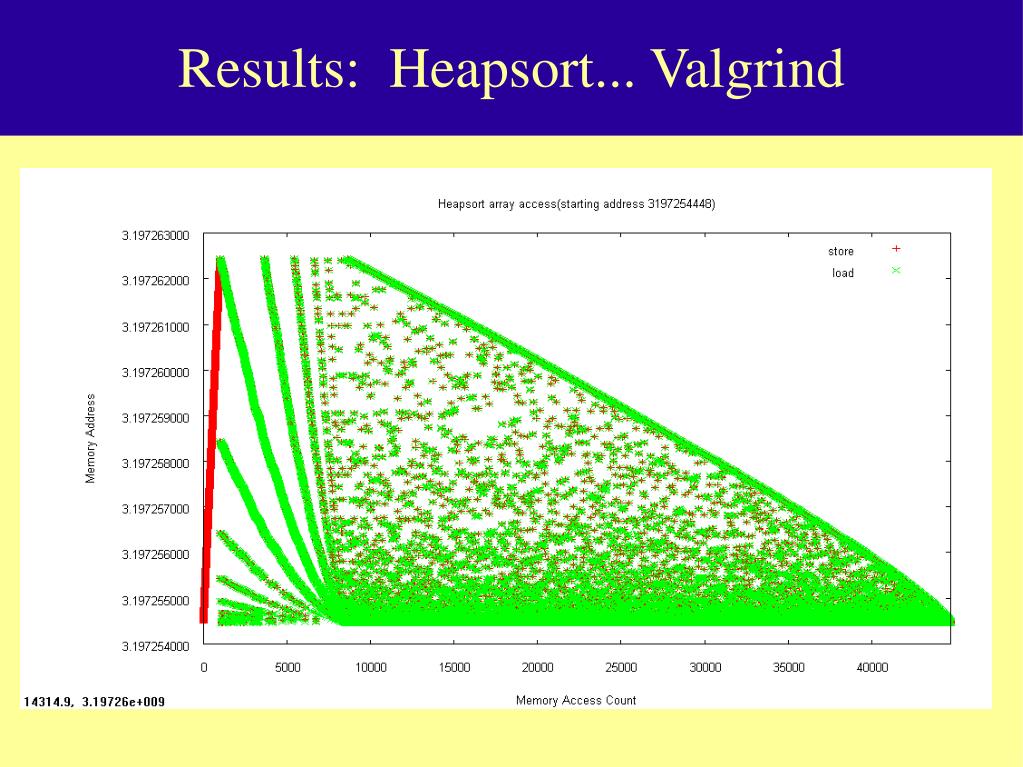

  11. Results: Heapsort... Valgrind

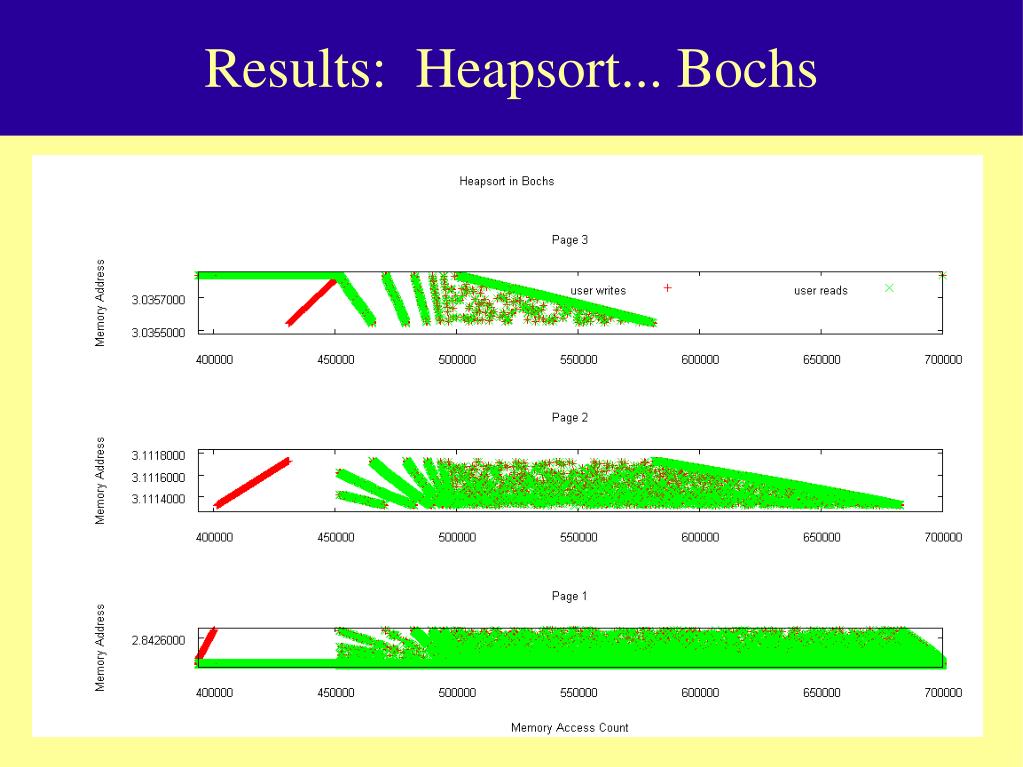

  12. Results: Heapsort... Bochs

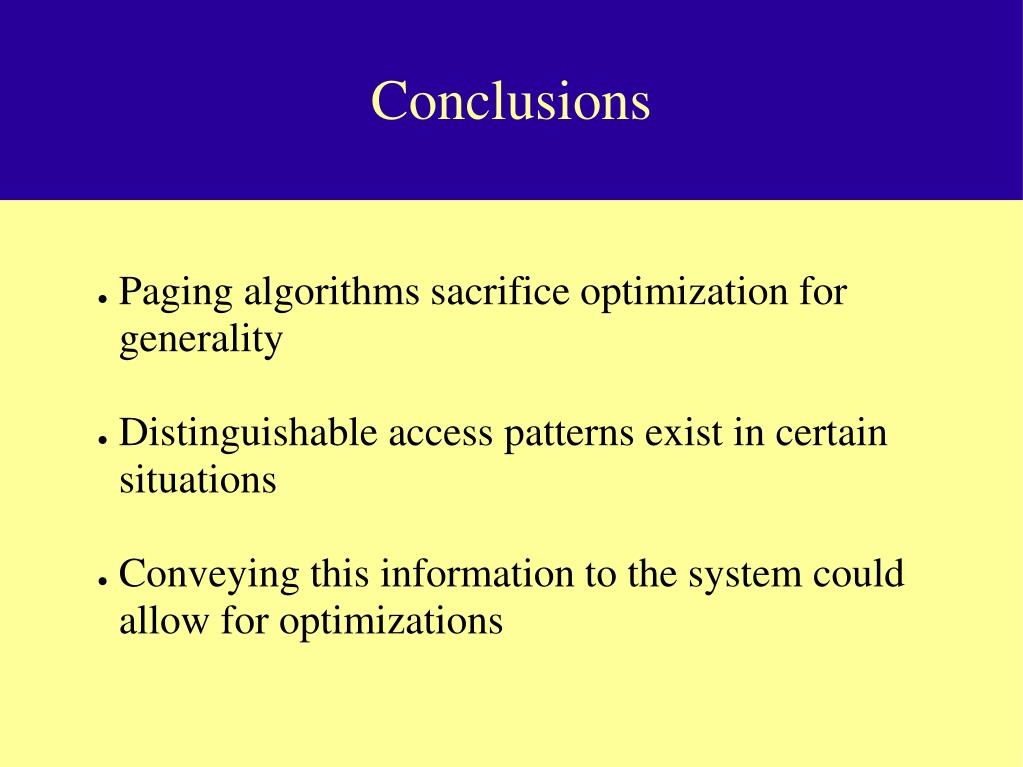

  13. Paging algorithms sacrifice optimization for generality Distinguishable access patterns exist in certain situations Conveying this information to the system could allow for optimizations Conclusions
