  1. Rotary WingAERODYNAMICS

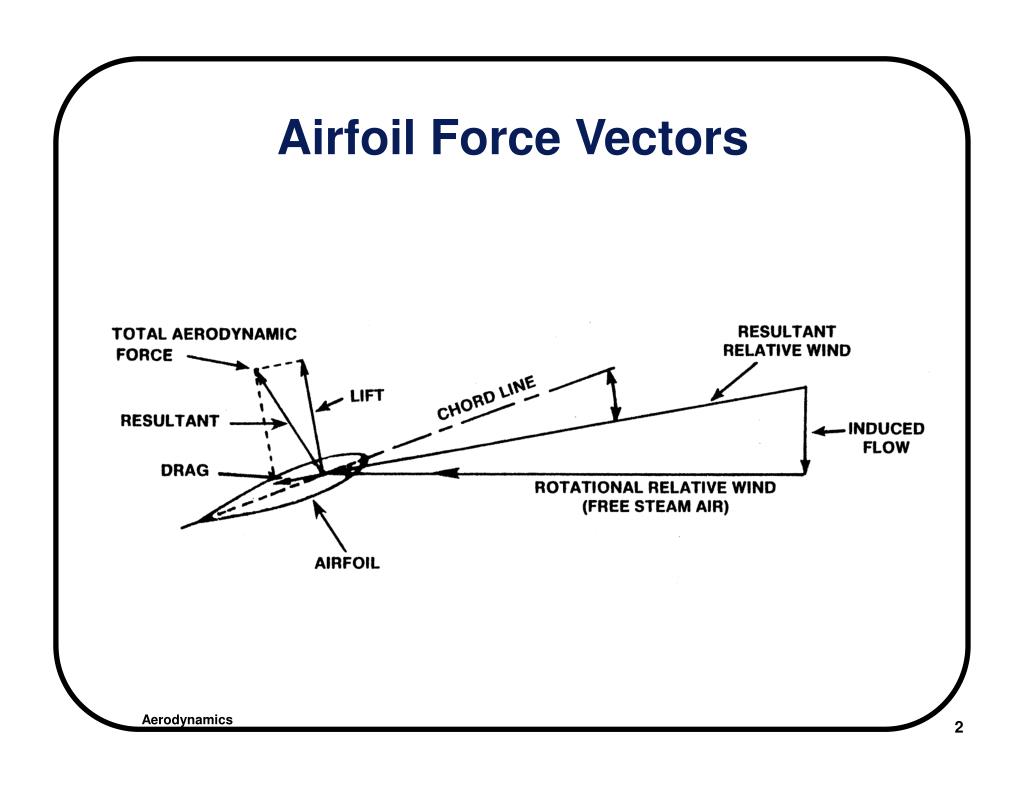

  2. Airfoil Force Vectors

  3. Aerodynamic Terms • Rotational Relative Wind Opposes Direction of Blade Rotation in Tip Path Plane • Induced Flow Vertical Component of Airflow Drawn Through the Rotor System • Resultant Relative Wind Actual Wind that Acts on the Airfoil(Vector Sum of Rotational Relative Wind & Induced Flow) • Angle of Incidence Angle Between Chord Line & Rotational Relative Wind(Tip Path Plane)

  4. Aerodynamic Terms (Con’t) • Angle of Attack Angle Between Chord Line & Resultant Relative Wind • Lift Acts Perpendicular to Resultant Relative Wind • Drag Acts Parallel & Opposite to Resultant Relative Wind • Total Aerodynamic Force Vector Sum of Airfoil Lift & Drag

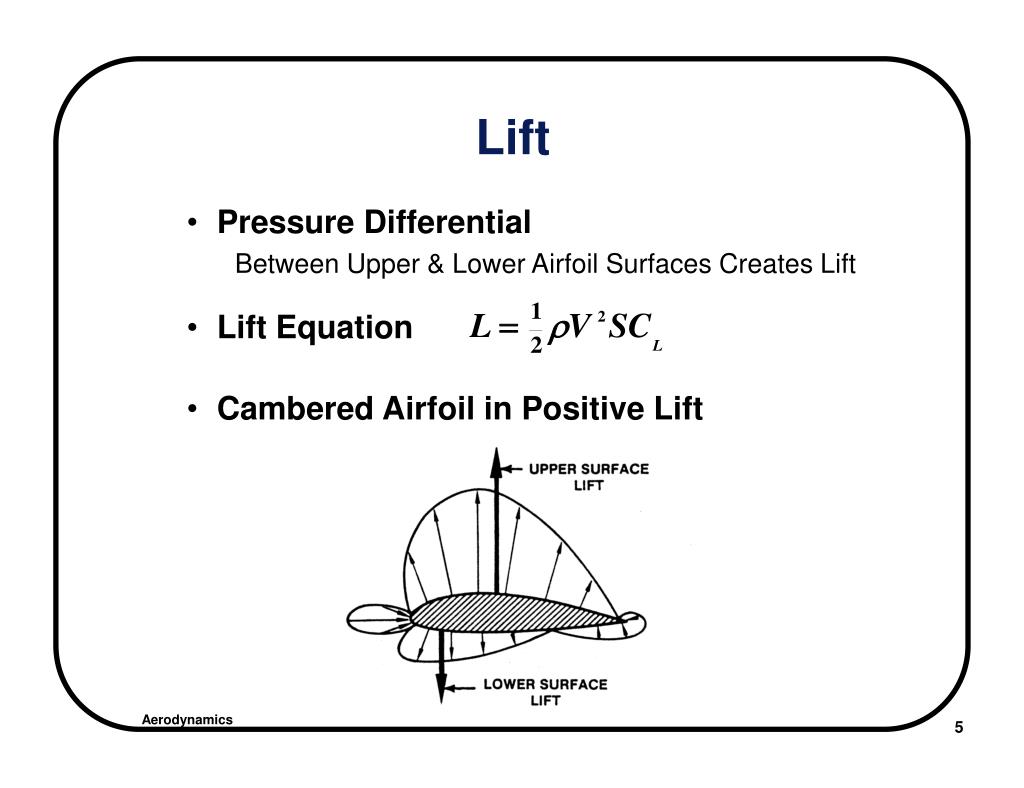

  5. Lift • Pressure Differential Between Upper & Lower Airfoil Surfaces Creates Lift • Lift Equation • Cambered Airfoil in Positive Lift

  6. Drag • Types of Drag • Induced: Caused by the Production of Lift • Parasite: All Drag Not Caused by Lift • Profile: Parasitic Drag of Rotor Blades Passing Through the Air • Drag Equation • Largest Contributor to Total Drag • Low Speed: Induced Drag • High Speed: Parasite/Profile Drag

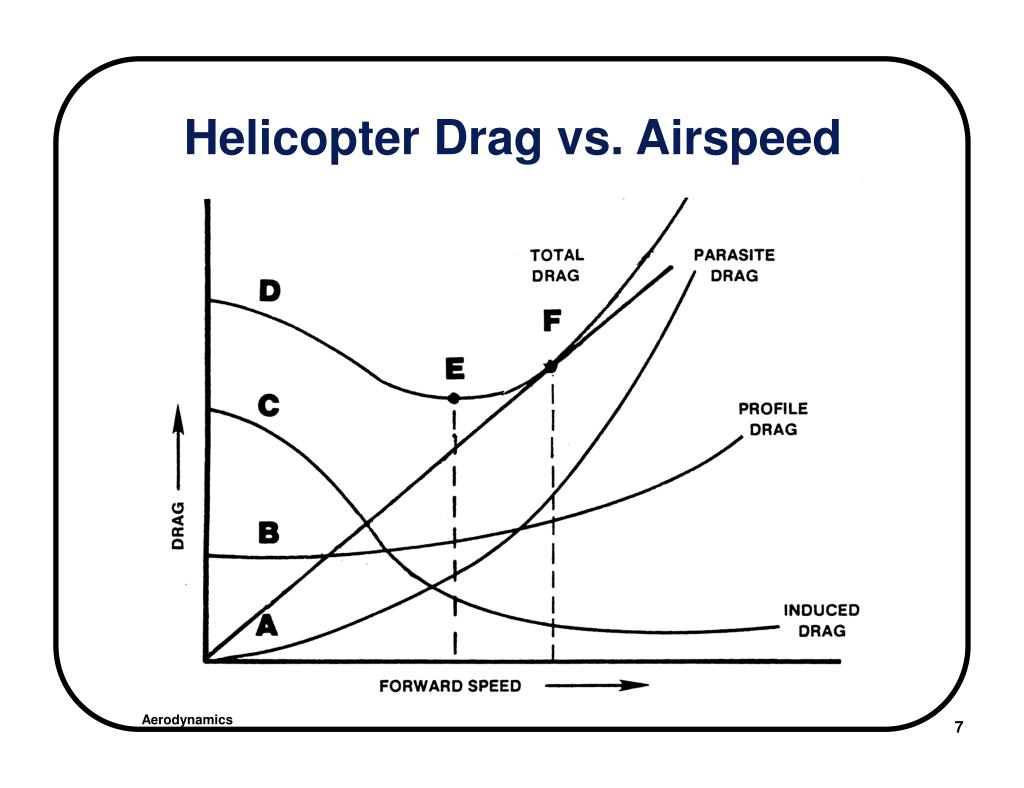

  7. Helicopter Drag vs. Airspeed

  8. Airflow At A Hover - OGE

  9. Airflow At A Hover - IGE

  10. Translating Tendency • Tendency of Aircraft to Drift In the Direction of Tail Rotor Thrust at a Hover • Compensated for by Mixing Unit & Pilot Input

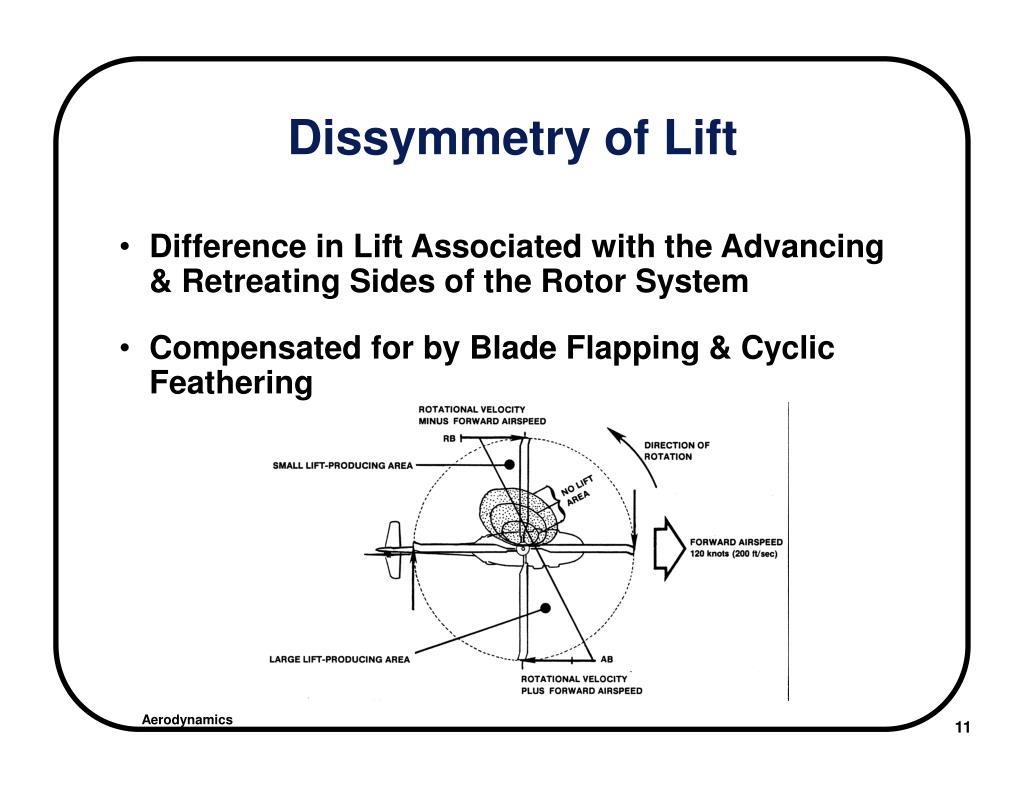

  11. Dissymmetry of Lift • Difference in Lift Associated with the Advancing & Retreating Sides of the Rotor System • Compensated for by Blade Flapping & Cyclic Feathering

  12. Blade Flapping • Up/Down Movement of the Rotor Blade About A Flapping Hinge • Causes Blowback (Rearward Tilt of Rotor Disk)

  13. Blade Lead & Lag (Hunting) • Fore & Aft Movement of the Blade in Tip Path Plane Due to Changes in Blade Speed • Coriolis Effect Angular Velocity Changes with Blade CG

  14. Retreating Blade Stall • Outboard Section of Retreating Blade Stalls at High Forward Airspeed • Causes Blade Flapping & Cyclic Feathering that Exceed Critical Angle • Aircraft Pitches Up & Rolls Left • Conditions Conducive to Retreating Blade Stall - High GWT - Low Rotor RPM - High DA - High “G” Maneuvers - Turbulent Air

  15. Retreating Blade Stall

  16. Compressibility • Outboard Section of Advancing Blade Exceeds the Speed of Sound at High Airspeed • Aerodynamic Center Moves Aft Large Down Pitching Moment at Outboard Tip Will Cause Structural Failure of Blade • Aircraft Pitches Down • Conditions Conducive to Compressibility - High Airspeed - High Rotor RPM - High GWT - High DA - Low Temperature - Turbulent Air

  17. Settling with Power(Vortex Ring State) • Formation of an Inner Vortex on the Blade Causes Substantial Loss of Lift • Increased Collective Results in Larger Vortex Rings & Higher Rates of Descent • Conditions Conducive to Settling with Power • Very Low Forward Airspeed • 20-100% of Available Power Applied • 300 ft/min Rate of Descent or Greater • Recover by Establishing Directional Flight

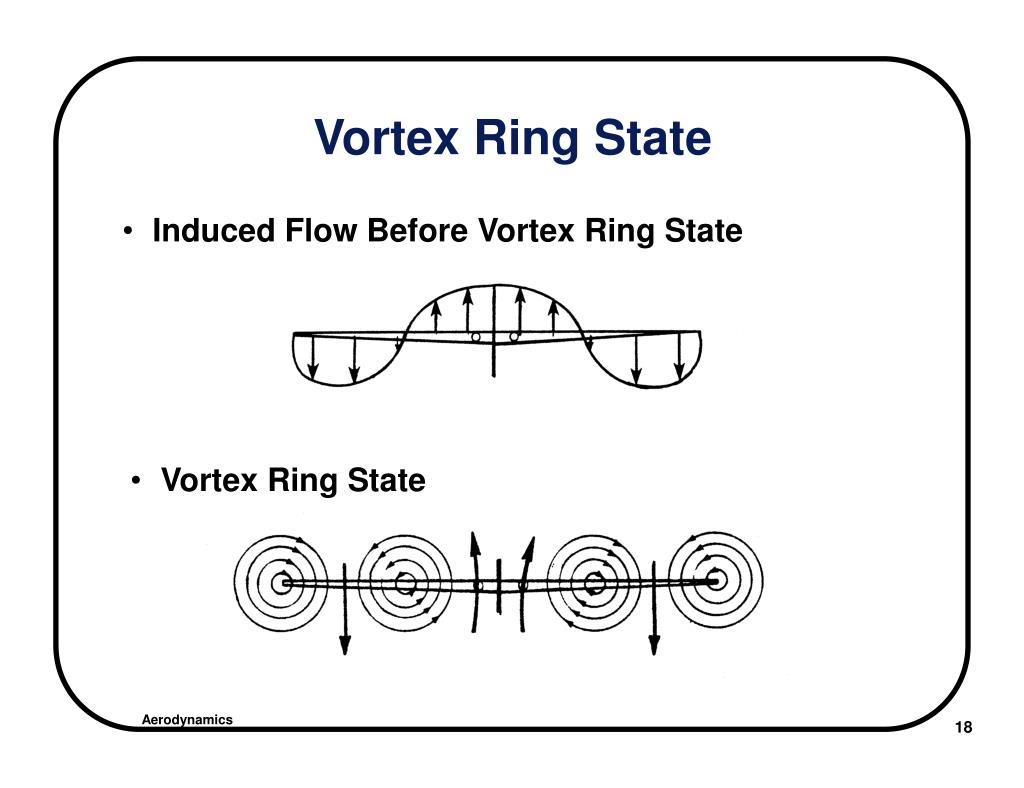

  18. Vortex Ring State • Induced Flow Before Vortex Ring State • Vortex Ring State

  19. Offset Hinges • Tends to Align the Helicopter with the RotorTip Path Plane • Offset Creates a Hub Moment Larger the Offset, Higher the Hub Moment • Results in Greater Maneuverability & Faster Aircraft Response

  20. Dynamic Rollover • Aircraft Exceeds Critical Rollover Angle with a Rolling Moment • Dynamic Rollover Criteria • Pivot Point • Rolling Moment • Lift Component and/or Hub Moment • Tail Rotor Contribution • Collective is Most Effective Control Cyclic is also Effective Due to Offset Hinges

  21. Fuselage Hovering Attitude • Nose High • Forward Tilt of Main Transmission • Aircraft CG Aft of Main Rotor Mast • Left Side Low • Left Cyclic Compensating for Translating Tendency
