Struktura halita ( NaCl )

Struktura halita ( NaCl ) - radi se o dvije isprepletene plošno centrirane kubične rešetke (FCC). Prof. dr. sc. Lidija Ćurković. r kationa = r Na+ = 0,102 nm r aniona = r Cl- = 0,181 nm r kationa /r aniona = 0,56 KB = 6 prvih susjeda (iona druge vrste). Cl -. Cl -. Cl -. Cl -.

hong
Download Presentation

Struktura halita ( NaCl )

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

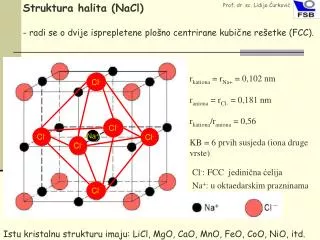

  1. Strukturahalita (NaCl) - radi se o dvije isprepletene plošno centrirane kubične rešetke (FCC). Prof. dr. sc. Lidija Ćurković rkationa = rNa+ = 0,102 nm raniona = rCl- = 0,181 nm rkationa/raniona = 0,56 KB = 6 prvih susjeda (iona druge vrste) Cl- Cl- Cl- Cl- Na+ Cl- Cl-: FCC jedinična ćelija Na+: u oktaedarskim prazninama Cl- Istu kristalnu strukturu imaju: LiCl, MgO, CaO, MnO, FeO, CoO, NiO, itd.
