  1. Chapter 6 Plane Kinematics of Rigid Bodies Rigid body: A body (system) is so rigid such that the relative positions of all the mass elements do not change during motion.

  2. q (angular displacement) = angular velocity = angular acceleration 

  3. Velocity of a point P relative to another point O with a fixed distance from P (could be a fixed point in a rigid body. • Direction defined by Right Hand Rule. P

  4. Acceleration of a point P relative to another point O with a fixed distance from P. Exercise Prove that the above statement is identical to:

  5. Example : Draw a vector diagram to show the relation between Relative motion of two points of a fixed separation (i.e. on a rigid plane):

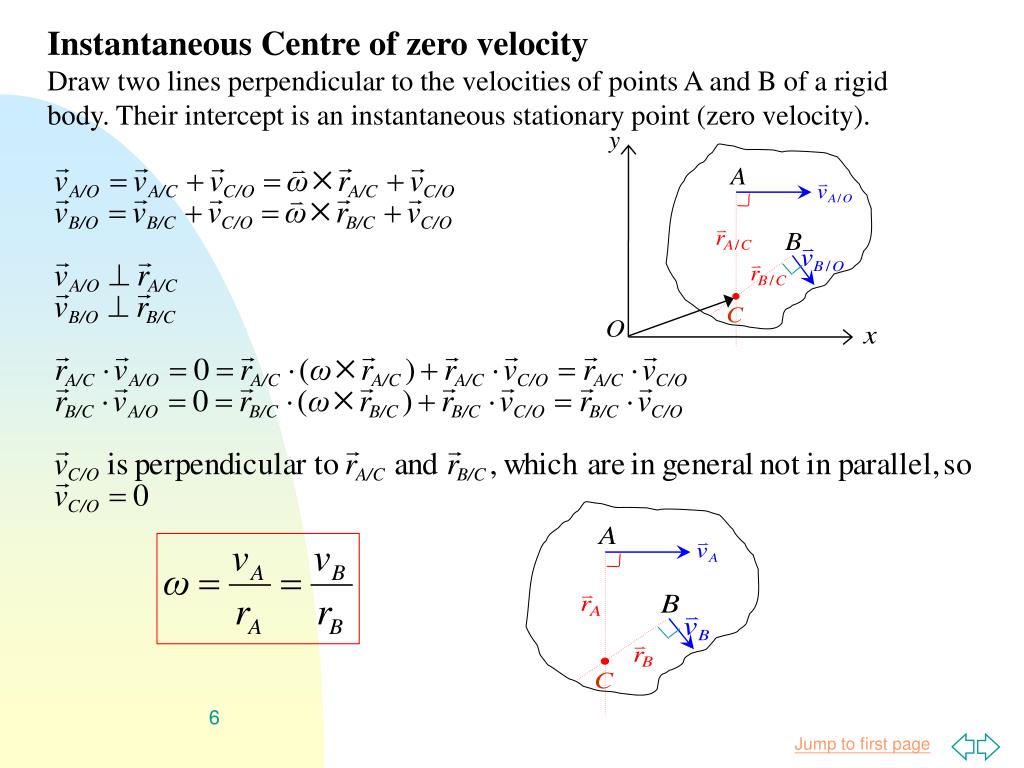

  6. Instantaneous Centre of zero velocity Draw two lines perpendicular to the velocities of points A and B of a rigid body. Their intercept is an instantaneous stationary point (zero velocity).

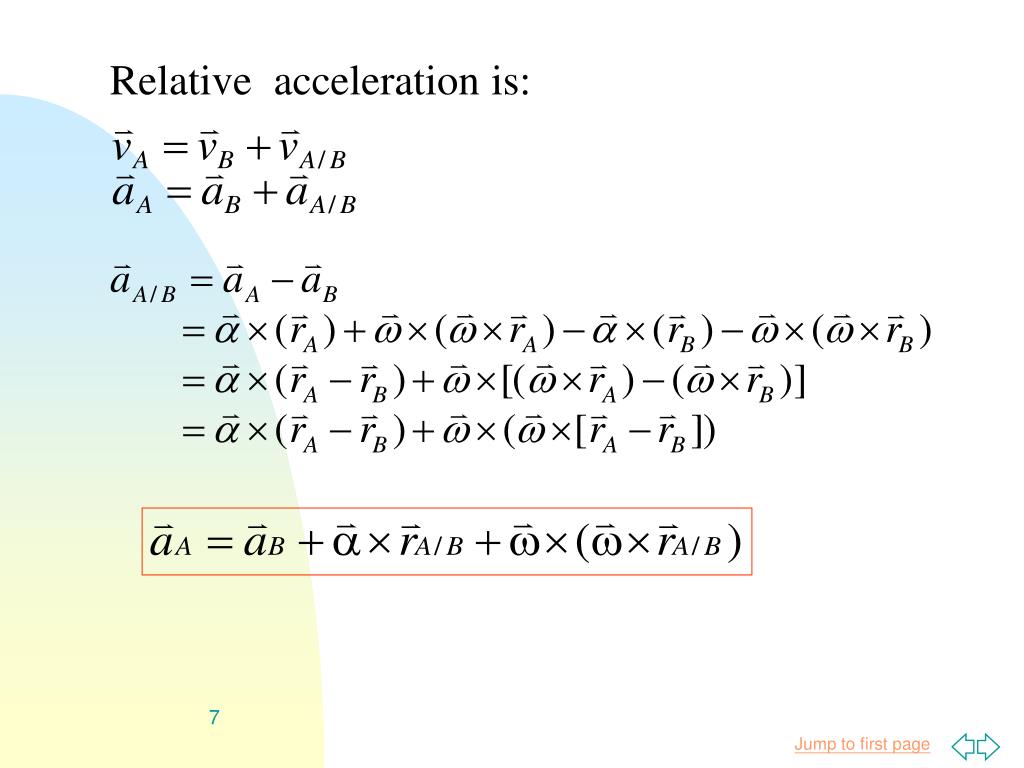

  7. Relative acceleration is:

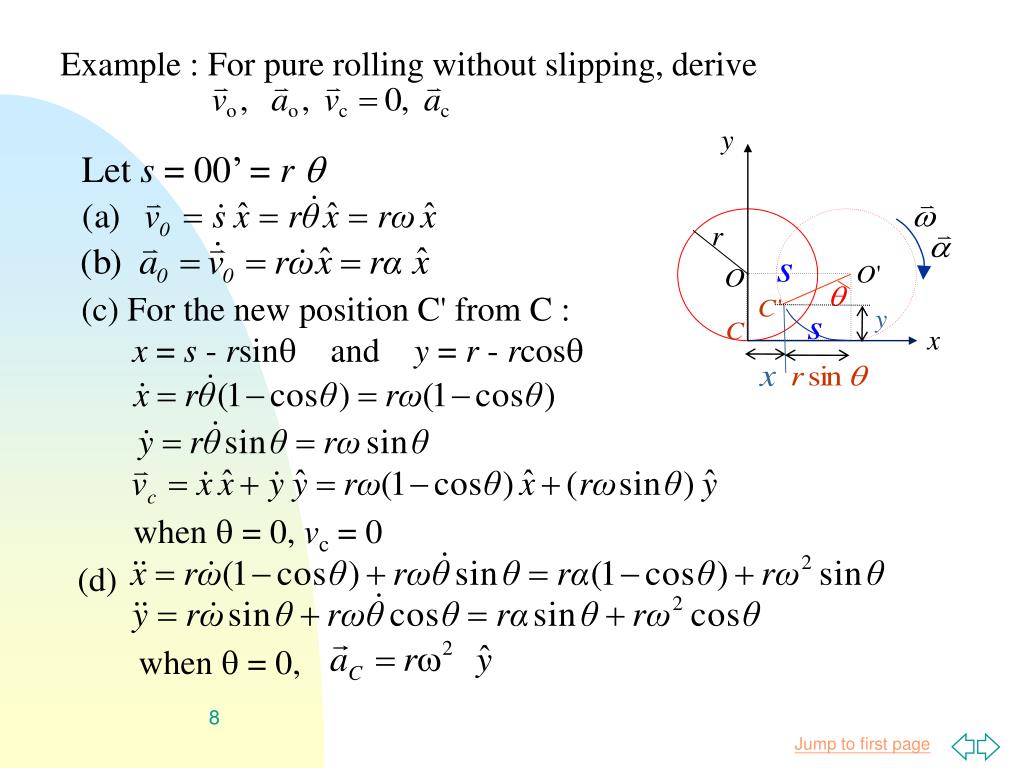

  8. Example : For pure rolling without slipping, derive y Let s = 00’ = r (c) For the new position C' from C : x = s - rsin and y = r - rcos x when  = 0, vc = 0 (d) when  = 0,

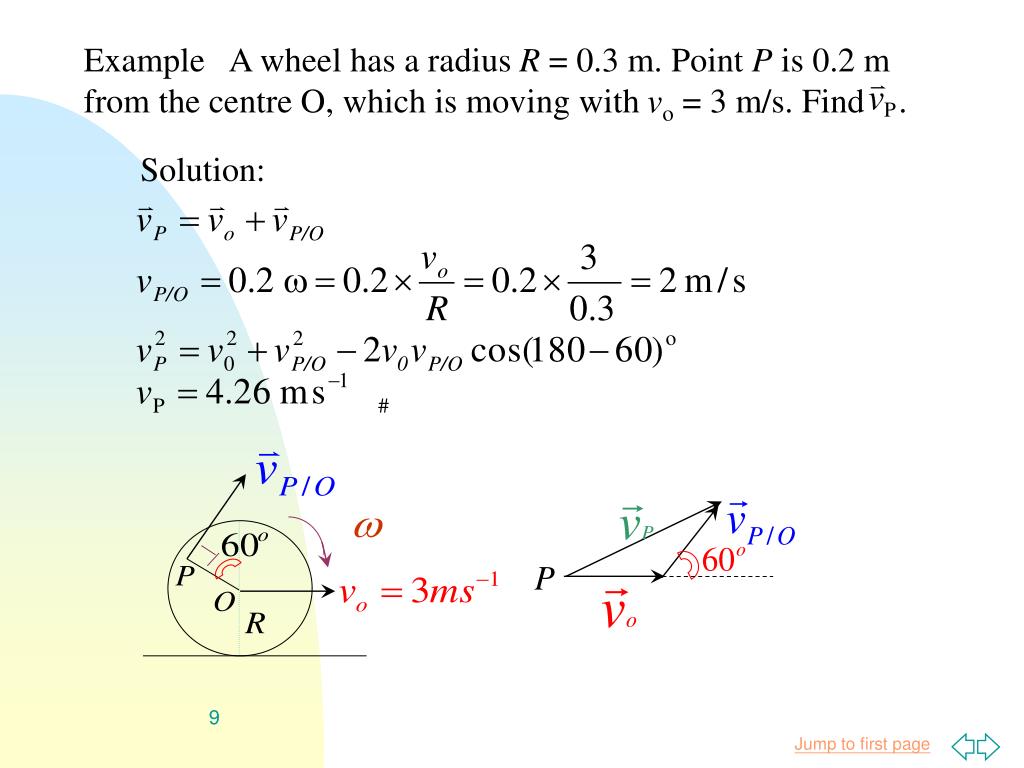

  9. Example A wheel has a radius R = 0.3 m. Point P is 0.2 m from the centre O, which is moving with vo = 3 m/s. Find . Solution:

  10. X B C D h A y x Example : The structure has the following dimensions: rB/A = 0.1 m, rC/D = 0.075 m, h = 0.05 m,X = 0.25 m. CD = 2 rad/s. Find : AB , BC
