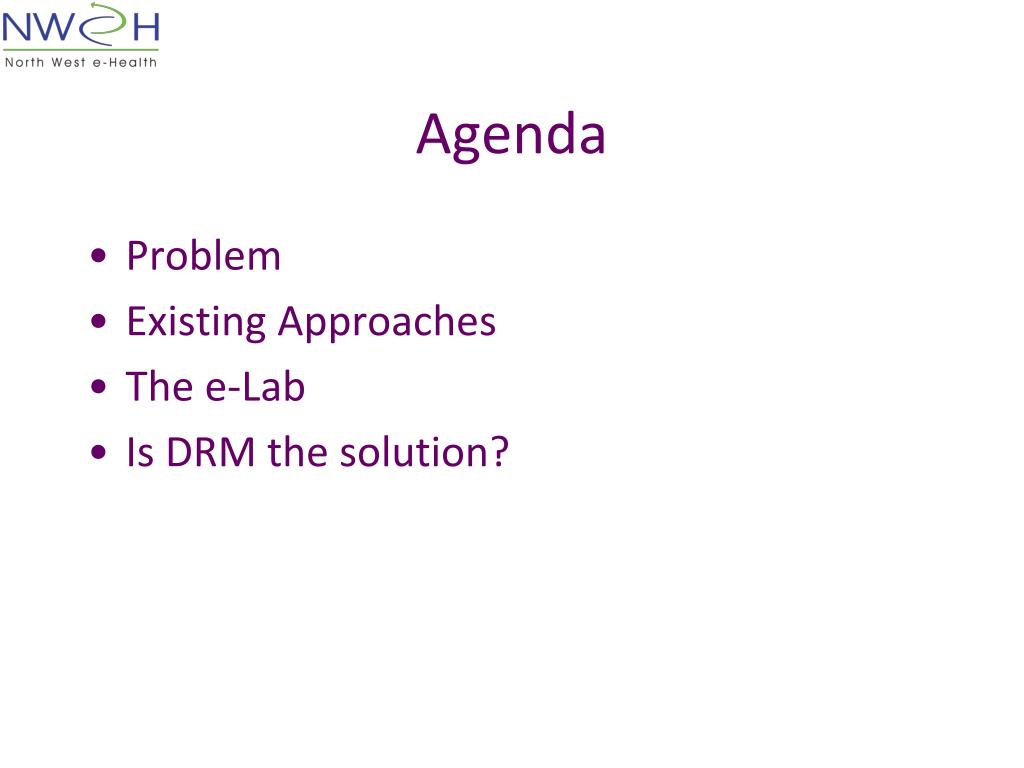

Agenda

2. Agenda • Problem • Existing Approaches • The e-Lab • Is DRM the solution?

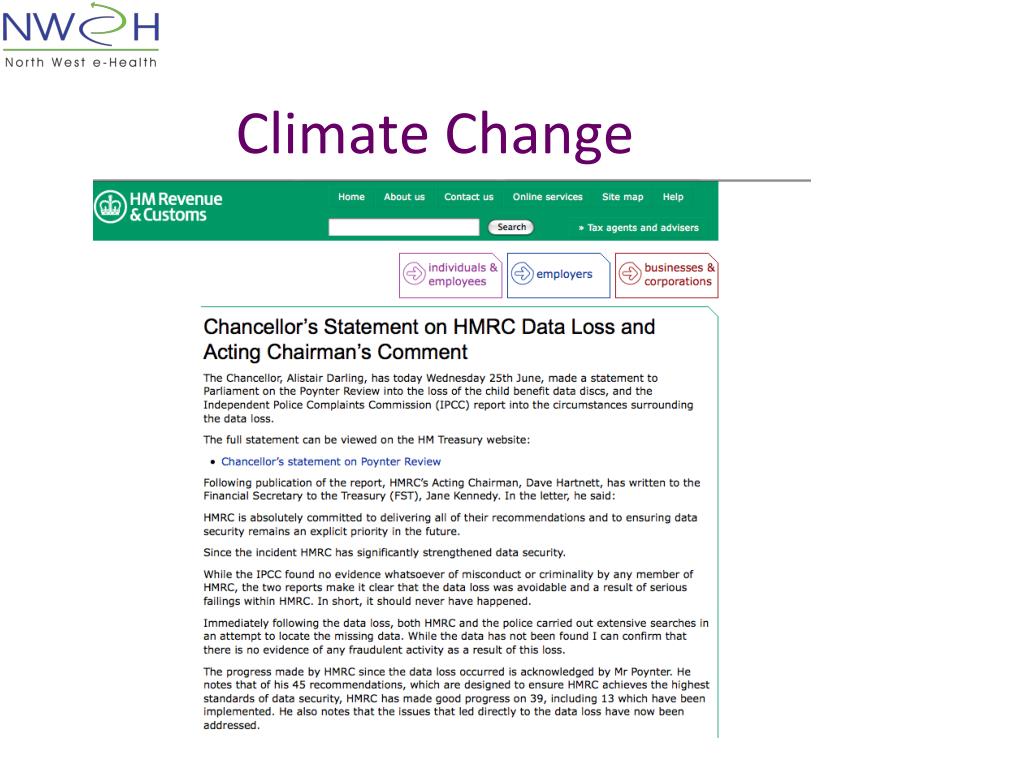

3. Climate Change

4. Problem • Potentially identifiable data required for effective research • Individuals have a right to confidentiality and privacy • Potentially identifiable data should not be: • Redistributed • Release under defined conditions • Linked to other data • Risk of deductive disclosure • Potentially identifiable data should be: • Stored securely • Destroyed after use

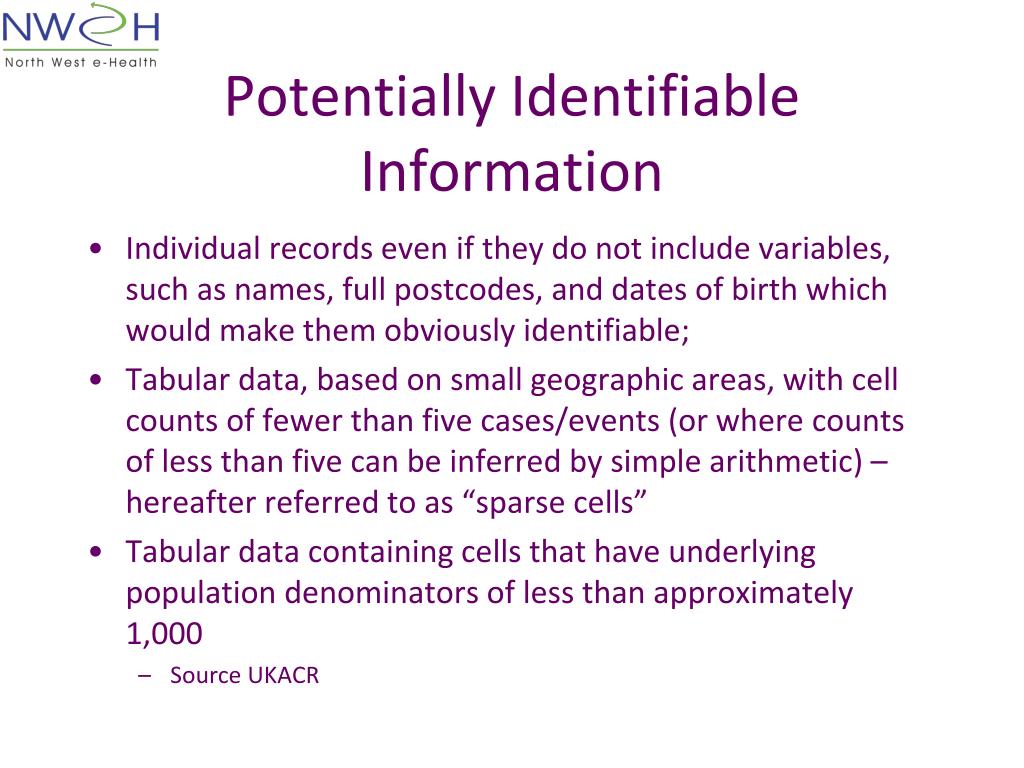

5. Potentially Identifiable Information • Individual records even if they do not include variables, such as names, full postcodes, and dates of birth which would make them obviously identifiable; • Tabular data, based on small geographic areas, with cell counts of fewer than five cases/events (or where counts of less than five can be inferred by simple arithmetic) – hereafter referred to as “sparse cells” • Tabular data containing cells that have underlying population denominators of less than approximately 1,000 • Source UKACR

6. Existing approaches • Locked rooms, locked down machines • Used by many national statistical services • Does not scale

7. Existing approaches • Policy • User bound by terms and conditions or contract of employment or professional governance bodies

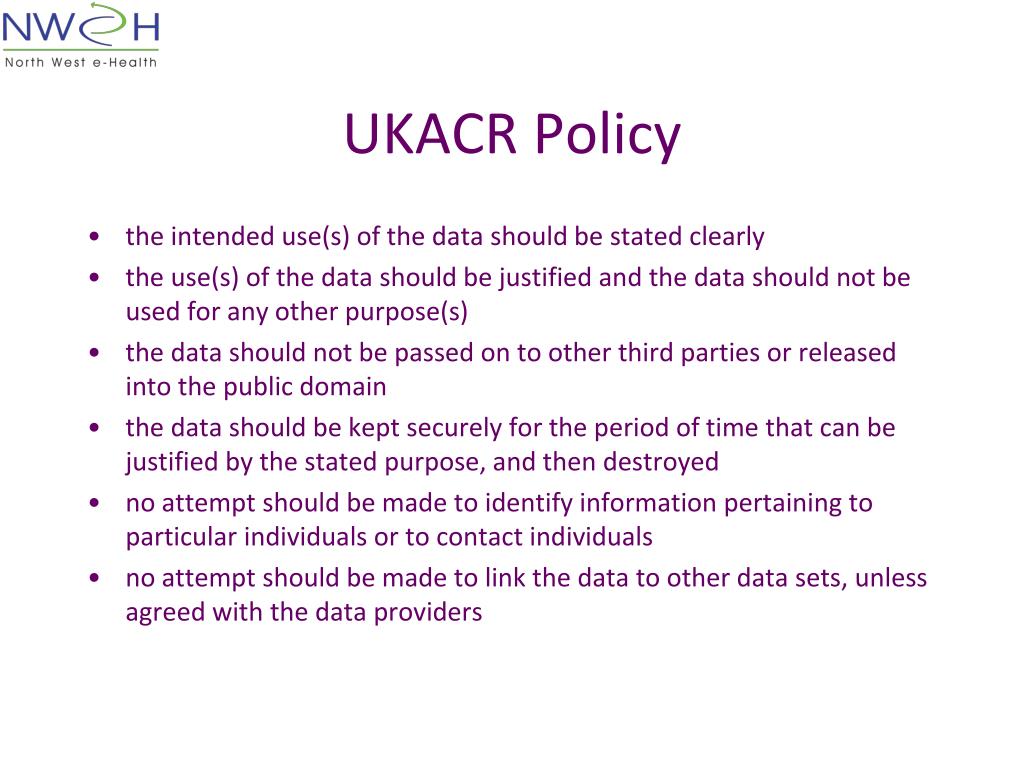

8. UKACR Policy • the intended use(s) of the data should be stated clearly • the use(s) of the data should be justified and the data should not be used for any other purpose(s) • the data should not be passed on to other third parties or released into the public domain • the data should be kept securely for the period of time that can be justified by the stated purpose, and then destroyed • no attempt should be made to identify information pertaining to particular individuals or to contact individuals • no attempt should be made to link the data to other data sets, unless agreed with the data providers

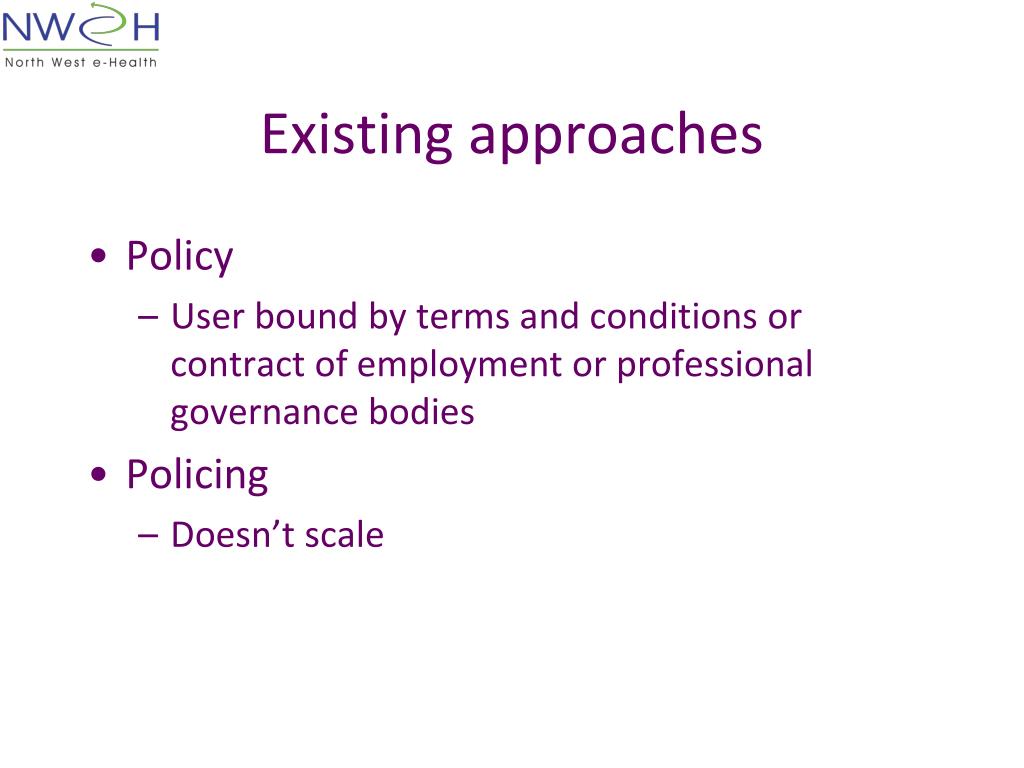

9. Existing approaches • Policy • User bound by terms and conditions or contract of employment or professional governance bodies • Policing • Doesn’t scale

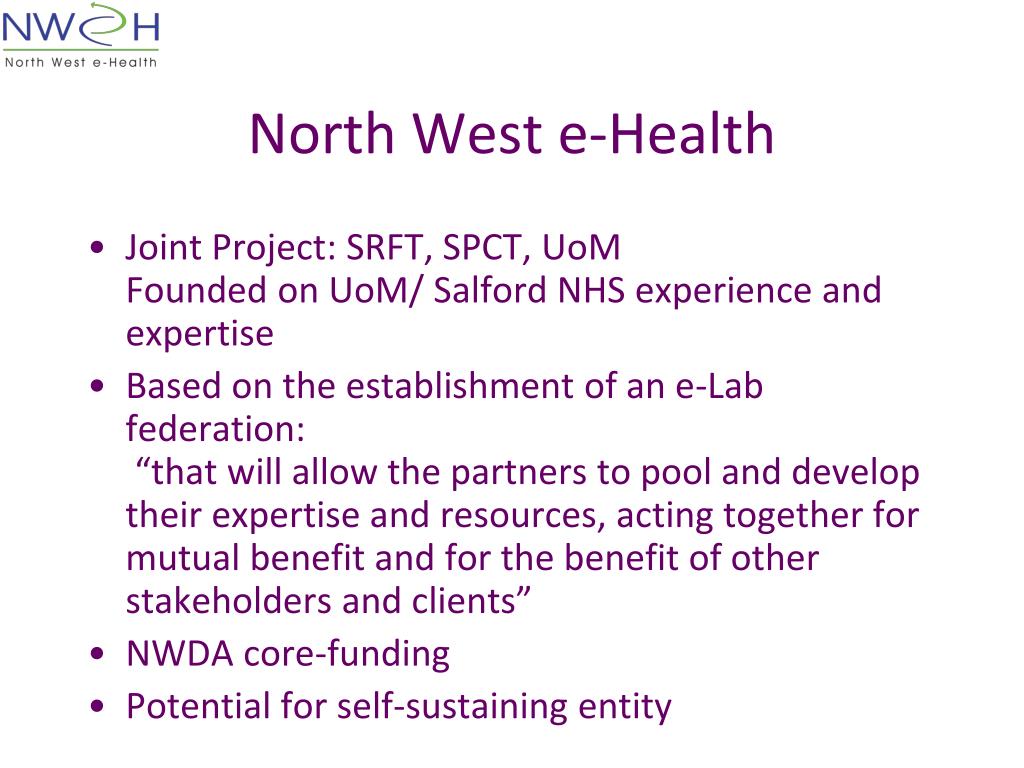

10. North West e-Health • Joint Project: SRFT, SPCT, UoMFounded on UoM/ Salford NHS experience and expertise • Based on the establishment of an e-Lab federation: “that will allow the partners to pool and develop their expertise and resources, acting together for mutual benefit and for the benefit of other stakeholders and clients” • NWDA core-funding • Potential for self-sustaining entity

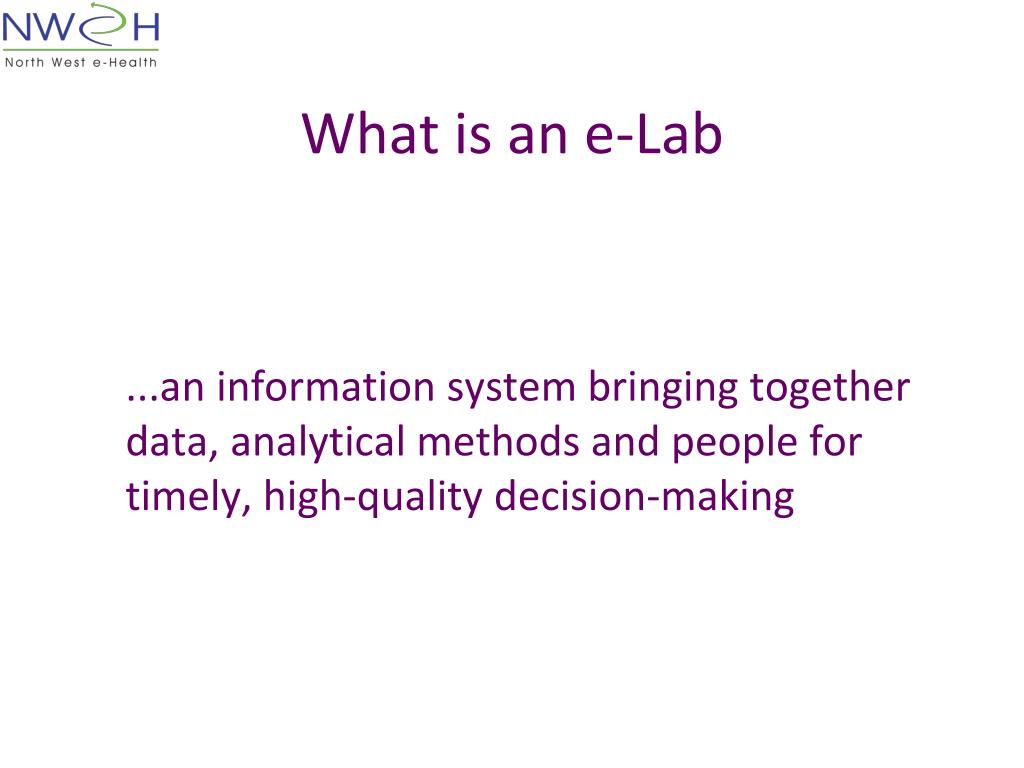

11. What is an e-Lab ...an information system bringing together data, analytical methods and people for timely, high-quality decision-making

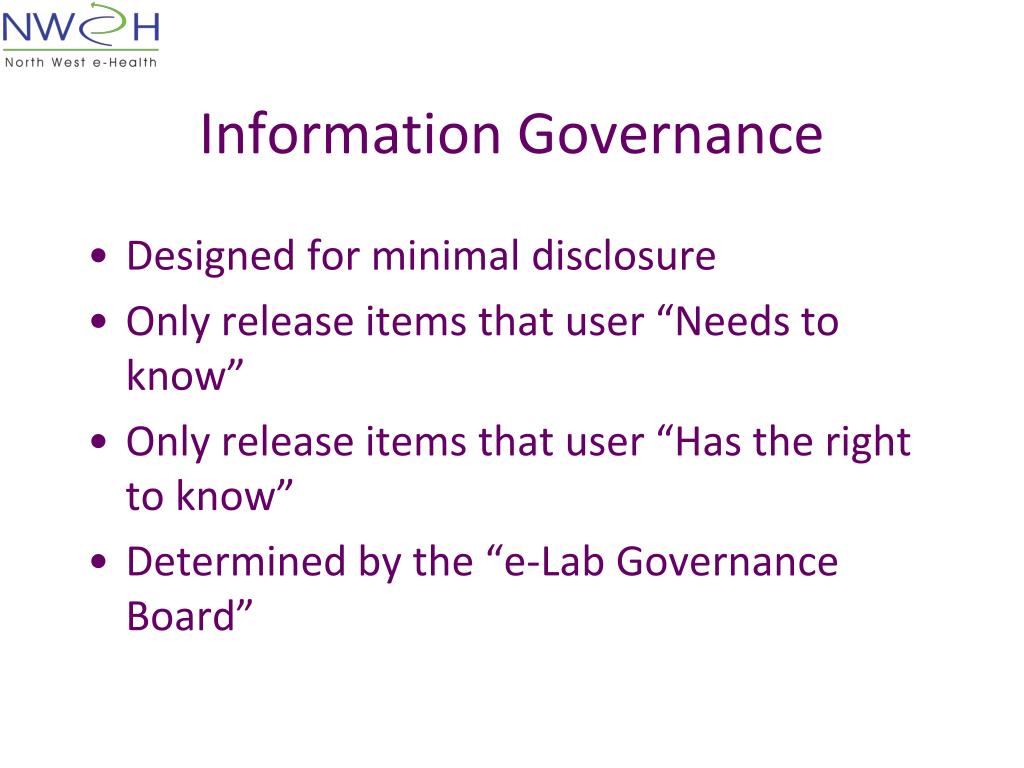

14. Information Governance • Designed for minimal disclosure • Only release items that user “Needs to know” • Only release items that user “Has the right to know” • Determined by the “e-Lab Governance Board”

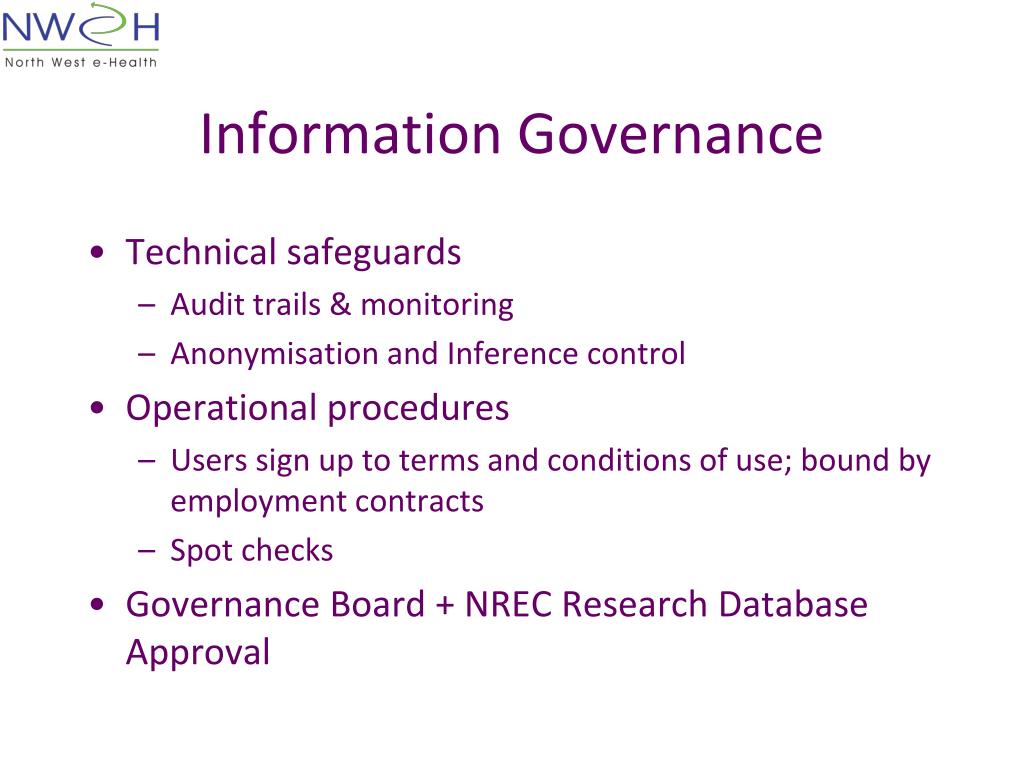

15. Information Governance • Technical safeguards • Audit trails & monitoring • Anonymisation and Inference control • Operational procedures • Users sign up to terms and conditions of use; bound by employment contracts • Spot checks • Governance Board + NREC Research Database Approval

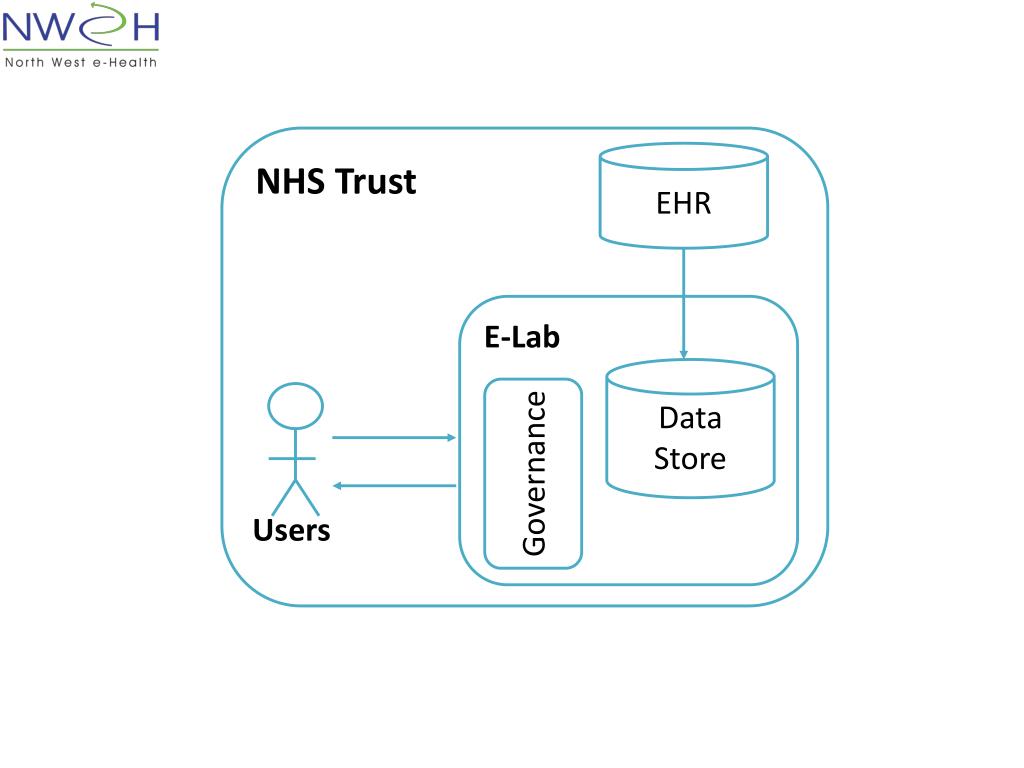

16. NHS Trust EHR E-Lab Data Store Governance Users

17. 2. Pseudonymisation, classification and integration Trust Systems Trust e-Lab Clinical Data Clinical Data Integrated EHR E-Lab Repository Non-clinical Data Non-clinical Data 1. Integration of primary and secondary care records

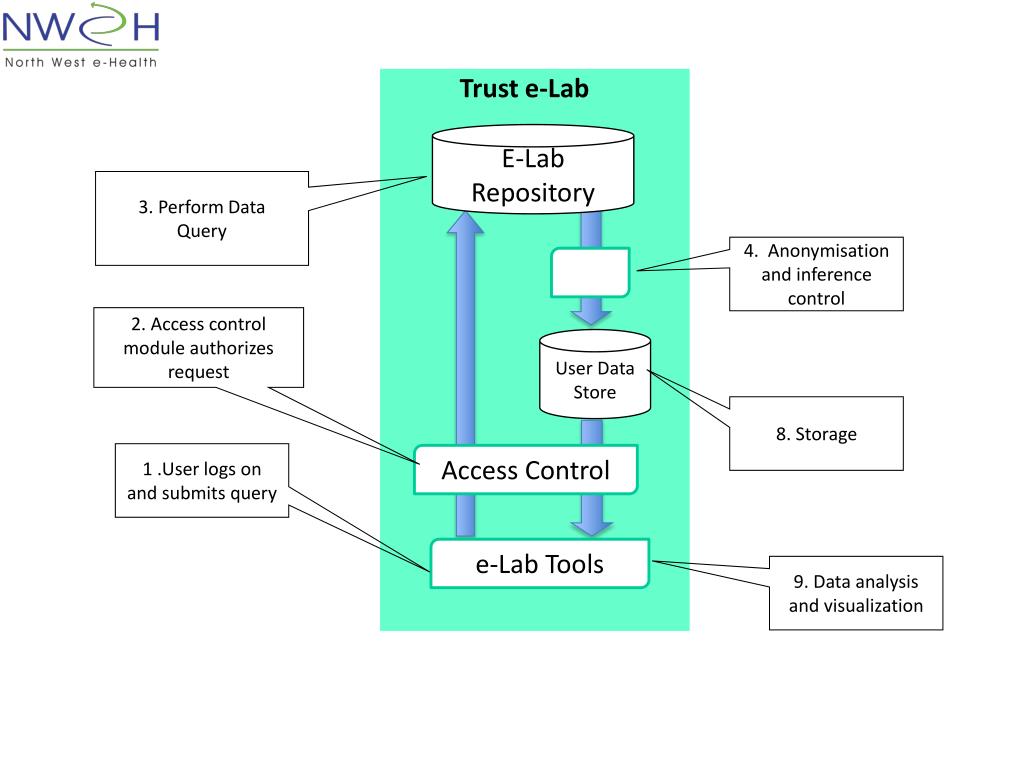

18. Trust e-Lab E-Lab Repository 3. Perform Data Query 4. Anonymisation and inference control 2. Access control module authorizes request User Data Store 8. Storage 1 .User logs on and submits query Access Control e-Lab Tools 9. Data analysis and visualization

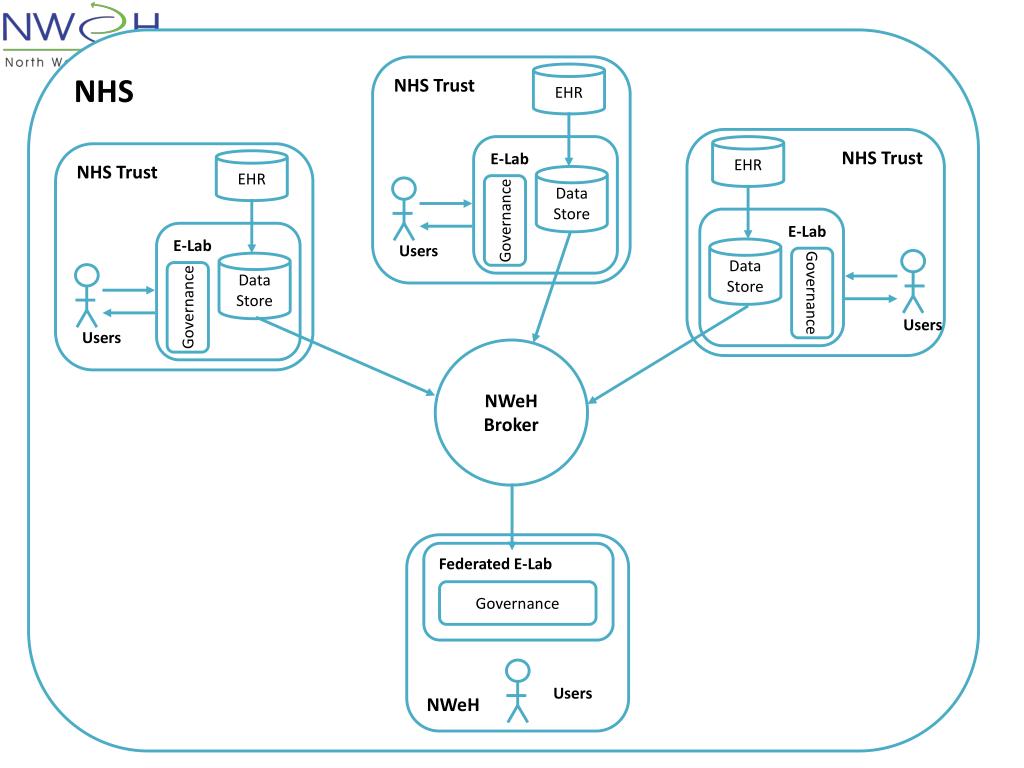

19. NHS Trust EHR NHS Trust EHR E-Lab Data Store E-Lab Governance Data Store Users Governance Users NHS NHS Trust EHR E-Lab Data Store Governance Users NWeH Broker NWeH Federated E-Lab Governance Users

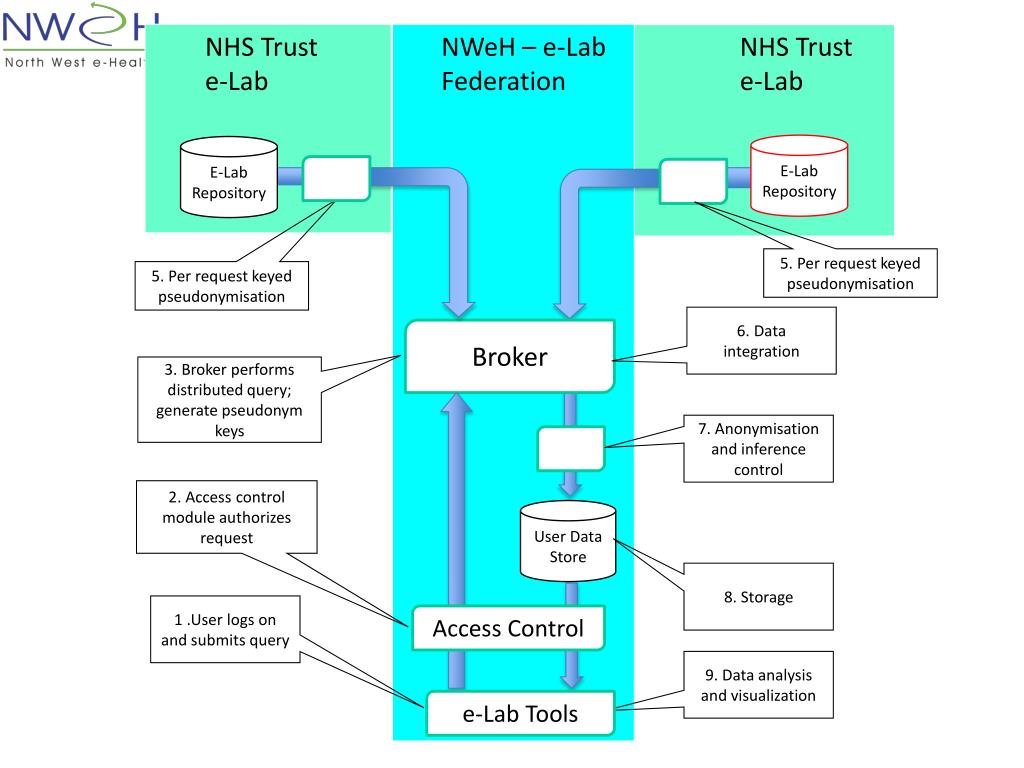

20. NHS Trust e-Lab NWeH – e-Lab Federation NHS Trust e-Lab E-Lab Repository E-Lab Repository 5. Per request keyed pseudonymisation 5. Per request keyed pseudonymisation 6. Data integration Broker 3. Broker performs distributed query; generate pseudonym keys 7. Anonymisation and inference control 2. Access control module authorizes request User Data Store 8. Storage 1 .User logs on and submits query Access Control 9. Data analysis and visualization e-Lab Tools

21. e-Labs Pseudonymised Data Flows e-Lab Broker Secondary Pseudonymised Data Flows Data Users

22. DRM Solution? • DRM used to prevent re-distribution • DRM used to prevent modification • DRM used to prevent linking to other data

23. DRM problems • Not fail safe? • Better than just stopping the “casual attacker”? • Perception is easy to crack or by-pass
