  1. Event Handling Source Object Receiver Object H_Func(Event) { } Event Registration

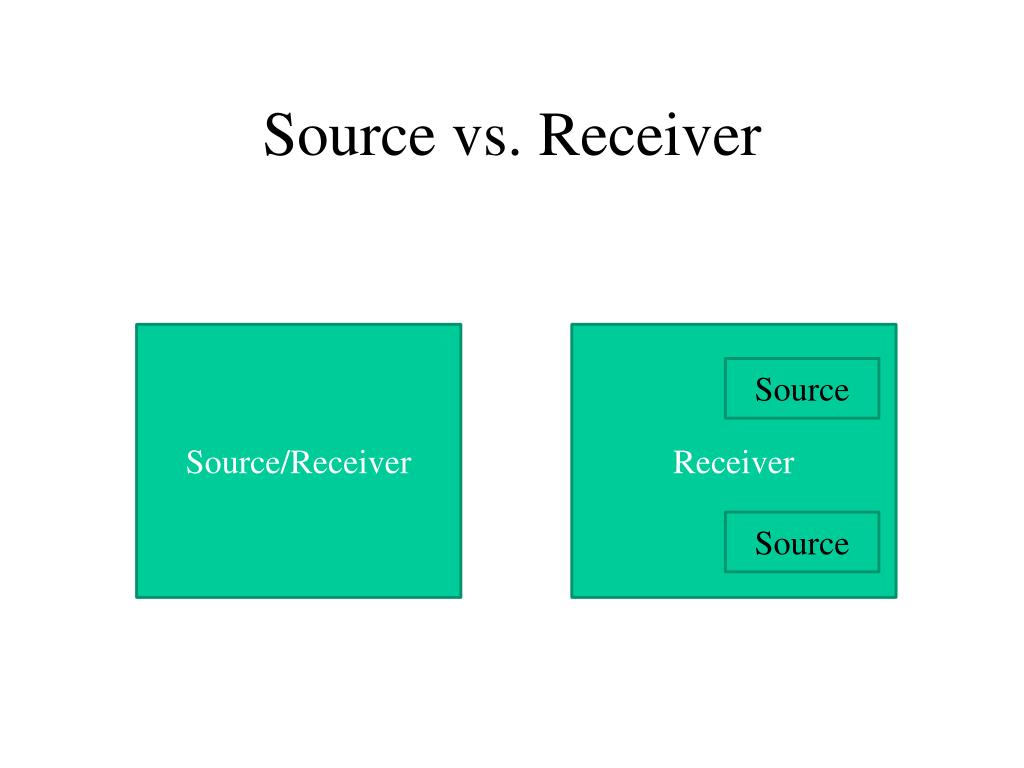

  2. Source vs. Receiver Source/Receiver Receiver Source Source

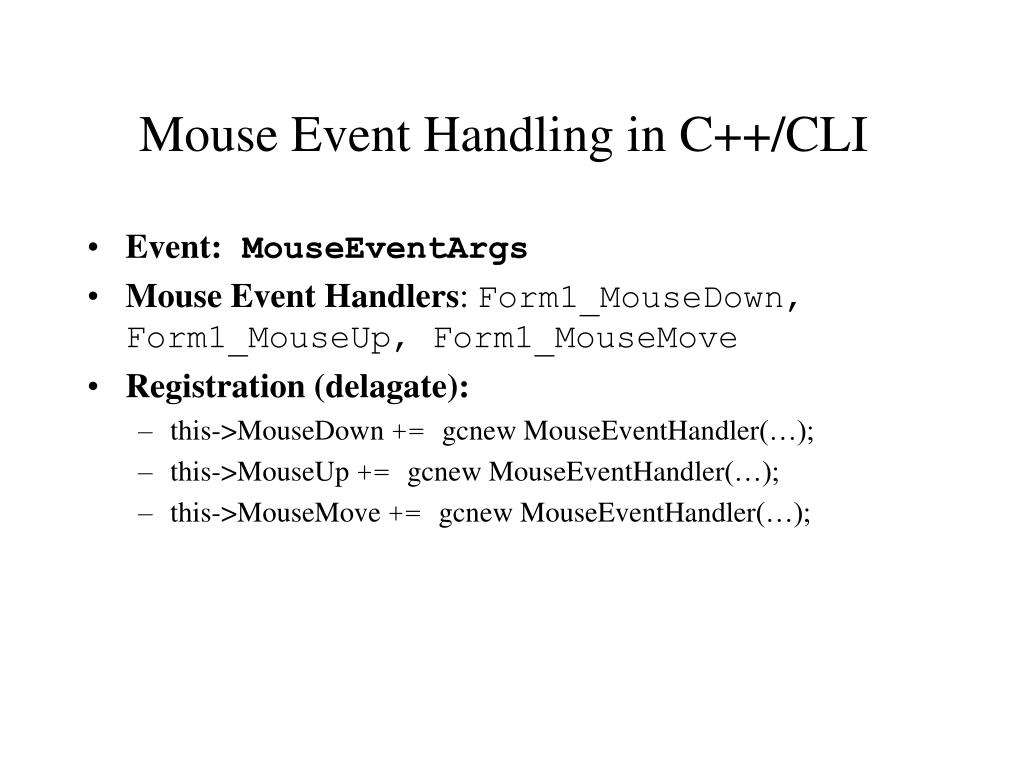

  3. Mouse Event Handling in C++/CLI • Event:MouseEventArgs • Mouse Event Handlers: Form1_MouseDown, Form1_MouseUp, Form1_MouseMove • Registration (delagate): • this->MouseDown+= gcnewMouseEventHandler(…); • this->MouseUp+= gcnewMouseEventHandler(…); • this->MouseMove+= gcnewMouseEventHandler(…);

  4. Event Handling in an Window-based Application (win32) MSG Msg; while (GetMessage(&Msg, NULL, 0, 0)>0) { TranslateMessage(&Msg); // ignore DispatchMessage(&Msg); }

  5. Event-driven Programming • Programming paradigm • State representation • State presentation : Form1_Paint in C++/CLI • Event handling and state change • Request for presentation to reflect new state:Invalidate in C++/CLI

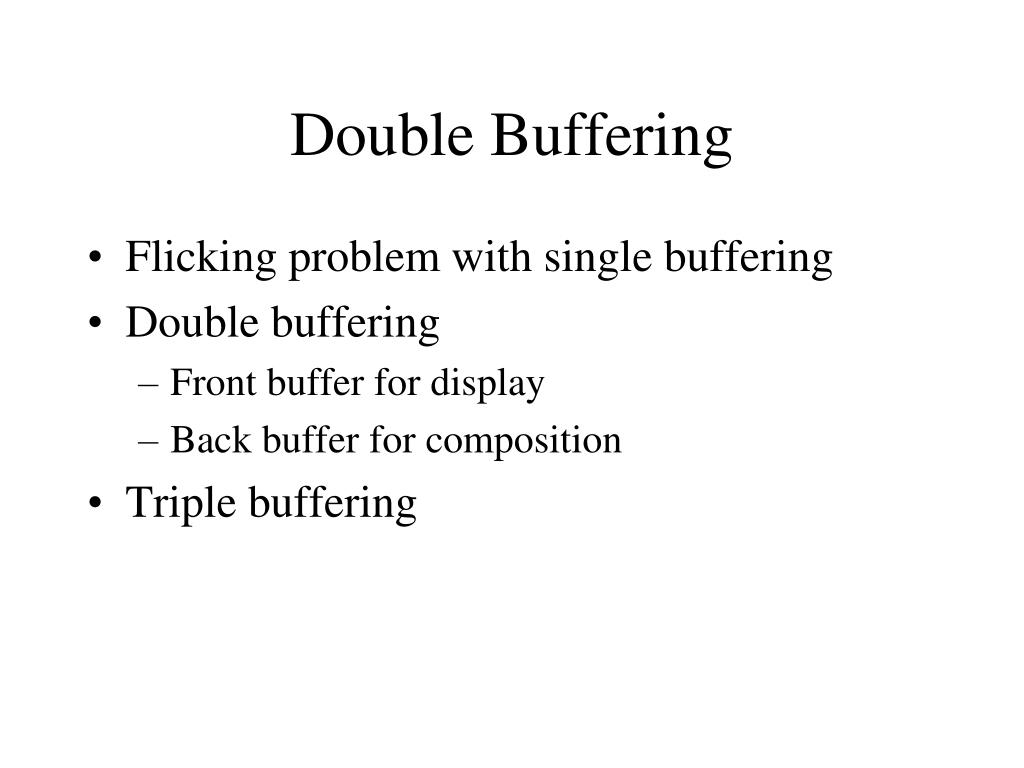

  6. Double Buffering • Flicking problem with single buffering • Double buffering • Front buffer for display • Back buffer for composition • Triple buffering

  7. Single Buffering Display Frame Buffer Composition

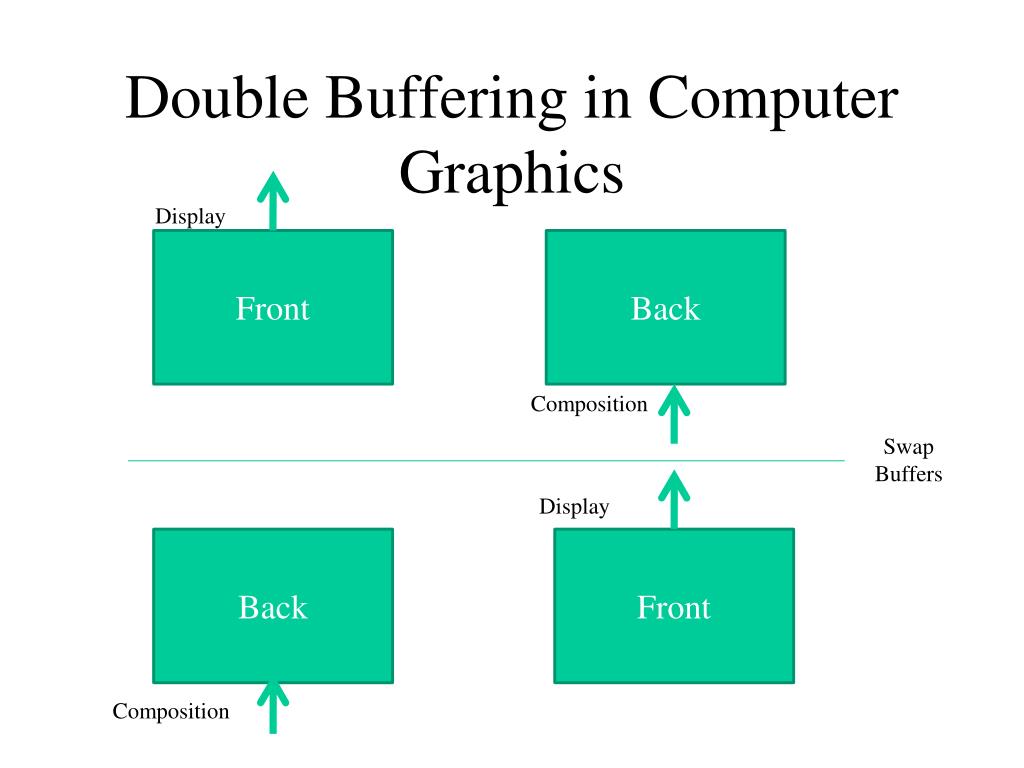

  8. Double Buffering in Computer Graphics Display Front Back Composition Swap Buffers Display Back Front Composition

  9. Double Buffering in C++/CLI Window Image Front Back Draw Composition

  10. Double Buffering in C++/CLI • Step 1: Create the back buffer and its graphics • Bitmap^ backBuffer = gcnew Bitmap(width, height); • Graphics^ gBackBuffer = Graphics::FromImage(backBuffer); • Step 2: Compose the scene in the back buffer • gBackBuffer->Clear(Color::White); • gBackBuffer->FillEllipse(…); • .... • Step 3: copy the back buffer to the front • e->Graphics->DrawImageUnscaled(backBuffer, 0, 0);

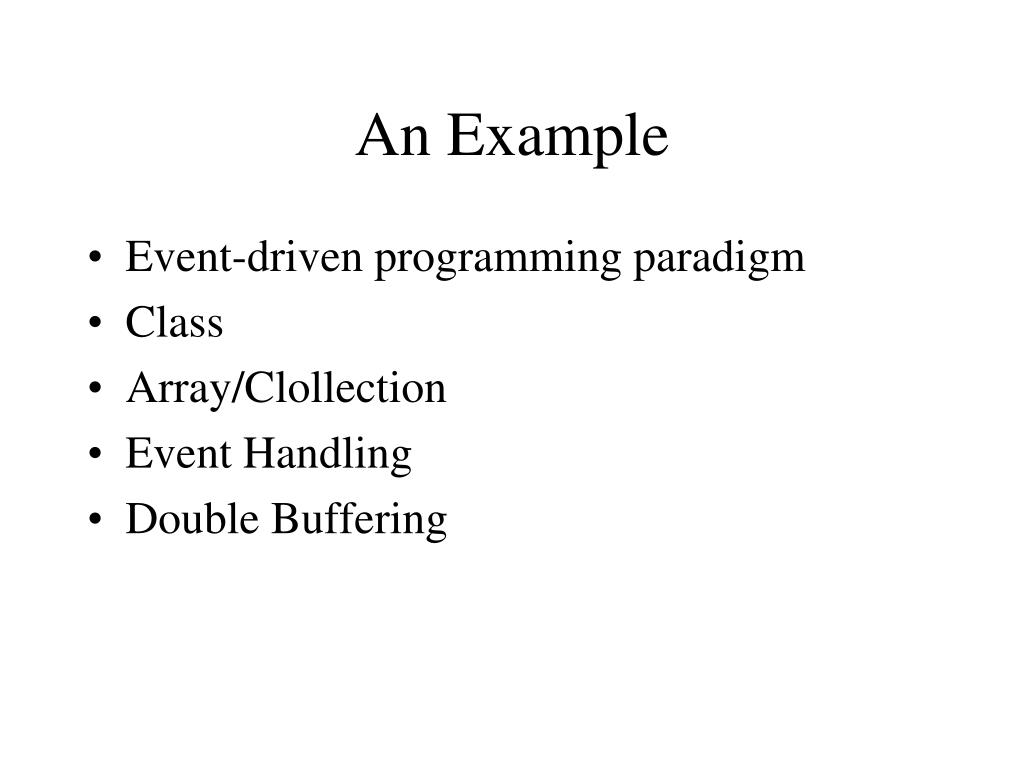

  11. An Example • Event-driven programming paradigm • Class • Array/Clollection • Event Handling • Double Buffering
