Combo Interface Module. Preliminary. Customer Problems. STI-MV Presents Too High An Entry Cost Into Digital Integration. Low Initial STI-MV Channel Utilization. PM May Not Have Empty IOP Slot for STI-MV. Safety Issues
E N D
Combo Interface Module Preliminary
Customer Problems • STI-MV Presents Too High An Entry Cost Into Digital Integration. • Low Initial STI-MV Channel Utilization. • PM May Not Have Empty IOP Slot for STI-MV. • Safety Issues • Routing All DE Transmitters to 1 STI-MV Enables a Single IOP Failure to Impact Multiple Areas. • Increased Design Complexity • Plant Designers Typically Do Not Layout Equipment Based on Transmitter Communication Protocols. • Interlocks and Redundancy Increase Complexity.

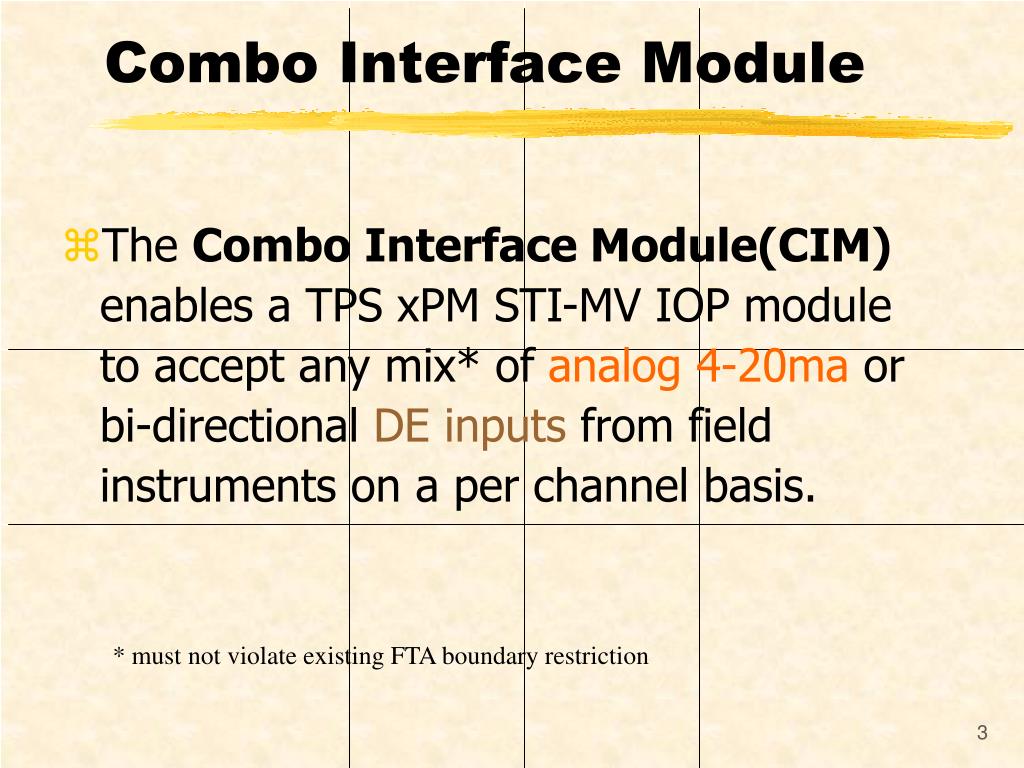

Combo Interface Module • The Combo Interface Module(CIM) enables a TPS xPM STI-MV IOP module to accept any mix* of analog 4-20ma or bi-directional DE inputs from field instruments on a per channel basis. * must not violate existing FTA boundary restriction
Input Types • The CIM accepts on any of the 16 input channels . . . • 4 byte DE (single or multivariable) • 6 byte DE (single or multivariable) • Analog 4-20ma (1-5volts) HART

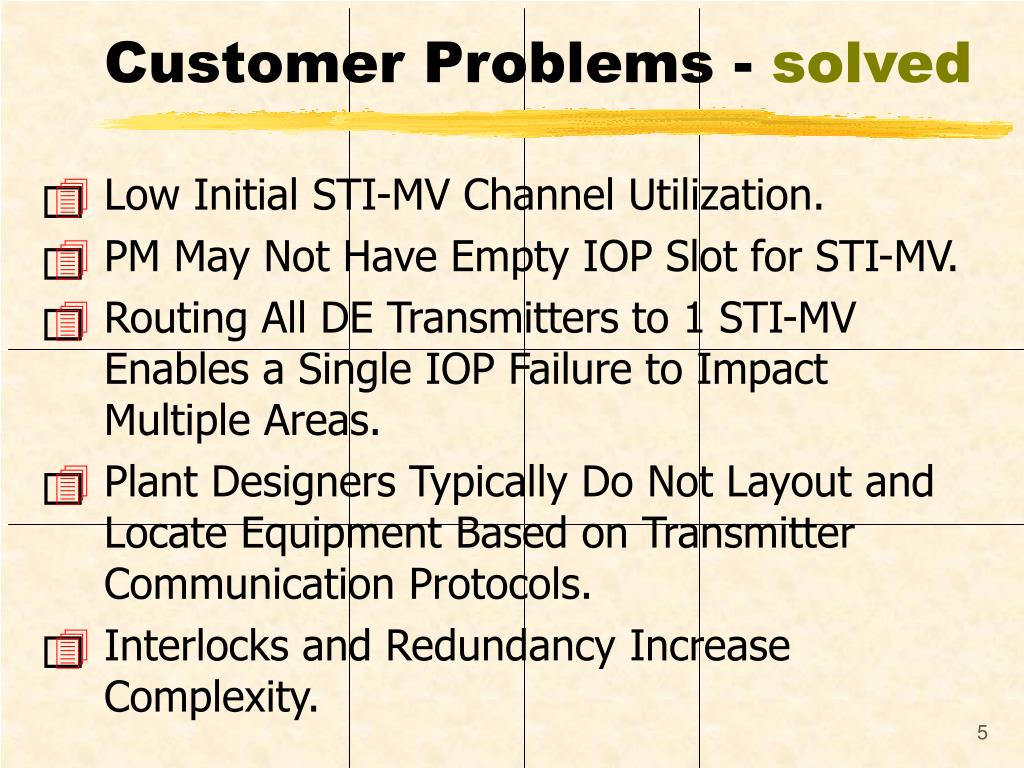

Customer Problems - solved • Low Initial STI-MV Channel Utilization. • PM May Not Have Empty IOP Slot for STI-MV. • Routing All DE Transmitters to 1 STI-MV Enables a Single IOP Failure to Impact Multiple Areas. • Plant Designers Typically Do Not Layout and Locate Equipment Based on Transmitter Communication Protocols. • Interlocks and Redundancy Increase Complexity.
Analog, HART, DE Analog, DE DE FTA CIM STI-MV Analog HART DE Installation • The CIM is installed between the FTA IOP connector and the IOP cable, mounting directly on the FTA’s IOP cable connector. • In redundant applications, two CIMs are required.

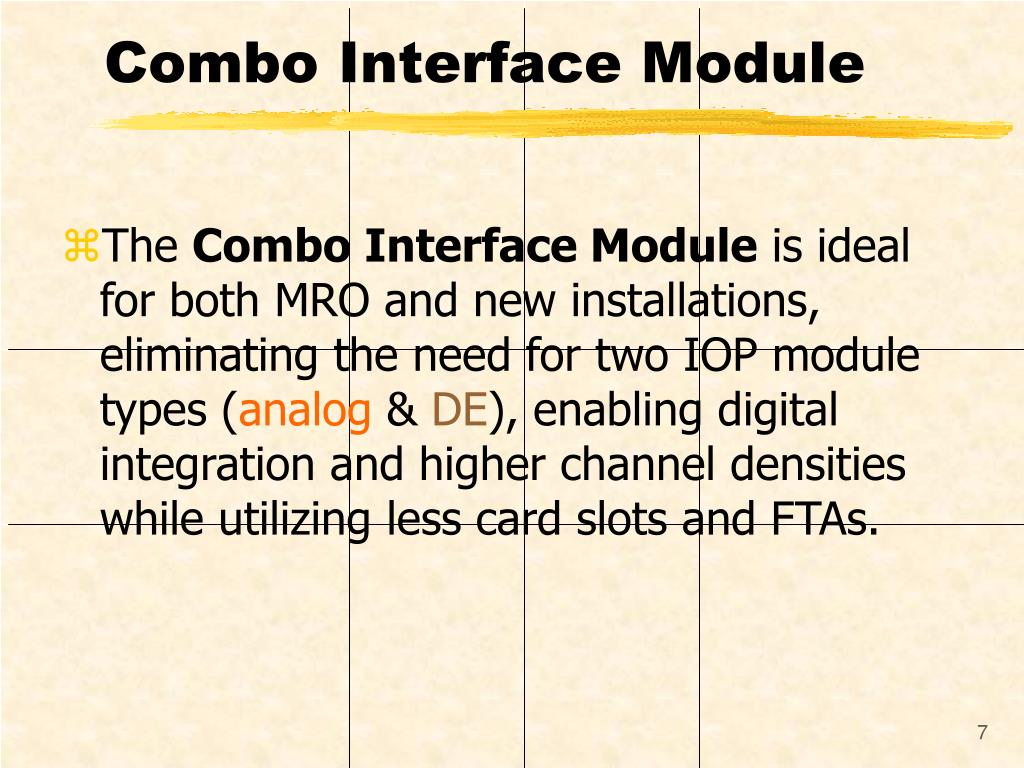

Combo Interface Module • The Combo Interface Module is ideal for both MRO and new installations, eliminating the need for two IOP module types (analog & DE), enabling digital integration and higher channel densities while utilizing less card slots and FTAs.
Operation • The CIM always presents 16 channels of DE data to the STI-MV IOP module, either directly from a DE field instrument or internally generated from the CIM's internal A/D converter.
Per Channel Signal Selection FTA SMV DE (open) (open) (open) ST HART Rosemount ST DE STT DE Rosemount Rosemount SLT DE (open) ST Analog SMV DE (open) (open) (1) PV1 = DP (2) PV2 = AP (3) PV3 = Temp (4) PV4 = Flow (5) 4-20ma (6) 4-20ma (7) PV1 = DP (8) PV1 = Temp (09) 4-20ma (10) 4-20ma (11) PV1 = Level 1 (12) PV2 = Level 2 (13) 4-20ma (14) PV1 = DP (15) PV2 = AP (16) PV3 = Temp FTA
Signal Flow All-Digital(DE) Analog, HART, DE Analog, DE DE FTA CIM STI-MV Analog Analog Analog 4 byte uni-directional DE Analog(Smartline) Analog(HART) DE 4 or 6 byte bi-directional DE 4 or 6 byte bi-directional DE DE HART
Redundancy Analog, HART, DE Analog, DE DE FTA CIM STI-MV(primary) Analog Analog Analog(Smartline) Analog(HART) CIM STI-MV(backup) DE 4 or 6 byte bi-directional DE DE HART
Compatibility • The CIM module is release independent and does NOT require any system modification. • Compatible with all single or multivariable DE, and HART field instruments. • No impact or disturbances from communicator usage on HART or DE channels.
Features • Accepts Analog or Bi-Directional DE on Any Channel*. • Compatible With Any STI-MV and Most FTAs. • Simple to Install & Configure. • Analog-to-DE Transmitter Mode Change from TPS. • No Wiring or Software Changes. * must not violate existing FTA boundary restriction

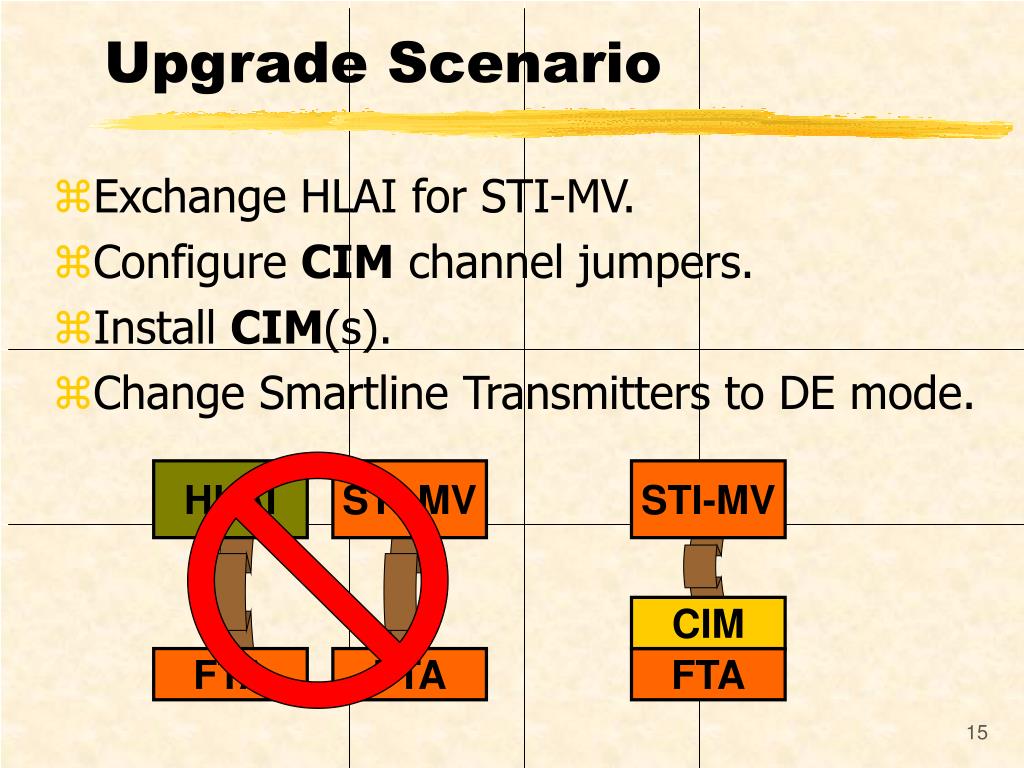

HLAI STI-MV STI-MV CIM FTA FTA FTA Upgrade Scenario • Exchange HLAI for STI-MV. • Configure CIM channel jumpers. • Install CIM(s). • Change Smartline Transmitters to DE mode.
Value • Enables Higher Channel Utilization and IOP Card Density • Release Independent • No Field Wiring Changes • Lowest Migration Cost to Digital Operation
