  1. TOP Server V5.5Features and New Release Presenters: Kevin Rutherford – Senior Applications Engineer & Boyce Baine – Senior Applications Engineer

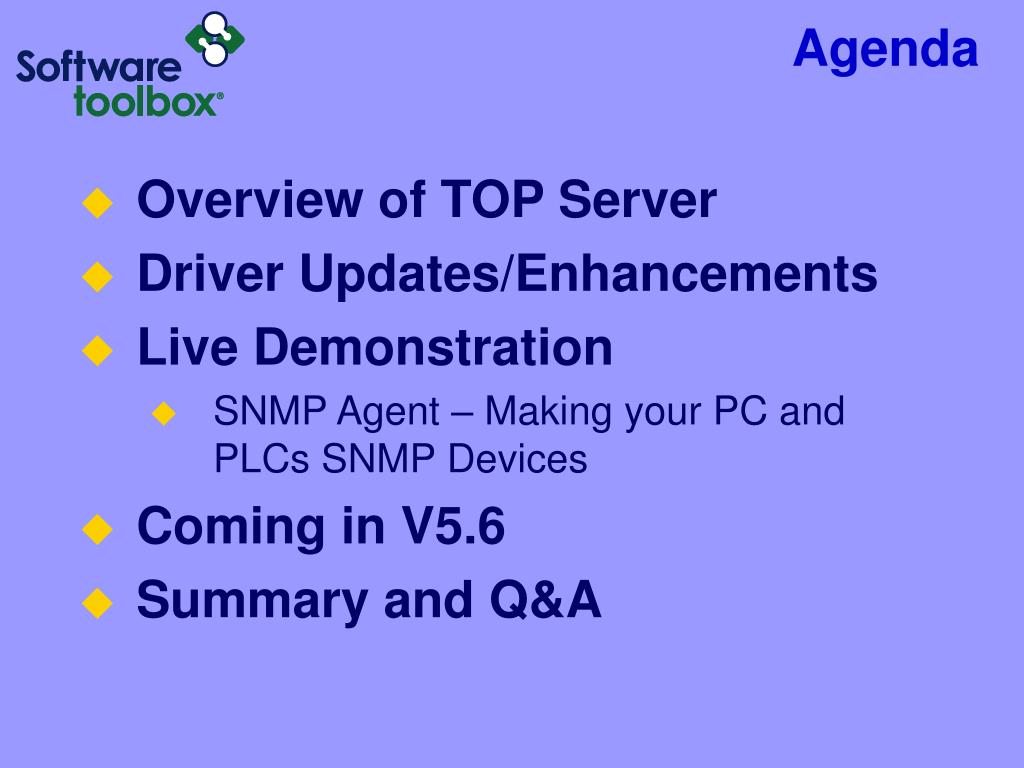

  2. Agenda • Overview of TOP Server • Driver Updates/Enhancements • Live Demonstration • SNMP Agent – Making your PC and PLCs SNMP Devices • Coming in V5.6 • Summary and Q&A

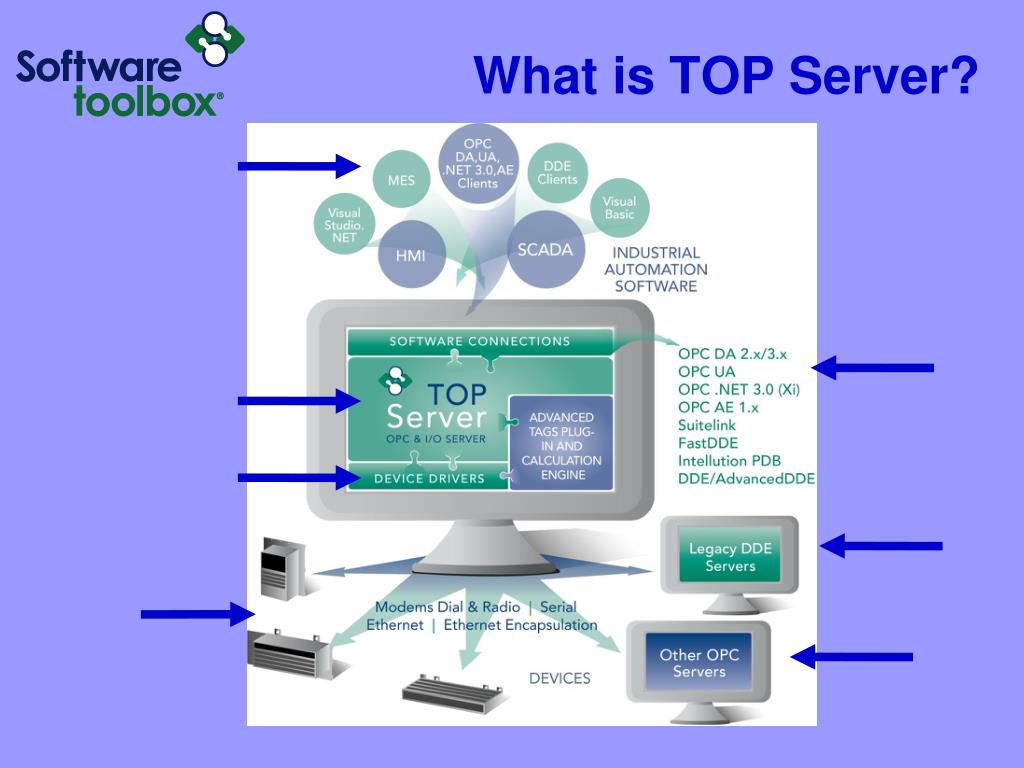

  3. What is TOP Server?

  4. TOP Server Server Enhancements • Enhanced Modem Support • Auto-dialing • Improved Phone # Management • Multiple Tag Generation Tool • Easier to add large numbers of tags • Flexible options for naming conventions

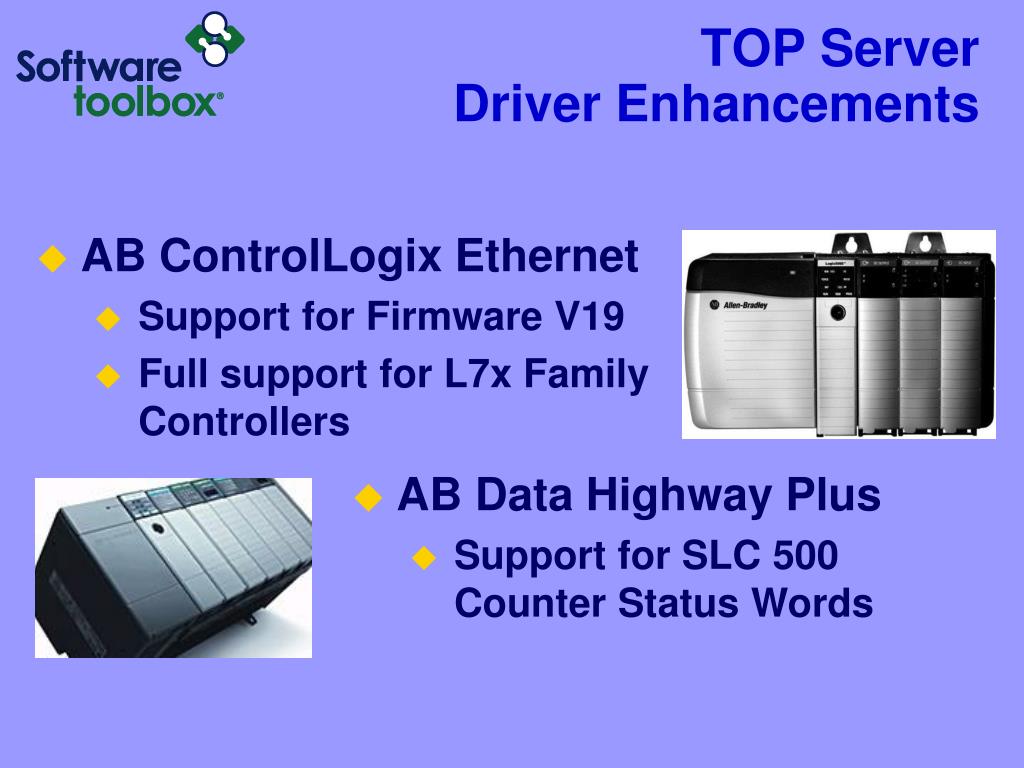

  5. TOP Server Driver Enhancements • AB ControlLogix Ethernet • Support for Firmware V19 • Full support for L7x Family Controllers • AB Data Highway Plus • Support for SLC 500 Counter Status Words

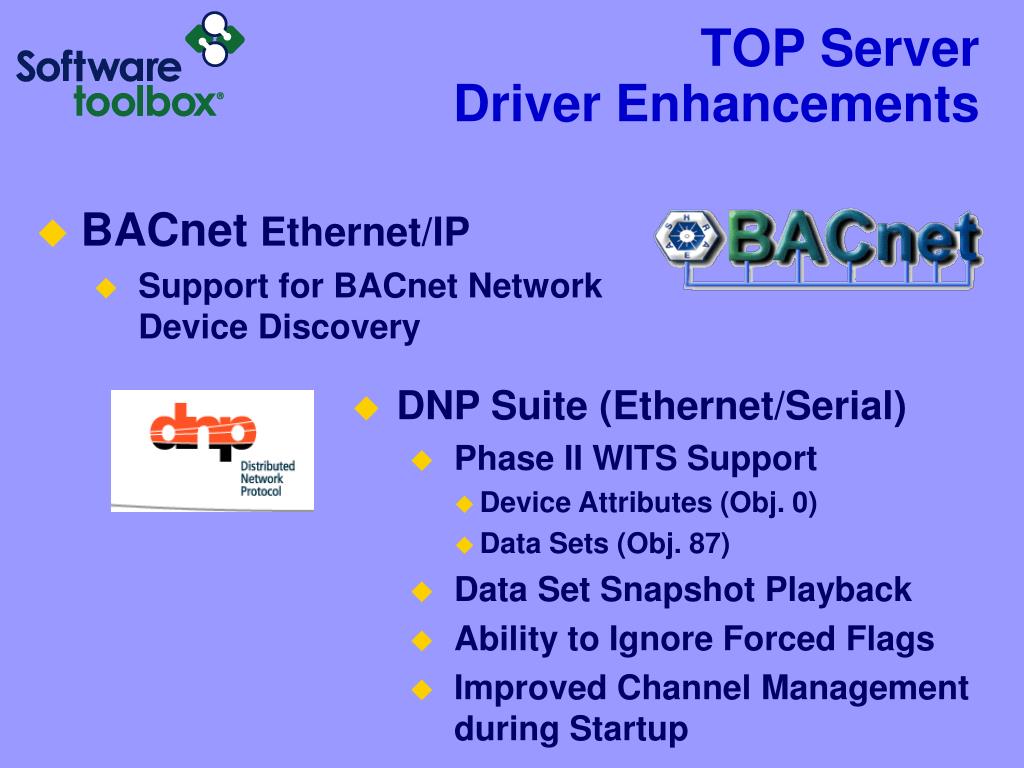

  6. TOP Server Driver Enhancements • BACnet Ethernet/IP • Support for BACnet NetworkDevice Discovery • DNP Suite (Ethernet/Serial) • Phase II WITS Support • Device Attributes (Obj. 0) • Data Sets (Obj. 87) • Data Set Snapshot Playback • Ability to Ignore Forced Flags • Improved Channel Management during Startup

  7. TOP Server Driver Enhancements • Modbus TCP/IP Ethernet • Ability to close socket connection on timeout • OPC Client Suite (DA & UA) • Support for two-dimensional arrays • Yaskawa MP Ethernet • Support for Yaskawa MP2000IEC Device Series

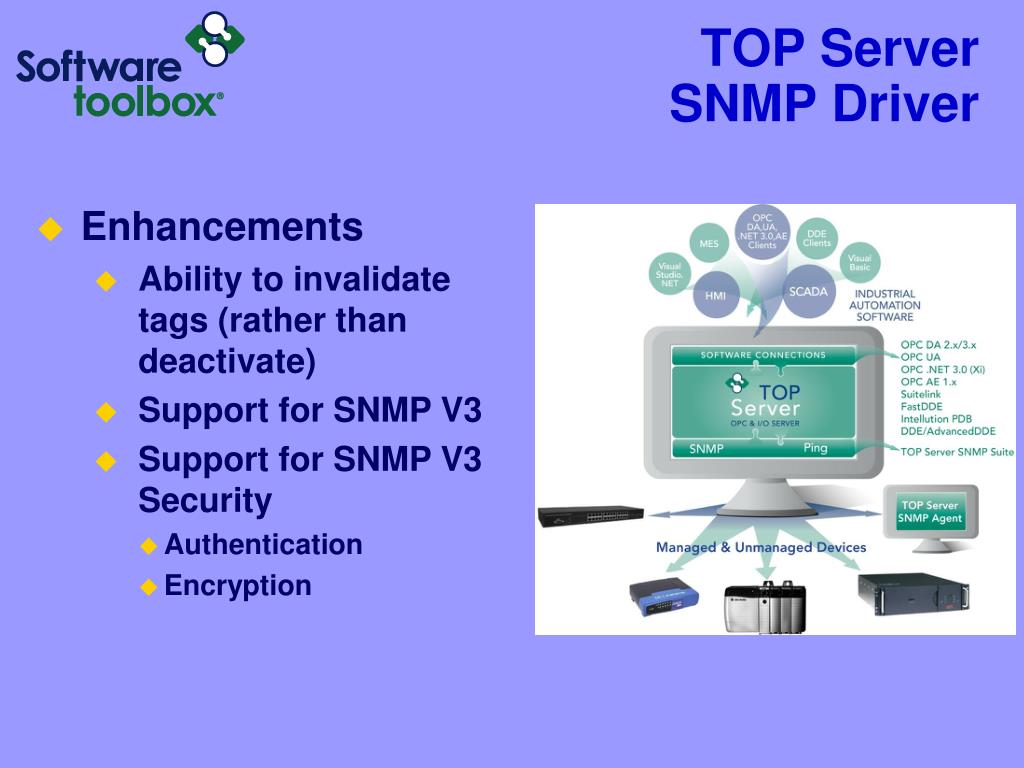

  8. TOP Server SNMP Driver • Enhancements • Ability to invalidate tags (rather than deactivate) • Support for SNMP V3 • Support for SNMP V3 Security • Authentication • Encryption

  9. What is SNMP?

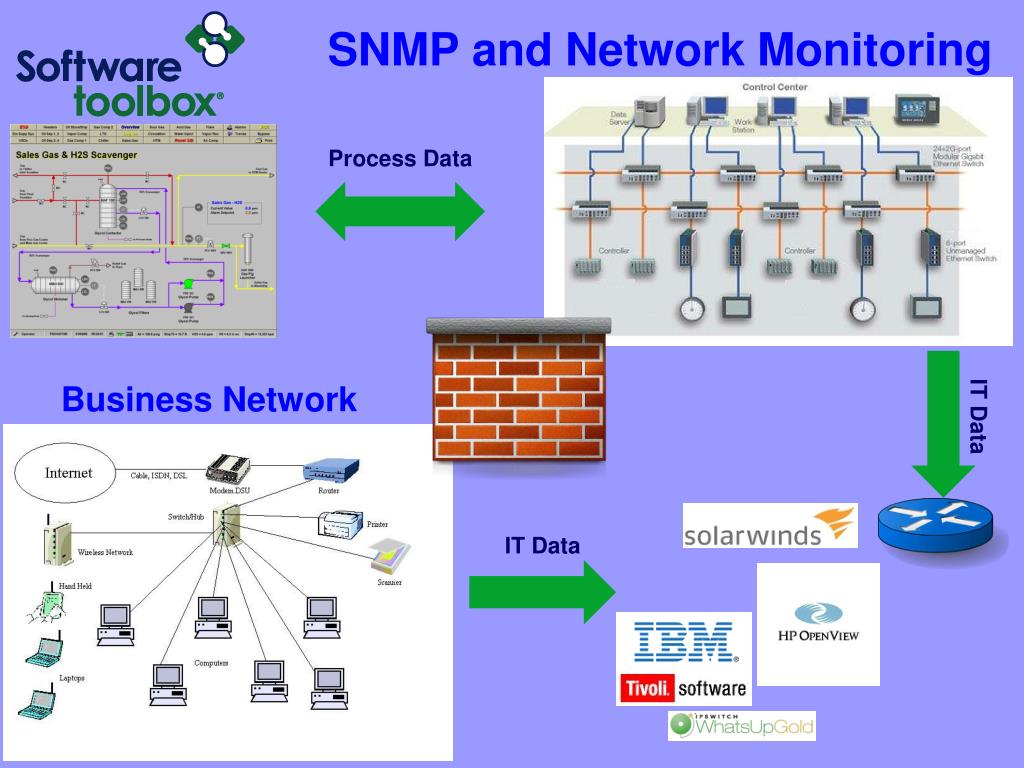

  10. SNMP and Network Monitoring Process Data IT Data Business Network IT Data

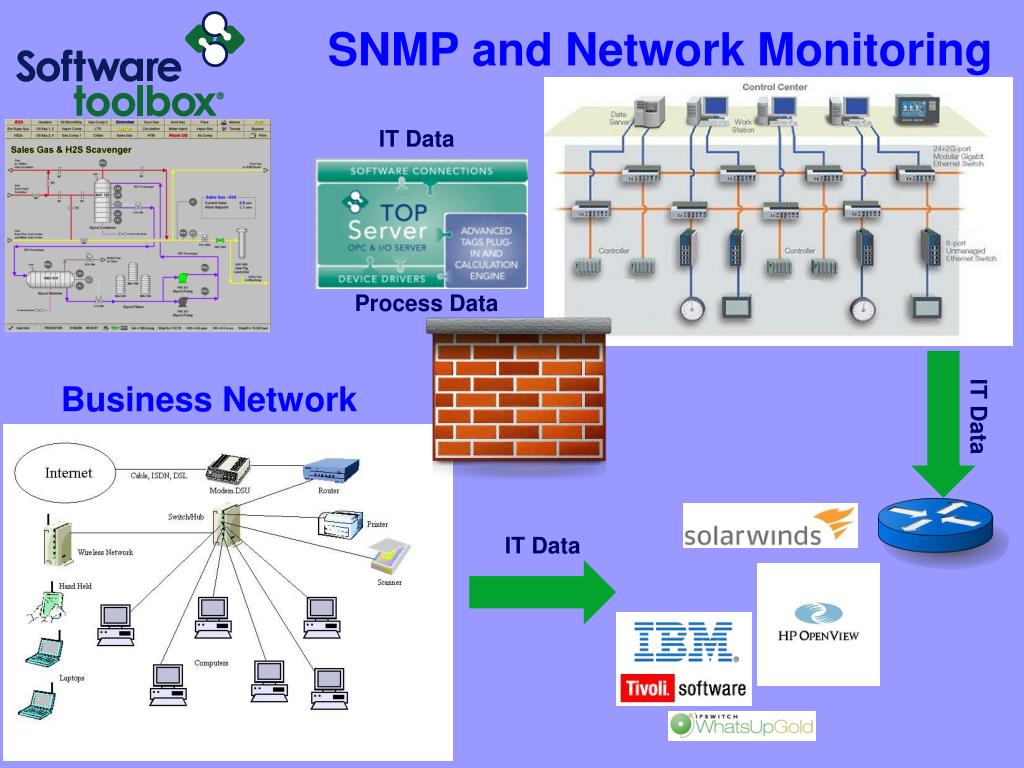

  11. SNMP and Network Monitoring IT Data Process Data IT Data Business Network IT Data

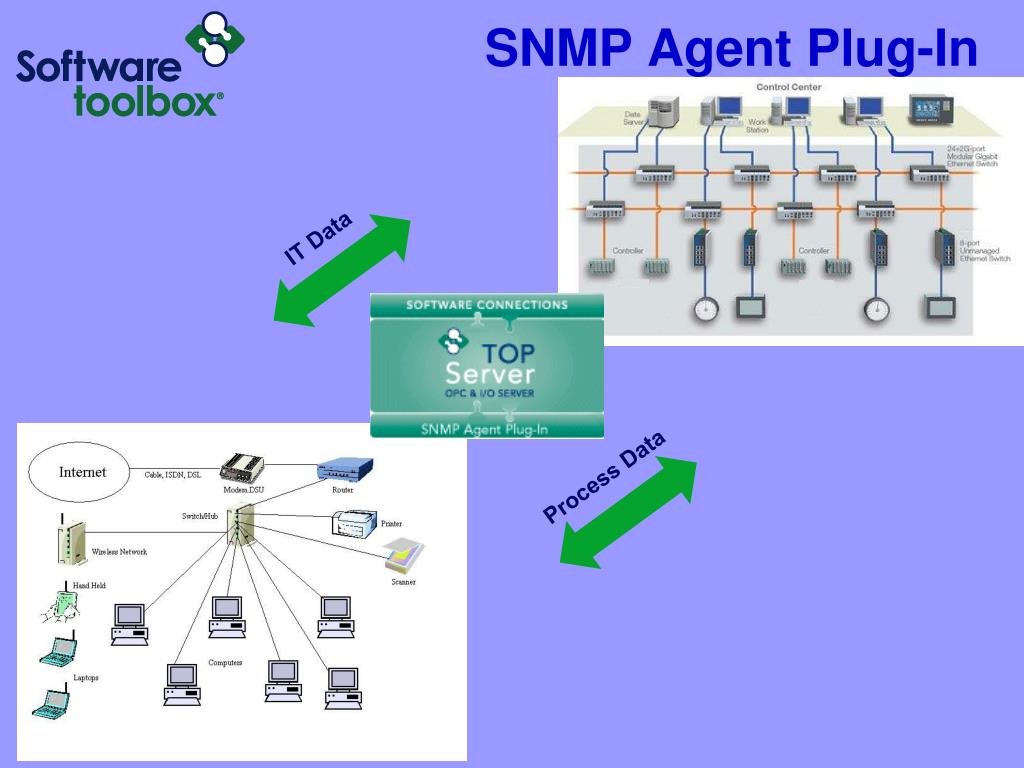

  12. SNMP Agent Plug-In IT Data Process Data

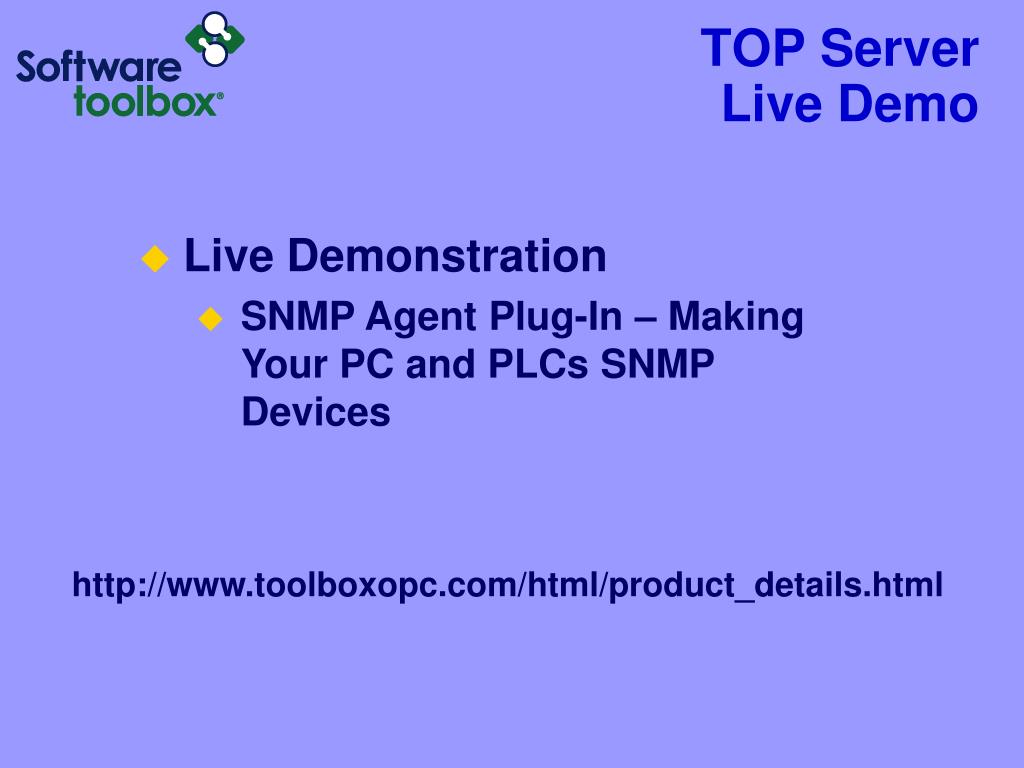

  13. TOP Server Live Demo • Live Demonstration • SNMP Agent Plug-In – Making Your PC and PLCs SNMP Devices http://www.toolboxopc.com/html/product_details.html

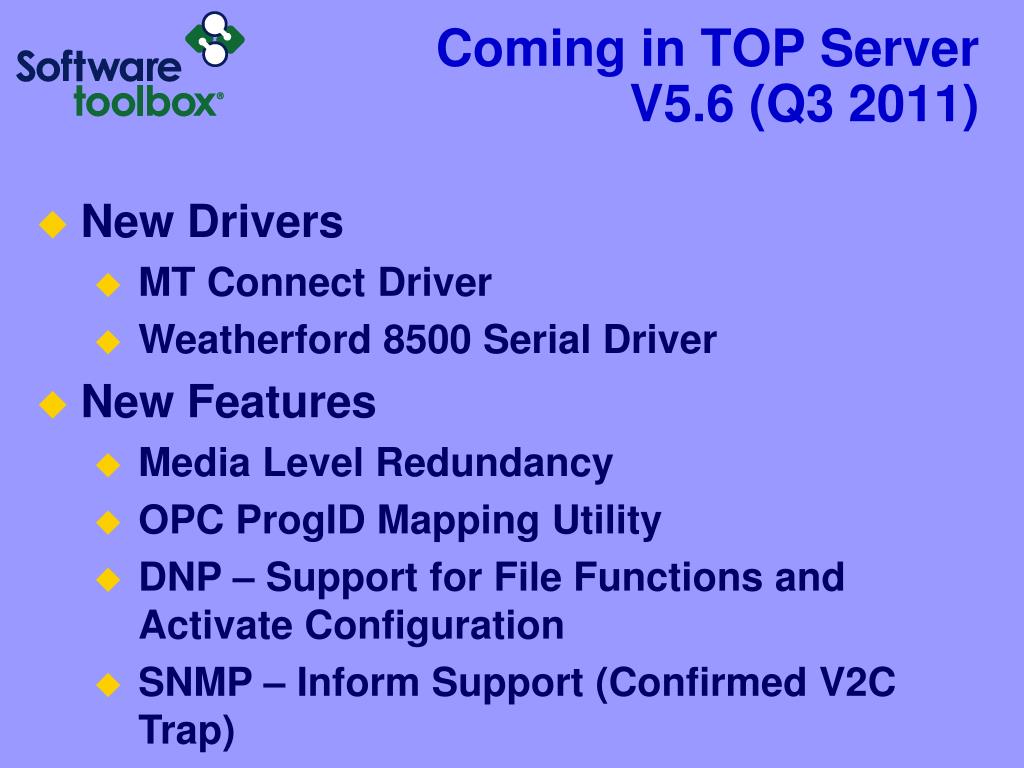

  14. Coming in TOP Server V5.6 (Q3 2011) • New Drivers • MT Connect Driver • Weatherford 8500 Serial Driver • New Features • Media Level Redundancy • OPC ProgID Mapping Utility • DNP – Support for File Functions and Activate Configuration • SNMP – Inform Support (Confirmed V2C Trap)

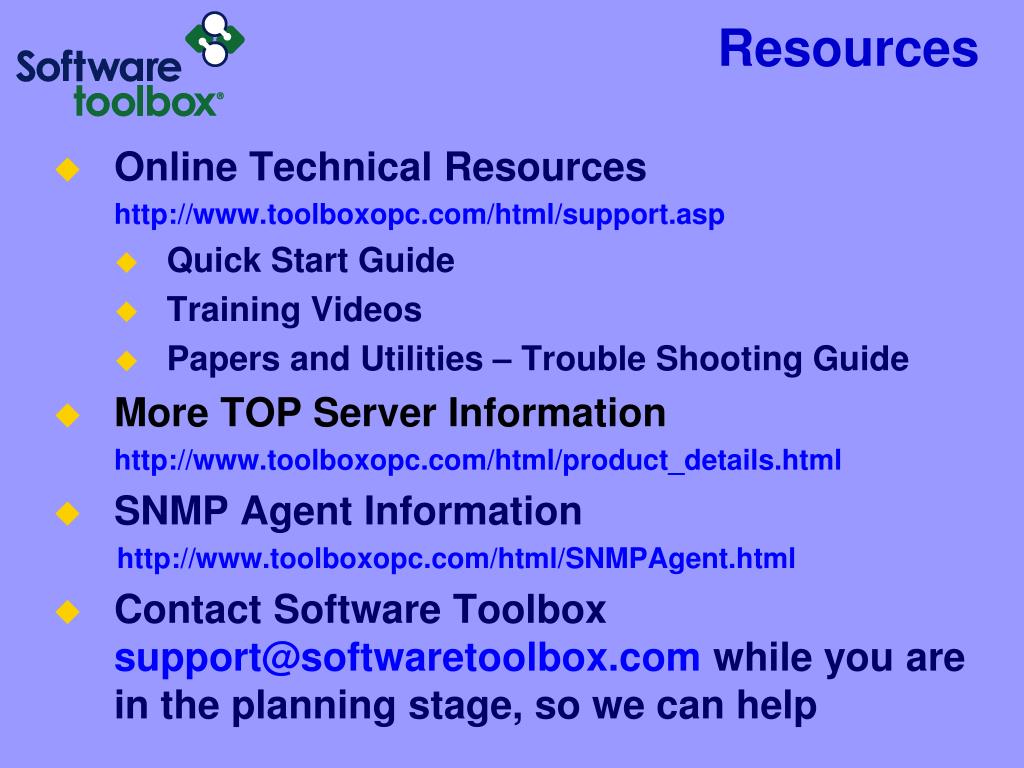

  15. Resources • Online Technical Resources http://www.toolboxopc.com/html/support.asp • Quick Start Guide • Training Videos • Papers and Utilities – Trouble Shooting Guide • More TOP Server Information http://www.toolboxopc.com/html/product_details.html • SNMP Agent Information http://www.toolboxopc.com/html/SNMPAgent.html • Contact Software Toolbox support@softwaretoolbox.com while you are in the planning stage, so we can help

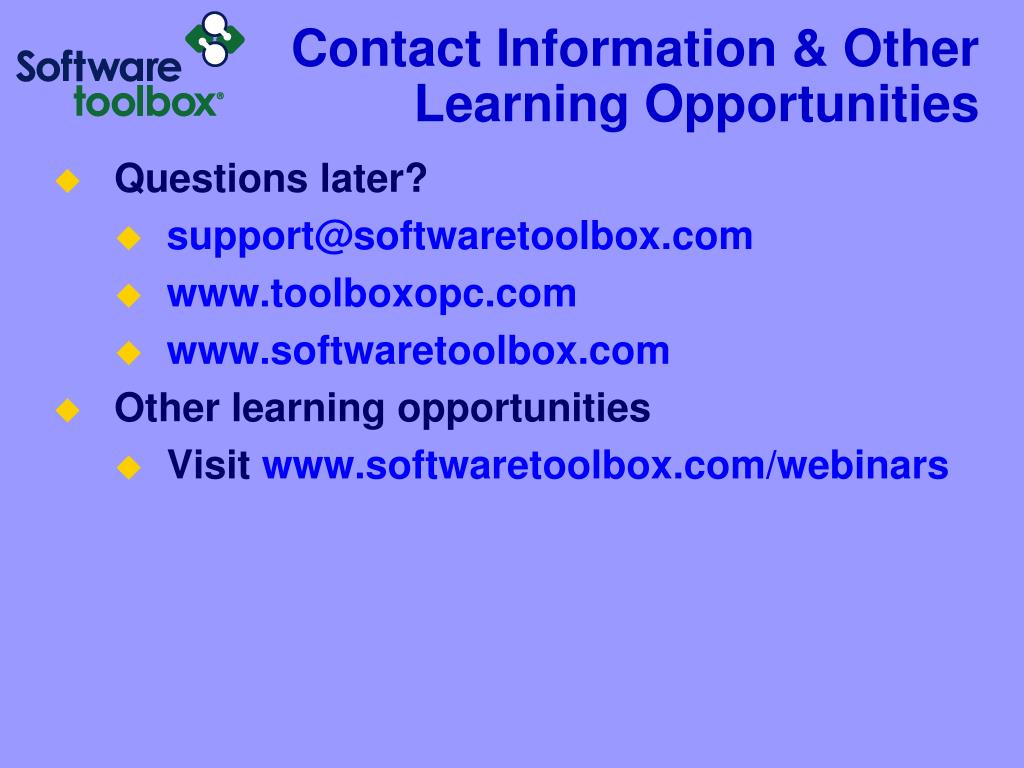

  16. Contact Information & Other Learning Opportunities • Questions later? • support@softwaretoolbox.com • www.toolboxopc.com • www.softwaretoolbox.com • Other learning opportunities • Visit www.softwaretoolbox.com/webinars
