  1. CSCI 530 Lab Firewalls

  2. Overview • Firewalls • Capabilities • Limitations • What are we limiting with a firewall? • General Network Security Strategies • Packet Filtering • Proxy Servers • Firewall Architecture example • netfilter & IPTables

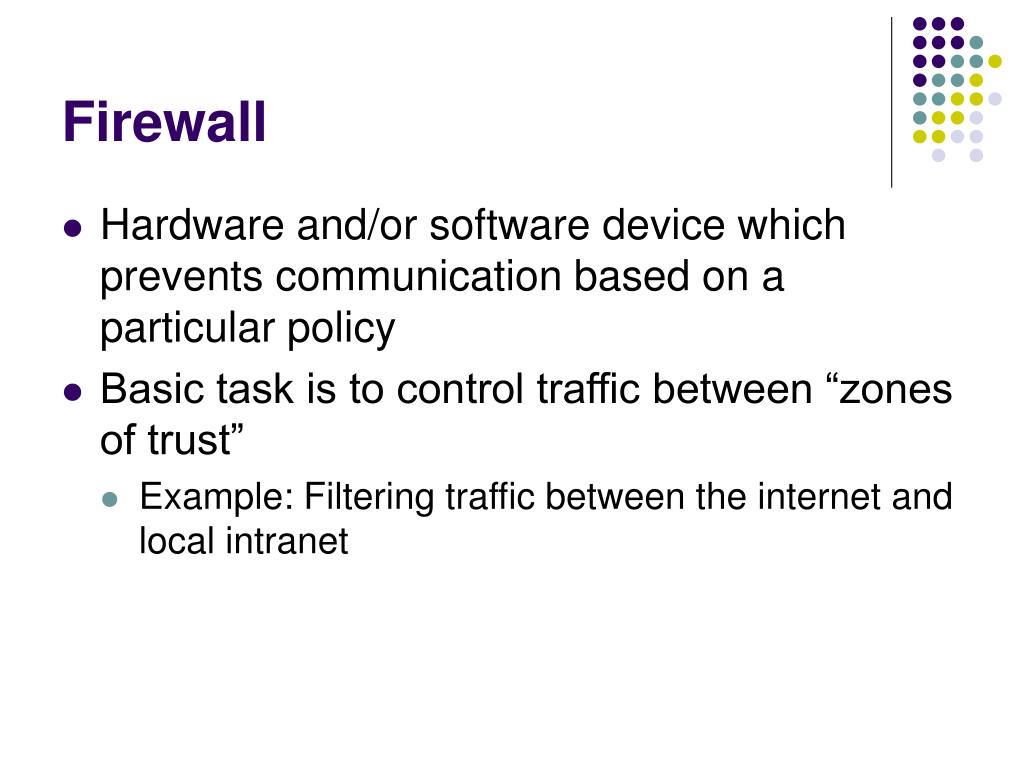

  3. Firewall • Hardware and/or software device which prevents communication based on a particular policy • Basic task is to control traffic between “zones of trust” • Example: Filtering traffic between the internet and local intranet

  4. Firewall Capabilities • Separate your network into logical sections • Enforce Security policy • Many services are intermittently insecure • A firewall limits the amount of exposure of particular services • Logs Internet activity • Limits your network exposure

  5. Firewall limitations • Most cannot automatically adapt to new threats • Cannot stop a malicious user - IDS • Cannot limit traffic that does not pass through it • Cannot stop viruses from permeating the network

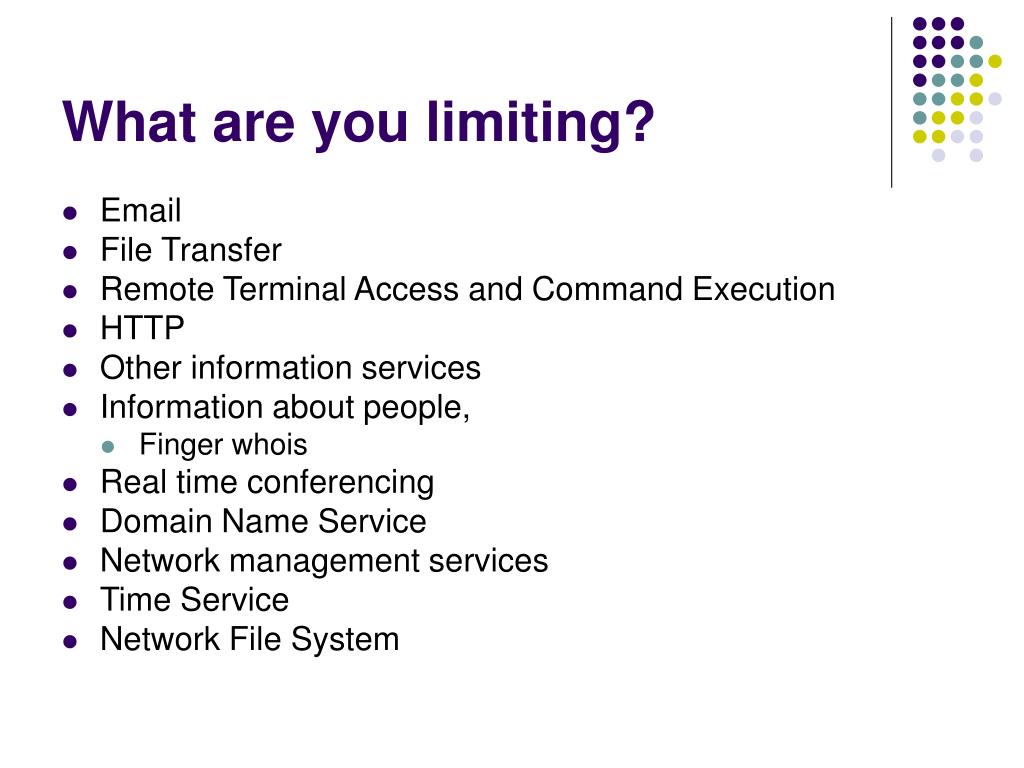

  6. What are you limiting? • Email • File Transfer • Remote Terminal Access and Command Execution • HTTP • Other information services • Information about people, • Finger whois • Real time conferencing • Domain Name Service • Network management services • Time Service • Network File System

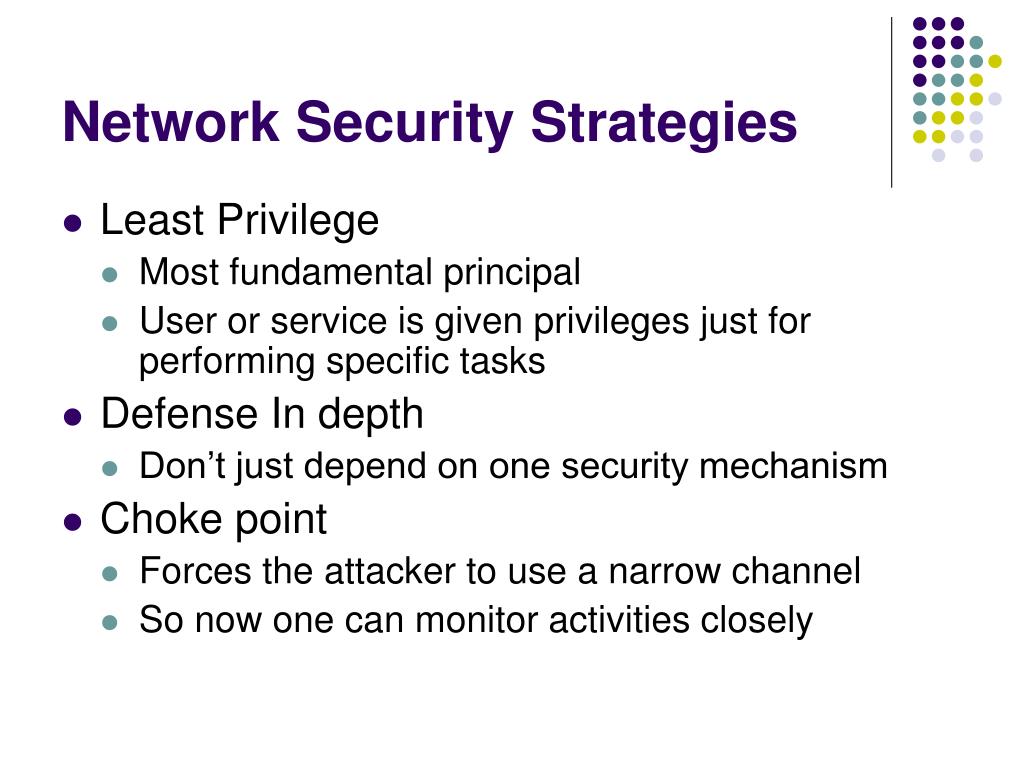

  7. Network Security Strategies • Least Privilege • Most fundamental principal • User or service is given privileges just for performing specific tasks • Defense In depth • Don’t just depend on one security mechanism • Choke point • Forces the attacker to use a narrow channel • So now one can monitor activities closely

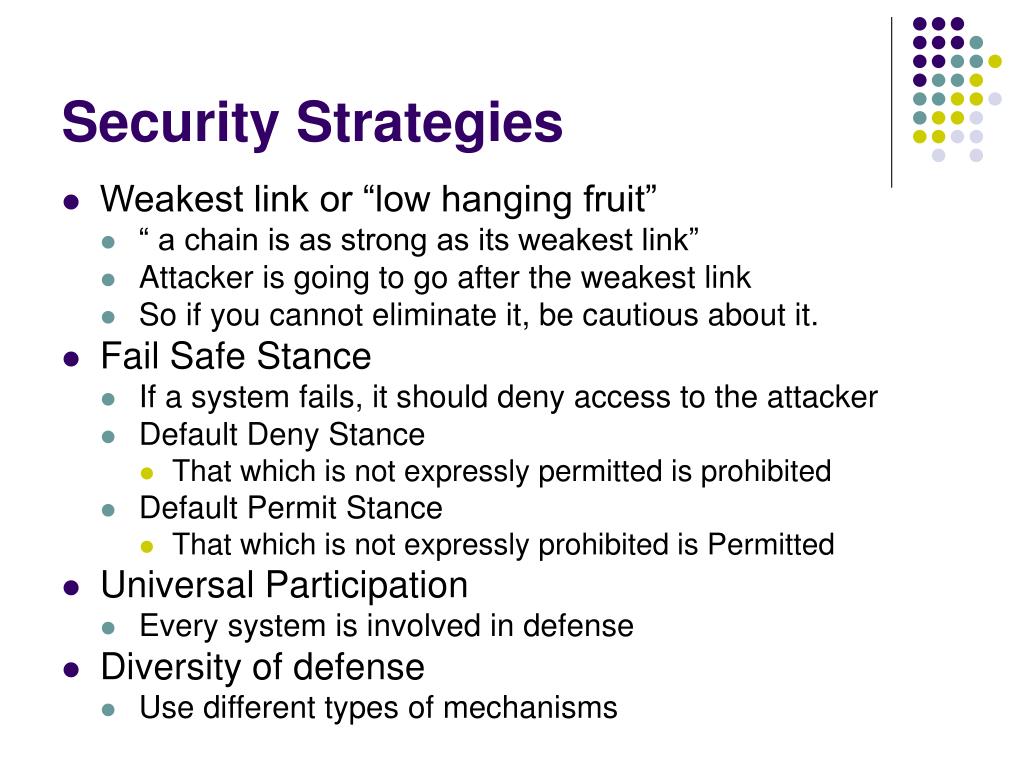

  8. Security Strategies • Weakest link or “low hanging fruit” • “ a chain is as strong as its weakest link” • Attacker is going to go after the weakest link • So if you cannot eliminate it, be cautious about it. • Fail Safe Stance • If a system fails, it should deny access to the attacker • Default Deny Stance • That which is not expressly permitted is prohibited • Default Permit Stance • That which is not expressly prohibited is Permitted • Universal Participation • Every system is involved in defense • Diversity of defense • Use different types of mechanisms

  9. Definitions • Host • A computer system attached to the network • Dual-Homed Host • A host with two network interfaces • Bastion Host • A host which is the portal to a network. It is normally extremely secure. This is normally also a dual-homed host. • Packet • The fundamental unit of data, used for communication on the internet

  10. Firewall – Packet Filtering • Set of rules that either allow or disallow traffic to flow through the firewall • Can filter based on any information in the Packet Header • IP Source Address • IP destination address • Protocol • Source Port • Destination Port • Message type • Interface the packets arrive on and leave

  11. Proxy Servers • Specialized application or server programs that run on a firewall host • Normally a bastion host • These programs sit in between the internal users and servers outside serving for internet applications like telnet, ftp, http… • So instead of talking directly to the external server the requests pass through the proxy • Also called as application level gateways

  12. Proxy servers • How do they work • Proxy server ‘Ps’ • Proxy client ‘Pc’ • Pc talks to the Ps which intern talks to the real server for it, • Before that it checks the security policy and decides whether to go ahead with the connection or not.

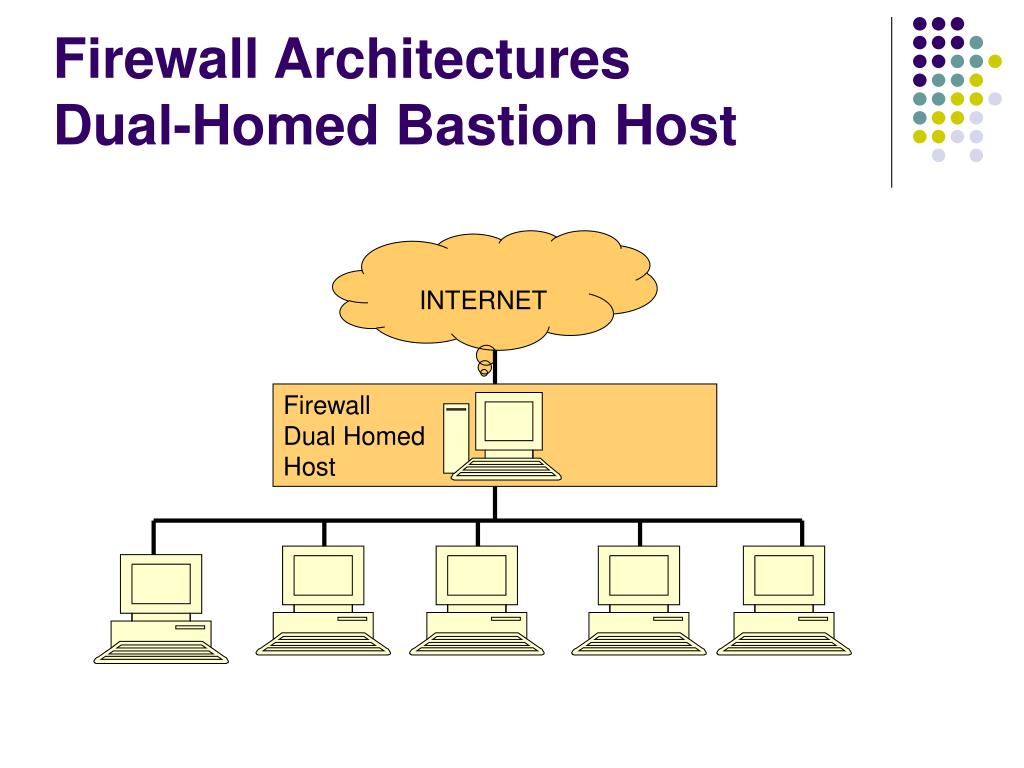

  13. Firewall ArchitecturesDual-Homed Bastion Host INTERNET Firewall Dual Homed Host

  14. Firewall ArchitecturesDual-Homed Bastion Host • Dual homed Host Firewall • Built around dual homed bastion host • Host are capable of routing packets between networks • The host sits between the networks, filtering the traffic between the two • It only provides services by proxy

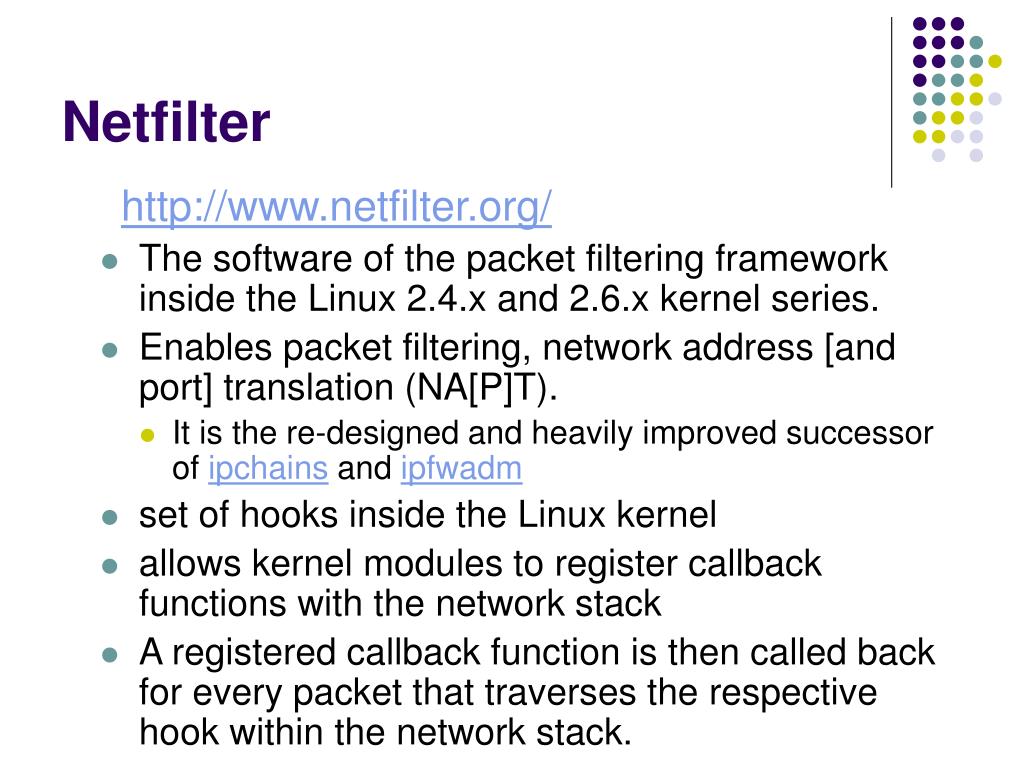

  15. Netfilter http://www.netfilter.org/ • The software of the packet filtering framework inside the Linux 2.4.x and 2.6.x kernel series. • Enables packet filtering, network address [and port] translation (NA[P]T). • It is the re-designed and heavily improved successor of ipchains and ipfwadm • set of hooks inside the Linux kernel • allows kernel modules to register callback functions with the network stack • A registered callback function is then called back for every packet that traverses the respective hook within the network stack.

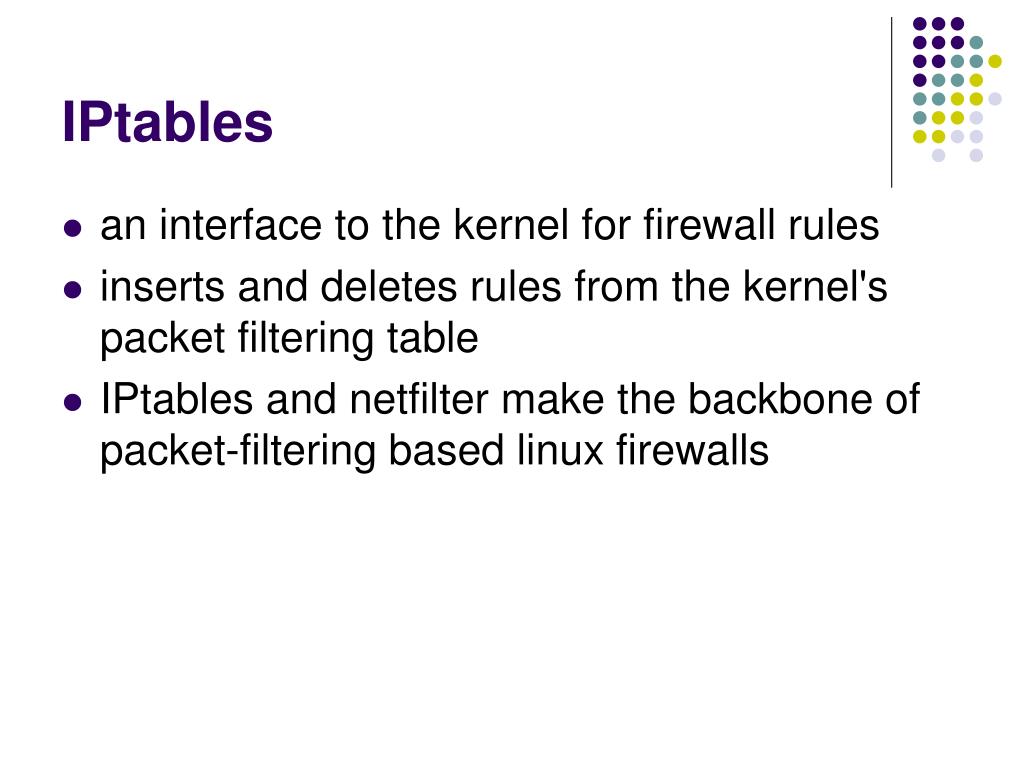

  16. IPtables • an interface to the kernel for firewall rules • inserts and deletes rules from the kernel's packet filtering table • IPtables and netfilter make the backbone of packet-filtering based linux firewalls

  17. Packet Filtering - IPtables • A packet is checked against the rule chains and its fate is decided by the chain • Three sets of rule Chains • INPUT • FORWARD • OUTPUT • A packet comes in, kernel checks for the destination (routing) • If it is for this host, it is passed to INPUT chain • If forwarding enabled, the packet is forwarded to the destination if it is ACCEPTED by the FORWARD chain • If packet is generated in the same box and is being issued out, the OUTPUT chain is referred. • Rules are matched in a chain in a chronological order looking for a match, • If no match is found till the end, decision is taken according to your security policy

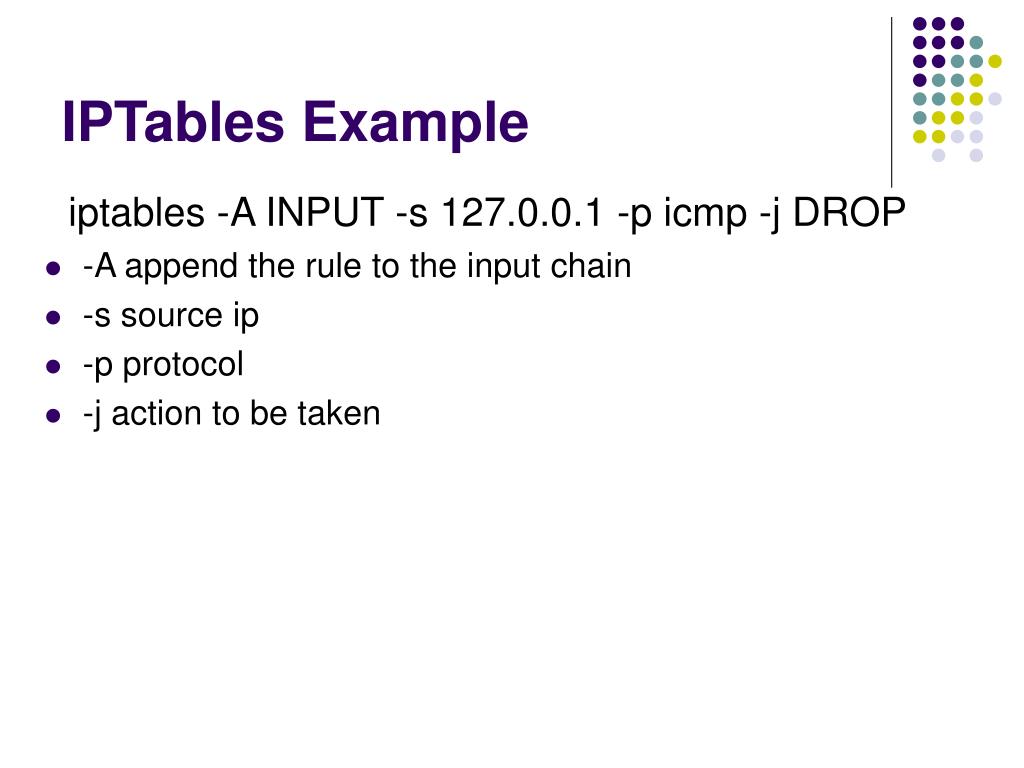

  18. IPTables Example iptables -A INPUT -s 127.0.0.1 -p icmp -j DROP • -A append the rule to the input chain • -s source ip • -p protocol • -j action to be taken
